HTD 8M Timing Belt — Reliable Synchronous Drive for CNC, Industrial & Automation Systems

When a slipping V-belt or mismatched drive component brings your machine to a halt, the cost isn't just the part — it's the downtime. Engineers, machinists, and DIY builders who rely on precise, slip-free power transmission need an HTD 8M timing belt they can count on. Whether you're maintaining industrial conveyor lines, building a CNC router, or replacing a worn drive belt on automation equipment, getting the right belt the first time matters.

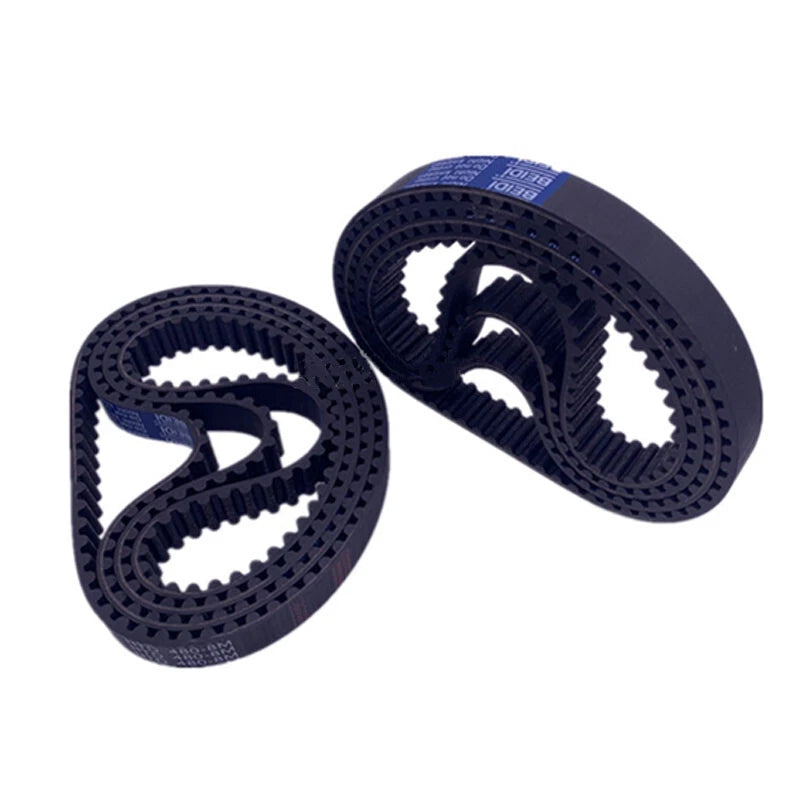

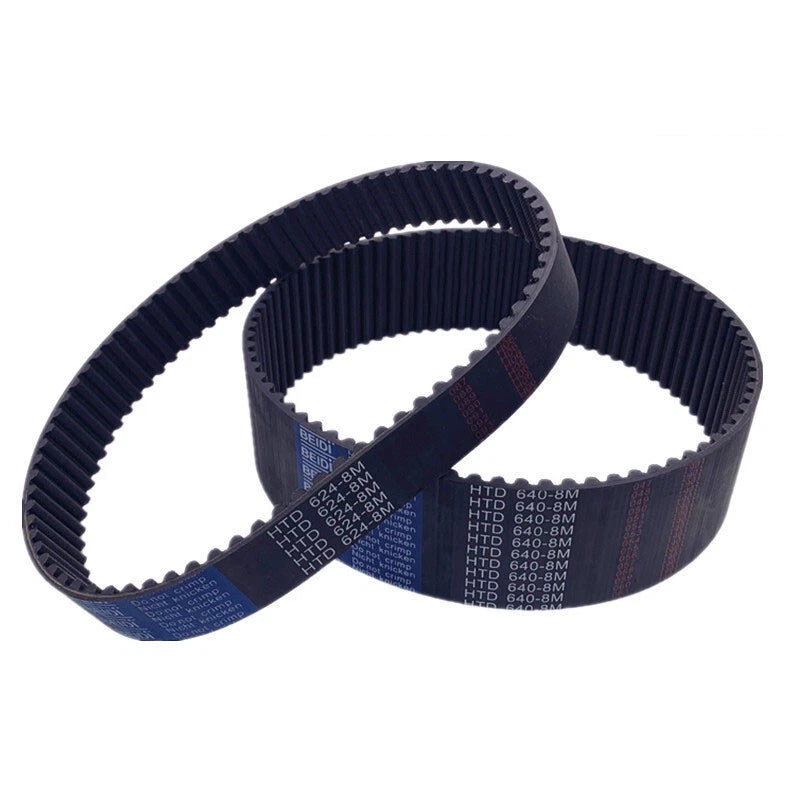

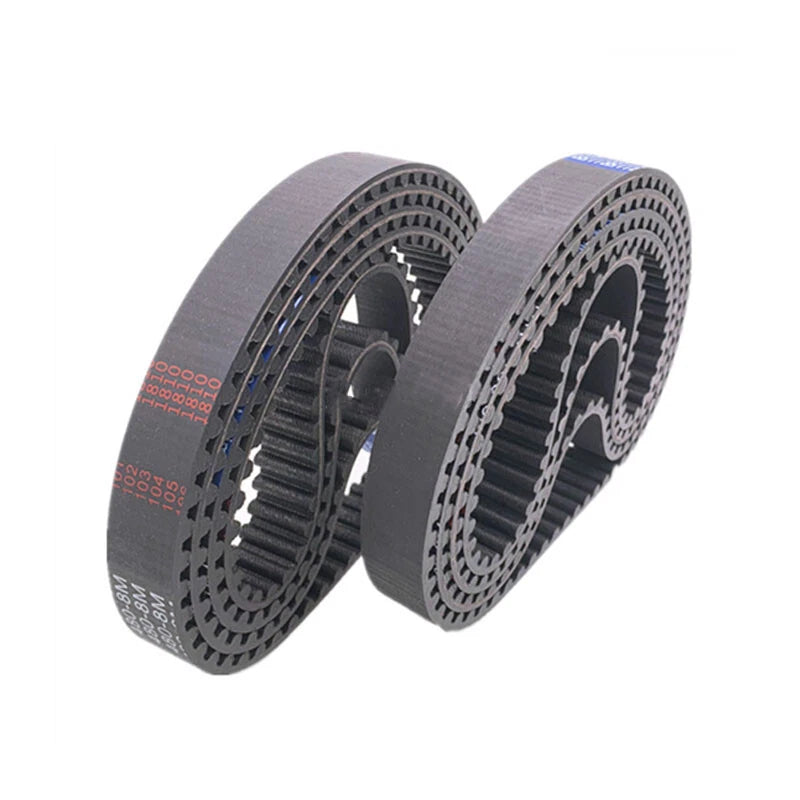

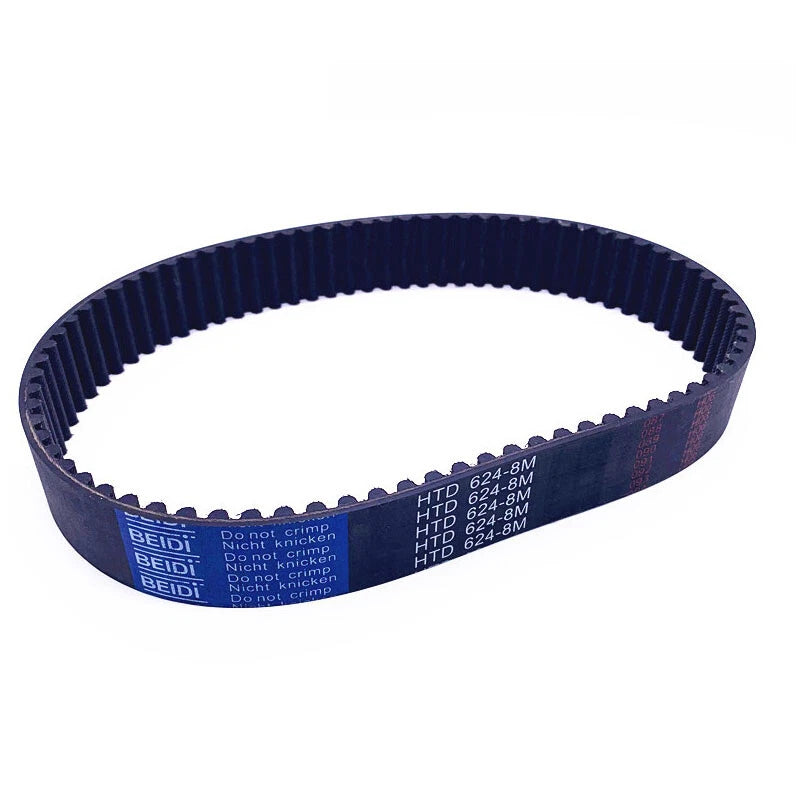

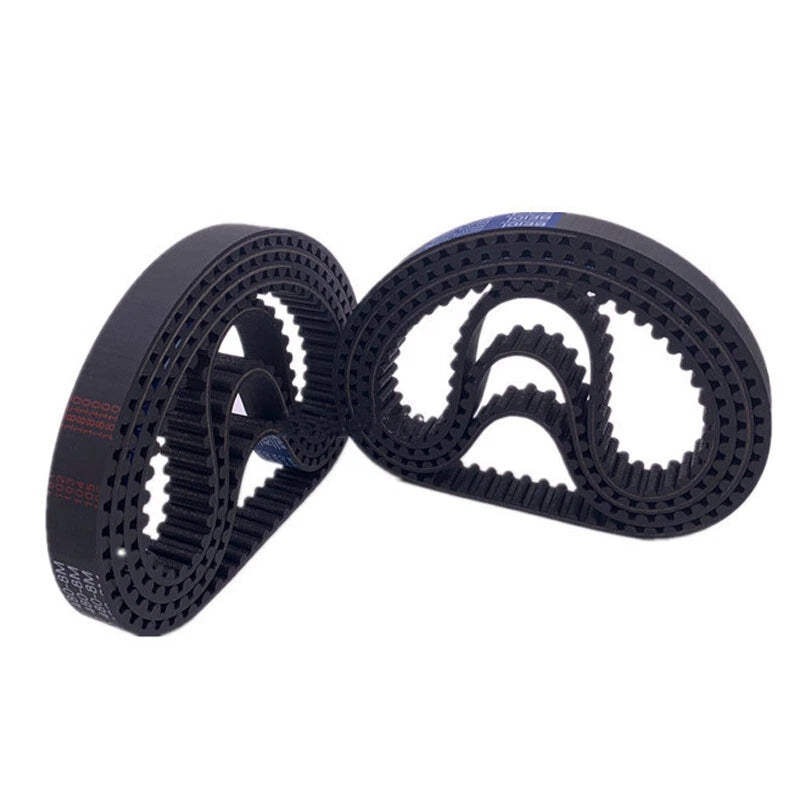

Each belt in this listing is a closed-loop rubber synchronous belt with an 8mm tooth pitch (HTD-8M profile). Available in five widths — 15mm (≈0.59"), 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18"), and 40mm (≈1.57") — and perimeter lengths ranging from 712mm (≈28.0") to 1104mm (≈43.5") in 8mm increments. The rubber construction incorporates tensile cord reinforcement for dimensional stability under load.

Typical applications include CNC machine tool drives, 3D printer Z-axis and extruder systems, robotic arm actuators, conveyor belt drives, and general industrial power transmission where a synchronous HTD 8M rubber belt is specified. The rounded HTD tooth profile distributes load across multiple teeth, making it well-suited for moderate-to-high torque drives where tooth jump must be avoided.

ℹ️ Compatibility Note: These belts use the HTD 8M tooth profile (8mm pitch, rounded curvilinear tooth). They are designed for use with standard HTD 8M pulleys only — not interchangeable with GT2, GT3, or trapezoidal (MXL/XL/L) pulleys. Always match belt width to your pulley groove width.

✅ Key Features of These HTD 8M Synchronous Timing Belts

  • ⚙️HTD 8M Tooth Profile — The 8mm pitch rounded curvilinear tooth design provides positive engagement with HTD pulleys, reducing the risk of tooth jump under load compared to trapezoidal profiles in high-torque synchronous belt drive applications.
  • 📐Wide Size Selection — Available in 49 perimeter sizes from 712mm to 1104mm and five widths (15–40mm), making it straightforward to find the correct replacement HTD 8M rubber timing belt for a wide range of machine configurations without custom ordering.
  • 🔩Tensile Cord Reinforcement — Internal cord reinforcement (typically fiberglass or steel) limits belt elongation under tension, maintaining consistent center-to-center distance and timing accuracy in closed-loop synchronous drive systems.
  • 🌡️Rubber Construction for Flexibility — The rubber body remains flexible across a broad operating temperature range, allowing the belt to wrap smoothly around smaller-diameter pulleys without cracking or stiffening during normal machine operation.
  • 🔄Closed-Loop Design — Each belt is a continuous loop with no joint or splice, eliminating the weak point that spliced belts introduce and providing consistent tension distribution around the full perimeter of the drive.
  • 🏭Broad Application Compatibility — Suitable for CNC routers, laser cutters, 3D printers, conveyor systems, and general industrial drives where a standard HTD 8M synchronous belt is specified — a direct form-fit-function replacement in most HTD 8M drive systems.
⚠️ Before ordering: Confirm your pulley's tooth profile is HTD 8M and that your pulley groove width matches the belt width you select. If you are unsure of your required perimeter, measure your existing belt or calculate using your pulley center distance.

📐 Technical Specifications — HTD 8M Rubber Synchronous Timing Belt

Belt Profile HTD 8M (High Torque Drive, 8mm pitch)
Tooth Pitch 8mm (0.315")
Tooth Profile Rounded curvilinear (HTD standard)
Available Widths 15mm (≈0.59"), 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18"), 40mm (≈1.57")
Available Perimeters 712mm (≈28.0") to 1104mm (≈43.5"), in 8mm increments — 49 sizes
Belt Material Rubber (neoprene-based compound, typically)
Reinforcement Tensile cord (fiberglass or steel — see variant options)
Belt Construction Closed loop, no splice
Compatible Pulley Type HTD 8M pulleys only
Quantity per Order 1 belt per unit
Operating Temperature Contact us to confirm
Max Recommended Speed See variant options / contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters. For example, an 800mm (≈31.5") belt is typically used with a center distance of roughly 300–350mm depending on pulley size. When in doubt, size up — a slightly longer belt can generally be tensioned; a belt that is too short cannot be installed.

What width should I choose — 15mm, 20mm, 25mm, 30mm, or 40mm?

Width selection is driven by the torque load your drive system needs to transmit. Generally, wider belts handle higher torque. For light-duty applications such as 3D printers or small CNC machines, 15mm or 20mm is typically sufficient. For heavier industrial drives or conveyor systems, 25mm–40mm widths are generally recommended. Always match the belt width to your pulley groove width — a 20mm belt requires a pulley with a groove width of at least 20mm.

How much torque or load can an HTD 8M timing belt handle?

HTD 8M belts are designed for medium-to-heavy power transmission. Load capacity depends on belt width and operating speed. Generally, a 20mm-wide HTD 8M belt can transmit several kilowatts at moderate RPM, while wider belts (30mm–40mm) are capable of significantly higher torque. For exact load ratings, consult the drive design guidelines for your specific pulley diameter and speed combination, or contact us to confirm suitability for your application.

Can this timing belt be used outdoors or in wet/damp environments?

These rubber synchronous belts generally provide good resistance to moisture and moderate temperature ranges, making them typically suitable for light outdoor or damp environments. However, prolonged exposure to oils, solvents, or extreme UV radiation may degrade the rubber compound over time. For applications involving harsh chemicals or continuous outdoor exposure, contact us to confirm suitability before ordering.

Are these belts compatible with standard HTD 8M pulleys from other brands?

Yes. These belts follow the HTD (High Torque Drive) 8M profile standard with an 8mm tooth pitch and the characteristic rounded tooth geometry. They are designed to mesh with any standard HTD 8M pulley regardless of brand. Always verify that your pulley groove width matches the belt width you select, and confirm the pulley is specifically an HTD 8M profile — not GT2, GT3, or a trapezoidal profile.

What is the difference between HTD 8M and GT2/GT3 timing belts?

HTD (High Torque Drive) belts have a rounded, curvilinear tooth profile optimized for high-torque, moderate-speed applications. GT2 and GT3 belts use a modified curvilinear profile that generally offers lower backlash and is popular in precision motion applications like 3D printers and CNC machines. HTD 8M belts are not interchangeable with GT2/GT3 pulleys of the same pitch — always match belt profile to pulley profile to ensure proper tooth engagement.

How do I convert the perimeter sizes from mm to inches?

Divide the millimeter value by 25.4 to get inches. Quick reference for common sizes in this listing:

  • 712mm ÷ 25.4 ≈ 28.0"
  • 800mm ÷ 25.4 ≈ 31.5"
  • 900mm ÷ 25.4 ≈ 35.4"
  • 1000mm ÷ 25.4 ≈ 39.4"
  • 1104mm ÷ 25.4 ≈ 43.5"
🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
