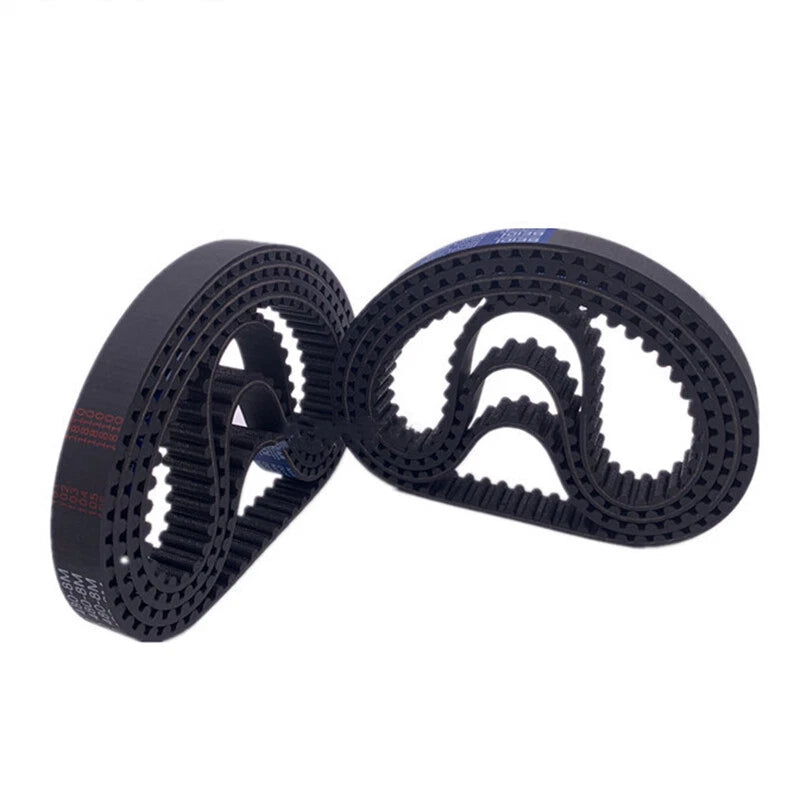

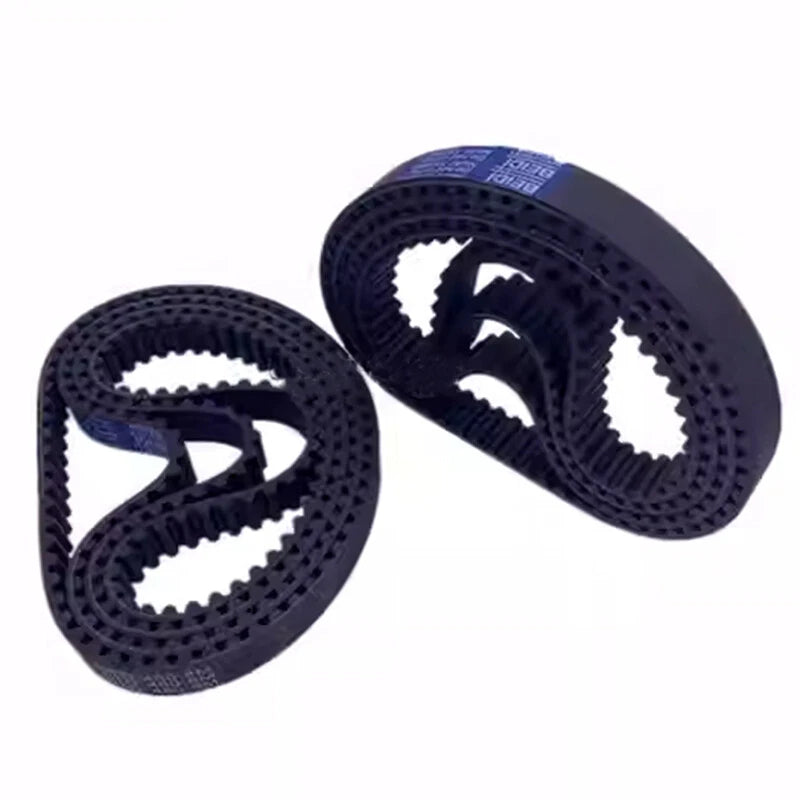

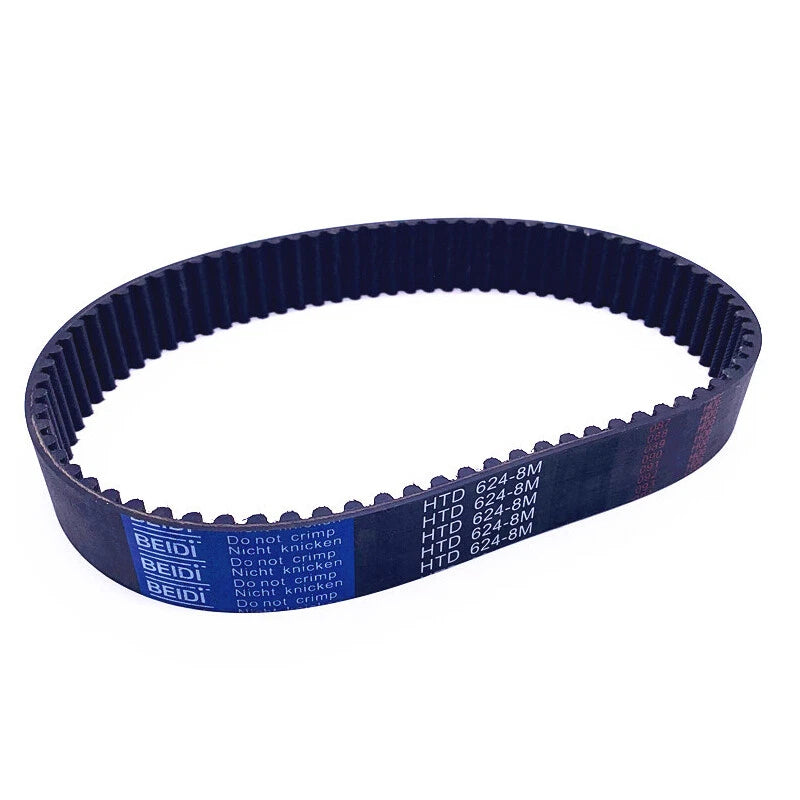

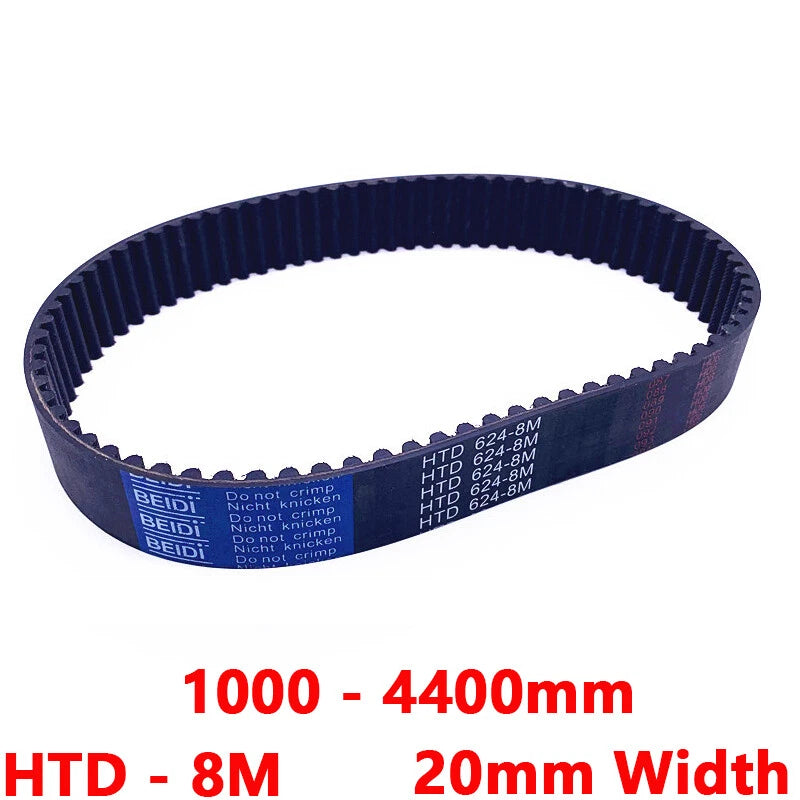

HTD 8M Closed Loop Synchronous Timing Belt — Reliable Power Transmission for Demanding Drives

When your CNC router, conveyor system, or automation rig demands precise, slip-free motion, a worn or mismatched timing belt is the last thing you want. This HTD 8M closed loop synchronous timing belt is built for engineers, makers, and maintenance professionals who need a dependable replacement or upgrade belt that fits right and runs true.

Each belt features an 8mm pitch HTD curvilinear tooth profile with a 20mm (≈0.79") width. Available in circumferences from 1000mm (≈39.4") to 4400mm (≈173.2"), with tooth counts ranging from 125 to 550 teeth — select your exact size from the variant dropdown. The belt is constructed from neoprene rubber with fiberglass cord reinforcement, providing dimensional stability under load.

Typical applications include CNC router X/Y axis drives, industrial conveyor belt replacements, robotic arm actuators, laser cutter gantry systems, and custom automation equipment where an HTD 8M synchronous drive belt is specified.

🔗 Compatibility: Designed for use with HTD 8M pulleys/sprockets only. Not compatible with GT2, GT3, T10, or trapezoidal (XL/L/H) profile pulleys. Belt width: 20mm. Pitch: 8mm.
⚠️ Size Selection: Each variant lists tooth count and circumference in mm. Measure your existing belt or calculate required length before ordering. If unsure, contact us to confirm compatibility.

✅ Key Features of These HTD 8M Synchronous Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-to-heavy torque synchronous drive applications.
  • 📏Wide Size Range — 1000mm to 4400mm — With 183 size variants from 125 to 550 teeth, this listing covers a broad range of closed loop HTD 8M timing belt replacements without needing a custom order.
  • 🔩Fiberglass Cord Reinforcement — Internal fiberglass tension members resist elongation under cyclic loading, helping maintain consistent pitch length and positional accuracy over time.
  • 🏭Neoprene Rubber Construction — The neoprene body offers generally good resistance to oil mist, grease, and moderate temperature variation — conditions commonly found in workshop and light industrial environments.
  • 🎯Closed Loop / Endless Design — No splice, no joint — the seamless closed loop construction eliminates the weak point of jointed belts, providing smoother operation in continuous-duty drive systems.
  • 🚀Drop-In Replacement Fit — Manufactured to standard HTD 8M dimensional specifications, making these belts a straightforward replacement for OEM belts in CNC machines, conveyors, and automation equipment.

📐 Technical Specifications — HTD 8M Synchronous Timing Belt

Belt Profile HTD (High Torque Drive) — Curvilinear
Pitch 8mm (0.315")
Belt Width 20mm (≈0.79")
Tooth Count Range 125 teeth (1000mm) to 550 teeth (4400mm) — see variant options
Circumference Range 1000mm (≈39.4") to 4400mm (≈173.2") — see variant options
Belt Type Closed Loop / Endless Synchronous
Body Material Neoprene rubber
Reinforcement Fiberglass cord tension members
Tooth Face Material Nylon fabric facing (typical for HTD construction)
Compatible Pulley Profile HTD 8M only
Operating Temperature Contact us to confirm
Color Black
Quantity per Order 1 belt

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. Each variant lists both tooth count and circumference in mm — for example, 150 Teeth = 1200mm (≈47.2"). If replacing an existing belt, count the teeth on the old belt or measure its outer circumference.

How do I convert belt length from mm to inches?

Divide the mm value by 25.4. Common examples: 1200mm ÷ 25.4 ≈ 47.2", 1600mm ÷ 25.4 ≈ 63.0", 2000mm ÷ 25.4 ≈ 78.7", 2400mm ÷ 25.4 ≈ 94.5". Each variant in the dropdown clearly shows both tooth count and circumference in mm.

What load or torque can this belt handle?

HTD 8M belts with 20mm width are generally suitable for moderate-to-heavy power transmission in automation and light industrial equipment. Exact load capacity depends on pulley diameter, RPM, and drive configuration. In most cases, this belt is appropriate for CNC gantry drives, conveyor systems, and robotic actuators. Contact us if you need to confirm suitability for a specific torque requirement.

Can this belt be used outdoors or in wet/chemical environments?

Neoprene rubber timing belts generally perform well in indoor environments with oil mist and moderate moisture. They are typically not recommended for prolonged outdoor UV exposure or continuous water immersion. For harsh chemical or outdoor environments, a polyurethane (PU) HTD belt may be more appropriate. Contact us to confirm if your environment is suitable.

What pulley profile is compatible with this belt?

This belt uses the HTD 8M tooth profile and is only compatible with HTD 8M pulleys/sprockets. It is not interchangeable with GT2, GT3, T10, or trapezoidal (MXL/XL/L/H) profile pulleys. Always verify your pulley profile before ordering — mixing profiles will cause premature wear or belt failure.

What is the difference between HTD and GT2/GT3 belt profiles?

HTD (High Torque Drive) belts have a rounded curvilinear tooth designed for higher torque with lower stress concentration than trapezoidal belts. GT2/GT3 profiles are a further refinement with even lower backlash, commonly specified for precision CNC and 3D printing axes. HTD 8M is generally preferred for higher-torque industrial drives where absolute zero-backlash is not the primary requirement.

Is this belt suitable for CNC machines, 3D printers, or laser cutters?

Yes — HTD 8M belts are commonly used in CNC routers, laser cutter gantry systems, and larger-format 3D printers that require higher torque capacity. For small desktop 3D printers (standard Ender, Prusa, etc.), a 2GT or 3GT belt is typically specified instead. Always confirm your machine's belt profile and pitch before ordering.

🛒 Select your size (tooth count / length) above, then add to cart — ships from our US warehouse.
