HTD 8M Timing Belt 25mm Wide — Precise Power Transmission for CNC & Stepper Motor Drives

When a slipping or mismatched belt causes positioning errors on your CNC router, laser cutter, or 3D printer gantry, the entire project suffers. Machinists, fabricators, and motion-system builders who need reliable, zero-slip power transmission rely on the correct belt profile and an exact length match — and finding both in one place is rarely easy.

This HTD 8M timing belt features an 8mm pitch HTD tooth profile with a 25mm (≈1") belt width, constructed with a neoprene rubber body and a high-tensile fiber cord for low elongation under load. Available in 247 cut lengths from 264mm (≈10.4") to 2800mm (≈110.2"), each sold individually (1 Pcs per order) so you can order exactly what your build requires without buying a bulk roll.

Typical applications include CNC router X/Y axis drives requiring an HTD 8M belt for stepper motor, laser engraver gantry belt replacement, large-format 3D printer Z-axis timing belt, and industrial conveyor or indexing table synchronization where an 8mm pitch closed-loop timing belt is specified.

ℹ️ Compatibility Notice: This belt uses the HTD 8M profile (8mm pitch, curved tooth). It is not interchangeable with GT2, T5, T8, or MXL profiles. Verify your pulley is rated for HTD 8M × 25mm width before ordering.

✅ Key Features of These HTD 8M Timing Belts

  • 📐 247 Exact Lengths Available — From 264mm (≈10.4") to 2800mm (≈110.2"), select the precise closed-loop length your CNC or stepper motor drive requires without cutting or splicing.
  • ⚙️ HTD 8M Tooth Profile — The curved HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque stepper motor timing belt applications.
  • 📏 25mm Belt Width — Wider than standard 15mm or 20mm variants, the 25mm width increases the load-carrying capacity, making it suitable for heavier gantry assemblies and dual-drive axis configurations.
  • 🔩 Low-Elongation Tension Cord — The embedded high-tensile fiber cord (typically fiberglass or steel) resists stretching under dynamic loads, maintaining consistent positioning accuracy over extended duty cycles.
  • 🌡️ Neoprene Rubber Body — The neoprene compound generally provides resistance to oil mist, moderate moisture, and temperature ranges typically encountered in workshop and light industrial environments.
  • 🔄 Closed-Loop Construction — Each belt is a continuous loop with no joint or splice, ensuring smooth, vibration-free rotation and consistent tooth engagement with your HTD 8M pulley system.

📐 Technical Specifications — HTD 8M Timing Belt

⚠️ Some specifications below are based on standard HTD 8M industry parameters. Confirm critical load ratings with us before use in safety-critical applications.

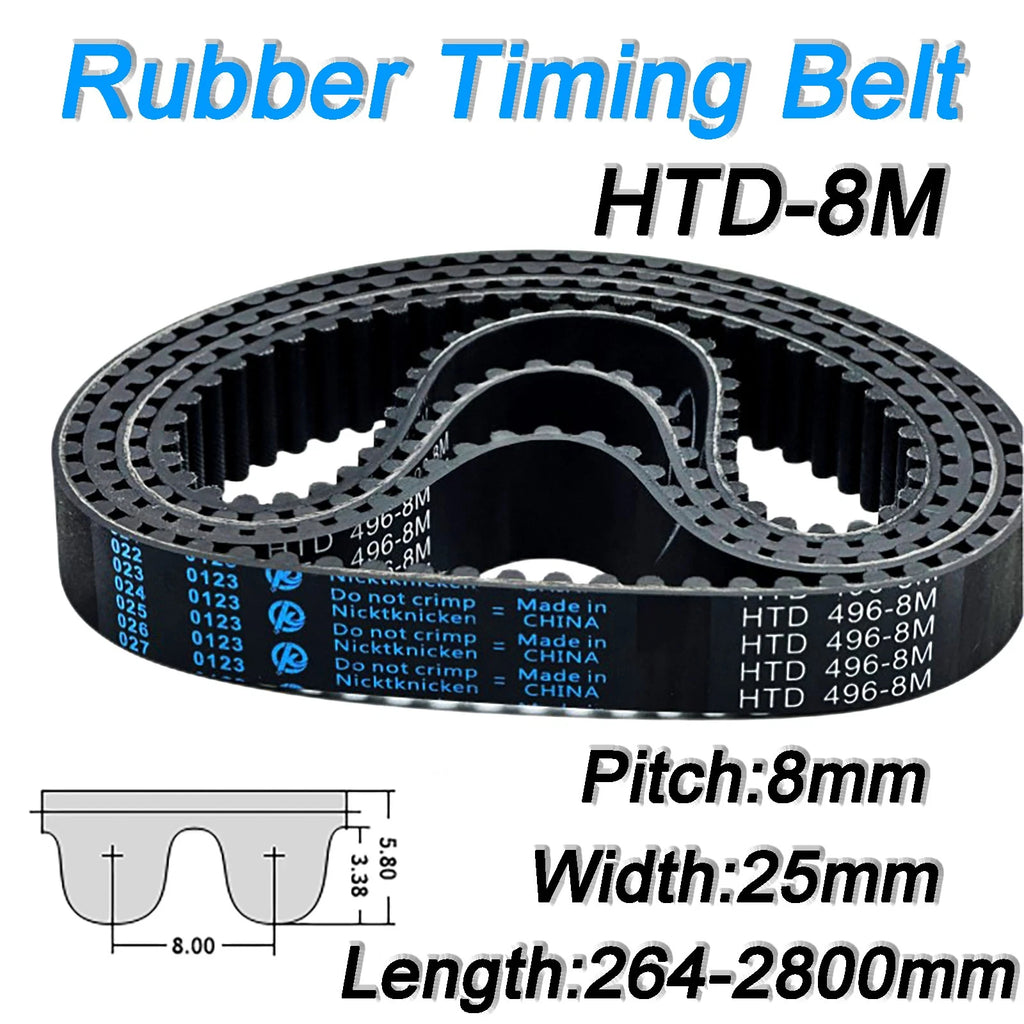

Belt Profile HTD 8M (High Torque Drive, curved tooth)
Pitch 8mm (≈0.315")
Belt Width 25mm (≈1")
Available Lengths 264mm (≈10.4") to 2800mm (≈110.2") — 247 sizes

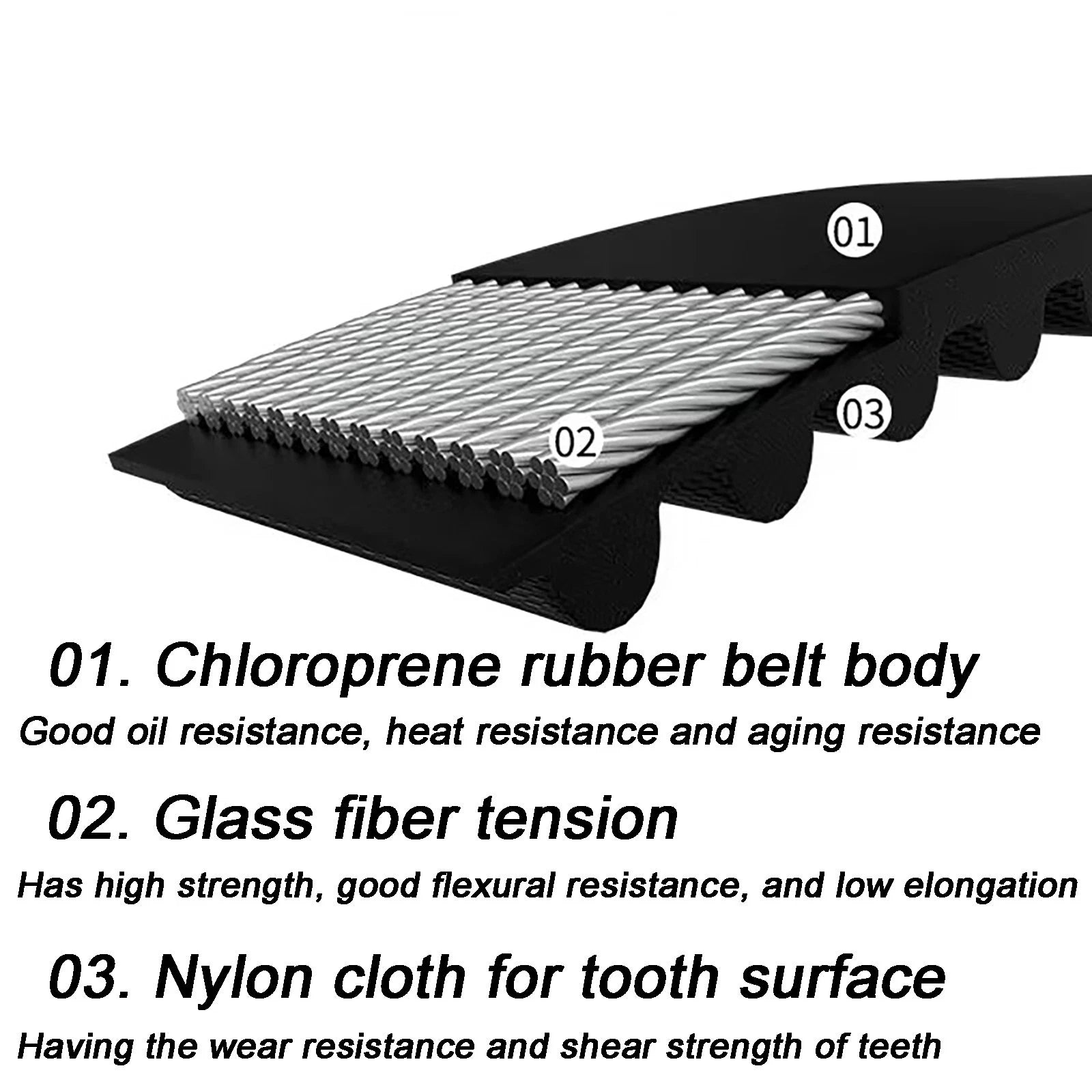

Belt Construction Closed loop (no splice)
Body Material Neoprene (CR) rubber
Tension Member High-tensile fiber cord (typically fiberglass or steel — see variant)
Tooth Face Material Nylon fabric facing (typical for HTD profile)
Operating Temperature Typically -30°C to +80°C (-22°F to +176°F)
Tensile Load Rating See variant options — contact us to confirm
Compatible Pulley Standard HTD 8M, 25mm width pulleys
Quantity per Order 1 Pcs
Sold By Individual belt (select length above)

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula:
Belt Length = 2 × C + π × (D1 + D2) / 2
where C is the center distance and D1/D2 are the pulley pitch diameters. Round up to the nearest available size. For reference: 500mm ≈ 19.7", 1000mm ≈ 39.4", 1500mm ≈ 59.1", 2000mm ≈ 78.7". We offer 247 lengths so you can typically find an exact or near-exact match.

What tensile strength or load rating does this belt have?

HTD 8M belts in the 25mm width class typically carry a rated tensile load of approximately 1,500–2,500 N, depending on the cord material and construction. The high-tensile cord generally provides strong resistance to elongation under dynamic loads. Contact us to confirm the exact rated load for your specific application before use in high-duty-cycle or safety-critical systems.

Can I use this belt outdoors or in a wet/oily environment?

The neoprene rubber body generally offers moderate resistance to oil mist, water splash, and mild chemicals — conditions common in workshop environments. In most cases, occasional moisture contact is acceptable. Prolonged submersion or exposure to strong solvents is not recommended. For continuous outdoor or high-humidity installations, contact us to confirm suitability.

Is this belt compatible with GT2, T5, or other belt profiles?

No. This belt uses the HTD 8M profile — an 8mm pitch with a curved (rounded) tooth geometry. It is not interchangeable with GT2 (2mm pitch), T5 (5mm pitch), T8 (8mm trapezoidal), MXL, or XL profiles. Always verify that your pulley is specifically designed for HTD 8M with a 25mm belt width before ordering.

Is this belt suitable for CNC routers, laser cutters, or 3D printers?

Yes. HTD 8M timing belts are widely used in CNC router axis drives, laser engraver gantry systems, and large-format 3D printer motion systems where higher torque transmission is needed compared to lighter GT2 or T5 belts. The 25mm width provides additional load capacity for heavier gantry assemblies and dual-motor drive configurations. Confirm your pulley specification matches HTD 8M × 25mm before installation.

How do I convert the belt length from mm to inches?

Divide the millimeter value by 25.4. Quick reference examples:

  • 264mm ≈ 10.4"
  • 500mm ≈ 19.7"
  • 800mm ≈ 31.5"
  • 1000mm ≈ 39.4"
  • 1500mm ≈ 59.1"
  • 2000mm ≈ 78.7"
  • 2800mm ≈ 110.2"

All available lengths are listed in mm in the variant selector above.

What is the operating temperature range for this timing belt?

Neoprene-based HTD timing belts typically operate reliably in a range of approximately -30°C to +80°C (-22°F to +176°F). Sustained operation near the upper temperature limit may accelerate wear over time. If your application involves elevated temperatures (e.g., near motors or heated enclosures), contact us to confirm suitability before ordering.
