Description



HTD 8M Timing Belt 25mm Wide — Reliable Synchronous Drive for Demanding Applications

When a slipping V-belt or mismatched drive component brings your CNC router, conveyor, or automation system to a halt, the cost isn't just downtime — it's lost precision and rework. Engineers, machine builders, and serious DIYers who need a synchronous drive solution that holds position under load turn to the HTD 8M timing belt for its arc tooth profile and consistent pitch accuracy.

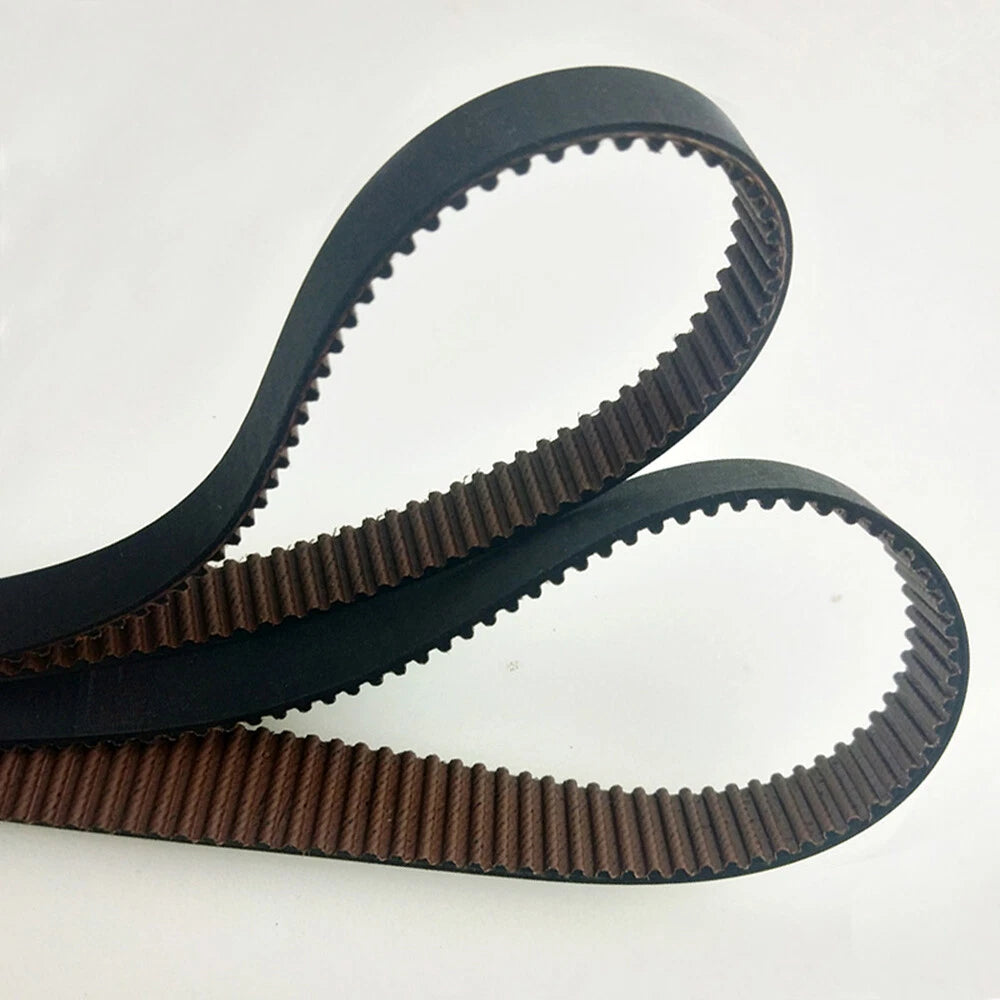

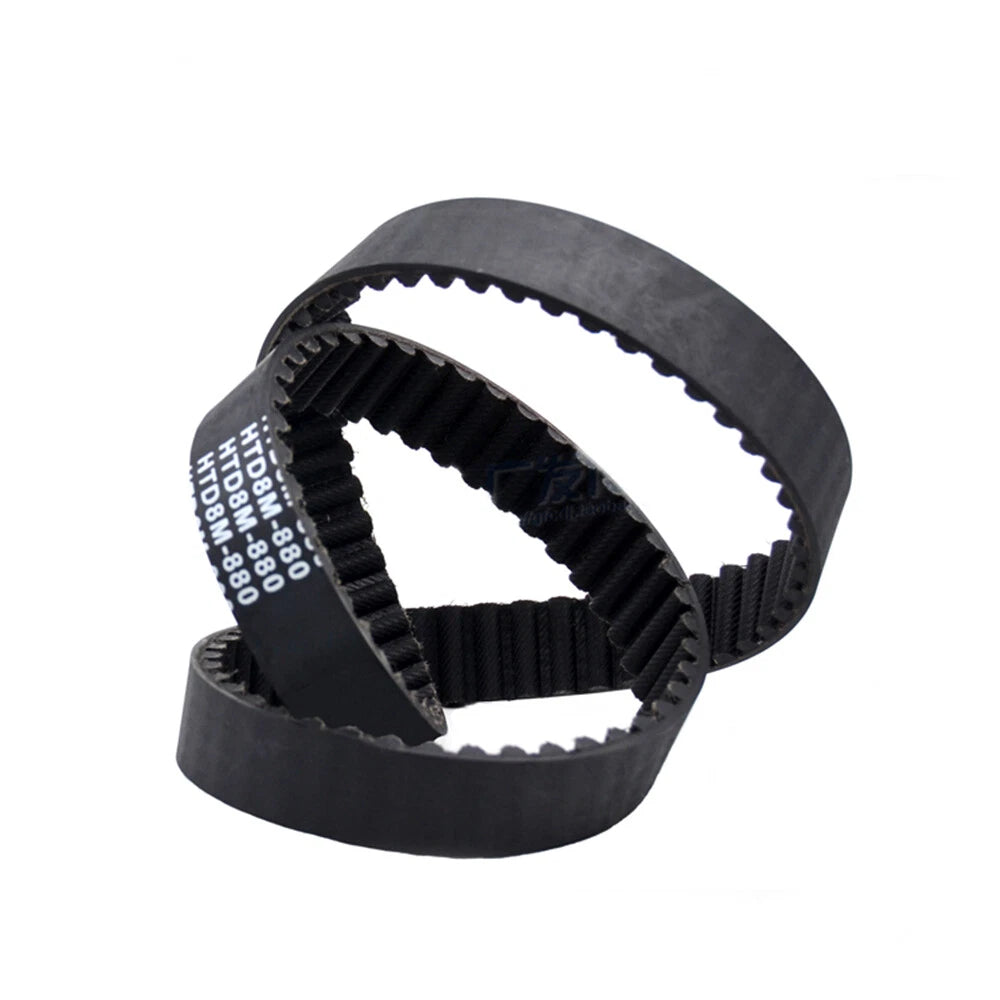

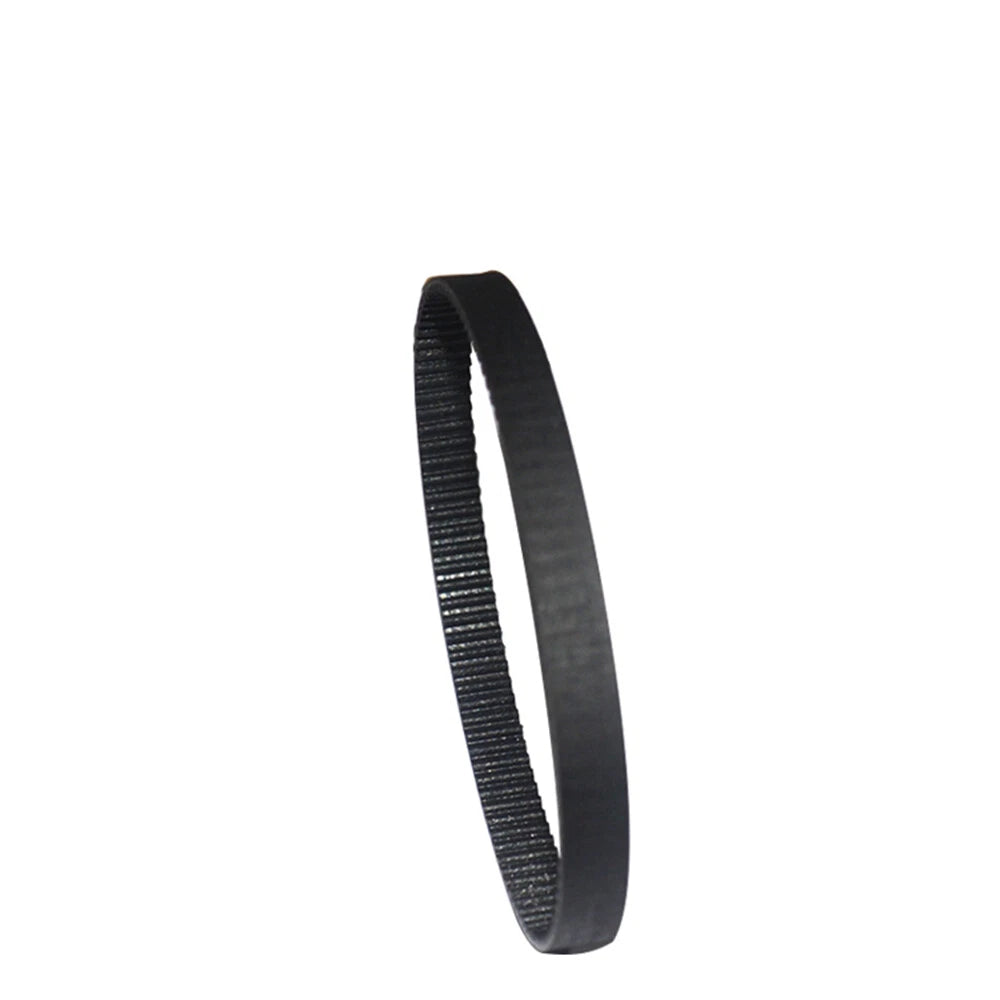

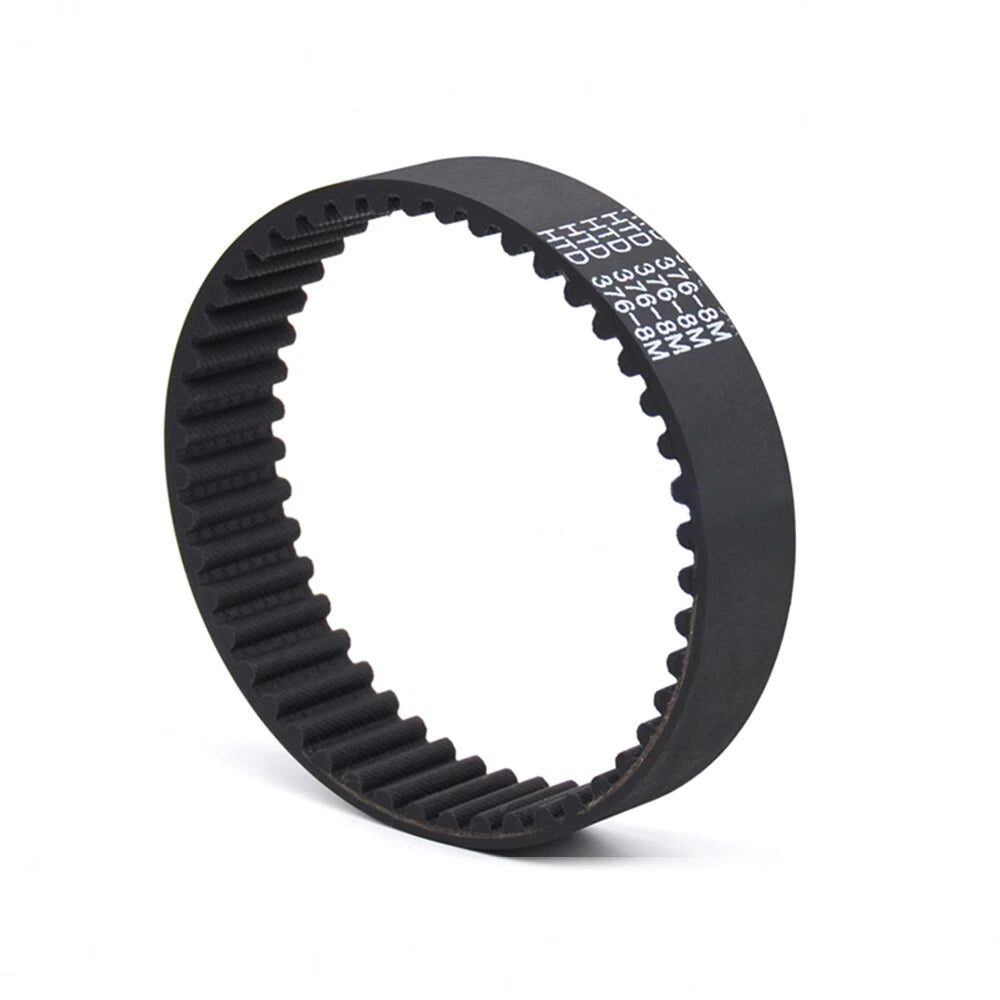

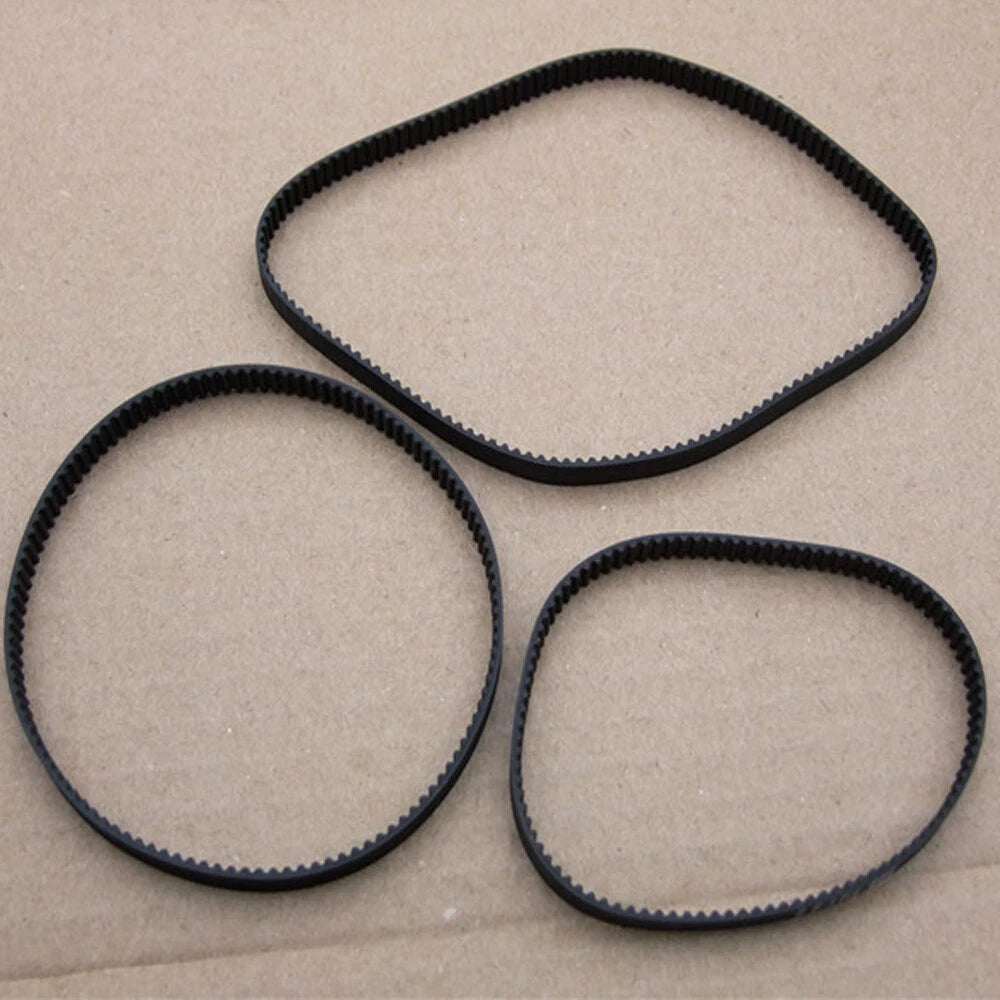

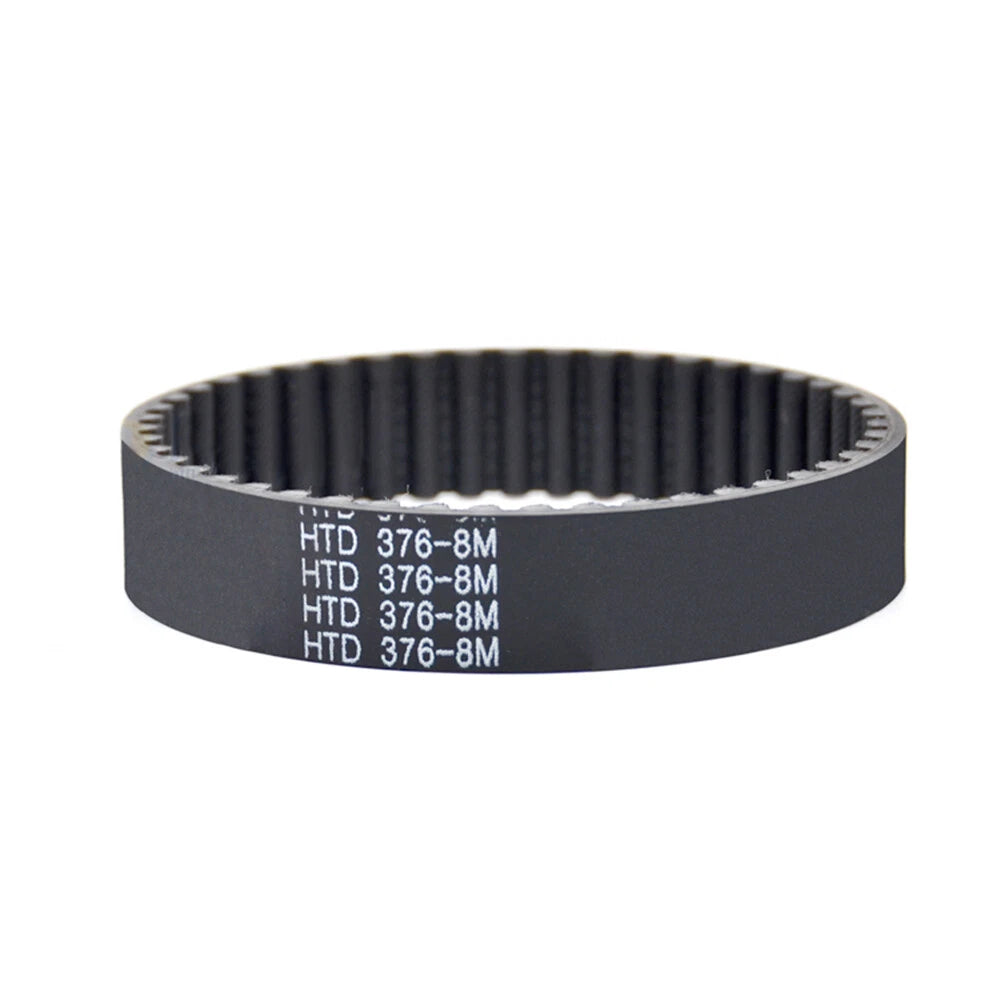

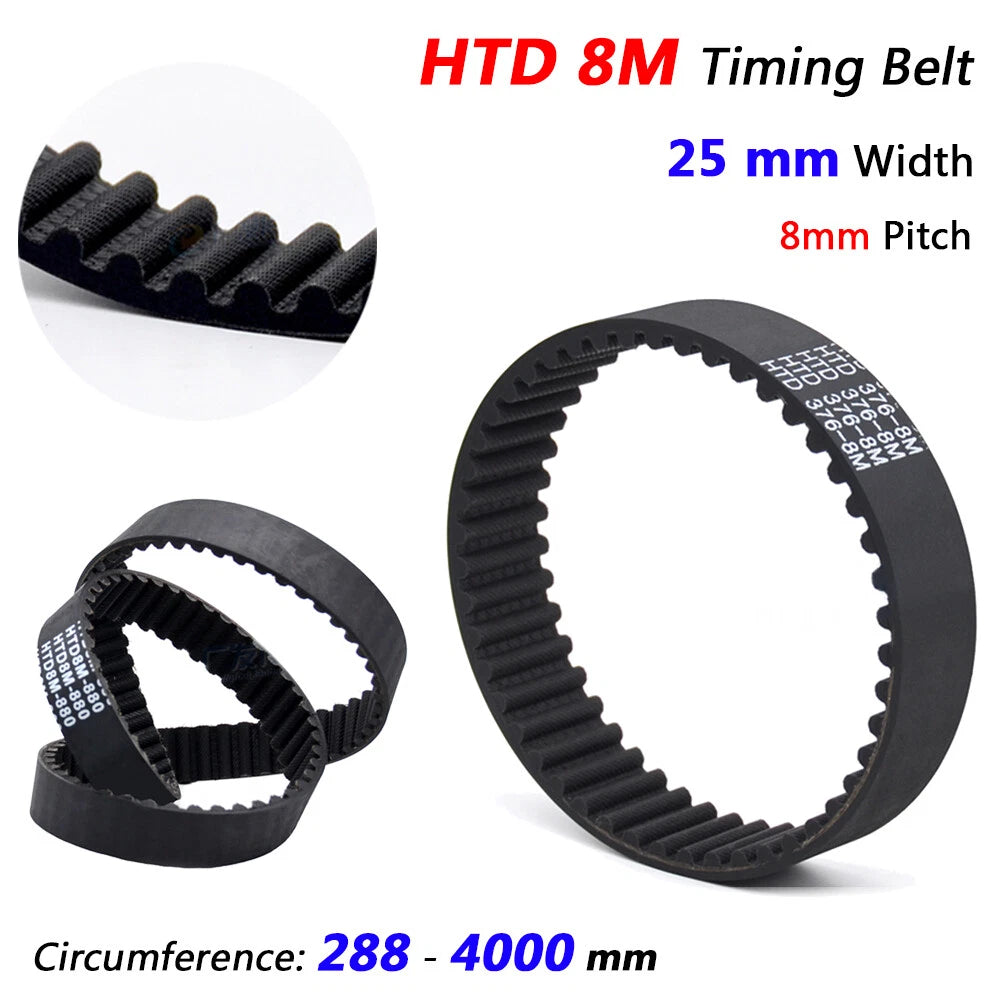

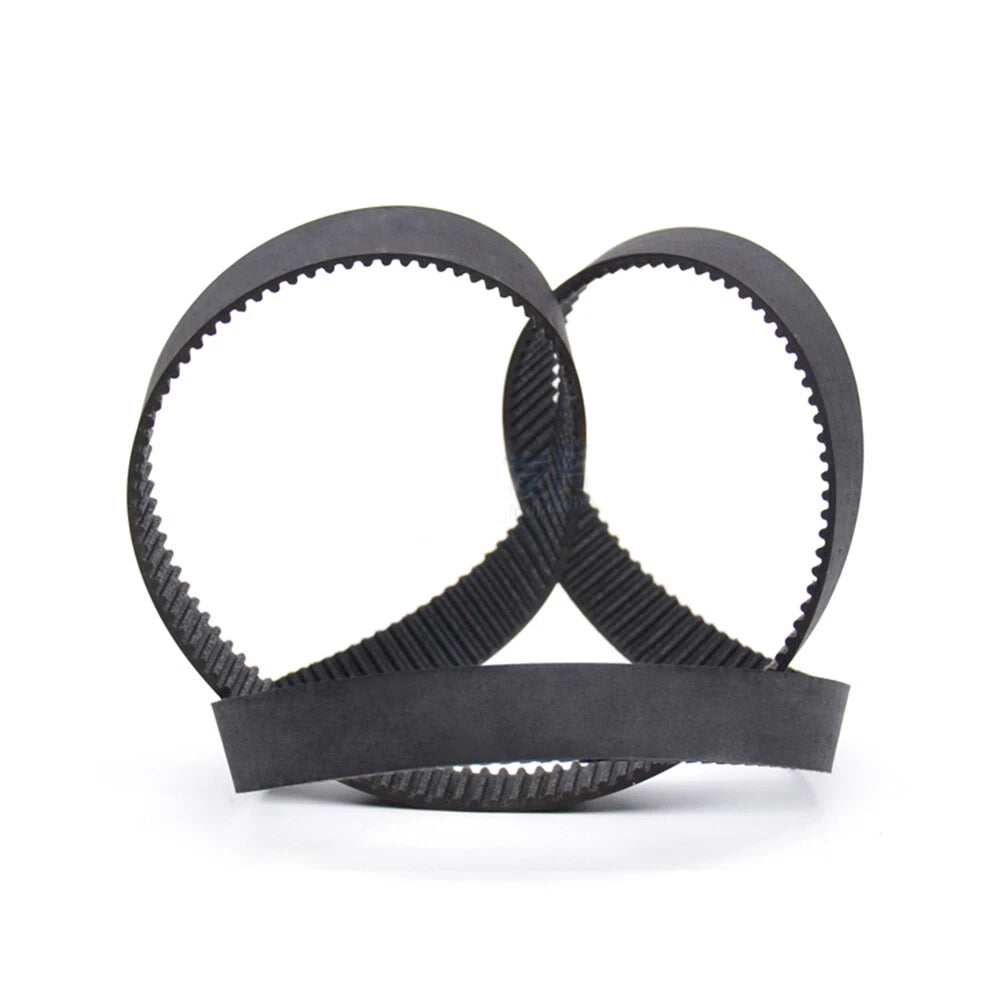

Each belt in this listing is a single closed-loop HTD 8M rubber timing belt, 25mm (≈1") wide, with an 8mm pitch arc tooth profile. Loop circumferences range from 288mm (≈11.3") to 4000mm (≈157.5"), with tooth counts from 36T to 500T — select your exact size from the variant options above. The belt body is constructed from neoprene rubber reinforced with fiberglass tension cords for dimensional stability under cyclic loading.

Typical use cases include CNC router X/Y axis drives, large-format 3D printer motion systems, industrial conveyor synchronization, and robotic joint actuation — anywhere an HTD 8M timing belt replacement or upgrade is needed with a 25mm belt width and 8mm pitch.

🔗 Compatibility: Fits all standard HTD 8M pulleys with 25mm belt width. Pitch: 8mm. Profile: arc tooth (HTD). Not compatible with GT2, T5, T10, or other pitch profiles. Verify your pulley tooth count and center distance before ordering.

✅ Key Features of These HTD 8M Timing Belts

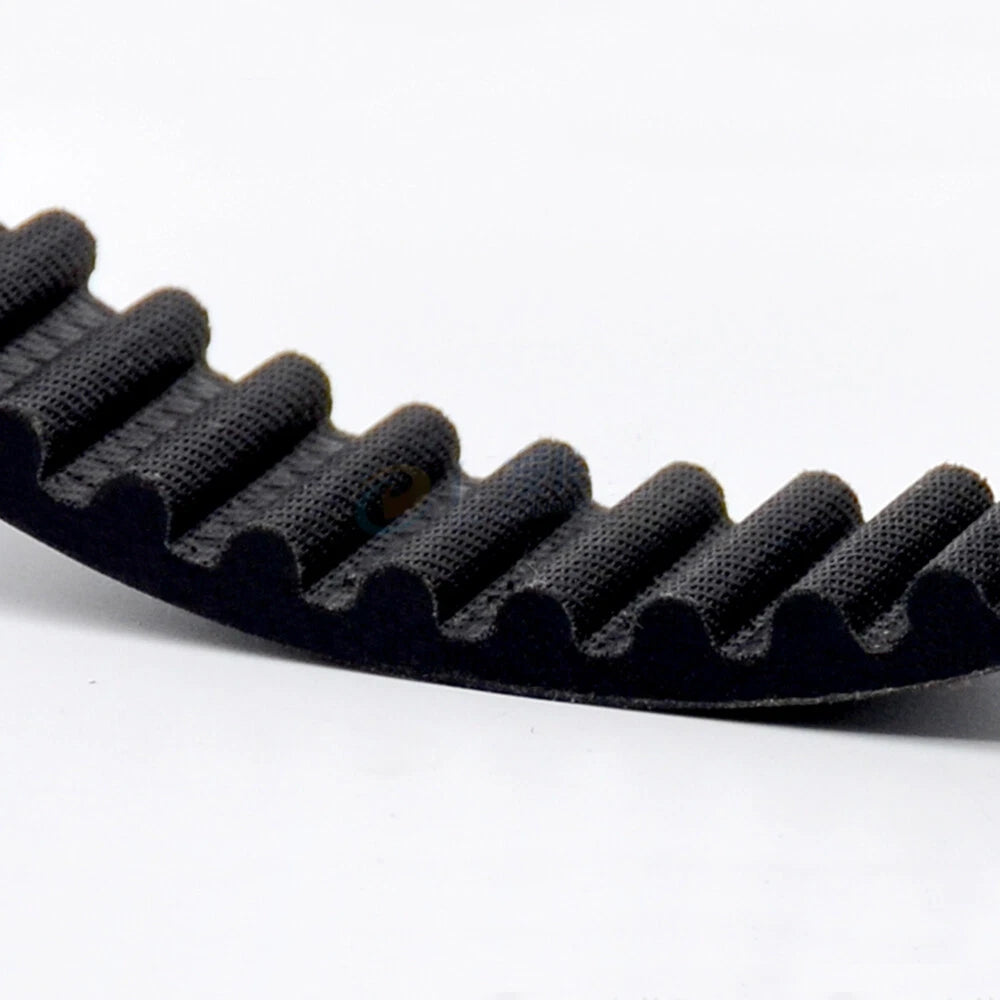

  • ⚙️Arc Tooth HTD Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque HTD 8M drive applications.
  • 📏Wide Size Selection — Loop circumferences from 288mm to 4000mm (36T–500T) in a single listing, making it straightforward to find the exact HTD 8M belt size for your machine without ordering multiple samples.
  • 🔩Fiberglass Tension Cord Core — Embedded fiberglass cords resist elongation under cyclic tension, maintaining consistent pitch spacing and positional accuracy over extended service life.
  • 🛡️Neoprene Rubber Body — The neoprene compound offers moderate resistance to oil splash, grease, and temperature variation typically encountered in workshop and light industrial environments.
  • 🎯Consistent 8mm Pitch Accuracy — Manufactured to HTD 8M dimensional standards, ensuring tooth-to-tooth engagement with compatible pulleys for slip-free synchronous power transmission in CNC and automation drives.
  • 🔄Closed-Loop Construction — Each belt is a seamless closed loop — no joining clips or lacing required — for smooth, vibration-reduced operation in conveyor and rotary drive systems.

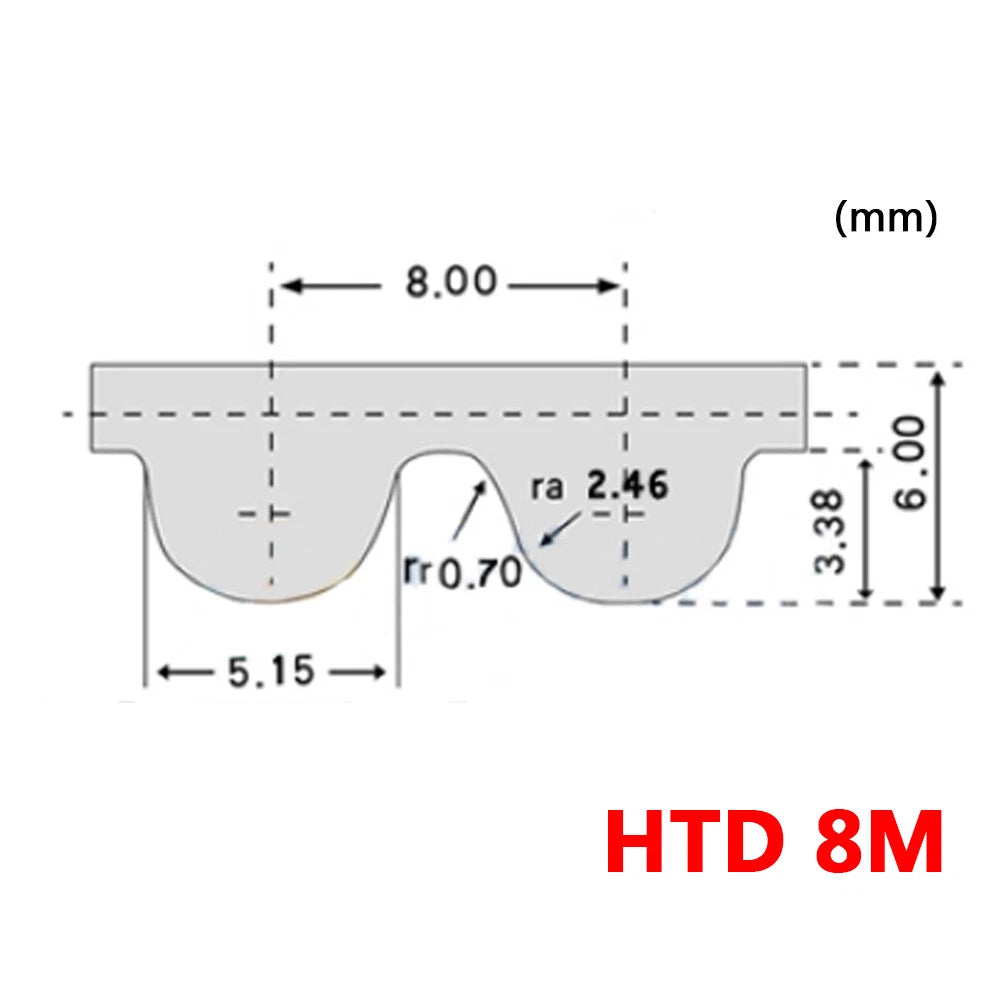

📐 Technical Specifications — HTD 8M Timing Belt

Belt Standard HTD 8M (High Torque Drive)
Tooth Profile Arc tooth (HTD curvilinear)
Pitch 8mm (0.315")
Belt Width 25mm (≈1")
Loop Circumference 288mm–4000mm (≈11.3"–157.5") — see variant options
Number of Teeth 36T–500T — see variant options
Belt Body Material Neoprene rubber
Tension Member Fiberglass cord
Tooth Face Material Nylon fabric (typically)
Compatible Pulley Profile HTD 8M only
Operating Temperature See variant options or contact us to confirm
Quantity per Order 1 belt (single closed loop)
⚠️ Sizing Note: Loop circumference = Number of Teeth × 8mm. Always confirm your required loop size by measuring your existing belt or calculating from pulley center distance. If you are unsure, contact us before ordering.

❓ Frequently Asked Questions

How do I choose the right loop circumference for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Loop ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For a quick check: Loop (mm) = Number of Teeth × 8. Available sizes run from 288mm (≈11.3") to 4000mm (≈157.5"). When in doubt, size up slightly and adjust tensioner position.

What load capacity can an HTD 8M timing belt handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. The 25mm width typically supports higher torque loads than narrower 8M belts. Actual capacity depends on pulley diameter, RPM, wrap angle, and tension. For precise ratings, consult your drive system's engineering documentation or contact us with your application details.

Can this timing belt be used outdoors or in wet environments?

The neoprene rubber body generally offers moderate resistance to oil splash and occasional moisture exposure. For continuous outdoor use, UV exposure, or submerged applications, a polyurethane HTD belt may be more appropriate. Contact us to confirm suitability for your specific environment before ordering.

Is this belt compatible with standard HTD 8M pulleys?

Yes — this belt follows the HTD 8M standard (8mm pitch, arc tooth profile) and is compatible with any HTD 8M pulley of matching 25mm width. It is not interchangeable with GT2, GT3, T5, T10, or trapezoidal tooth profiles, even if the pitch spacing appears similar. Always verify both pitch and tooth profile before installation.

How do I calculate the number of teeth I need?

For HTD 8M belts: Number of Teeth = Loop Circumference (mm) ÷ 8. Example: a 400mm loop belt has 50 teeth (400 ÷ 8 = 50). This listing covers 36T through 500T. Match the tooth count to your pulley specifications and verify the loop circumference fits your drive geometry.

What applications is this HTD 8M timing belt suitable for?

Common applications include CNC router and laser cutter axis drives, large-format 3D printer motion systems, conveyor synchronization, industrial automation, robotics, and general power transmission where precise synchronization and moderate-to-high torque are required. The 25mm width makes it well-suited for drives requiring more torque capacity than narrower 8M belts.

What is the difference between HTD and GT belt profiles?

HTD (High Torque Drive) uses a rounded arc tooth profile optimized for torque capacity. GT (Gates Tooth) profiles use a modified curvilinear tooth for improved load distribution and reduced backlash at higher speeds. Both share the same pitch spacing in equivalent sizes but are not interchangeable — always match belt and pulley tooth profiles. If your pulley is labeled HTD 8M, use an HTD 8M belt.

🛒 Select your loop circumference and number of teeth above, then add to cart — ships from our US warehouse.
