HTD 8M Closed-Loop Rubber Timing Belt 40mm Wide — Reliable Synchronous Drive for CNC, Industrial & Automation Systems

When a slipping or mismatched timing belt causes positioning errors on your CNC router, stalls your 3D printer gantry, or introduces backlash into your conveyor drive, the downstream cost in wasted material and downtime adds up fast. This HTD 8M closed-loop rubber timing belt is designed for engineers, machine builders, and serious DIYers who need a dependable synchronous drive component that installs correctly the first time.

Each belt is sold individually (1 piece per order) and is constructed from rubber with internal cord reinforcement, featuring the standard HTD 8M tooth profile — 8mm pitch, rounded tooth geometry for smooth engagement and reduced stress concentration. The belt width is 40mm, and perimeter options span from 264mm (≈10.4") to 2800mm (≈110.2"), covering a wide range of drive configurations. Select your exact perimeter from the variant options above; the corresponding tooth count is listed for each size.

Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, industrial conveyor synchronization, automated pick-and-place equipment, and custom motion control builds where precise, slip-free power transmission is required. The 8M pitch and 40mm width make this belt well-suited for moderate-to-heavy torque loads where smaller pitch belts (3M, 5M) would be undersized.

ℹ️ Compatibility Notice: These belts require HTD 8M pulleys with a matching 40mm (or wider) groove width. They are not interchangeable with GT2, T5, T10, or other tooth profiles. Verify your pulley is labeled HTD 8M before ordering.

✅ Key Features of These HTD 8M Closed-Loop Timing Belts

  • ⚙️HTD 8M Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress and extending belt life in high-cycle synchronous drive applications.
  • 📏Wide Size Selection (264–2800mm) — With over 240 perimeter options in 8mm increments, you can match the exact closed-loop length required by your machine without cutting or splicing, maintaining consistent tension and tooth count.
  • 🔩40mm Belt Width for Higher Torque — The 40mm width provides greater tooth engagement surface compared to narrower 8M belts, making it suitable for CNC gantry drives, conveyor systems, and other applications demanding stable power transmission.
  • 🔄Closed-Loop (Endless) Construction — Formed as a continuous loop with no joint or splice, this belt delivers uniform tension and consistent tooth pitch throughout every revolution — critical for accurate positioning in CNC and automation systems.

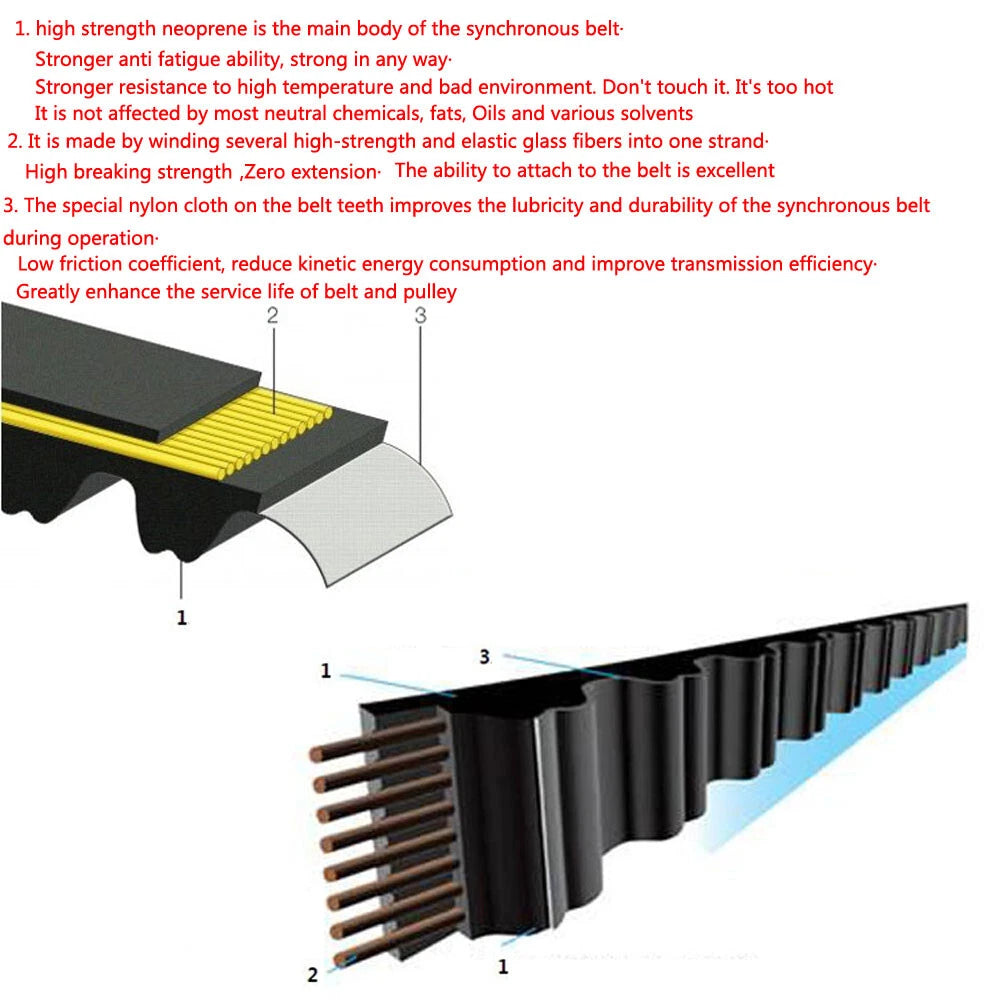

  • 🧱Rubber Body with Cord Reinforcement — The rubber compound provides flexibility and grip, while internal cord reinforcement (typically fiberglass or steel) resists elongation under load, helping maintain drive accuracy over time.
  • 🏭Broad Application Compatibility — Suitable for CNC routers, laser engravers, 3D printer motion systems, industrial automation, and custom machine builds wherever an HTD 8M synchronous belt drive is specified.

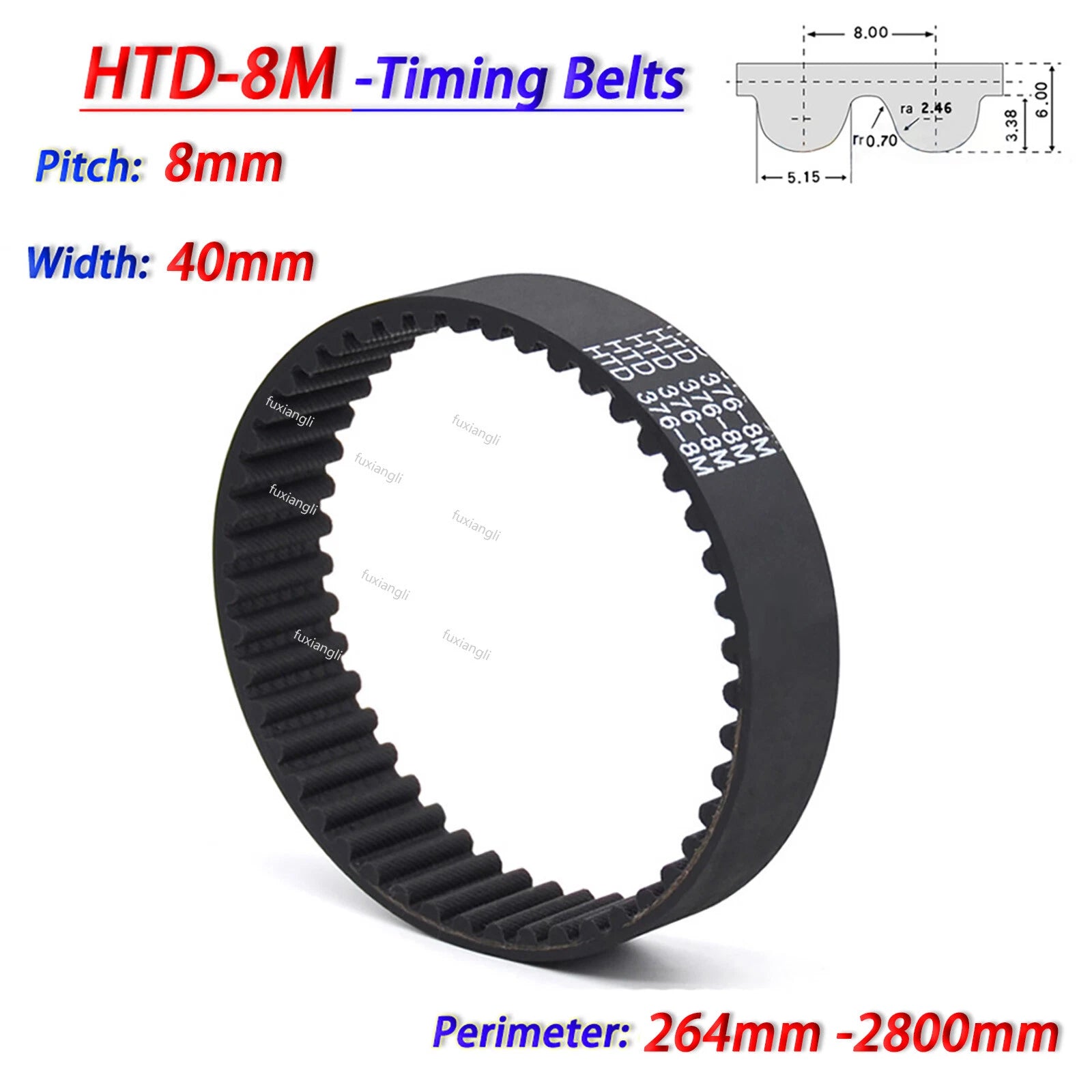

📐 Technical Specifications — HTD 8M Timing Belt

Belt Type HTD (High Torque Drive) Closed-Loop Timing Belt
Pitch 8mm (HTD 8M)

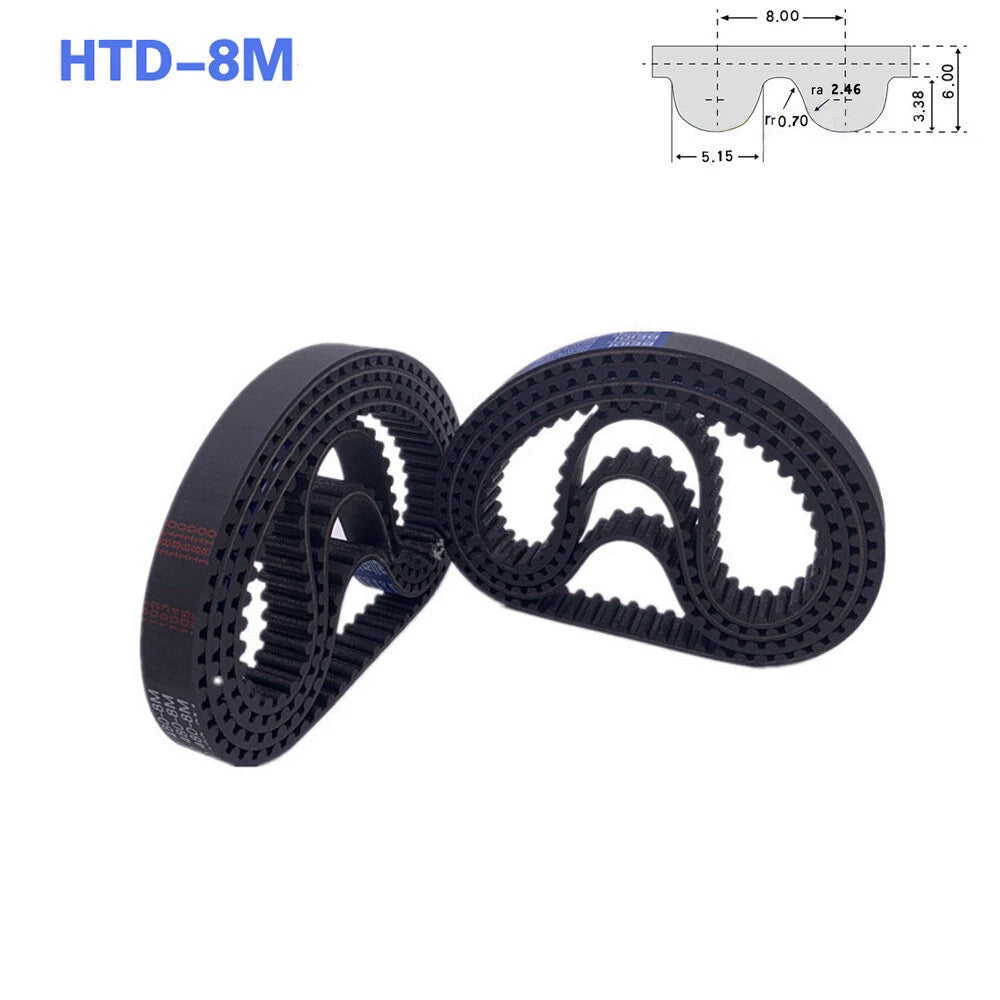

Tooth Profile HTD rounded (curvilinear)
Belt Width 40mm (≈1.57")
Perimeter Range 264mm (≈10.4") to 2800mm (≈110.2")
Number of Teeth See variant options (33 teeth at 264mm → 350 teeth at 2800mm)
Material Rubber with internal cord reinforcement
Loop Type Endless / Closed-loop (no joint)
Compatible Pulley Standard HTD 8M pulleys only
Quantity per Order 1 piece
Operating Temperature Contact us to confirm for your application
Country of Origin See variant options
⚠️ Size Selection Tip: The perimeter listed is the inner circumference of the belt loop. Measure your existing belt or calculate from your pulley center distance before ordering. If you are unsure, contact us with your machine model or drive specifications.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt path length: approximately 2 × center distance + (π × pulley pitch diameter). For a quick inch conversion, divide the mm value by 25.4 — for example, 800mm ≈ 31.5". When in doubt, size up slightly and use a tensioner to take up slack. Each variant listing shows the exact perimeter and tooth count.

What load or torque can an HTD 8M belt handle?

HTD 8M belts generally support higher torque than smaller pitches (3M, 5M) due to the deeper, rounded tooth profile. Actual load capacity depends on belt width, number of teeth in mesh, pulley diameter, and operating speed. A 40mm-wide 8M belt typically handles moderate-to-heavy industrial loads. Contact us to confirm suitability for your specific application.

Can this timing belt be used outdoors or in wet environments?

These belts are constructed from rubber with internal cord reinforcement, which generally provides good resistance to moisture and moderate temperature ranges. They are not rated for continuous submersion or highly corrosive chemical exposure. For outdoor or humid environments, shield the belt from direct UV exposure where possible, and inspect periodically for cracking or hardening.

What pulley standard is compatible with HTD 8M belts?

HTD 8M belts use the HTD (High Torque Drive) tooth profile with an 8mm pitch. They are compatible with HTD 8M pulleys only — do not mix with GT2, T5, T10, or other pitch standards. Confirm your pulley is labeled HTD 8M or 8M-HTD before ordering. The pulley groove width must also be 40mm or wider to accommodate this belt.

How do I know if I need a 40mm wide belt vs. a narrower option?

Belt width affects torque capacity and lateral stability. A 40mm-wide 8M belt is suited for applications requiring higher power transmission — such as CNC gantry drives, conveyor systems, or industrial automation. If your pulley groove is narrower than 40mm, you will need a narrower belt. Always match belt width to your pulley flange width. Contact us if you need a different width.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) timing belt — it forms a continuous loop with no seam or joint. This design is required for most drive applications and provides consistent tension and tooth engagement throughout the full rotation. It cannot be cut to length or re-joined in the field.

What is the tooth count for a given perimeter size?

The number of teeth equals the perimeter divided by the pitch (8mm). For example, a 264mm belt has 33 teeth; an 800mm belt has 100 teeth; a 1600mm belt has 200 teeth. Each variant listing shows the exact tooth count in the Number Teeth & Amount option for your reference.

🛒 Select your type and perimeter size above, then add to cart — ships from our US warehouse.
