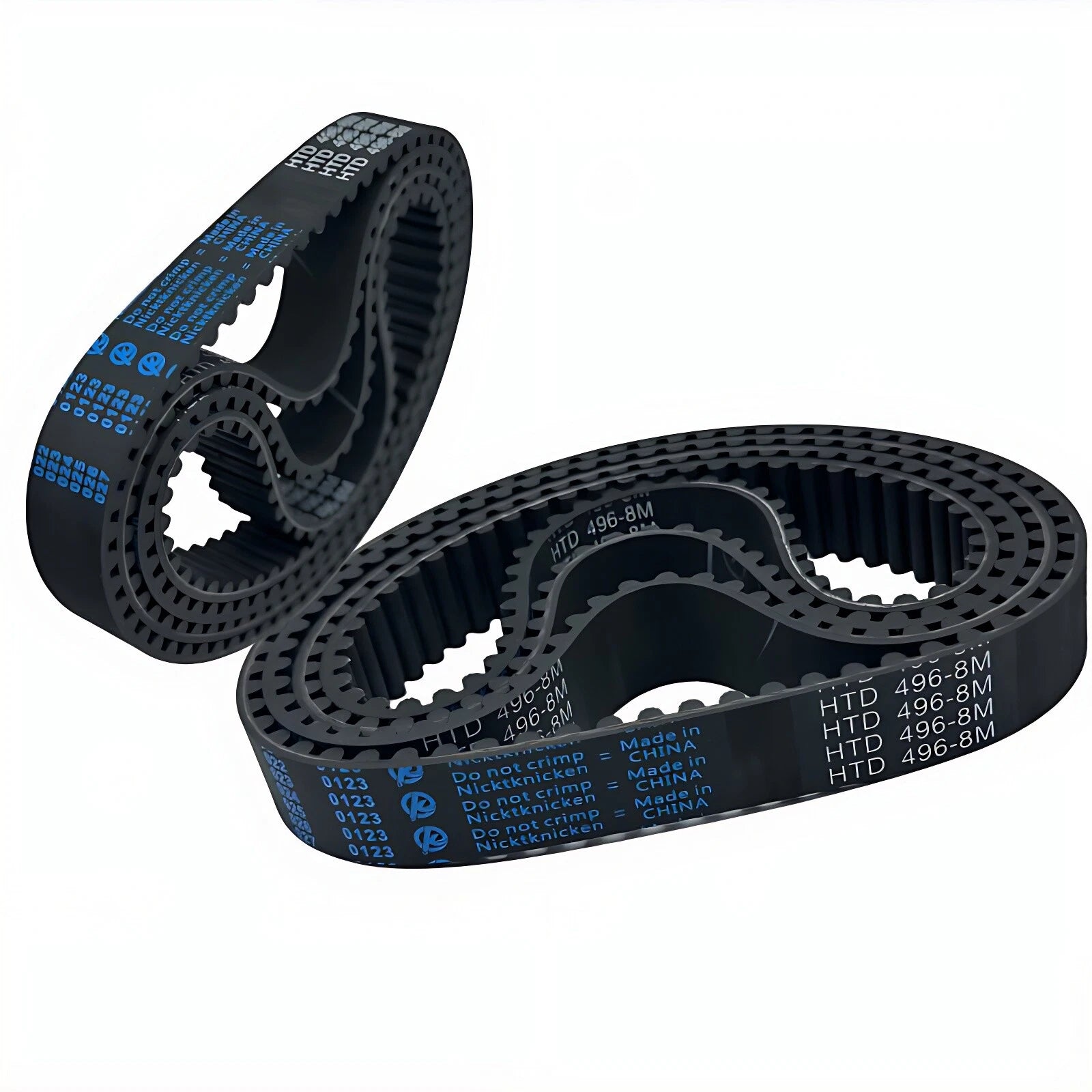

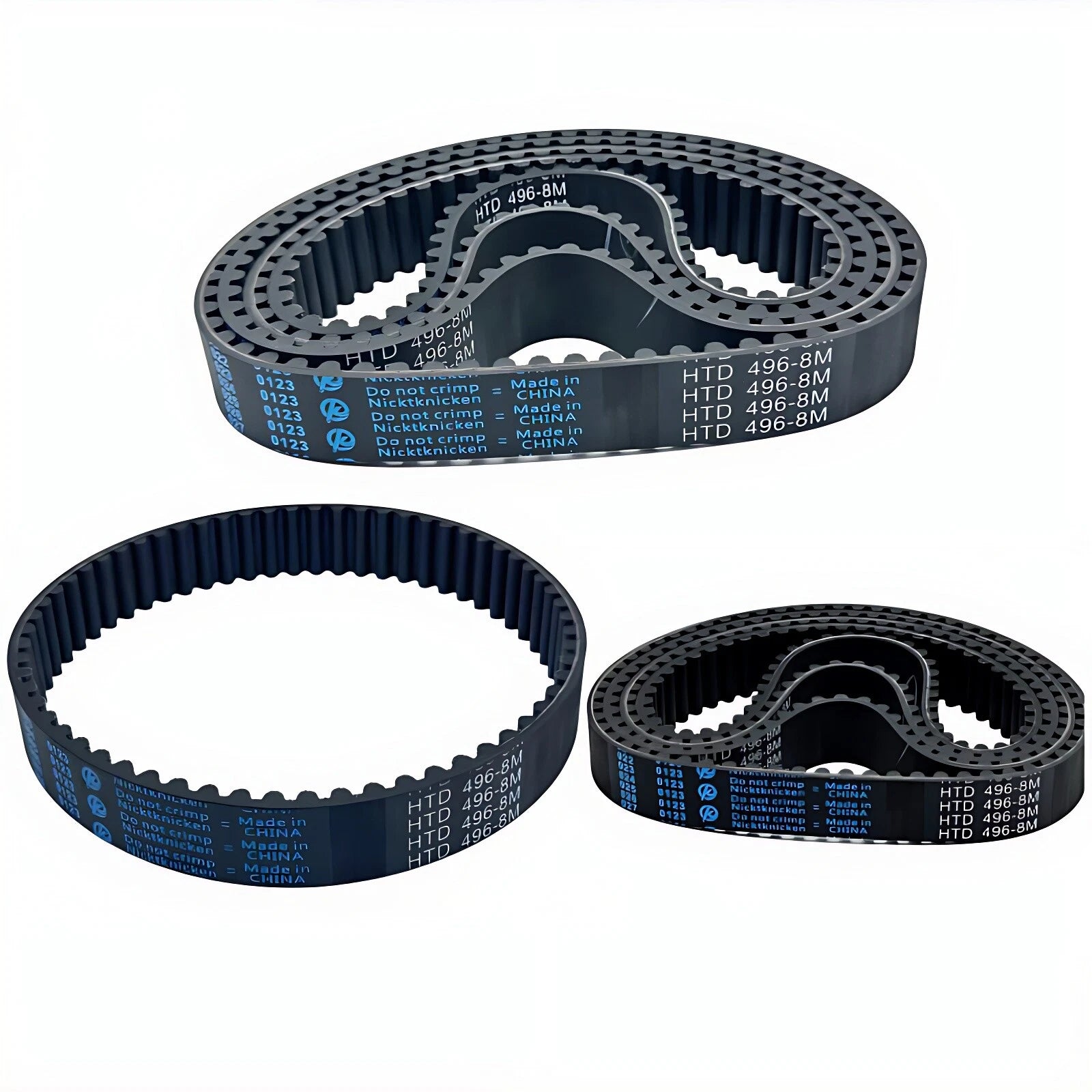

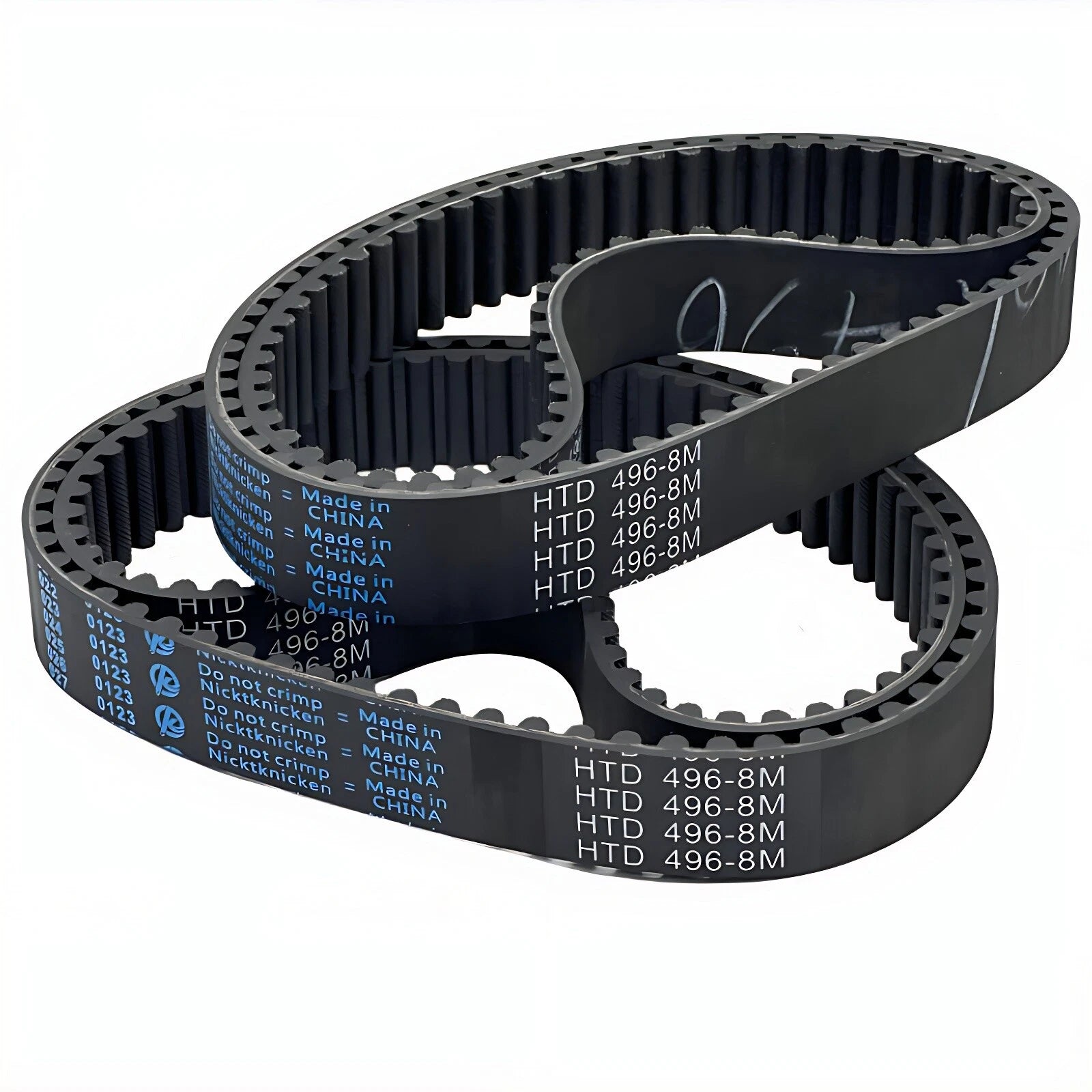

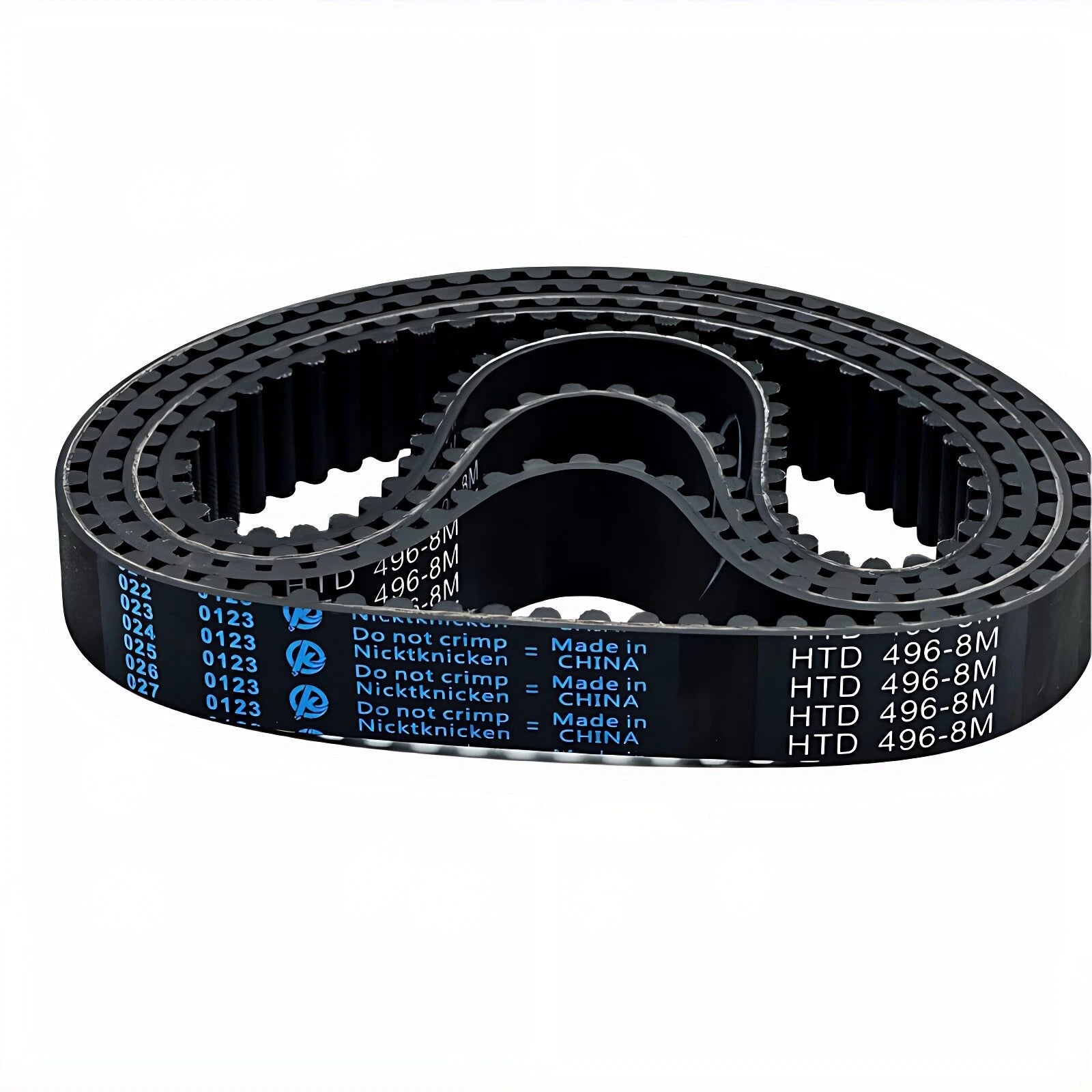

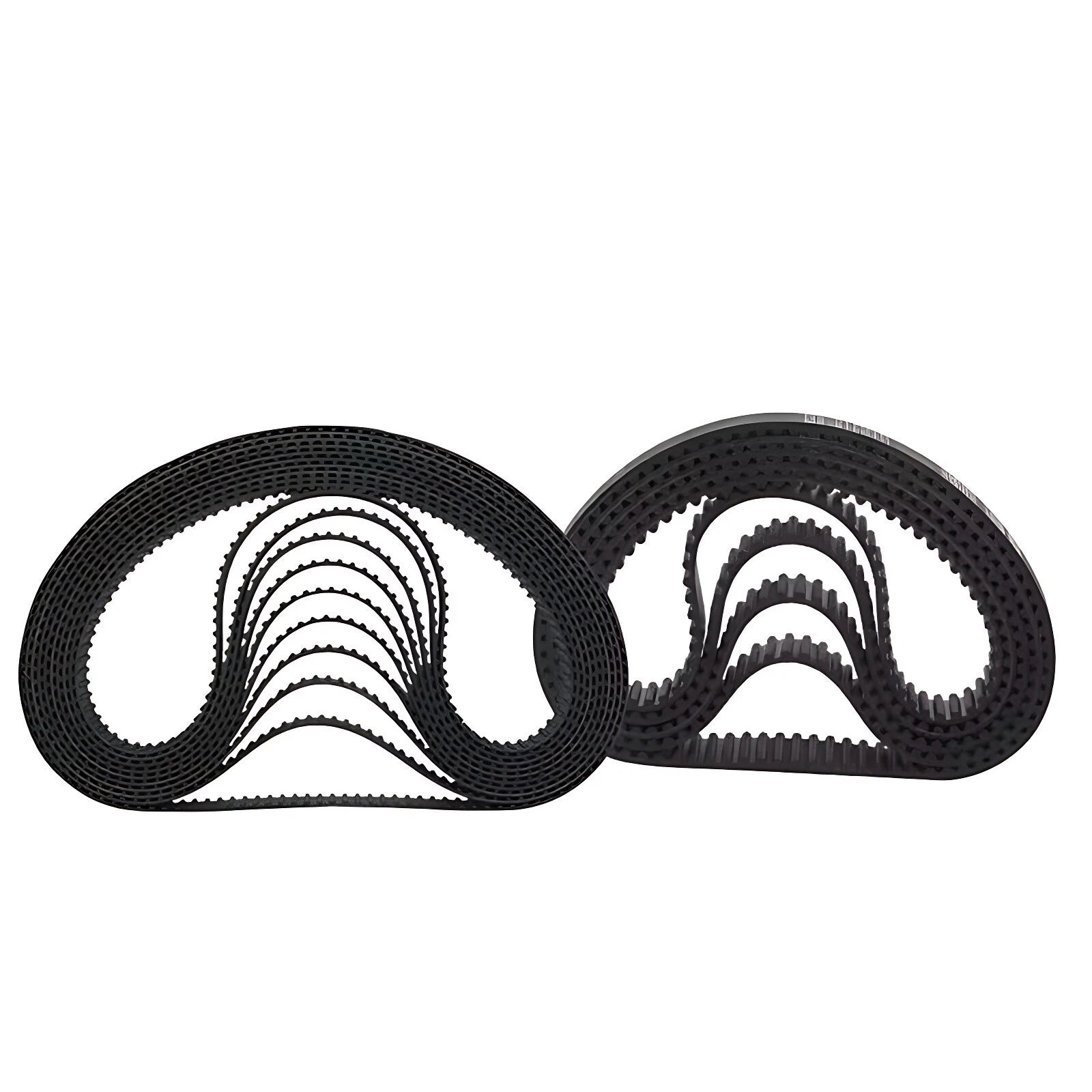

HTD 8M Closed-Loop Timing Belt — 40mm Wide, 8mm Pitch for CNC & Industrial Drives

When a slipping or mismatched drive belt causes positioning errors, lost steps, or unexpected downtime on your CNC router, plasma table, or servo-driven axis, the fix starts with the right belt. This HTD 8M closed-loop synchronous belt is built for engineers, machinists, and serious DIYers who need reliable, repeatable power transmission without the guesswork.

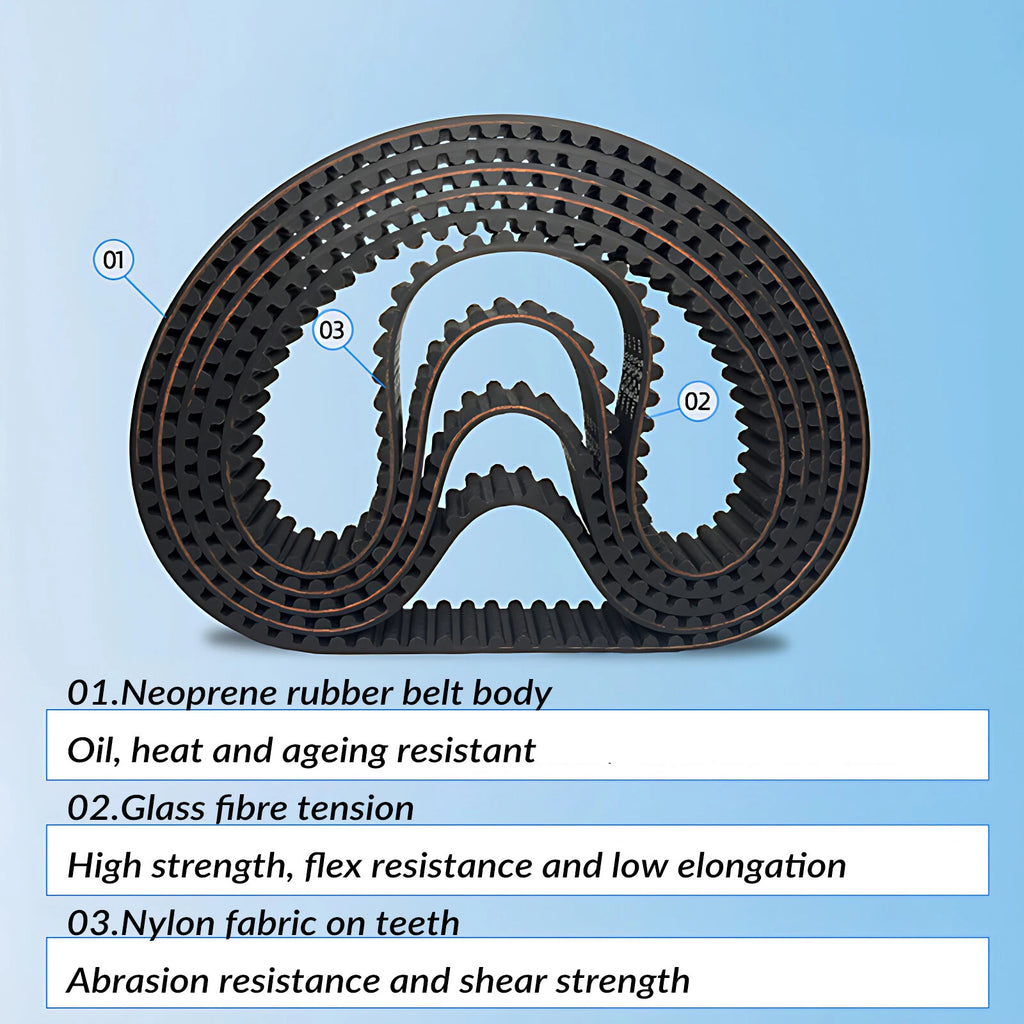

Each belt features the standard HTD 8M tooth profile — 8mm pitch, rounded tooth geometry — with a 40mm (≈1.57") belt width. Available in tooth counts from 264 to 2840, corresponding to circumferences of approximately 2112mm (≈83.1") up to 22720mm (≈894.5"). Construction is typically neoprene rubber with a fiberglass or steel tension cord core and a nylon tooth facing for durability and low stretch. Exact material spec: contact us to confirm.

Typical applications include CNC router X/Y/Z axis drives, large-format laser cutter gantries, plasma cutting tables, industrial conveyor systems, and servo or stepper motor power transmission setups where an HTD 8M synchronous belt drive is specified.

✅ Compatibility: Fits standard HTD 8M timing pulleys with a 40mm belt groove width. Verify your pulley's groove width and tooth profile before ordering. Not interchangeable with GT2, T5, or other pitch profiles.

✅ Key Features of These HTD 8M Closed-Loop Timing Belts

  • ⚙️HTD 8M Tooth Profile — Rounded HTD tooth geometry provides a larger contact area than trapezoidal profiles, reducing tooth shear stress and improving torque capacity in demanding CNC synchronous belt drive applications.
  • 📏40mm Belt Width — The 40mm (≈1.57") width delivers higher load capacity than narrower 20mm or 30mm variants, making it suitable for heavy-gantry CNC routers and industrial servo drives where belt width directly affects torque rating.
  • 🔁Closed-Loop Construction — Seamless closed-loop design eliminates splice joints, ensuring consistent tension and smooth operation throughout the full belt circumference — critical for precision positioning on CNC and automation equipment.
  • 🧵Reinforced Tension Cord — Fiberglass or steel cord reinforcement (typically) minimizes belt stretch under load, maintaining accurate step-to-distance ratios on stepper and servo motor driven axes.
  • 🌡️Neoprene Rubber Body — Neoprene construction generally offers resistance to oil, moderate heat, and light moisture — suitable for workshop and light industrial environments where rubber timing belts are exposed to typical machining conditions.
  • 📐Wide Size Range — Available in 250+ tooth count options from 264 to 2840 teeth (circumference 2112mm to 22720mm), covering a broad range of CNC router belt drive configurations and industrial closed-loop timing belt applications.

📐 Technical Specifications — HTD 8M Closed-Loop Timing Belt

Belt Profile HTD 8M (High Torque Drive, 8mm pitch)
Pitch 8mm (≈0.315")
Belt Width 40mm (≈1.57")

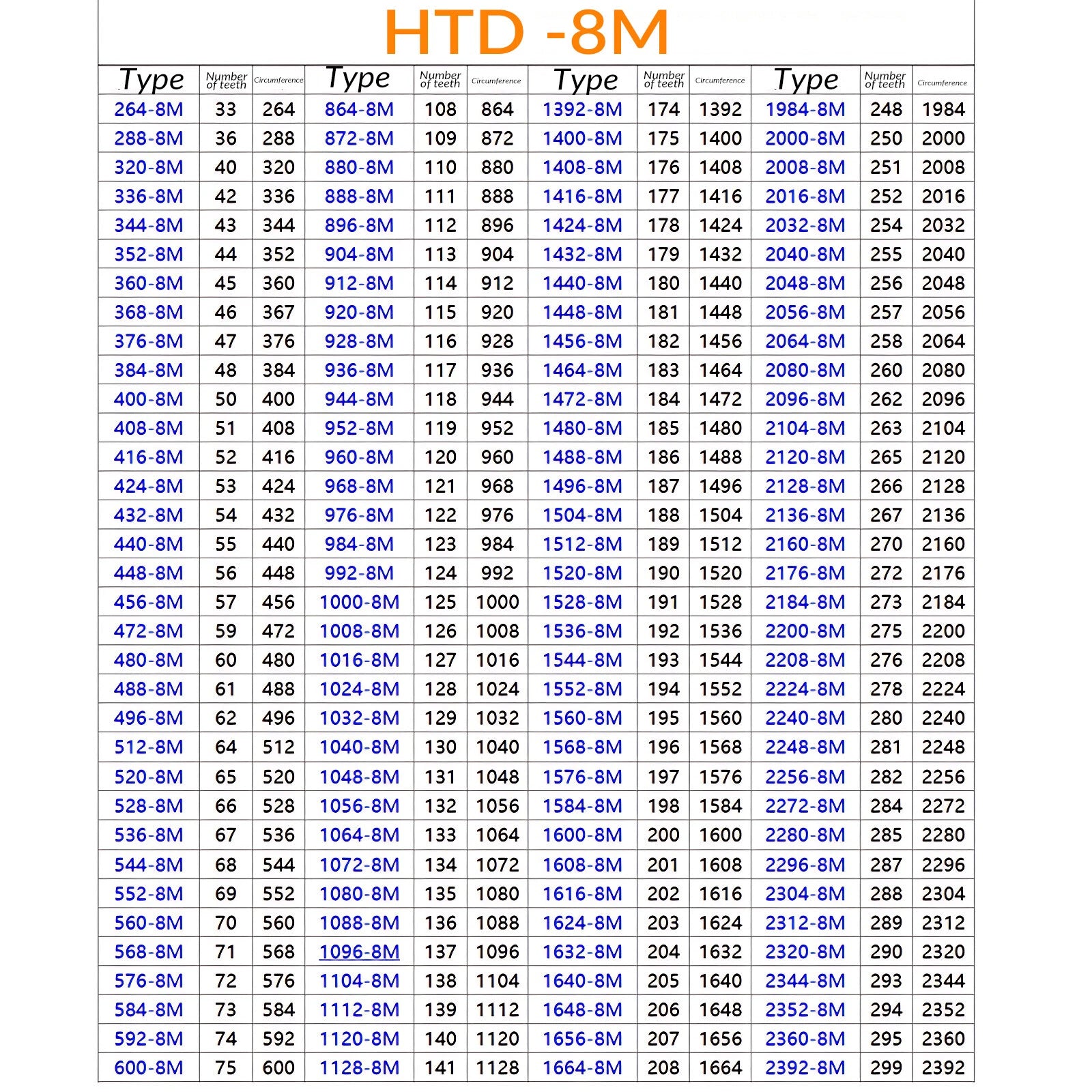

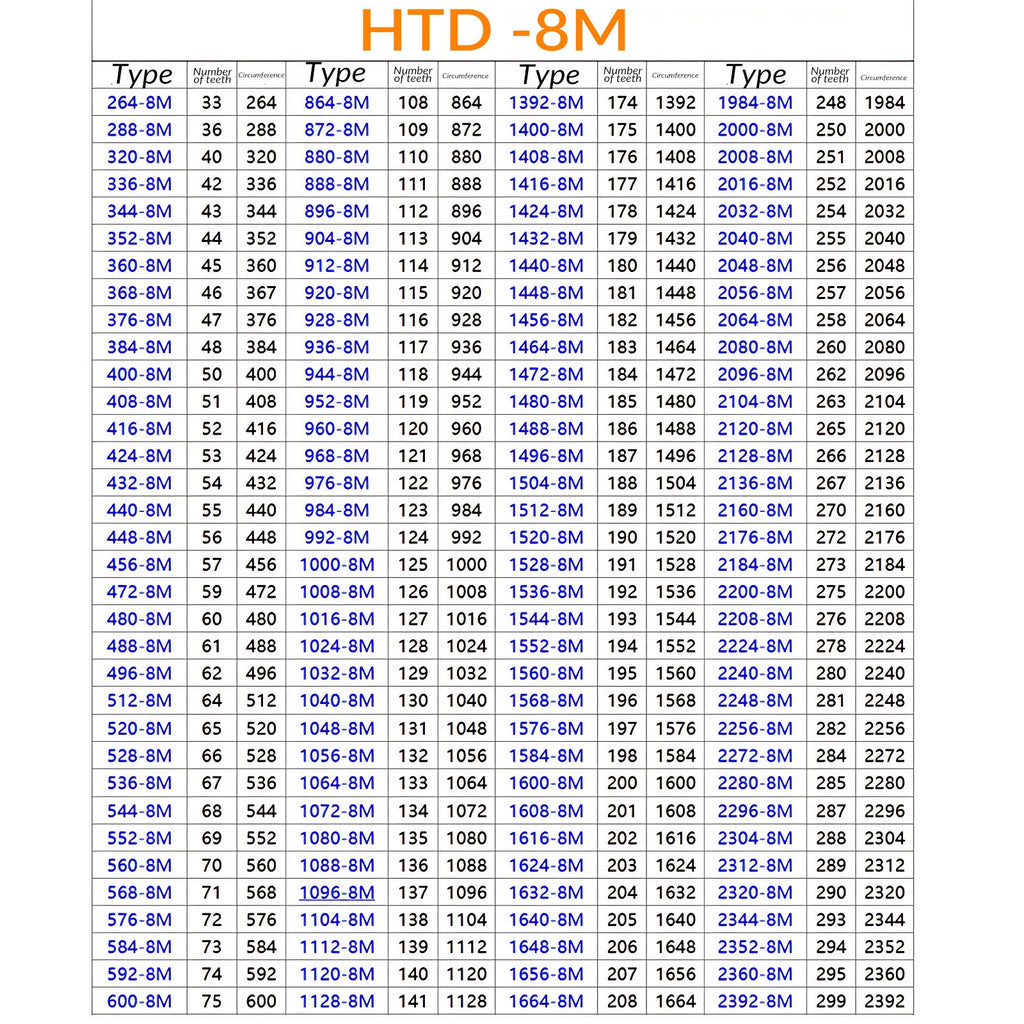

Tooth Count Range 264 – 2840 teeth (see variant options)
Circumference Range 2112mm (≈83.1") – 22720mm (≈894.5")
Belt Type Closed loop (seamless)
Tooth Profile Rounded HTD (not trapezoidal)
Body Material Neoprene rubber (typically) — contact us to confirm
Reinforcement Fiberglass or steel tension cord (typically)
Tooth Facing Nylon fabric (typically)
Compatible Pulleys Standard HTD 8M pulleys, 40mm groove width
Quantity per Order 1 piece
Country of Origin See variant options

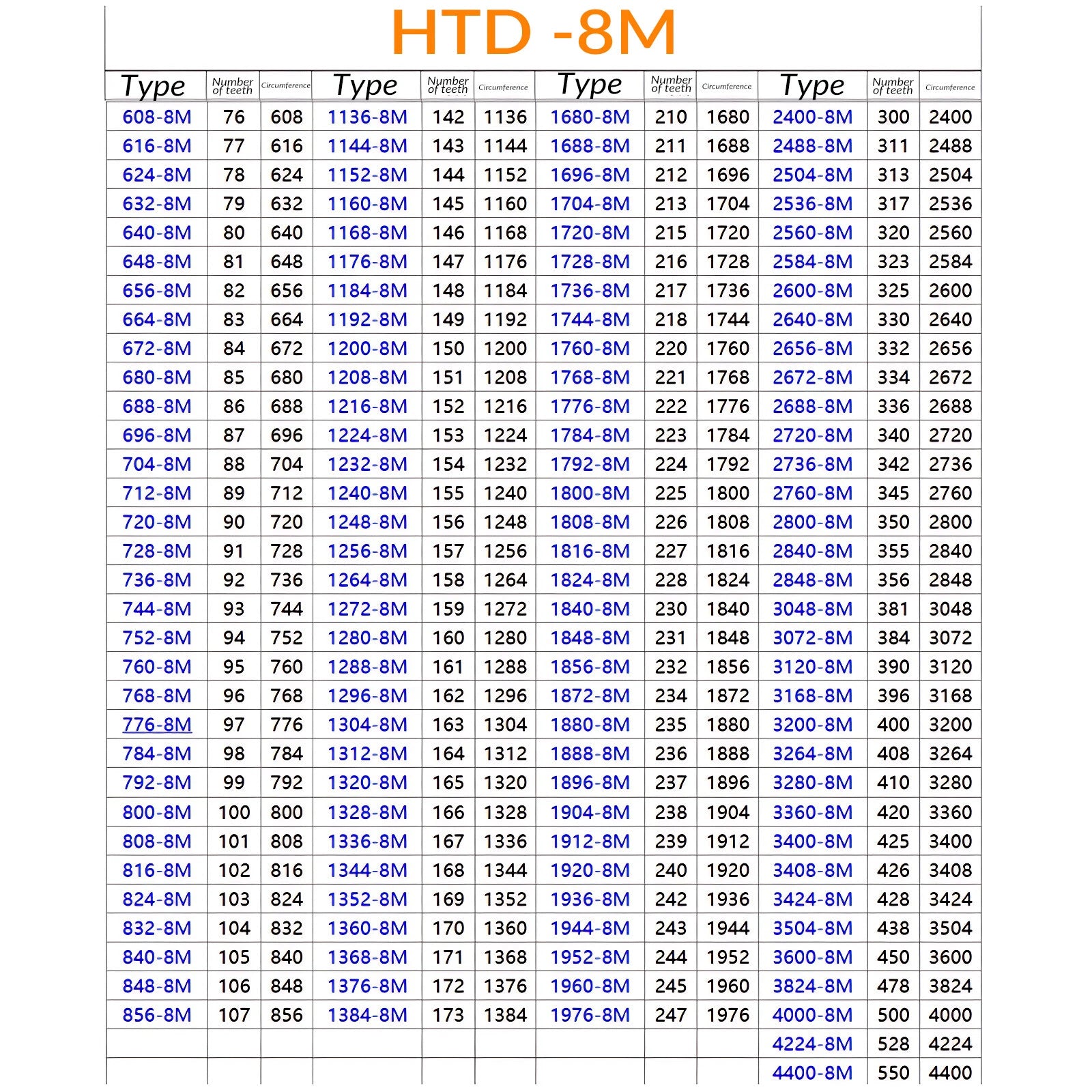

⚠️ Note: Belt circumference = tooth count × 8mm. Always verify your required circumference and pulley groove width before ordering. If you need a specific tooth count not listed, contact us.

❓ Frequently Asked Questions

How do I choose the right belt length (tooth count)?

Multiply the number of teeth by the pitch (8mm) to get the belt circumference in millimeters. For example, a 400-tooth belt has a circumference of 3200mm (≈125.98"). Measure your existing belt or calculate: center distance × 2 + pulley circumferences to find the correct size. When in doubt, size up — a slightly longer belt is generally easier to tension than one that's too short.

What load or torque can an HTD 8M belt handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. Actual load capacity depends on belt width, number of teeth in mesh, and pulley diameter. The 40mm width variant typically handles higher torque than narrower 20mm or 30mm versions. Consult your drive system's engineering specs to confirm suitability for your application.

Can this belt be used outdoors or in wet environments?

HTD 8M timing belts are typically made from neoprene rubber with fiberglass or steel cord reinforcement, which offers reasonable moisture resistance for light outdoor or damp environments. However, prolonged UV exposure or immersion in water or chemicals can degrade the belt over time. For harsh outdoor use, verify the specific material composition before installation.

Is this belt compatible with standard HTD 8M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 8M profile standard — 8mm pitch, rounded tooth profile — and is compatible with any standard HTD 8M timing pulley. Confirm your pulley's belt width groove matches 40mm for a proper fit. It is not interchangeable with GT2, T5, T10, or other pitch profiles.

How do I know if I need HTD 8M vs. GT2 or T5 belts?

HTD 8M is designed for higher torque applications compared to GT2 (2mm pitch) or T5 (5mm pitch) belts. If your machine requires significant power transmission — such as a large CNC router, industrial conveyor, or servo-driven axis — HTD 8M is generally the right choice. GT2 is more common in lightweight 3D printers and small desktop CNC machines where lower torque is sufficient.

What materials are HTD 8M timing belts typically made from?

HTD 8M belts are generally constructed from neoprene (CR) rubber with a fiberglass or steel tension cord core and a nylon tooth facing. This combination provides good flexibility, tensile strength, and resistance to oil and moderate heat. Contact us to confirm the exact material specification for this listing.

Can I use this belt on a 3D printer or laser cutter?

The HTD 8M 40mm belt is generally oversized for most desktop 3D printers, which typically use GT2 2mm or 3mm pitch belts. However, it is well-suited for larger-format CNC routers, laser cutters with heavy gantries, plasma tables, and industrial automation equipment where higher torque and rigidity are needed in the drive system.
