HTD 8M Timing Belt — Reliable 8mm Pitch Drive for CNC, Robotics & Industrial Systems

When a slipping or mismatched drive belt brings your CNC router, robotic arm, or automated conveyor to a halt, the cost isn't just downtime — it's precision lost and projects delayed. Engineers, makers, and machine builders who depend on synchronous motion need an HTD 8M timing belt that holds its pitch under load, run after run.

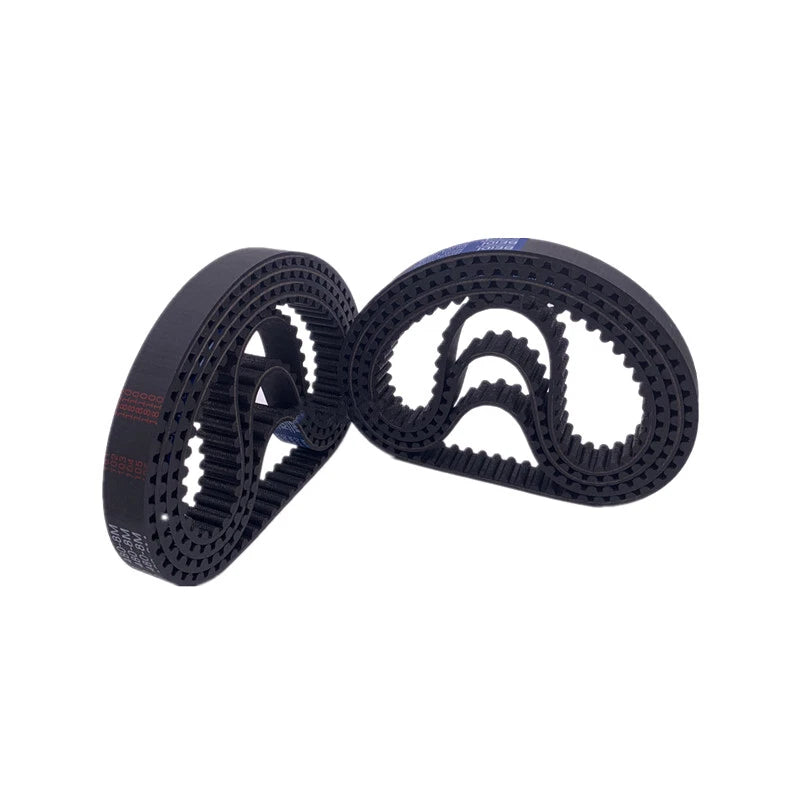

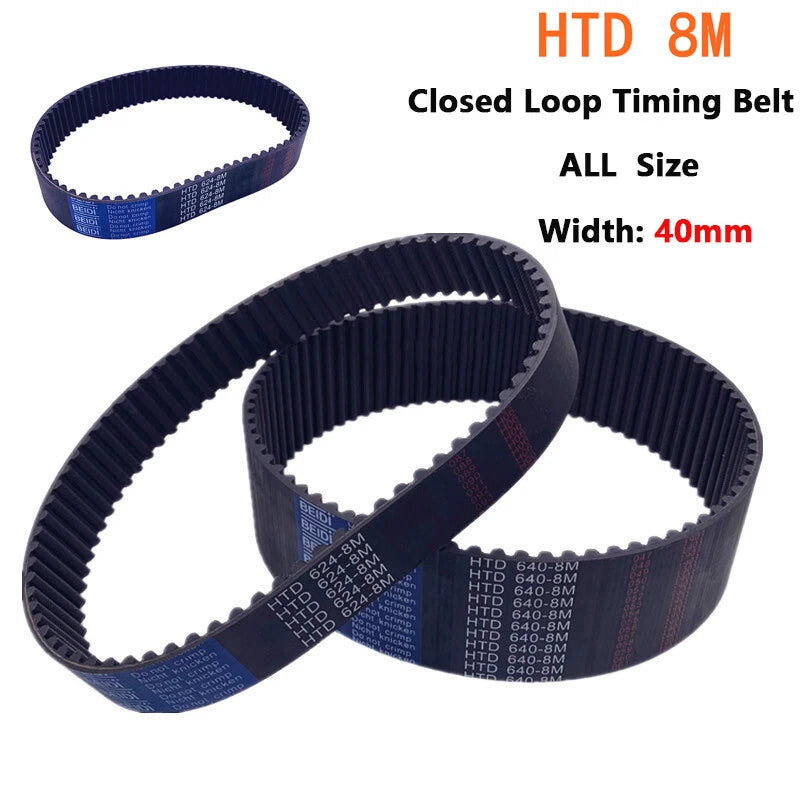

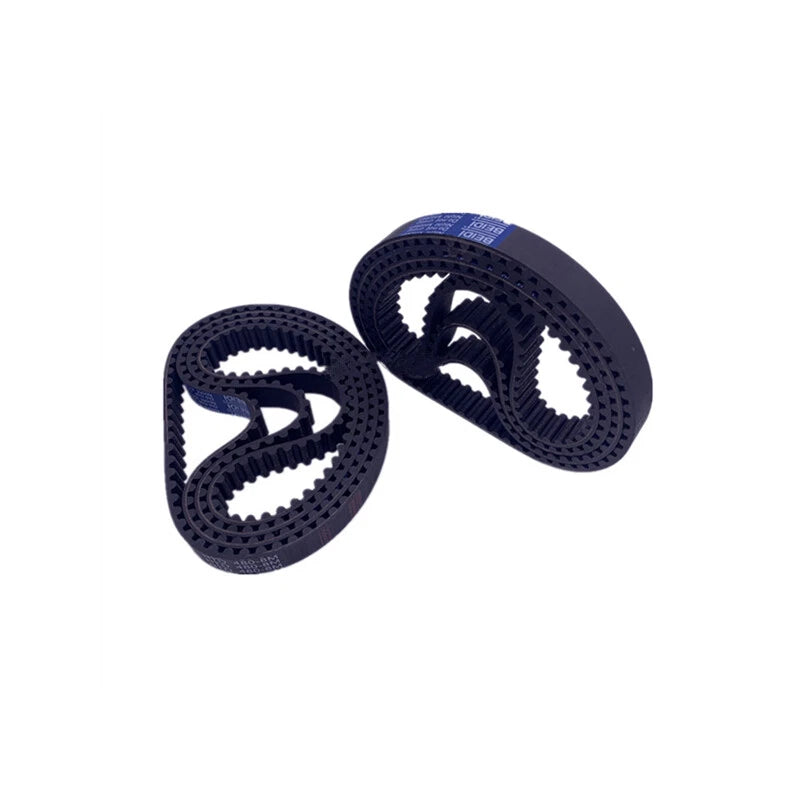

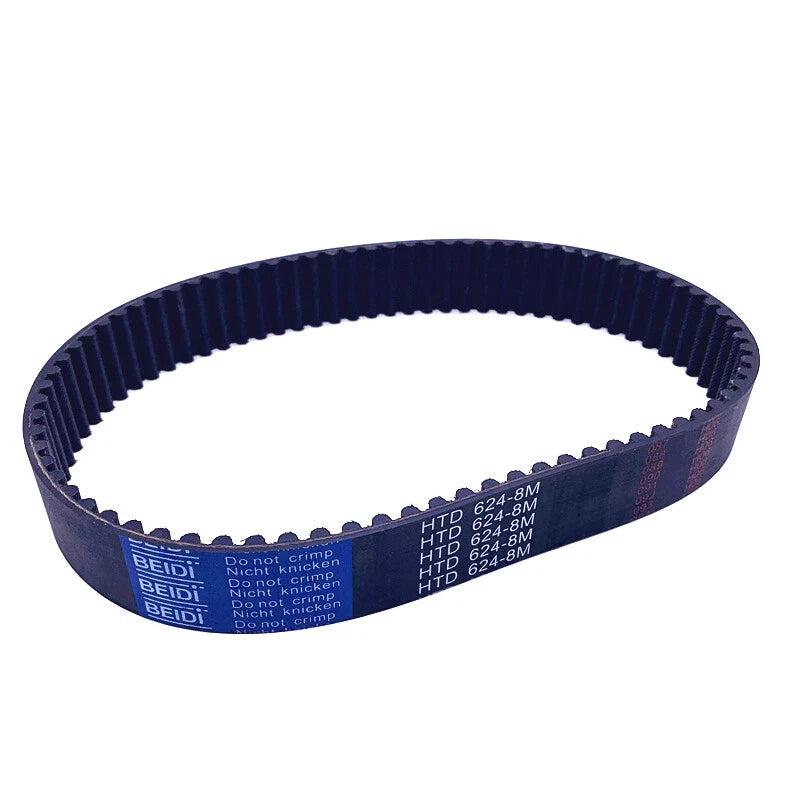

Each belt in this listing is a closed-loop HTD 8M timing belt with an 8mm tooth pitch and 40mm (≈1.57") belt width. The HTD (High Torque Drive) curvilinear tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress. Available in 238 size options from 33 teeth / 264mm (≈10.4") up to 550 teeth / 4400mm (≈173.2"), sold individually (1 pc per order). Material is typically neoprene rubber with fiberglass or steel tension cord reinforcement.

Typical use cases include CNC router X/Y axis drives, laser cutter gantry systems, industrial robotic joint actuators, automated pick-and-place machines, and custom motion-control platforms where an HTD 8M synchronous belt drive is specified. The 40mm width makes it well suited for higher-torque applications compared to narrower 20mm or 30mm variants of the same pitch.

⚠️ This belt uses the HTD 8M tooth profile. It is not compatible with GT2, T8, or trapezoidal pulleys. Verify your pulley is labeled HTD 8M before ordering.
✅ Compatible with: HTD 8M pulleys & sprockets — CNC routers, laser cutters, robotic actuators, conveyor drives, and custom motion-control systems requiring an 8mm pitch synchronous belt.

✅ Key Features of These HTD 8M Timing Belts

  • 🦷HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry spreads load across a larger contact area than trapezoidal profiles, making this HTD 8M timing belt more resistant to tooth shear under high-torque conditions.
  • 📏Wide 40mm Belt Width — At 40mm (≈1.57") wide, this belt delivers greater torque capacity than narrower 20mm or 30mm 8M variants, suitable for demanding CNC router and industrial robotics drive systems.
  • 🔩8mm Pitch for Precise Synchronization — The 8mm tooth pitch provides accurate, slip-free motion transfer, critical for CNC axis positioning, laser cutter gantry travel, and robotic joint control.
  • 📐238 Size Options in One Listing — From 33 teeth / 264mm to 550 teeth / 4400mm, select the exact circumference your drive system requires without custom cutting or splicing.
  • 🧱Reinforced Tension Cord Construction — Fiberglass or steel cord reinforcement (typically) limits belt stretch under dynamic loads, maintaining consistent pitch length in automated conveyor and pick-and-place applications.
  • 🚚Ships from US Warehouse — Stocked domestically for faster delivery to US-based builders, machine shops, and engineering teams running CNC or robotics projects.

📐 Technical Specifications — HTD 8M Timing Belt

Belt Type HTD (High Torque Drive) Synchronous Timing Belt
Tooth Pitch 8mm (HTD 8M)
Belt Width 40mm (≈1.57")
Tooth Profile HTD curvilinear (rounded) — not compatible with GT2 or trapezoidal
Tooth Count Range 33 teeth – 550 teeth (see variant options)
Belt Length Range 264mm (≈10.4") – 4400mm (≈173.2")
Belt Construction Neoprene rubber body with fiberglass or steel tension cord (typically)
Belt Style Closed-loop (endless)
Quantity per Order 1 piece
Compatible Pulleys HTD 8M pulleys only — confirm pulley tooth profile before ordering
Typical Applications CNC routers, laser cutters, robotic actuators, conveyor drives, motion-control systems
Color / Finish See variant options
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length and tooth count?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. Since each tooth on an HTD 8M belt spans 8mm of pitch length, tooth count = belt circumference ÷ 8mm. For example, a 640mm belt has 80 teeth. When in doubt, round up to the next available size — a slightly longer belt is generally easier to tension than one that is too short.

What load or torque can an HTD 8M 40mm wide belt handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. The 40mm width typically supports higher torque than narrower variants of the same pitch. Exact load ratings depend on pulley diameter, operating speed, wrap angle, and service conditions — consult your drive system's engineering specifications or contact us to confirm suitability for your application.

Can this belt be used outdoors or in wet environments?

HTD timing belts are typically constructed from neoprene rubber with fiberglass or steel cord reinforcement, which offers reasonable moisture resistance for light outdoor or damp indoor environments. Prolonged exposure to UV radiation, petroleum-based oils, or harsh chemicals can degrade the belt over time. For fully outdoor or chemically aggressive environments, verify material compatibility before installation.

What pulley standard is compatible with this belt?

This belt uses the HTD 8M tooth profile with an 8mm pitch. It is compatible with HTD 8M pulleys only. Do not mix with GT2, GT3, T8, or trapezoidal (MXL, XL, L) pulleys — the curved HTD tooth geometry is not interchangeable with other profiles. Always confirm your pulley is labeled HTD 8M before ordering.

How do I convert belt length from mm to inches?

Divide the length in mm by 25.4 to get inches. Quick reference:

  • 264mm ÷ 25.4 ≈ 10.4"
  • 640mm ÷ 25.4 ≈ 25.2"
  • 1000mm ÷ 25.4 ≈ 39.4"
  • 2000mm ÷ 25.4 ≈ 78.7"
  • 4400mm ÷ 25.4 ≈ 173.2"

All variant sizes are listed in both mm and tooth count in the size selector above.

Is this belt suitable for CNC routers and 3D printers?

Yes. HTD 8M belts are commonly used in CNC routers, laser cutters, and industrial robotics where precise, slip-free synchronous motion is required. For desktop 3D printers, note that the 8M pitch (8mm) is significantly larger than the 2mm GT2 pitch used in most consumer FDM printers — confirm your machine's drive specification before purchasing. This belt is best suited for larger-format or industrial-grade machines.

What is the difference between HTD and GT belt profiles?

HTD (High Torque Drive) belts use a rounded, curvilinear tooth profile designed to reduce stress concentration and handle higher torque loads compared to trapezoidal belts. GT (Gates Tooth) belts use a modified curvilinear profile optimized for reduced backlash and improved positioning accuracy. The two profiles are not interchangeable — always match belt and pulley tooth profiles exactly.

🛒 Select your size above, then add to cart — ships from our US warehouse.
