Description

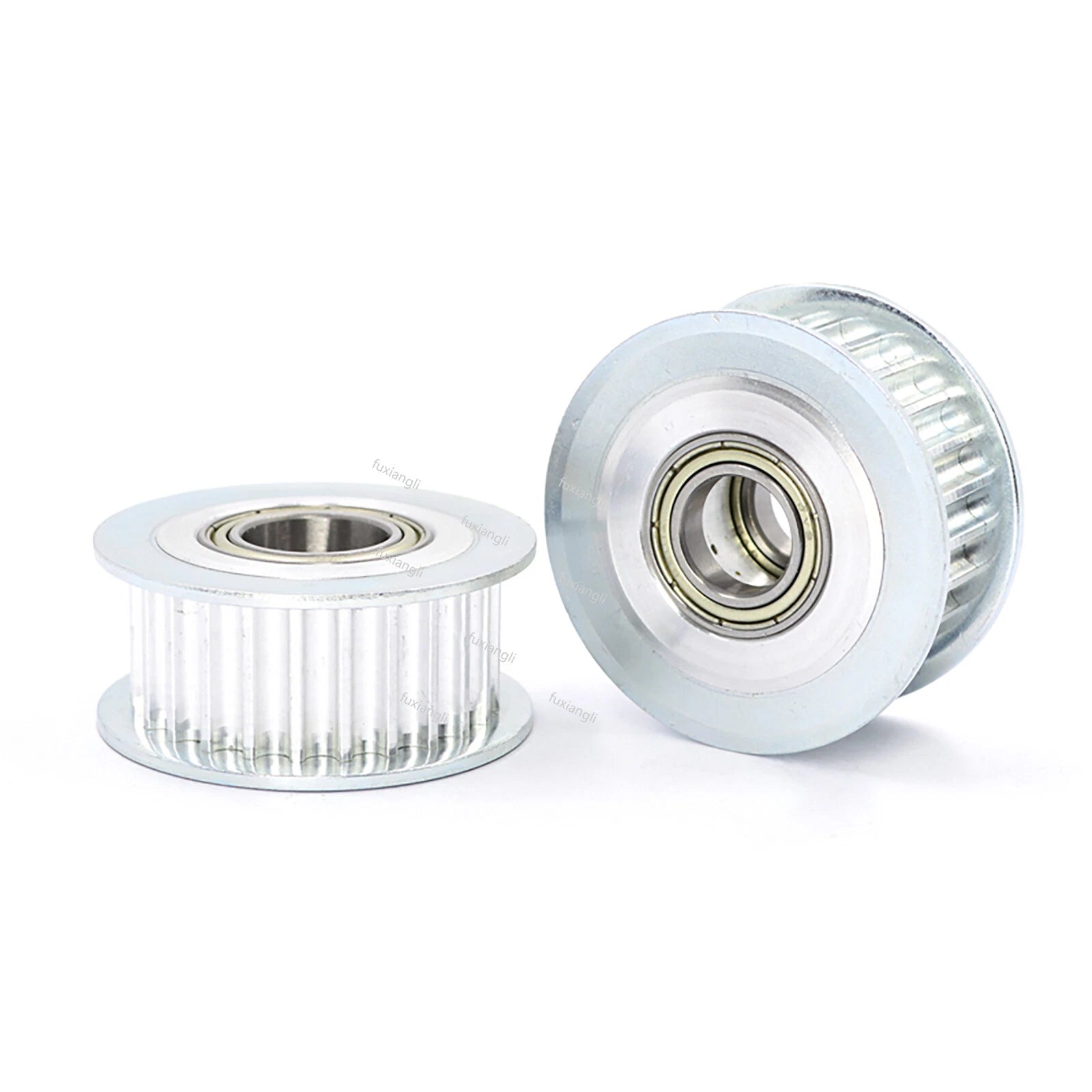

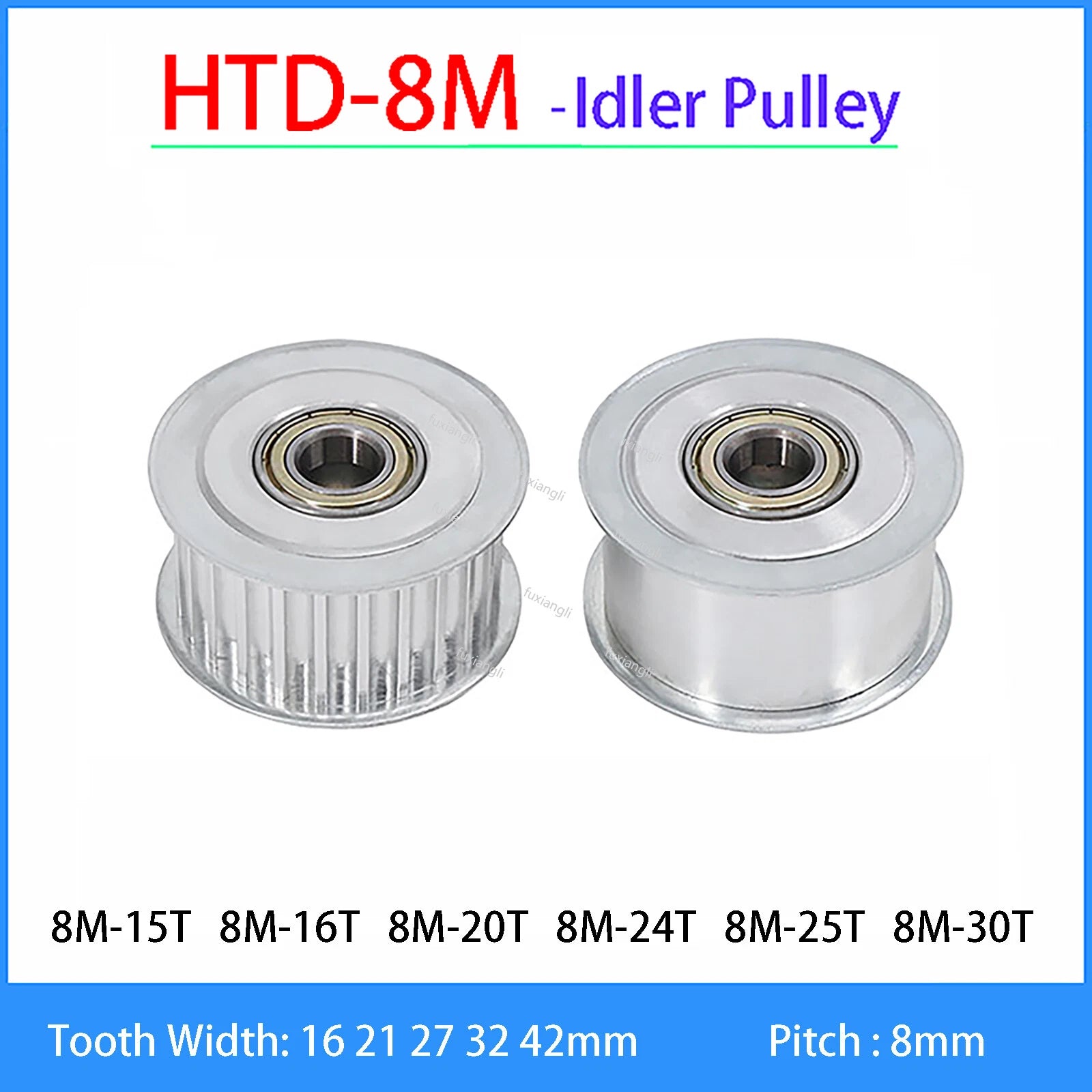

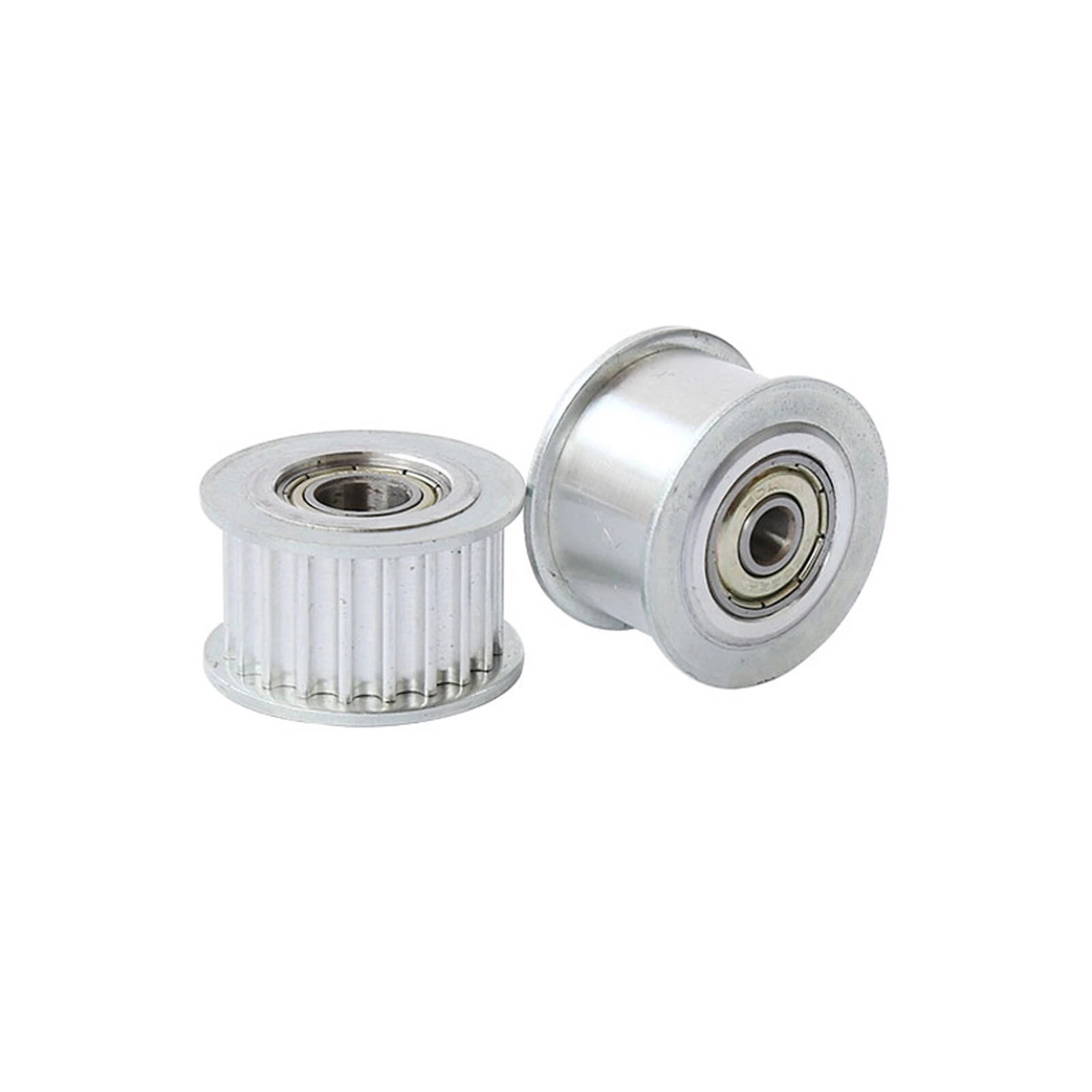

HTD-8M Idler Tensioner Pulley — Reliable Belt Tension for DIY Automation Builds

When your timing belt slips or loses tension mid-project, the entire drive system suffers — and for makers, hobbyists, and small workshop builders, that means downtime and rework. These HTD-8M idler tensioner pulleys are engineered to maintain consistent belt tension in synchronous drive systems, giving you the stable, slip-free motion control your automation projects demand.

Each pulley is machined from aluminum alloy with a smooth or toothed tooth profile, available in 15T through 30T tooth counts and bore diameters from 5mm (~0.20 in) to 25mm (~0.98 in). Tooth widths span 16mm (~0.63 in) to 42mm (~1.65 in) to match a wide range of HTD-8M belt widths. Single-side and double-side bearing configurations are offered to suit both guided and free-spinning tensioner applications.

Typical use cases include CNC router belt tensioning, 3D printer drive systems requiring HTD-8M idler pulleys, robotic arm synchronous belt setups, and DIY conveyor or linear motion rigs where consistent belt preload is critical.

⚙️ Compatibility: Designed for HTD-8M synchronous timing belts. Tooth width must match or exceed your belt width. Verify bore diameter against your shaft size before ordering.

✅ Key Features of These HTD-8M Idler Tensioner Pulleys

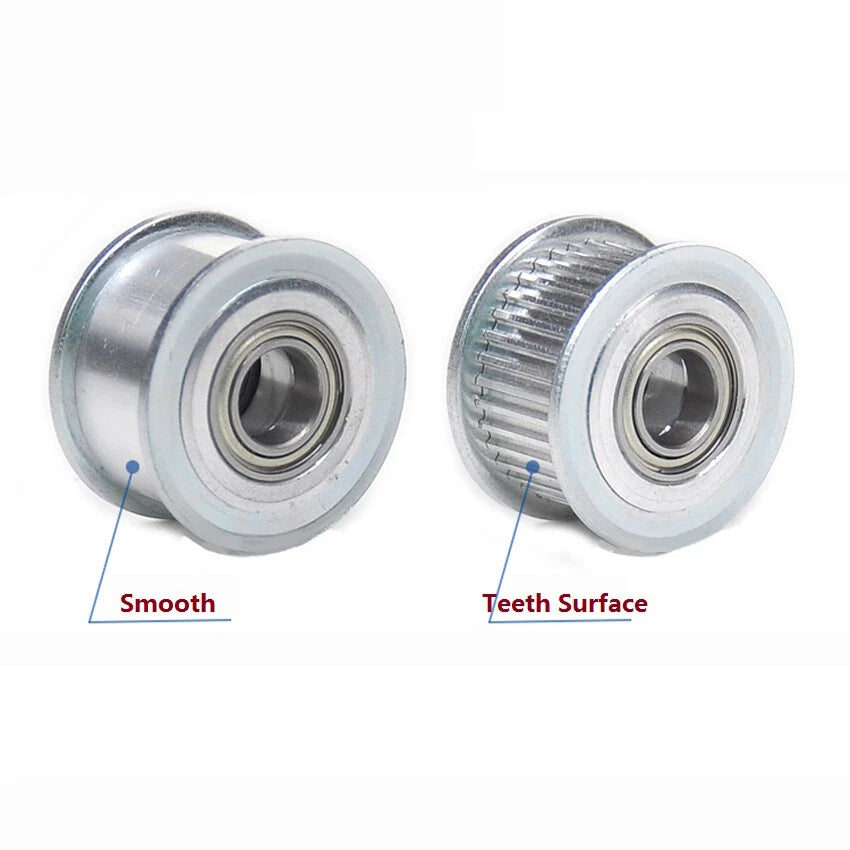

🔩 Toothed & Smooth Variants

Choose toothed for positive belt engagement or smooth for free-spinning idler tension — both available across all tooth counts.

📐 Wide Size Range

15T to 30T tooth counts, bore diameters 5–25mm, and tooth widths 16/21/27/32/42mm cover most HTD-8M belt drive configurations.

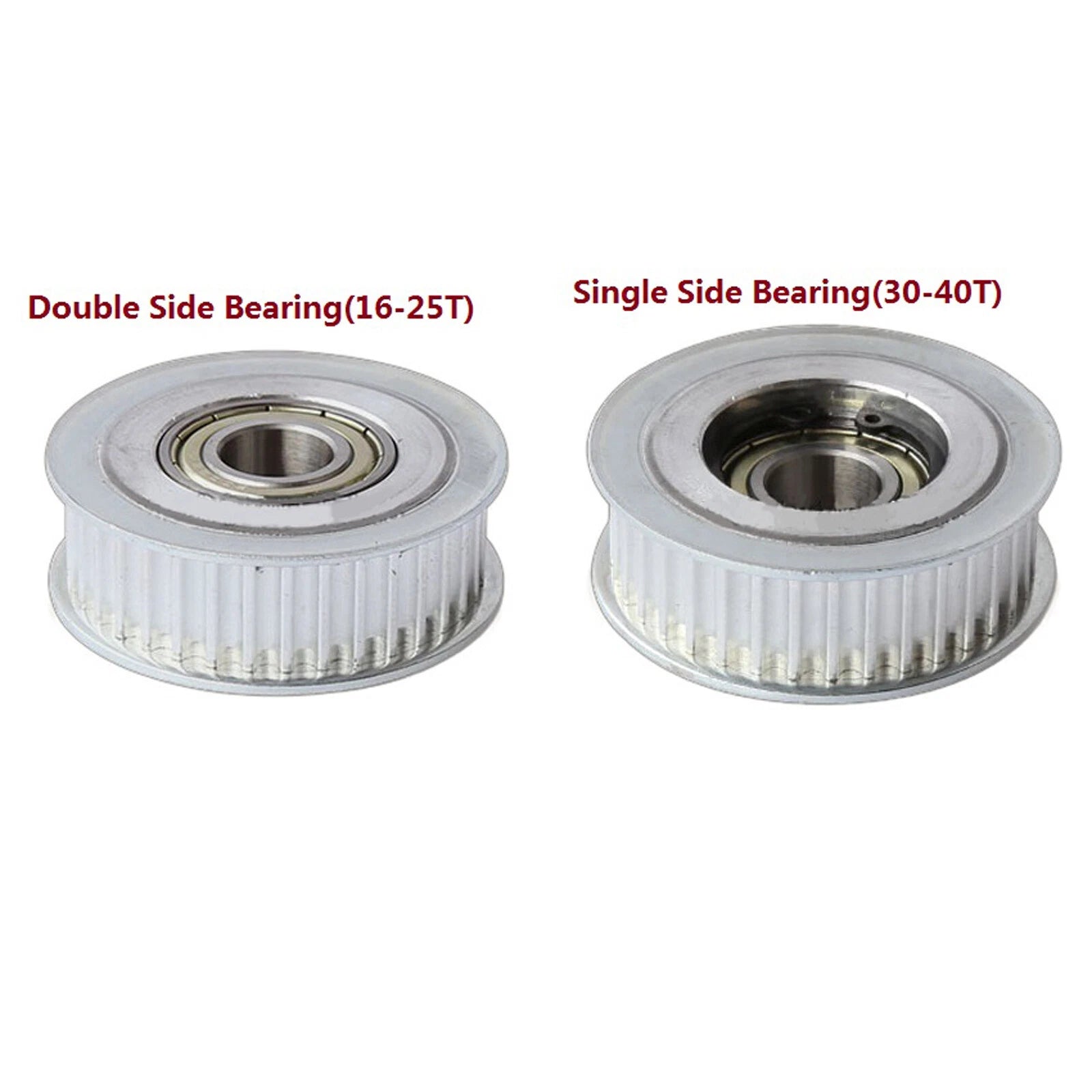

🔄 Single & Double Side Bearing

Double-side bearing models offer superior radial load support; single-side bearing suits lighter-duty or space-constrained tensioner positions.

🏗️ Aluminum Alloy Construction

Lightweight yet rigid aluminum alloy body resists deformation under belt tension loads, maintaining accurate tooth pitch alignment.

🎯 HTD-8M Profile Precision

Tooth profile machined to HTD-8M standard (8mm pitch) for accurate meshing with standard HTD-8M synchronous belts.

🔧 Drop-In Tensioner Replacement

Consistent bore tolerances and standard flange dimensions make these a straightforward swap for worn or undersized tensioner pulleys in existing drive systems.

📐 Technical Specifications — HTD-8M Idler Tensioner Pulley

Belt Profile HTD-8M (8mm pitch)
Tooth Count Range 15T, 16T, 20T, 24T, 25T, 30T
Tooth Type Toothed / Smooth Tooth (see variant options)

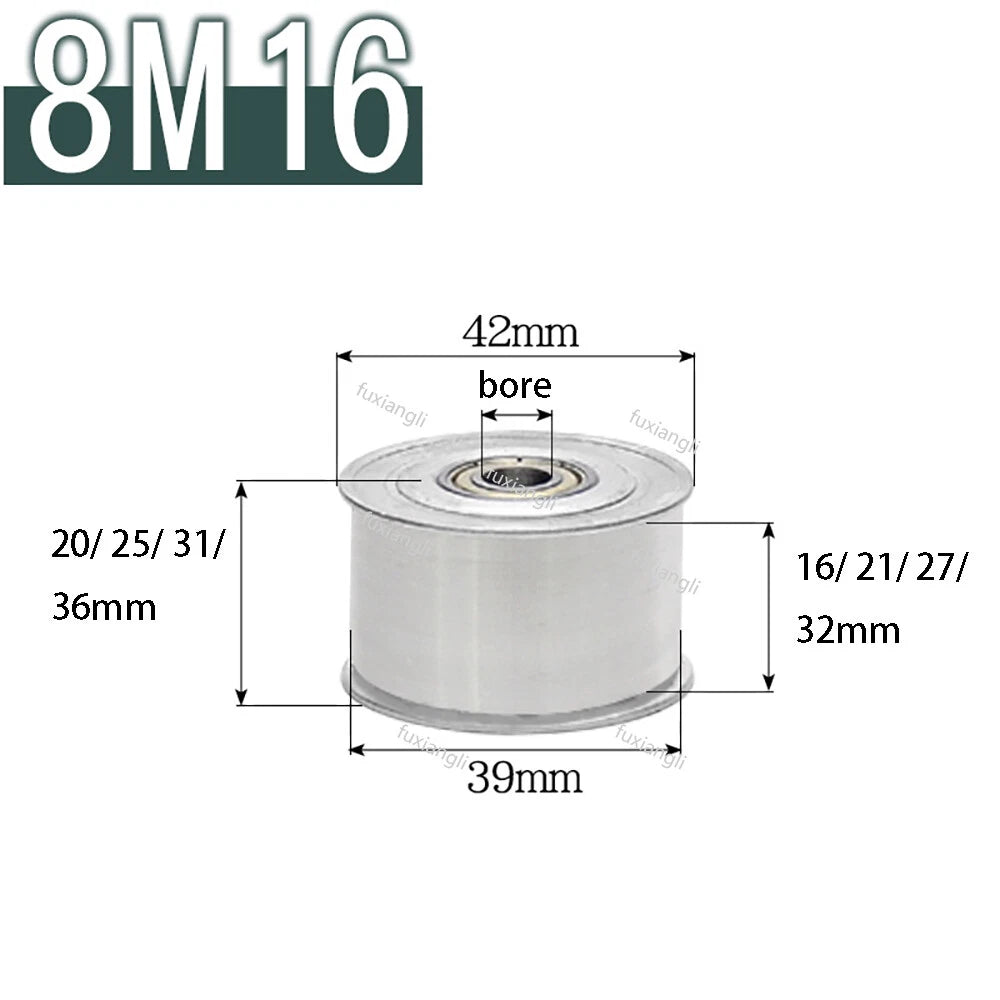

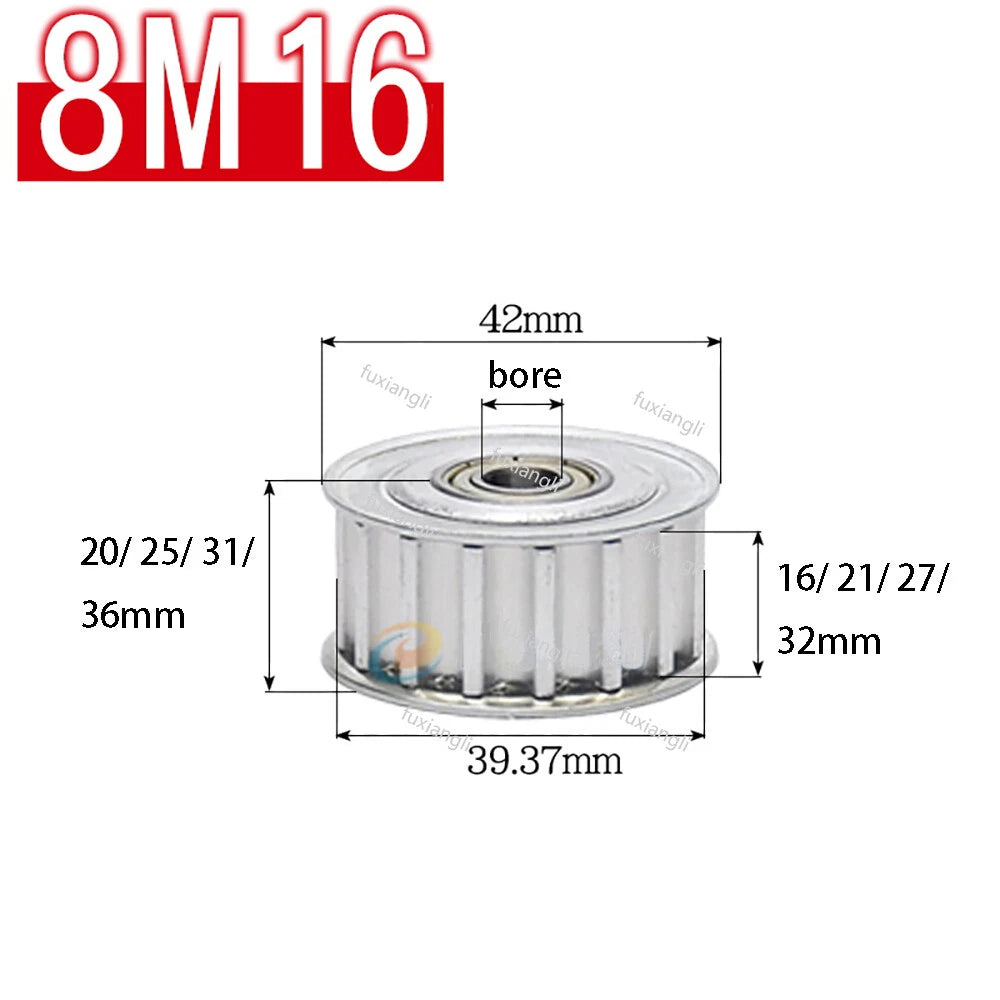

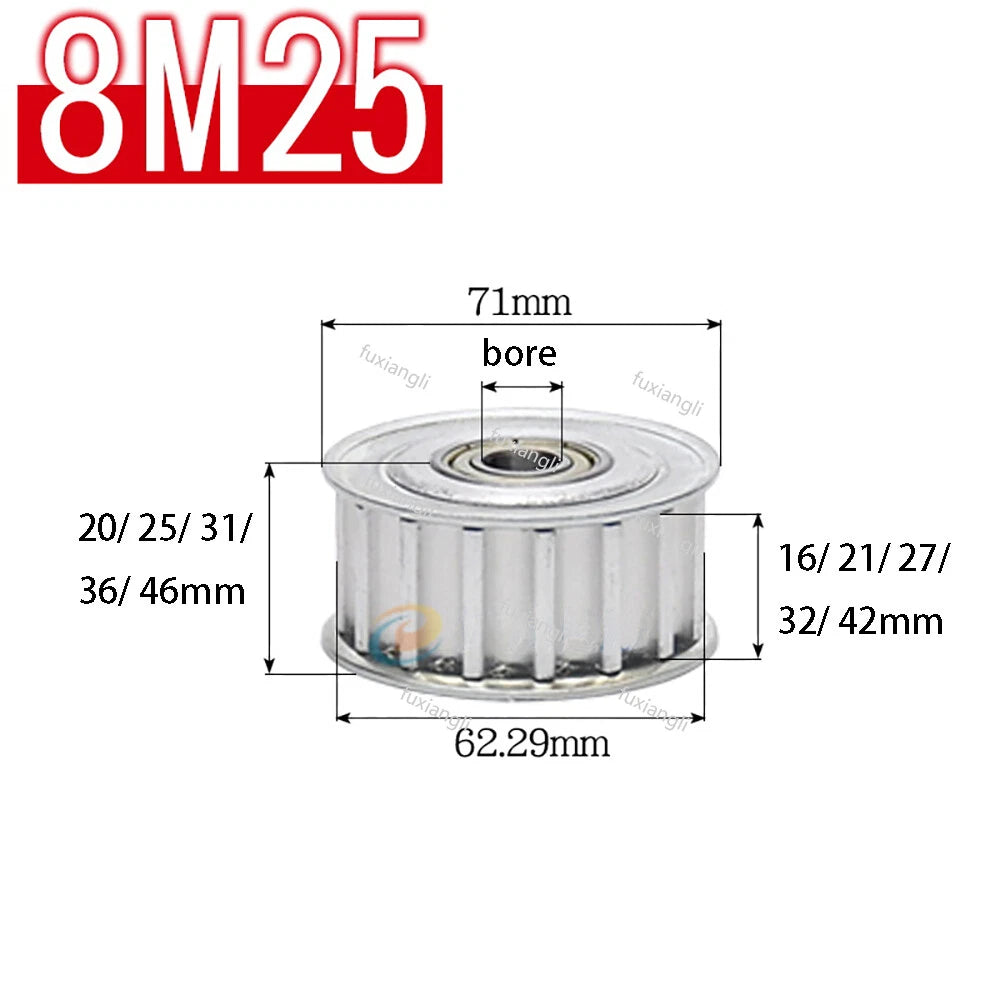

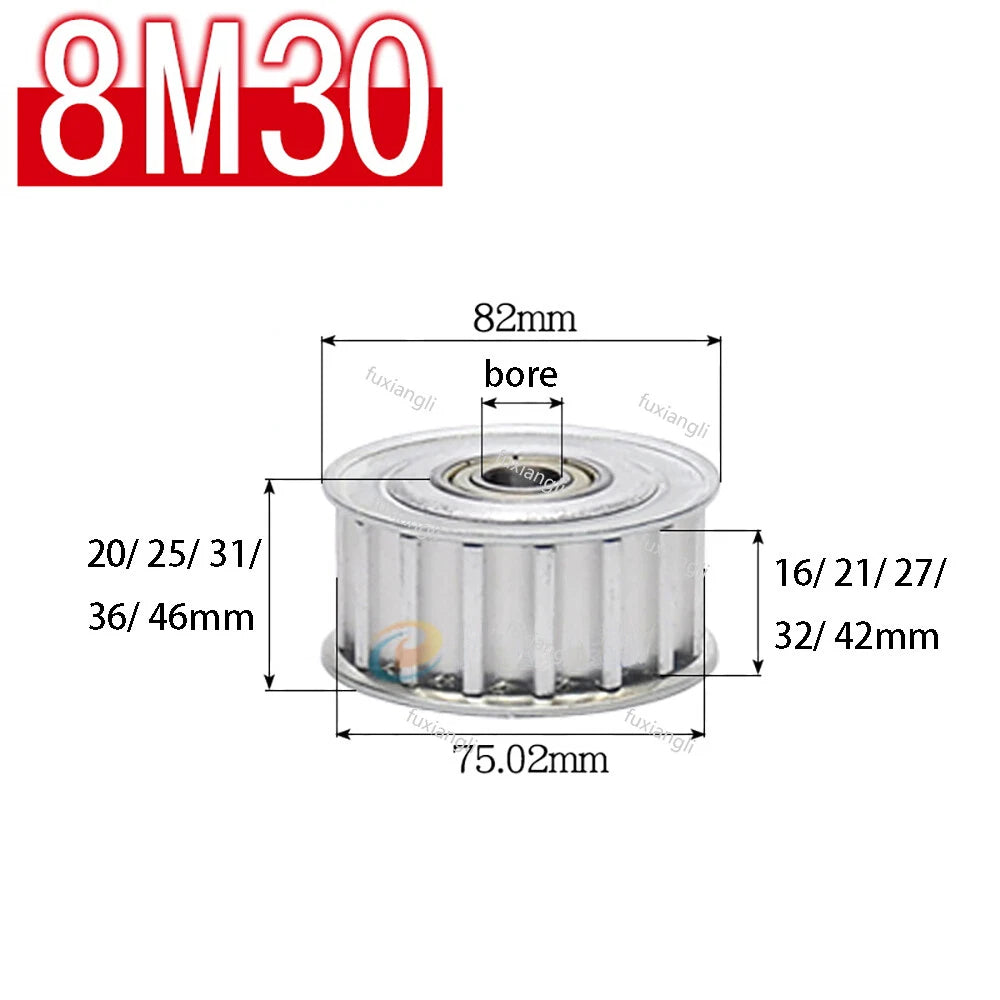

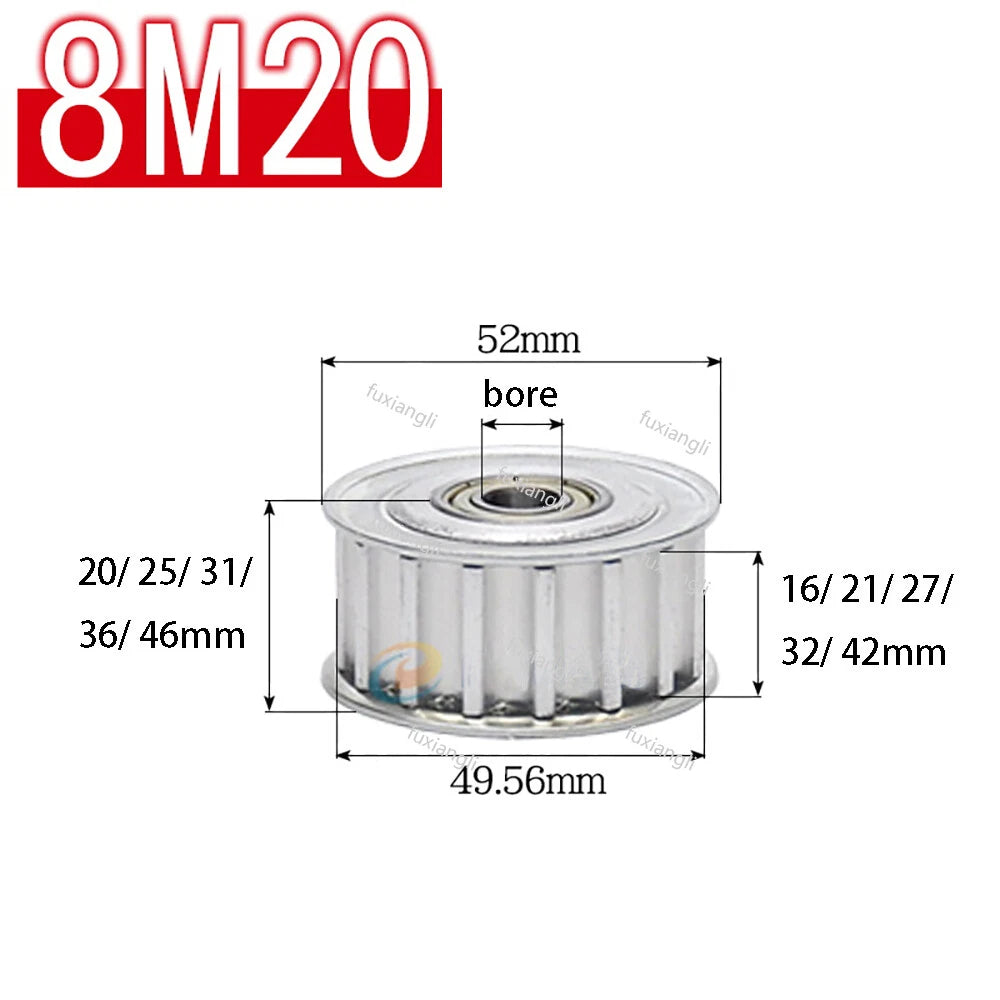

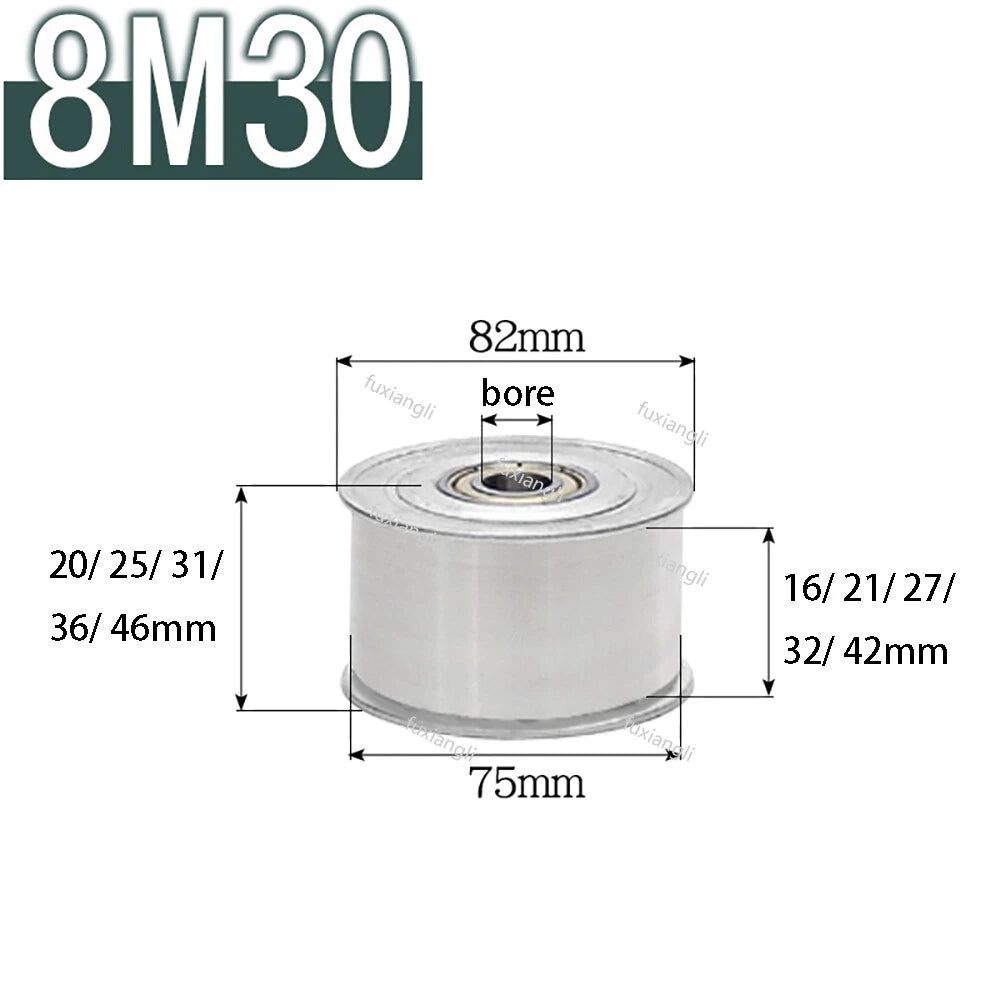

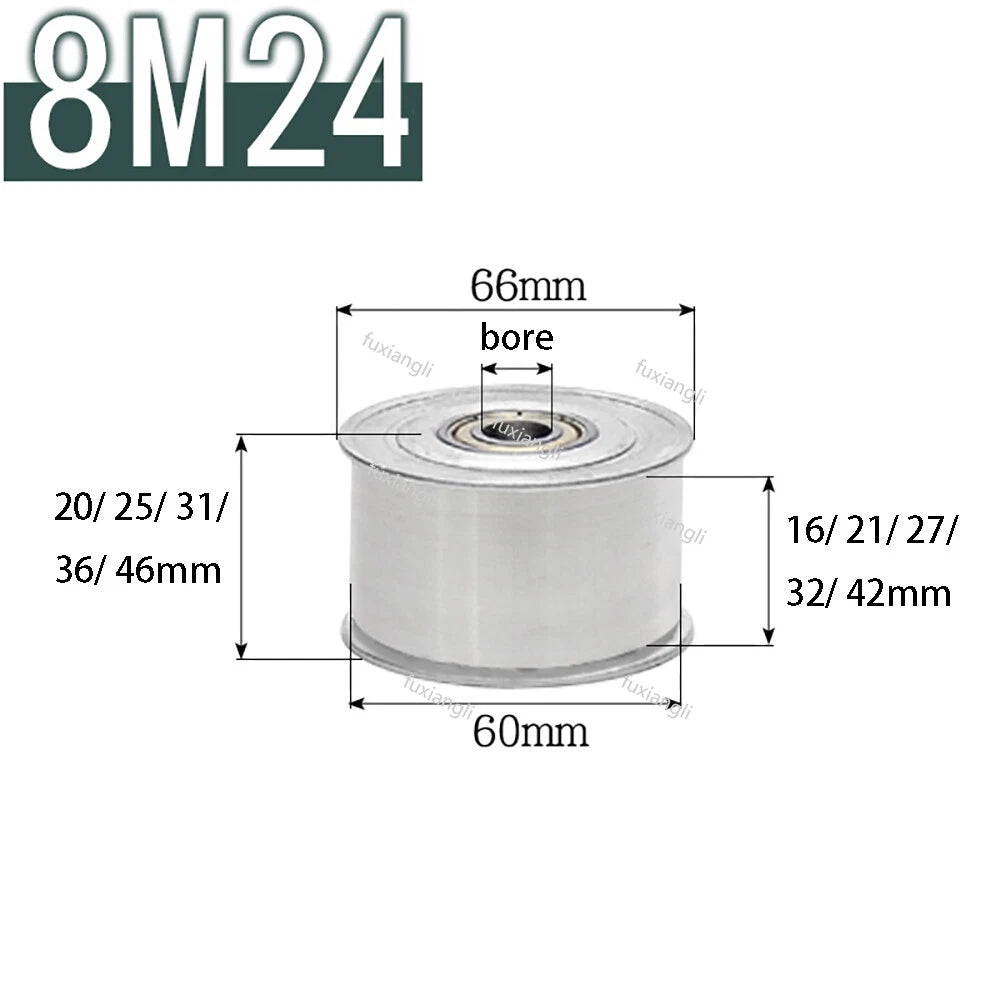

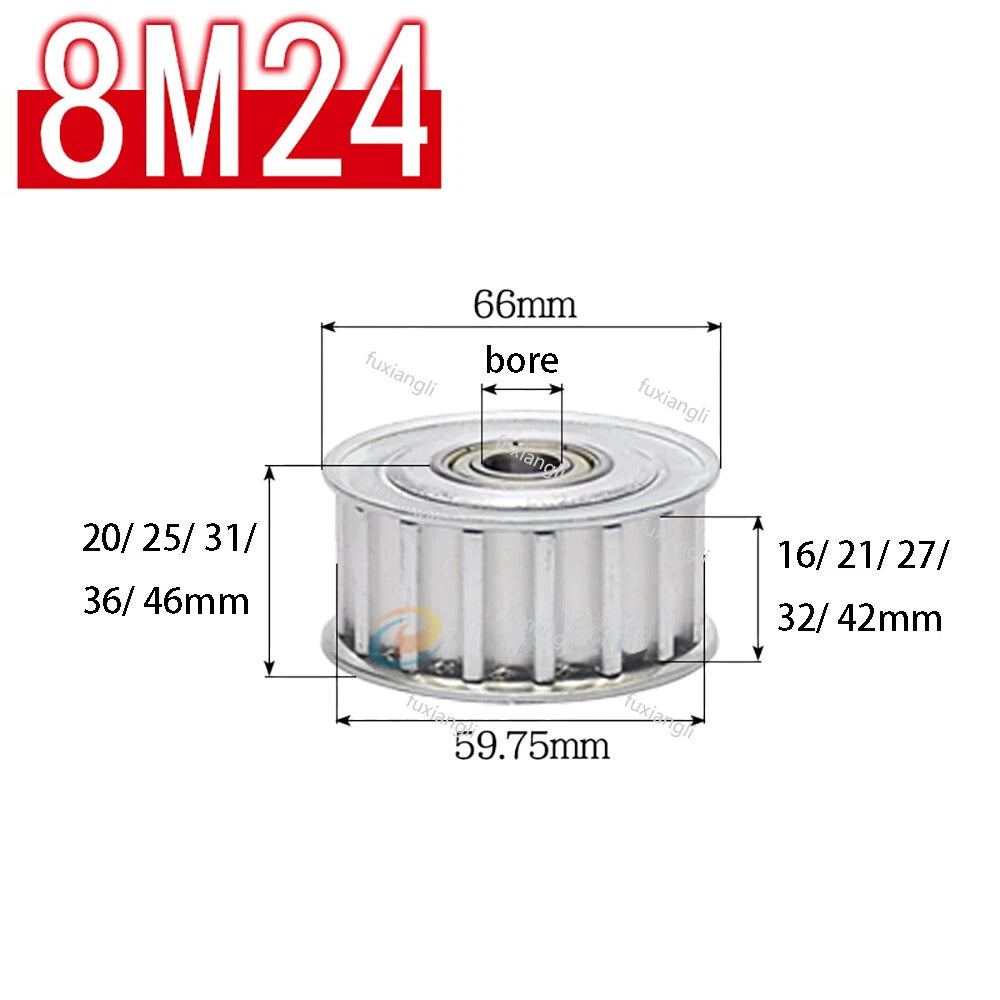

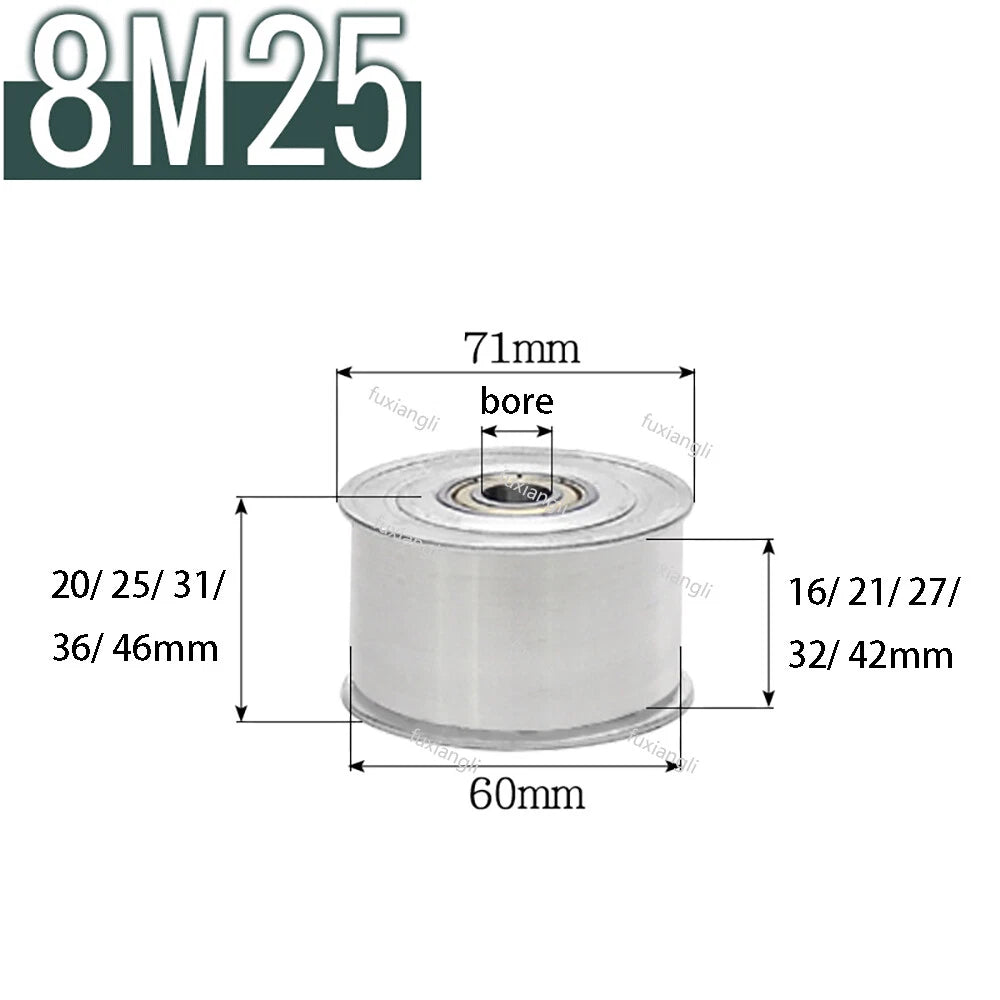

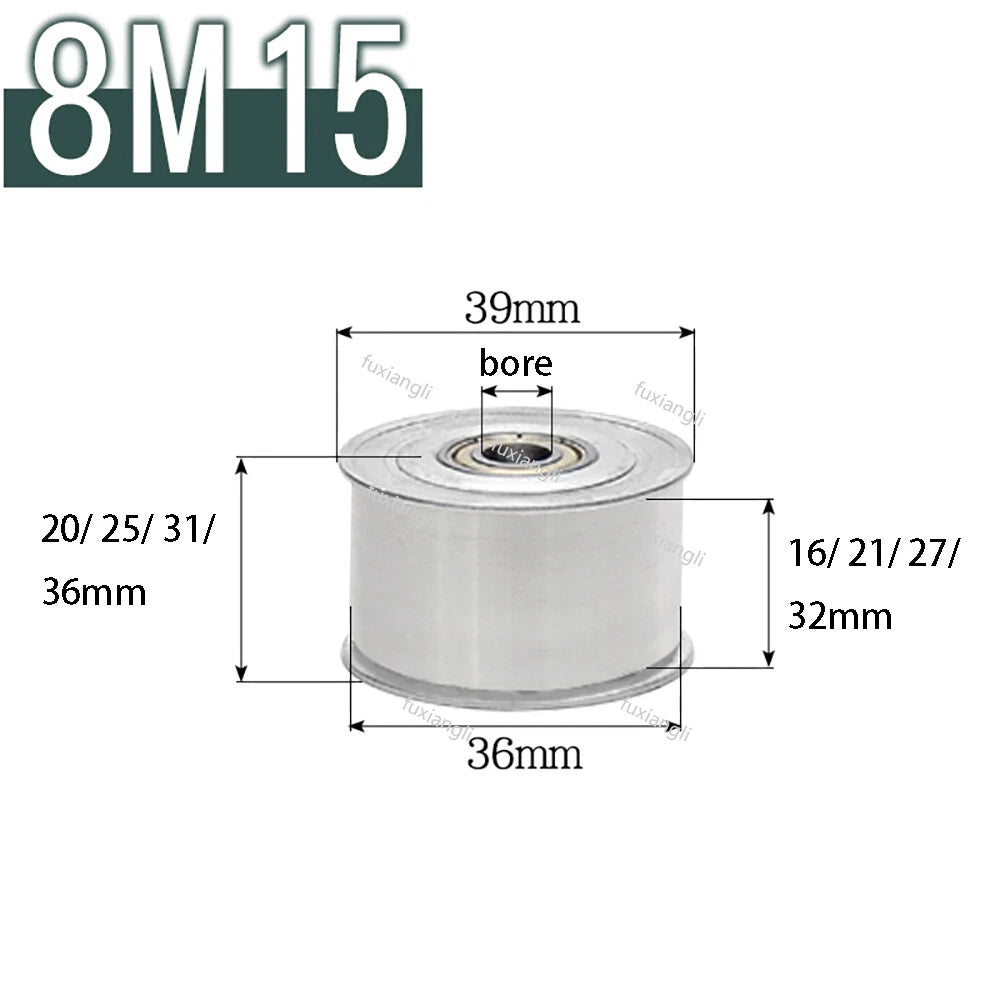

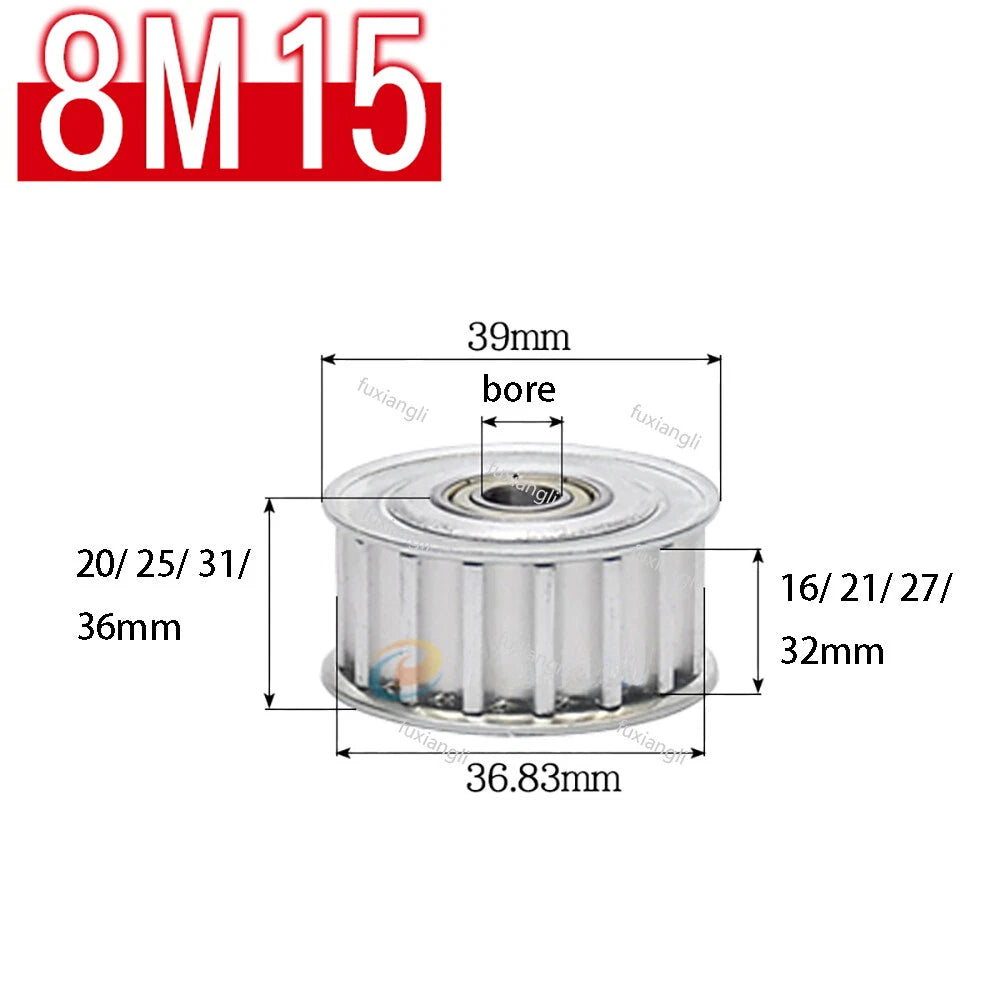

Bore Diameter 5 / 6 / 7 / 8 / 10 / 12 / 15 / 20 / 25mm (see variant options)
Tooth Width 16mm / 21mm / 27mm / 32mm / 42mm (see variant options)

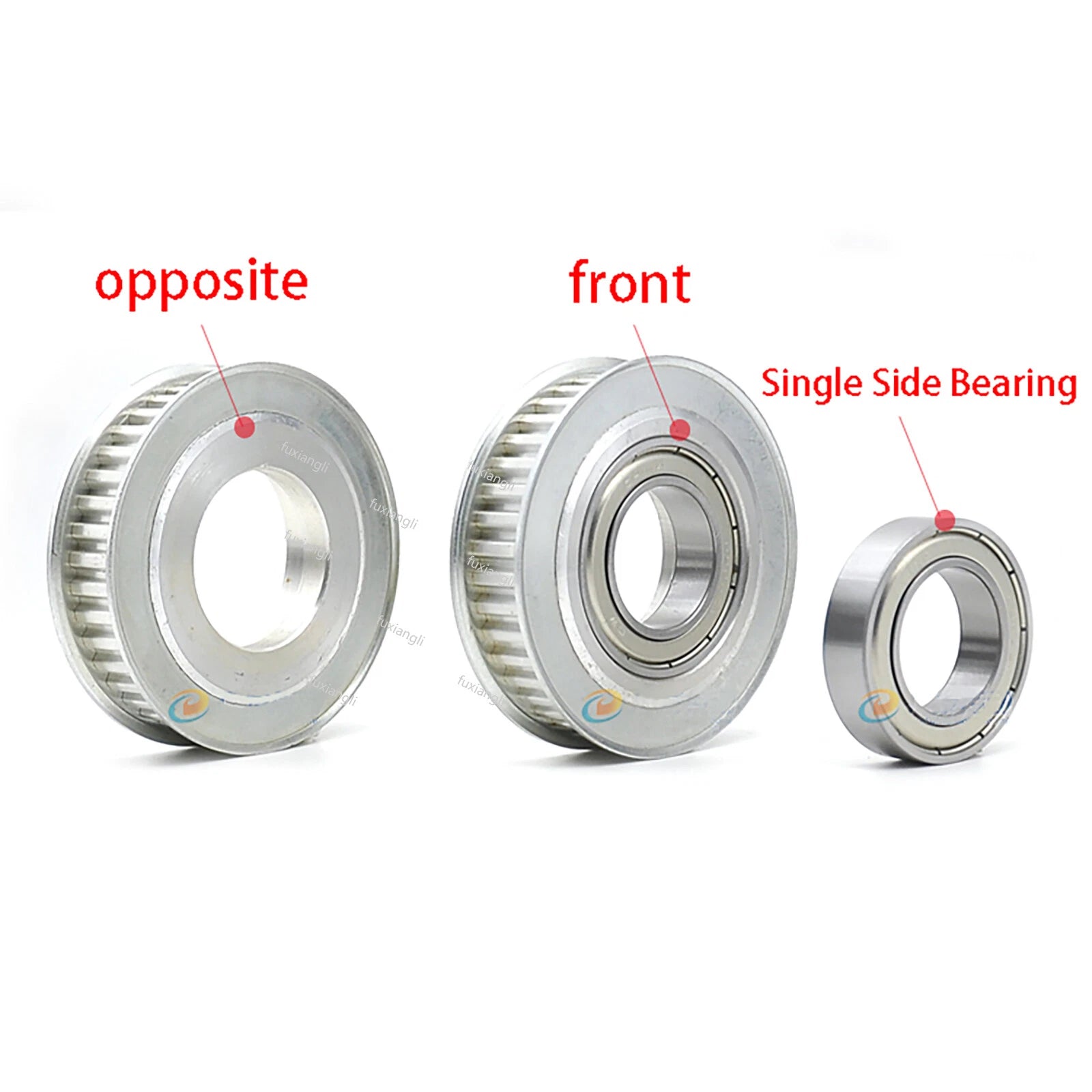

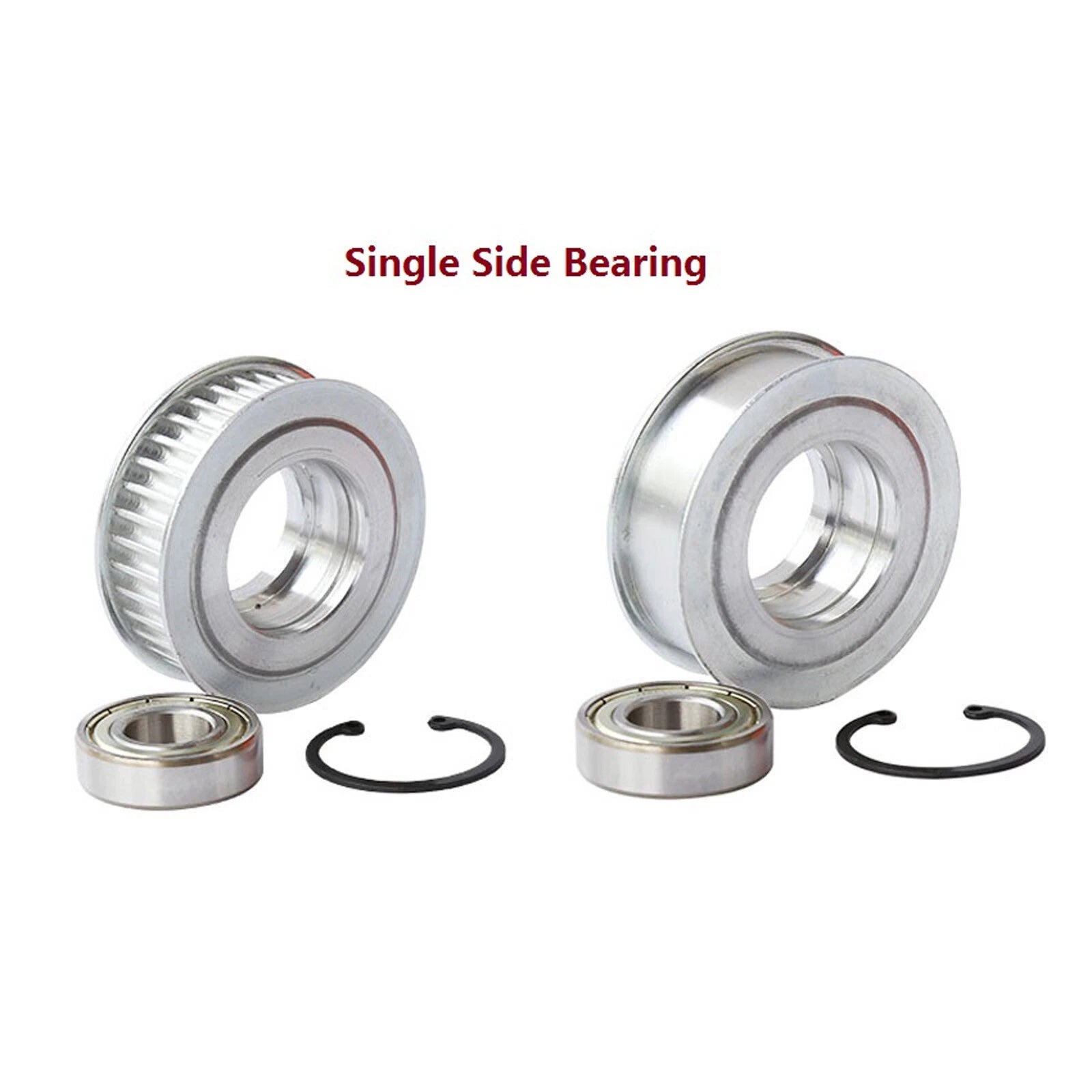

Bearing Configuration Single Side Bearing / Double Side Bearing (see variant options)
Material Aluminum Alloy
Finish Natural / Anodized (see variant options)
Quantity per Order 1 Piece
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count for my HTD-8M drive?

The idler/tensioner pulley tooth count affects the wrap angle on your drive belt. For most tensioner applications, a tooth count close to your driven pulley (15T–20T for compact drives, 24T–30T for larger center distances) works well. If using a smooth-tooth idler on the back of the belt, tooth count is less critical — focus on diameter and width instead.

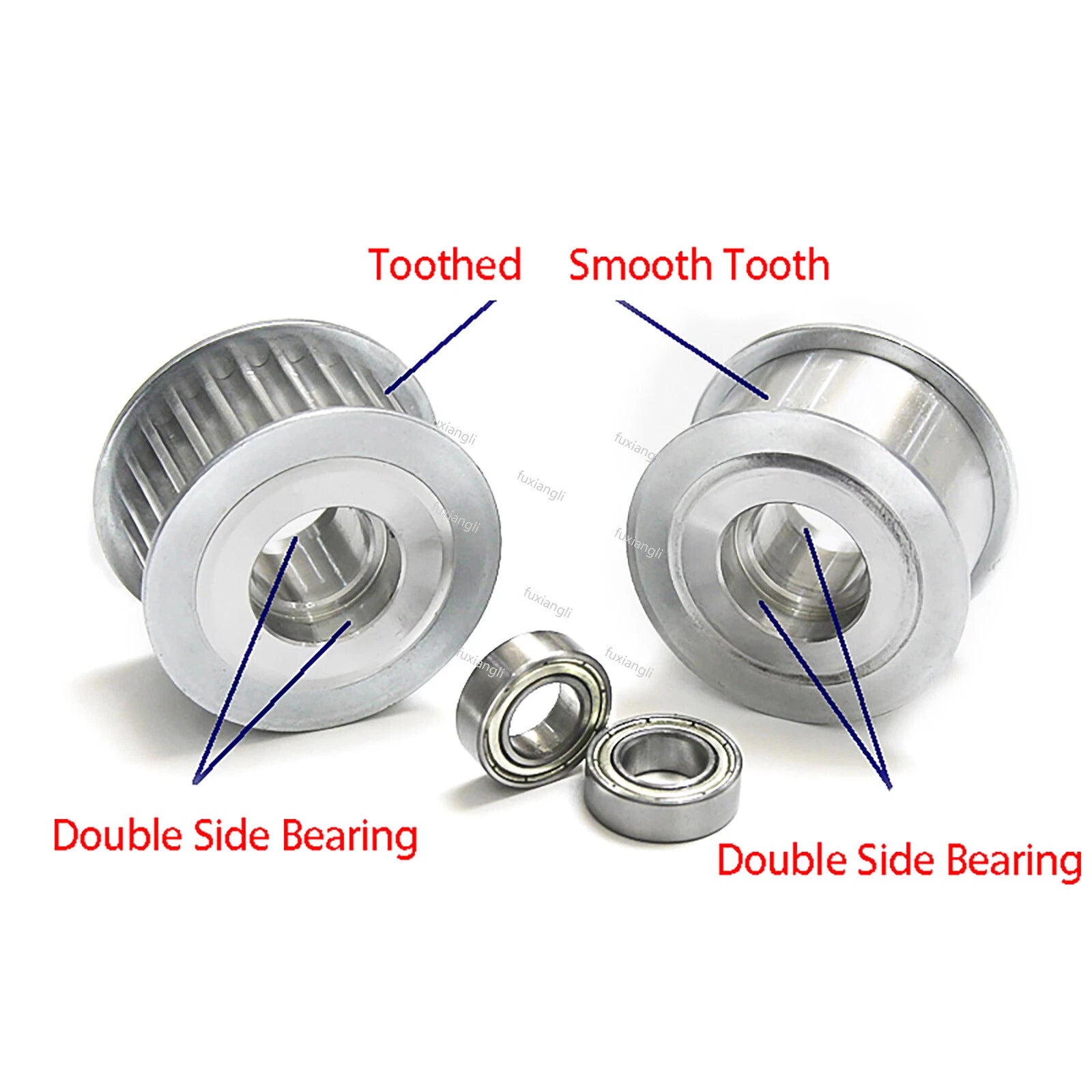

What is the difference between toothed and smooth tooth variants?

Toothed variants mesh directly with the belt's inner tooth profile, providing positive engagement and preventing belt skip — ideal for drive-side tensioners. Smooth tooth variants contact the flat back of the belt and are used as free-spinning idlers to guide or tension the belt without engaging the tooth profile.

Which bearing configuration should I choose — single or double side?

Double-side bearing pulleys distribute radial loads on both sides of the pulley body, making them suitable for higher-tension or higher-speed applications. Single-side bearing models are lighter and more compact, suited for low-load tensioner positions or space-constrained builds. Most DIY CNC and 3D printer applications work well with double-side bearing.

Will this pulley fit my existing shaft diameter?

Select the bore diameter variant that matches your shaft. Available bores range from 5mm to 25mm. If your shaft is imperial (e.g., 1/4" ≈ 6.35mm), choose the next closest metric bore and use a set screw or key to secure. Always verify the bore size in the variant name before ordering.

Is the tooth width the same as the belt width I should use?

The tooth width of the pulley should be equal to or slightly wider than your HTD-8M belt width. For example, a 16mm tooth width pulley is suited for 15mm wide belts; a 21mm pulley suits 20mm belts. Using a pulley narrower than your belt will cause the belt to overhang and wear unevenly.

Can I use these pulleys in a CNC router or 3D printer?

Yes. These HTD-8M idler tensioner pulleys are commonly used in CNC router gantry belt tensioning, 3D printer CoreXY and bed-slinger drive systems, and DIY linear motion rigs. Ensure your belt is HTD-8M profile and select the bore and tooth width that match your existing hardware.

Are these corrosion-resistant for workshop or outdoor use?

The aluminum alloy body offers good corrosion resistance in typical indoor workshop environments. For humid or outdoor applications, consider applying a light coating of machine oil to the bearing and pulley body. The bearings are standard sealed type — not rated for submersion or heavy moisture exposure.

🛒 Select your Types & Bore Dia., Tooth Width, and Bearing & Amount above, then add to cart.
