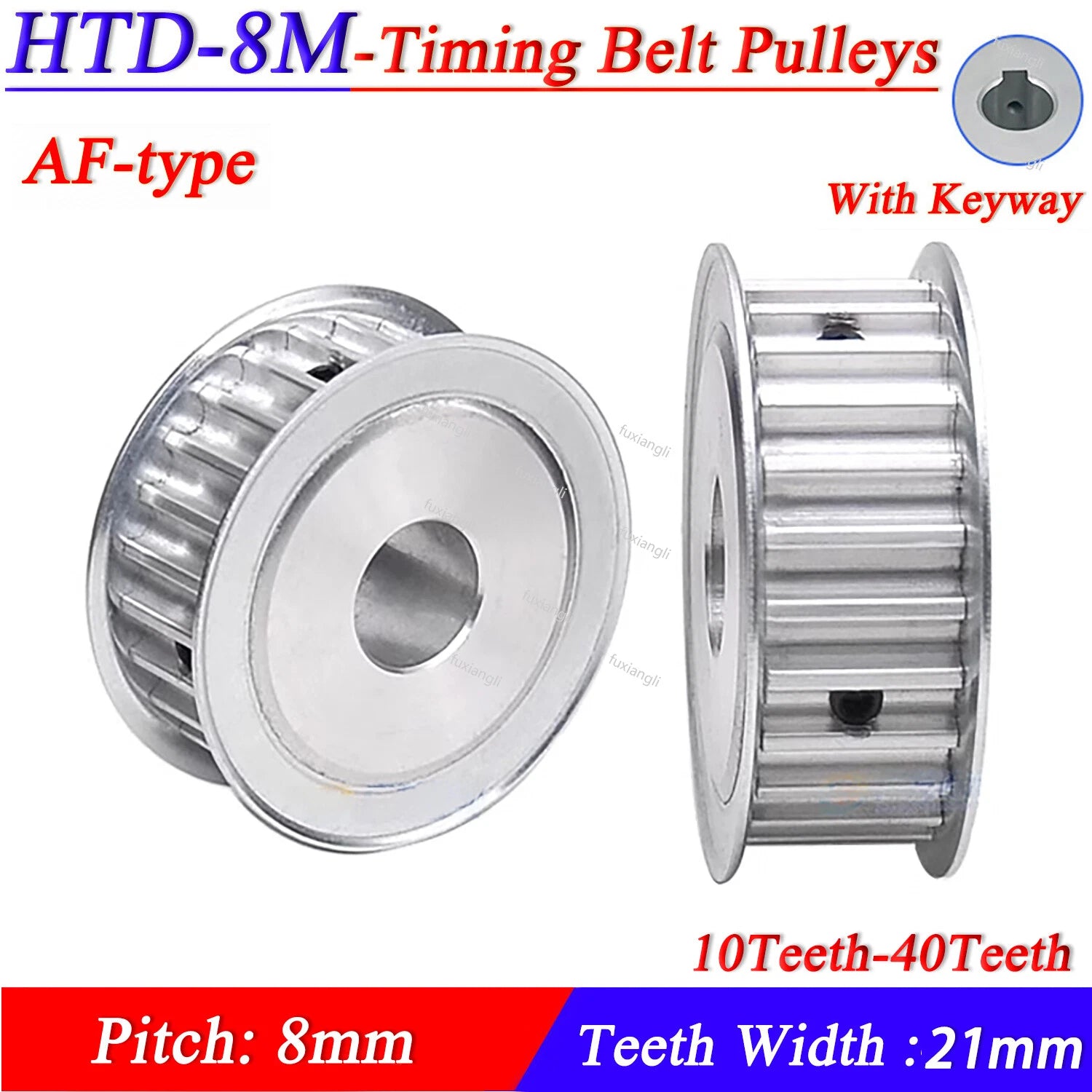

When a slipping or mismatched pulley brings your CNC router, 3D printer, or custom drive system to a halt, you need a component you can trust. This HTD-8M timing belt pulley is engineered for hobbyists, robotics builders, and mechanical engineers who demand precise, slip-free power transmission without constant re-alignment headaches.

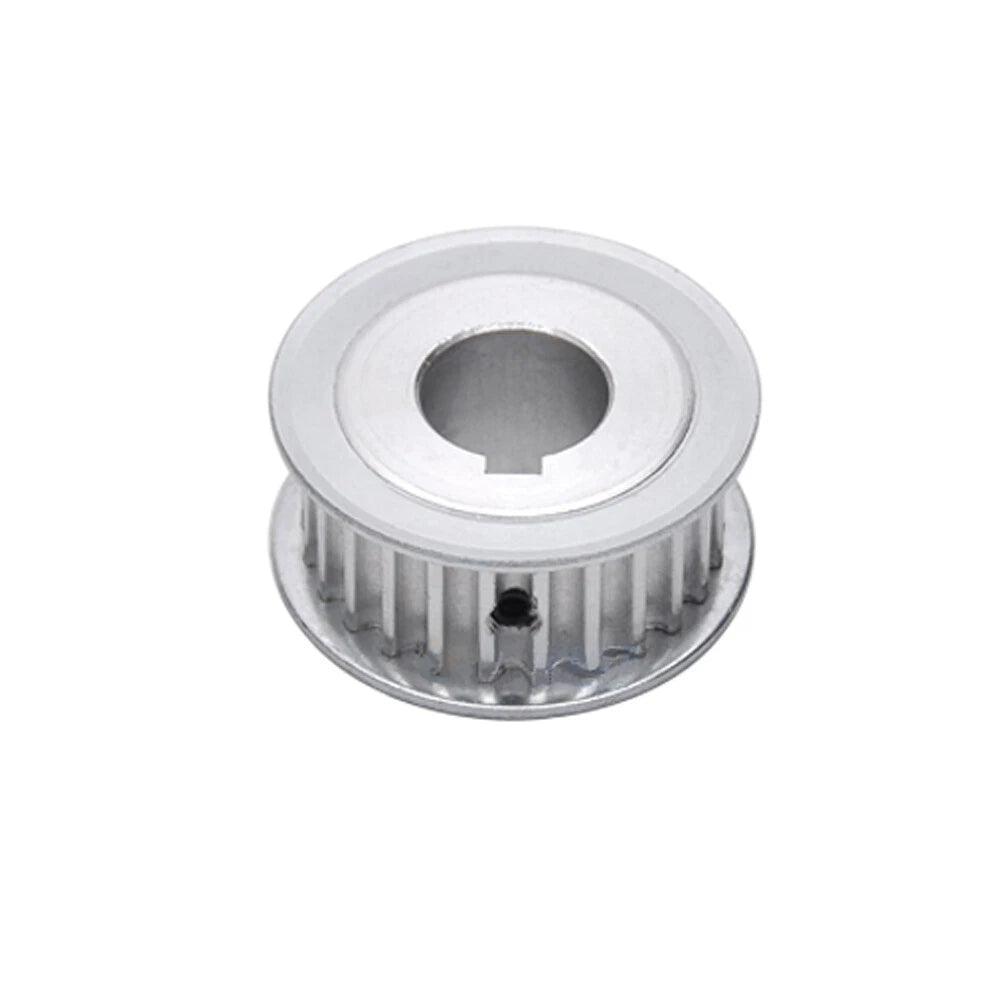

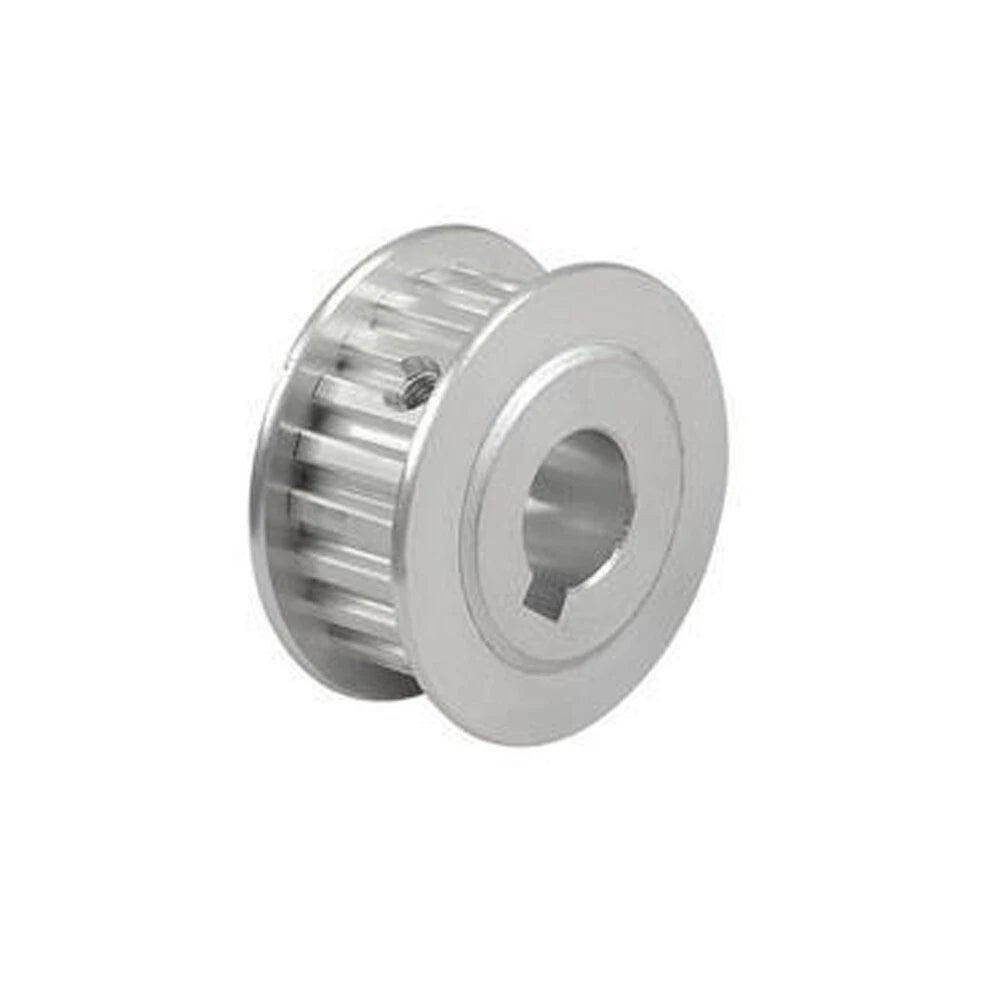

Each pulley features an HTD (High Torque Drive) 8mm pitch tooth profile machined to accept standard 8M timing belts. The AF-type hub includes a precision-cut keyway for positive shaft locking, with a fixed pulley width of 21mm (0.83 in). Bore options range from 8mm to 30mm (0.31–1.18 in), and tooth counts span 10T to 40T to suit a wide range of gear ratios and belt speeds.
Typical applications include CNC axis drives requiring consistent step accuracy, robotics joint actuators where backlash must be minimized, and industrial conveyor or indexing systems needing a dependable 8mm pitch HTD pulley with keyway retention.
| Belt Pitch | 8 mm (HTD 8M) |
|---|---|
| Tooth Profile | HTD (High Torque Drive) |
| Pulley Type | AF-type with keyway |
| Number of Teeth | 10T – 40T (see variant options) |
| Pulley Width | 21 mm (0.83 in) |

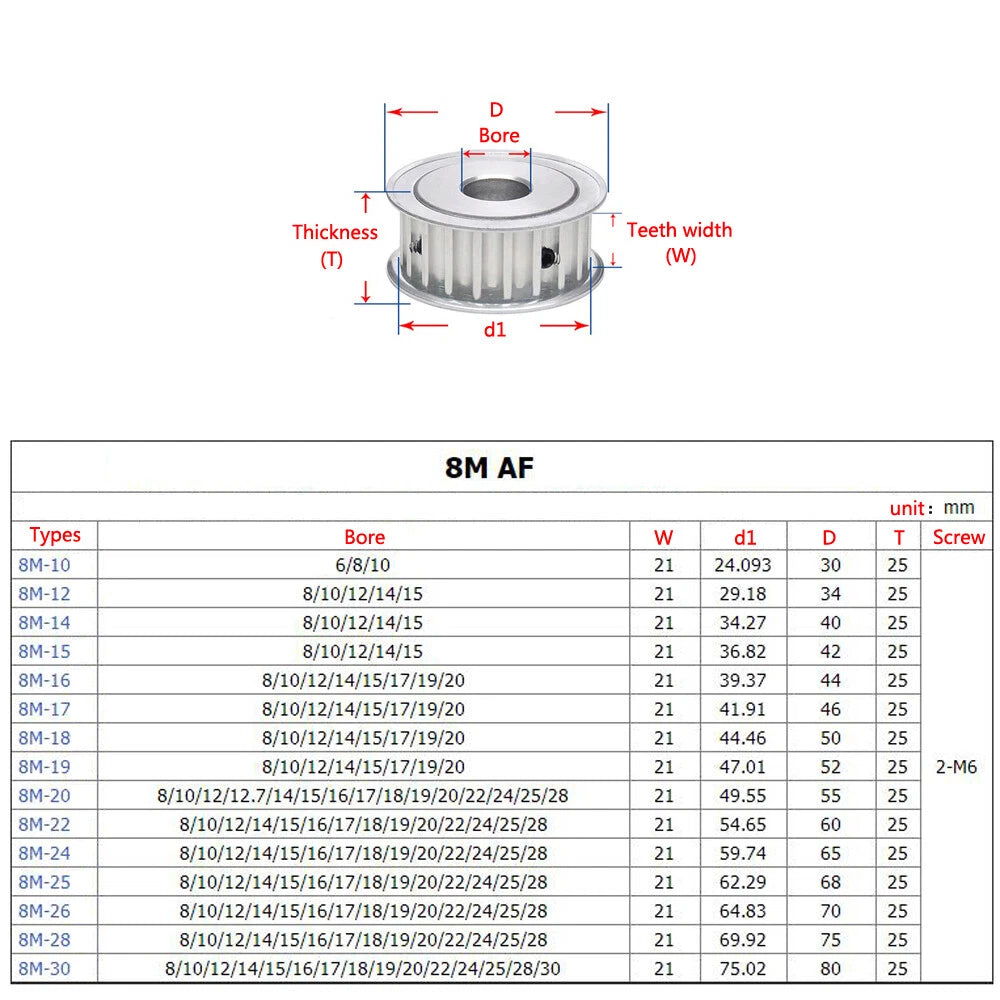

| Bore Diameter | 8 mm – 30 mm (see variant options) |
| Keyway Dimensions | 3×1.4 mm / 4×1.8 mm / 5×2.3 mm / 6×2.8 mm / 8×3.3 mm (see variant options) |
| Compatible Belt | HTD 8M timing belt |
| Material | See variant options |
| Finish / Colour | See variant options |
| Quantity per Order | 1 piece |

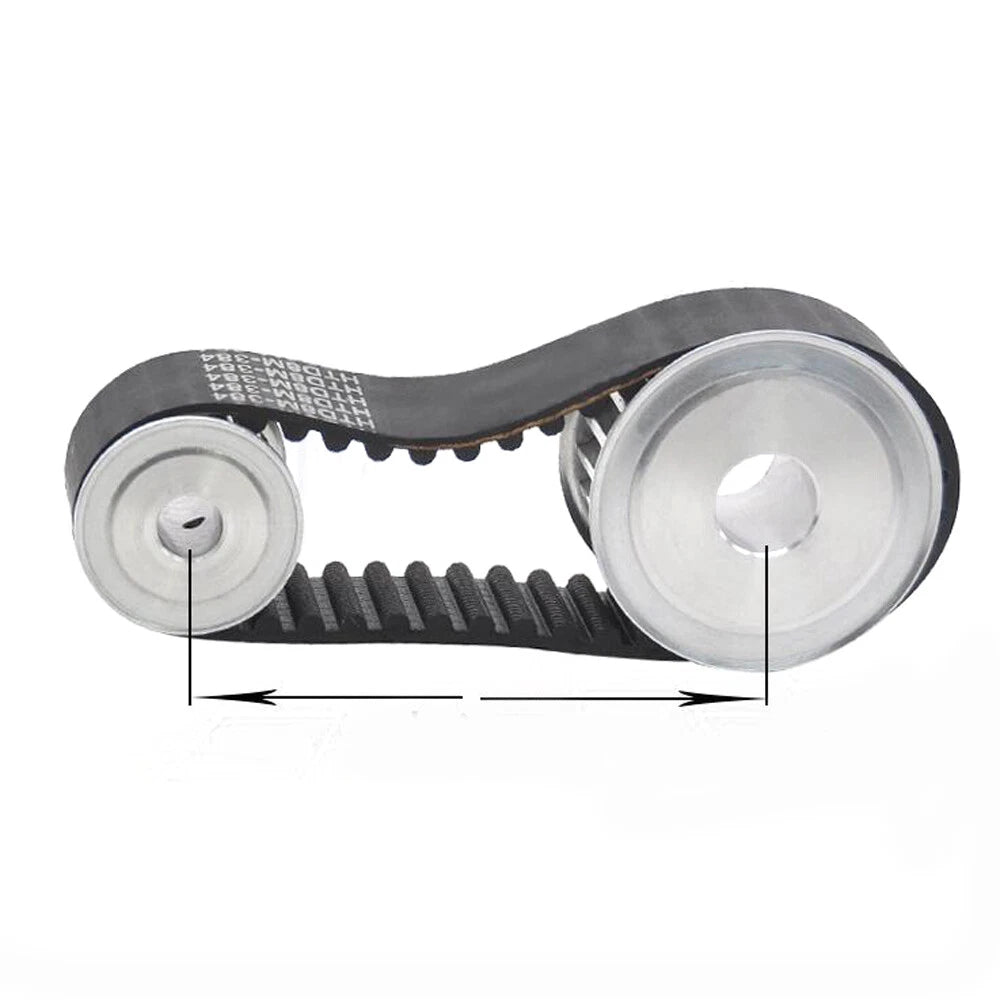

The tooth count determines your drive ratio and belt speed. Divide the driven pulley teeth by the driving pulley teeth to get your reduction ratio. For example, a 20T driver paired with a 40T driven pulley gives a 2:1 reduction. Match the tooth count to your required RPM and torque output, and ensure the resulting belt length is available in HTD 8M pitch.
Measure your motor or shaft diameter precisely with calipers. Select the bore that matches your shaft — the bore must not be larger than the shaft OD. If your shaft is metric (e.g., 10 mm, 12 mm) or imperial (e.g., 12.7 mm / 0.5 in), choose the corresponding bore option from the variant selector. The keyway dimensions are listed alongside each bore size.
Keyway size scales with bore diameter following standard DIN 6885 conventions: 8 mm bore uses a 3×1.4 mm keyway; 10–12 mm bores use 3×1.4 mm or 4×1.8 mm; 14–17 mm bores use 5×2.3 mm; 19–22 mm bores use 6×2.8 mm; 24–30 mm bores use 8×3.3 mm. The exact keyway for each variant is shown in the "Keyway & Amount" option.
Yes — this pulley is designed for standard HTD 8M timing belts (8 mm pitch, HTD tooth profile). It is not compatible with T8, GT2, or other pitch profiles. Confirm your belt is labelled "8M" or "HTD 8M" before ordering. Belt width should be 21 mm or narrower to run within the pulley flanges.

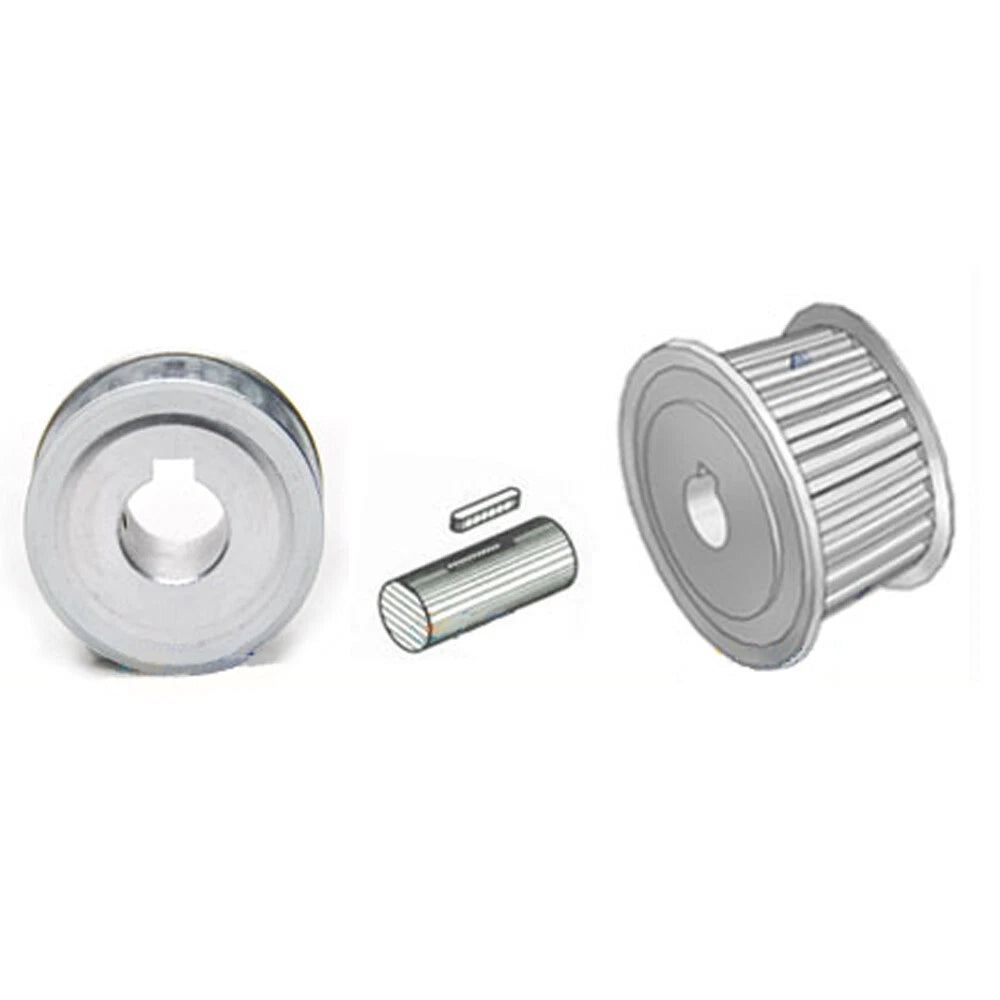

The AF-type hub with machined keyway provides a positive mechanical lock between the pulley and shaft, preventing rotational slip under load. For maximum holding strength, use a correctly sized key and ensure the set screw (if applicable) is torqued to specification. For very high shock loads, consider adding a retaining compound to the bore interface.
Corrosion resistance depends on the material and finish of the specific variant. If your application involves moisture, chemicals, or outdoor exposure, check the material specification for your chosen variant. For enhanced corrosion resistance, consider applying a compatible protective coating after installation.

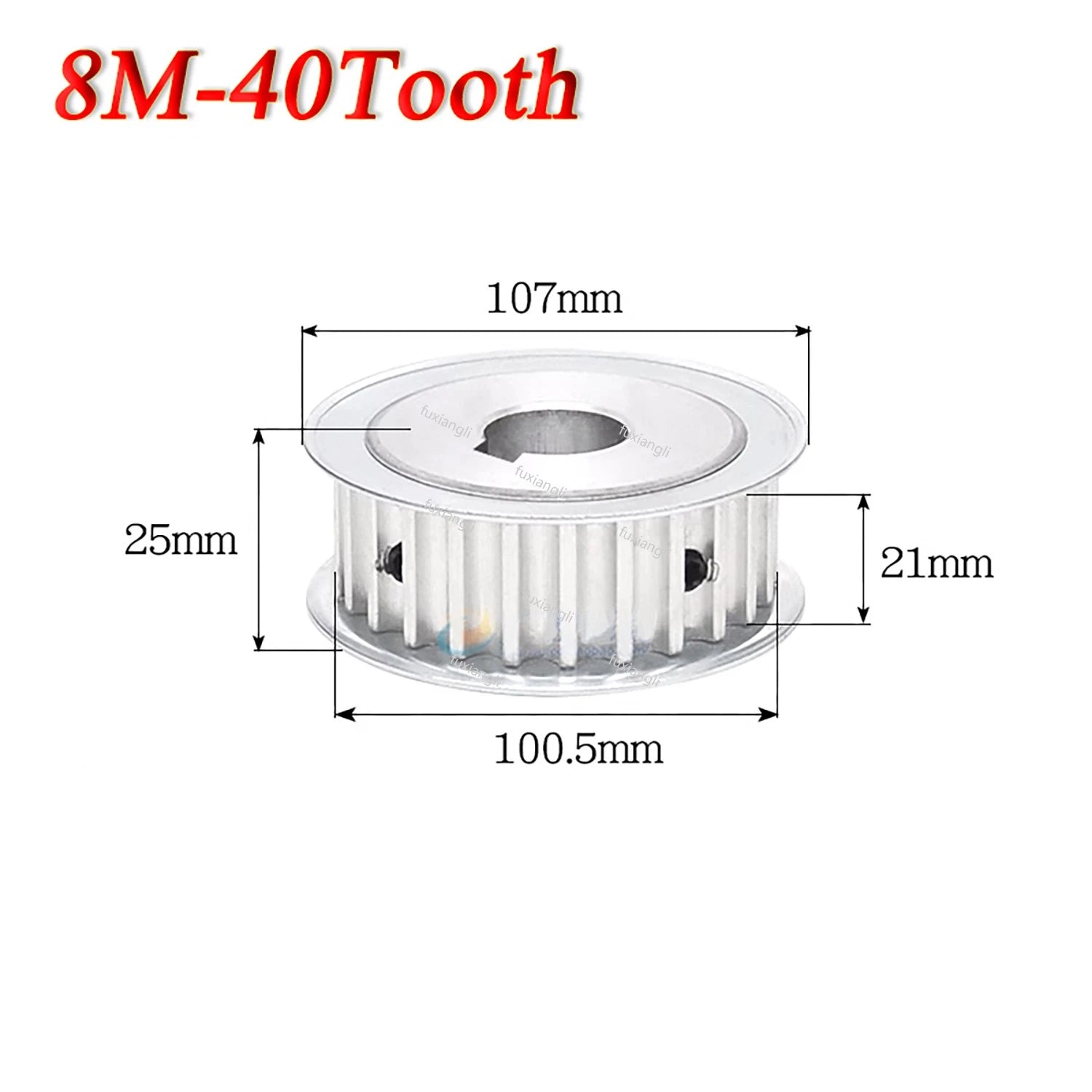

The 8M-40T variants (SKUs FXLGB415-x) are the 40-tooth options and are priced separately due to their larger diameter and material volume. All other variants follow the standard FXL8M naming convention. Both series share the same 8mm HTD pitch, 21mm pulley width, and AF-type keyway hub design.
