Engineers and makers building CNC routers, 3D printers, or custom automation rigs know the frustration of belt slip, misalignment, and pulleys that simply don't hold tolerance. This HTD 8M timing belt pulley and idler pulley series is designed for builders who need repeatable, low-backlash motion without constant re-tensioning. Whether you're upgrading an existing machine or designing a new drive system from scratch, selecting the right pulley geometry is the first step to a reliable build.

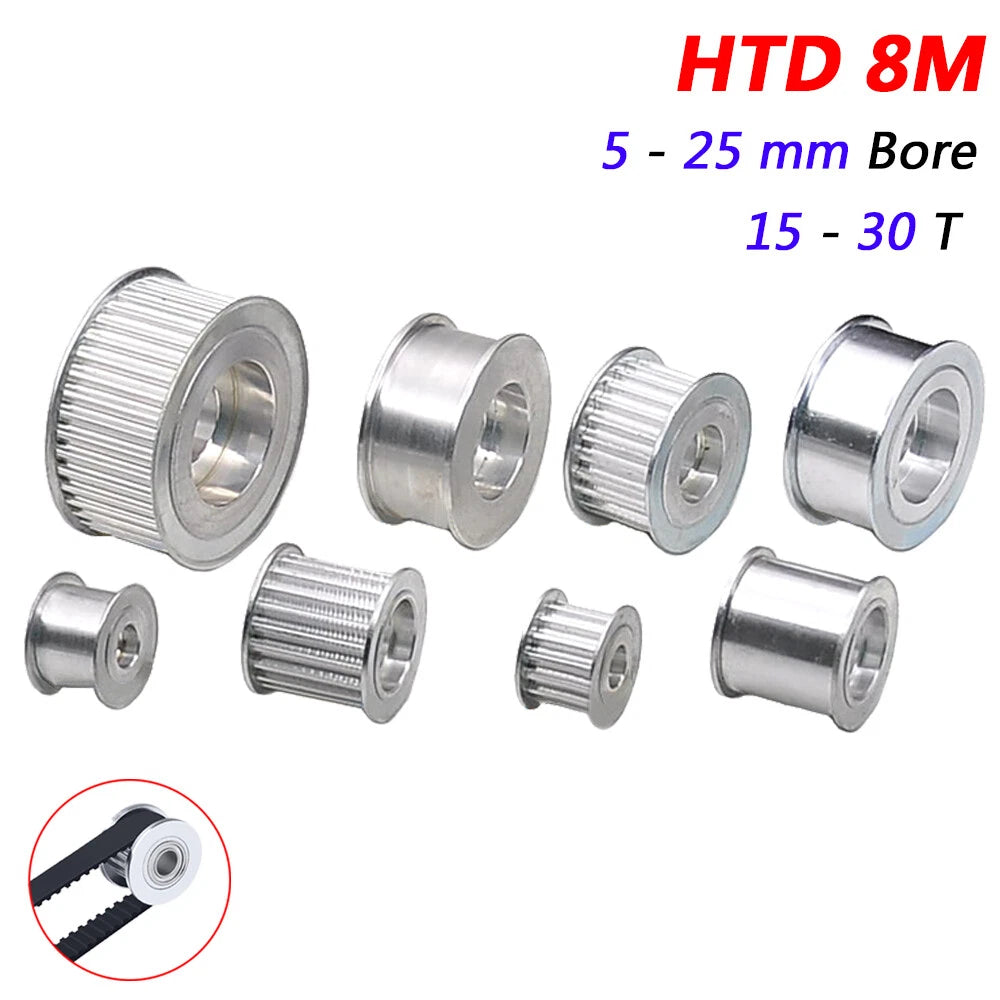

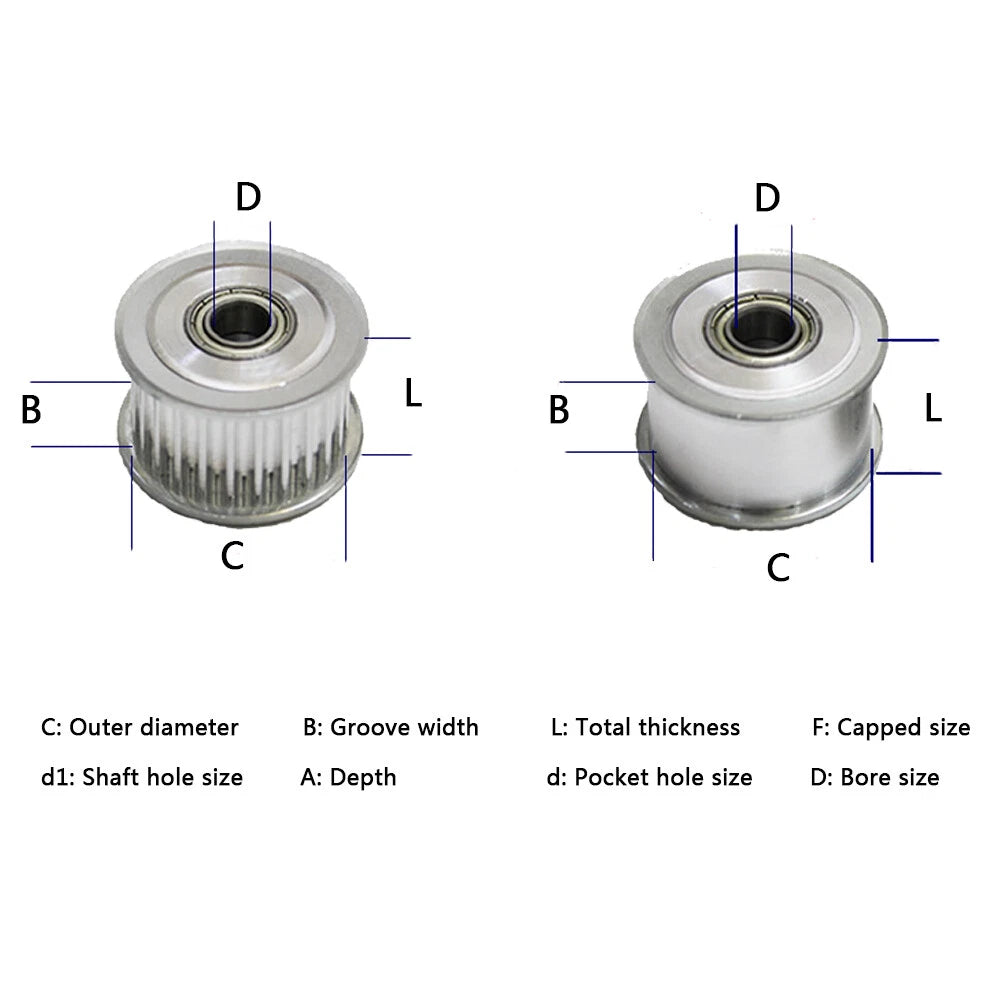

These pulleys are machined to the HTD 8M tooth profile standard, with a pitch of 8 mm (0.315 in) between teeth. Available in tooth counts from 15T to 30T and bore diameters from 5 mm to 25 mm (approximately 0.20 in to 0.98 in), with applicable belt widths of 15 mm, 20 mm, 25 mm, 30 mm, and 40 mm. Both toothed drive pulleys and smooth idler pulleys (without teeth) are offered in each size combination, giving you full flexibility to design your tensioning and drive stages independently.
Typical use cases include X/Y/Z axis drives on CNC milling machines and laser cutters, extruder and bed-leveling drives on FDM 3D printers, and tensioner idler stages in conveyor and pick-and-place automation systems. The consistent HTD 8M tooth profile ensures compatibility with standard 8M synchronous belts used across these long-tail applications: "HTD 8M pulley for CNC router", "8M idler pulley for 3D printer belt tensioner", and "8M timing pulley bore 12mm automation".
Machined to the HTD 8M standard with an 8 mm pitch, ensuring positive engagement with standard 8M synchronous belts and minimizing tooth jump under load.
Available in 15T, 16T, 20T, 24T, 25T, and 30T configurations, allowing you to tune your drive ratio and belt wrap angle for your specific application.
Bore options from 5 mm to 25 mm accommodate a wide range of shaft diameters commonly found in stepper motors, servo motors, and idler axles used in CNC and 3D printer builds.

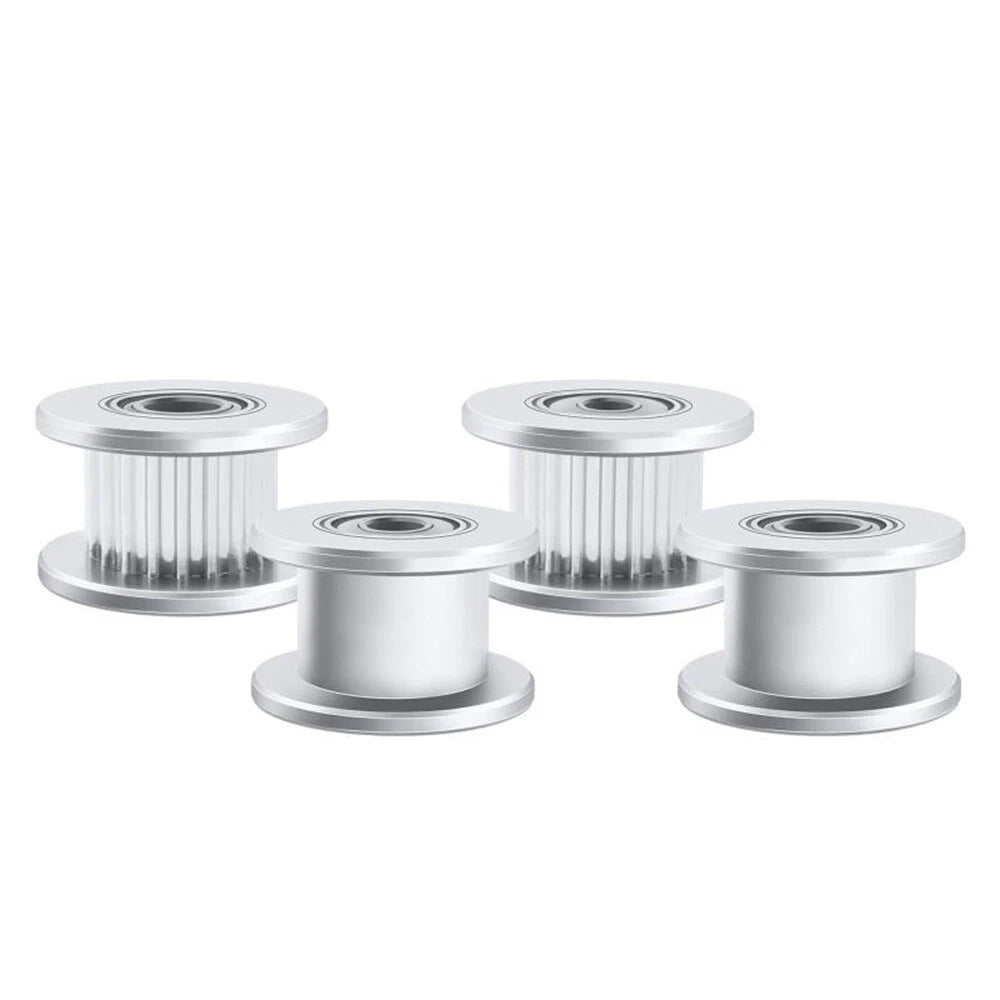

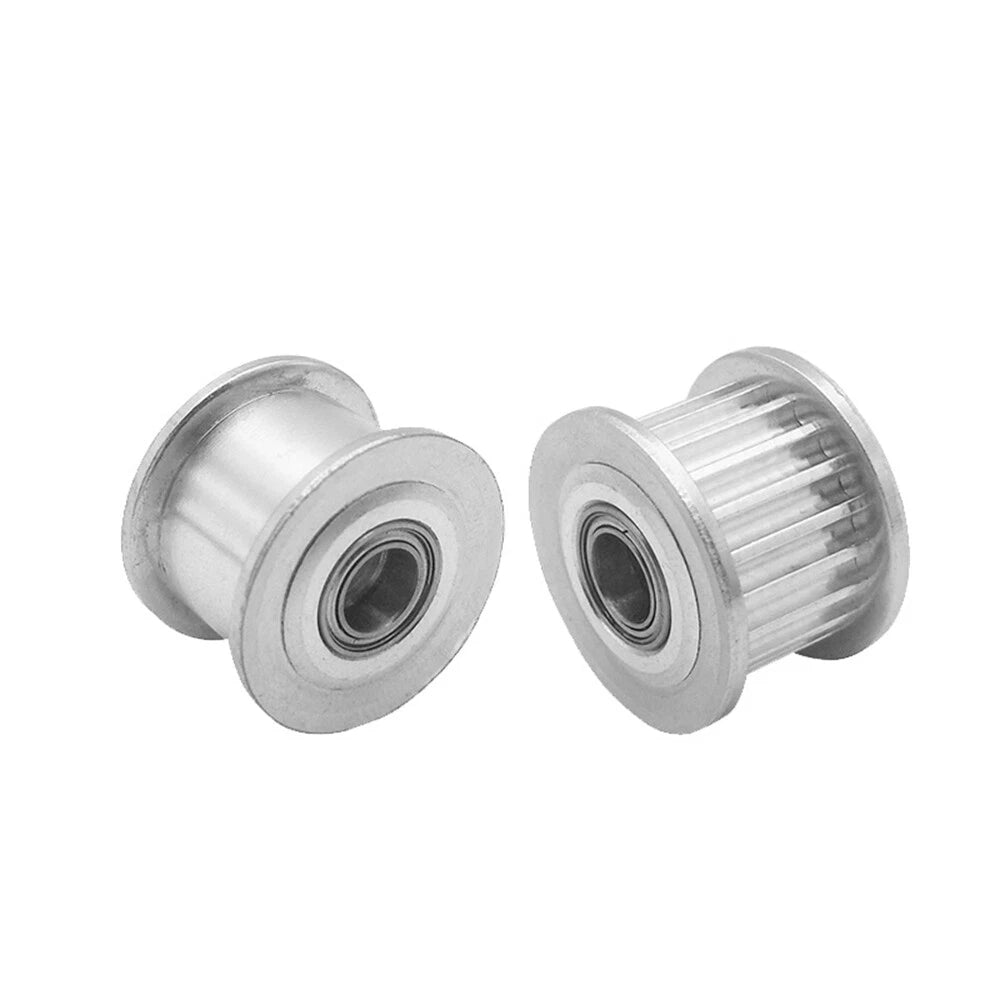

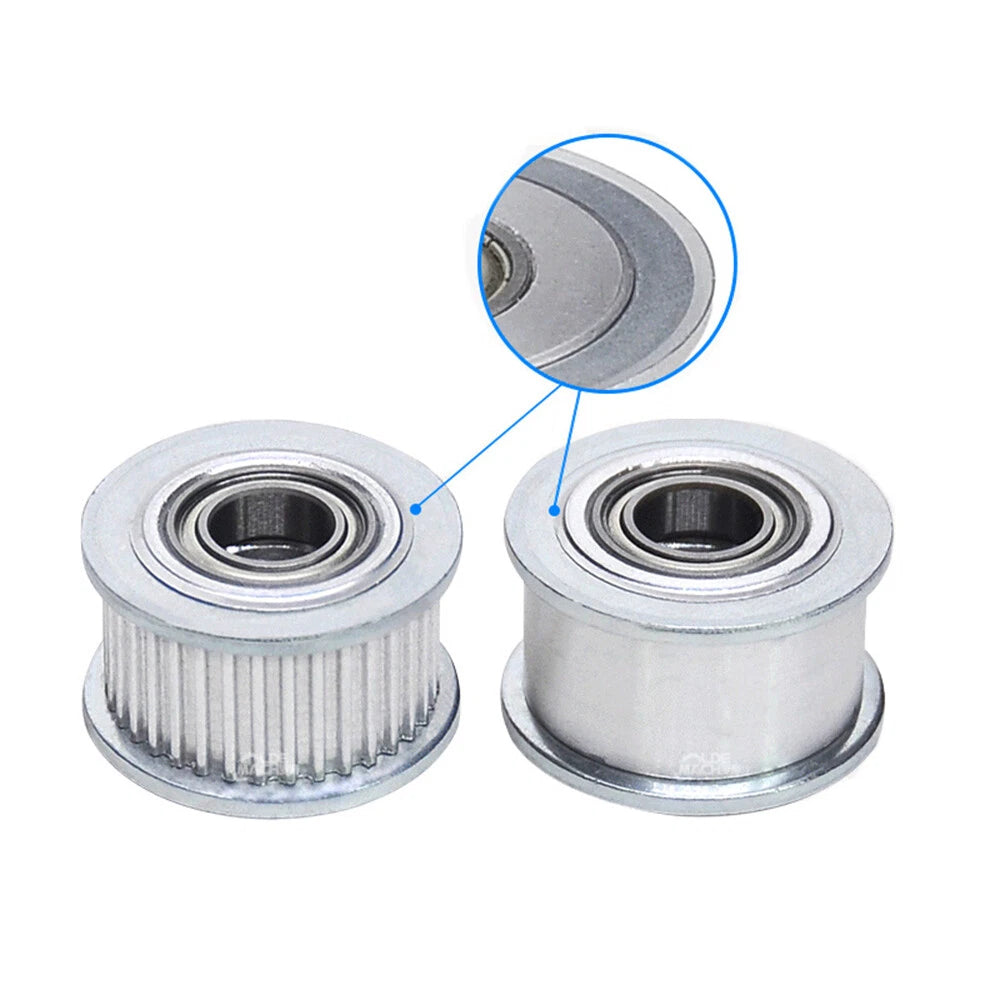

Each size is available as a toothed drive pulley or a smooth idler pulley (without teeth), so you can source both your drive and tensioner stages from a single compatible product family.
Applicable belt widths span 15 mm through 40 mm, covering light-duty 3D printer drives up to heavier CNC and industrial automation belt widths in a single product line.
Machined to consistent dimensional tolerances across the range, supporting repeatable assembly and straightforward replacement without re-alignment in most standard drive configurations.

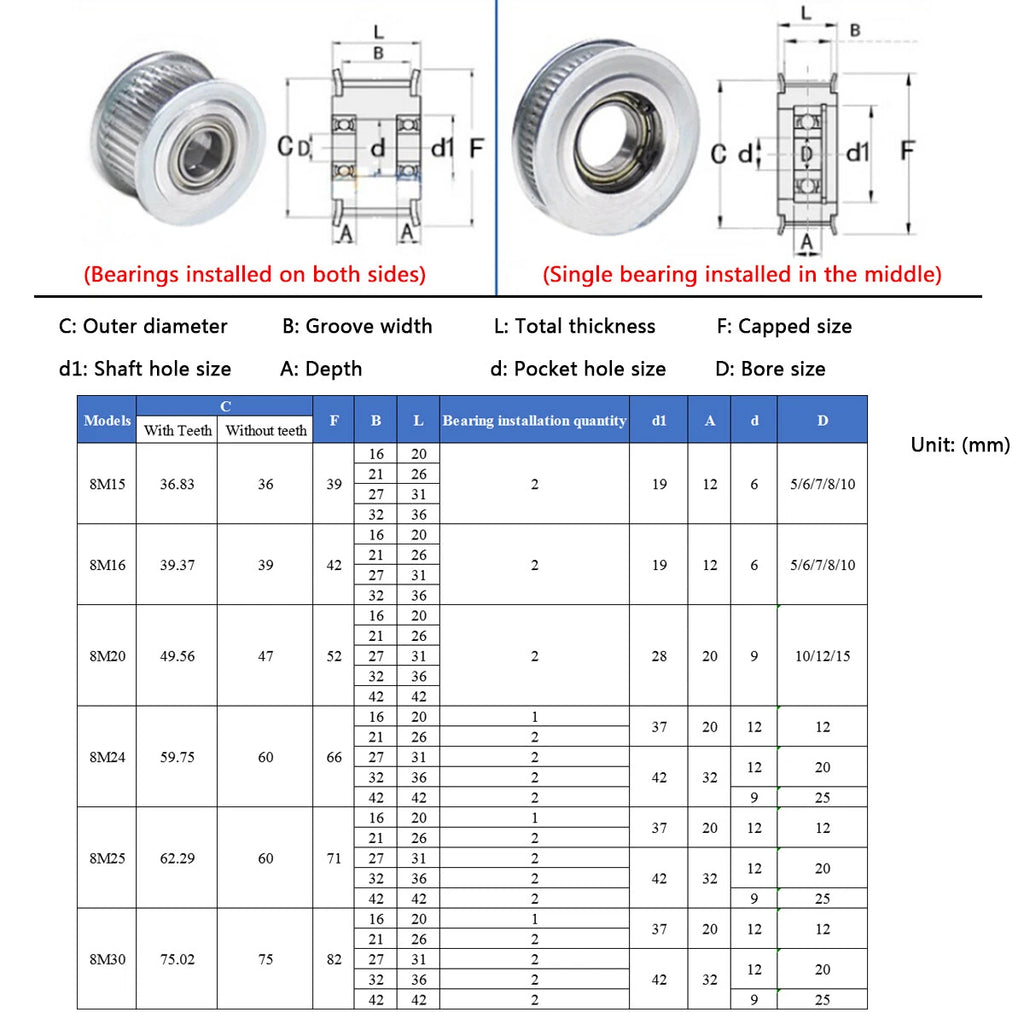

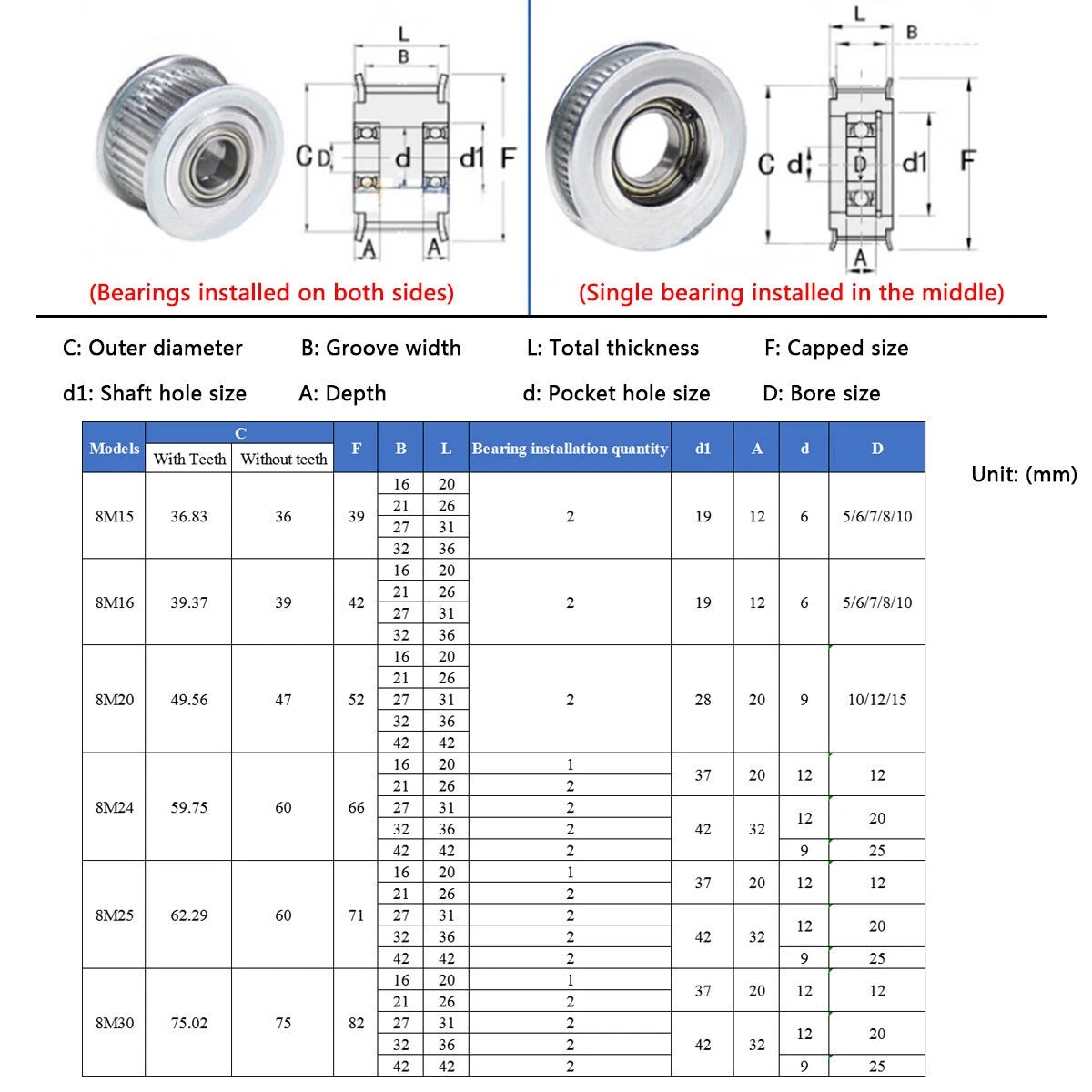

| Belt Profile | HTD 8M |
|---|---|
| Pitch | 8 mm (0.315 in) |
| Tooth Count Options | 15T, 16T, 20T, 24T, 25T, 30T |
| Bore Diameter Options | 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm, 25 mm |
| Applicable Belt Width | 15 mm, 20 mm, 25 mm, 30 mm, 40 mm |
| Pulley Type | Toothed drive pulley / Smooth idler pulley (without teeth) |
| Material | See variant options |
| Finish | See variant options |
| Flange | See variant options |
| Keyway | See variant options |
| Set Screw | See variant options |
The tooth count determines your drive ratio and the belt wrap angle. A lower tooth count (e.g., 15T or 16T) gives a smaller pulley diameter and is suited for high-speed, lower-torque applications or where space is limited. A higher tooth count (e.g., 24T, 25T, or 30T) increases the pitch diameter, improves belt wrap, and is better for higher-torque or lower-speed drive stages. Match your tooth count to your motor shaft speed and the linear speed or torque you need at the driven axis.
Measure your motor or idler shaft diameter with calipers before ordering. Common stepper motor shaft diameters are 5 mm and 8 mm; servo motors and larger CNC spindle drives often use 10 mm, 12 mm, or larger shafts. Select the bore that matches your shaft diameter. If you plan to use a set screw or keyway for positive locking, confirm the pulley variant includes that feature or plan to machine it yourself.

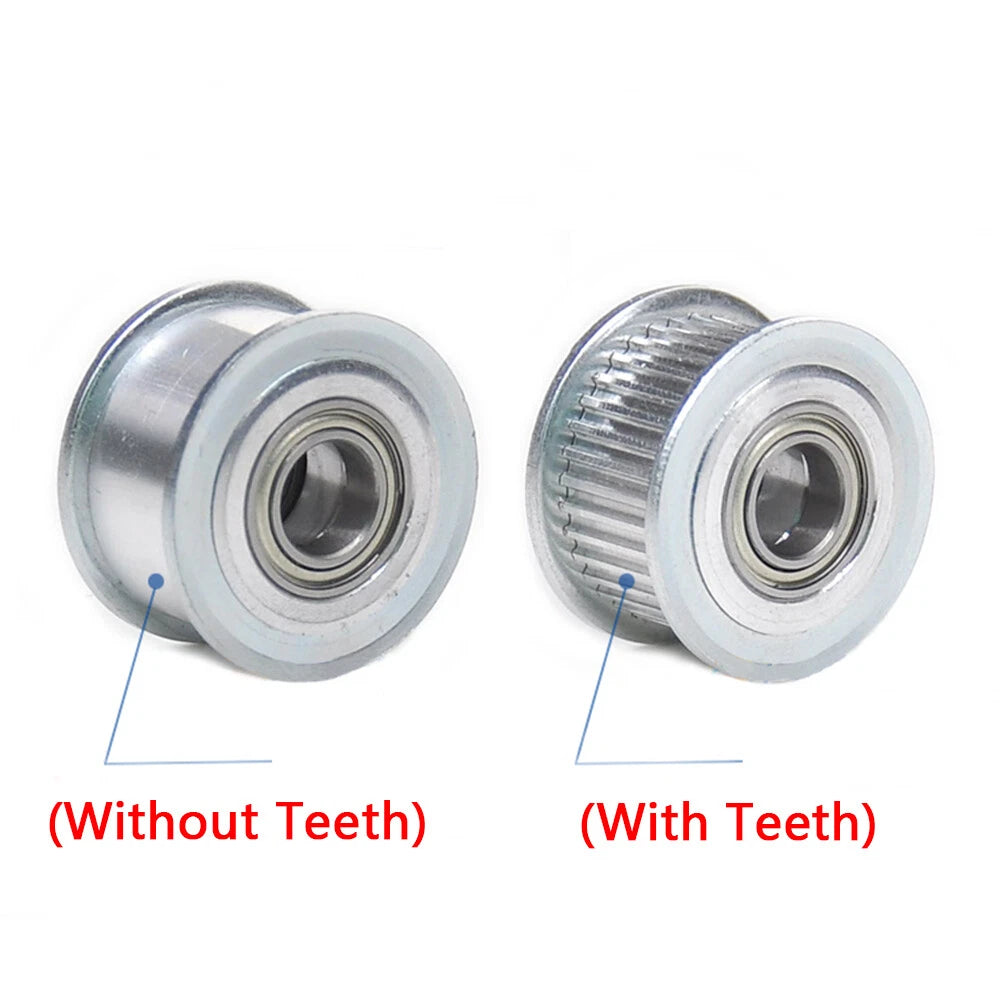

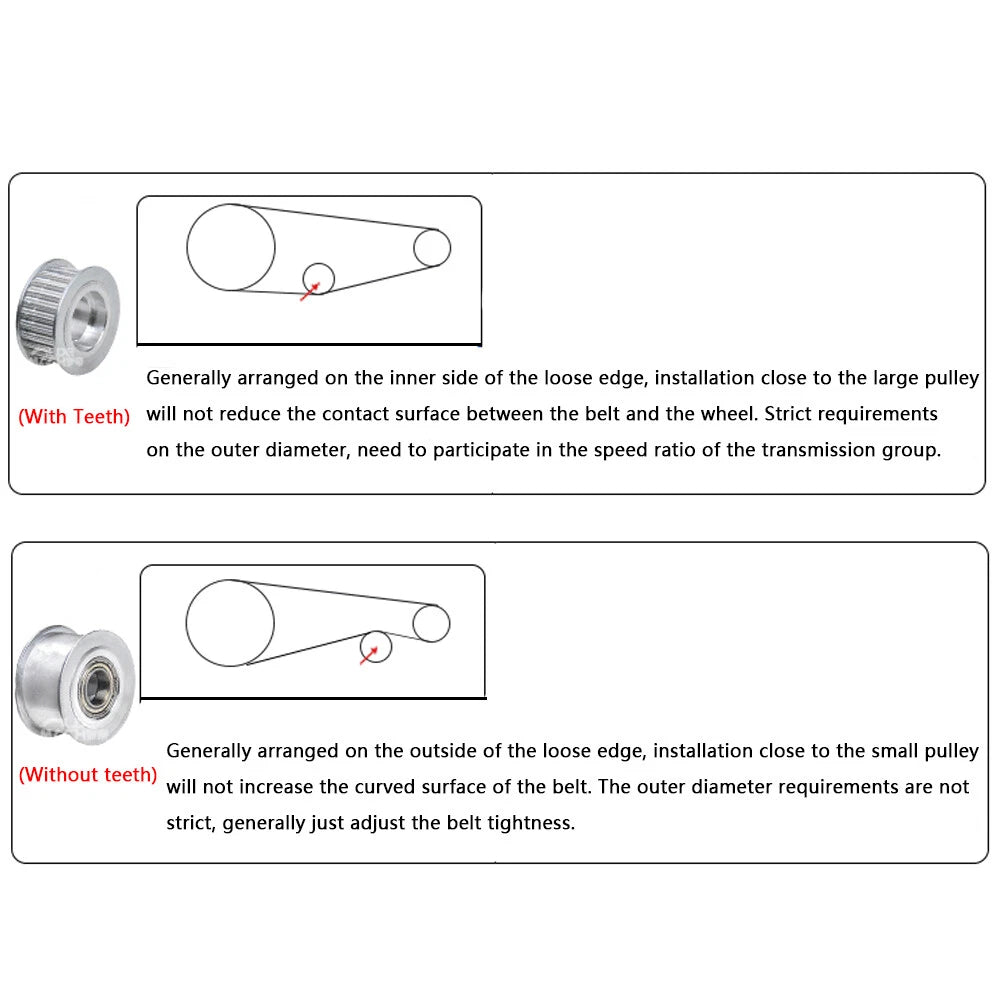

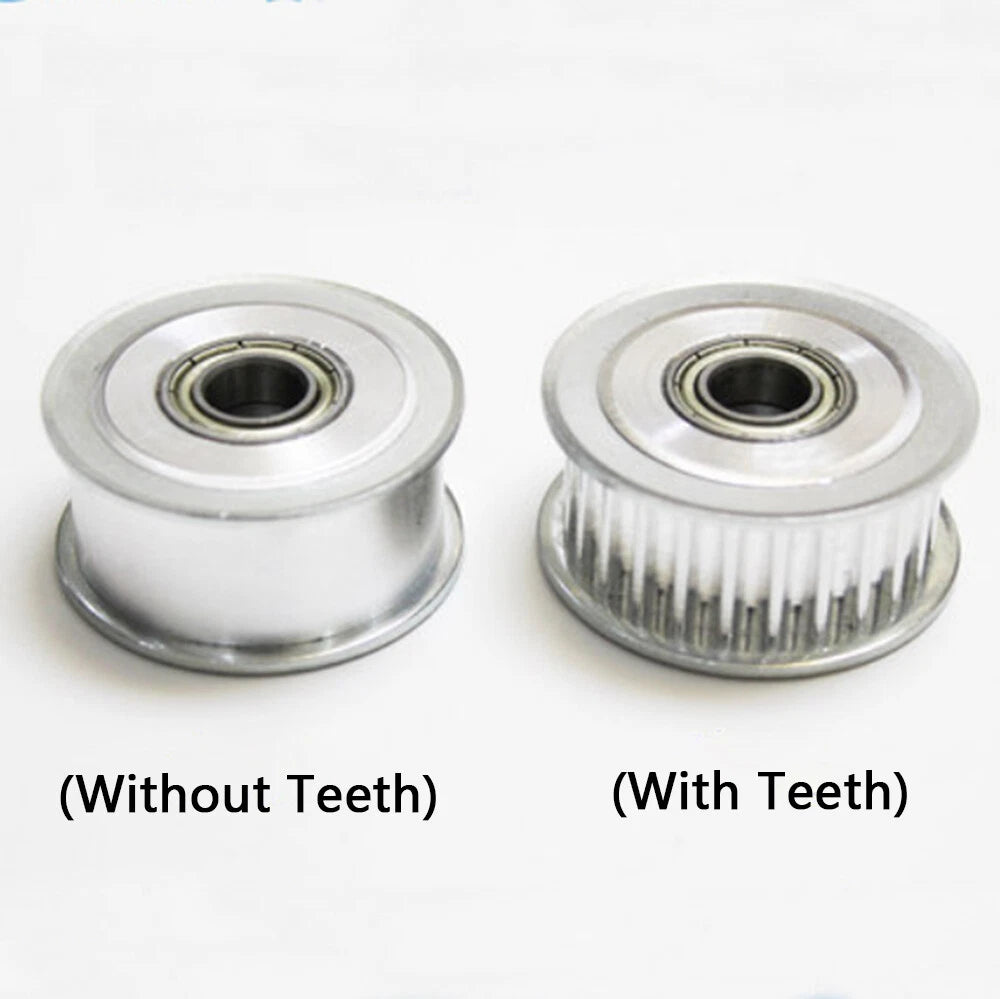

The toothed (with teeth) variant is your active drive pulley — it meshes with the belt teeth to transmit motion from the motor shaft to the belt. The smooth idler (without teeth) variant is used as a tensioner or guide pulley on the back (non-toothed) side of the belt. Using a smooth idler on the toothed face of the belt can cause premature belt wear, so always match the pulley type to its position in your drive system.
Each variant listing specifies the applicable belt width (e.g., 15 mm, 20 mm, 25 mm, 30 mm, or 40 mm). The pulley flange width is sized to guide that specific belt width. Using a belt that is narrower than the pulley's designed width is generally acceptable but may reduce tracking stability. Using a belt wider than the pulley's designed width will cause the belt to ride over the flanges and is not recommended.
Yes. These pulleys are machined to the HTD 8M tooth profile standard, which is an internationally recognized synchronous belt profile. They are designed to be interchangeable with standard HTD 8M belts from other manufacturers. Always verify the belt pitch (8 mm) and belt width match your selected pulley variant before assembly.
Belt width directly affects the torque capacity of the drive. A 15 mm wide belt is sufficient for most 3D printer axes and light CNC applications. For heavier CNC routers, laser cutters with fast acceleration, or industrial automation where belt tension is high, a wider belt (25 mm, 30 mm, or 40 mm) distributes load across more belt material and reduces the risk of belt stretch or failure under peak loads. When in doubt, size up — a wider belt in a well-aligned system will outlast a narrower belt running near its tension limit.
In most cases, yes — provided you select the correct bore size to match your motor shaft and the correct belt width to match your existing belt. If your motor shaft uses a flat (D-shaft) profile, you will need a pulley with a set screw that bears against the flat, or you can machine a flat onto a round-bore pulley. Check your machine's belt profile is HTD 8M (8 mm pitch) before ordering, as other profiles such as GT2 or T5 are not interchangeable.
