HTD-8M Timing Belt Idler Pulley — Toothed Tension Control for 8M Synchronous Drive Systems

When a timing belt drive runs without adequate tension, tooth skip and premature belt wear become constant headaches for engineers, makers, and workshop builders. These HTD-8M toothed idler tension pulleys are designed specifically for builders who need reliable, adjustable tension in 8M pitch synchronous belt systems — whether you are assembling a CNC router, a 3D printer gantry, or an industrial conveyor prototype.

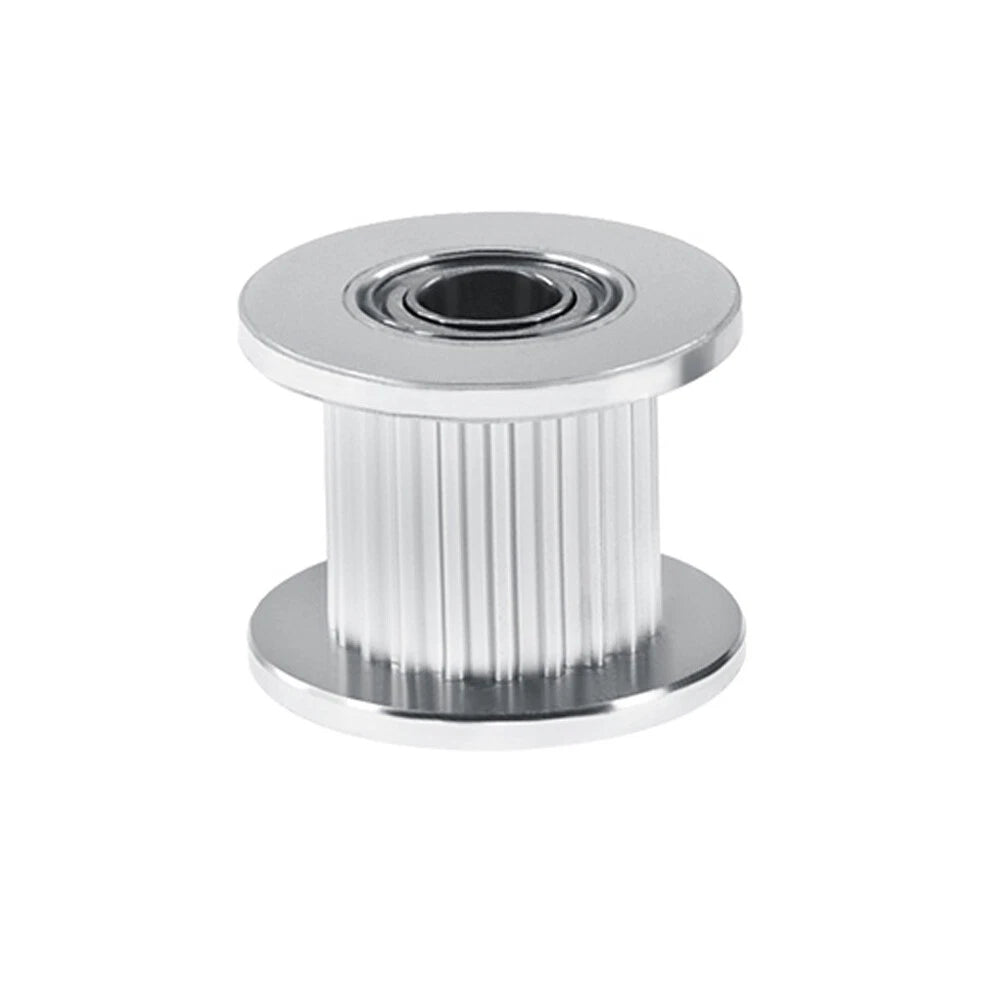

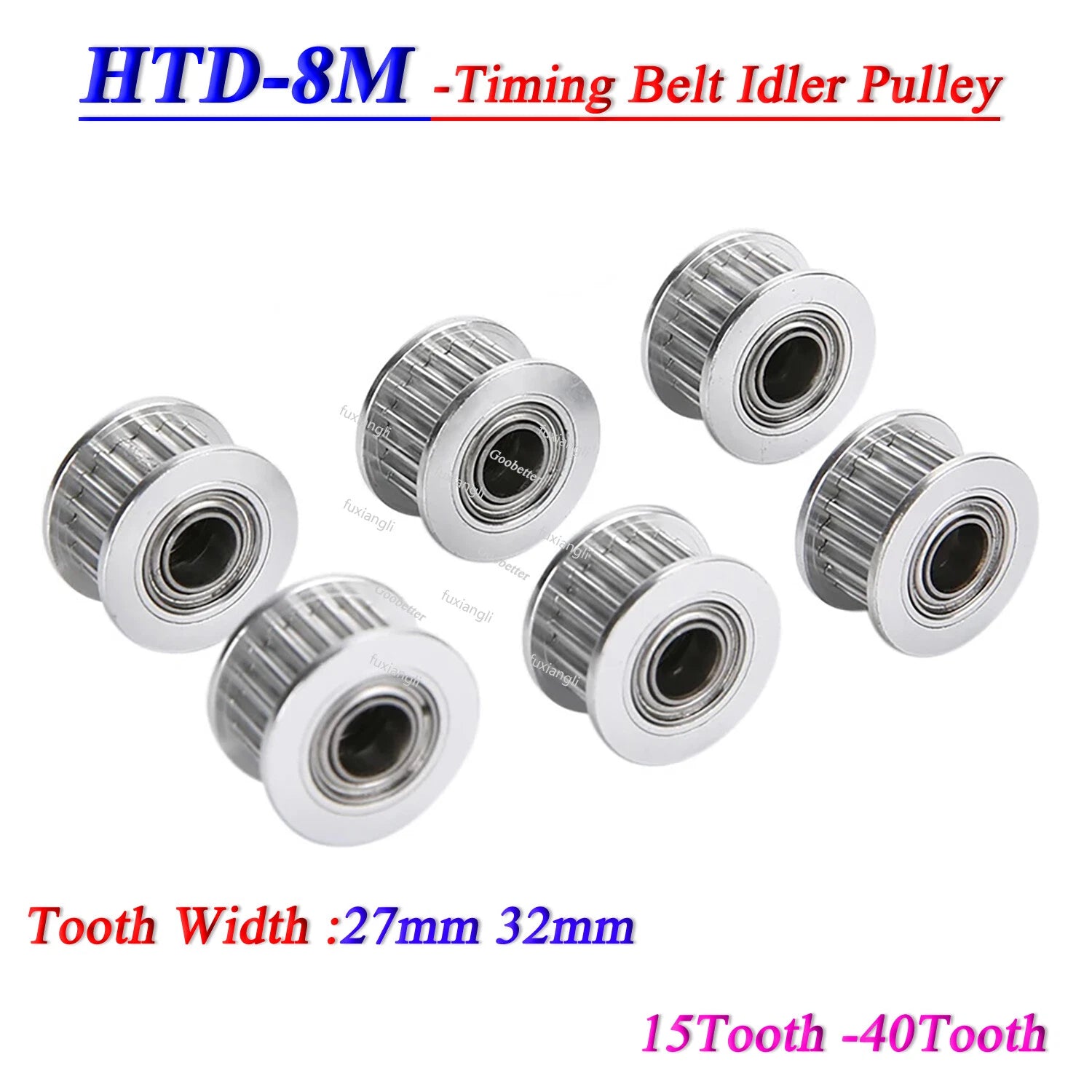

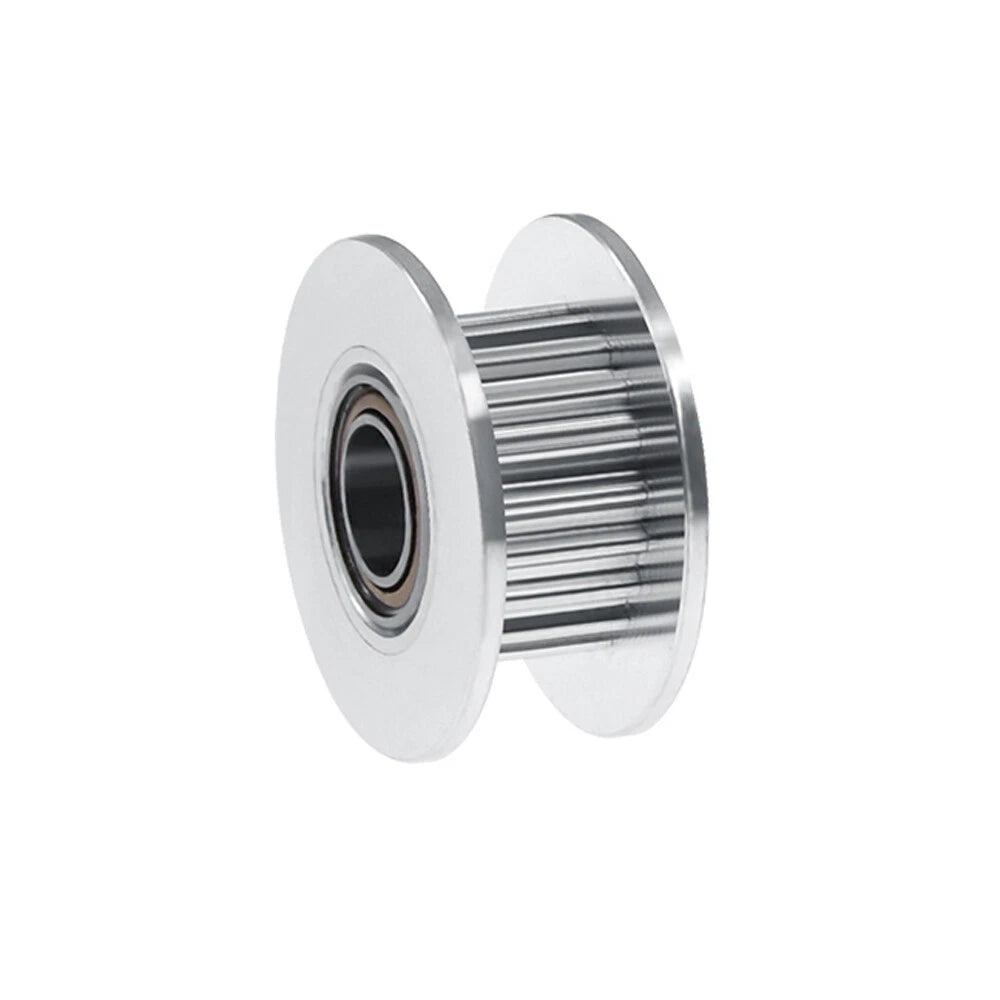

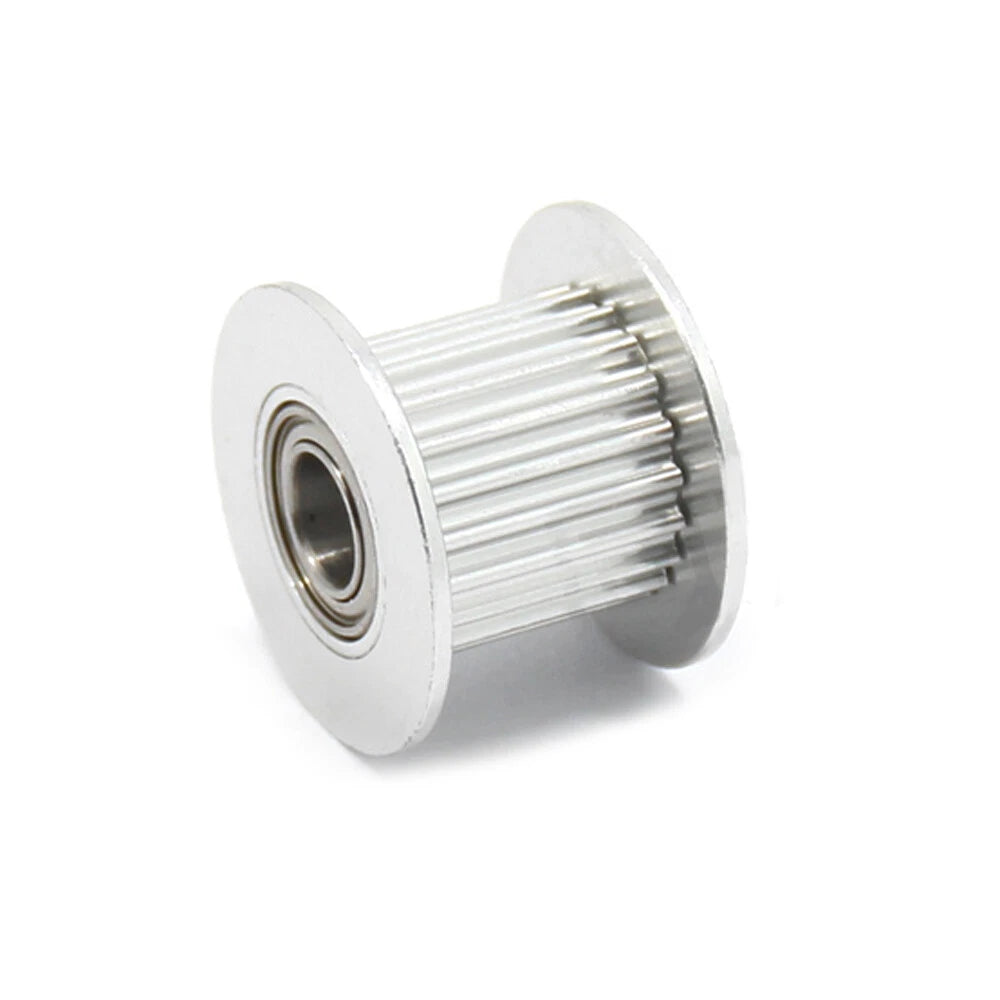

Each HTD-8M timing belt idler pulley is machined from aluminum alloy with an anodized finish, featuring an HTD (High Torque Drive) tooth profile with 8 mm pitch. Available tooth counts range from 15T to 40T, bore sizes from 5 mm (0.20 in) to 30 mm (1.18 in), and belt-contact widths of either 27 mm (1.06 in) or 32 mm (1.26 in) to match your belt width.

Typical use cases include tensioning the return side of a CNC belt drive, adding a toothed idler in a multi-axis 3D printer for consistent belt preload, and maintaining synchronization in light-duty conveyor or automation rigs where an HTD 8M idler pulley with a specific bore-to-shaft fit is required.

⚙️ Compatibility: Designed for HTD-8M (8 mm pitch) synchronous timing belts with widths of 25–32 mm. Verify your belt pitch, width, and shaft diameter before ordering. Bore sizes 5–30 mm available across variants.

✅ Key Features of These HTD-8M Timing Belt Idler Pulleys

🦷 Toothed HTD Profile

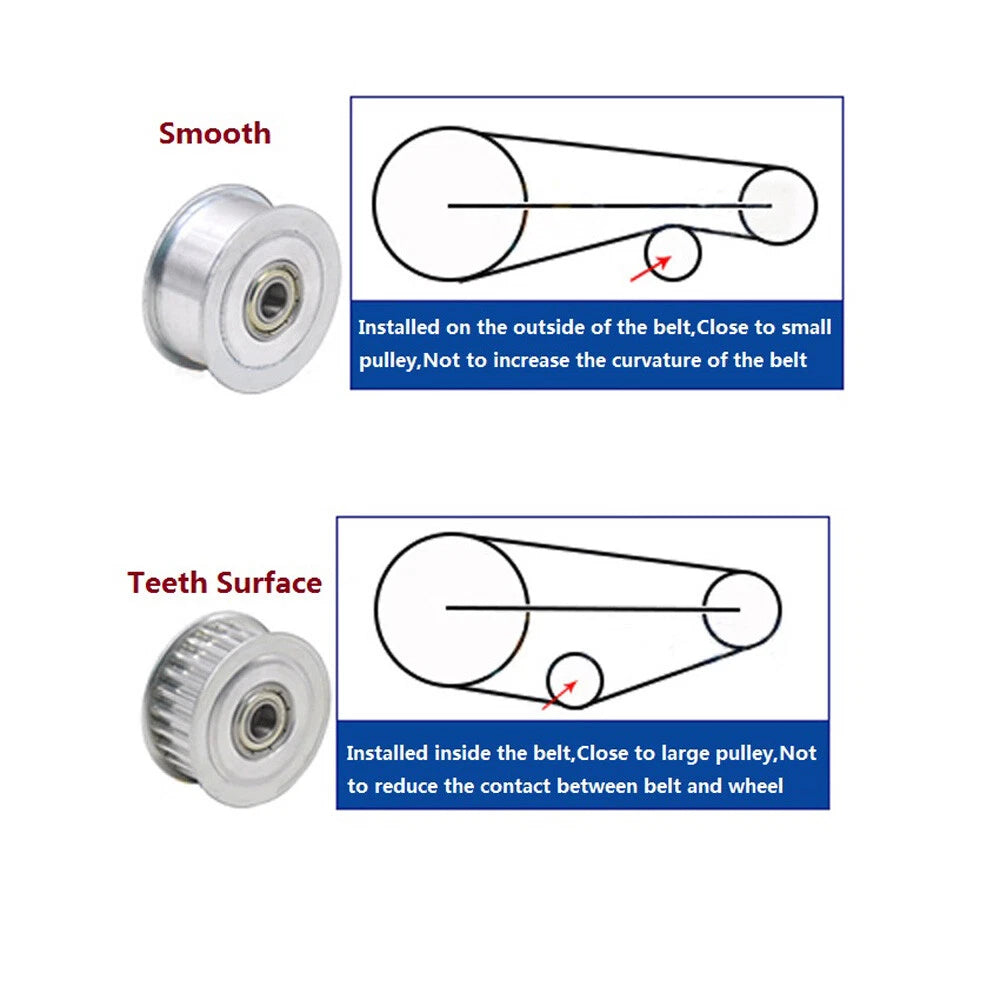

8 mm pitch HTD tooth form meshes positively with the belt, preventing slip and maintaining synchronization under load — unlike smooth idlers that can cause belt tracking issues.

📐 Wide Tooth Count Range (15T–40T)

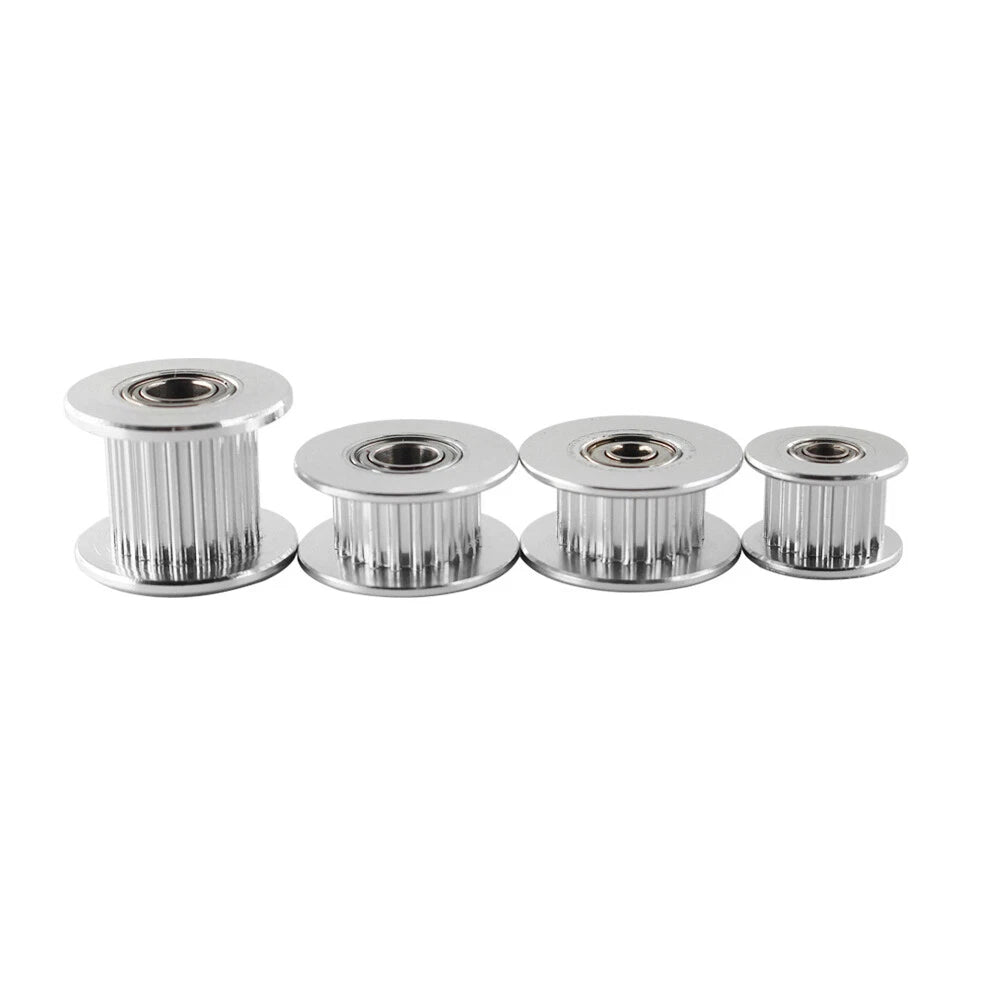

Ten tooth-count options from 15T to 40T let you match the pulley pitch diameter to your drive geometry, keeping belt wrap angle and tension arm travel within design limits.

🔩 Multiple Bore Sizes (5–30 mm)

Bore options from 5 mm to 30 mm accommodate a broad range of shaft diameters, from small stepper motor shafts to larger idler axles in industrial automation rigs.

📏 Two Belt-Width Options (27 mm & 32 mm)

Choose 27 mm or 32 mm tooth-contact width to match your belt width and maximize the contact area for stable, low-vibration tensioning.

🏗️ Aluminum Alloy Construction

Lightweight aluminum alloy body keeps rotating inertia low while providing sufficient rigidity for continuous-duty tensioning in CNC, 3D printing, and light conveyor applications.

🔄 Drop-In Tension Arm Compatibility

Standard bore-and-hub geometry fits common idler brackets and tension arm assemblies, making these pulleys straightforward replacements or upgrades in existing 8M belt drive layouts.

📐 Technical Specifications — HTD-8M Idler Pulley

Belt Pitch 8 mm (HTD-8M)
Tooth Profile HTD (High Torque Drive)
Number of Teeth 15T, 16T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 40T
Belt Contact Width 27 mm (1.06 in) / 32 mm (1.26 in)
Compatible Belt Width 25 mm – 32 mm
Bore Diameter 5 mm – 30 mm (see variant options)
Material Aluminum alloy
Finish Anodized
Quantity per Order 1 piece
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count for my drive?

The tooth count determines the pitch diameter of the idler pulley. For a tensioning idler, you generally want a tooth count that keeps the belt wrap angle on your drive pulleys above 120°. Larger tooth counts give a larger pitch diameter, which can be useful when you need the idler to sit further from the belt centerline. Match the tooth count to your tension arm geometry and available space.

Which bore size should I select?

Select the bore size that matches your idler shaft or axle diameter exactly. Common choices are 5 mm and 6 mm for small stepper-driven systems, 8–12 mm for mid-size CNC routers, and 15–30 mm for heavier industrial tension arms. If you are using a bearing-mounted idler shaft, measure the shaft OD and choose the matching bore.

What is the difference between the 27 mm and 32 mm width options?

The width refers to the tooth-contact face of the pulley. A 27 mm pulley is suited for 25 mm wide HTD-8M belts, while the 32 mm pulley accommodates 30–32 mm wide belts. Using a pulley width that matches or slightly exceeds your belt width helps prevent the belt from riding off the edge of the pulley under lateral load.

Are these idler pulleys compatible with standard HTD-8M timing belts?

Yes. These pulleys are machined to the HTD-8M tooth profile standard (8 mm pitch, HTD tooth form), so they mesh correctly with any standard HTD-8M synchronous timing belt. They are not compatible with GT2, T5, T10, or other pitch belts.

How strong are these pulleys for continuous-duty use?

The aluminum alloy construction provides adequate strength for light-to-medium duty tensioning applications such as CNC routers, 3D printers, and small conveyor systems. For heavy industrial drives with high belt tension or shock loads, verify that the pulley bore and hub dimensions are compatible with your bearing and shaft arrangement before use.

Do these pulleys include a set screw or keyway?

The bore is a plain (smooth) bore. Set screw, keyway, or other locking features are not included as standard. If your application requires positive shaft locking, you will need to add a set screw hub or use an external clamp collar on the shaft. Contact us to confirm bore details for your selected variant before ordering.

Can I use these as drive pulleys instead of idler pulleys?

These are listed as idler/tension pulleys and are typically used on the non-driven (return or tension) side of a belt drive. While the tooth profile is identical to a standard HTD-8M drive pulley, the bore and hub configuration may not be optimized for transmitting torque from a motor shaft. For driven applications, verify that the bore size and hub depth suit your motor shaft and torque requirements.

🛒 Select your Number of Teeth, Bore, and Teeth Width above, then add to cart.
