Open-End HTD Timing Belt in PU Polyurethane — Precision Drive for CNC, 3D Printers & Automation

When a worn or undersized drive belt causes missed steps, positional drift, or unexpected downtime on your CNC router, 3D printer, or automated conveyor, finding a cut-to-length replacement in the right pitch and width shouldn't be a project in itself. Builders, machine designers, and repair technicians who need a reliable open-end timing belt without committing to a fixed loop length will find this listing covers the most common HTD drive configurations.

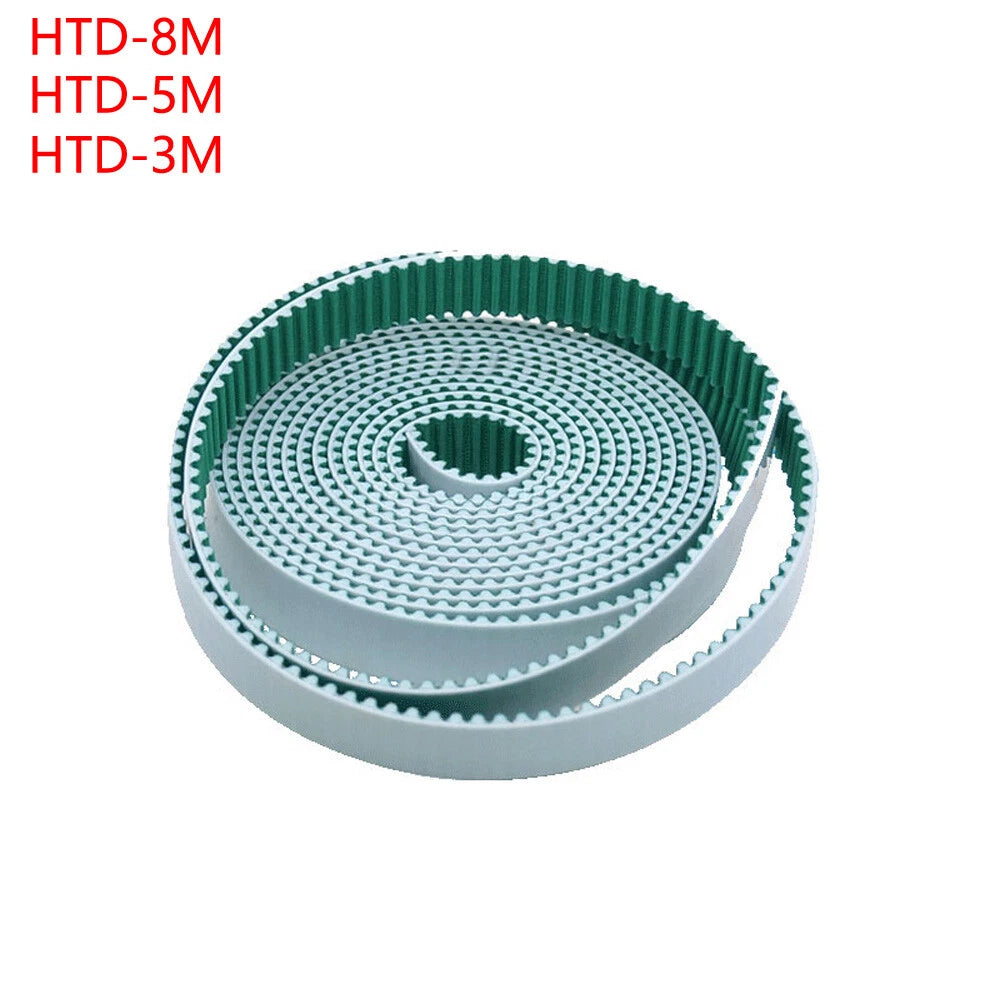

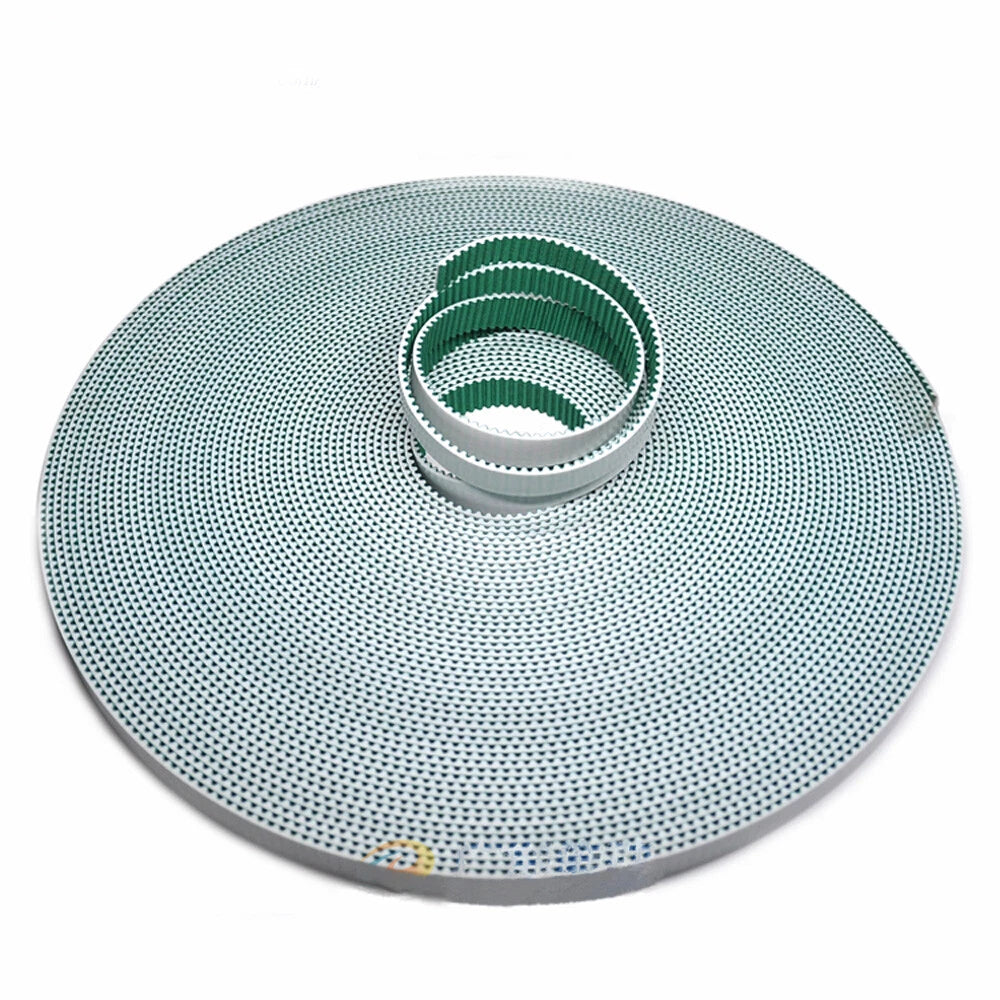

Each order is for 1 meter (≈39.4″) of open-end timing belt made from polyurethane (PU) with steel cord tensile reinforcement. Available in three HTD pitch profiles — HTD-3M (3mm pitch), HTD-5M (5mm pitch), and HTD-8M (8mm pitch) — and widths of 10mm (≈3/8″), 15mm (≈5/8″), 20mm (≈3/4″), 25mm (≈1″), 30mm (≈1-3/16″), and 40mm (≈1-9/16″). Note: 10mm width is available in HTD-3M only; see variant options for full combinations.

Typical applications include CNC router X/Y axis drives, 3D printer motion systems (HTD-3M 15mm is a common fit), laser cutter gantry belts, servo-driven linear actuators, and light industrial conveyor drives where precise tooth engagement and low stretch are required.

ℹ️ Compatibility: HTD tooth profile — fits standard HTD-3M, HTD-5M, and HTD-8M pulleys. Always match pitch and verify pulley groove width before ordering.

✅ Key Features of These HTD PU Timing Belts

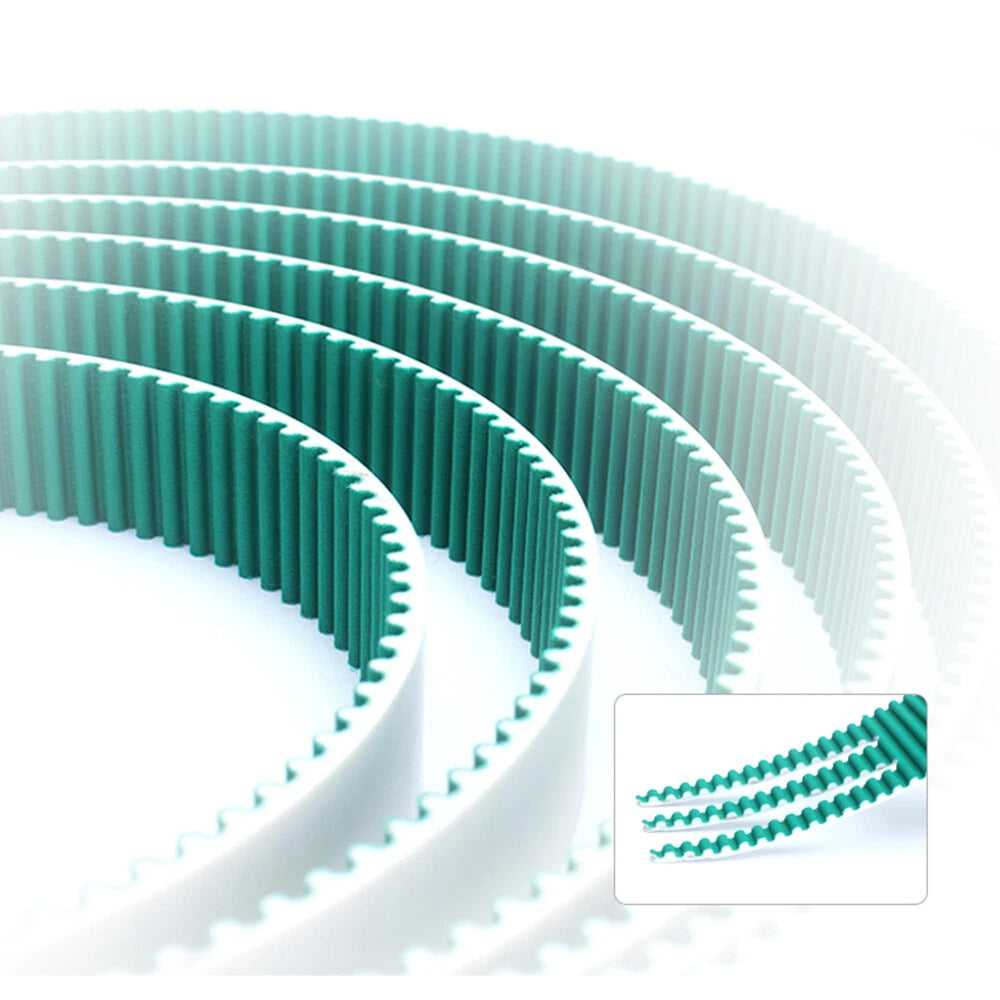

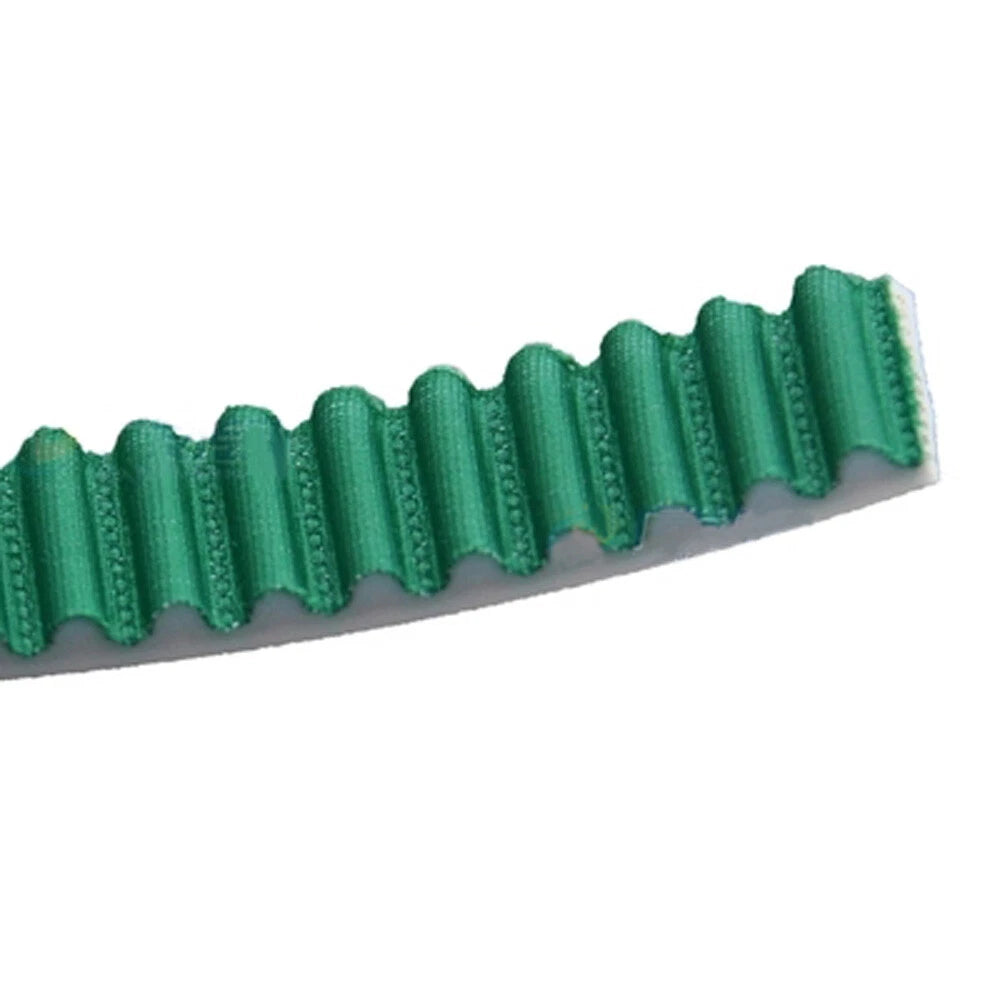

  • 🦷HTD Curved Tooth Profile — The HTD (High Torque Drive) tooth geometry provides deeper pulley engagement than trapezoidal profiles, reducing tooth jump risk under load in CNC drive belt applications.

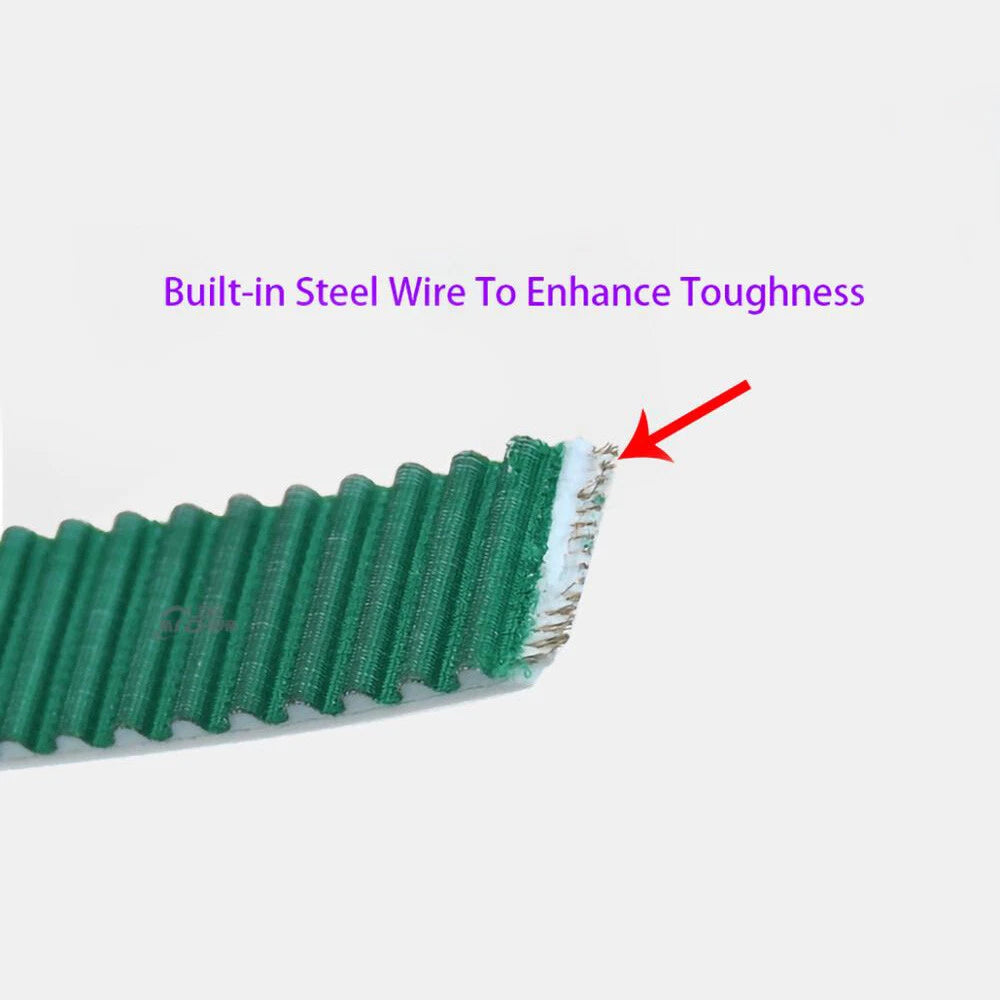

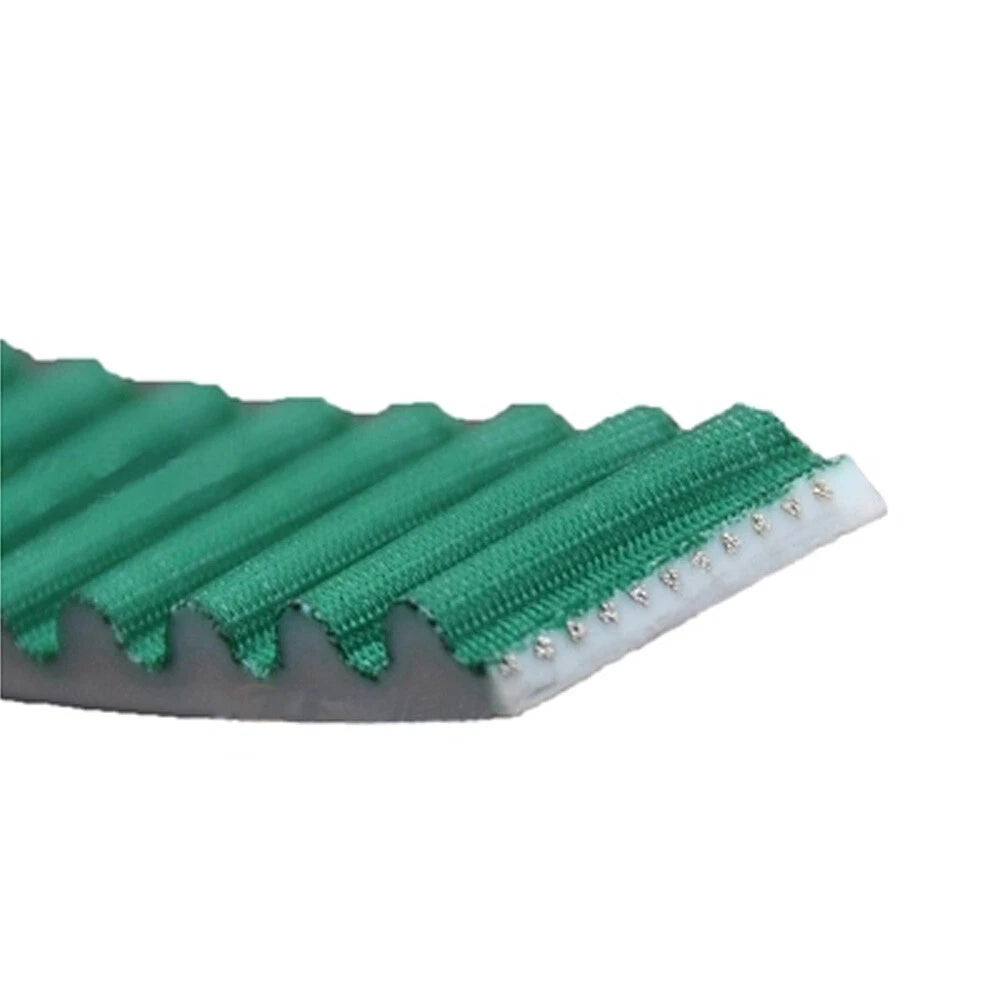

  • 🧱Polyurethane Construction with Steel Cord — PU body resists oils, mild chemicals, and abrasion; steel tensile cord minimizes elongation for positional accuracy in open-end timing belt systems.

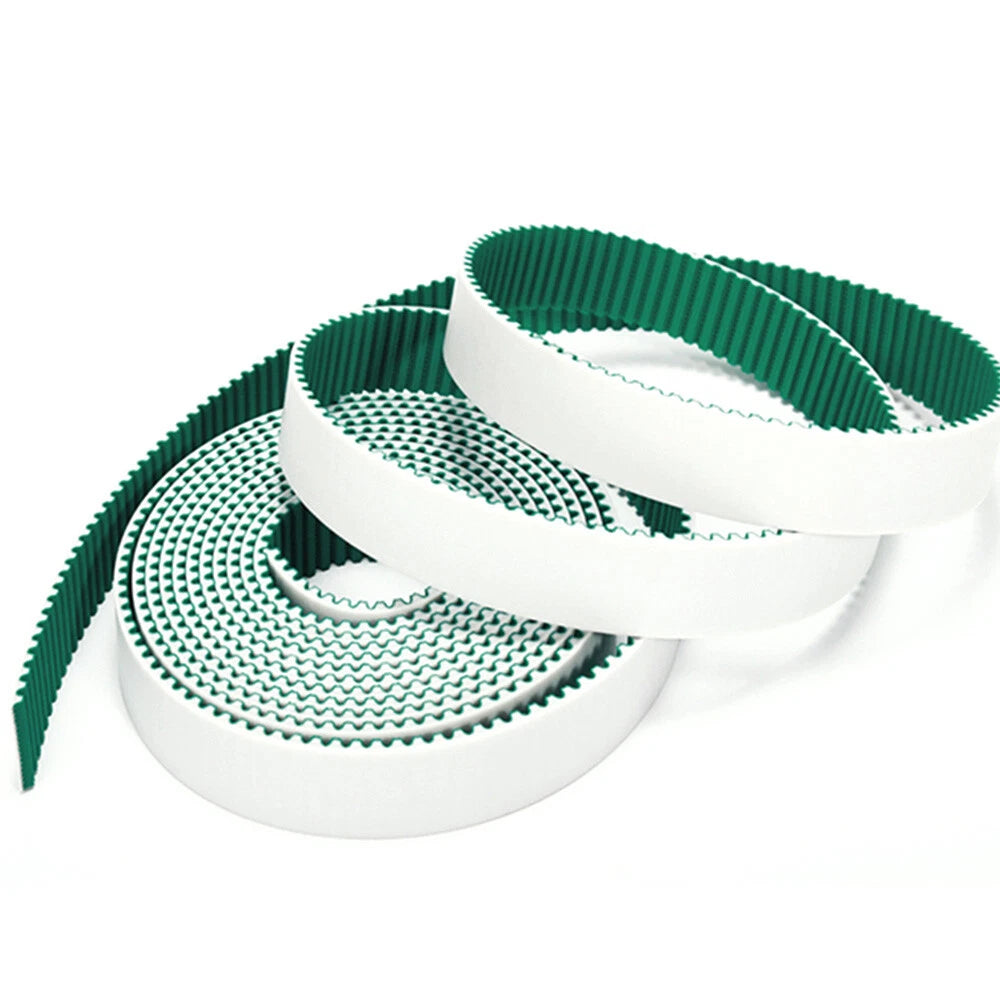

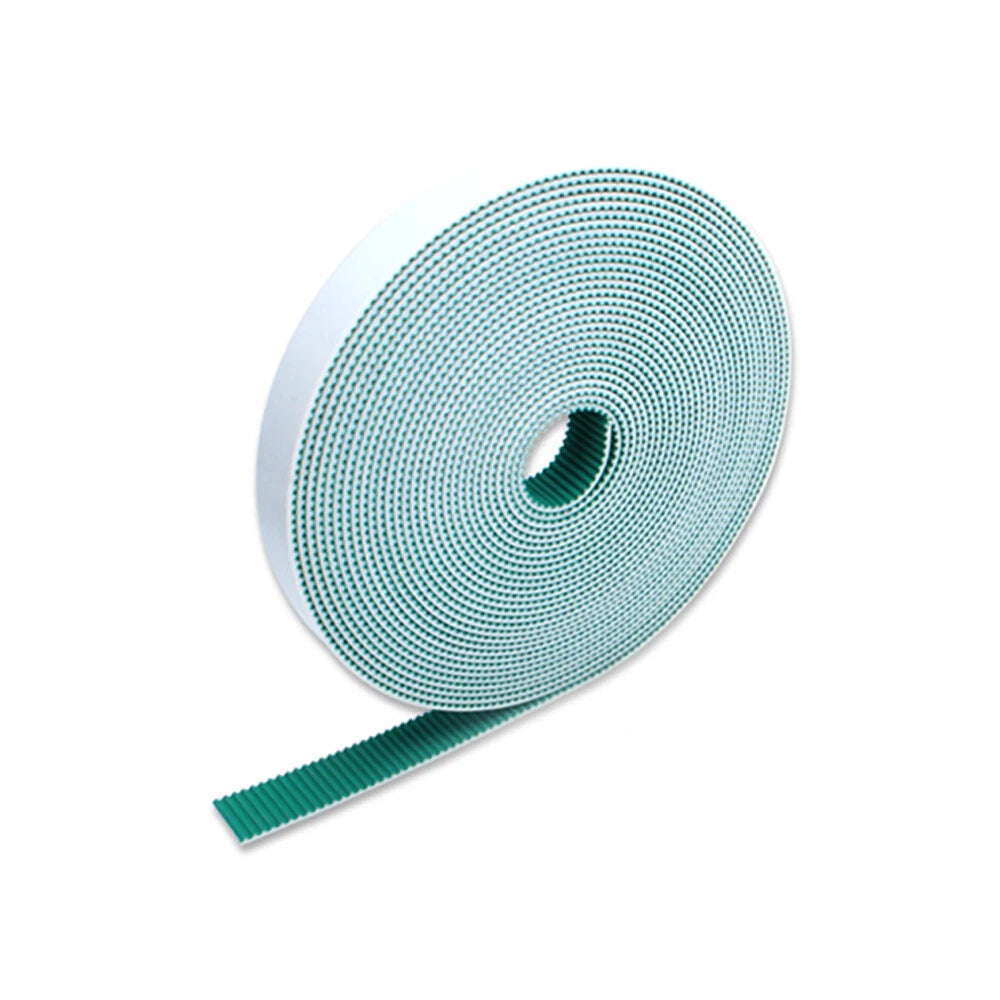

  • ✂️Open-End, Cut-to-Length Format — Sold by the meter so you cut exactly what your drive requires — no waste, no fixed-loop constraints. Ideal for linear axis and conveyor belt replacement projects.
  • 📐Multiple Pitch & Width Combinations — Three pitch options (3M, 5M, 8M) and up to six widths (10–40mm) let you match the belt to your existing pulley spec without custom fabrication.
  • 🌡️Dimensional Stability Across Temperatures — PU material generally maintains tooth pitch accuracy across a wider temperature range than neoprene, supporting consistent performance in enclosed machine enclosures.
  • 🔁Direct Drop-In Replacement Profile — HTD tooth geometry is standardized; these belts are typically interchangeable with OEM HTD drive belts on CNC routers, 3D printers, and servo-driven automation equipment.

📐 Technical Specifications — HTD PU Open-End Timing Belt

Belt Type Open-end (cut-to-length), HTD tooth profile
Material Polyurethane (PU) body with steel cord tensile reinforcement
Available Pitches HTD-3M (3mm), HTD-5M (5mm), HTD-8M (8mm)
Available Widths 10mm (≈3/8″) · 15mm (≈5/8″) · 20mm (≈3/4″) · 25mm (≈1″) · 30mm (≈1-3/16″) · 40mm (≈1-9/16″)
Length per Order 1 meter (≈39.4″) — order multiple quantities for longer runs
Tooth Profile HTD (High Torque Drive) — curved/rounded tooth
Tensile Member Steel cord (typical for PU HTD belts)
Tensile Strength See variant options / Contact us to confirm by pitch & width
Operating Temperature Contact us to confirm for your application
Color Typically black (PU body)
Compatible Pulleys Standard HTD-3M, HTD-5M, HTD-8M pulleys — match pitch and groove width
Width Availability by Pitch HTD-3M: 10, 15, 20, 25, 30mm · HTD-5M: 15, 20, 25, 30mm · HTD-8M: 15, 20, 25, 30, 40mm
⚠️ Before ordering: Confirm your pulley's pitch (3M / 5M / 8M) and groove width. Not all width options are available for every pitch — see variant selector above.

❓ Frequently Asked Questions

How do I choose the right pitch — HTD-3M, HTD-5M, or HTD-8M?

Pitch is the distance between tooth centers. HTD-3M (3mm pitch) is typically used in light-duty, high-speed applications such as 3D printers and small CNC routers. HTD-5M (5mm pitch) suits medium-load drives like laser cutters and desktop automation equipment. HTD-8M (8mm pitch) is generally chosen for heavier loads and higher torque applications such as industrial CNC machines and servo-driven linear axes. Always match the pitch to your existing pulley specification.

How do I select the correct belt width?

Belt width should match your pulley flange width. Available widths are 10mm (≈3/8″), 15mm (≈5/8″), 20mm (≈3/4″), 25mm (≈1″), 30mm (≈1-3/16″), and 40mm (≈1-9/16″). Wider belts generally carry higher loads. For example, 15mm is common in 3D printer motion systems, while 25–40mm widths are typically used in CNC routing and servo drive systems with higher torque requirements.

What load or torque can these belts handle?

Load capacity depends on pitch, width, and operating speed. PU timing belts with steel cord reinforcement generally offer higher tensile strength than neoprene equivalents of the same size. Wider belts and larger pitches typically support greater torque. For specific load ratings relevant to your drive system, contact us to confirm suitability before ordering.

Can these belts be used outdoors or in wet/oily environments?

Polyurethane (PU) is generally more resistant to oils, mild chemicals, and moisture than neoprene rubber belts, making it a common choice for machine environments with coolant splash or light oil exposure. However, prolonged exposure to standing water, harsh UV, or aggressive chemicals may affect long-term performance. Verify your specific operating conditions before use in outdoor or washdown environments.

Are these belts compatible with standard HTD pulleys?

Yes. These belts use the HTD (High Torque Drive) curved tooth profile, which is compatible with standard HTD pulleys of the matching pitch (3M, 5M, or 8M). HTD is a widely standardized profile used across CNC, 3D printing, and automation industries. Always verify your pulley's pitch and groove width before ordering to ensure a proper fit.

These are sold by the meter — how do I cut them to the length I need?

Each listing covers 1 meter (≈39.4″) of open-end belt. PU timing belts can be cut cleanly with a sharp utility knife or metal shears. For the cleanest result, mark your cut line in the valley between two teeth to preserve tooth pitch at the cut end. If your application requires more than 1 meter, simply order multiple quantities.

How does PU polyurethane compare to rubber (neoprene) timing belts?

PU timing belts are typically stiffer, more dimensionally stable, and more resistant to oils and abrasion than neoprene belts. They are generally preferred in precision CNC and automation applications where positional accuracy and low stretch matter. Neoprene belts may be more flexible and quieter in some low-load or high-flex applications. For most CNC router and 3D printer drive belt replacements, PU is the more durable long-term choice.
