HTD14M Closed Loop Synchronous Timing Belt — Precise Drive for CNC, Conveyor & Industrial Systems
When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime on your CNC router, plasma table, or conveyor line, the root cause is often an undersized or wrong-pitch belt. Engineers, machine builders, and serious DIYers who need reliable, high-torque power transmission without backlash turn to the HTD14M closed loop synchronous timing belt as the go-to solution for demanding drive systems.

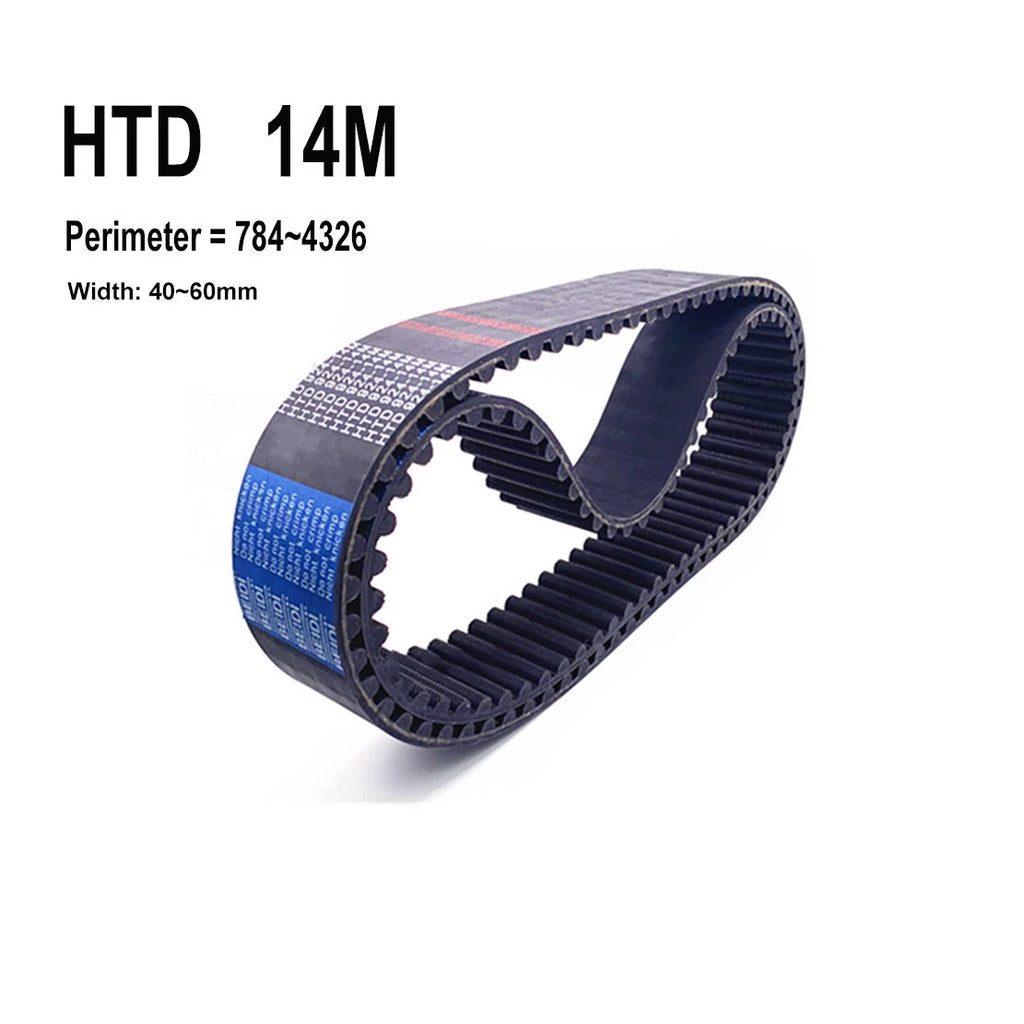

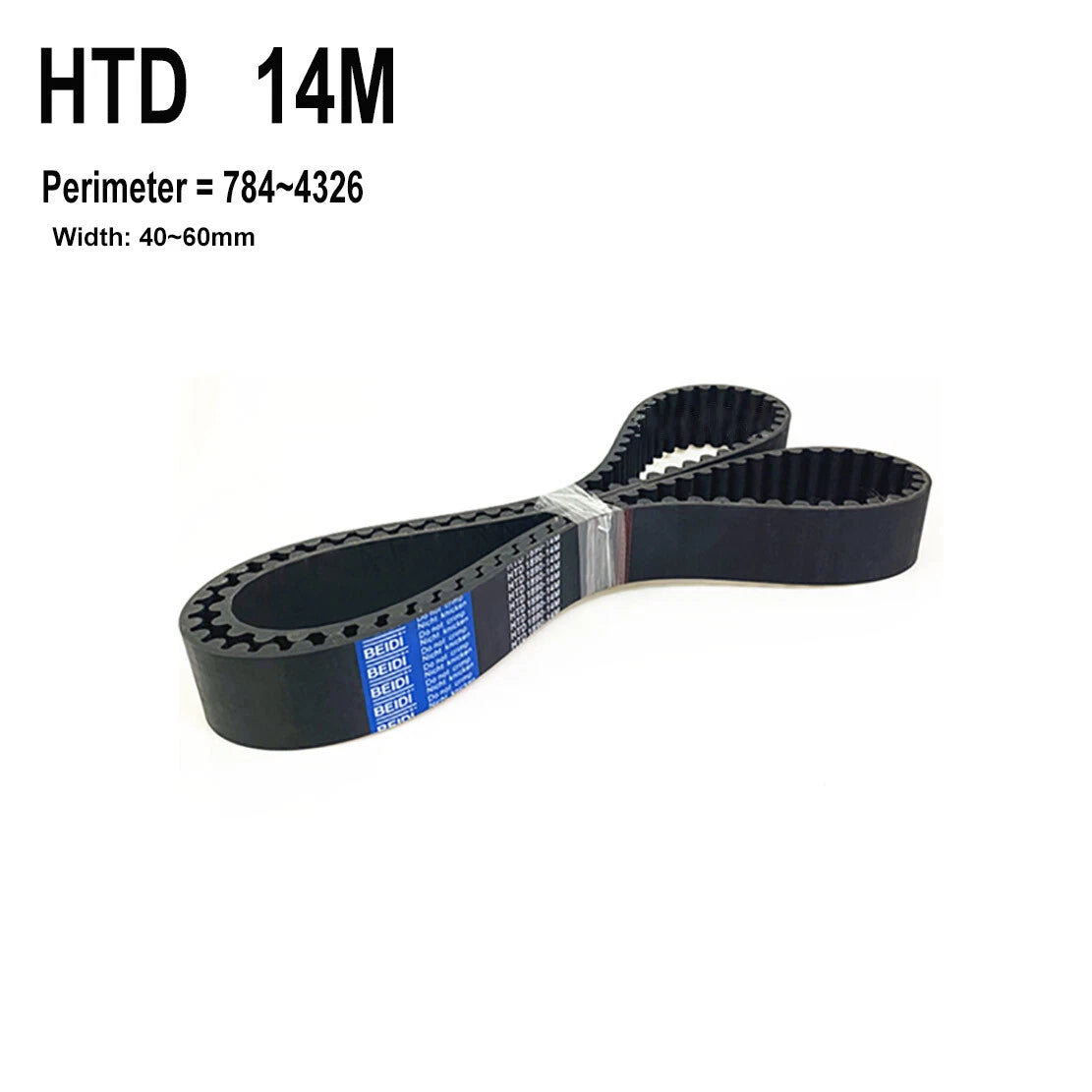

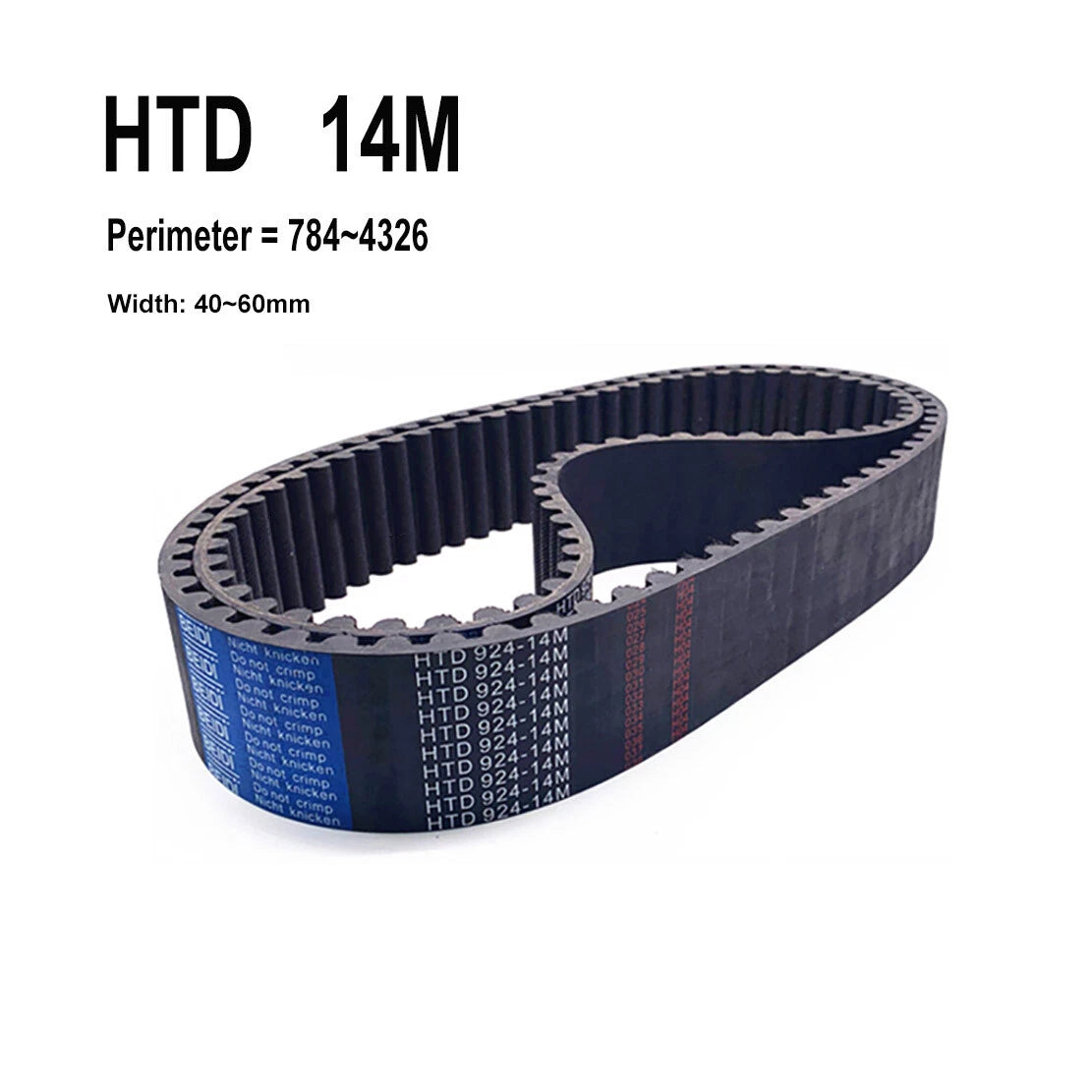

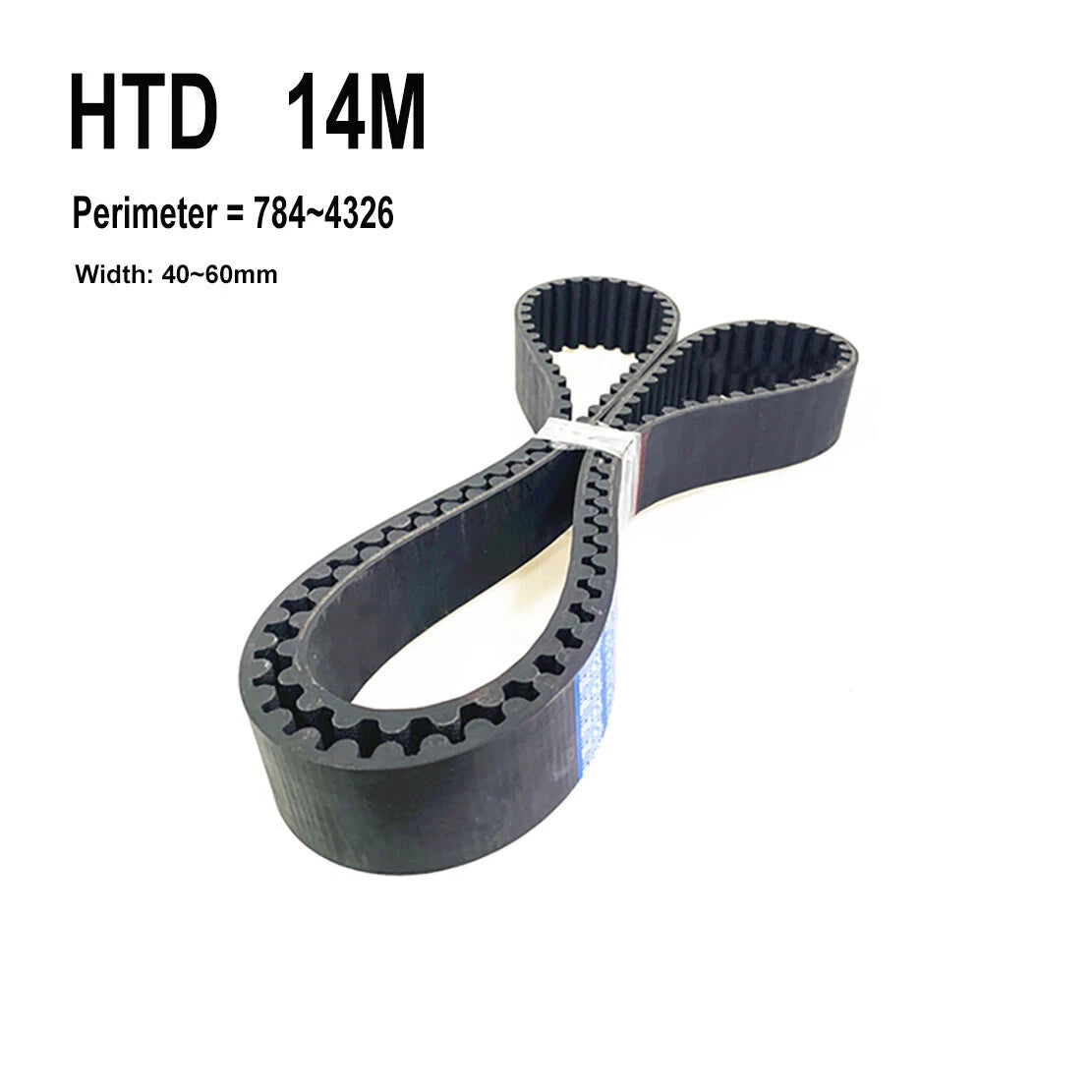

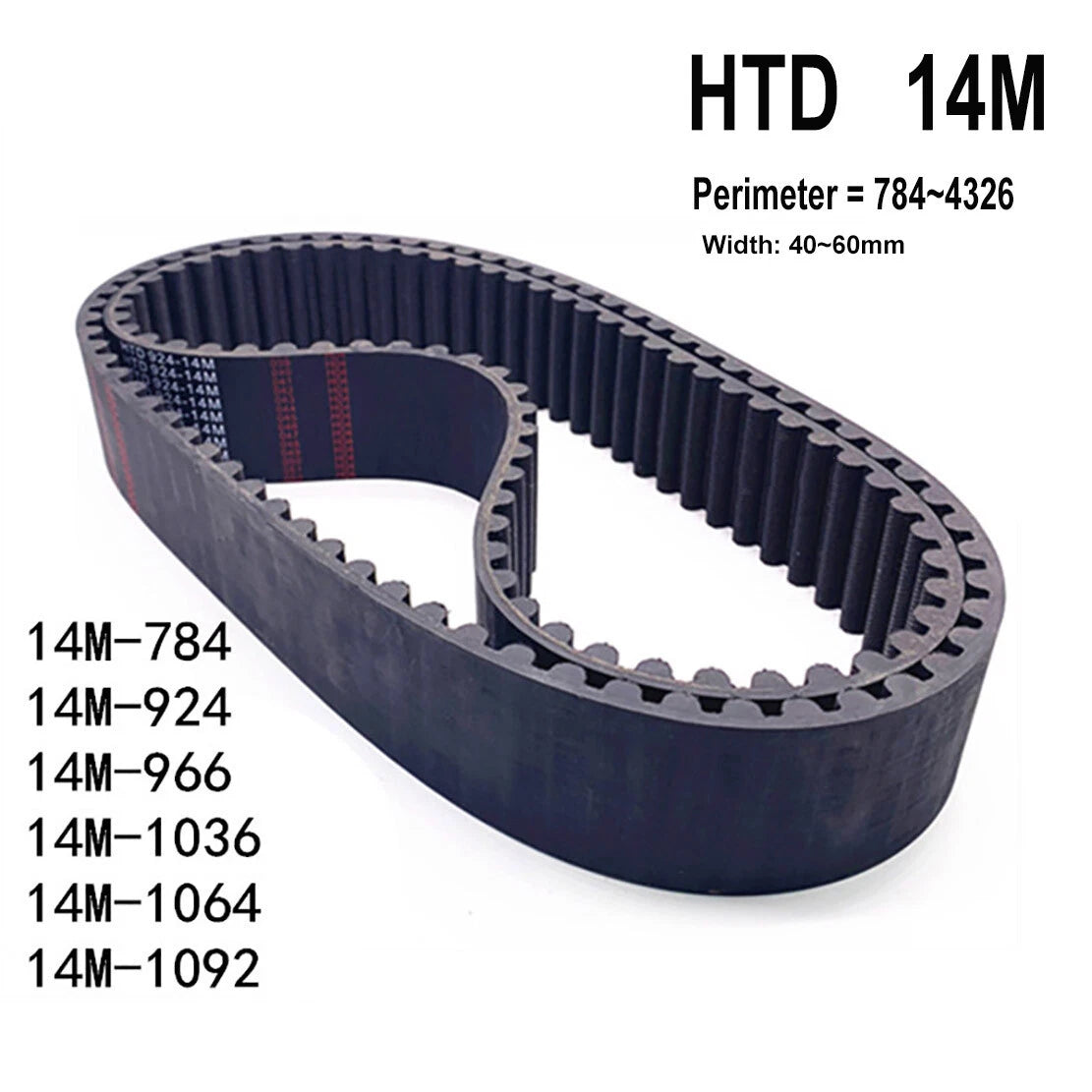

Each belt in this listing is a single closed-loop synchronous belt with an HTD 14 mm tooth pitch, available in widths of 40 mm (≈1.57"), 50 mm (≈1.97"), 60 mm (≈2.36"), and 75 mm (≈2.95"). Pitch lengths range from 784 mm (≈30.9") up to 4326 mm (≈170.3"), covering a wide span of center-to-center distances. The belt body is constructed from neoprene rubber with fiberglass or steel cord tensile members (typical for this belt class), providing dimensional stability under load.
Typical applications include large-format CNC router axis drives where the HTD14M closed loop belt maintains tooth engagement across long travel distances, industrial conveyor synchronization systems requiring matched timing between multiple shafts, and heavy-duty automation equipment such as plasma cutters, laser tables, and robotic gantries where a synchronous timing belt for CNC pulley systems must resist stretch and maintain registration under variable loads.
🔗 Compatibility: Requires HTD14M-profile pulleys only. Not interchangeable with trapezoidal (XL, L, H) or other HTD pitches (5M, 8M, 3M). Verify pulley tooth profile, bore diameter, and flange width before ordering.
✅ Key Features of These HTD14M Closed Loop Synchronous Timing Belts
-
⚙️ HTD 14 mm Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque CNC pulley drive applications.
-
📏 Wide Size Range — Pitch lengths from 784 mm to 4326 mm in a single listing let you match the belt to your exact center-to-center distance without custom fabrication, covering most large-format machine drive configurations.
-
↔️ Four Width Options — Choose 40, 50, 60, or 75 mm width to match your pulley flange and torque requirement; wider belts carry proportionally greater loads in conveyor and industrial synchronous drive systems.
-
🔄 Closed Loop Construction — Factory-joined endless loop eliminates the splice variability of cut-to-length belts, providing consistent tension distribution and repeatable positioning in closed-loop CNC axis drives.
-
🧲 Reinforced Tensile Cord — Internal cord reinforcement (typically fiberglass or steel, standard for this belt class) resists elongation under sustained tension, maintaining tooth pitch accuracy over extended operating cycles.
-
🏭 Broad Application Fit — Suited for CNC routers, plasma cutters, laser tables, conveyor synchronization, and industrial automation gantries where a synchronous timing belt must maintain registration under variable and shock loads.
📐 Technical Specifications — HTD14M Synchronous Timing Belt
| Belt Type |
Closed Loop Synchronous Timing Belt |
| Tooth Profile |
HTD (High Torque Drive) |
| Pitch |
14 mm |
| Available Widths |
40 mm (≈1.57") / 50 mm (≈1.97") / 60 mm (≈2.36") / 75 mm (≈2.95") |
| Pitch Length Range |
784 mm (≈30.9") — 4326 mm (≈170.3") |
| Belt Material |
Neoprene rubber (typical for HTD14M class) |
| Tensile Member |
Fiberglass or steel cord (see variant options) |
| Tooth Facing |
Nylon fabric (typical for this belt class) |
| Compatible Pulley Standard |
HTD14M profile pulleys only |
| Quantity per Order |
1 piece |
| Application |
CNC routers, conveyor drives, plasma/laser tables, industrial automation |
| Operating Temperature |
Contact us to confirm |

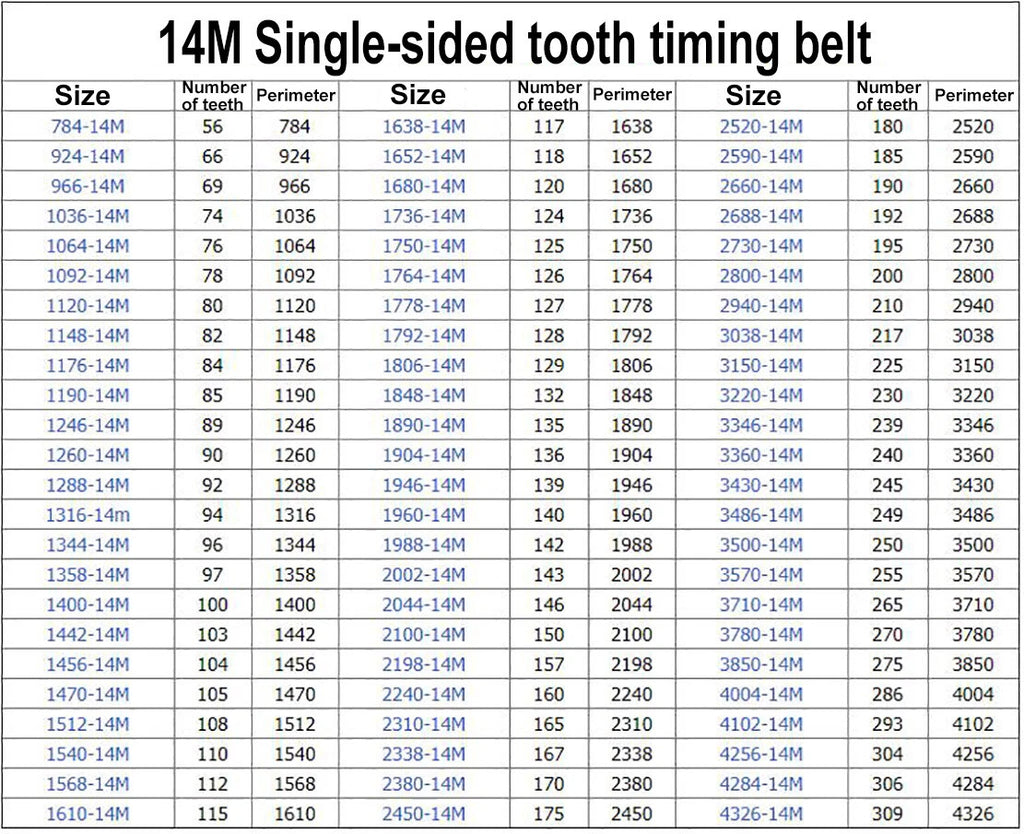

⚠️ Size Selection Note: The size code (e.g., "784-14M") indicates the pitch circumference in millimeters. Measure your required belt path length carefully before selecting. If your calculated length falls between two available sizes, select the next size up and adjust pulley center distance accordingly.
❓ Frequently Asked Questions
How do I choose the right belt length for my machine?
Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: L = 2C + π(D1 + D2)/2, where C is center distance and D1/D2 are pulley pitch diameters. The size codes in this listing (e.g., 784-14M) indicate pitch circumference in millimeters — 784 mm (≈30.9") for the smallest up to 4326 mm (≈170.3") for the largest. Always select the next size up if your calculation falls between available options, then adjust your pulley center distance to take up the slack.
What does the "14M" designation mean, and is it compatible with other HTD belts?

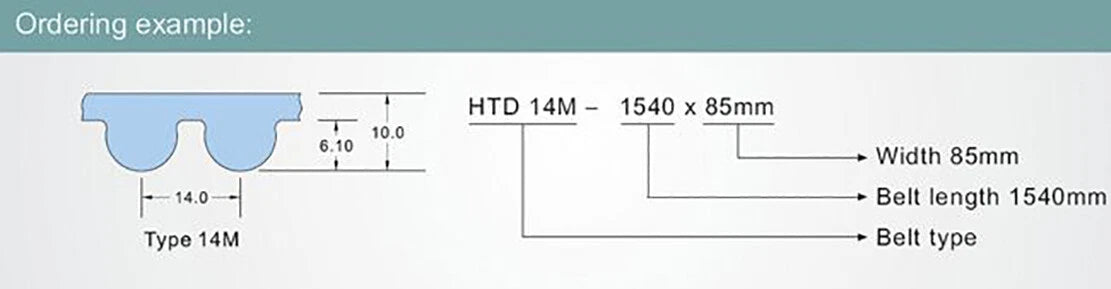

The "14M" refers to the HTD (High Torque Drive) tooth profile with a 14 mm pitch — the distance between adjacent tooth centers. This profile is specific to HTD14M pulleys and is generally not interchangeable with other HTD pitches (5M, 8M) or trapezoidal profiles (XL, L, H, T10). Always verify that your pulley is marked HTD14M before ordering.
How much torque can these HTD14M belts handle?
HTD14M belts are designed for medium-to-heavy industrial torque loads. Actual capacity depends on belt width, the number of teeth in mesh with the pulley, and operating speed. Wider belts (60–75 mm) typically carry significantly more torque than 40 mm belts. For critical applications, contact us with your RPM, load, and duty cycle so we can help confirm suitability.
Can these belts be used outdoors or in environments with moisture or dust?
Neoprene-based synchronous timing belts are generally resistant to light moisture, oils, and moderate dust exposure — common in CNC router and plasma table environments. They are not typically rated for continuous submersion or aggressive chemical exposure. For outdoor installations, shielding the belt from direct UV and standing water is recommended. Contact us to confirm suitability for your specific environment.
Which width should I choose — 40 mm, 50 mm, 60 mm, or 75 mm?
Width selection is driven by your torque requirement and pulley flange width. As a general guide: 40 mm is typically sufficient for lighter CNC routing or positioning axes; 50–60 mm suits medium-duty conveyor or multi-axis gantry systems; 75 mm is appropriate for heavy industrial drives with high sustained loads. Your pulley's usable belt seat width must be equal to or greater than the belt width you select.
Are these belts compatible with standard CNC router, laser cutter, or plasma table setups?
HTD14M belts are commonly specified for large-format CNC routers, plasma cutters, and industrial gantry systems where high torque and precise synchronization are required. Note that smaller desktop CNC machines and most 3D printers typically use 5M or 8M pitch belts — the 14 mm pitch is generally oversized for those applications. Always verify your machine's belt specification (pitch, width, and length) before ordering.
How do I convert the size code to inches to compare with my existing belt?
Divide the millimeter pitch length by 25.4 to convert to inches. For example: 784 mm ÷ 25.4 ≈ 30.9", 1400 mm ÷ 25.4 ≈ 55.1", 2800 mm ÷ 25.4 ≈ 110.2", 4326 mm ÷ 25.4 ≈ 170.3". If your existing belt is labeled in inches, multiply by 25.4 to find the equivalent millimeter pitch length and select the closest available size.
