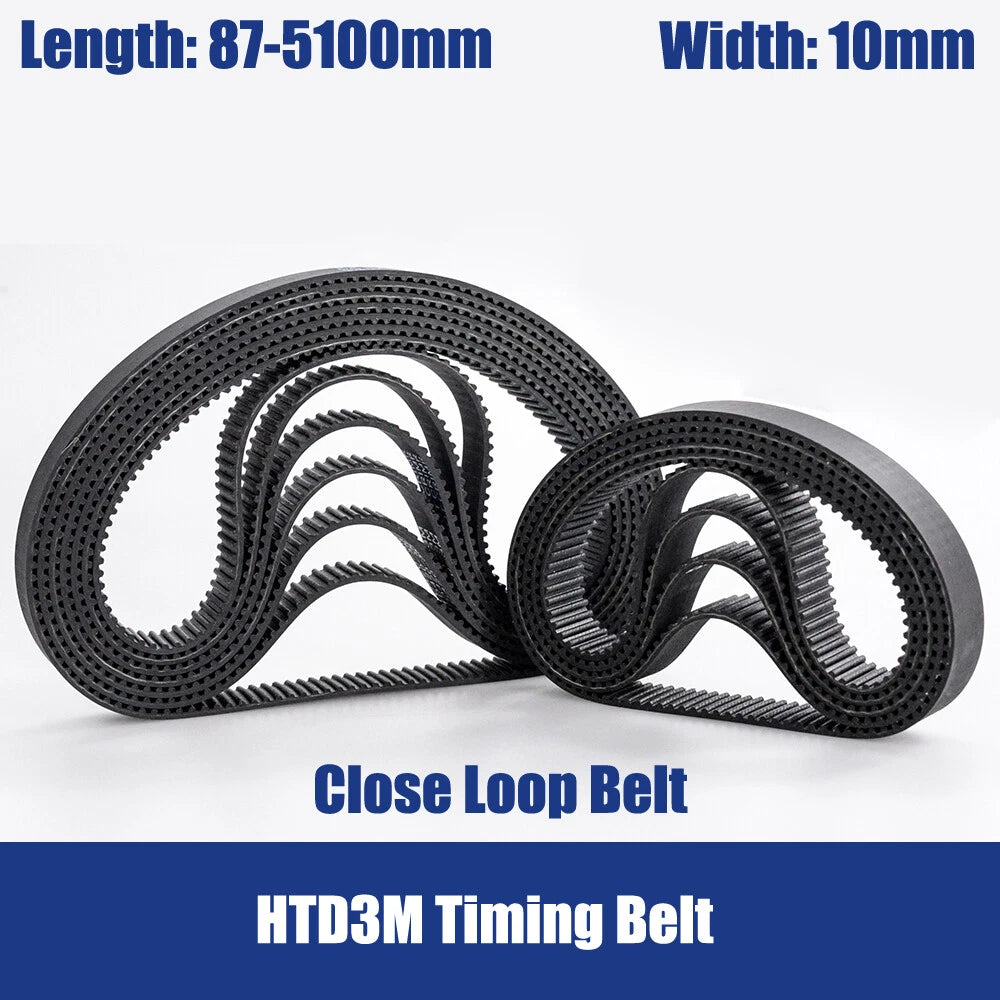

HTD3M Rubber Timing Belt — Closed Loop, 10mm Wide, 87mm to 5100mm

When a slipping V-belt or a stretched open-end belt costs you a failed print, a misaligned CNC cut, or a jammed conveyor, the fix is a properly sized closed-loop HTD3M timing belt. Engineers, makers, and repair technicians who need repeatable, slip-free motion rely on the HTD3M profile's rounded tooth geometry to eliminate the backlash and tooth-jump that flat or trapezoidal belts introduce under load.

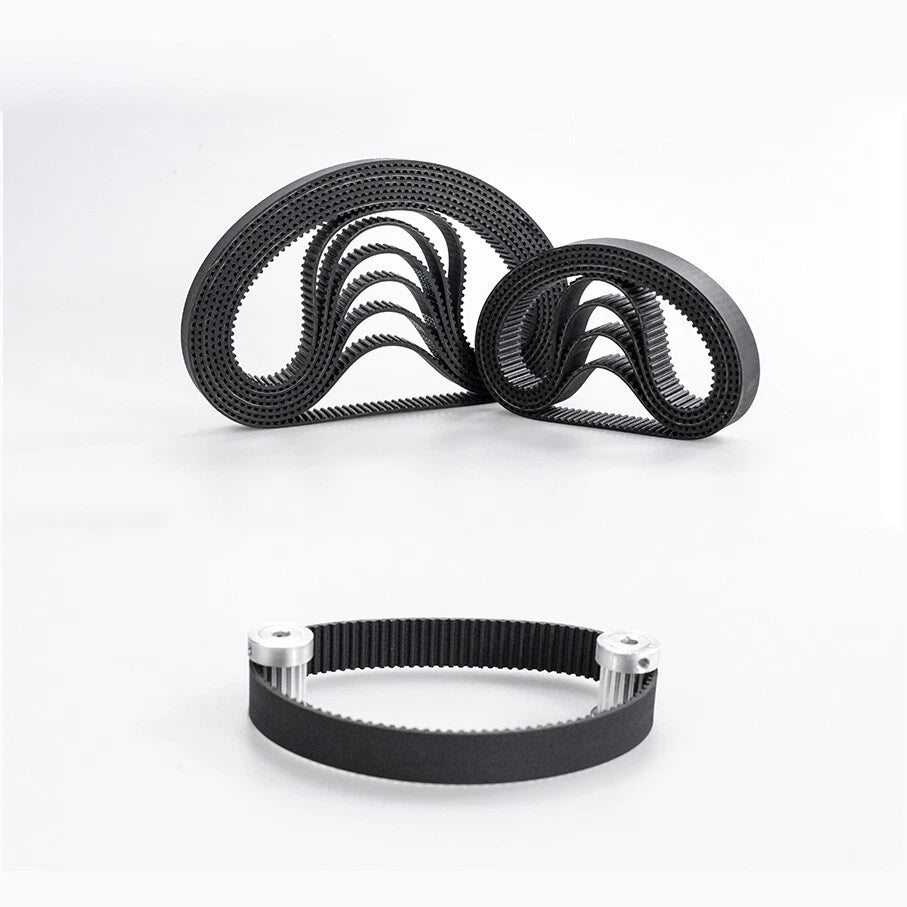

Each belt in this listing is a closed-loop (endless) rubber timing belt with an HTD3M tooth profile — 3mm pitch, rounded tooth form — and a fixed width of 10mm (≈3/8"). Lengths are available from 87mm (≈3.4") to 5100mm (≈200.8") in increments as small as 3mm, so you can match your exact drive circumference without shimming or splicing. The rubber body is reinforced with tensile cords (typically fiberglass or steel) to resist elongation and maintain pitch accuracy over thousands of cycles.

Typical use cases include 3D printer X/Y axis drives (HTD3M closed loop belt replacement), desktop CNC router and laser cutter feed systems, robotic arm and actuator drives, and light-duty conveyor and indexing table applications where precise tooth engagement and low backlash are required.

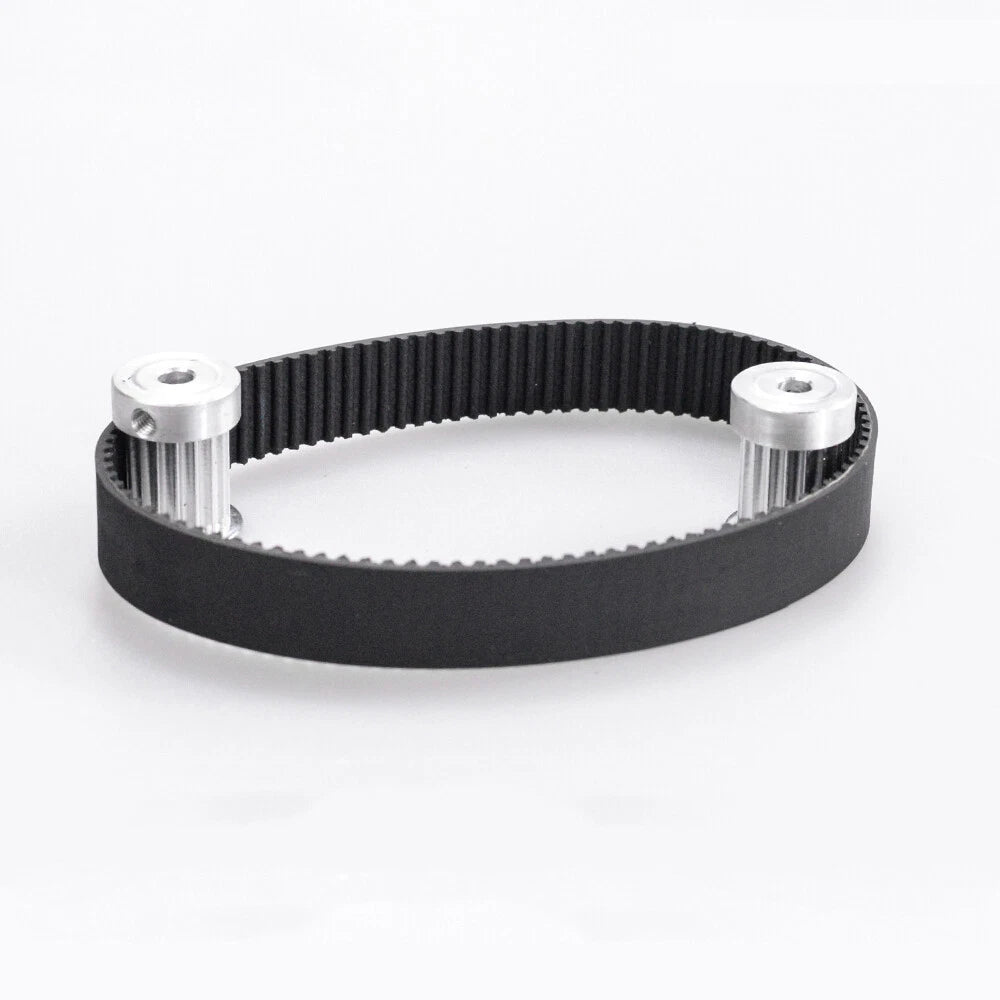

ℹ️ Compatibility: Requires HTD3M-profile pulleys with 3mm pitch. Not compatible with GT2, MXL, T2.5, or XL pulley profiles. Verify your pulley tooth profile before ordering.

✅ Key Features of These HTD3M Closed Loop Timing Belts

  • 🔁Closed-Loop Endless Construction — No splice, no joint, no weak point. The seamless loop maintains consistent tension and tooth engagement throughout the full belt circumference, which is critical for HTD3M closed loop belt applications in 3D printers and CNC machines.
  • 📐3mm HTD Tooth Pitch — The rounded HTD tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress and extending service life in repetitive-cycle drives.
  • 📏Wide Length Selection (87mm–5100mm) — Over 230 length variants in increments as small as 3mm let you find the exact circumference for your drive without resorting to open-end belt splicing or custom fabrication.
  • 🧵Tensile Cord Reinforcement — Embedded tensile cords (typically fiberglass or steel) resist elongation under dynamic loads, keeping pitch accuracy stable and reducing the need for frequent re-tensioning in rubber timing belt drive systems.
  • 🌡️Rubber Compound for Moderate Environments — The rubber body is generally suited for operating temperatures from –20°C to +80°C (–4°F to +176°F), covering most indoor automation, desktop fabrication, and light conveyor environments.
  • ⚙️10mm Fixed Width for Standard Drives — The 10mm (≈3/8") width is the most common width for HTD3M drives in desktop CNC, 3D printer, and small robotics applications, making this a direct drop-in replacement for worn or broken belts.

📐 Technical Specifications — HTD3M Rubber Timing Belt

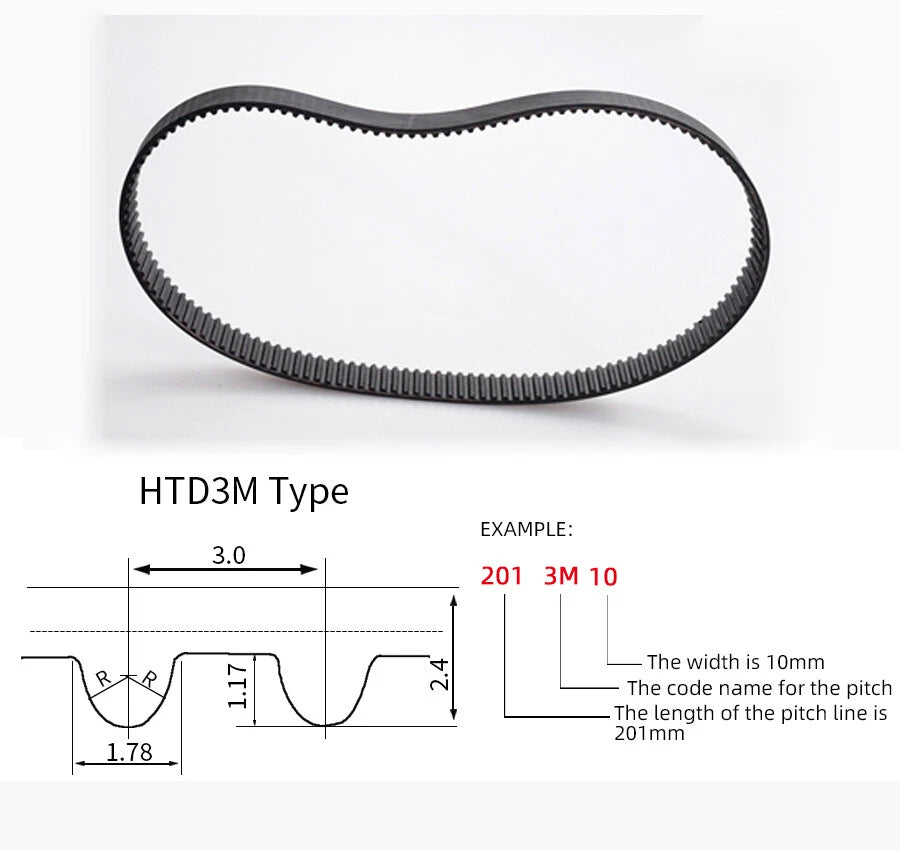

Belt Profile HTD3M (3mm pitch, rounded tooth)
Belt Type Closed loop (endless)
Width 10mm (≈3/8")
Length Range 87mm (≈3.4") – 5100mm (≈200.8")
Pitch 3mm
Material Rubber with tensile cord reinforcement (fiberglass or steel — see variant)
Operating Temperature Typically –20°C to +80°C (–4°F to +176°F)
Compatible Pulley Profile HTD3M only (3mm pitch)

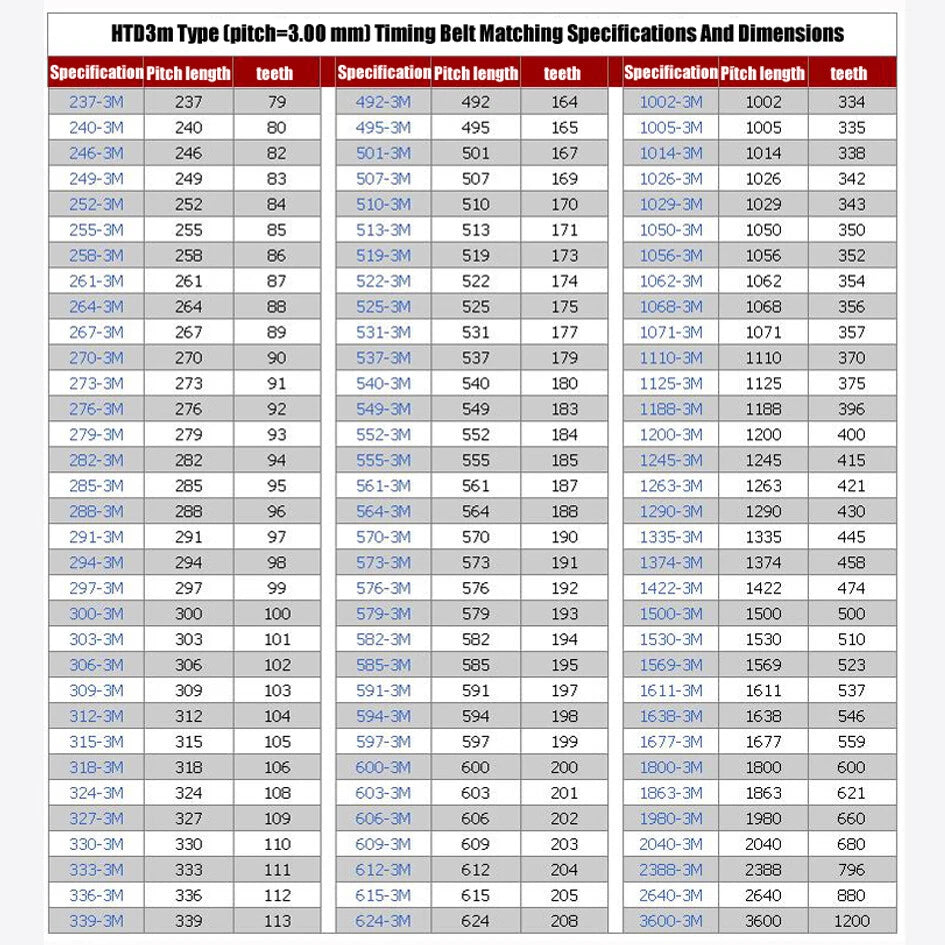

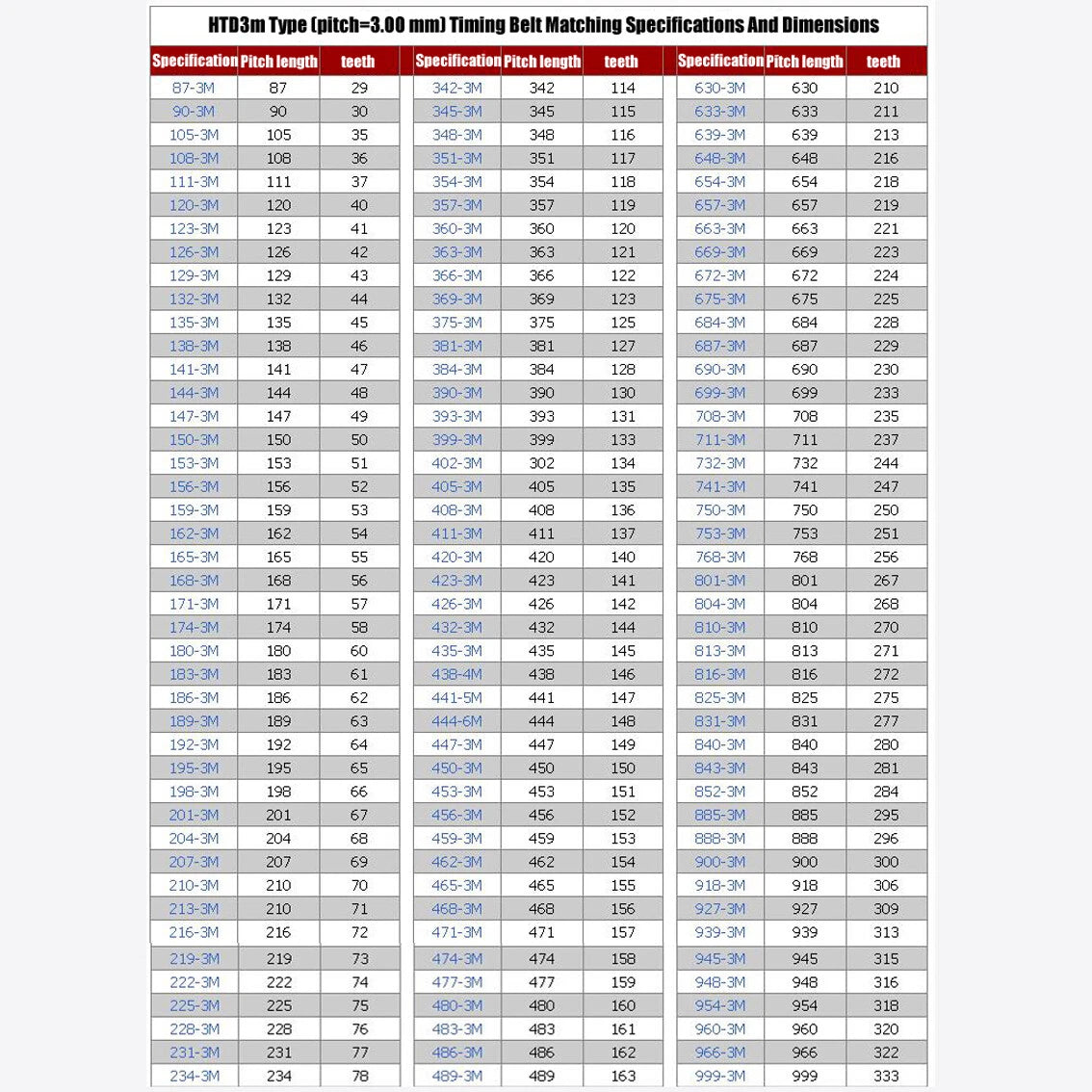

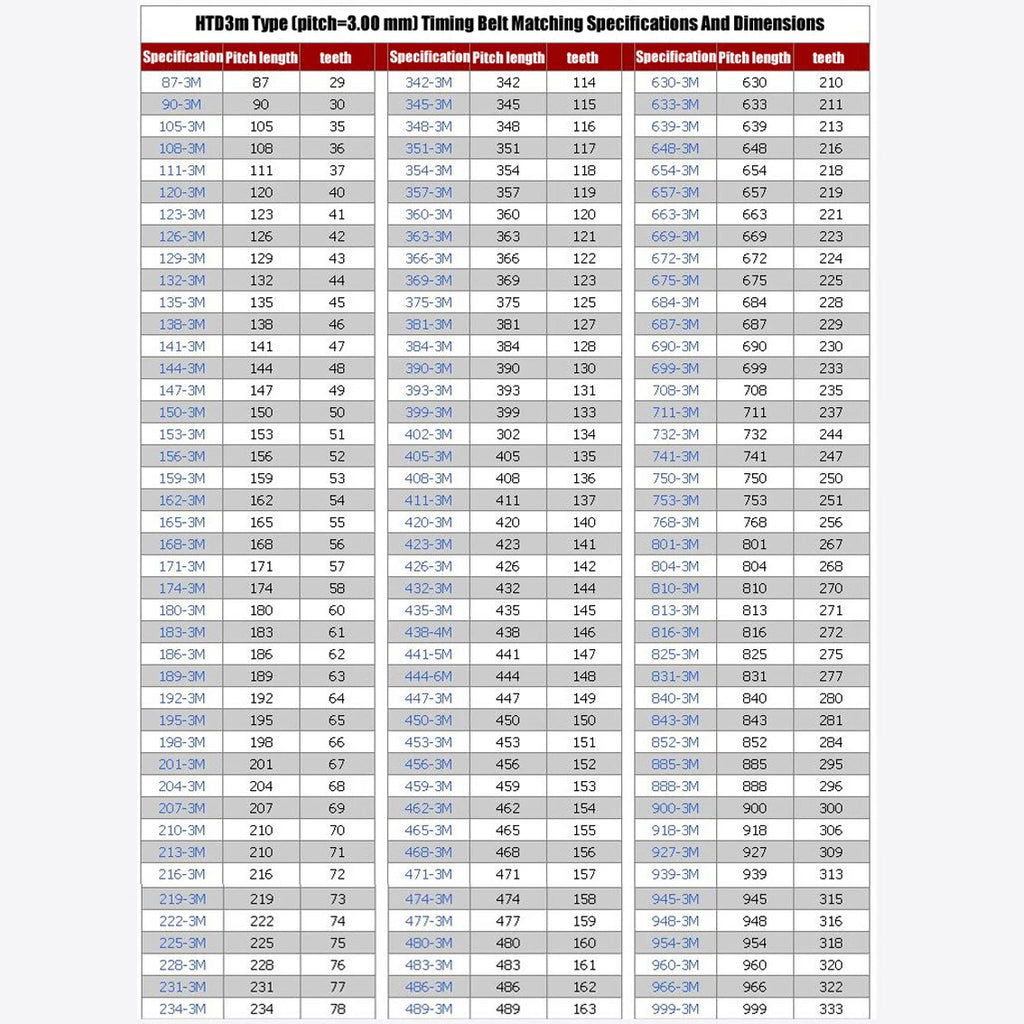

Tooth Count per Variant See variant options (length ÷ 3mm)
Cord Material Contact us to confirm
Color Black
Country of Origin See variant options
⚠️ Sizing note: Belt length refers to the outer circumference of the closed loop. Measure your drive's required belt path circumference carefully before selecting a variant. If you are unsure, contact us with your pulley center distance and pulley tooth counts.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length = 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For a quick inch conversion, divide the mm value by 25.4 — for example, 300mm ÷ 25.4 ≈ 11.8". When in doubt, size up to the next available length and use a tensioner for fine adjustment.

What load can an HTD3M timing belt handle?

HTD3M belts are generally suited for light-to-medium duty applications. The 10mm-wide version typically handles tangential loads in the range of 50–150 N depending on speed, pulley diameter, and operating temperature. For heavier industrial loads, consider a wider belt or a higher-pitch series such as HTD5M or HTD8M.

Can this belt be used outdoors or in wet environments?

The rubber compound is generally resistant to light moisture and moderate temperatures (typically –20°C to +80°C / –4°F to +176°F). For prolonged outdoor UV exposure or chemical splash environments, a neoprene or polyurethane variant is generally recommended. Contact us to confirm suitability for your specific conditions.

What pulley profile is compatible with HTD3M belts?

These belts require HTD3M-profile pulleys with a 3mm pitch. They are not interchangeable with GT2, MXL, T2.5, or XL profile pulleys. Always verify that your pulley's tooth profile and pitch match HTD3M before ordering.

How do I decide between a shorter and longer belt for the same application?

A shorter belt generally provides less flex fatigue and tighter positional accuracy, while a longer belt allows more center-distance flexibility and easier tensioning. For precision motion control (3D printers, CNC routers), match the belt length as closely as possible to your calculated requirement and use a tensioner for fine adjustment.

Is this a closed-loop belt or open-ended?

All belts in this listing are closed-loop (endless) belts. They are not open-ended or cut-to-length. Select the specific length variant that matches your drive system's circumference requirement.

What is the fiber reinforcement inside the belt?

HTD3M belts in this series typically use fiberglass or steel cord tensile members embedded in the rubber body. This reinforcement resists elongation under load and maintains consistent pitch accuracy over time. Contact us to confirm the specific cord material if your application has strict stretch or conductivity requirements.

🛒 Select your length above, then add to cart — ships from our US warehouse.
