HTD3M Timing Belt 10mm Wide — Consistent Drive Performance for Precision Machines

When a worn or stretched drive belt throws off your machine's positioning, every print layer, cut pass, or conveyor cycle pays the price. This HTD3M timing belt is built for engineers, makers, and maintenance teams who need a reliable replacement or upgrade belt for larger-format equipment — without hunting down an obscure supplier.

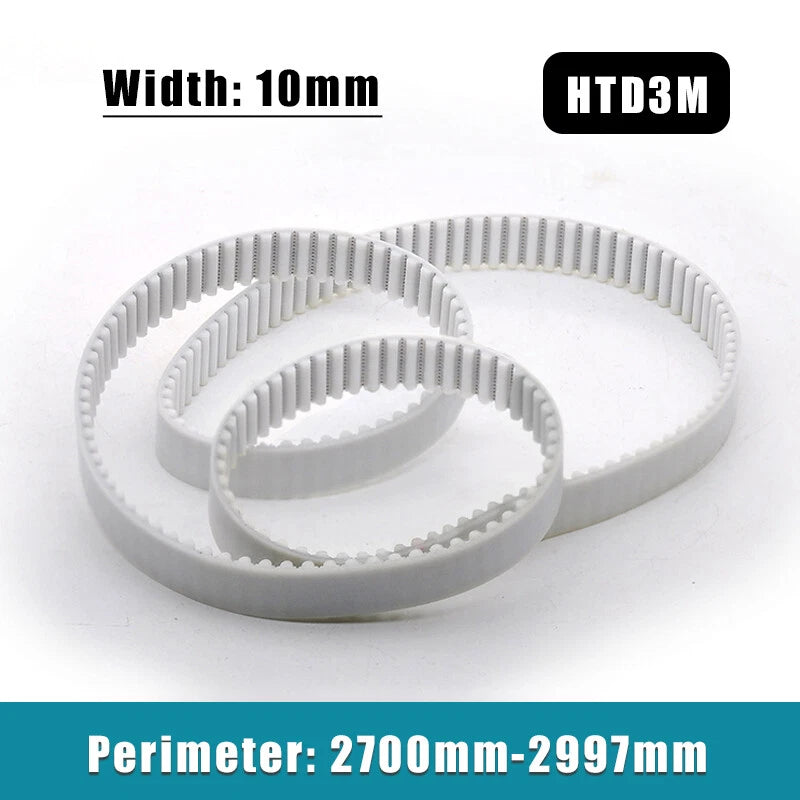

Each belt is made from polyurethane (PU) with a built-in steel wire tension cord and features the standard HTD3M tooth profile (3mm pitch). The width is 10mm. Available perimeters in this listing run from 2700mm (≈106.3") to 2997mm (≈118.0"), in 3mm increments, sold as 1 pc or a 2-pack.

Typical applications include large-format 3D printers with long axis runs, CNC router drive systems, laser engraver gantry loops, and light industrial conveyor or automation setups where a longer closed-loop HTD3M belt is required.

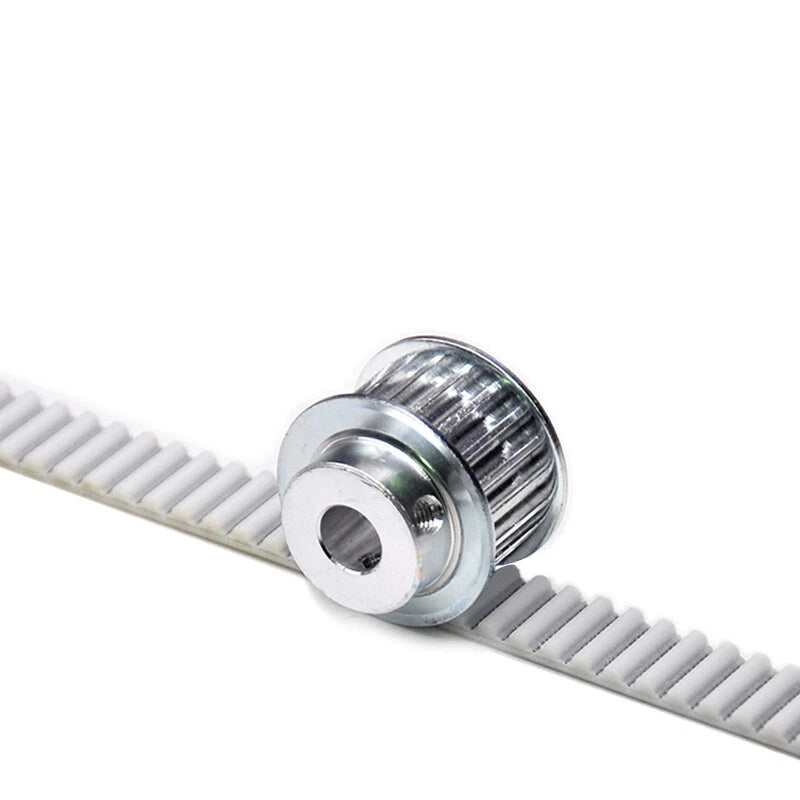

ℹ️ Compatibility: Fits any standard HTD3M pulley (3mm pitch, rounded tooth profile). Confirm your pulley's tooth count, bore size, and flange width before ordering. Belt width is 10mm — use with pulleys rated for 10mm or wider.
⚠️ Size selection: Perimeter options are listed in mm. To find your size, check your machine's documentation or measure your existing belt. If you are unsure, contact us to confirm before purchasing.

✅ Key Features of These HTD3M Timing Belts

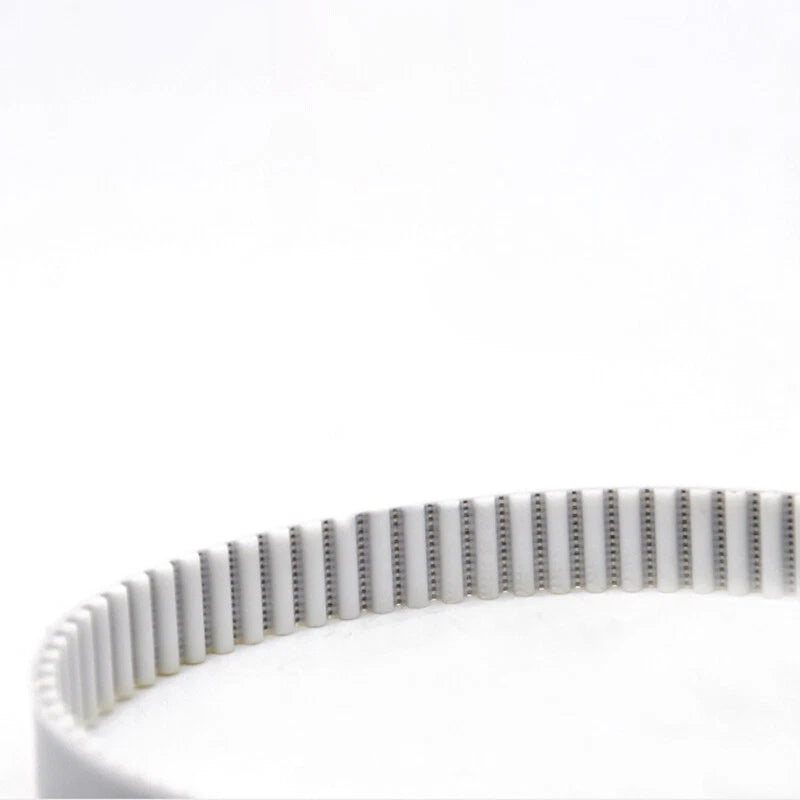

  • 🔩Steel Wire Tension Cord — The embedded steel wire core resists elongation under load, maintaining consistent tooth engagement and positioning accuracy over time — critical for CNC and 3D printer drive systems.
  • 🧱Polyurethane (PU) Construction — PU offers better resistance to oils, greases, and moderate moisture compared to standard rubber, making this HTD3M belt suitable for light industrial and workshop environments.
  • 📐Standard HTD3M Tooth Profile — 3mm pitch with the rounded HTD tooth form ensures smooth, low-noise meshing with any compatible HTD3M pulley, reducing vibration in high-speed drive applications.
  • 📏Wide Perimeter Selection — Available from 2700mm to 2997mm in 3mm steps, covering a broad range of large-format machine configurations without custom fabrication.
  • 🔄Closed-Loop Design — Factory-joined endless loop eliminates the splice inconsistencies of cut-to-length belts, delivering uniform tension distribution around the full drive circuit.
  • 📦Single or Twin Pack — Order 1 pc for a single-axis replacement or choose the 2-pack to service both axes at once or keep a spare on hand — both options ship from our US warehouse.

📐 Technical Specifications — HTD3M Timing Belt

Belt Type HTD3M (High Torque Drive, 3mm pitch)
Tooth Profile HTD — rounded curvilinear
Pitch 3mm
Belt Width 10mm (≈0.39")
Perimeter Range 2700mm (≈106.3") to 2997mm (≈118.0")

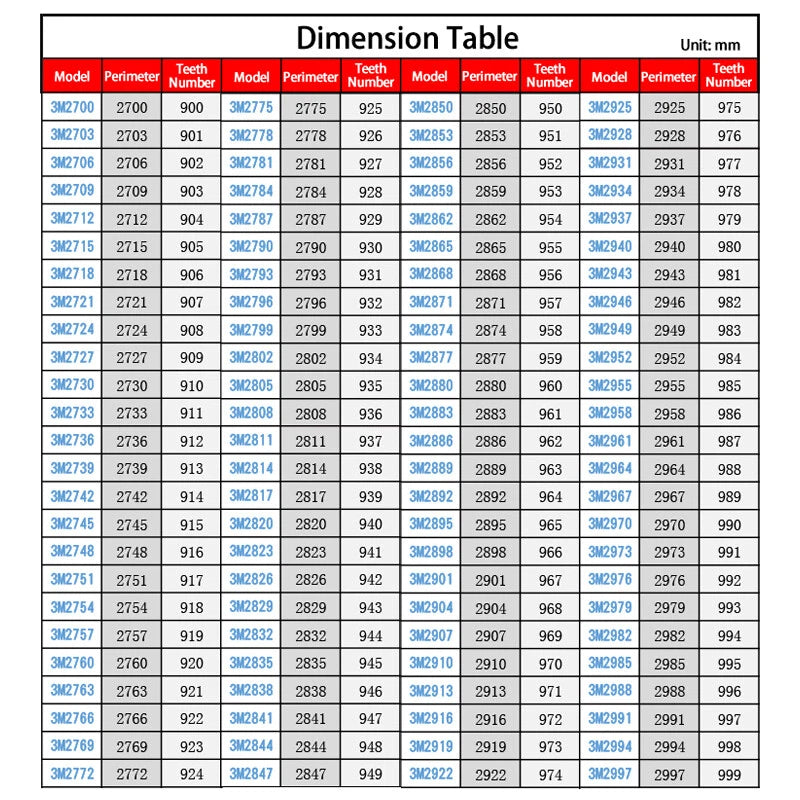

Perimeter Increment 3mm per step (1 tooth)
Material Polyurethane (PU)
Tension Cord Built-in steel wire
Belt Form Closed loop (endless)
Packing Options 1 pc / 2 pcs
Tensile Strength See variant options
Operating Temperature Contact us to confirm
Color / Finish See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD3M timing belt?

Measure the center-to-center distance between your drive and driven pulleys, then use the formula: Perimeter ≈ 2 × center distance + (π × sum of pitch radii). For HTD3M, each tooth pitch is 3mm, so divide your target perimeter by 3 to get the tooth count. For example, a 2700mm belt has 900 teeth. Always verify against your machine's spec sheet or the markings on your existing belt. If you are between sizes, typically size up to avoid over-tensioning.

How do I convert these perimeter sizes from mm to inches?

Divide the mm value by 25.4. Quick reference for this listing's range:

  • 2700mm ÷ 25.4 ≈ 106.3"
  • 2800mm ÷ 25.4 ≈ 110.2"
  • 2900mm ÷ 25.4 ≈ 114.2"
  • 2997mm ÷ 25.4 ≈ 118.0"

All perimeters in this listing are available in 3mm increments between 2700mm and 2997mm.

What tensile strength does a PU timing belt with steel wire provide?

PU belts with a steel wire tension cord generally offer higher tensile strength and lower elongation than rubber belts of the same cross-section. The steel wire core resists stretch under dynamic loads, which is why they are commonly used in CNC and 3D printer drive systems where positional accuracy matters. Exact load ratings depend on the specific wire count and diameter — contact us if you have a defined load requirement.

Can this belt be used outdoors or in wet/humid environments?

PU timing belts are generally more resistant to oils, greases, and moderate humidity than standard rubber belts. However, prolonged exposure to standing water, UV radiation, or extreme temperatures (typically outside −20°C to +80°C / −4°F to +176°F) may reduce service life. For outdoor, washdown, or high-UV applications, contact us to confirm suitability before ordering.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt uses the HTD3M tooth profile (3mm pitch, rounded curvilinear tooth form) and is designed to mesh with any standard HTD3M pulley. The 10mm belt width is compatible with pulleys rated for 10mm or wider. Before installing, confirm your pulley's tooth count, bore diameter, and flange clearance to ensure a proper fit.

What machines typically use HTD3M belts in the 2700–2997mm perimeter range?

This perimeter range is typically found in larger-format equipment, including:

  • Large-format 3D printers (e.g., CoreXY or bed-slinger designs with long axis travel)
  • CNC router gantry drive systems
  • Laser engraver and laser cutter motion systems
  • Light industrial conveyor and automation equipment

Always cross-reference your machine's belt specification or existing belt markings before purchasing.

What is the difference between the 1 pc and 2 pcs packing options?

The packing quantity option lets you choose 1 belt or a 2-belt pack. The 2-pack is useful when replacing belts on both axes of a machine at the same time, or when you want to keep a spare on hand. Pricing shown is per pack — not per individual belt.
