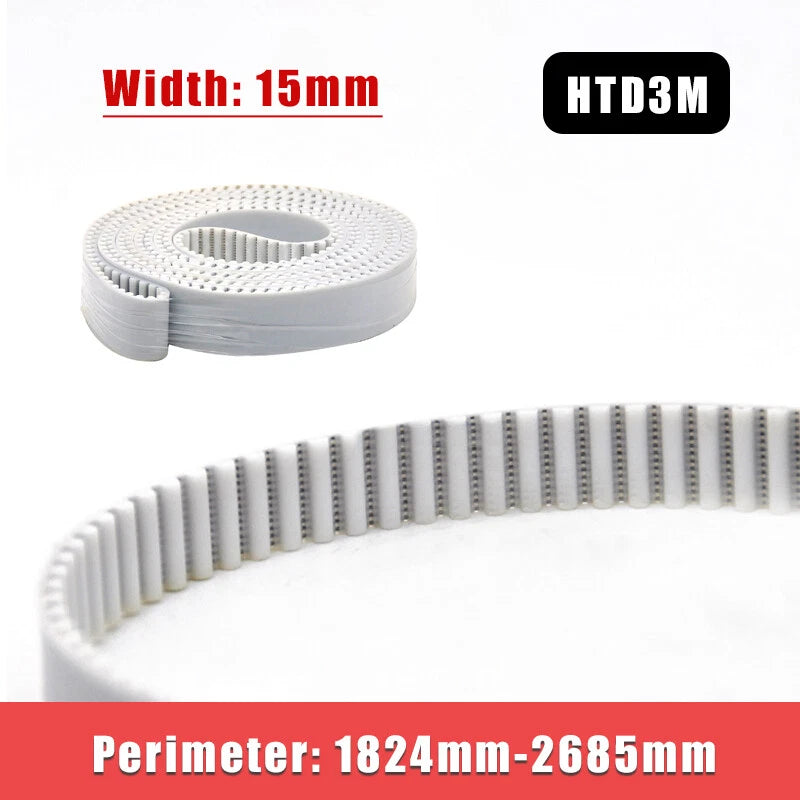

HTD3M Timing Belt 15mm Wide — PU Steel Wire Reinforced, 1815–2685mm Perimeter

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pitch diameters of your pulleys. Alternatively, wrap a flexible tape measure around both pulleys to approximate the belt path length. For example, a 1824mm belt is approximately 71.8 inches. Always round up to the nearest available size if your calculation falls between options, then adjust pulley center distance to tension the belt correctly.

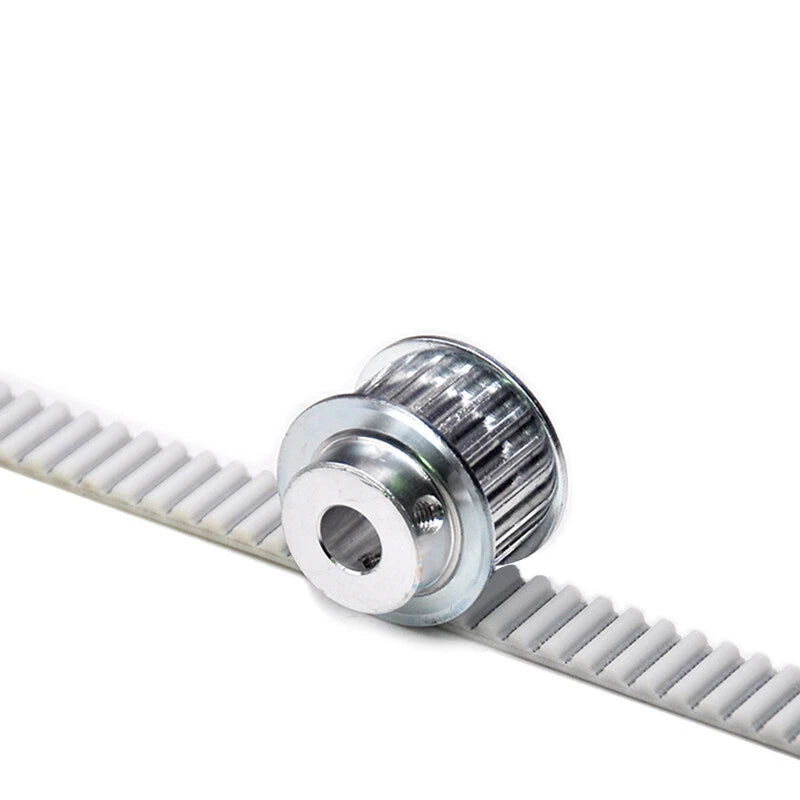

This belt uses the HTD3M profile with a 3mm tooth pitch. It is compatible with any HTD3M (3M) timing pulleys. It is not interchangeable with GT2, GT3, T5, or other pitch standards — tooth geometry differs and mixing profiles will cause poor engagement or tooth jump. Always confirm your pulley is labeled HTD3M or 3M pitch before ordering.

The steel wire core provides significantly higher tensile strength than fiberglass-reinforced belts. Typical working tension for a 15mm wide HTD3M PU steel-core belt is generally in the range of 200–400 N, depending on operating speed and pulley diameter. For precise load ratings specific to your application, contact us to confirm specifications.

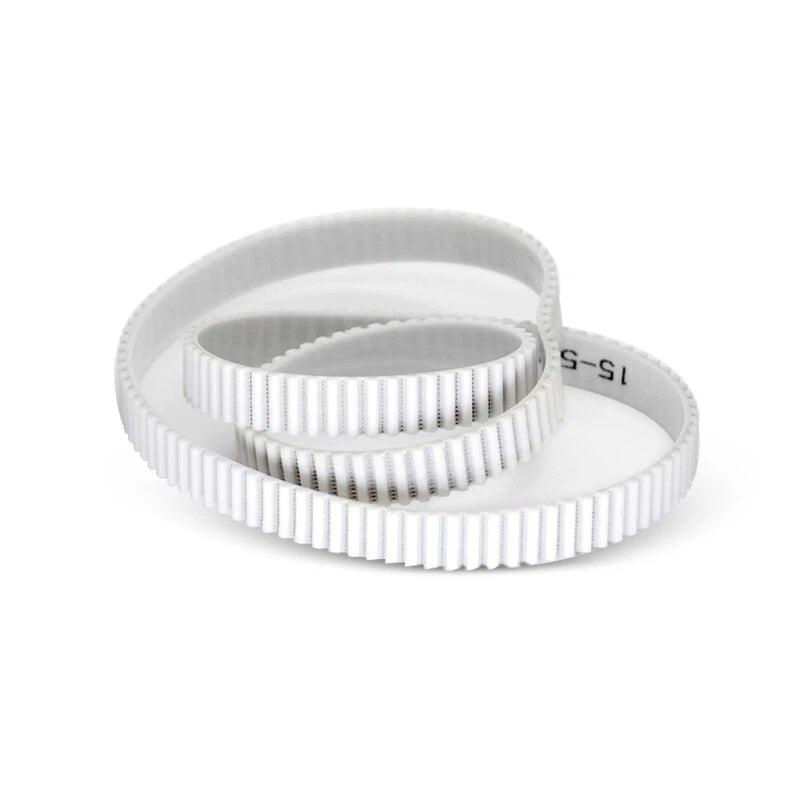

Polyurethane (PU) timing belts generally offer good resistance to oils, greases, and mild chemicals compared to neoprene belts. They are typically suitable for light outdoor use and environments with incidental oil exposure. However, prolonged UV exposure or immersion in solvents may reduce belt life. For harsh outdoor or chemical environments, contact us to confirm suitability for your specific conditions.

Steel wire reinforcement provides lower elongation under load, meaning the belt maintains more consistent positioning accuracy over time. This makes it well-suited for CNC machines, 3D printers, and other motion-control applications where positional drift is a concern. Fiberglass cores are lighter but typically stretch more under sustained tension, which can cause cumulative positioning errors in precision systems.

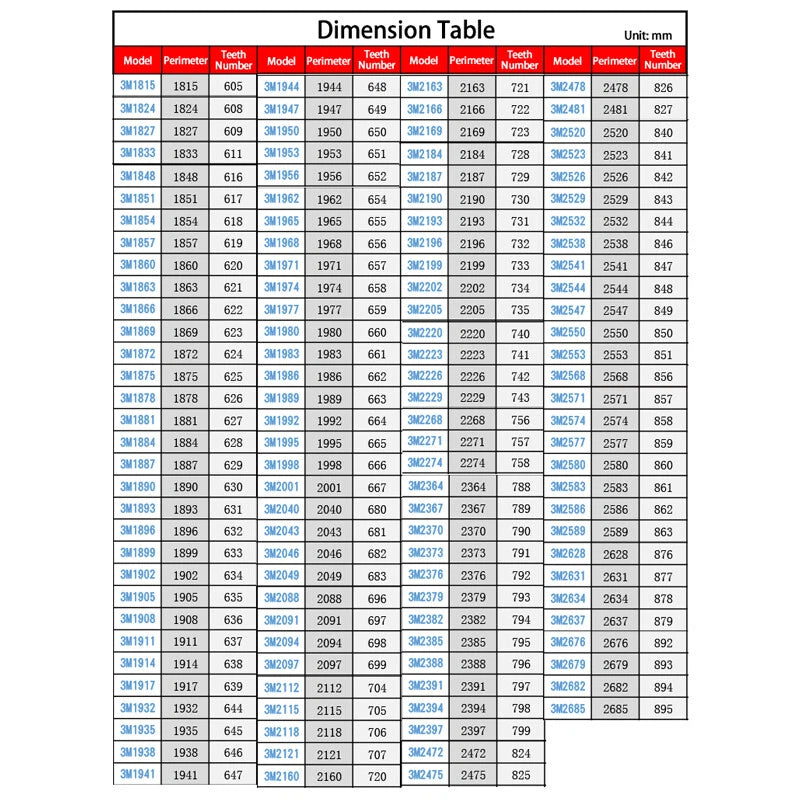

This listing covers the 15mm width in perimeters from 1815mm to 2685mm. If you need a different width or a perimeter not shown in the variant selector, please contact us — we carry additional sizes and can advise on availability for your specific machine.

Packing Quantity refers to the number of belts included in a single order unit. Select 1 pcs if you need one belt for a direct replacement, or 2 pcs if you need a matched pair — common for dual-drive gantry setups or to keep a spare on hand. The 2 pcs option is typically priced at a slight discount per belt compared to ordering two separate 1 pcs units.
