HTD3M Timing Belt 15mm Wide — Reliable PU Drive Belt with Steel Wire Core

When your CNC router skips steps, your 3D printer loses position, or your conveyor drive slips under load, the culprit is often a belt that stretches or wears unevenly. Engineers, makers, and machine builders who need consistent, repeatable motion rely on an HTD3M timing belt with a steel-reinforced core — not a generic rubber band that creeps under tension.

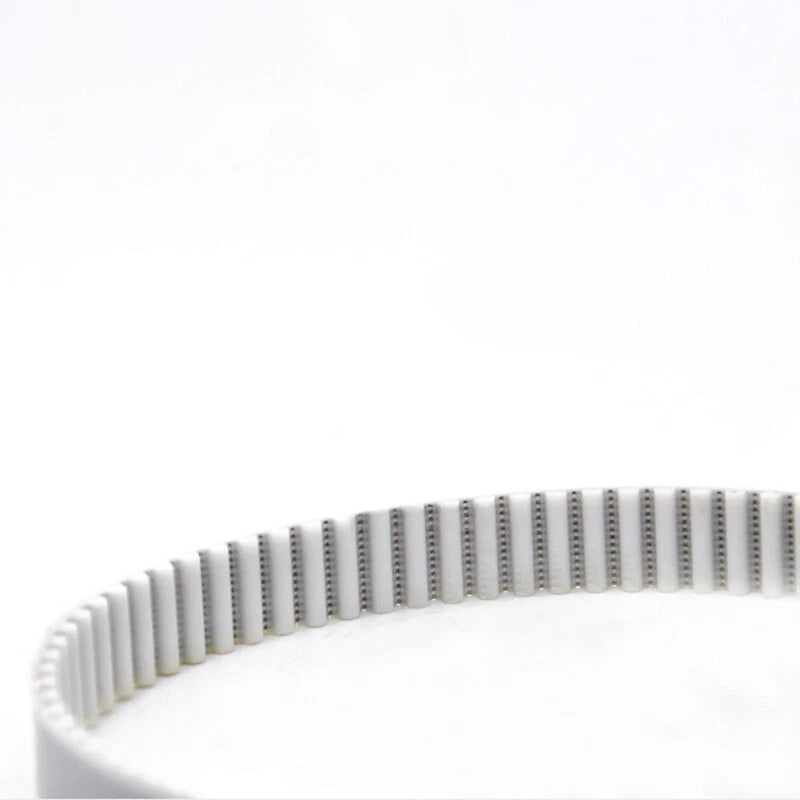

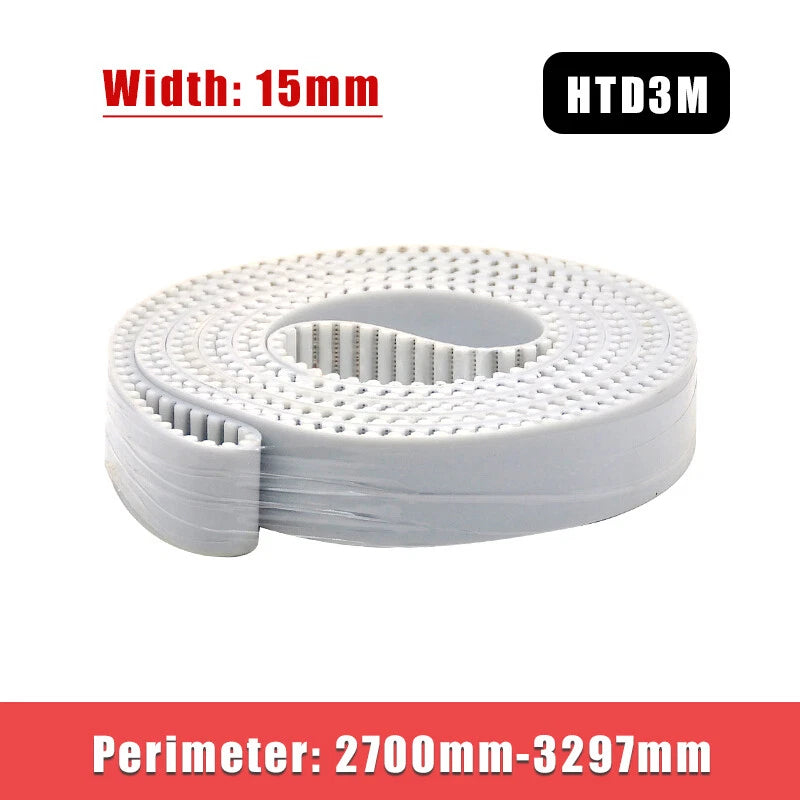

Each belt in this listing is a closed-loop HTD3M timing belt made from polyurethane (PU) with a built-in steel wire tensile cord. The belt width is 15mm, and the 3mm pitch (HTD profile) ensures positive engagement with standard HTD3M pulleys. Perimeter options range from 2700mm (≈106.3") to 3297mm (≈129.8"), available in 1-piece or 2-piece packs to suit your project or spare-parts needs.

Typical applications include CNC router X/Y axes, laser cutter gantry drives, 3D printer bed or extruder systems, linear actuators, and light industrial conveyor drives — anywhere a low-stretch, positive-drive HTD3M timing belt is required for accurate positioning.

ℹ️ Compatibility Note: This belt uses the HTD3M profile (3mm pitch, rounded tooth). It is not interchangeable with GT2, MXL, or T5 pulleys. Confirm your pulley profile before ordering. Belt width is 15mm — use with pulleys rated for 15mm or wider.

✅ Key Features of These HTD3M PU Timing Belts

  • 🔩Built-in Steel Wire Core — The embedded steel wire tensile cord minimizes belt elongation under load, delivering the precise positioning accuracy demanded by CNC routers, laser cutters, and linear drive systems.
  • 🧱Polyurethane (PU) Construction — PU offers better resistance to oils, mild chemicals, and abrasion compared to standard neoprene belts, extending service life in workshop and light industrial environments.

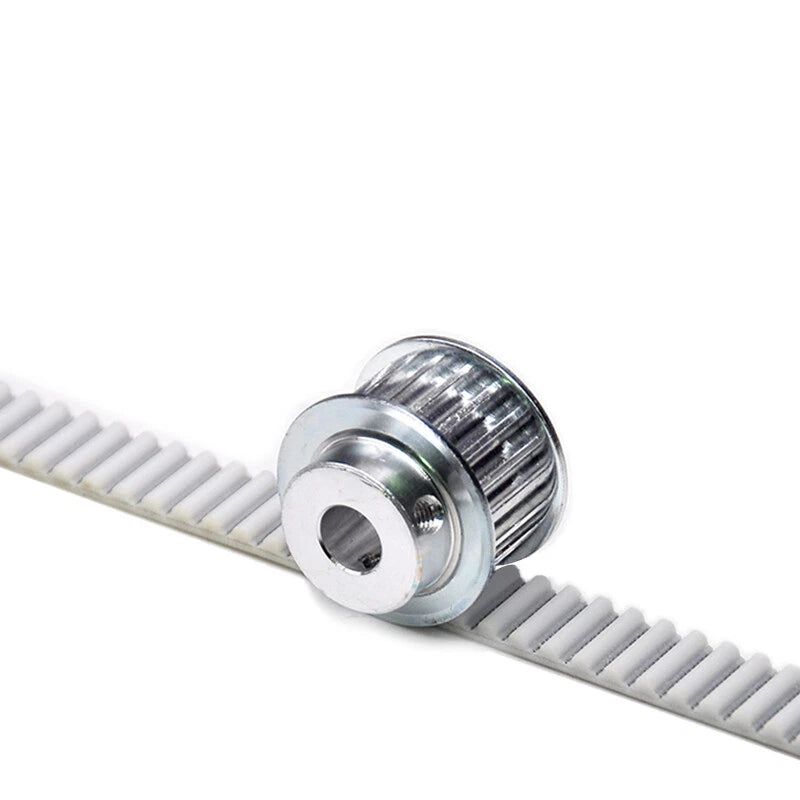

  • 📐Standard HTD3M Profile, 3mm Pitch — Tooth geometry conforms to the HTD3M standard, ensuring positive engagement and compatibility with any HTD3M pulley — no slippage, no tooth jumping under normal operating loads.

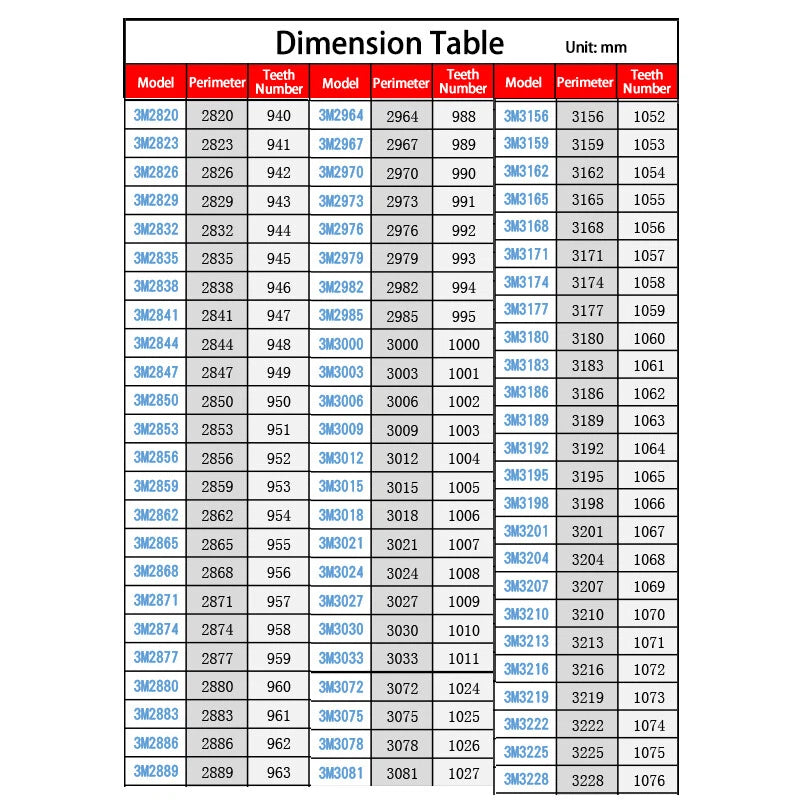

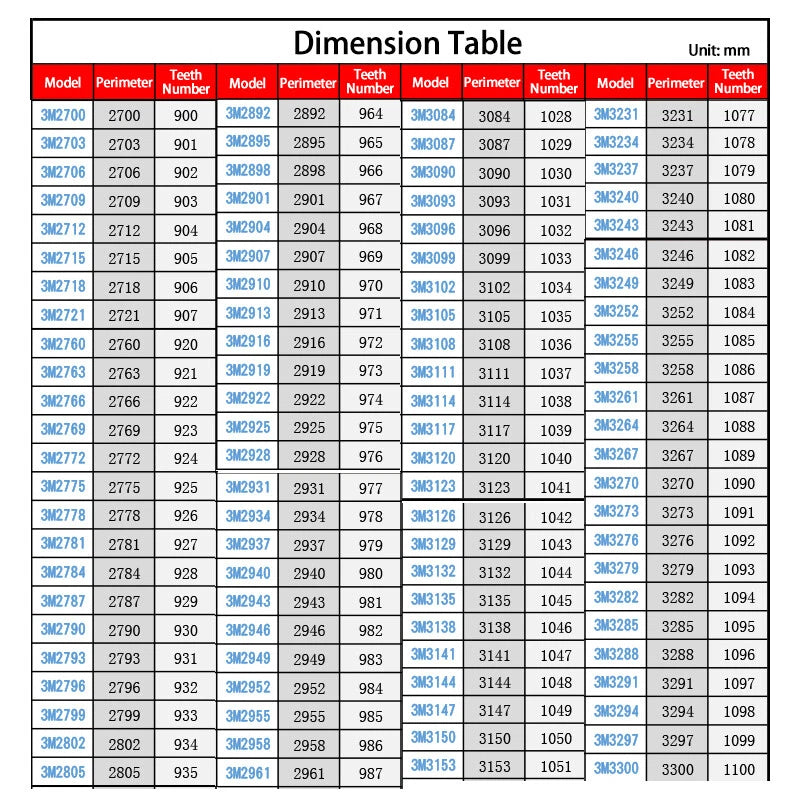

  • 📏Wide Perimeter Selection (2700–3297mm) — Over 120 perimeter sizes available in 3mm increments, making it straightforward to find an exact fit for your machine without custom fabrication.
  • 📦Single or Twin-Pack Options — Order 1 pcs for a direct replacement or 2 pcs for dual-axis machines and spare-parts inventory — both options ship from our US warehouse.
  • ⚙️15mm Belt Width for Moderate Load Capacity — The 15mm width provides a balance between compact drive geometry and load-carrying ability, suitable for light-to-medium duty automation and DIY machine builds.

📐 Technical Specifications — HTD3M PU Timing Belt

Belt Profile HTD3M (High Torque Drive, 3mm pitch)
Pitch 3mm
Belt Width 15mm (≈0.59")
Perimeter Range 2700mm (≈106.3") – 3297mm (≈129.8")
Belt Material Polyurethane (PU)
Tensile Cord Built-in steel wire
Tooth Profile HTD (rounded, not GT2 or trapezoidal)
Operating Temperature Typically -20°C to +80°C (-4°F to 176°F)
Packing Options 1 pcs / 2 pcs (select above)
Compatible Pulleys HTD3M pulleys, 15mm width or wider
Tensile Strength See variant options / Contact us to confirm
Color See variant options
⚠️ Sizing Tip: If you are replacing an existing belt, measure the perimeter of the old belt directly (wrap a tape measure around the belt loop). If designing from scratch, calculate using your pulley center distance and diameters. When in doubt, contact us before ordering — belt returns due to incorrect sizing are avoidable.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD3M timing belt?

Measure the center-to-center distance between your pulleys, then use the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For reference, 2700mm ≈ 106.3", 3000mm ≈ 118.1", and 3297mm ≈ 129.8". If replacing an existing belt, wrap a flexible tape measure around the belt loop for a direct reading. Always verify against your machine's actual belt path before ordering.

What load capacity does this HTD3M belt support?

The built-in steel wire core generally provides tensile strength suitable for light-to-medium duty power transmission applications. Exact load ratings depend on pulley diameter, operating speed, and duty cycle. For high-load or continuous-duty applications, contact us to confirm suitability before ordering.

Can this belt be used outdoors or in humid environments?

Polyurethane (PU) belts generally offer better resistance to oils, mild chemicals, and moisture compared to neoprene. However, prolonged UV exposure or full water immersion is not recommended. For outdoor installations, consider shielding the belt from direct sunlight and verify your specific environmental conditions with us.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt follows the HTD3M profile standard with a 3mm pitch and rounded tooth geometry, making it compatible with any HTD3M pulley of matching or wider width (15mm+). It is not compatible with GT2, MXL, T5, or trapezoidal-tooth pulleys. Confirm your pulley groove profile before installation.

How does the steel wire core compare to fiberglass cord belts?

Steel wire cores typically offer lower elongation under load compared to fiberglass, making them well-suited for applications requiring precise positioning — such as CNC routers and linear actuators. Fiberglass cores are generally lighter and more flexible, which can be advantageous in high-speed, low-load applications. For positioning accuracy, steel wire is generally the preferred choice.

What is the difference between ordering 1 pcs vs 2 pcs?

The 1 pcs option ships a single closed-loop belt of your chosen perimeter. The 2 pcs option ships two identical belts at a bundled price — ideal for machines with dual-belt drive systems (e.g., dual X-axis gantries) or when you want to keep a spare on hand. Both options ship from our US warehouse.

What temperature range can this PU timing belt handle?

Polyurethane timing belts typically operate reliably in a range of approximately -20°C to +80°C (-4°F to 176°F). Performance may degrade outside this range. If your application involves elevated temperatures (e.g., near heat beds or industrial ovens), contact us to confirm suitability before ordering.

🛒 Select your perimeter size and quantity above, then add to cart — ships from our US warehouse.
