HTD3M Timing Belt 15mm Wide | PU Steel Wire | Perimeter 3300–3798mm

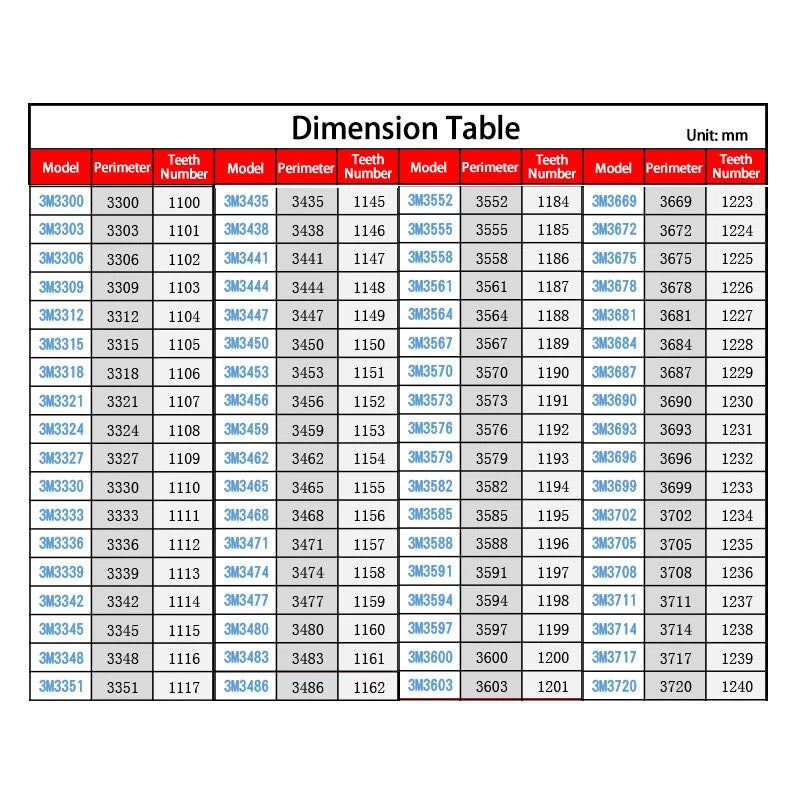

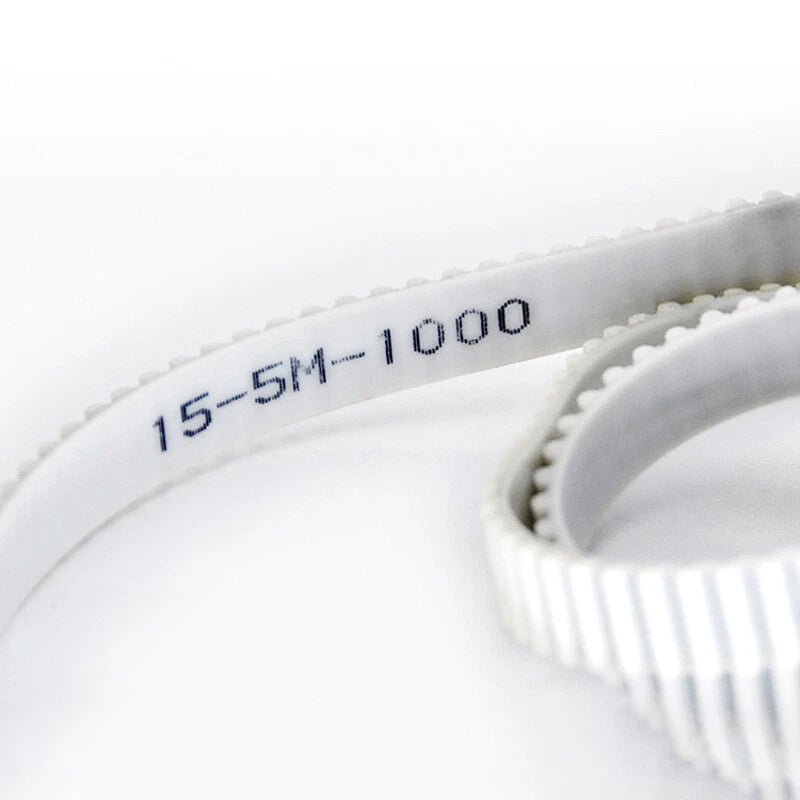

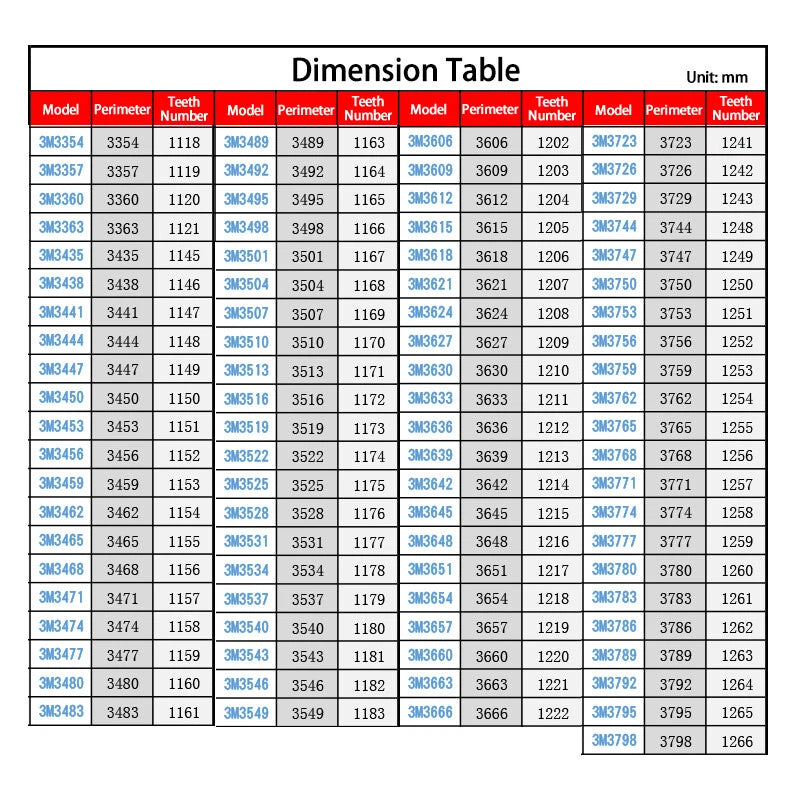

Measure the center-to-center distance between your pulleys, then calculate the belt perimeter using the standard formula: Perimeter ≈ 2 × center distance + (π × sum of pulley pitch diameters / 2). For reference, 3300mm is approximately 129.9" and 3798mm is approximately 149.5". Always verify against your machine's engineering spec or existing belt label. If replacing an existing belt, the perimeter is typically printed on the belt surface (e.g., "3M 3300 15").

PU HTD3M belts with built-in steel wire cores generally provide tensile strength significantly higher than standard rubber belts of the same profile. They are typically rated for several hundred Newtons of tensile load, making them suitable for most light-to-medium CNC, 3D printer, and automation applications. For specific load ratings relevant to your application, contact us to confirm.

Polyurethane is generally more resistant to oils, greases, and mild moisture than rubber. However, prolonged exposure to standing water, harsh UV, or aggressive chemicals is not recommended. In most cases, PU belts perform well in indoor industrial and workshop environments. For outdoor or high-humidity installations, confirm suitability with your equipment manufacturer before ordering.

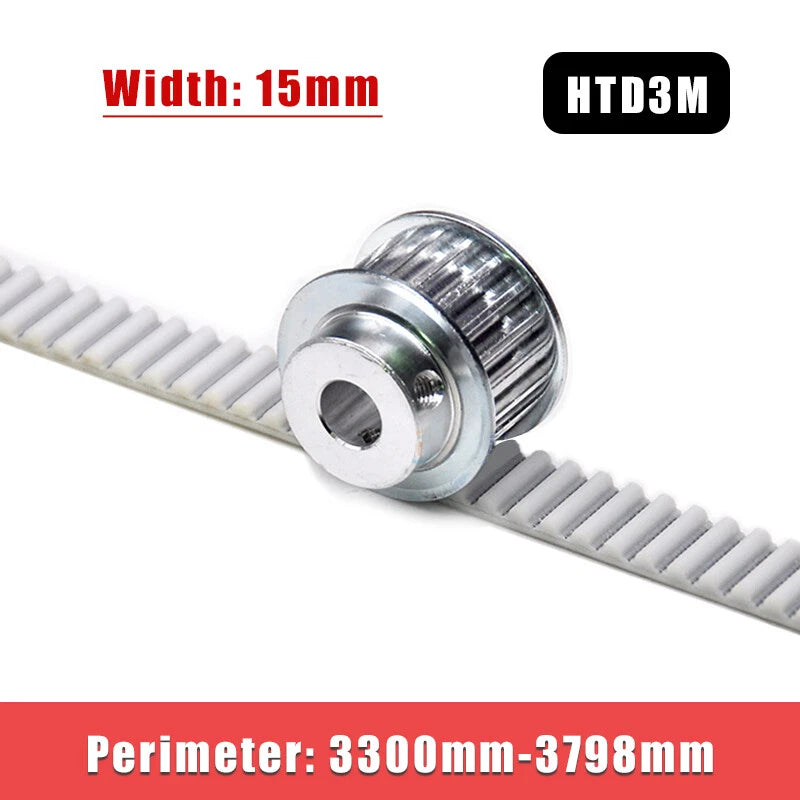

Yes. This belt follows the HTD (High Torque Drive) 3M profile standard — 3mm pitch, rounded tooth profile — and is compatible with any standard HTD3M pulley regardless of tooth count. To confirm the correct perimeter, verify your pulley's tooth count and pitch diameter, then calculate the required belt length as described above.

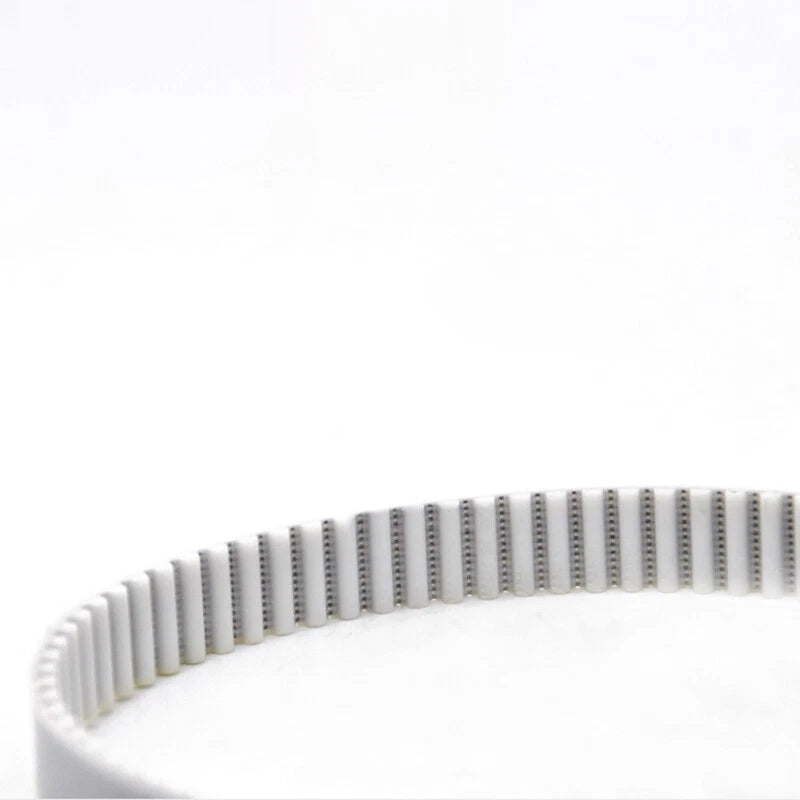

PU belts with steel wire tensile cords generally offer lower elongation, better dimensional stability over time, and longer service life compared to standard rubber belts. The lower stretch is particularly important for precision positioning applications — CNC routers, 3D printers, and servo-driven systems — where consistent tooth pitch under varying loads directly affects accuracy and repeatability.

This is an endless (closed-loop) belt — no joining or splicing is required. To install: (1) loosen your motor mount or idler to reduce center distance, (2) slip the belt over both pulleys, (3) re-tension by adjusting the motor or idler position until the belt has the correct deflection per your machine's spec. Avoid over-tensioning, which can accelerate bearing wear and reduce belt life.

HTD3M 15mm belts in the 3300–3798mm perimeter range are typically used in larger-format CNC routers, laser engravers, CoreXY and Cartesian 3D printers with extended build volumes, pick-and-place machines, conveyor indexing systems, and general industrial automation equipment. If you are unsure whether this size fits your machine, measure your existing belt or consult your machine's documentation.
