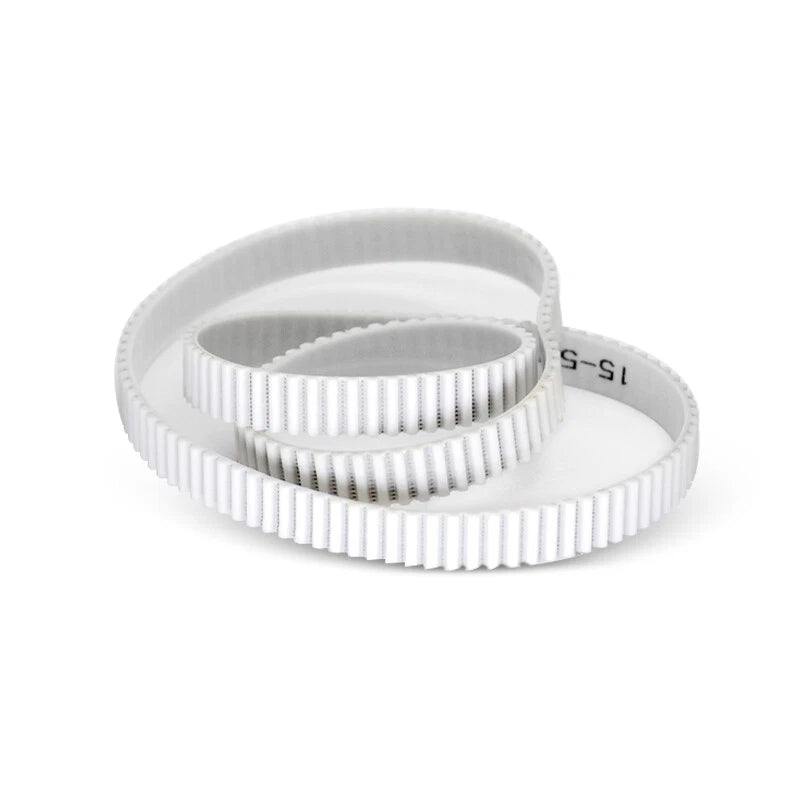

HTD3M Timing Belt 20mm Wide — Reliable Synchronous Drive for Precision Machines

When a slipping or stretched drive belt throws off your CNC router, 3D printer, or conveyor system, every job suffers. Engineers, makers, and maintenance technicians who depend on exact positioning need an HTD3M timing belt that holds its pitch under load — not one that creeps and causes cumulative error over thousands of cycles.

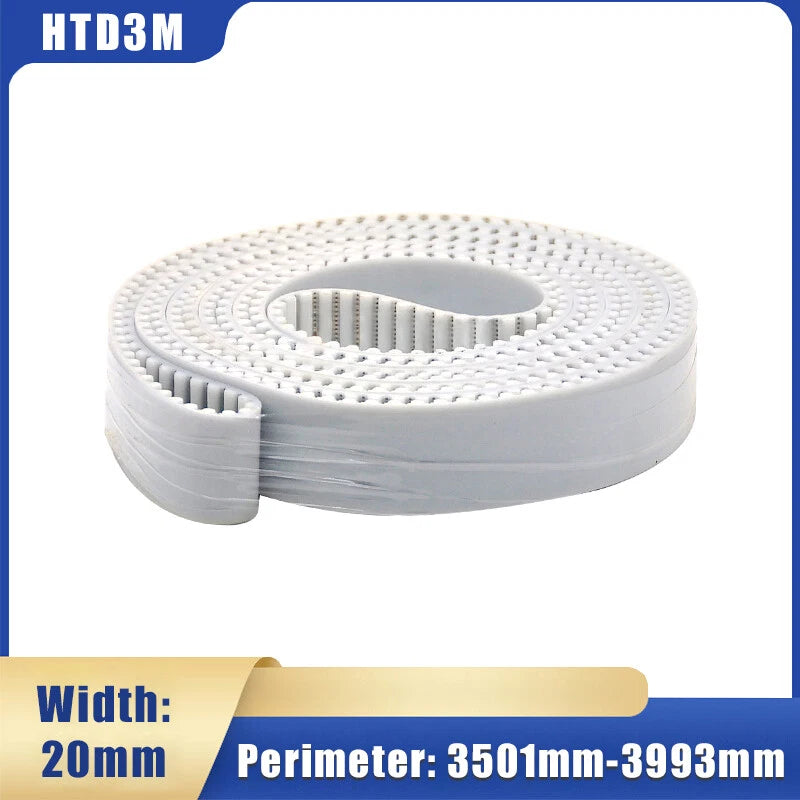

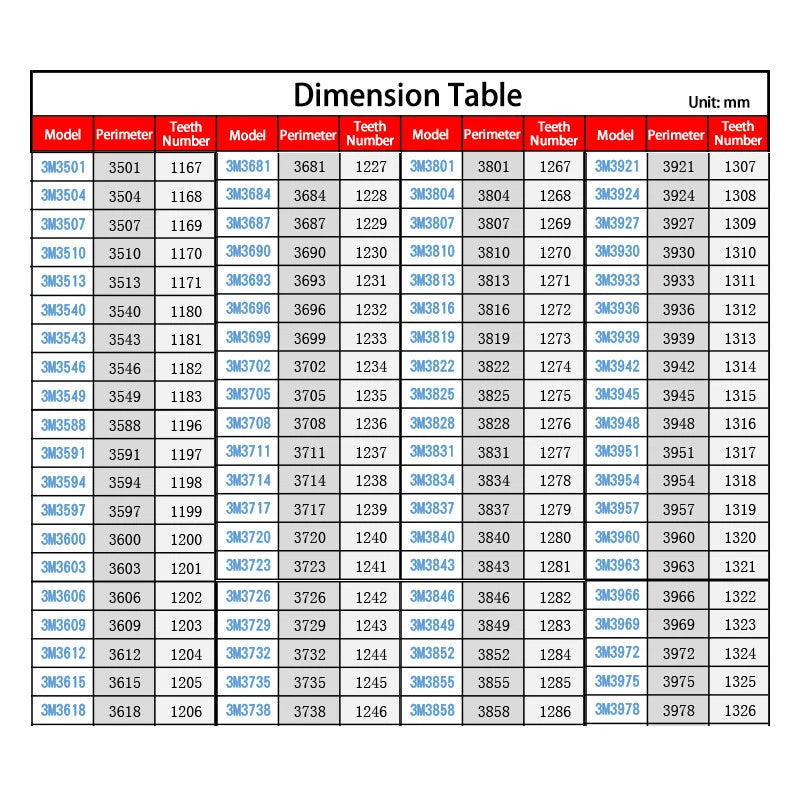

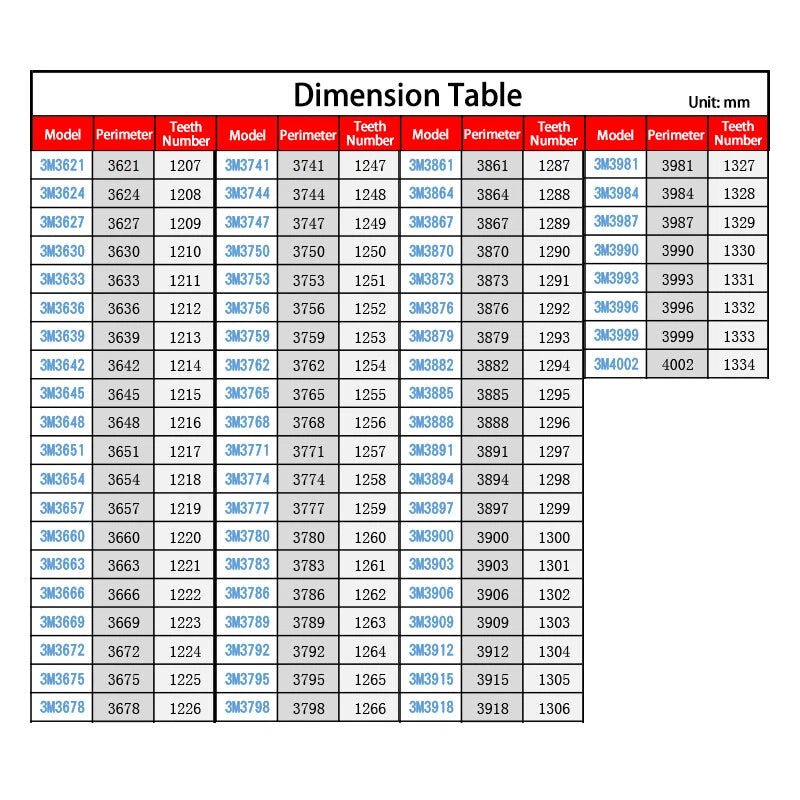

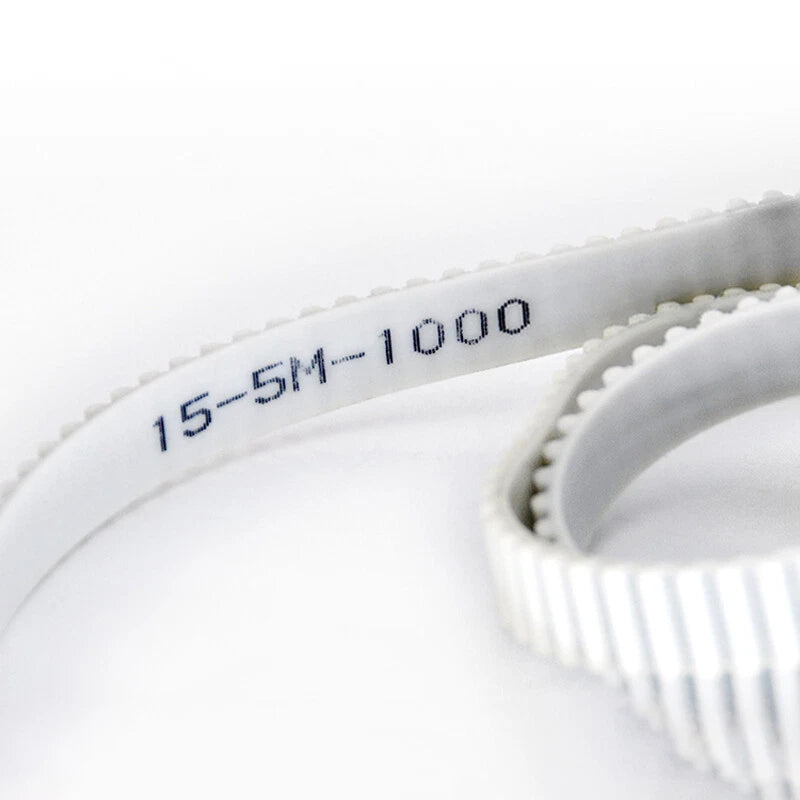

Each belt in this listing features an HTD 3M tooth profile (3mm pitch) with a 20mm width and a polyurethane body reinforced with a steel wire tension cord. Perimeter options run from 3501mm (≈137.8″) to 3993mm (≈157.2″) in 3mm increments, with select larger steps, so you can match your exact drive geometry. Available in 1 pc or 2 pcs packing quantities.

Typical applications include CNC gantry drives, laser cutter axes, automated conveyor lines, and industrial pick-and-place systems — anywhere a low-stretch, quiet synchronous belt is required for repeatable linear or rotary motion.

ⓘ Compatibility: Fits all standard HTD3M pulleys with a 20mm belt groove width. Tooth profile is not interchangeable with GT2, MXL, T2.5, or other pitch standards. Confirm your pulley pitch and groove width before ordering.
⚠ Size confirmation: Perimeter values are the belt's closed-loop circumference. Measure your existing belt or calculate from your pulley center distance before selecting a variant. If your exact size is not listed, contact us to confirm availability.

✅ Key Features of These HTD3M Polyurethane Timing Belts

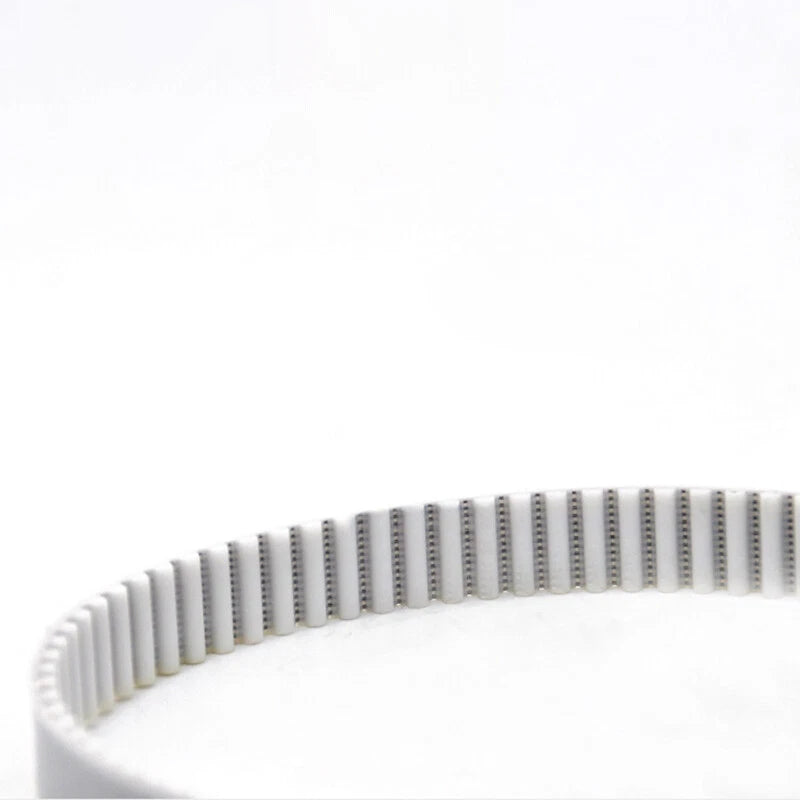

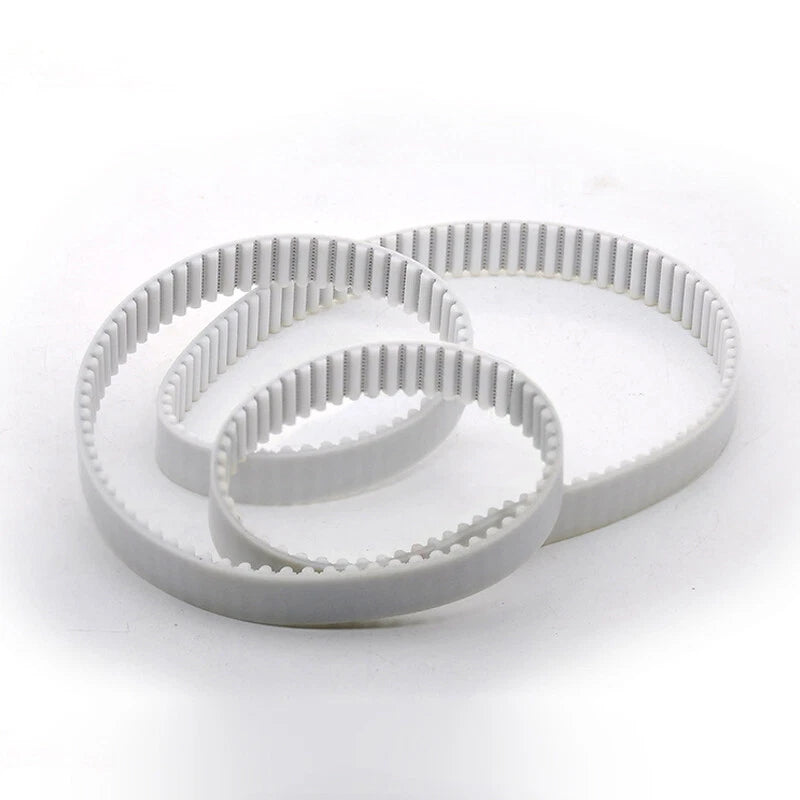

  • ⚙HTD 3M Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in light-to-medium torque synchronous drives.

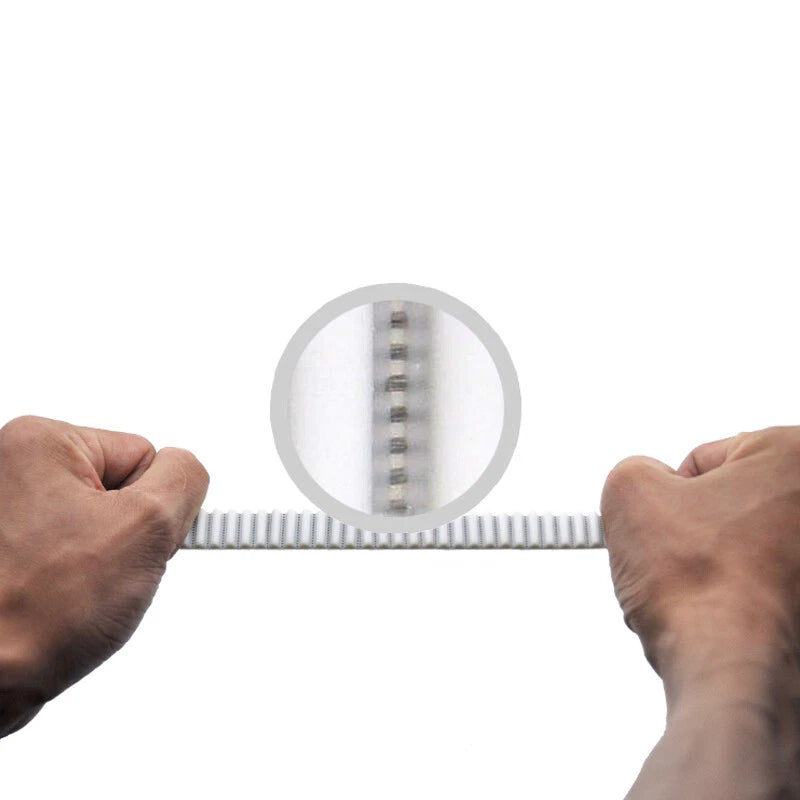

  • 📏Steel Wire Tension Cord — Embedded steel wire provides low elongation under tension, maintaining consistent pitch spacing for repeatable positioning in CNC and automation applications.
  • 🔥Polyurethane Body — PU construction offers higher abrasion resistance and better oil and chemical tolerance than standard neoprene rubber belts, extending service life in demanding environments.
  • 📏20mm Belt Width — Wider than the common 6mm and 10mm variants, the 20mm width increases the belt's load-carrying capacity and lateral stability, suitable for higher-torque or wider-span drives.
  • 🔄Wide Perimeter Range — Available from 3501mm to 3993mm in fine increments, covering a broad range of center distances without requiring custom fabrication for most standard machine configurations.
  • 🔇Quiet, Vibration-Damped Operation — The polyurethane compound absorbs minor vibration at the tooth mesh, contributing to quieter operation compared to metal chain drives in similar duty cycles.

📐 Technical Specifications — HTD3M Polyurethane Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Pitch 3mm
Belt Width 20mm (≈0.79″)
Perimeter Range 3501mm (≈137.8″) – 3993mm (≈157.2″)
Body Material Polyurethane (PU)
Tension Cord Steel wire
Tooth Profile Type Rounded (HTD), not interchangeable with GT2 / MXL / T2.5
Packing Quantity 1 pc or 2 pcs (select variant)
Tensile Rating See variant options — contact us to confirm for your load
Operating Temperature Contact us to confirm
Color / Finish See variant options

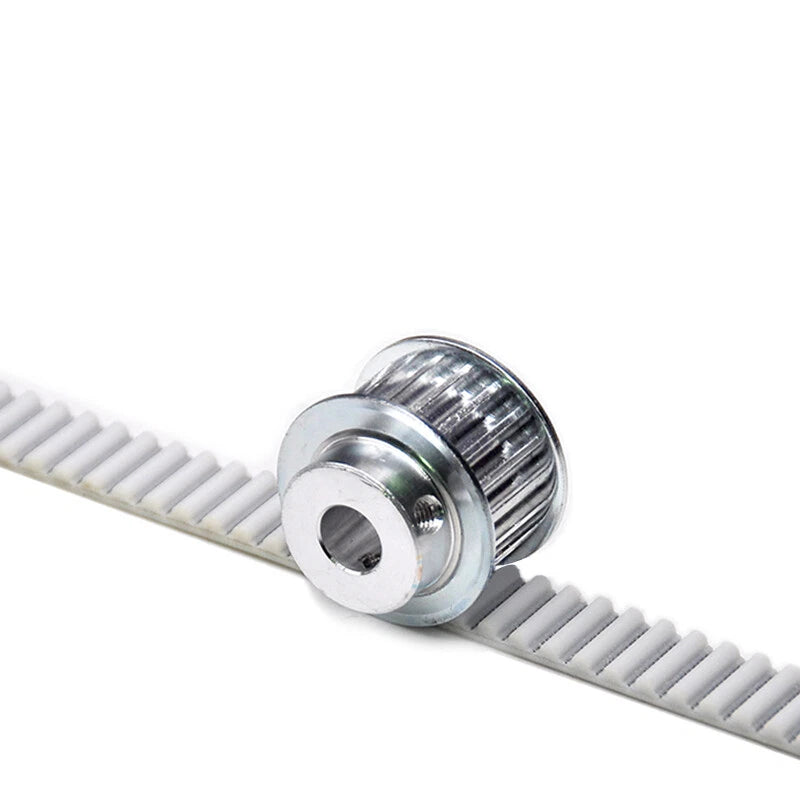

Compatible Pulleys Standard HTD3M pulleys, 20mm groove width

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD3M timing belt?

Measure the center-to-center distance between your pulleys, then calculate the required belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 3600mm (≈141.7″) belt typically suits medium-span drives. When in doubt, size up slightly — a belt that is too short cannot be installed without damaging the drive.

What load can an HTD3M 20mm wide timing belt handle?

The 3M pitch HTD profile is generally rated for light-to-medium torque applications. The 20mm width provides greater load capacity than narrower variants of the same pitch. Specific tensile ratings depend on the steel wire core count; contact us to confirm the rated load for your application.

Can this timing belt be used outdoors or in wet environments?

Polyurethane (PU) timing belts generally offer better resistance to oils, mild chemicals, and moisture compared to neoprene belts. However, prolonged exposure to standing water or harsh chemicals is not recommended. For outdoor or washdown environments, verify compatibility with your specific conditions before installation.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt uses the HTD (High Torque Drive) 3M tooth profile with a 3mm pitch, which is compatible with any standard HTD3M pulley. Ensure your pulley groove width accommodates a 20mm belt. The tooth profile is not interchangeable with GT2, MXL, or other pitch standards.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. For example: 3600mm ÷ 25.4 ≈ 141.7″; 3750mm ÷ 25.4 ≈ 147.6″; 3993mm ÷ 25.4 ≈ 157.2″. All perimeter options on this listing range from 3501mm (≈137.8″) to 3993mm (≈157.2″).

Should I choose 1 pc or 2 pcs packing quantity?

Choose 1 pc if you need a single replacement belt. Choose 2 pcs if you are setting up a dual-belt drive, want a spare on hand, or are outfitting multiple machines at once — the 2-pcs option typically offers a lower per-unit cost.

What is the difference between polyurethane and rubber timing belts?

Polyurethane belts with steel wire cores generally offer lower elongation, higher abrasion resistance, and better chemical resistance than rubber (neoprene) belts. They are well-suited for precision positioning applications such as CNC machines, 3D printers, and conveyor systems where minimal stretch is critical.

🛒 Select your perimeter and packing quantity above, then add to cart — ships from our US warehouse.
