HTD3M Timing Belt 20mm Wide — Reliable Power Transmission for Precision Motion Systems

When a slipping or stretched belt throws off your 3D printer's calibration, ruins a CNC cut, or stalls a robotics axis mid-cycle, the root cause is almost always a belt that wasn't built for the job. Engineers, makers, and machine builders who need repeatable, backlash-free motion demand a belt that holds its pitch under load — not one that stretches after a few hundred hours of use.

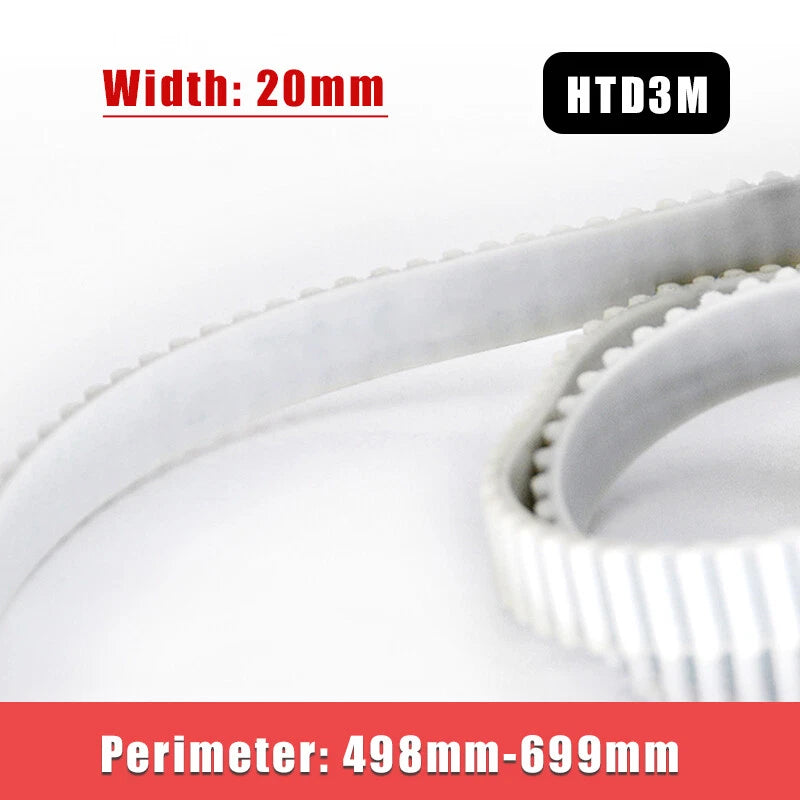

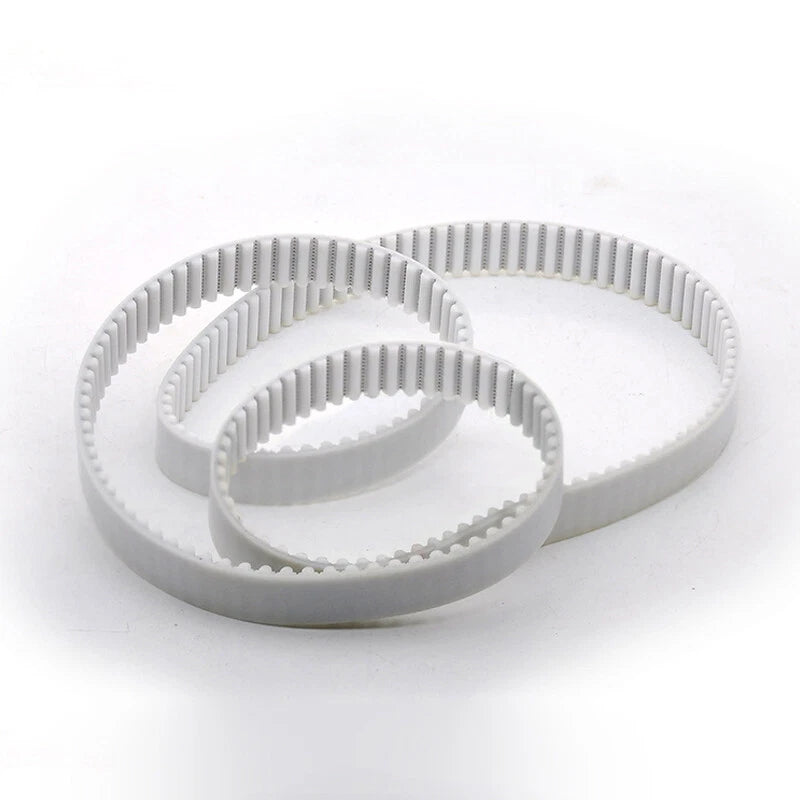

This HTD3M timing belt features a polyurethane (PU) body with embedded steel wire tensile cords, available in a 20mm width and perimeters ranging from 498mm (≈19.6″) to 699mm (≈27.5″) in 3mm increments. Each listing is sold as 1, 2, or 3 individual closed-loop belts of the same size. The HTD3M tooth profile — 3mm pitch, rounded curvilinear form — meshes with any standard HTD3M pulley.

Typical applications include desktop 3D printers (CoreXY, Cartesian), CNC router and laser cutter gantry drives, robotic arm joints and linear actuators, and light industrial conveyor or indexing systems where precise positioning and low backlash are required. The steel wire core makes this belt a direct upgrade over rubber-only belts in high-cycle or high-accuracy motion systems.

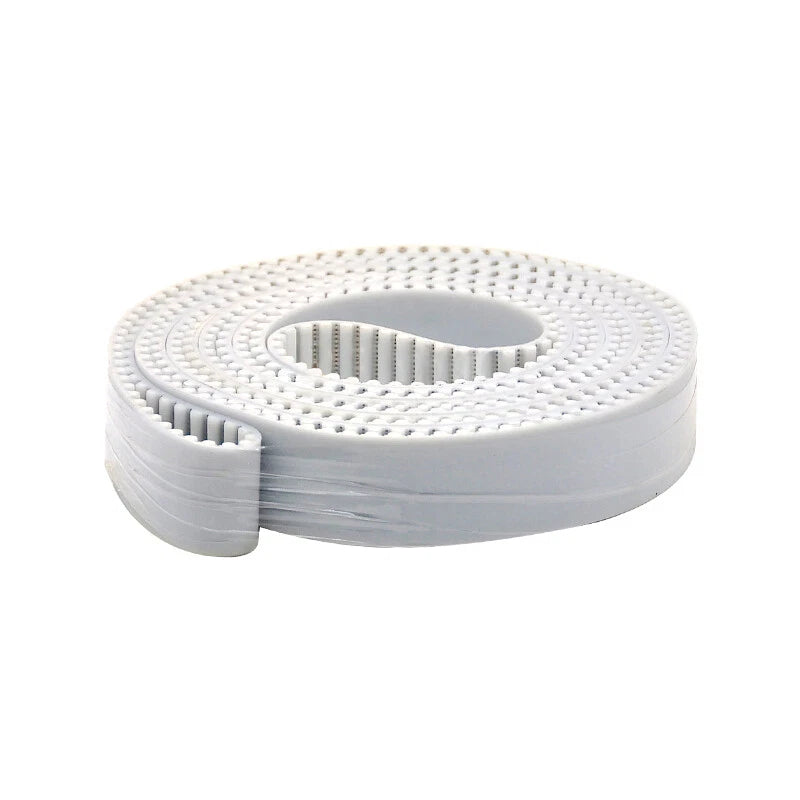

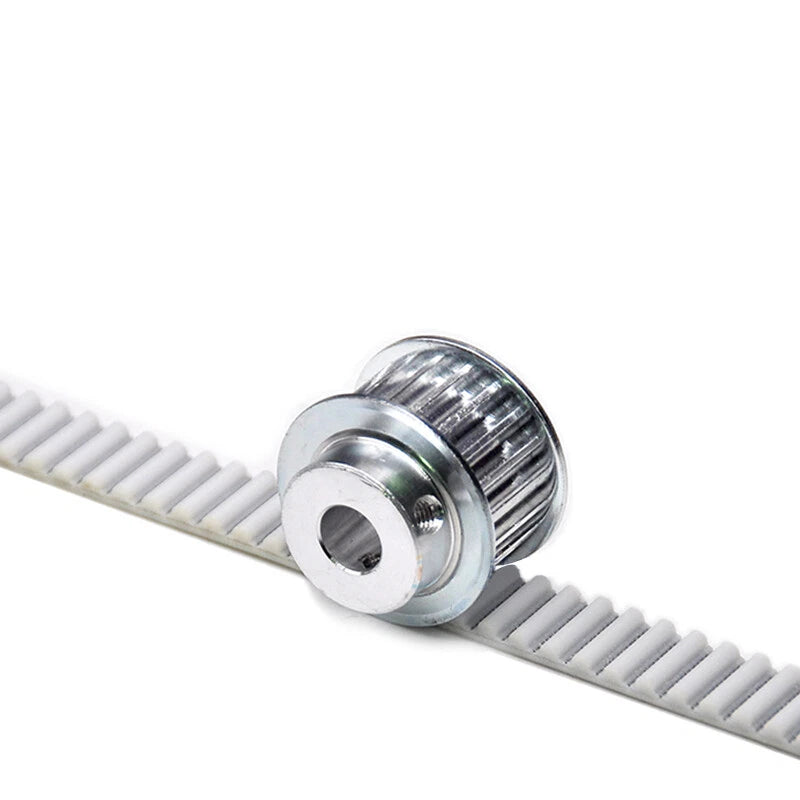

ℹ️ Compatibility: Fits any standard HTD3M pulley with a face width of ≥20mm. Verify your required perimeter before ordering — measure your existing belt or calculate from pulley center distance. Perimeter options: 498mm–699mm (3mm steps).

✅ Key Features of These HTD3M Timing Belts

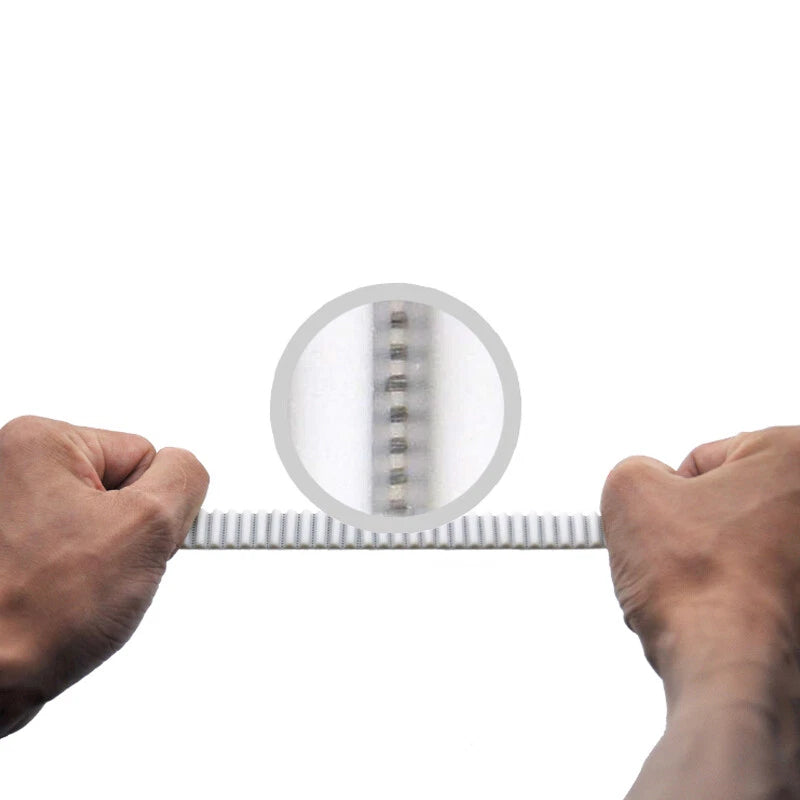

  • 🔩Steel Wire Tensile Core — Embedded steel cord resists elongation under load, maintaining consistent 3mm tooth pitch for accurate closed-loop positioning in CNC and 3D printer drives.
  • 🧱Polyurethane Body — PU construction offers better oil and grease resistance than standard neoprene rubber belts, extending service life in lightly contaminated environments.

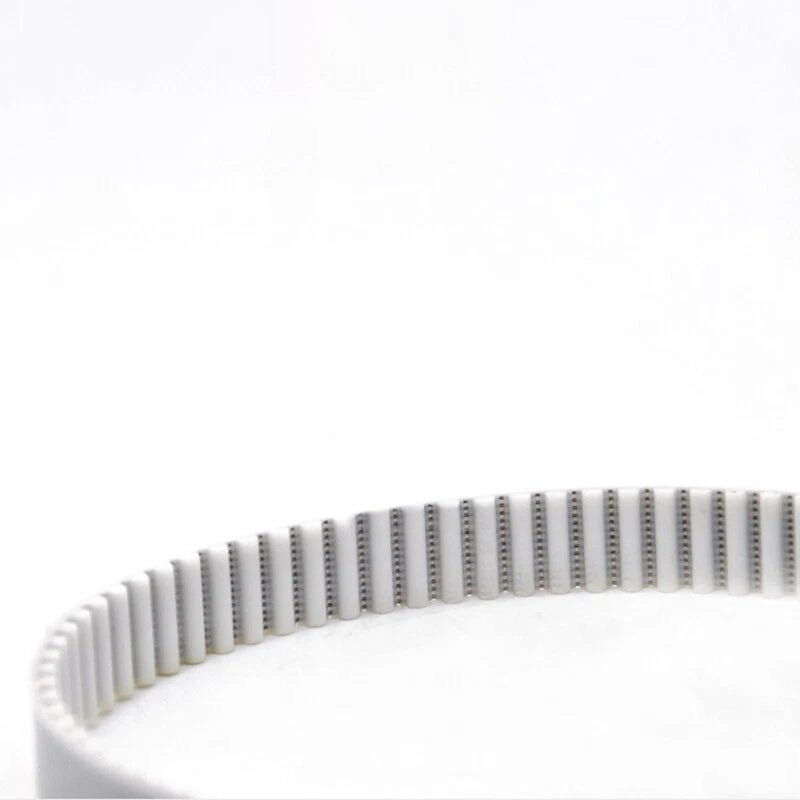

  • 📐HTD3M Rounded Tooth Profile — Curvilinear tooth form distributes contact stress more evenly than trapezoidal profiles, reducing tooth shear risk at moderate torque levels.
  • 📏Wide Size Selection — Perimeters from 498mm to 699mm in 3mm increments cover a broad range of pulley center distances without custom cutting or splicing.

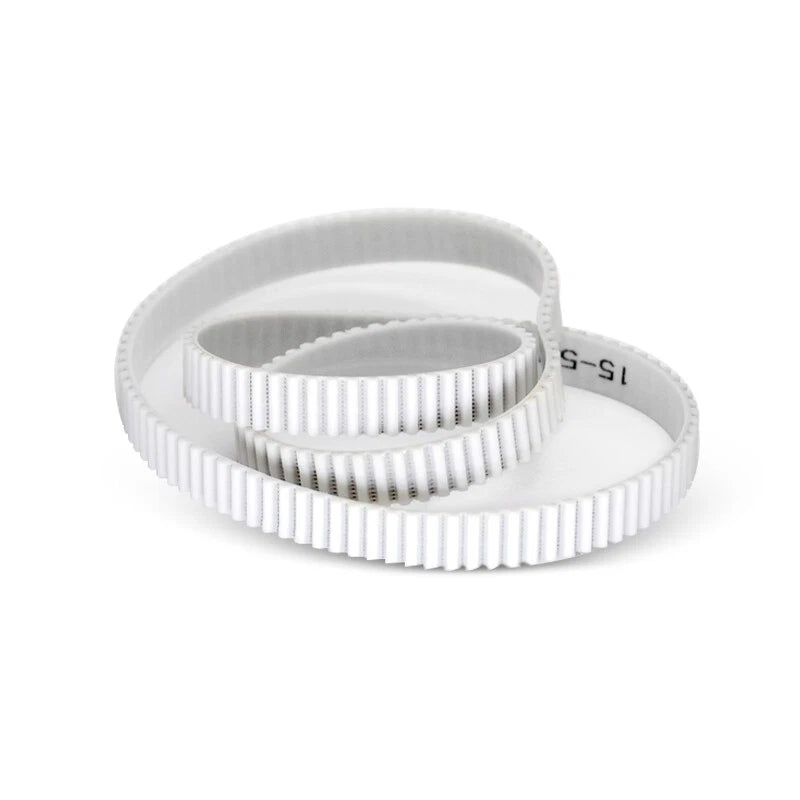

  • 📦Flexible Pack Quantities — Available in 1, 2, or 3 pcs per order; multi-packs are ideal for dual-axis machines, spare inventory, or multi-unit production builds.
  • ⚙️Drop-In Replacement Fit — Standard HTD3M dimensions mean this belt installs directly onto existing pulleys and tensioners without modification, minimizing machine downtime.

📐 Technical Specifications — HTD3M Timing Belt

Belt Profile HTD3M (High Torque Drive, 3mm pitch)
Tooth Form Rounded curvilinear (HTD standard)
Pitch 3mm
Width 20mm

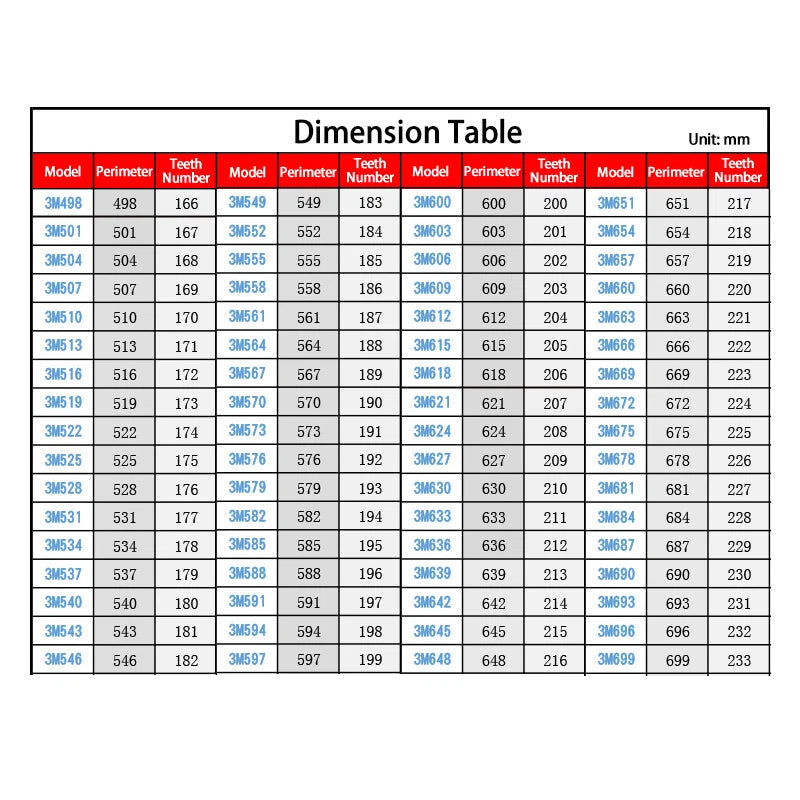

Perimeter Range 498mm (≈19.6″) – 699mm (≈27.5″)
Perimeter Increment 3mm steps (see variant options)
Body Material Polyurethane (PU)
Tensile Cord Steel wire (built-in)
Belt Type Closed loop (endless)
Compatible Pulleys Standard HTD3M pulleys, face width ≥20mm
Packing Quantity 1 pcs / 2 pcs / 3 pcs (see variant options)
Operating Temperature Contact us to confirm
Color / Finish See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD3M timing belt?

Measure the center-to-center distance between your pulleys, then use the standard belt length formula: Belt Length ≈ 2 × Center Distance + π × (D1 + D2) / 2, where D1 and D2 are the pitch diameters of your pulleys. This product covers perimeters from 498mm (≈19.6″) to 699mm (≈27.5″) in 3mm increments. When in doubt, size up slightly — a belt that is too tight will accelerate bearing wear and reduce belt life.

What does the steel wire core do for belt performance?

The embedded steel wire tensile cord resists elongation under load, maintaining consistent tooth pitch and preventing belt stretch over time. This is especially important in closed-loop motion systems like 3D printers and CNC routers where positional accuracy depends on belt integrity. Compared to fiber-cord or rubber-only belts, steel wire cores typically deliver lower creep and longer dimensional stability.

Can this HTD3M belt be used outdoors or in wet environments?

Polyurethane (PU) generally offers better resistance to oils, greases, and mild moisture compared to neoprene rubber belts. However, prolonged exposure to standing water, UV radiation, or harsh chemicals is not recommended. For outdoor or washdown environments, contact us to confirm suitability for your specific conditions.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M profile — 3mm pitch, rounded tooth profile — and is compatible with any standard HTD3M pulley. The 20mm belt width requires a pulley with a usable face width of at least 20mm. Always verify pulley tooth count and bore size separately before ordering.

How much load can this timing belt handle?

Exact load ratings depend on speed, pulley diameter, and wrap angle. HTD3M belts at 20mm width are generally suited for light-to-medium duty applications — typically up to a few hundred watts of transmitted power at moderate speeds. For high-torque or continuous industrial duty cycles, contact us to confirm specifications before purchasing.

What is the difference between buying 1 pcs, 2 pcs, or 3 pcs?

Each pack contains individual closed-loop belts of the same perimeter and width. Buying 2 or 3 pcs at once is ideal for dual-axis machines (e.g., CoreXY printers that use two belts of the same length), keeping a spare on hand, or multi-unit production builds. The per-belt cost is lower in multi-packs.

What is the tooth pitch and profile of this belt, and how does it differ from T-series or MXL belts?

This belt uses the HTD3M profile: 3mm pitch with a rounded (curvilinear) tooth form. The rounded profile distributes load more evenly across the tooth root compared to trapezoidal MXL or T-series belts, reducing stress concentration at higher torque levels. HTD3M pulleys and belts are not interchangeable with T2.5, T5, MXL, or GT2 profiles — always match belt and pulley profiles exactly.

🛒 Select your perimeter and packing quantity above, then add to cart — ships from our US warehouse.
