HTD3M Timing Belt 20mm Wide — Reliable Closed-Loop Drive for Precision Motion Systems

When a slipping or stretched belt throws off your CNC axis, ruins a 3D print, or stalls a robotic actuator, the root cause is usually a belt that was never built for the job. This HTD3M timing belt is engineered for builders, makers, and machine technicians who need repeatable, slip-free power transmission in demanding motion control applications.

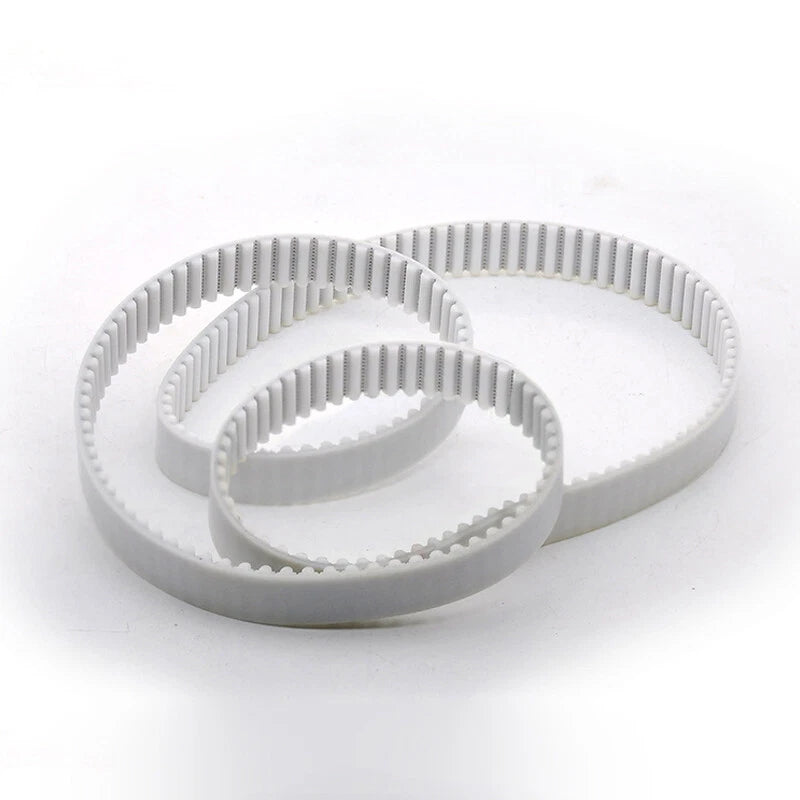

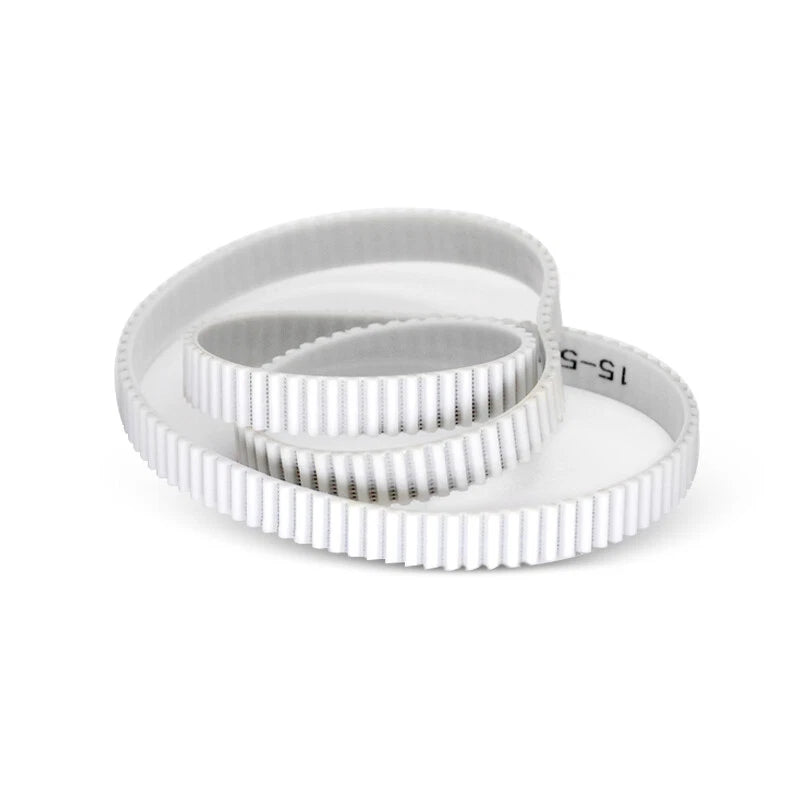

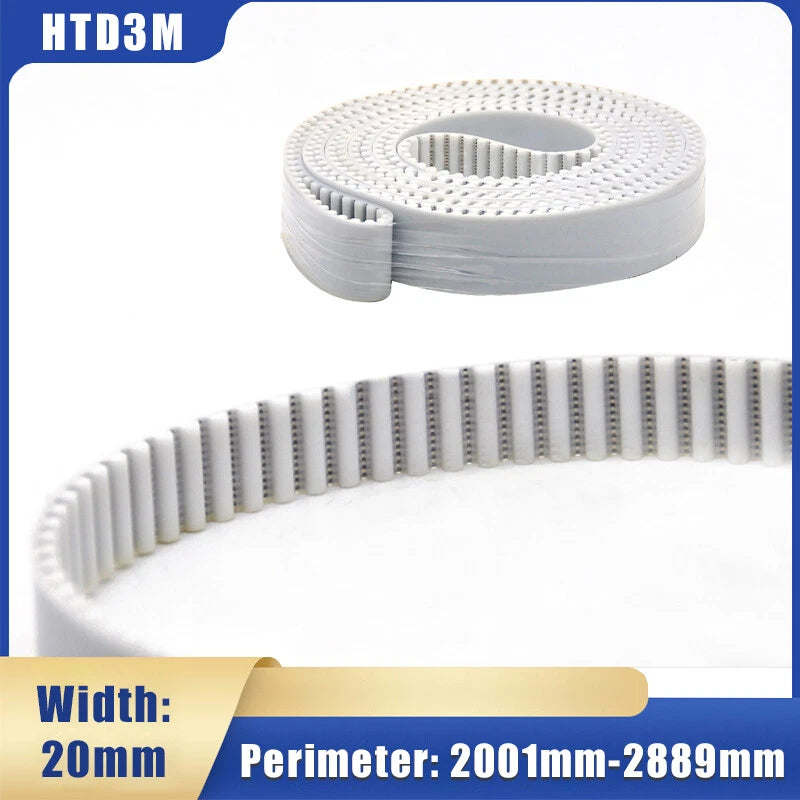

Each belt is a closed-loop polyurethane belt reinforced with a steel wire tension core. The HTD3M tooth profile has a 3mm pitch and curvilinear tooth form. Width is 20mm (≈ 25/32"). Available perimeters range from 2001mm (≈ 78.8") to 2889mm (≈ 113.7"), sold in 1-piece or 2-piece packs — select your exact perimeter from the variant dropdown above.

Typical applications include large-format 3D printer drive systems, CNC router gantry axes, laser cutter motion stages, and custom robotics where an HTD3M closed-loop timing belt replacement is needed for long-span drives.

ℹ️ Compatibility: Designed for standard HTD3M pulleys with a 20mm belt groove width. Verify your pulley's groove width and tooth profile before ordering. Perimeter must match your drive geometry — see FAQ below for sizing guidance.

✅ Key Features of These HTD3M Polyurethane Timing Belts

  • ⚙️HTD3M Curvilinear Tooth Profile — 3mm pitch rounded teeth distribute load across more tooth surface area, reducing the risk of tooth jump under moderate torque compared to trapezoidal profiles.

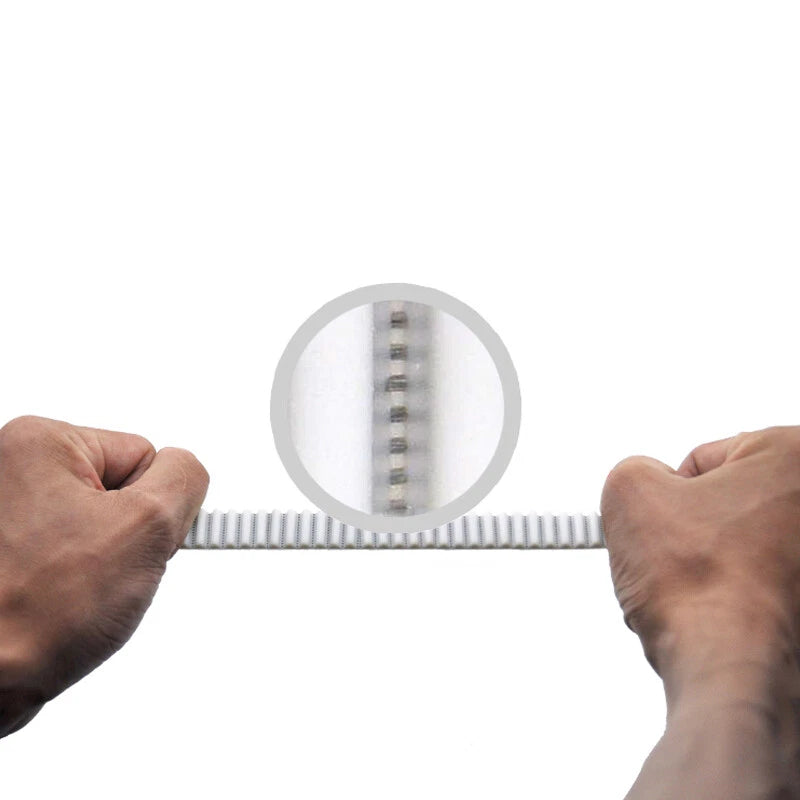

  • 🔩Steel Wire Tension Core — Longitudinal steel wire reinforcement resists belt elongation and creep, keeping axis positioning accurate over extended run time in CNC and 3D printer drive systems.
  • 🧪Polyurethane Belt Body — Offers better oil and mild chemical resistance than standard neoprene rubber, with a firm, consistent tooth form that maintains mesh geometry across the belt's service life.
  • 📏Wide Perimeter Selection — Available in perimeters from 2001mm to 2889mm in 3mm increments (where applicable), covering a broad range of long-span closed-loop drive configurations.
  • 📐20mm Belt Width — Wider than the common 6mm or 9mm widths used in desktop 3D printers, this 20mm width suits higher-torque or wider-pulley applications such as large-format machines and industrial motion stages.
  • 📦Single or Twin-Pack Options — Order 1 piece for a direct replacement or choose the 2-piece pack to outfit dual-axis systems or keep a spare belt on hand for minimal downtime.

📐 Technical Specifications — HTD3M Timing Belt

Belt Profile HTD3M (High Torque Drive, 3mm pitch)
Tooth Form Curvilinear (rounded)
Pitch 3mm
Belt Width 20mm (≈ 25/32")
Perimeter Range 2001mm (≈ 78.8") – 2889mm (≈ 113.7")
Belt Body Material Polyurethane (PU)
Tension Member Steel wire (longitudinal)
Belt Type Closed loop (endless)

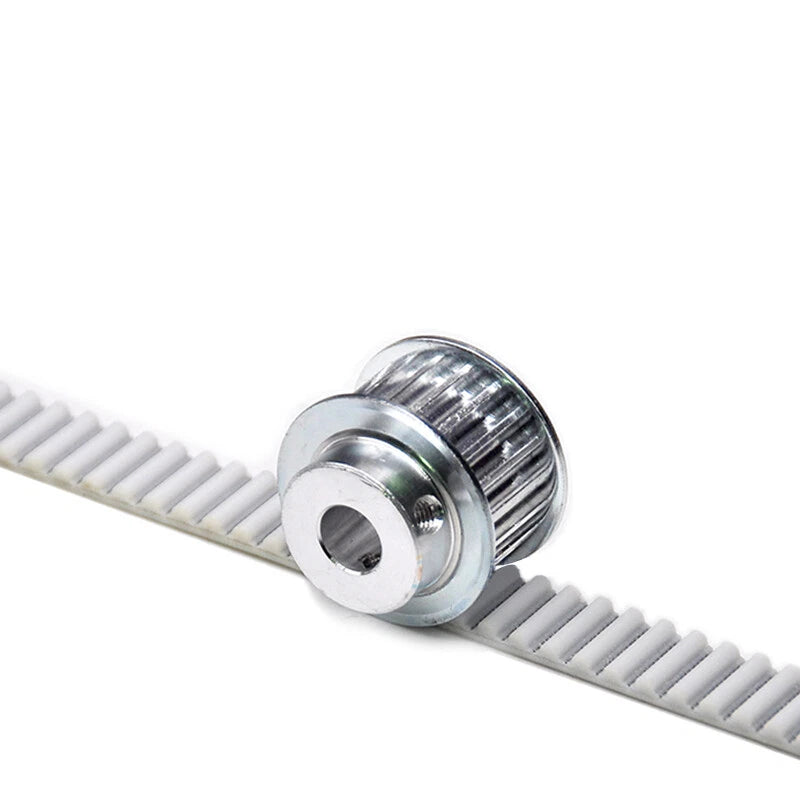

Compatible Pulley Profile HTD3M standard
Compatible Pulley Groove Width 20mm
Packing Quantity 1 pcs or 2 pcs (select above)
Operating Temperature See variant options / Contact us to confirm
Color / Finish See variant options
⚠️ Sizing note: Perimeter is the total closed-loop length of the belt, not the center-to-center distance between pulleys. If you are unsure of your required perimeter, see the FAQ below or contact us before ordering.

❓ Frequently Asked Questions

How do I choose the correct perimeter size for my HTD3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pitch diameter of each pulley). Alternatively, wrap a flexible tape measure around both pulleys to get the loop length directly. For reference, 2001mm ≈ 78.8" and 2889mm ≈ 113.7". Always round to the nearest available size listed in the variant options above.

What does HTD3M mean and how is it different from other timing belt profiles?

HTD stands for High Torque Drive. The "3M" designation means a 3mm pitch (tooth-to-tooth distance) with a curvilinear (rounded) tooth profile. Compared to trapezoidal profiles like MXL or XL, HTD3M generally offers better load distribution and reduced tooth jump under moderate torque, making it well-suited for precision motion applications such as 3D printers and CNC routers.

What load or torque can this belt handle?

Actual load capacity depends on pulley tooth count, speed, and operating conditions. Polyurethane HTD3M belts with steel wire reinforcement typically handle moderate torque loads suitable for 3D printers, CNC routers, and light robotics. For heavy industrial drives, contact us to confirm suitability before ordering.

Can this belt be used outdoors or in wet environments?

Polyurethane offers better resistance to oils, mild chemicals, and moisture compared to neoprene rubber belts. However, prolonged exposure to standing water, UV radiation, or harsh solvents may reduce belt life. For outdoor or washdown environments, verify operating conditions before use and contact us to confirm suitability.

Is this belt compatible with standard HTD3M pulleys?

Yes. This belt follows the standard HTD3M tooth profile (3mm pitch, curvilinear tooth form) and is designed to mesh with any standard HTD3M pulley. Confirm your pulley's belt width groove matches 20mm before ordering — using a narrower groove pulley with a 20mm belt will cause misalignment.

How do I decide between ordering 1 piece or 2 pieces?

Select 1 pcs if you need a single replacement belt. Choose 2 pcs if you are building a dual-axis system, want a spare on hand, or are outfitting multiple machines at once — the 2-piece pack typically offers a lower per-belt cost.

What is the steel wire core for, and does it stretch?

The steel wire tension members run longitudinally through the belt body to resist elongation under load. This keeps positioning accuracy consistent over time. Polyurethane/steel-wire belts generally exhibit less creep than rubber belts, making them a common choice for CNC and 3D printer axes where dimensional repeatability matters.

🛒 Select your perimeter size and packing quantity above, then add to cart — ships from our US warehouse.
