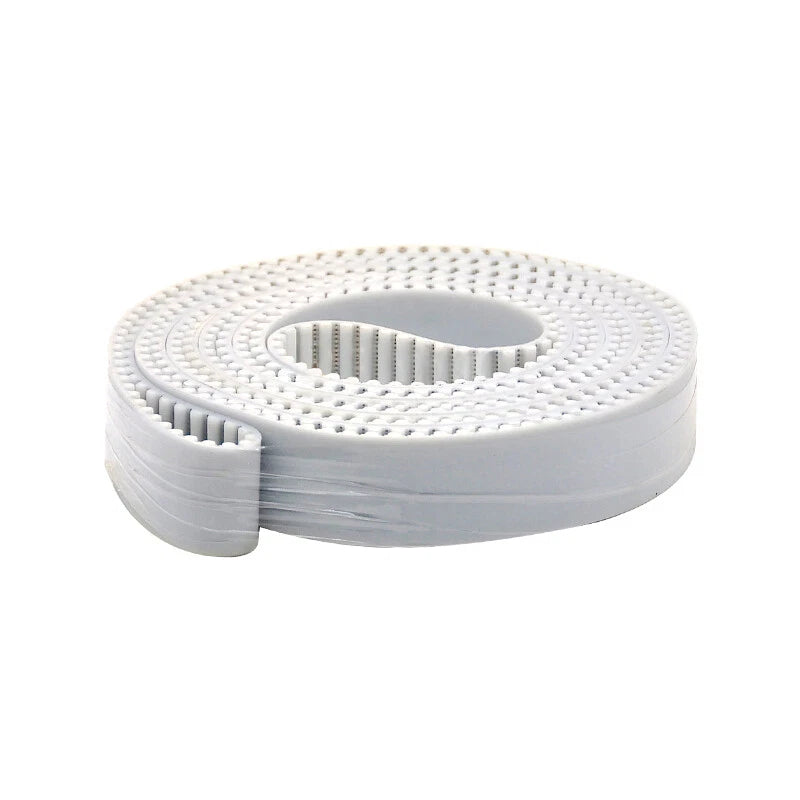

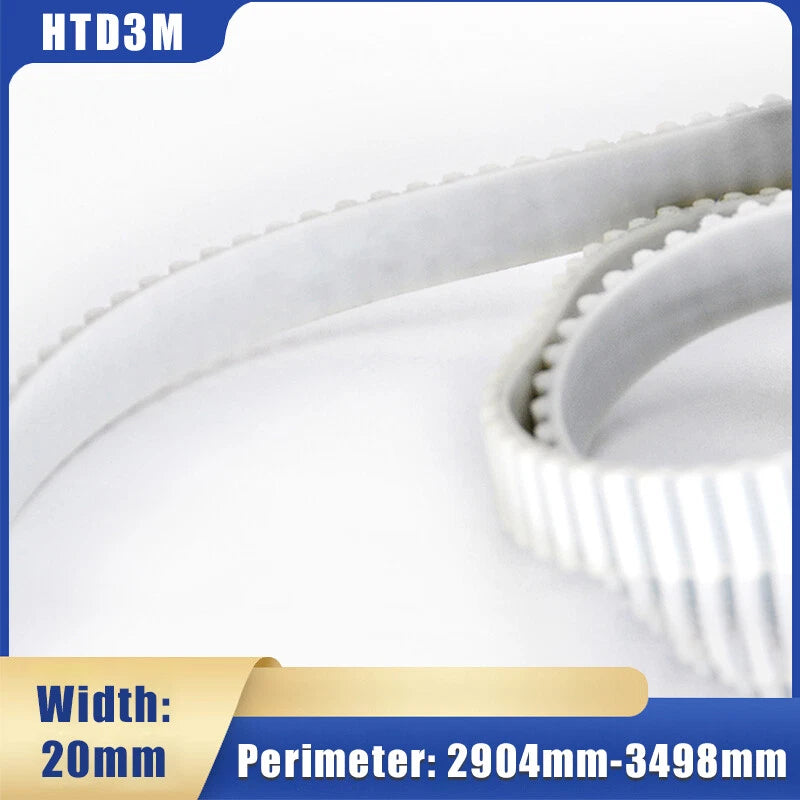

HTD3M Timing Belt 20mm Wide — Precise Drive for CNC, Automation & Motion Control
When a slipping or stretched drive belt throws off your CNC router, 3D printer, or conveyor system, every job after it pays the price. Engineers, machine builders, and repair technicians who need a reliable HTD3M timing belt in longer perimeter sizes often struggle to find the right fit without ordering custom cuts. This listing covers perimeters from 2904mm (≈114.3") to 3498mm (≈137.7") in 3mm increments — giving you the exact size your drive system requires.

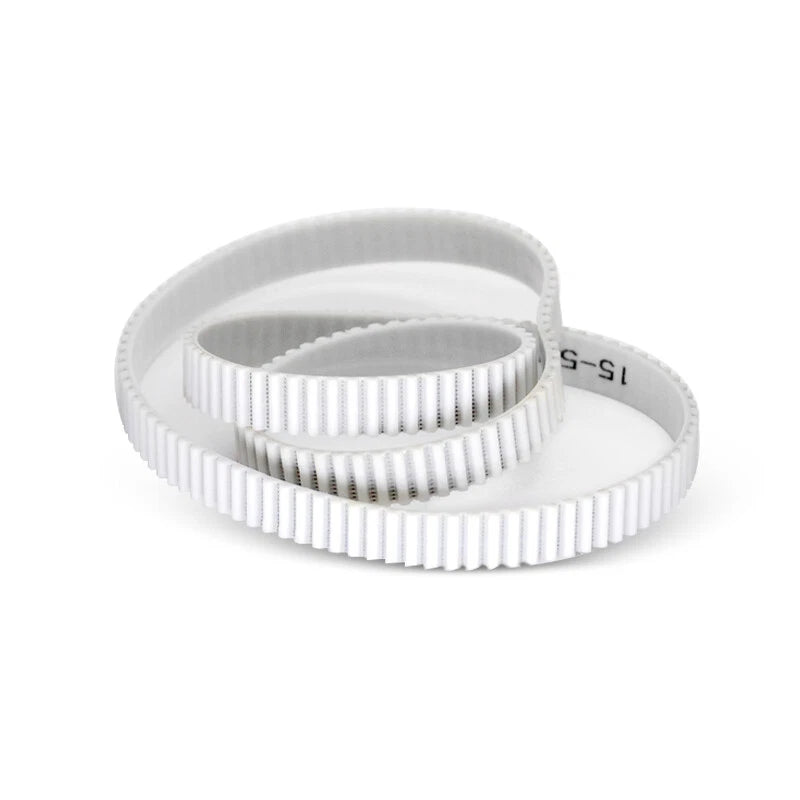

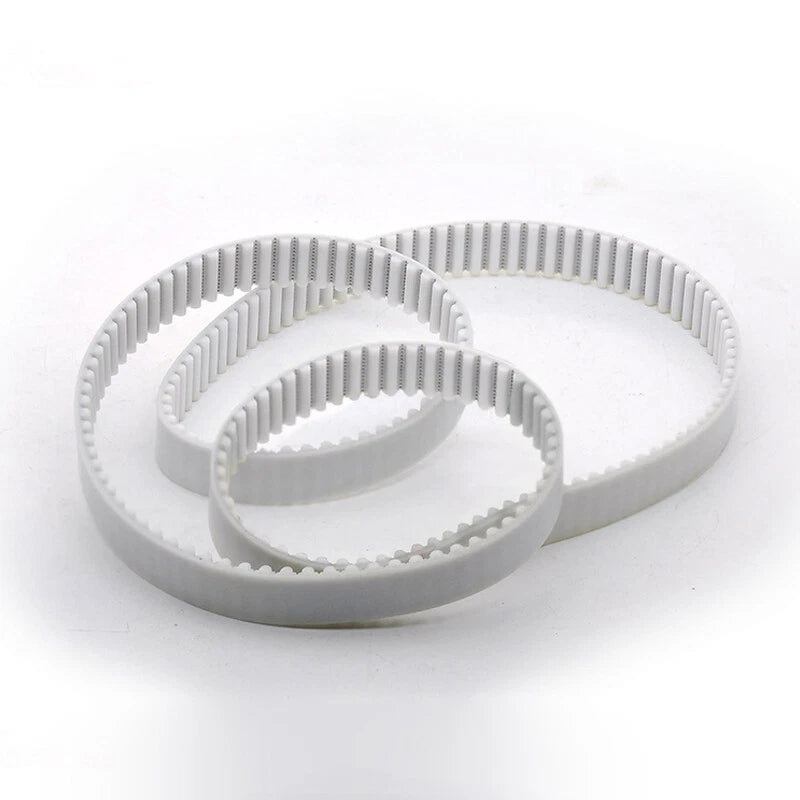

Each belt is constructed from polyurethane with an embedded steel wire tension cord, formed into a closed loop with a 20mm (≈0.79") width and the standard HTD3M tooth profile (3mm pitch). Available in single (1 pcs) or twin-pack (2 pcs) quantities to suit replacement or dual-axis builds.
Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, large-format 3D printer motion systems, light conveyor drives, and industrial automation equipment where low-backlash, synchronous power transmission is required.

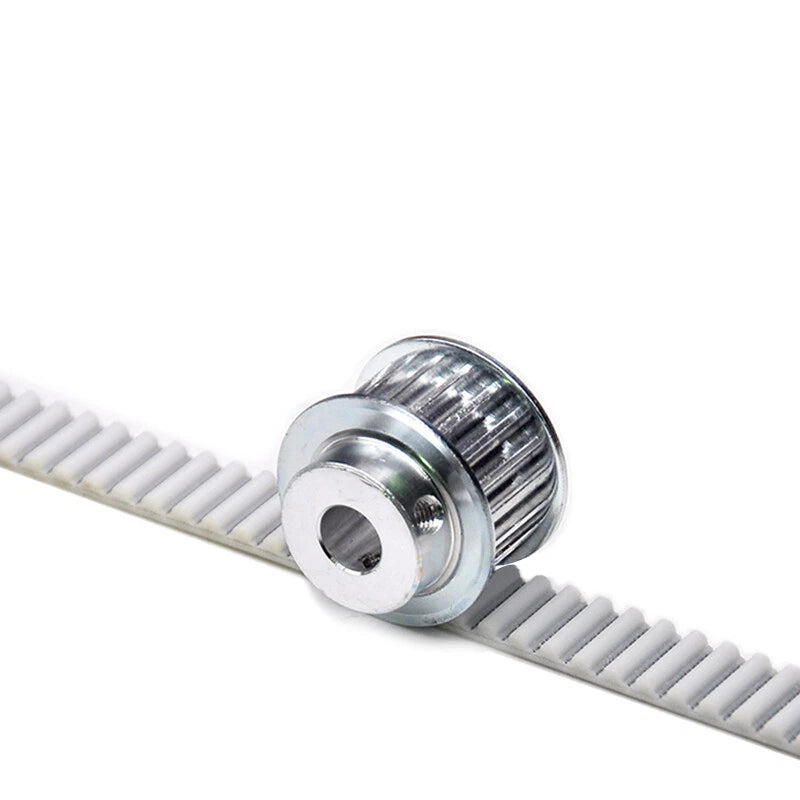

ℹ️ Compatibility Notice: This belt uses the HTD3M tooth profile (3mm pitch, curved tooth). It is compatible with HTD3M pulleys only. It is not interchangeable with GT2, MXL, T2.5, or XL profile pulleys. Verify your pulley specification before ordering.
✅ Key Features of These HTD3M Timing Belts
-

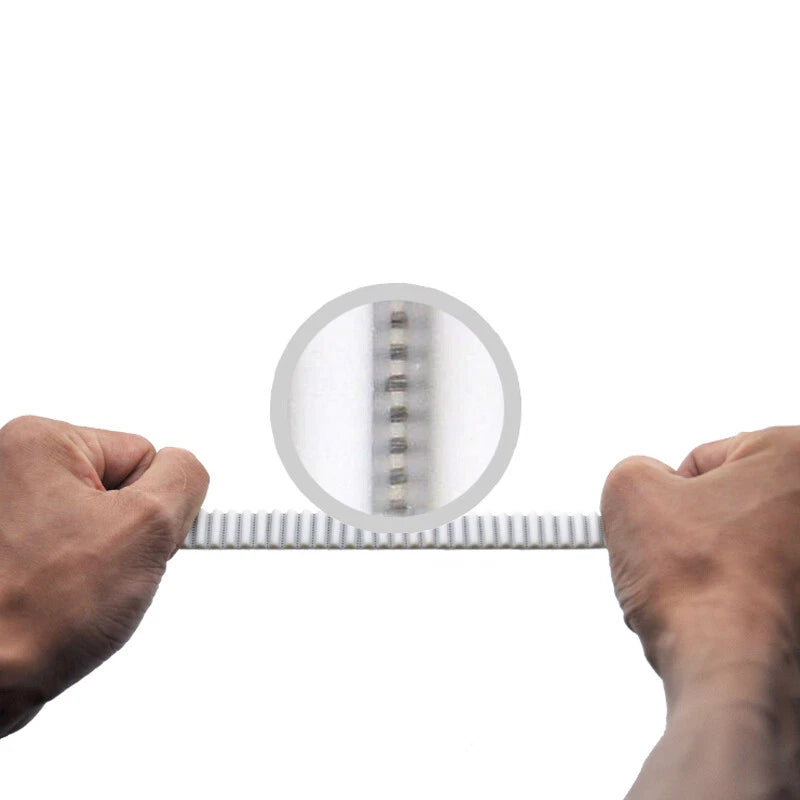

⚙️HTD3M Tooth Profile — Standard 3mm pitch curved tooth geometry for synchronous, low-backlash power transmission in CNC and automation drives.
-

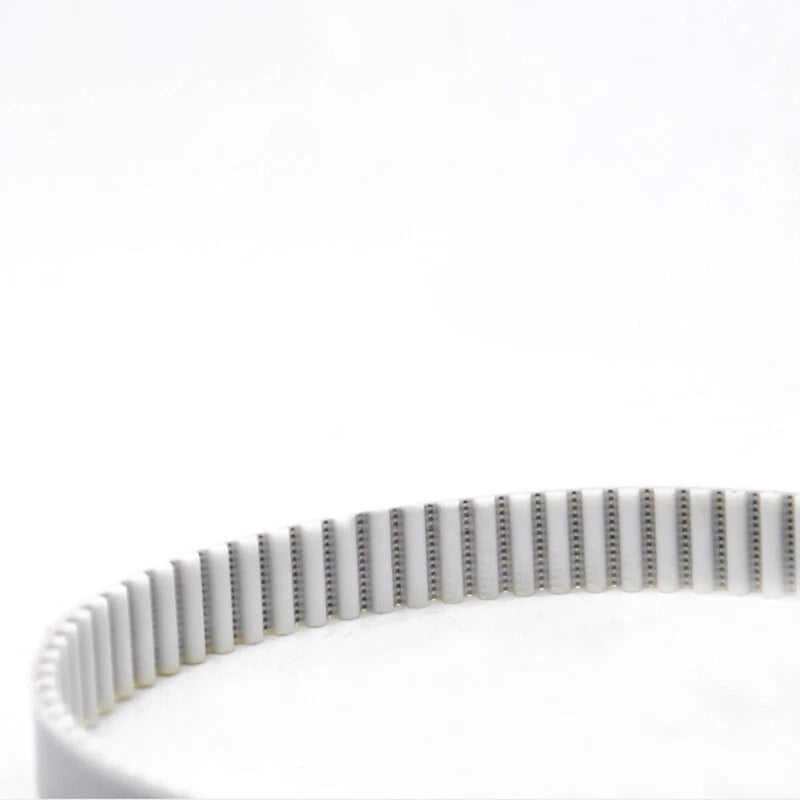

🔩Steel Wire Tension Cord — Embedded steel wire core resists elongation under load, maintaining consistent belt tension and positional accuracy over time.
-
🧱Polyurethane Construction — Offers higher abrasion resistance and better oil and moisture tolerance than standard neoprene timing belts, extending service life in demanding environments.
-
📏Wide Perimeter Selection — Available from 2904mm to 3498mm in 3mm steps, covering a broad range of machine configurations without custom fabrication.
-
📐20mm Belt Width — Wider than typical 6mm or 10mm belts, providing greater load-carrying capacity for heavier gantries and higher-torque drive applications.
-
📦Single or Twin-Pack Options — Order 1 pcs for a direct replacement or 2 pcs for dual-axis machines and spare inventory at a reduced per-unit cost.

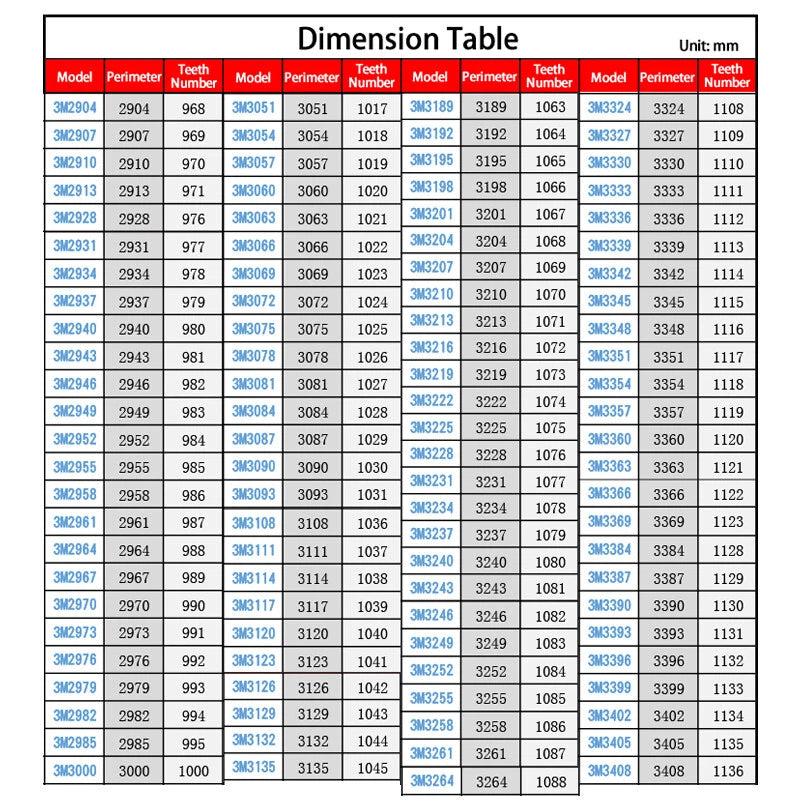

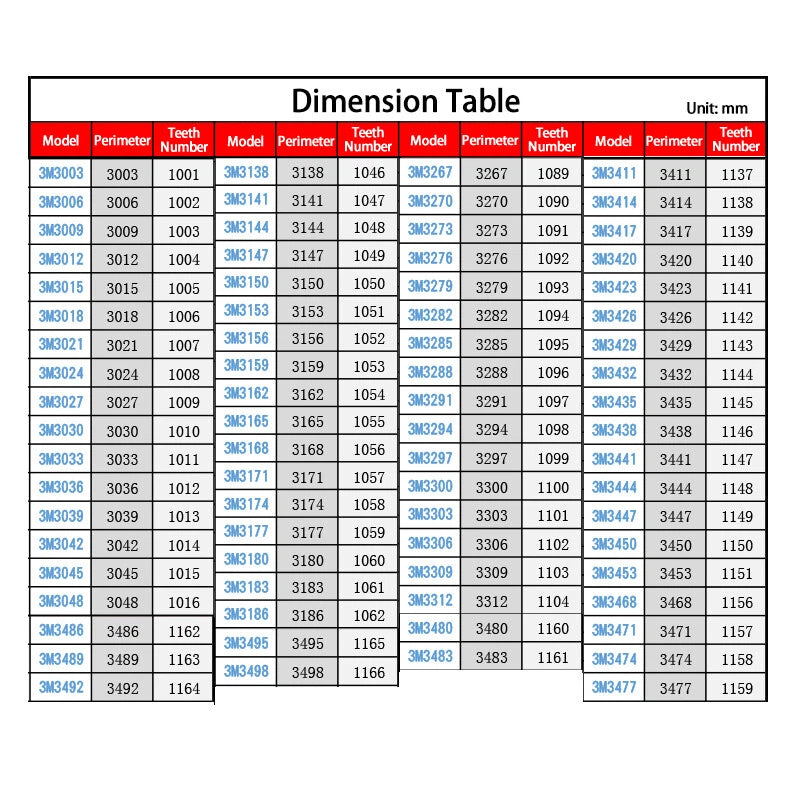

📐 Technical Specifications — HTD3M Timing Belt
| Belt Profile |
HTD3M (High Torque Drive, 3mm pitch) |
| Tooth Pitch |
3mm |
| Belt Width |
20mm (≈0.79") |
| Perimeter Range |
2904mm (≈114.3") – 3498mm (≈137.7") |
| Perimeter Increment |
3mm steps (see variant options) |
| Belt Material |
Polyurethane |
| Tension Cord |
Steel wire |
| Belt Type |
Closed loop (endless) |
| Compatible Pulley Profile |
HTD3M only |
| Packing Quantity |
1 pcs or 2 pcs (see variant options) |
| Tensile Strength |
See variant options / Contact us to confirm |
| Operating Temperature |
Contact us to confirm |
⚠️ Sizing Tip: If your required perimeter falls between two listed sizes, select the next size up and adjust belt tension accordingly. Do not force a belt that is too short — this can damage pulleys and the belt itself.
❓ Frequently Asked Questions
How do I choose the correct perimeter size for my HTD3M timing belt?
Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pitch diameter of each pulley). Alternatively, wrap a flexible tape around your existing belt path. This product covers perimeters from 2904mm (≈114.3") to 3498mm (≈137.7") in 3mm increments. When in doubt, size up — a slightly longer belt can typically be tensioned; a belt that is too short cannot be installed.
What does HTD3M mean, and is it compatible with my pulleys?
HTD stands for High Torque Drive. The “3” refers to a 3mm tooth pitch and “M” denotes the metric HTD tooth profile. These belts are compatible with HTD3M pulleys only — they are not interchangeable with GT2, MXL, or XL profile pulleys. Always confirm your pulley is labeled HTD3M before ordering.
What is the load capacity of this timing belt?
The steel wire tension cord core generally provides tensile strength suitable for light-to-medium industrial and automation loads. Exact load ratings depend on pulley diameter, operating speed, and duty cycle. For heavy-duty applications, contact us to confirm suitability before ordering.
Can this belt be used outdoors or in wet environments?
Polyurethane timing belts generally offer better moisture and oil resistance than neoprene belts and can typically handle light moisture exposure. Prolonged submersion or exposure to harsh chemicals is not recommended. For outdoor or washdown environments, contact us to verify suitability before purchase.
Is this belt suitable for 3D printers and CNC machines?
Yes. HTD3M belts with steel wire cores are commonly used in CNC routers, laser cutters, and larger-format 3D printers where precise, low-backlash motion is required. Confirm your machine uses HTD3M pulleys and that the required perimeter falls within the 2904–3498mm range offered here.
Why choose polyurethane over neoprene for a timing belt?
Polyurethane timing belts generally offer higher abrasion resistance, better dimensional stability over time, and improved resistance to oils and greases compared to neoprene. They tend to maintain tooth geometry more consistently under load, which supports accurate positioning in automation and motion control applications.
What is the difference between ordering 1 pcs and 2 pcs?
The 1 pcs option ships a single belt of your chosen perimeter. The 2 pcs option ships two identical belts at a reduced per-unit cost — useful for dual-axis machines, keeping a spare on hand, or replacing belts in pairs for balanced wear.
🛒 Select your perimeter size and quantity above, then add to cart — ships from our US warehouse.
