HTD3M Timing Belt 30mm Wide — Precision Polyurethane Drive Belt for CNC, 3D Printers & Industrial Automation
When a slipping or stretched drive belt throws off your CNC router's cut accuracy, ruins a 3D print mid-job, or causes costly downtime on an automated conveyor line, the root cause is almost always a belt that can't hold its pitch under load. Engineers, machine builders, and serious DIYers who need repeatable, low-backlash motion demand a belt that stays dimensionally stable shift after shift — and that's exactly what this HTD3M polyurethane timing belt is built to deliver.

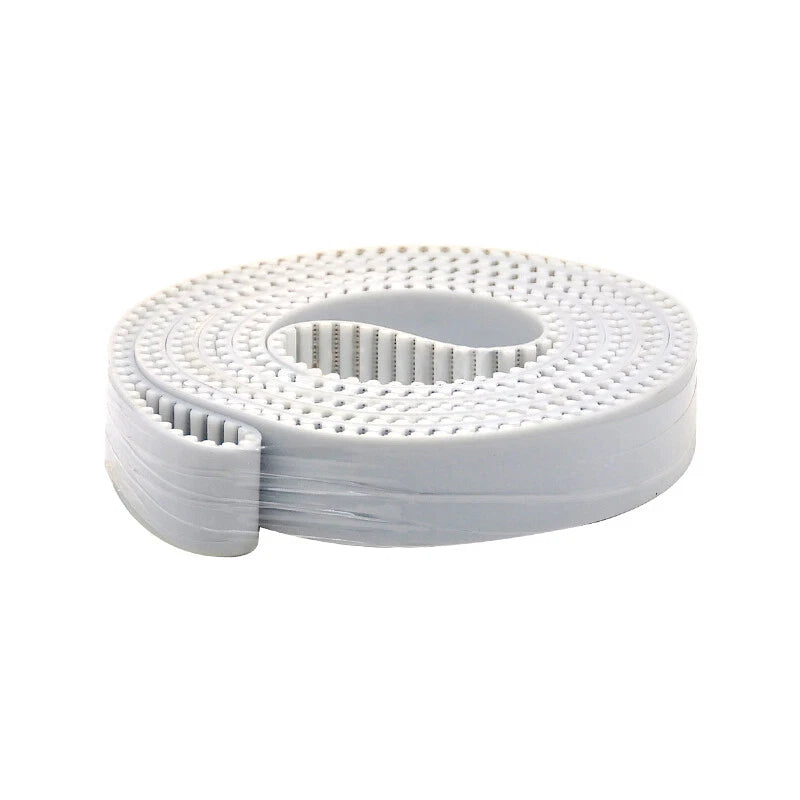

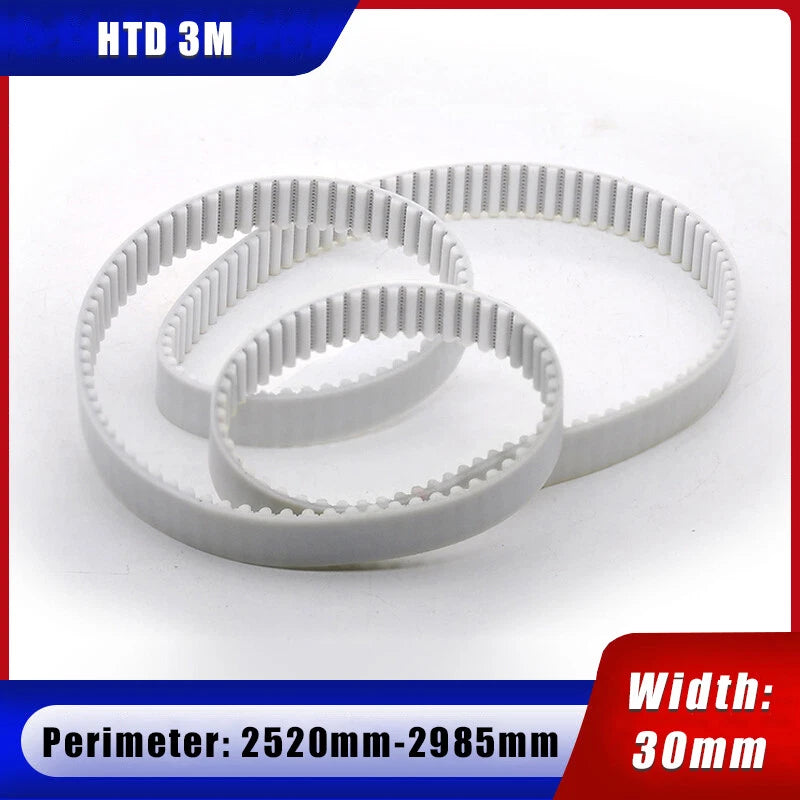

Each belt features a polyurethane body reinforced with continuous steel wire tensile cords, formed into a closed-loop HTD3M tooth profile. The width is 30mm (≈1.18"), and perimeters are available from 2520mm (≈99.2") up to 2985mm (≈117.5") in 3mm increments, giving you precise fitment across a wide range of machine configurations. Order as 1 pcs for a single-axis drive or 2 pcs for matched-pair dual-axis setups.
Typical applications include CNC router X/Y gantry drives, laser cutter motion systems, automated pick-and-place machines, conveyor indexing drives, and large-format 3D printer axis belts — anywhere an HTD3M polyurethane timing belt with steel wire reinforcement is specified for long-service, low-maintenance operation.

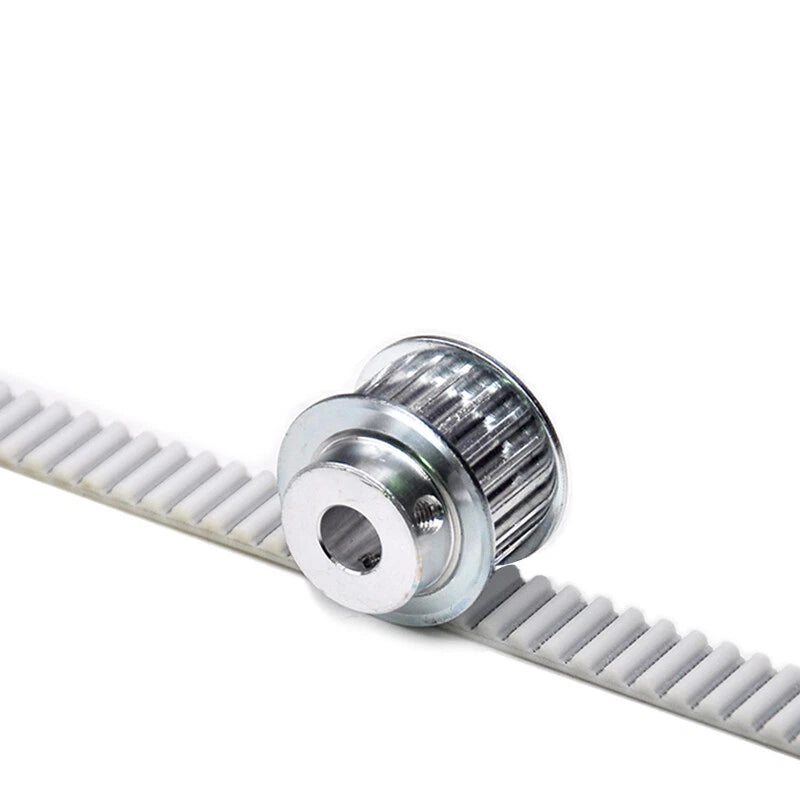

ℹ️ Compatibility: Fits all standard HTD3M pulleys (3mm pitch, rounded tooth profile). Width 30mm — use with 30mm or wider flanged pulleys. Not compatible with GT2, MXL, T5, or other tooth profiles. Confirm your pulley spec before ordering.
✅ Key Features of These HTD3M Polyurethane Steel Wire Timing Belts
-

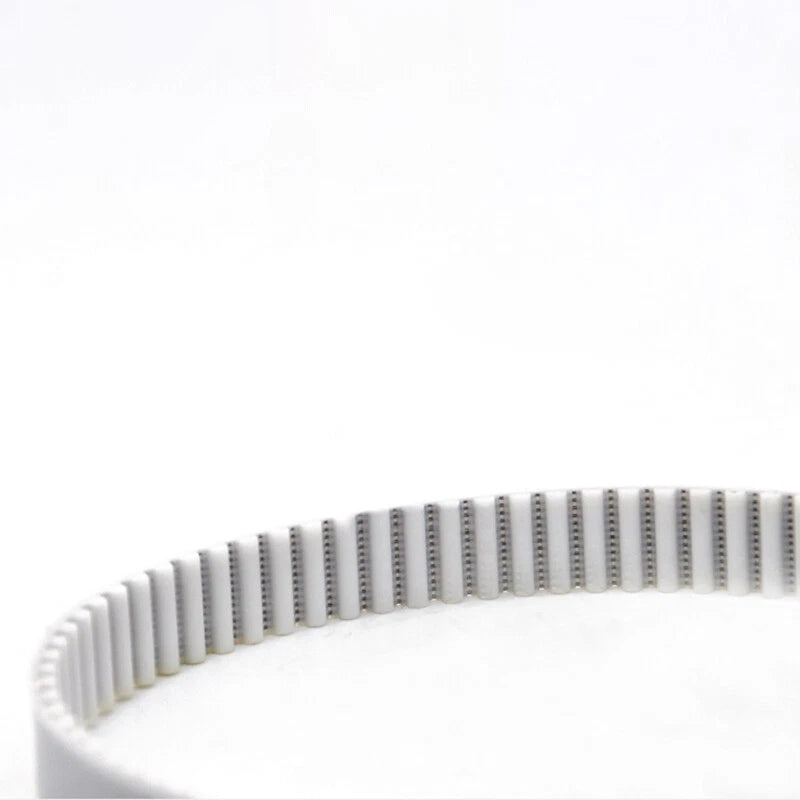

🔩Steel Wire Tensile Cords — Continuous steel wire cores run the full belt length, delivering low elongation under load and maintaining pitch accuracy in high-torque HTD3M drive applications.
-
🧱Polyurethane Body — The PU compound resists oils, mild chemicals, and abrasion better than standard neoprene rubber, extending service life in demanding industrial and workshop environments.
-
📐HTD3M Tooth Profile — The 3mm pitch curvilinear tooth form provides smooth, low-noise meshing with HTD3M pulleys and reduces tooth jump risk under sudden load changes in CNC and automation drives.
-
📏30mm Working Width — A wider belt face distributes load across more tooth contact area, making this 30mm wide timing belt suitable for higher-torque axes compared to narrower 15mm or 20mm variants.
-

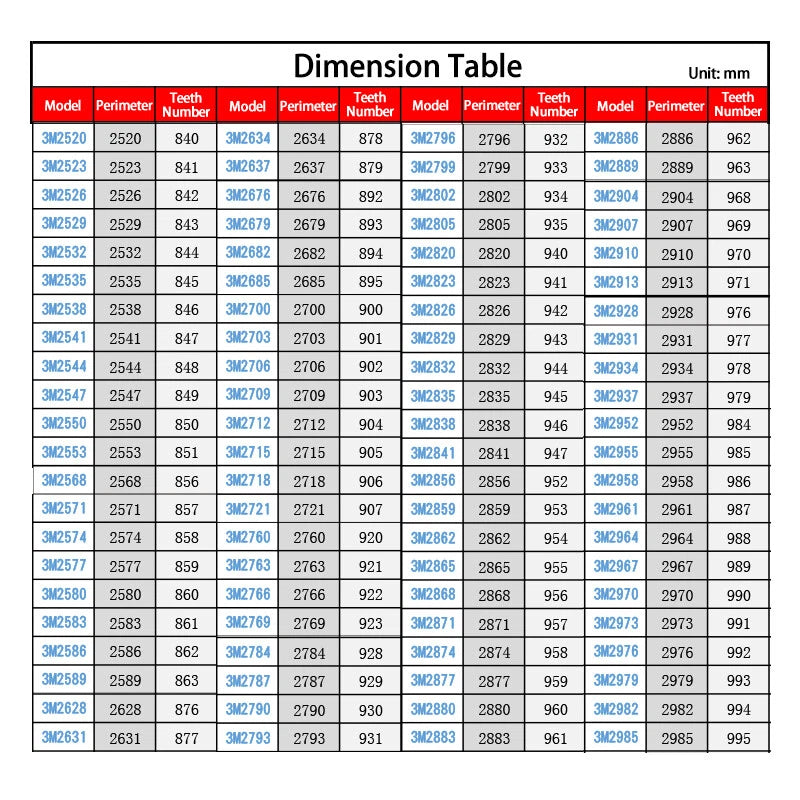

🔄87 Perimeter Options (2520–2985mm) — Fine 3mm increments let you match the exact belt length your machine requires without resorting to custom fabrication or compromising on tension.
-
📦Single or Matched-Pair Packing — Choose 1 pcs for a single drive axis or 2 pcs for dual-axis gantry systems; matched pairs come from the same production batch for consistent stretch characteristics.
📐 Technical Specifications — HTD3M Polyurethane Timing Belt
| Belt Type |
HTD3M (High Torque Drive, 3mm pitch) |
| Tooth Profile |
HTD curvilinear (rounded) |
| Pitch |
3mm |
| Width |
30mm (≈1.18") |
| Perimeter Range |
2520mm (≈99.2") – 2985mm (≈117.5") |
| Perimeter Increment |
3mm steps (see variant options) |
| Belt Material |
Polyurethane (PU) |
| Tensile Cord |
Steel wire (continuous, helical-wound) |
| Color |
See variant options |
| Operating Temperature |
Contact us to confirm |
| Packing Quantity |
1 pcs or 2 pcs (select above) |
| Compatible Pulleys |
HTD3M pulleys, 30mm width or wider flanged |
| Country of Origin |
See variant options |
⚠️ Size Note: Perimeter is the total closed-loop length of the belt, not the center-to-center distance between pulleys. Measure your existing belt or calculate from your pulley geometry before selecting a size. If unsure, contact us with your pulley specs.
❓ Frequently Asked Questions
How do I choose the right perimeter size for my HTD3M timing belt?
Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pulley pitch diameters. For example, a 2520mm (≈99.2") belt typically suits a drive with roughly 390–420mm center distance using standard HTD3M pulleys. Always verify against your machine's spec sheet. If you're replacing an existing belt, measure the old belt's perimeter directly.
What load or tension can this 30mm wide HTD3M belt handle?
A 30mm wide HTD3M polyurethane belt with steel wire cores generally handles higher tangential loads than rubber equivalents of the same width — typically in the range of several hundred Newtons of working tension. Exact capacity depends on pulley tooth count, speed, and operating temperature. Contact us to confirm suitability for your specific application.
Can this belt be used outdoors or in humid environments?
Polyurethane is generally more resistant to oils, mild chemicals, and moisture than standard neoprene rubber belts. However, prolonged UV exposure or immersion in water is not recommended. For outdoor or wash-down environments, verify operating conditions with us before ordering.
Is this belt compatible with standard HTD3M pulleys?
Yes. This belt follows the HTD3M tooth profile standard — 3mm pitch, rounded tooth form — and is compatible with any HTD3M pulley of the appropriate width (30mm or wider flanged pulleys). It is not interchangeable with GT2, MXL, T5, or other tooth profiles. Always confirm your pulley's tooth profile before ordering.
Why choose polyurethane over rubber for a timing belt?
Polyurethane belts with steel wire tensile cords offer lower elongation under load, better dimensional stability over time, and improved resistance to oils and abrasion compared to standard rubber belts. This makes them a preferred choice for precision motion applications like CNC routers, laser cutters, and automated conveyor systems where maintaining exact pitch position matters.
Do I need to order 1 pcs or 2 pcs?
Most single-axis drives require 1 belt. If your machine uses two parallel drive axes (e.g., a dual-motor gantry CNC or dual-belt conveyor), select the 2 pcs option to ensure both belts are from the same production batch for consistent performance and matched stretch characteristics.
What is the tooth pitch and profile of this belt?
This belt uses the HTD3M profile: 3mm pitch (tooth-to-tooth distance measured along the pitch line), with a rounded, curvilinear tooth form designed for high-torque, low-backlash power transmission. The "3M" designation means 3mm pitch in the HTD (High Torque Drive) family — distinct from the older trapezoidal tooth profiles like MXL or XL.
