HTD5M Timing Belt with 5mm Pitch — Reliable Synchronous Drive for 3D Printers, CNC & More

When a worn or snapped drive belt brings your 3D printer, CNC router, or conveyor to a halt, finding the right replacement quickly matters. These HTD5M rubber timing belts are stocked in a wide range of pitch circumferences and widths, so makers, engineers, and repair technicians can get the exact size they need without waiting on custom orders.

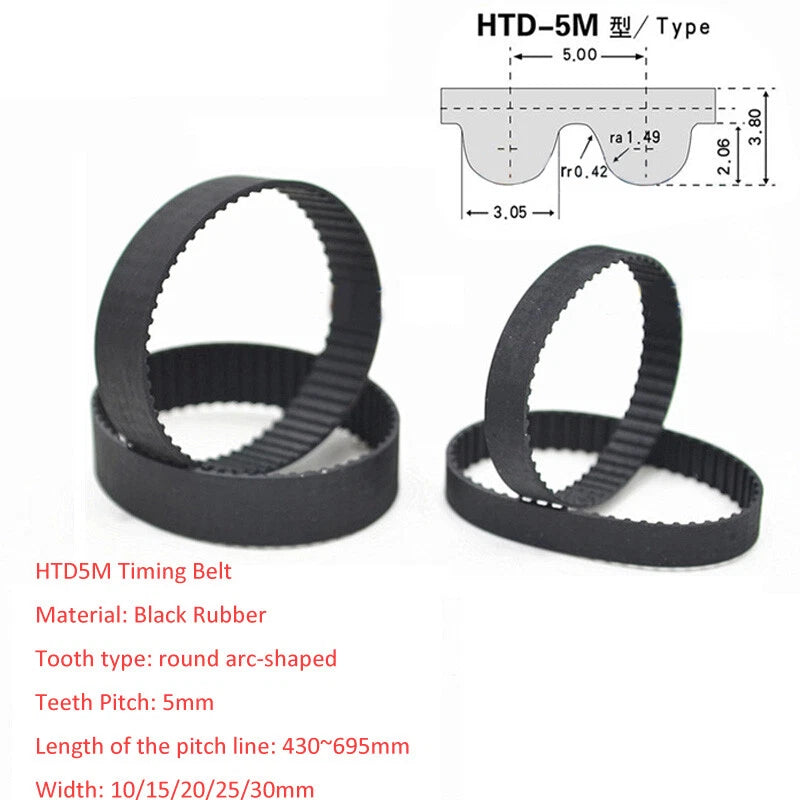

Each belt is sold individually (1 piece per order) and features a black rubber body with internal cord reinforcement for dimensional stability under load. The HTD5M profile uses a 5mm pitch with a rounded tooth form designed to reduce stress concentration compared to trapezoidal profiles. Available pitch circumferences run from 430mm (≈16.9") to 695mm (≈27.4") in 5mm increments, with widths of 10mm, 15mm, 20mm, 25mm, and 30mm to match a broad range of pulley configurations.

These HTD5M drive belts are well suited for CoreXY and Cartesian 3D printer axis drives, CNC router gantry systems, laser engraver motion stages, and light industrial conveyor or robotic arm applications where a synchronous rubber timing belt with 5mm pitch is specified.

ℹ️ Compatibility Note: These belts use the HTD5M tooth profile (5mm pitch, rounded tooth). They are not interchangeable with GT2, MXL, or T5 profile belts. Confirm your pulley is rated for HTD5M before ordering.

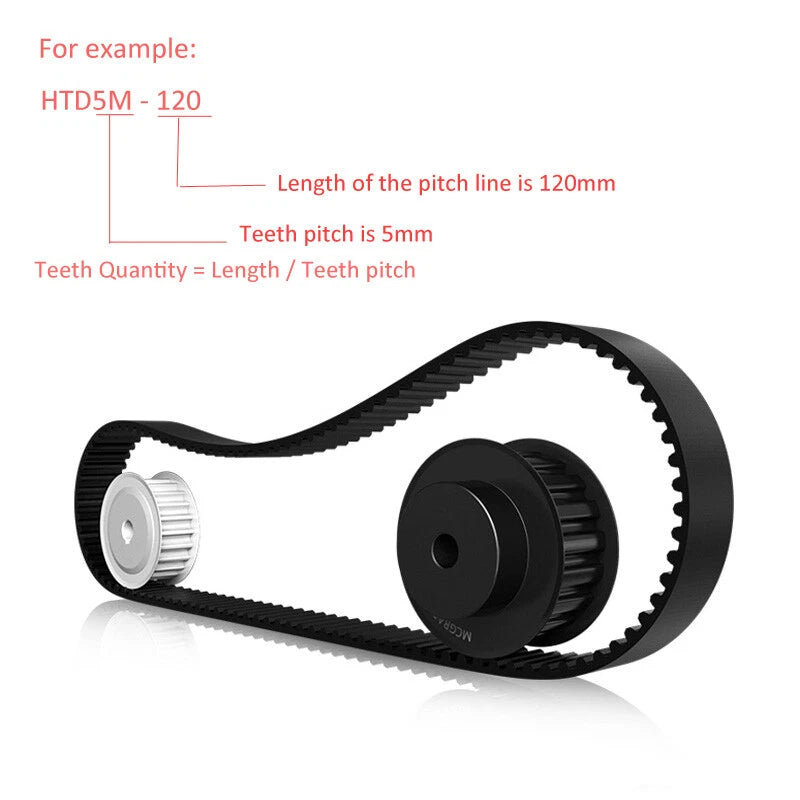

⚠️ Size Tip: The model number equals the pitch circumference in mm (e.g., HTD5M-500 = 500mm circumference). If you are unsure of your required length, measure your existing belt or calculate from your pulley center distance. Contact us to confirm before ordering.

✅ Key Features of These HTD5M Rubber Timing Belts

  • ⚙️ HTD 5mm Pitch Tooth Profile — The rounded HTD tooth form distributes load more evenly than trapezoidal profiles, making these belts a common choice for synchronous drive systems in 3D printers and CNC routers.

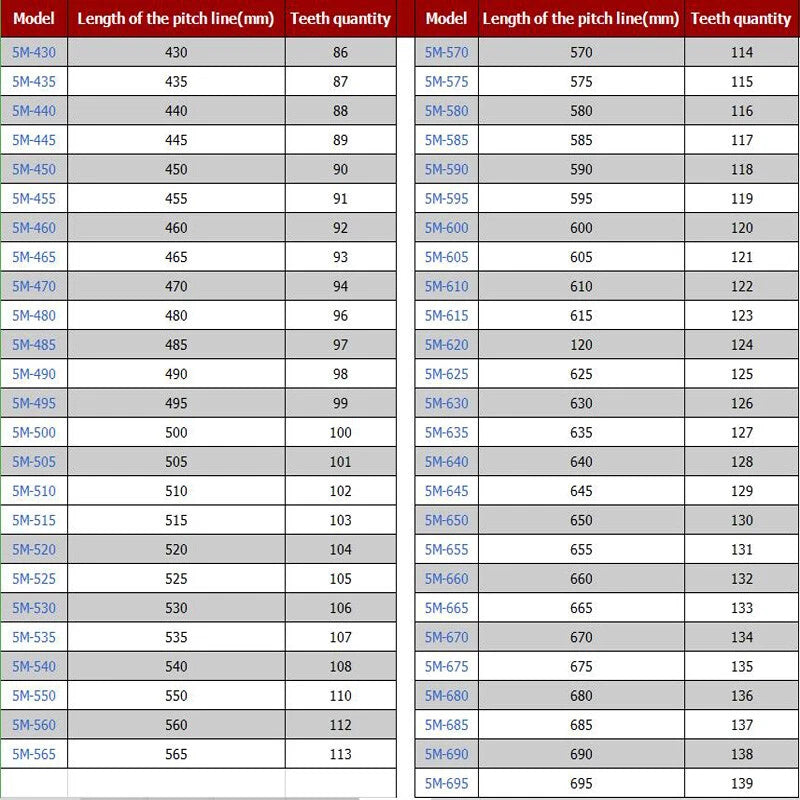

  • 📏 Wide Size Range in One Listing — Pitch circumferences from 430mm (≈16.9") to 695mm (≈27.4") in 5mm steps, combined with five width options (10–30mm), cover a broad range of HTD5M drive belt replacement needs.
  • 🔩 Cord-Reinforced Construction — Internal tensile cords resist elongation under cyclic loading, helping maintain consistent tooth pitch and positional accuracy in motion control applications.
  • 🖤 Black Rubber Body — The rubber compound offers flexibility across a typical indoor operating temperature range and resists cracking under normal bending cycles around standard HTD5M pulleys.
  • 🔄 Closed-Loop Design — Each belt is a continuous closed loop — no joining or splicing required. Simply route over your pulleys and tension according to your machine's specification.
  • 🚀 Direct Drop-In Replacement — Designed to match standard HTD5M pulley dimensions, these belts work as direct replacements for worn rubber timing belts in 3D printers, laser cutters, and conveyor drive systems.

📐 Technical Specifications — HTD5M Rubber Timing Belt

Belt Profile HTD (High Torque Drive)
Pitch 5mm
Tooth Form Rounded (HTD profile)
Pitch Circumference Range 430mm (≈16.9") – 695mm (≈27.4")
Available Widths 10mm / 15mm / 20mm / 25mm / 30mm
Belt Color Black
Body Material Rubber (neoprene-type compound, typically)
Reinforcement Internal tensile cord (fiberglass or steel — see variant options)
Loop Type Closed loop (endless)
Quantity per Order 1 piece
Compatible Pulley Profile HTD5M only
Typical Applications 3D printers, CNC routers, laser engravers, conveyors, robotics
Operating Temperature Contact us to confirm
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right HTD5M belt length and width for my application?

The model number indicates the belt's pitch circumference in millimeters. For example, HTD5M-500 has a 500mm (≈19.7") pitch circumference, and HTD5M-430 is 430mm (≈16.9"). To find the right length, measure your existing belt's circumference, or calculate from your pulley center-to-center distance using the standard belt length formula. For width, match the belt width to your pulley groove width — wider belts generally handle higher torque loads. When in doubt, check your machine's documentation or contact us before ordering.

How do I convert the belt length from millimeters to inches?

Divide the millimeter value by 25.4. Common examples from this listing:

  • HTD5M-430 = 430mm ÷ 25.4 ≈ 16.9"
  • HTD5M-500 = 500mm ÷ 25.4 ≈ 19.7"
  • HTD5M-550 = 550mm ÷ 25.4 ≈ 21.7"
  • HTD5M-600 = 600mm ÷ 25.4 ≈ 23.6"
  • HTD5M-650 = 650mm ÷ 25.4 ≈ 25.6"
  • HTD5M-695 = 695mm ÷ 25.4 ≈ 27.4"
What is the load capacity of these HTD5M timing belts?

HTD5M belts are designed for moderate-to-high torque synchronous drive applications. Load capacity generally increases with belt width — a 30mm wide belt will typically carry more torque than a 10mm wide belt of the same length. For specific load ratings in your application, refer to your machine's engineering documentation or contact us to confirm suitability before ordering.

Are these timing belts suitable for outdoor or high-humidity environments?

The black rubber construction generally offers good resistance to moisture and moderate humidity for indoor use. These belts are not specifically rated for prolonged UV exposure, chemical immersion, or extreme temperature environments. For outdoor or harsh-environment applications, we recommend contacting us to confirm the belt's material specifications match your operating conditions.

What pulley profile is compatible with these belts?

These belts use the HTD5M tooth profile — a rounded tooth with 5mm pitch. They are compatible only with HTD5M-profile pulleys and sprockets. They are not compatible with GT2, MXL, T5, or other trapezoidal-tooth pulleys, even if the pitch appears similar. Always verify your pulley is specifically labeled HTD5M before purchasing.

Which machines and applications are these belts commonly used in?

HTD5M rubber timing belts are commonly used in:

  • 3D printers — CoreXY, Cartesian, and delta axis drives
  • CNC routers and milling machines — gantry and axis motion
  • Laser engravers and cutters — X/Y motion stages
  • Conveyor systems — light industrial synchronous drives
  • Robotic arms and automation equipment
  • General power transmission where a 5mm pitch synchronous belt is specified
Can I use these as a direct replacement for a worn or broken timing belt?

Yes, in most cases. To confirm compatibility, check that your existing belt matches all three parameters: pitch profile (HTD5M), pitch circumference (the number in the model, e.g., 500 for HTD5M-500), and width. These values are typically printed or molded on the belt's outer surface. If your existing belt is too worn to read, consult your machine's parts list or service manual.

🛒 Select your model (length) and width above, then add to cart — ships from our US warehouse.
