HTD8M Timing Belt — Reliable 8mm Pitch Drive for CNC, Robotics & Automation

When a slipping or mismatched drive belt causes positioning errors on your CNC router, 3D printer, or robotic arm, the entire project stalls. Engineers, makers, and machine builders who need a dependable closed-loop power transmission solution turn to the HTD8M standard for its robust tooth engagement and consistent pitch accuracy.

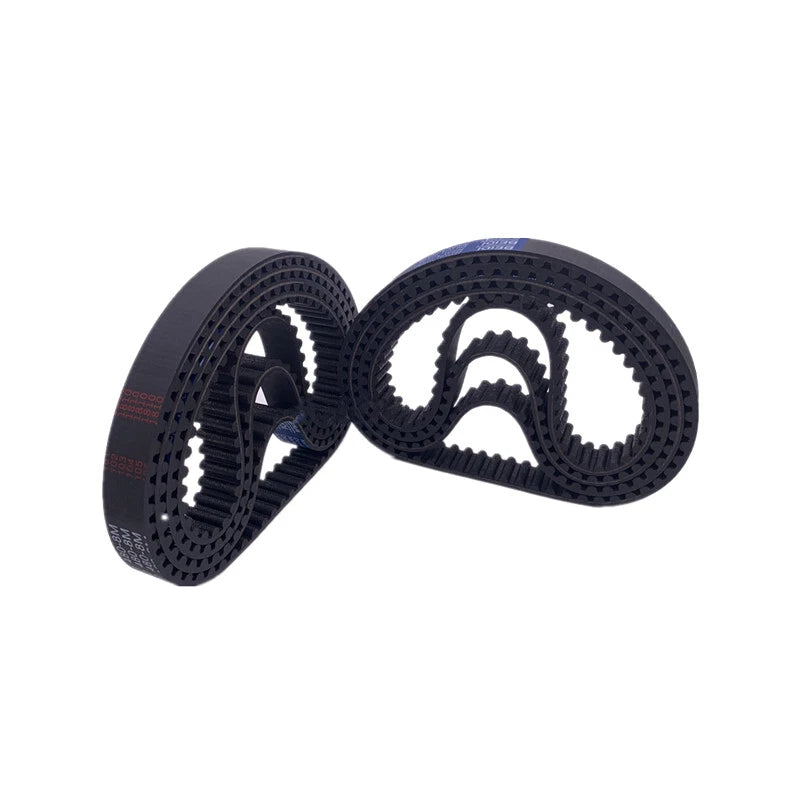

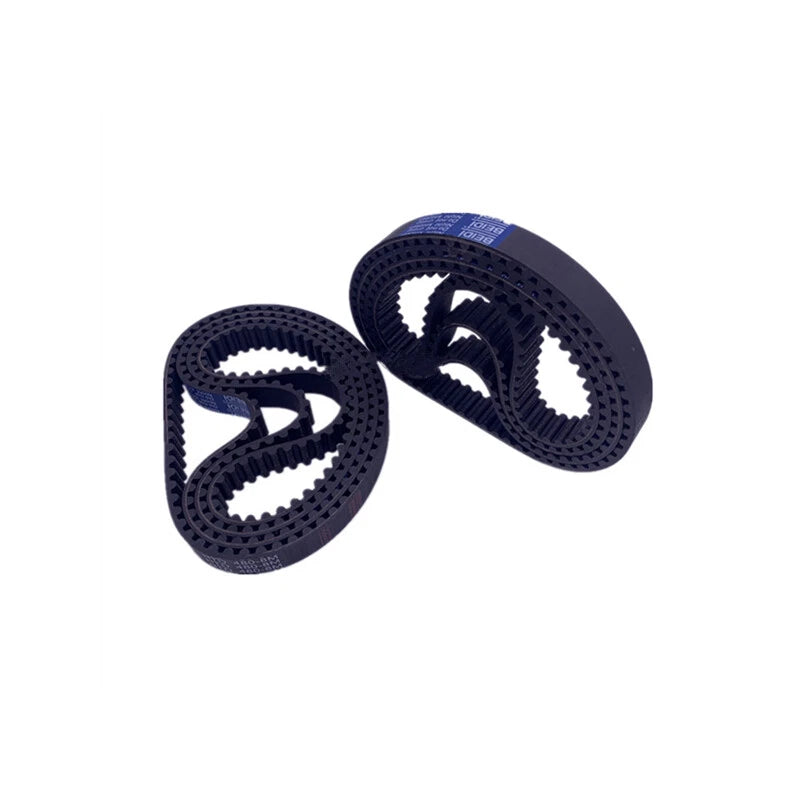

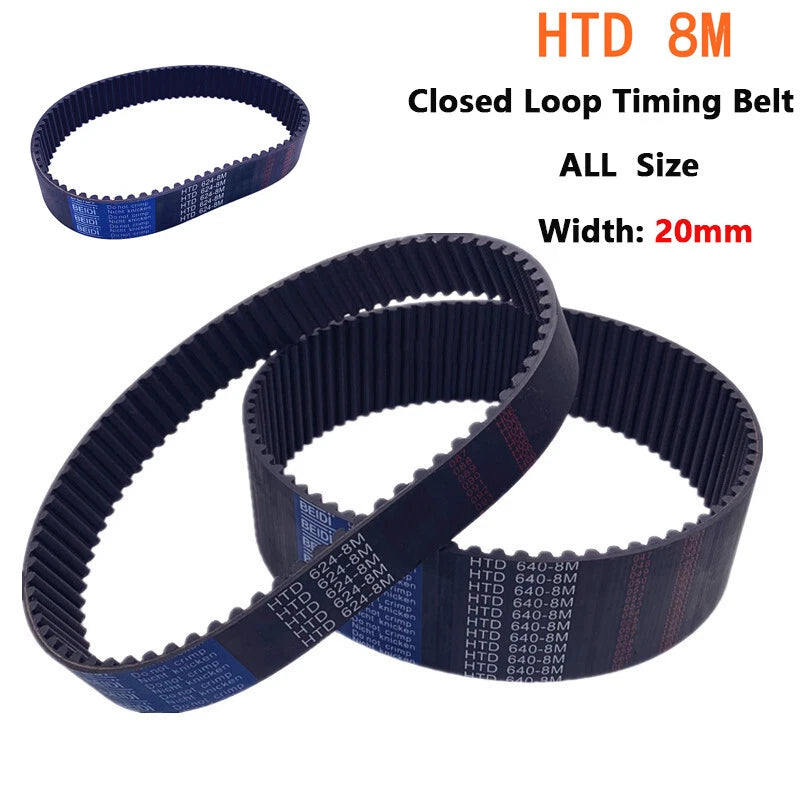

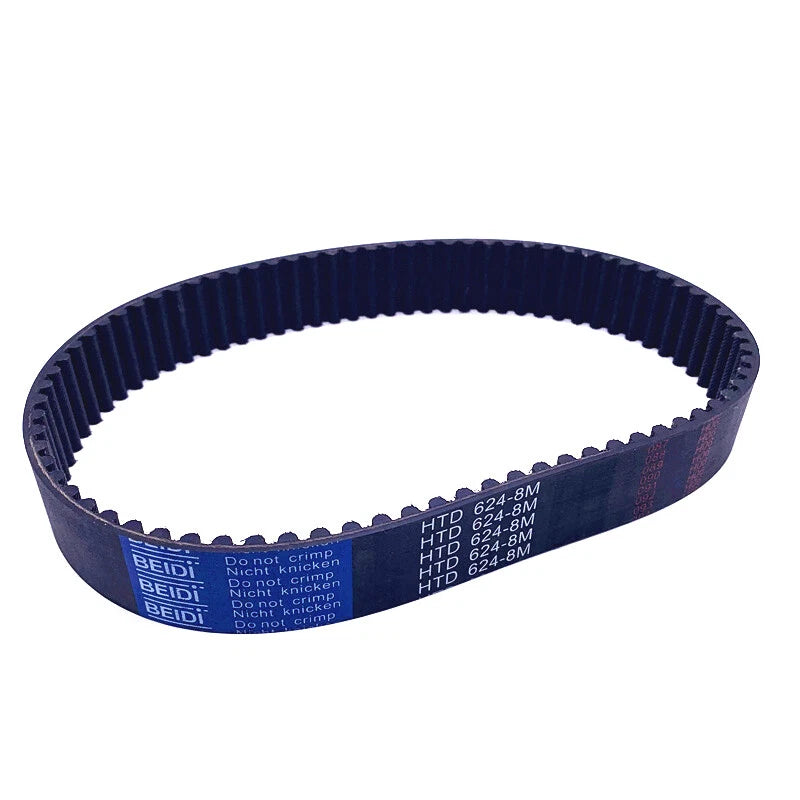

Each belt in this listing is a closed-loop HTD8M timing belt with an 8mm pitch and 20mm (≈0.79") width. Available in 226 sizes ranging from 33 teeth / 264mm (≈10.4") up to 550 teeth / 4400mm (≈173.2") circumference, the belts are constructed from neoprene rubber with a fiberglass or steel tension cord core. Sold individually (1 pc per order); select your required tooth count and circumference from the variant dropdown.

Typical use cases include CNC router X/Y/Z axis drives, laser cutter gantry systems, 3D printer bed and extruder drives, conveyor indexing systems, and robotic joint actuators — all applications where an HTD 8mm pitch timing belt replacement or upgrade is needed.

ℹ️ Compatibility: Fits HTD8M pulleys only. Belt width is 20mm — confirm your pulley flange accommodates 20mm belts. Not compatible with GT2, GT3, or trapezoidal (XL/L/H) pulleys.

✅ Key Features of These HTD8M Timing Belts

  • ⚙️8mm HTD Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-to-high torque CNC and robotics drives.
  • 📏226 Closed-Loop Sizes — From 264mm to 4400mm circumference in a single listing, covering the most common HTD8M timing belt replacement sizes for CNC routers, laser cutters, and automation equipment.
  • 🔩20mm Uniform Belt Width — The consistent 20mm width aligns with standard HTD8M pulley flanges used in open-source CNC and robotics platforms, simplifying drop-in replacement.
  • 🧱Neoprene Body with Cord Reinforcement — Neoprene construction provides flexibility and resistance to oils and moderate moisture; the internal tension cord (typically fiberglass or steel) maintains pitch accuracy under load.
  • 🔄Endless / Seamless Loop — No splice or joint — the belt runs as a true closed loop, eliminating the vibration and wear point that spliced belts introduce in precision drive systems.
  • 🏭Broad Application Range — Suited for CNC router axis drives, 3D printer motion systems, conveyor indexing, and robotic arm joints where an 8mm pitch timing belt with 20mm width is specified.

📐 Technical Specifications — HTD8M Timing Belt

Belt Standard HTD8M (High Torque Drive, 8mm pitch)
Pitch 8mm (0.315")
Belt Width 20mm (≈0.79")
Tooth Profile Rounded HTD (curvilinear)
Belt Type Closed loop / endless
Material Neoprene rubber with fiberglass or steel tension cord
Tooth Count Range 33 teeth – 550 teeth (see variant options)
Circumference Range 264mm (≈10.4") – 4400mm (≈173.2") (see variant options)
Operating Temperature Typically –30°C to +80°C (–22°F to +176°F)
Quantity per Order 1 pc
Compatible Pulleys HTD8M pulleys, 20mm flange width
Color / Finish See variant options
⚠️ Before ordering: Verify your pulley is HTD8M standard and accepts a 20mm wide belt. If you are unsure of the required circumference, measure your existing belt or calculate from your pulley center distance. Contact us to confirm if needed.

❓ Frequently Asked Questions

How do I choose the right HTD8M timing belt length?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. Each variant lists the belt circumference in mm and the tooth count. For example, a 100-tooth belt is 800mm (≈31.5") circumference. When in doubt, size up slightly — a longer belt can be tensioned; a short belt cannot be installed.

What load or torque can an HTD8M belt handle?

HTD8M belts are generally suited for moderate-to-high torque drives. The 8mm pitch provides greater tooth shear strength than 3M or 5M belts. Actual capacity depends on the number of teeth in mesh, pulley diameter, and operating speed. For precision CNC or robotics applications, confirm your drive system's torque requirement against the belt manufacturer's published power rating tables.

Can I use this timing belt outdoors or in wet conditions?

HTD8M belts are typically constructed from neoprene, which offers good resistance to moisture, light oils, and temperatures generally ranging from –30°C to +80°C (–22°F to +176°F). They are not rated for continuous submersion or exposure to strong solvents. For harsh outdoor or chemical environments, contact us to confirm suitability before ordering.

What pulley standard is compatible with these belts?

These belts follow the HTD 8M standard with an 8mm pitch and a rounded (curvilinear) tooth profile. They are compatible with HTD8M pulleys of any tooth count, provided the pulley flange width accommodates a 20mm belt. They are not interchangeable with GT2, GT3, or trapezoidal (MXL/XL/L/H) pulleys, even if the pitch appears similar.

How do I decide between HTD8M and other belt types like GT2 or HTD5M?

Choose HTD8M when your application requires higher torque transmission and your pulleys are already HTD8M standard. GT2/GT3 belts offer lower backlash and are preferred for precision positioning (e.g., 3D printer motion axes). HTD5M is a lighter-duty option for smaller drives. In most cases, match the belt to the pulley standard already in your system — mixing standards will cause tooth skip or belt damage.

Is the belt sold as a closed loop, and what does the tooth count mean?

Yes — every variant is a closed-loop (endless) belt with no splice or joint. The tooth count is the total number of teeth around the full circumference. Belt circumference = tooth count × 8mm pitch. For example, 100 teeth = 800mm (≈31.5") circumference. Select the size that matches your drive system's required loop length.

Can I order a custom length not listed in the variants?

The listing currently covers 226 standard HTD8M sizes from 264mm to 4400mm circumference. If you need a size not listed, contact us through the store — in many cases we can source or confirm availability of additional sizes. Custom-cut open-ended belting is a separate product category.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
