5M Timing Belt Idler Pulley — Precise Tension Control for DIY Automation Builds

When belt slack causes missed steps, vibration, or skipped teeth in your motion system, the fix starts with a reliable idler pulley. Whether you are building a CNC router, tuning a 3D printer drive train, or assembling a custom conveyor, these 5M timing belt idler pulleys give you the tensioning control your project demands — available in both smooth (toothless) and toothed configurations to suit your specific belt path geometry.

Each pulley is machined to accept 5M HTD timing belts with a 21 mm (0.83 in) belt-contact width. Bore sizes range from 3 mm to 20 mm (0.12 in to 0.79 in), and tooth counts span 12 T to 50 T, covering a wide range of pulley diameters from approximately 19 mm to 80 mm (0.75 in to 3.15 in). The smooth toothless variants are designed for back-side belt tensioning, while the toothed variants engage the belt directly for in-line idler or drive applications.

Typical use cases include 5M HTD belt tensioner replacement on desktop CNC machines, idler pulley upgrades for CoreXY and Cartesian 3D printer motion systems, and tension-stage components in light-duty industrial automation and robotics projects requiring repeatable positioning.

⚙️ Compatibility: Designed for 5M HTD timing belts with 21 mm width. Verify your shaft bore diameter and tooth count before ordering. Toothless variants suit back-side tensioning; toothed variants suit in-line engagement.

✅ Key Features of These 5M Timing Belt Idler Pulleys

🔩

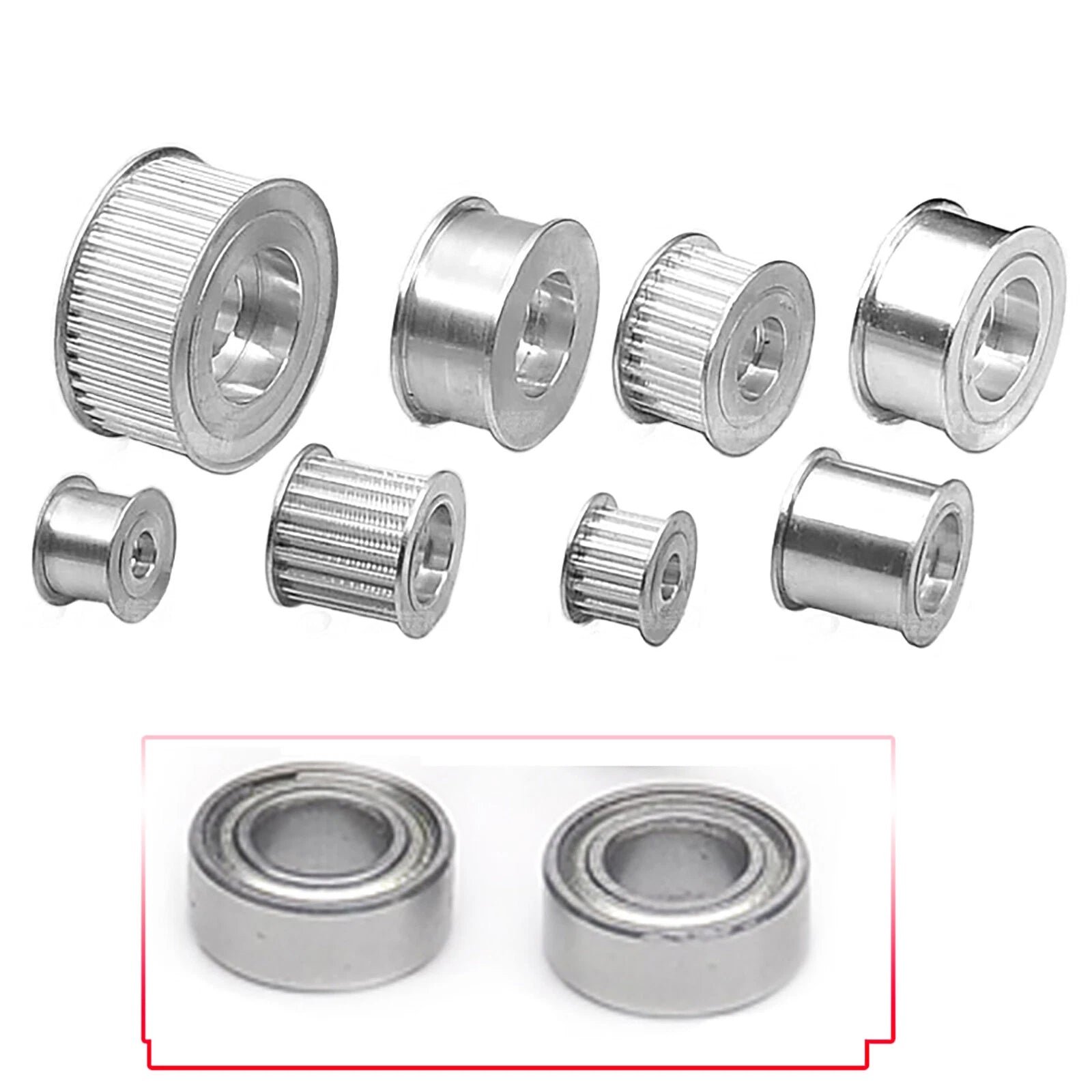

Wide Tooth Count Range

Available from 12 T to 50 T, letting you match the pulley diameter precisely to your belt path layout without compromise.

🎯

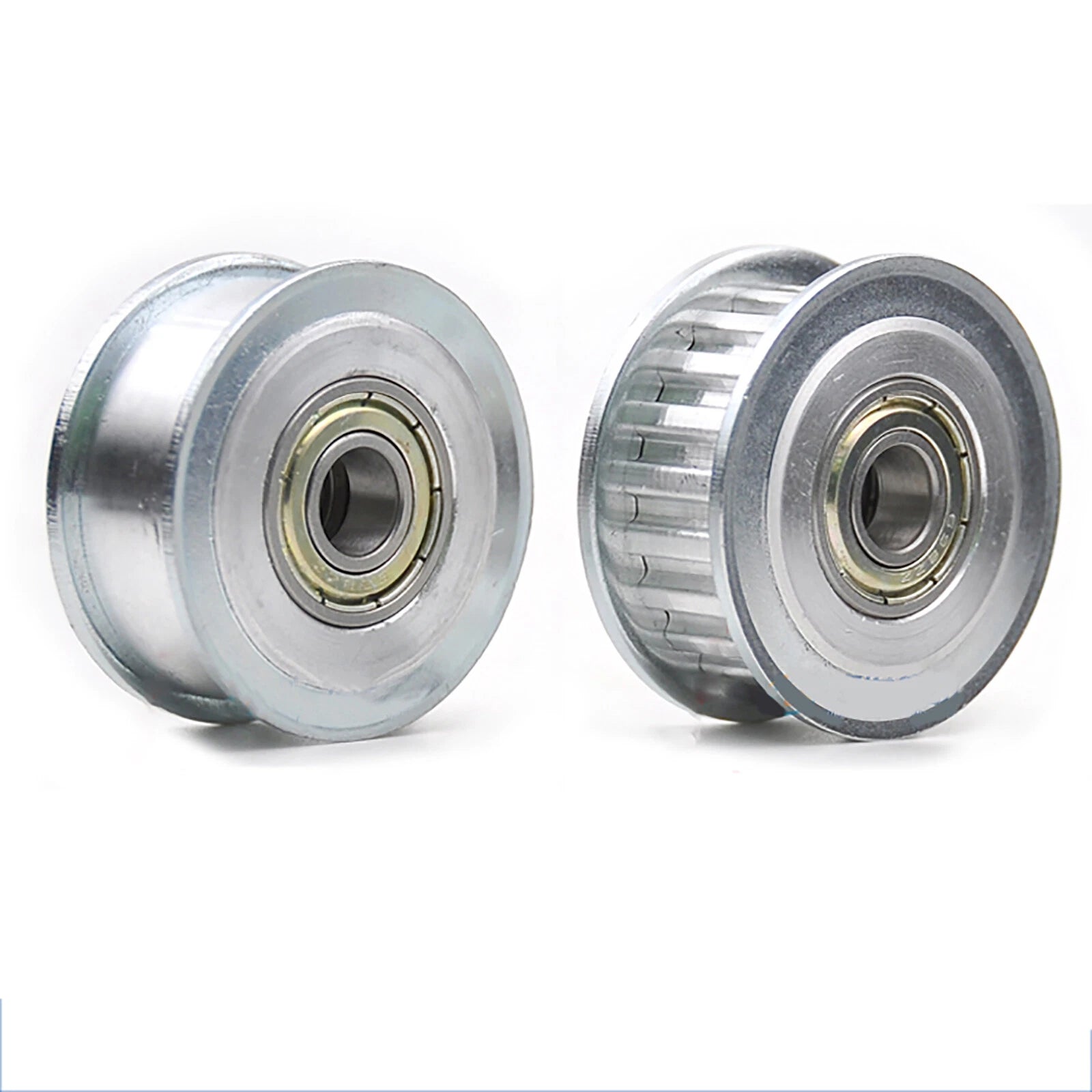

Smooth & Toothed Options

Choose toothless for back-side belt tensioning or toothed for direct belt engagement — both share the same 5M HTD pitch for interchangeability.

📐
Multiple Bore Sizes

Bore options from 3 mm to 20 mm accommodate a broad range of shaft diameters found in stepper motors, idler axles, and custom spindles.

📏
21 mm Belt-Contact Width

The 21 mm slot width is matched to standard 20 mm wide 5M HTD belts, keeping the belt centered and reducing edge wear over time.

🔄
Consistent Pitch Accuracy

Machined to 5M HTD pitch (5 mm tooth pitch) for synchronous, slip-free power transmission in positioning and motion control applications.

🛠️
Drop-In Tensioner Replacement

Dimensionally consistent across the range, making these pulleys straightforward replacements or upgrades in existing 5M belt-driven systems.

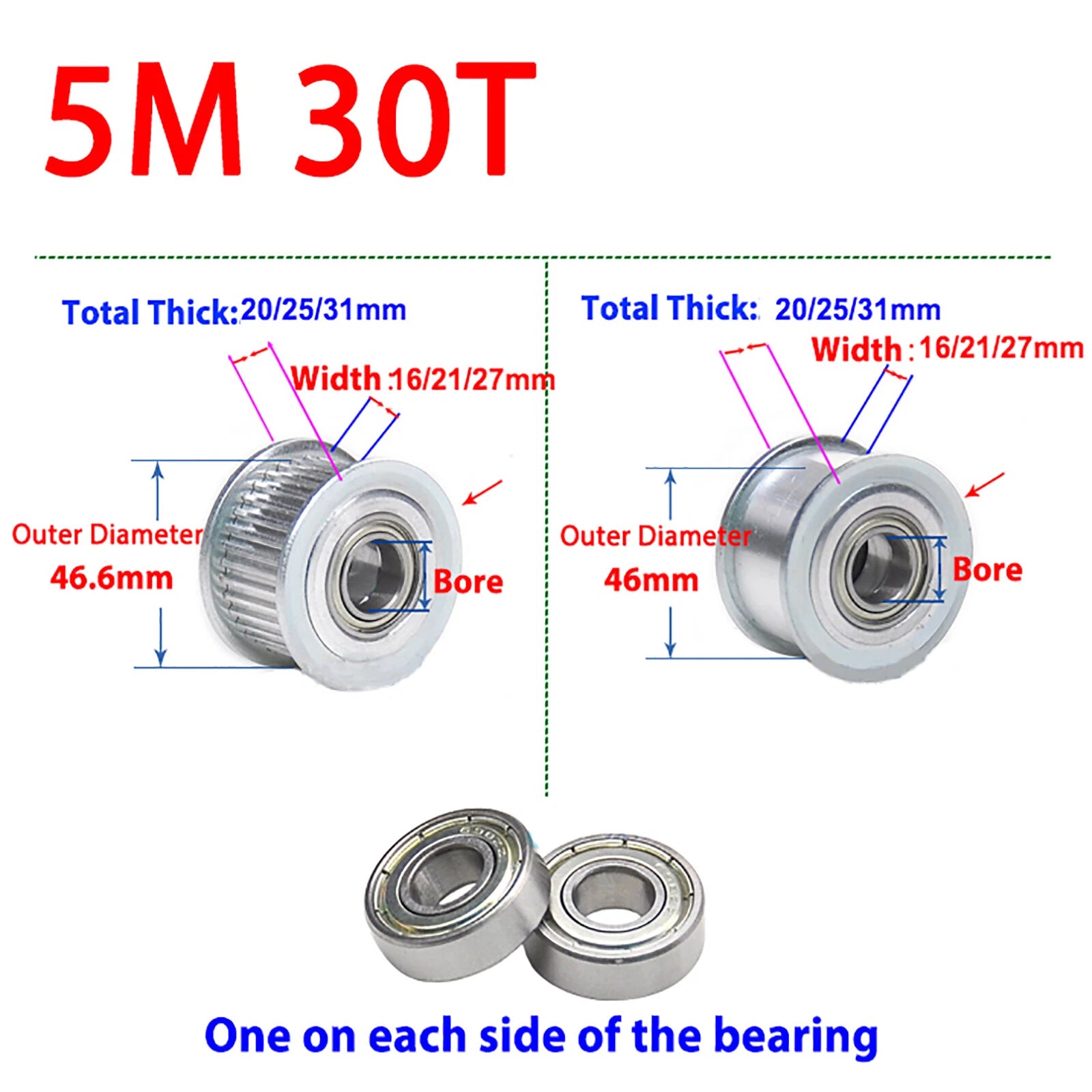

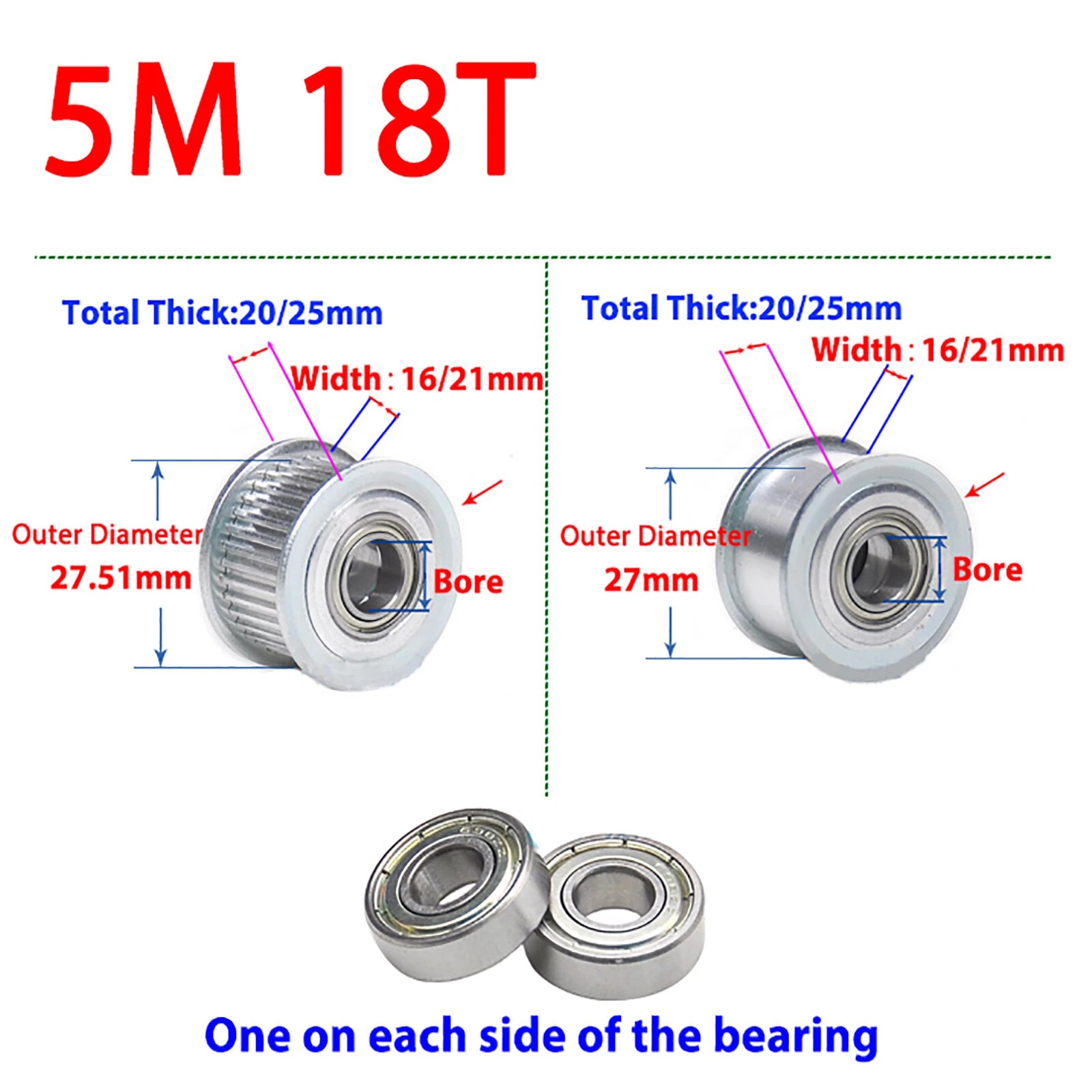

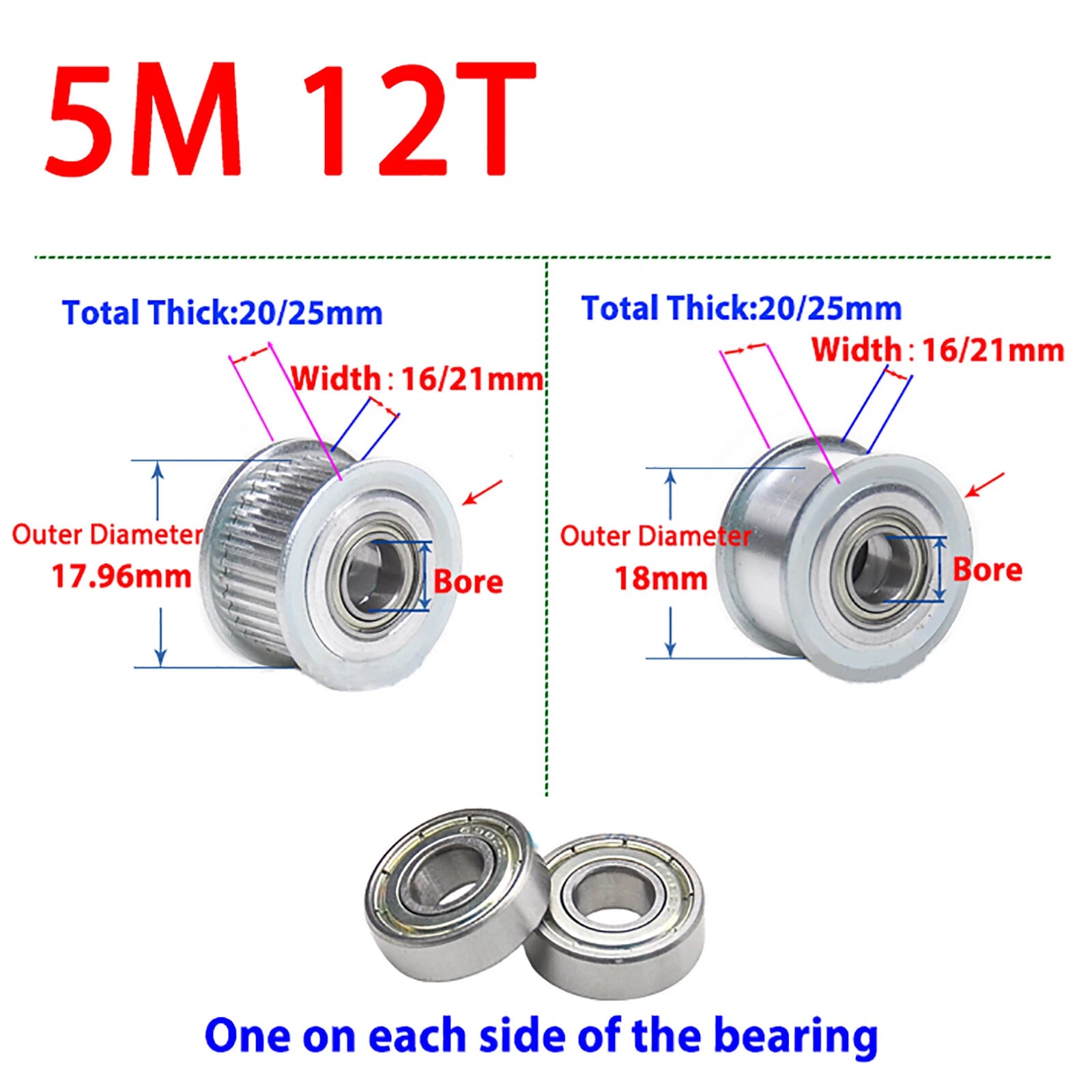

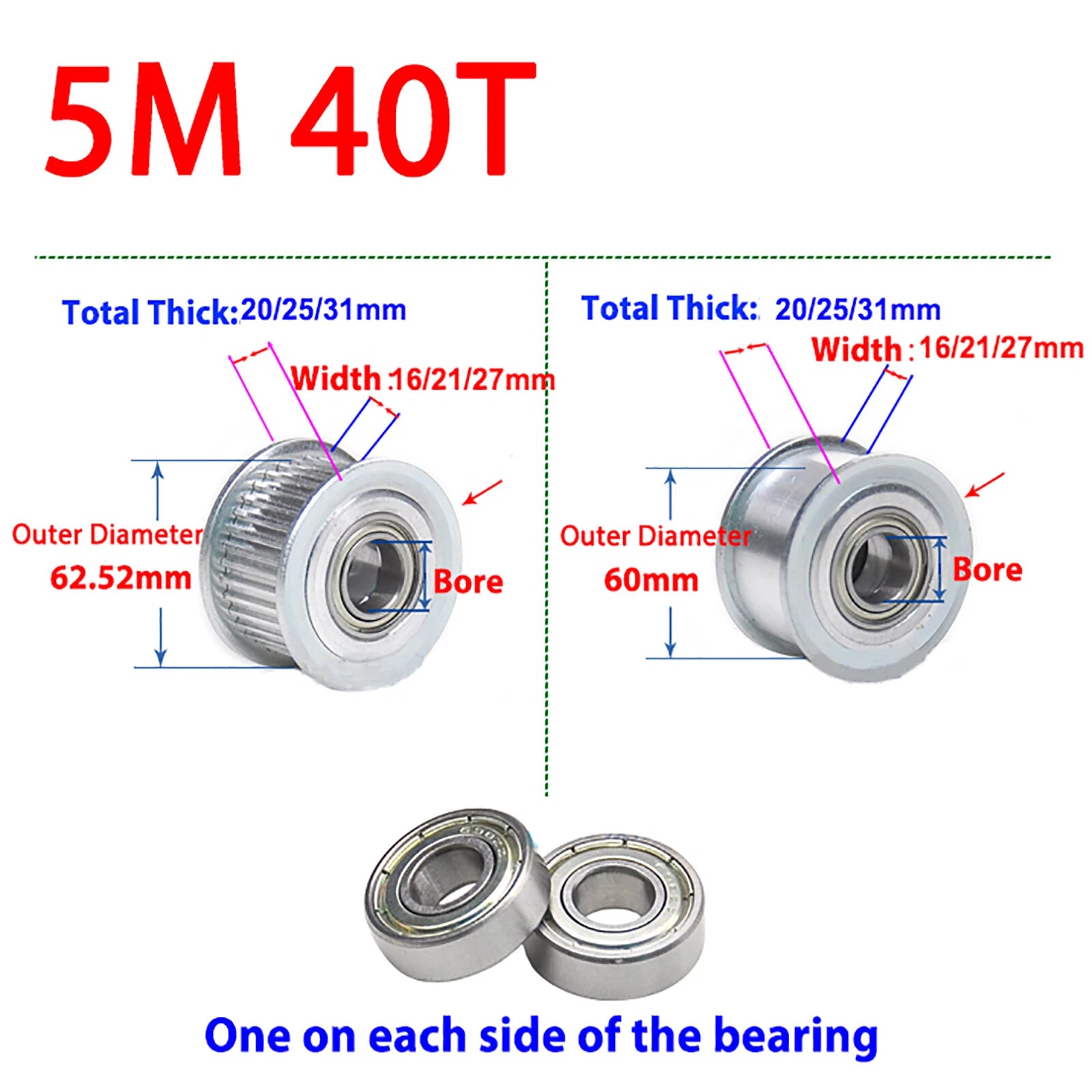

📐 Technical Specifications — 5M Timing Belt Idler Pulley

Belt Type 5M HTD Timing Belt
Tooth Pitch 5 mm
Slot Width (fits belt width) 21 mm (fits 20 mm wide belt)
Tooth Count Options 12T, 15T, 16T, 18T, 20T, 24T, 25T, 30T, 35T, 36T, 40T, 50T
Profile Options Toothless (smooth / back-side tensioner) & Toothed (in-line engagement)
Bore Diameter Options 3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm
Pulley Outer Diameter (approx.) See variant options
Material See variant options
Finish / Color See variant options
Bearing Included Contact us to confirm
Set Screw / Keyway See variant options
Weight See variant options

❓ Frequently Asked Questions

How do I choose between a toothless and a toothed idler pulley?

Choose a toothless (smooth) pulley when the belt wraps around the back (flat) side — this is the standard tensioner configuration in most 3D printers and CNC machines. Choose a toothed pulley when the belt engages the pulley on its toothed face, such as in in-line idler or secondary drive positions where synchronous engagement is required.

Which bore size should I select for my stepper motor shaft?

Match the bore to your shaft diameter. Common stepper motor shaft sizes are 5 mm and 8 mm. For idler axles using M5 bolts, select the 5 mm bore; for M8 bolts or 8 mm shafts, select 8 mm. If your shaft is metric and falls between listed sizes, choose the next size up and use a set screw or shaft collar to secure it.

What tooth count should I use for my belt path?

For tensioner idlers, tooth count affects the pulley's outer diameter and therefore how much belt wrap you achieve. Smaller tooth counts (12T–16T) give a compact pulley suitable for tight spaces; larger counts (30T–50T) provide a larger contact arc. For in-line toothed idlers, match the tooth count to your desired gear ratio or belt path geometry. When in doubt, 20T is a common neutral choice for tensioner applications.

Are these pulleys compatible with standard 5M HTD belts?

Yes. These pulleys are machined to the 5M HTD profile with a 5 mm tooth pitch and a 21 mm slot width, which is the standard fit for 20 mm wide 5M HTD timing belts. They are not compatible with T5, GT2, or other belt profiles — confirm your belt's pitch and width before ordering.

How strong are these pulleys for continuous-duty use?

These pulleys are suited for light-to-medium duty applications such as desktop CNC routers, 3D printers, and small automation rigs. For heavy industrial loads or high-speed continuous-duty cycles, please contact us to confirm the material specification and load rating of the specific variant you need before purchasing.

Do these pulleys include a bearing, and what type is it?

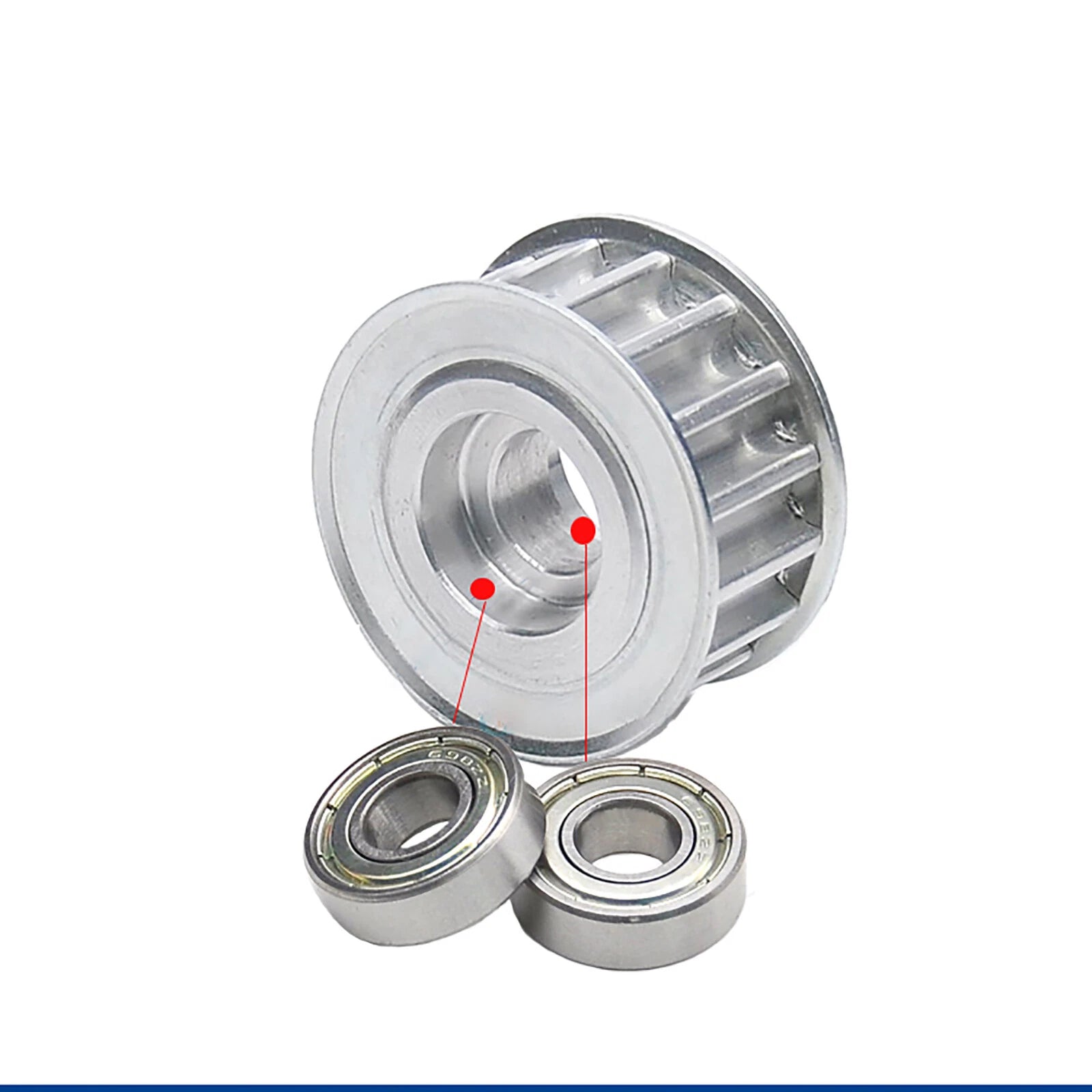

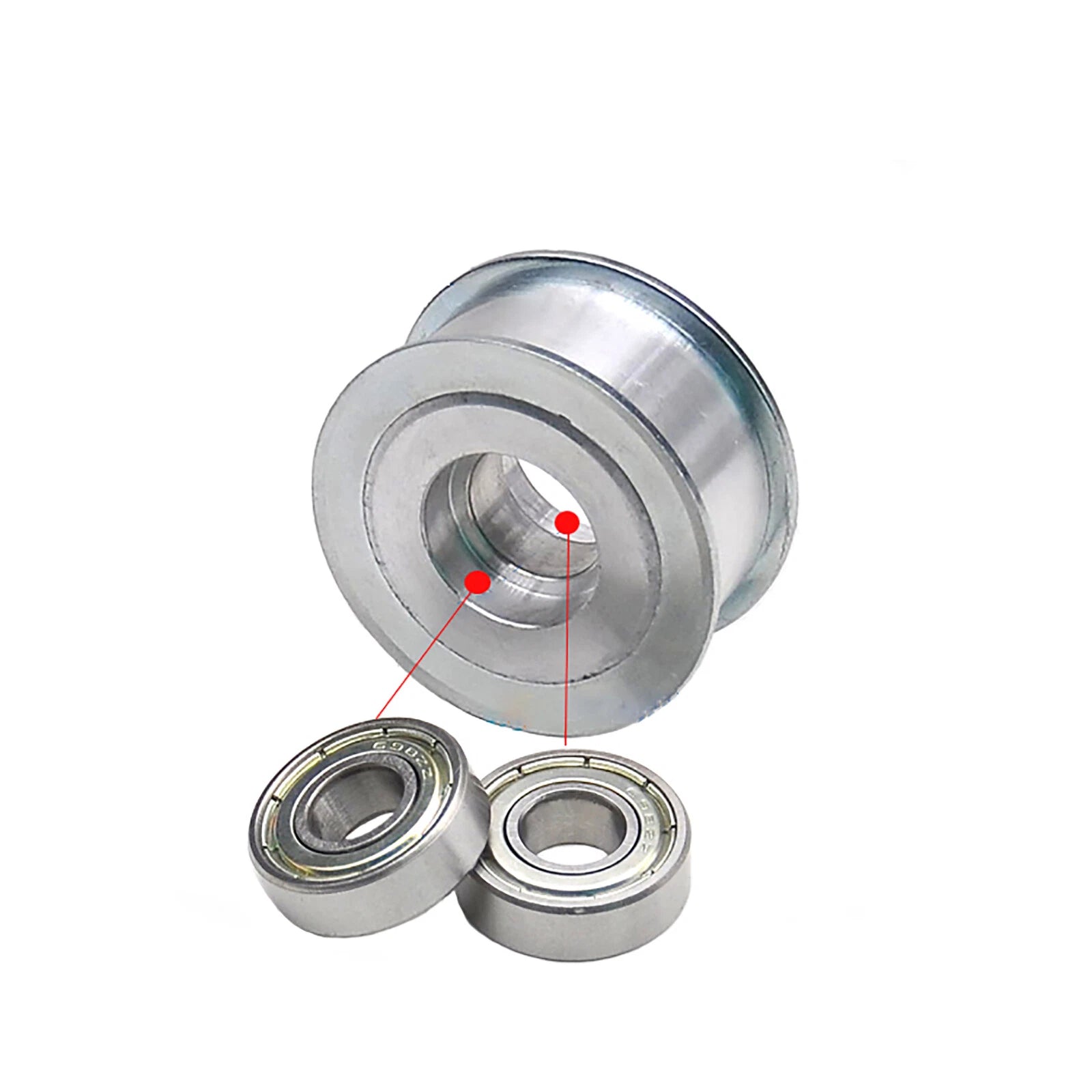

Bearing inclusion varies by variant. Some configurations include a pre-installed radial ball bearing for use as a free-spinning idler; others are solid-bore pulleys intended to be mounted on a fixed shaft. Please check the variant description or contact us to confirm whether a bearing is included for your selected model and bore combination.

Can I use these pulleys in a CoreXY or Cartesian 3D printer?

Yes. The toothless variants are widely used as belt tensioners and direction-change idlers in CoreXY motion systems. The 5M HTD profile is less common in consumer 3D printers (which often use GT2 belts), so confirm your printer uses 5M HTD belts before ordering. If your printer uses a 5M belt system, these pulleys are a direct-fit upgrade.

🛒 Select your model (tooth count / profile) and bore size above, then add to cart.
