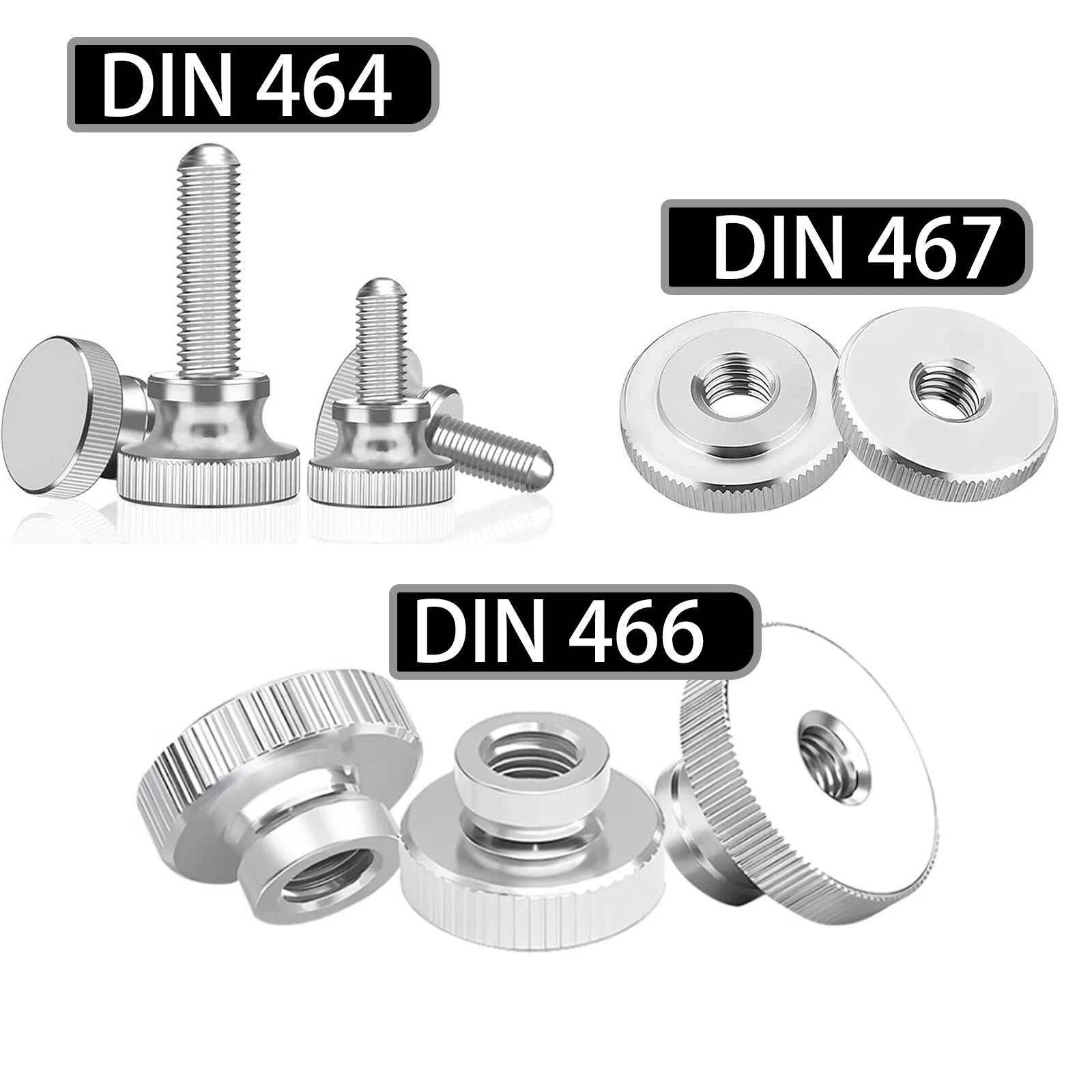

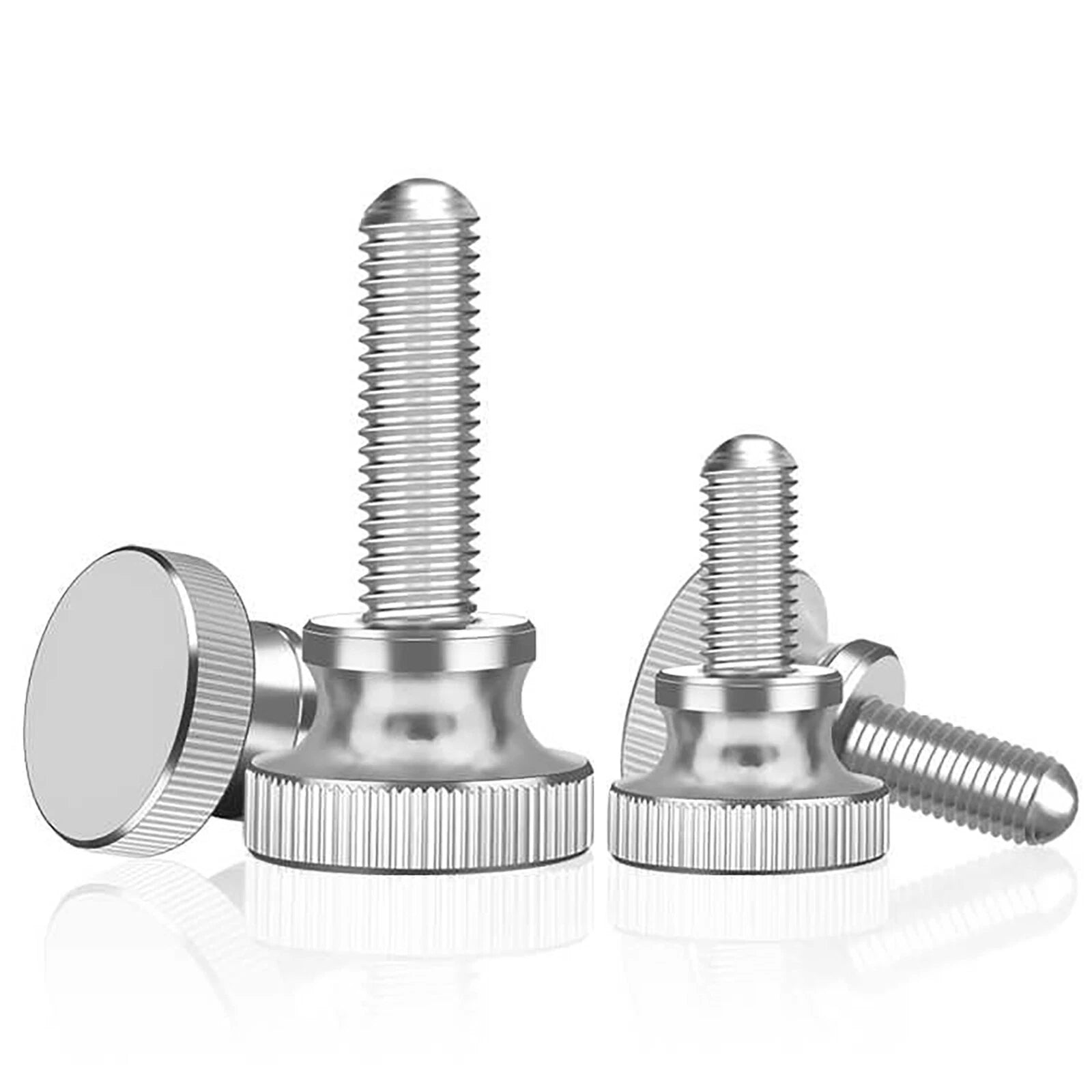

Knurled Thumb Nuts & Screws — Stainless Steel Hand-Grip Knobs, M2 to M10

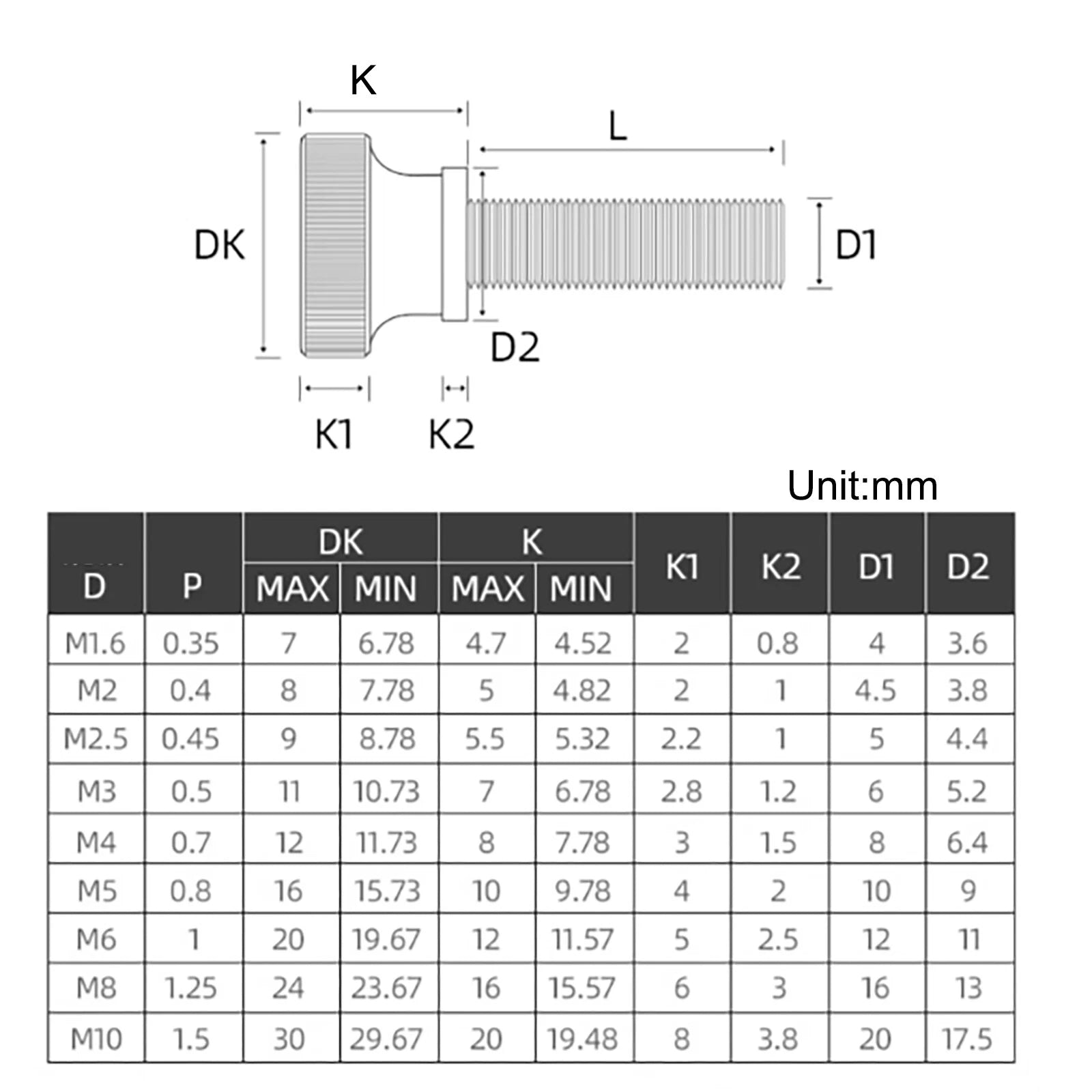

Match the thread size to your mating bolt or threaded insert — for example, M5 thumb nuts pair with M5 bolts. For thumb screws (knobs bolts), also select the length based on your panel or material thickness. As a general rule, the engaged thread length should be at least 1× the thread diameter for steel, and 1.5× for softer materials like aluminum or plastic. For example, an M5 screw threading into aluminum should typically engage at least 7–8mm (≈5/16").

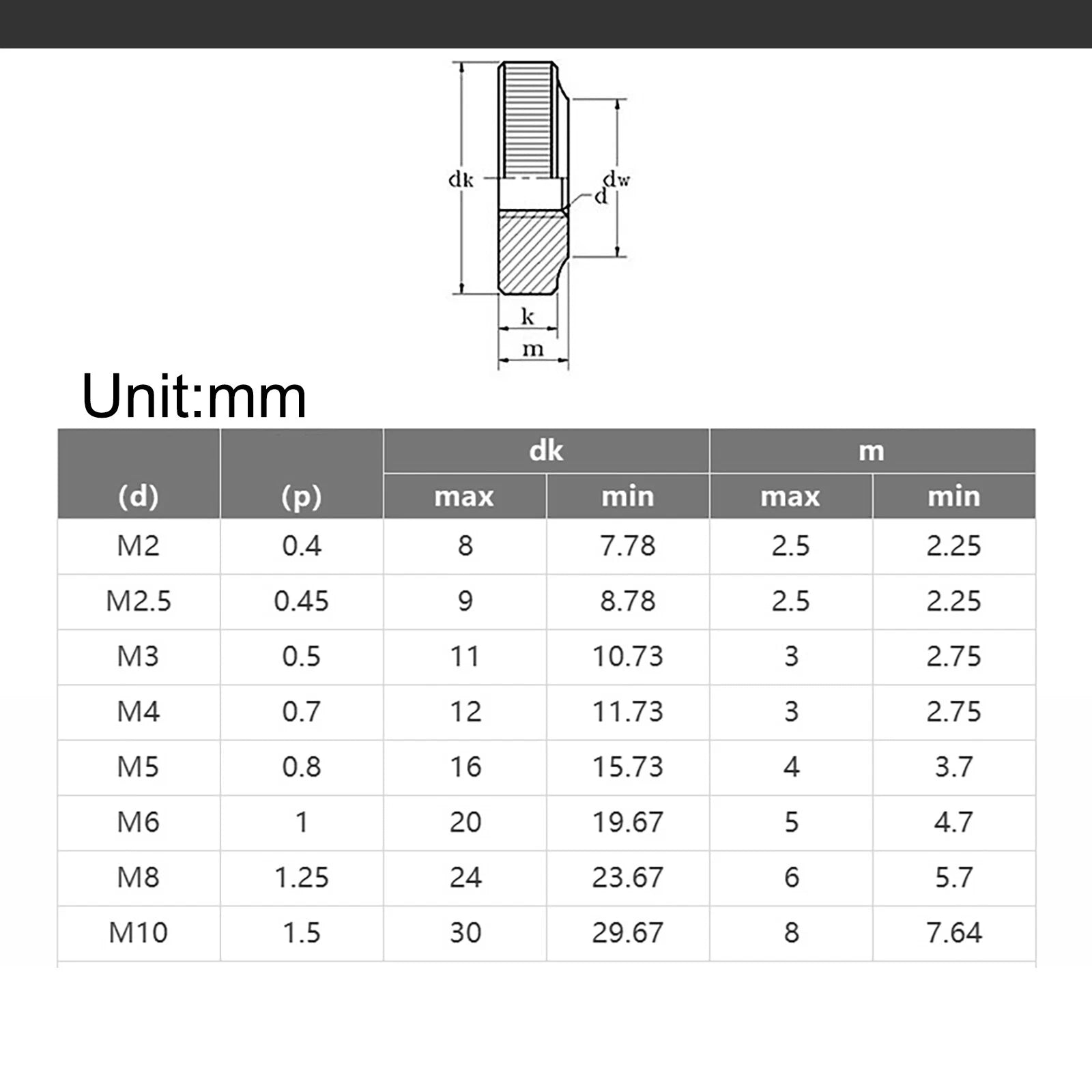

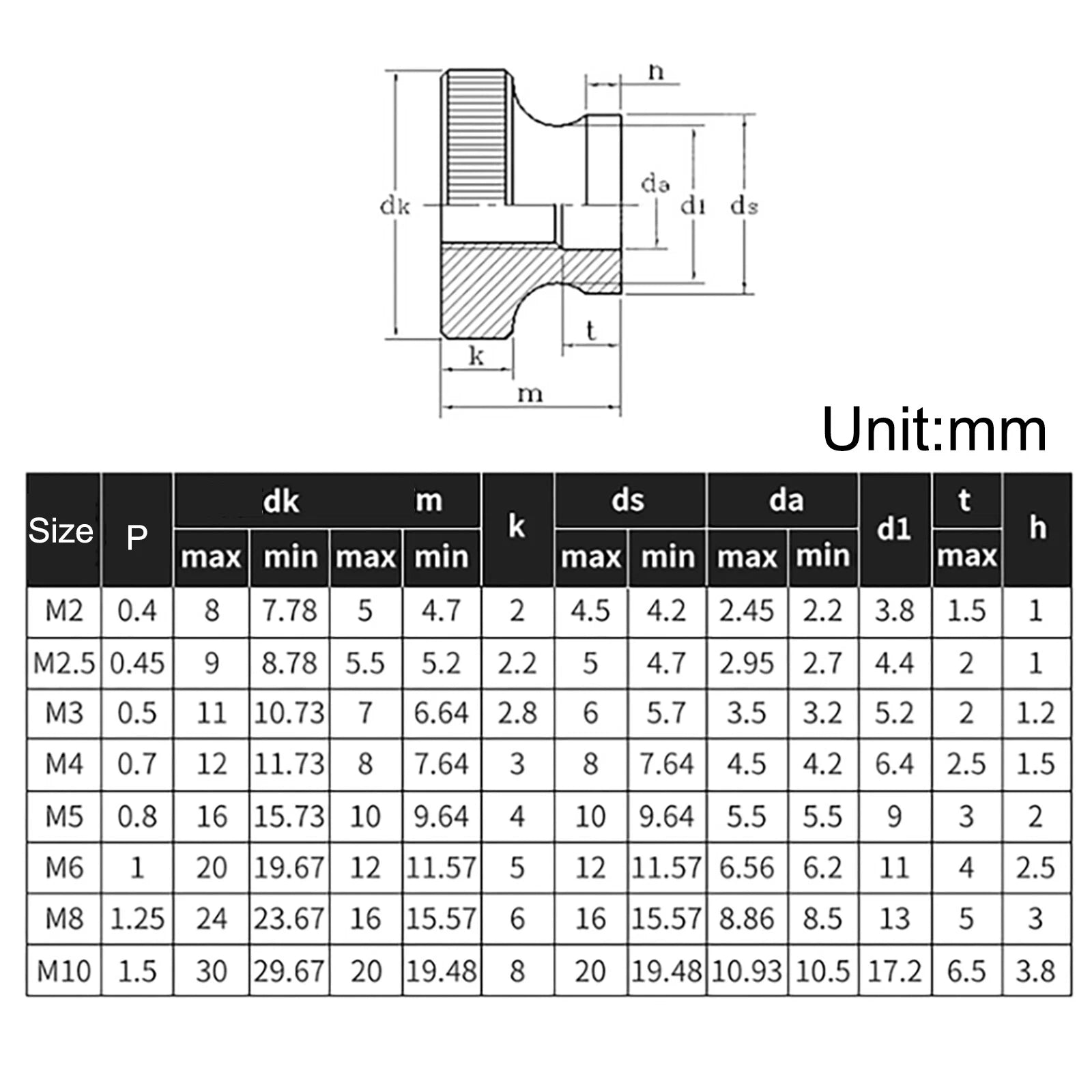

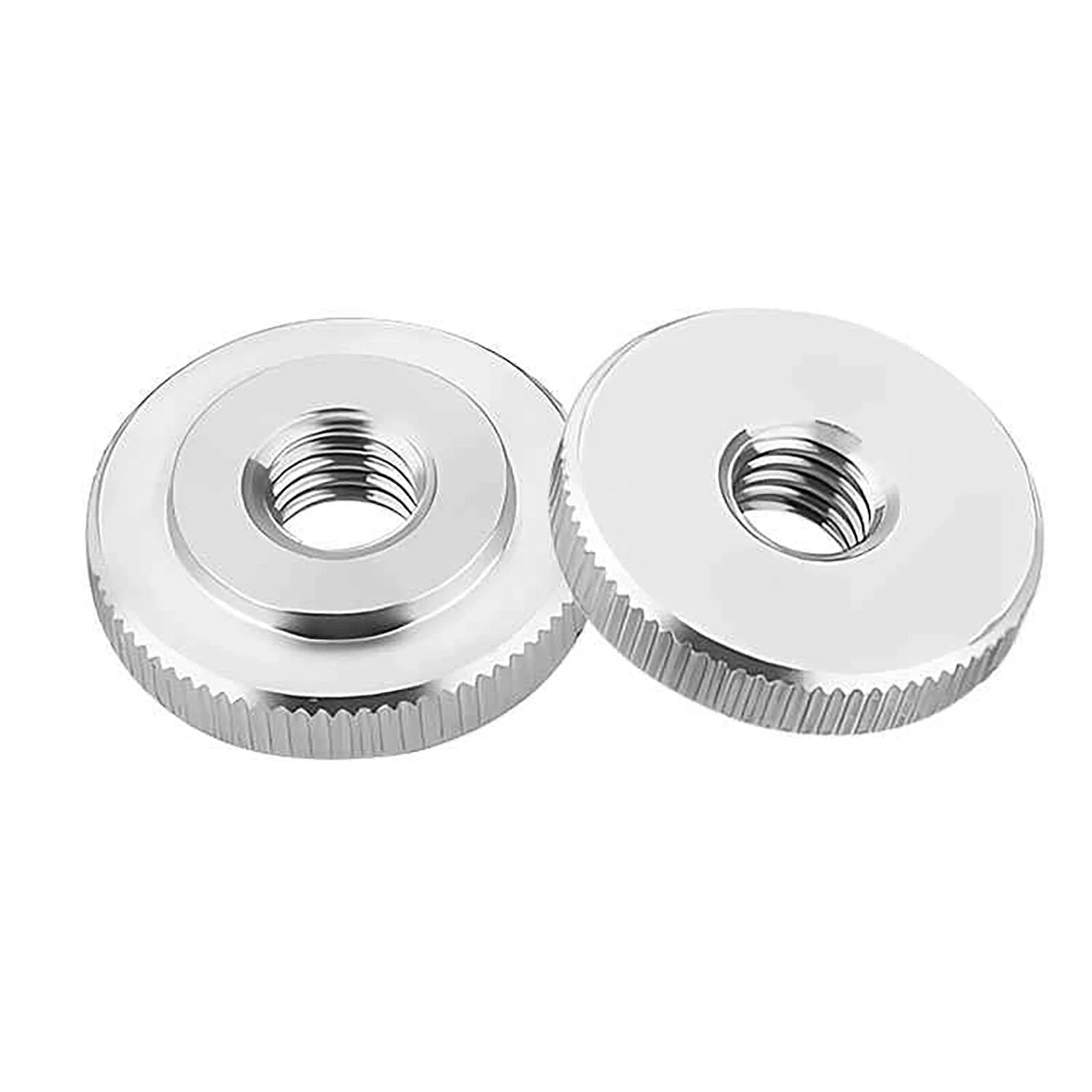

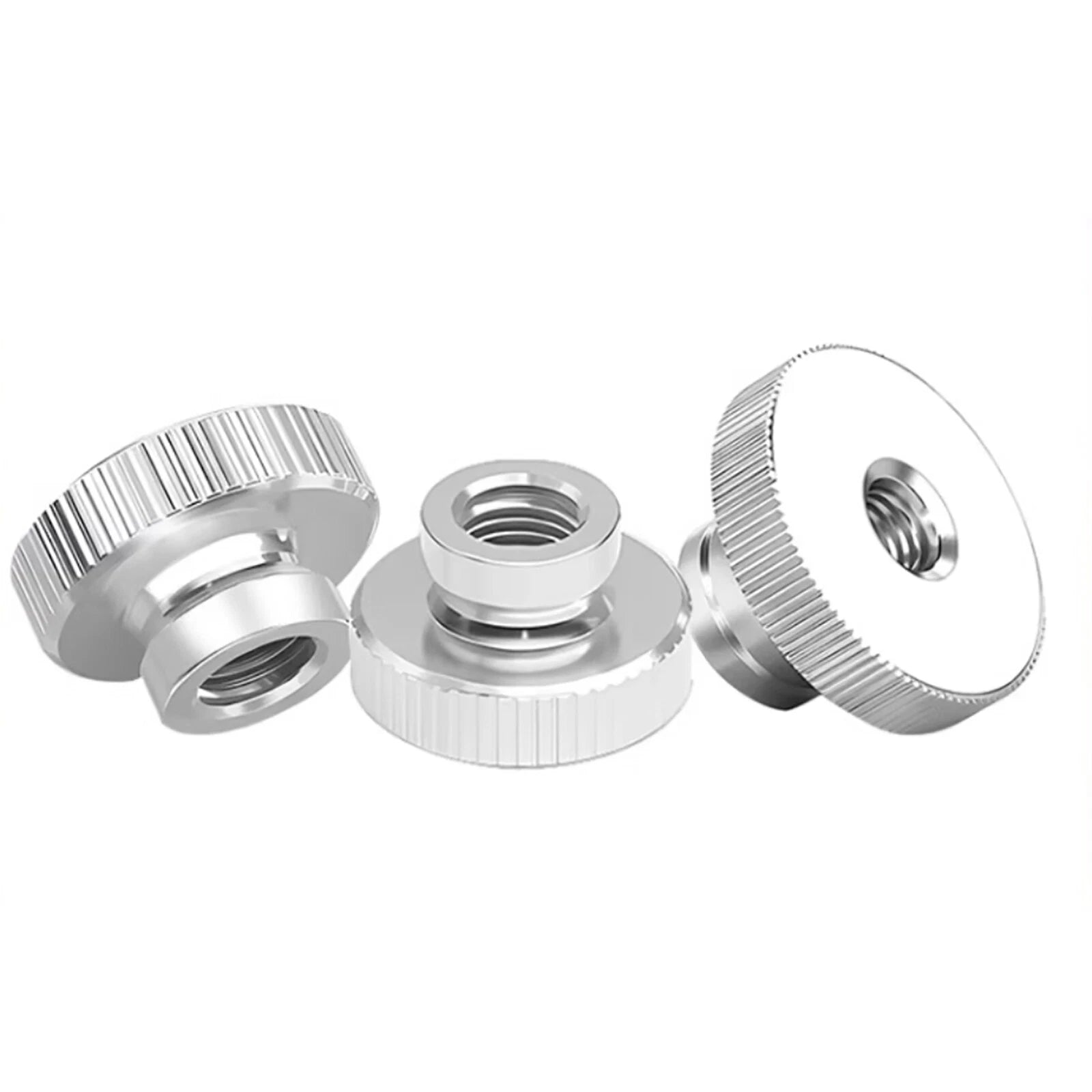

Thumb Nut High has a taller knurled body, providing more grip surface and generally higher hand-torque capacity. Thumb Nut Low has a shorter profile, making it a better fit in space-constrained assemblies where vertical clearance is limited — such as inside enclosures or between stacked PCBs.

Stainless steel (typically A2/304 grade) offers good tensile strength for hand-tightened fasteners. These are designed for tool-free, moderate-load applications — electronics enclosures, inspection panels, 3D printer frames, and similar assemblies. For high-torque or structural load-bearing joints, a tool-driven fastener is generally recommended.

Yes. Stainless steel provides good corrosion resistance and is generally suitable for outdoor, humid, or mildly corrosive environments. For marine or highly corrosive settings, A4/316 stainless is typically preferred — please contact us to confirm the exact grade if this is critical for your application.

Yes. All sizes use standard ISO metric coarse threads (e.g., M5×0.8, M6×1.0), compatible with standard metric bolts, threaded inserts, and tapped holes following ISO 68-1 specifications. They are not compatible with UNC/UNF inch threads.

No tools are required. The knurled outer surface is designed for finger-tightening. This makes them ideal for panels, covers, or components that need to be removed and reinstalled frequently — a common requirement in 3D printer maintenance, electronics prototyping, and DIY enclosure builds.

Common uses include electronics enclosures and server rack panels, 3D printer frame assemblies, laboratory and test equipment covers, DIY project boxes, RC models, and any application requiring frequent tool-free access. They are generally not recommended for high-vibration environments without an additional locking element (e.g., thread-locking compound or lock washer).
