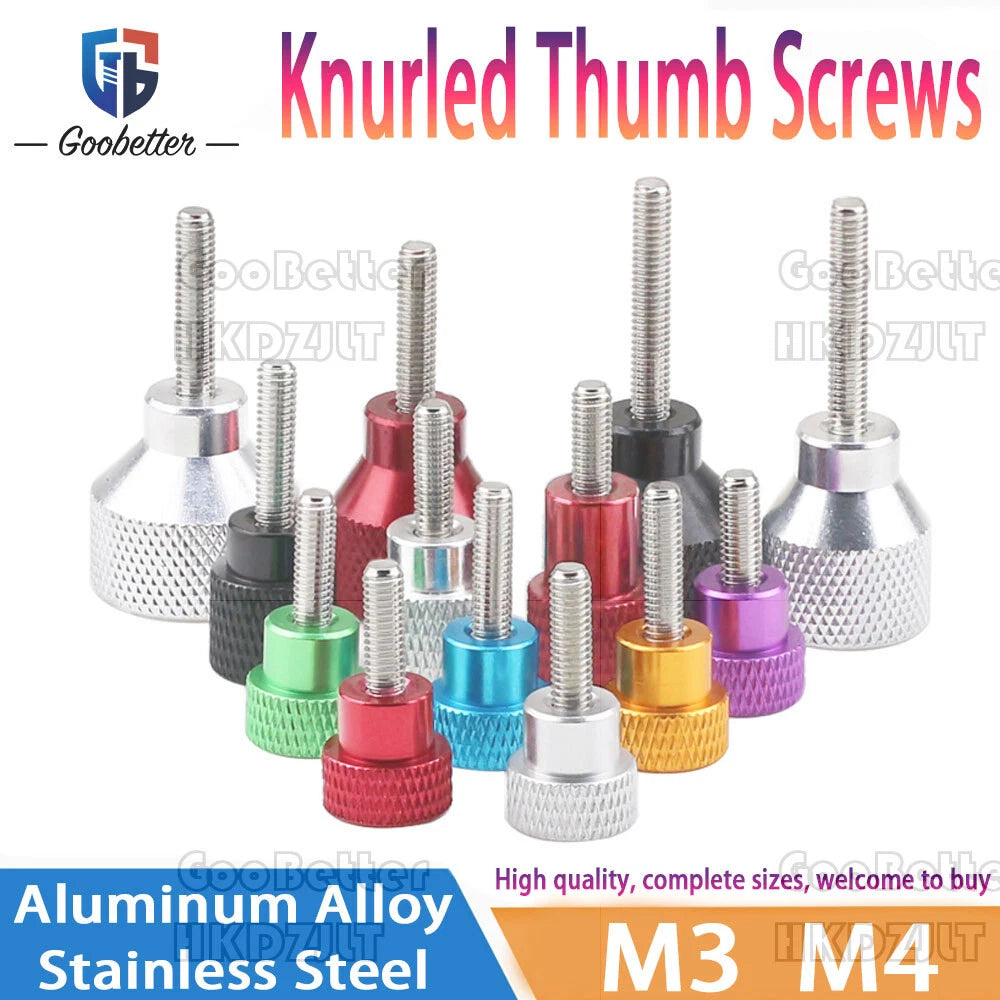

Knurled Thumb Screws M3 & M4 — Tool-Free Fastening for Precision Builds
Anyone who has fumbled for a screwdriver just to open an enclosure panel or adjust a 3D printer door knows the frustration. These knurled thumb screws are built for makers, hobbyists, and technicians who need fast, repeatable hand-tightening without reaching for a tool every time. Whether you're assembling electronics enclosures, RC car bodies, or DIY frames, a reliable hand-grip knob bolt makes the difference between a smooth workflow and a constant headache.

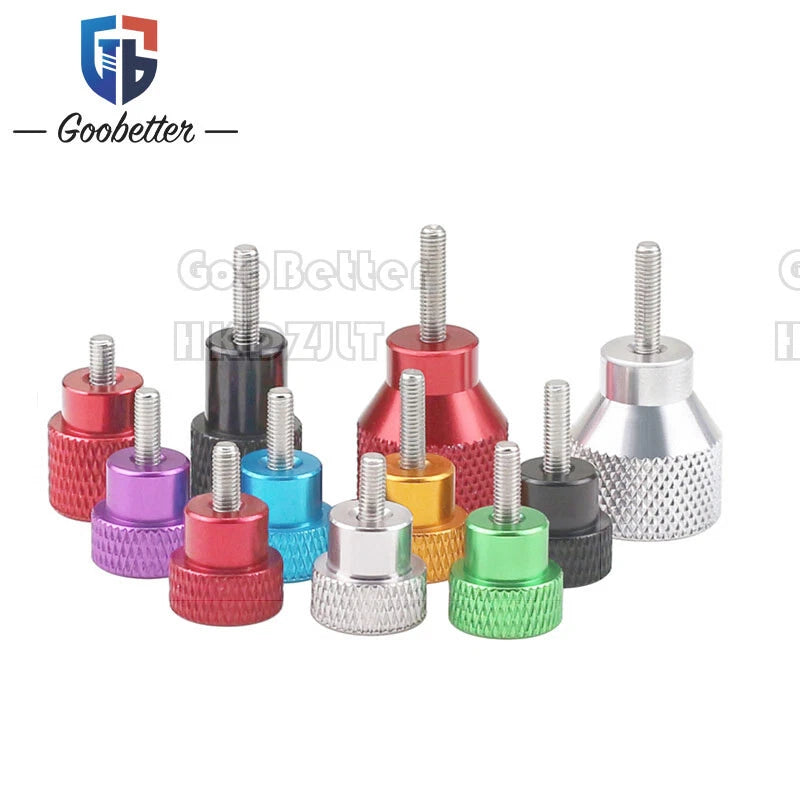

Each screw features a knurled aluminum alloy knob head with a 12mm outer diameter (≈15/32"), available in two knob heights — D12×12 (12mm tall, ≈15/32") and D12×20 (20mm tall, ≈25/32") — for different grip preferences. The threaded shaft is available in M3 and M4 metric sizes, with lengths ranging from 6mm (≈1/4") to 50mm (≈2"). Finish options include anodized Red, anodized Black, and Silver (natural/stainless). Sold individually (1 PCS), in packs of 10, or packs of 20.
Typical use cases include 3D printer enclosure panel mounting (M3 thumb screws for Voron, Prusa, and similar builds), RC car body clips and covers, electronics project boxes and rack panels, laboratory equipment access panels, and light-duty jig and fixture assembly where tool-free adjustment is needed frequently.
🔩
Thread Compatibility: Standard metric threads — M3 (0.5mm pitch) and M4 (0.7mm pitch). Compatible with ISO metric nuts, heat-set inserts, and threaded holes. Not compatible with imperial UNC/UNF threads.
✅ Key Features of These Knurled Thumb Screws
-
✋Deep Knurled Grip — The 12mm diameter knurled head provides firm finger purchase even with slightly oily or gloved hands, making tool-free tightening reliable in workshop conditions.
-

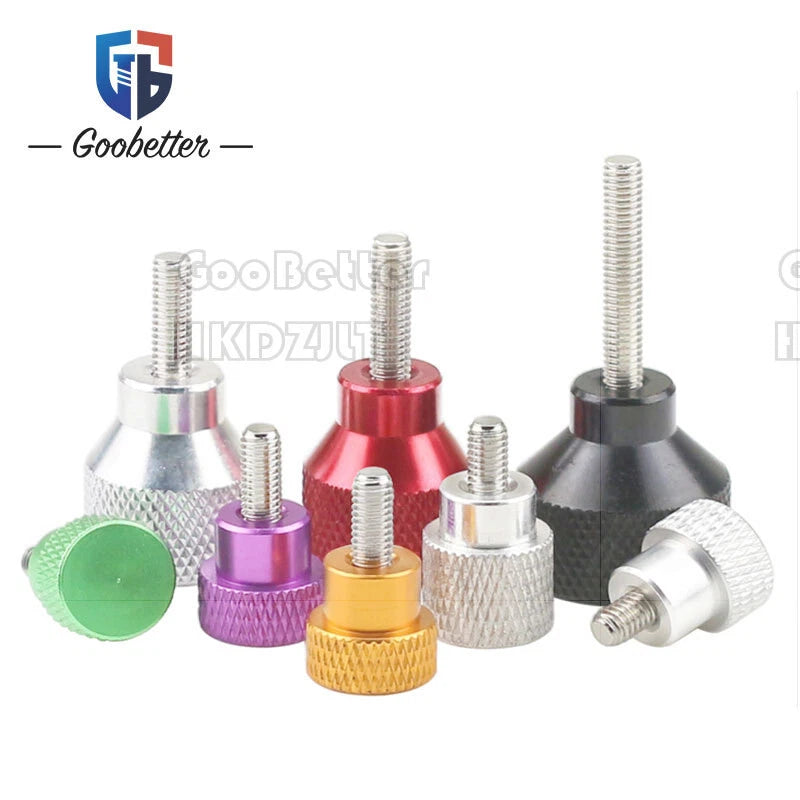

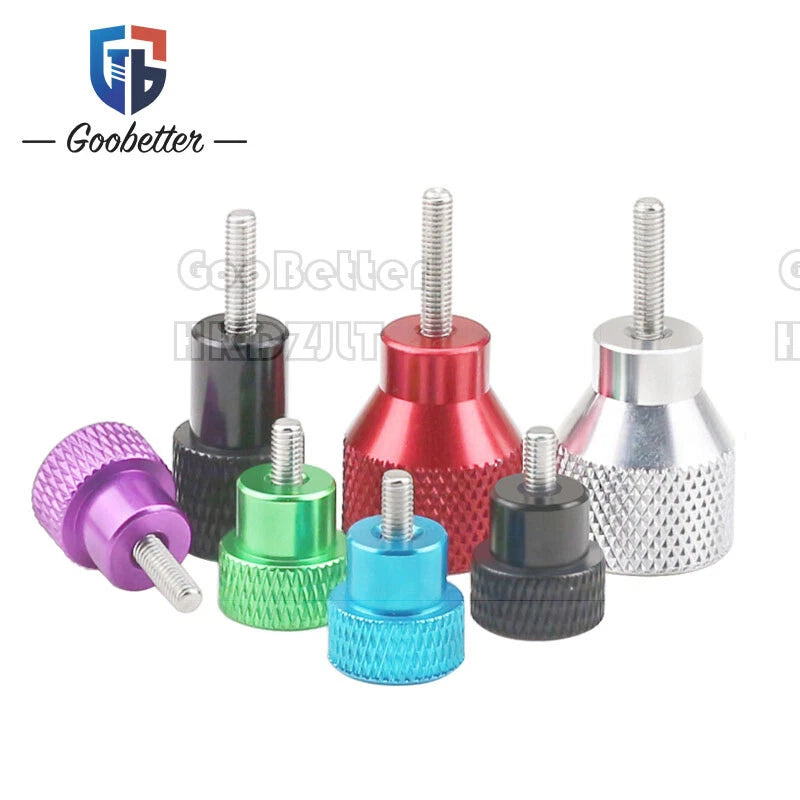

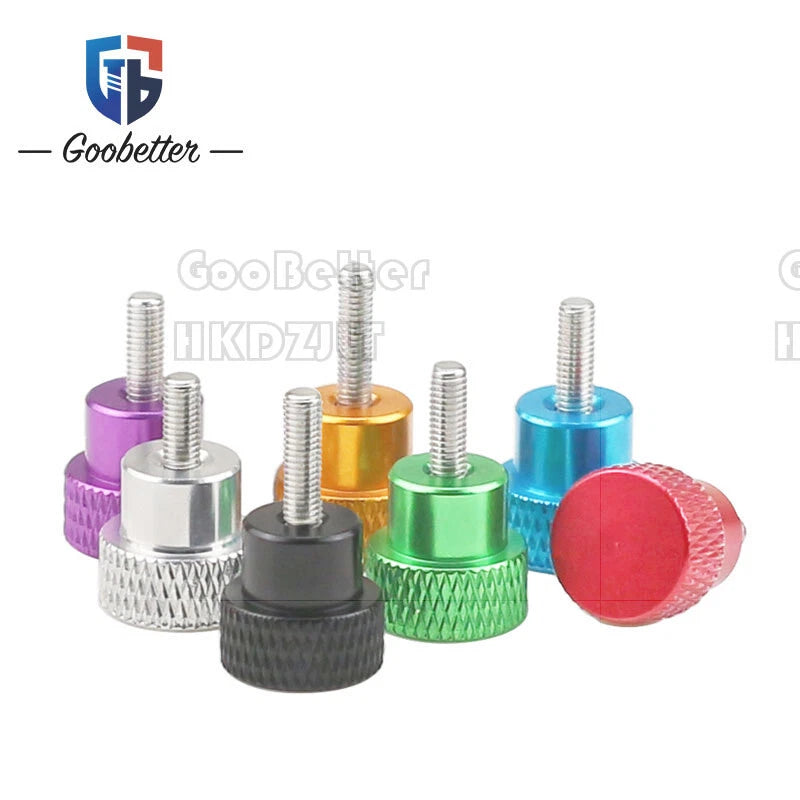

🎨Anodized Color Options — Available in Red, Black, and Silver finishes. Anodizing adds a hard oxide layer that resists scratching and light corrosion while letting you color-code fasteners by function or panel.
-
📐Two Knob Heights — Choose D12×12 for low-profile installations or D12×20 for a taller grip that's easier to turn in recessed or tight-clearance locations.
-
🔗Metric Thread Precision — M3 and M4 threads conform to ISO 68-1 standards, ensuring consistent fit with metric nuts, threaded inserts, and tapped holes used in 3D printer frames, electronics enclosures, and aluminum extrusion builds.
-
📦Flexible Pack Sizes — Order 1 PCS to test fit, 10 PCS for a single project, or 20 PCS for bulk builds and restocking your parts bin — all from the same listing.
-
⚖️Lightweight Aluminum Alloy Knob — The aluminum knob keeps overall fastener weight low, which matters in weight-sensitive applications like RC vehicles and portable enclosures where every gram counts.
📐 Technical Specifications — Knurled Thumb Screw Knob Bolts
| Product Type |
Knurled Thumb Screw / Hand Grip Knob Bolt |
| Thread Standard |
Metric ISO (M3, M4) |
| Thread Sizes |
M3, M4 |
| Thread Pitch |
M3: 0.5mm | M4: 0.7mm |
| Screw Lengths |
6mm (≈1/4") — 50mm (≈2"); see variant options |
| Knob Outer Diameter |
12mm (≈15/32") |
| Knob Height Options |
12mm (≈15/32") or 20mm (≈25/32") |
| Knob Material |
Aluminum Alloy (anodized) |
| Shaft Material |
See variant options / Contact us to confirm |
| Surface Finish |
Anodized Red, Anodized Black, Silver (natural/stainless) |
| Drive Type |
Hand-tightened (knurled knob, no tool required) |
| Pack Quantities |
1 PCS, 10 PCS, 20 PCS |
| Compatible Standards |
ISO 68-1 metric thread profile |
⚠️
Sizing Note: Screw length is measured from the underside of the knob head to the tip of the shaft. Verify your required thread engagement depth before selecting a length. If you need a specific material confirmation (aluminum vs. stainless shaft), contact us before ordering.
❓ Frequently Asked Questions
How do I choose the right length for my thumb screw?
Measure the total thickness of the material you need to clamp or fasten, then add 2–3 thread diameters for adequate engagement. For example, if your panel is 8mm (≈5/16") thick, an M3 x 10mm or M3 x 12mm screw generally works well. When in doubt, size up — a slightly longer screw is easier to use with a washer than a short one that strips out. Length is measured from the underside of the knob to the tip of the shaft.
What is the load-bearing capacity of these thumb screws?
Thumb screws are designed for hand-tightened, low-torque applications — they are generally not intended for high-load structural joints. They are typically sufficient for light panels, covers, enclosures, and access doors. If higher clamping force is required, a tool-driven fastener is a better choice. Contact us to confirm suitability for your specific application.
Can these be used outdoors or in humid environments?
The Silver (stainless steel) variants offer better corrosion resistance and are generally suitable for occasional outdoor or humid-environment use. Anodized aluminum variants (Red, Black) may oxidize over time when exposed to prolonged moisture. For long-term outdoor installations, stainless steel is the recommended choice. Contact us to confirm material for your specific variant before ordering.
What thread standard do these use — metric or imperial?
These thumb screws use standard metric threads: M3 (0.5mm pitch) and M4 (0.7mm pitch), conforming to ISO 68-1. They are compatible with standard metric nuts, heat-set inserts, and tapped holes. They are not compatible with imperial UNC or UNF threads. If you need imperial sizing, contact us.

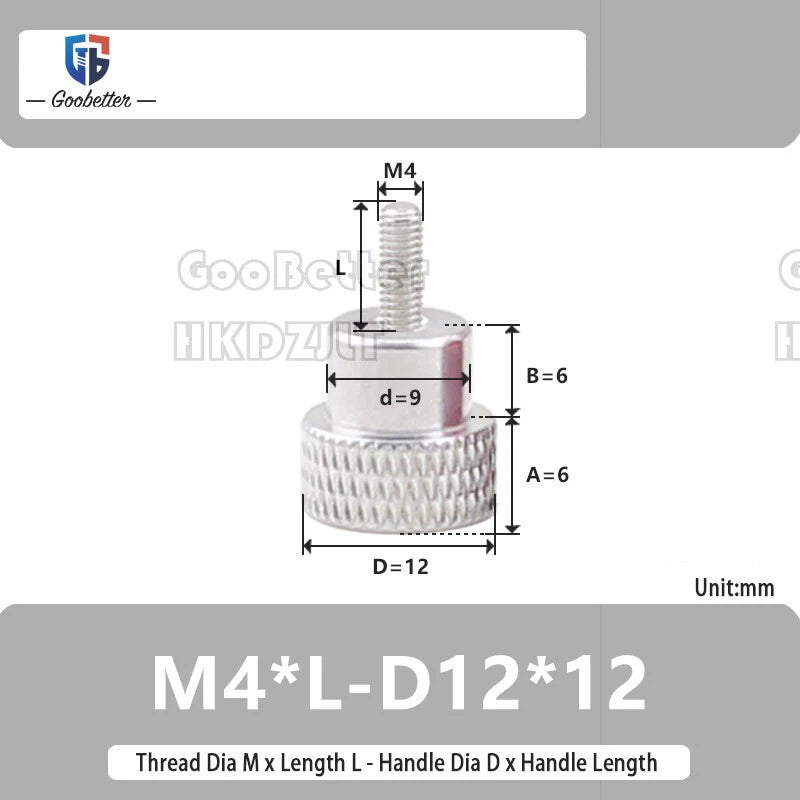

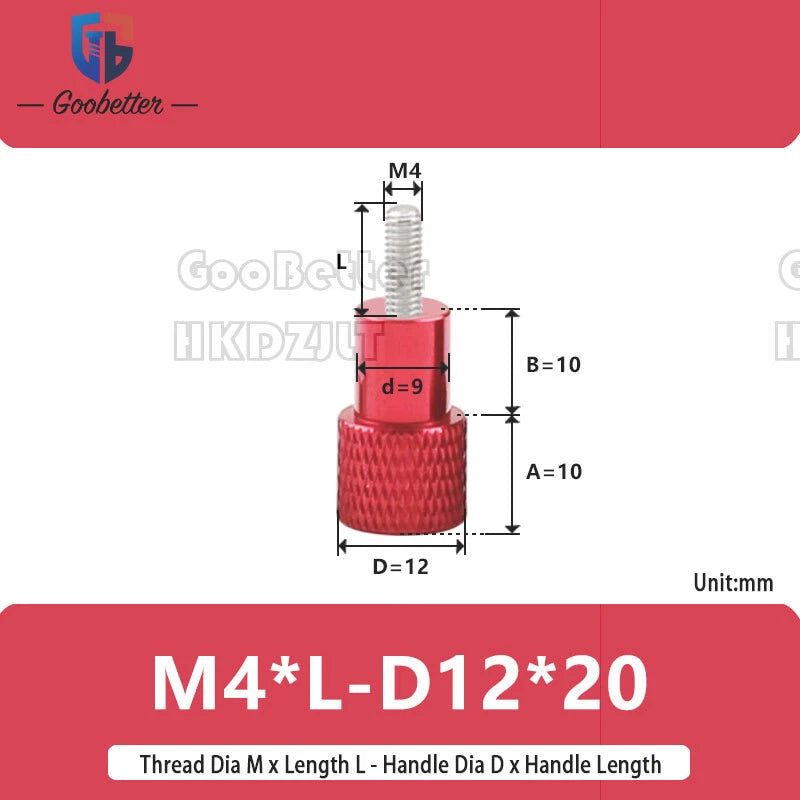

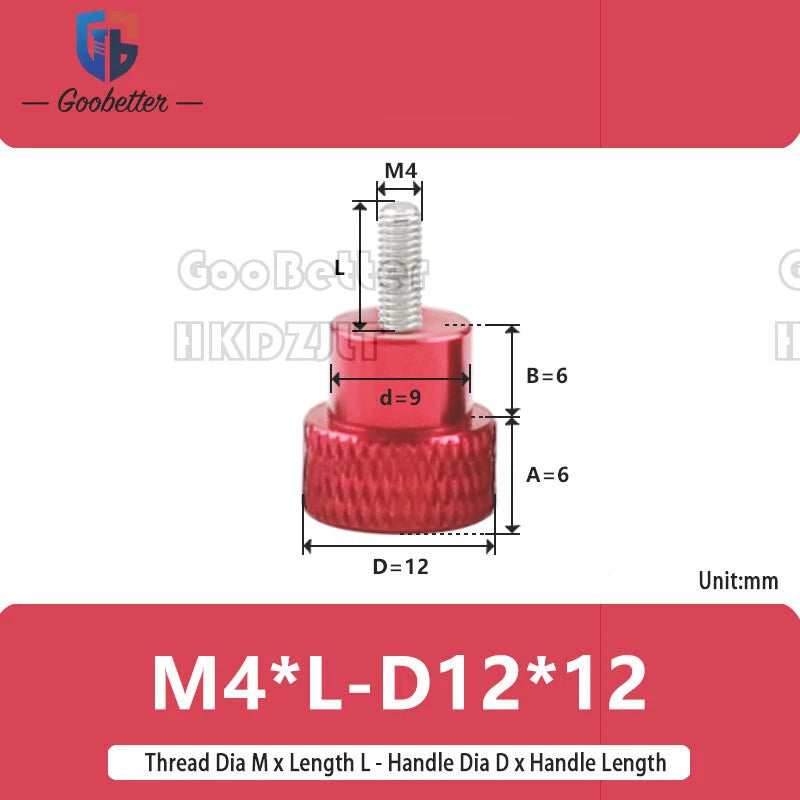

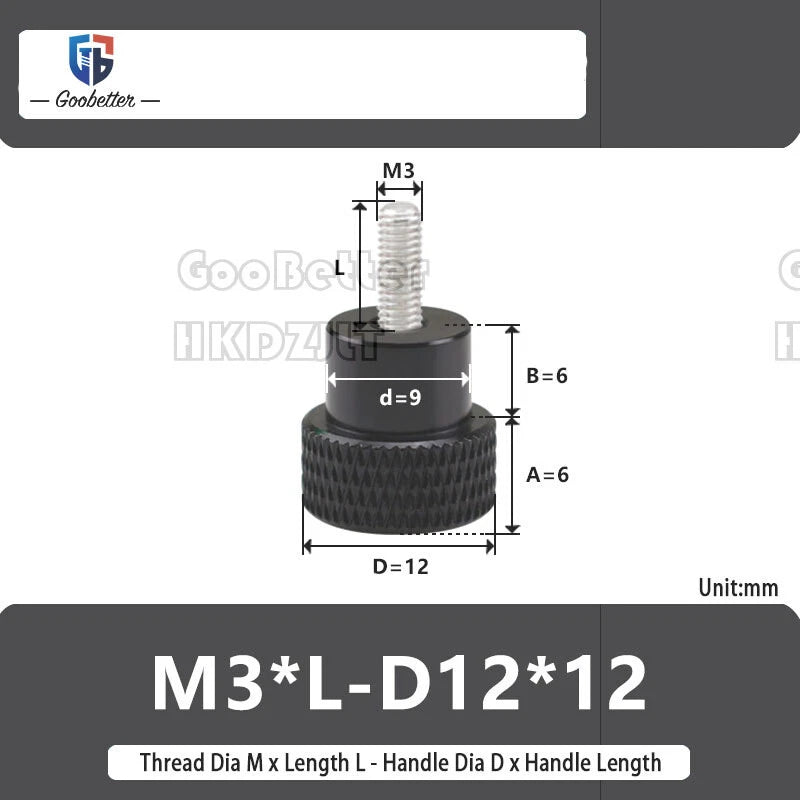

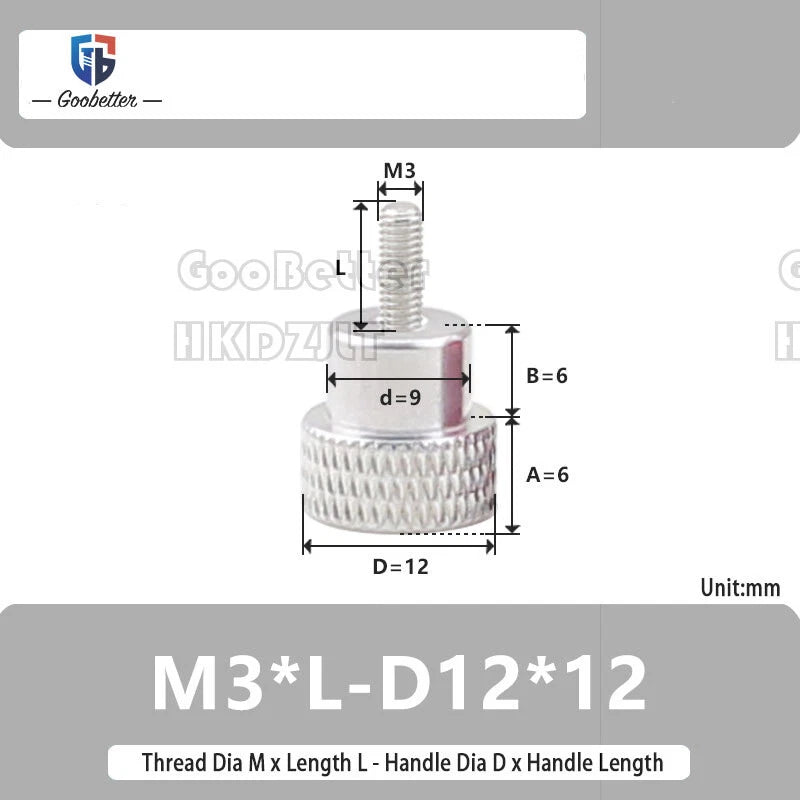

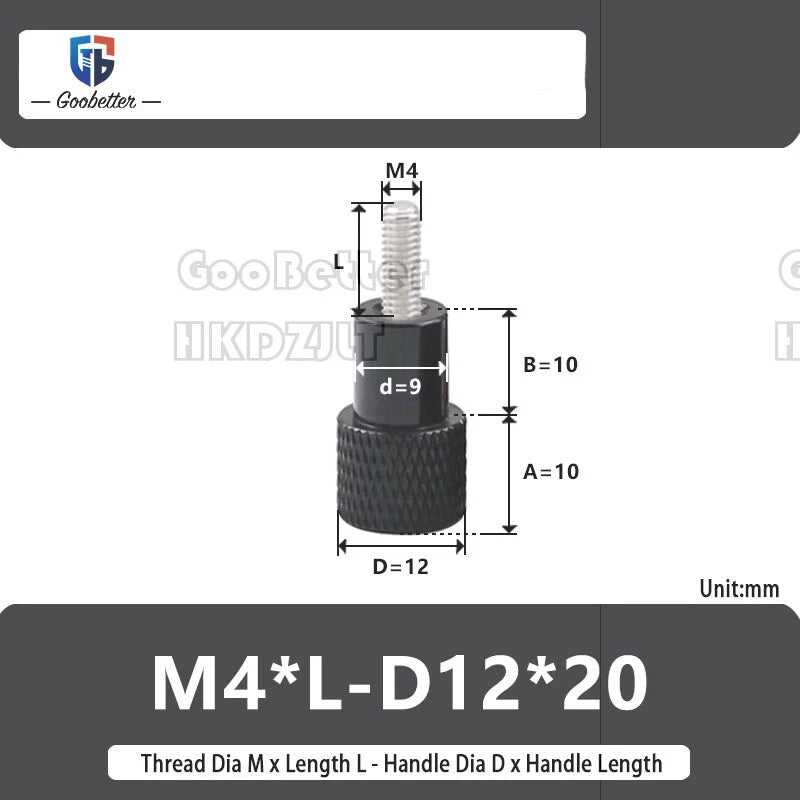

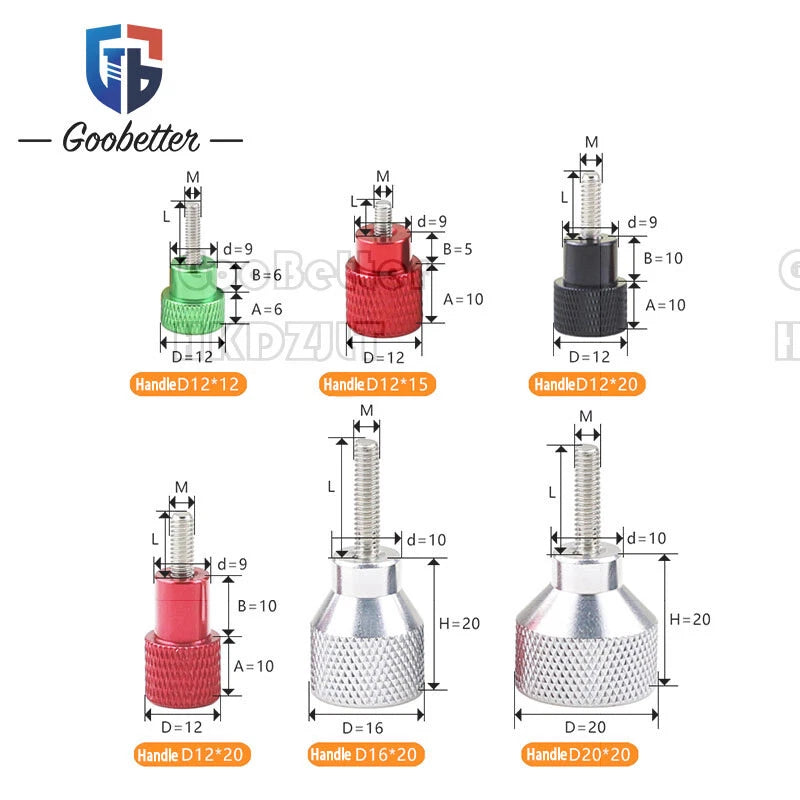

What does the handle size (D12 x 12 or D12 x 20) mean?
The handle designation describes the knob dimensions. D12 is the outer diameter of the knurled grip head — 12mm (≈15/32"). The second number is the knob height: 12mm (≈15/32") for the shorter knob, or 20mm (≈25/32") for the taller knob. A taller knob (D12×20) provides more grip surface and is easier to turn in recessed locations or when wearing gloves.
Are these compatible with 3D printer frames and enclosures?
Yes — M3 thumb screws are widely used in 3D printer builds for attaching panels, doors, and covers on enclosures like the Voron, Prusa, and similar designs. M3 x 6mm to M3 x 16mm lengths are typically the most common for panel mounting. Always verify the thread depth of your specific frame extrusion or insert before ordering.
Do the color options (Red, Black, Silver) affect strength or material?
The Red and Black options are anodized aluminum alloy knobs. Anodizing adds a thin, hard oxide layer that improves surface hardness and light corrosion resistance without significantly affecting mechanical strength. Silver is typically the natural aluminum or stainless steel finish. The anodized finish does not affect thread dimensions or compatibility.
🛒 Select your thread size, length, color, and quantity above, then add to cart — ships from our US warehouse.
