When you need a fastener you can tighten and release by hand — without reaching for a wrench — standard bolts slow you down. These M8 knurled thumb screws with step hand grip knob are designed for makers, hobbyists, and workshop professionals who need fast, repeatable, tool-free adjustments on panels, enclosures, jigs, and equipment covers.

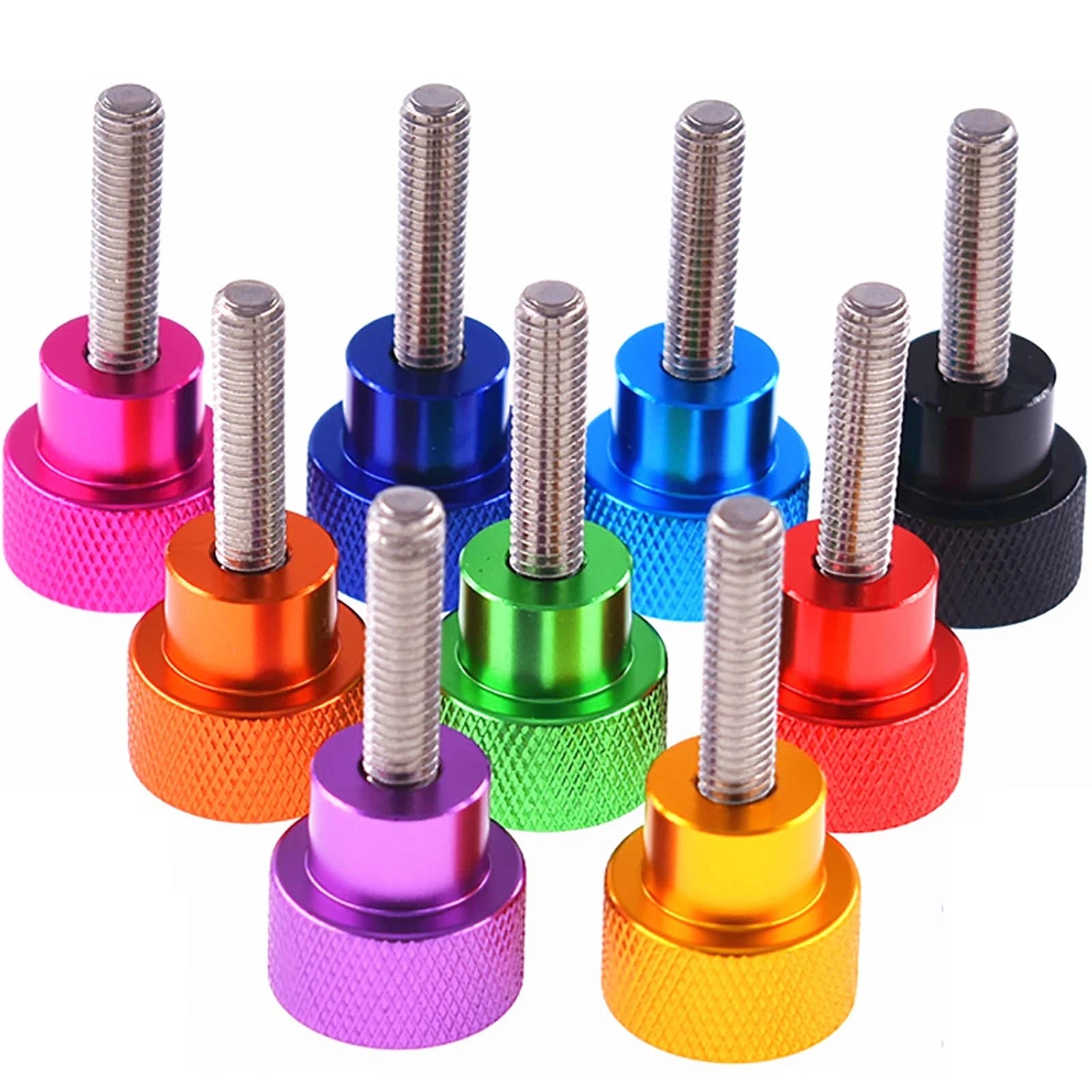

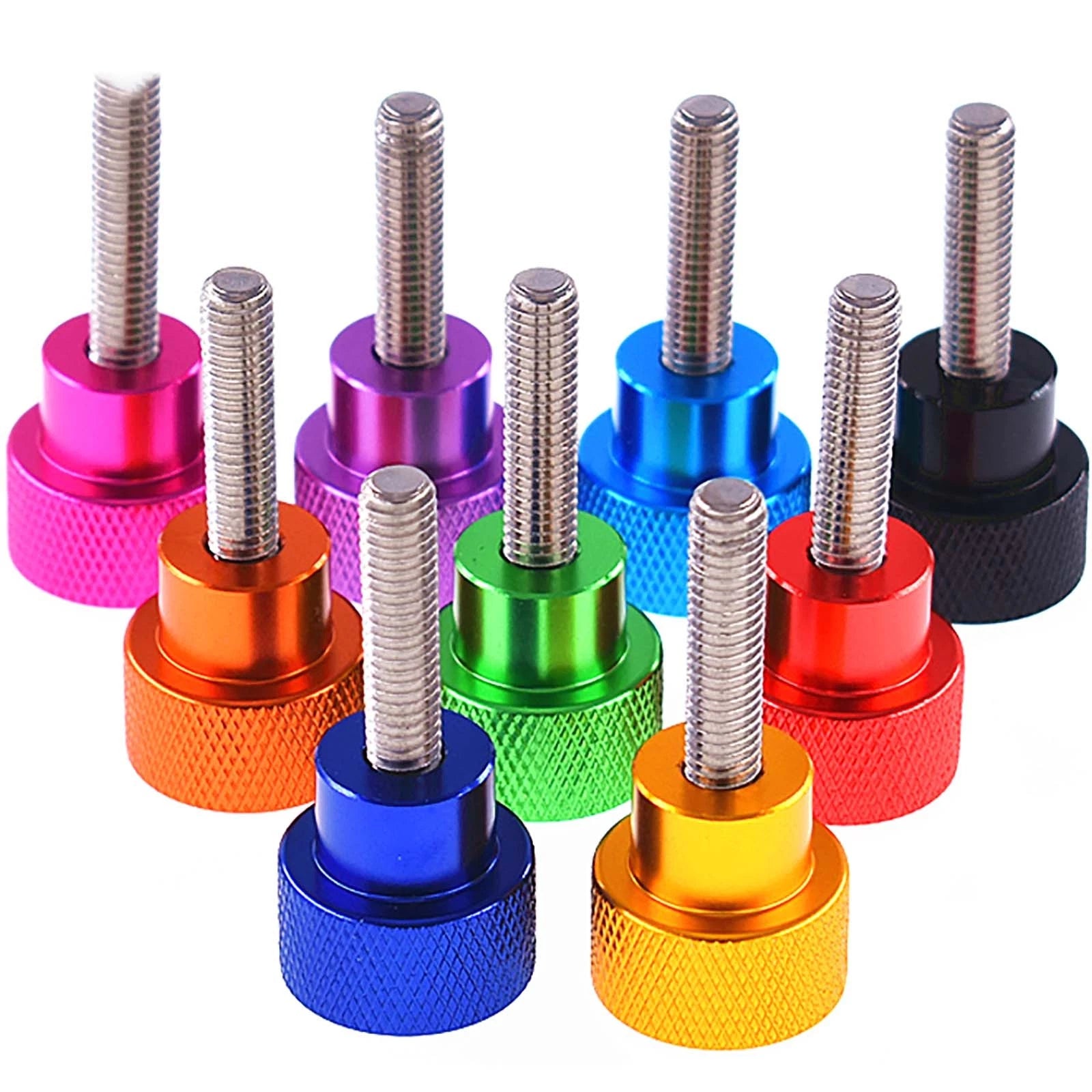

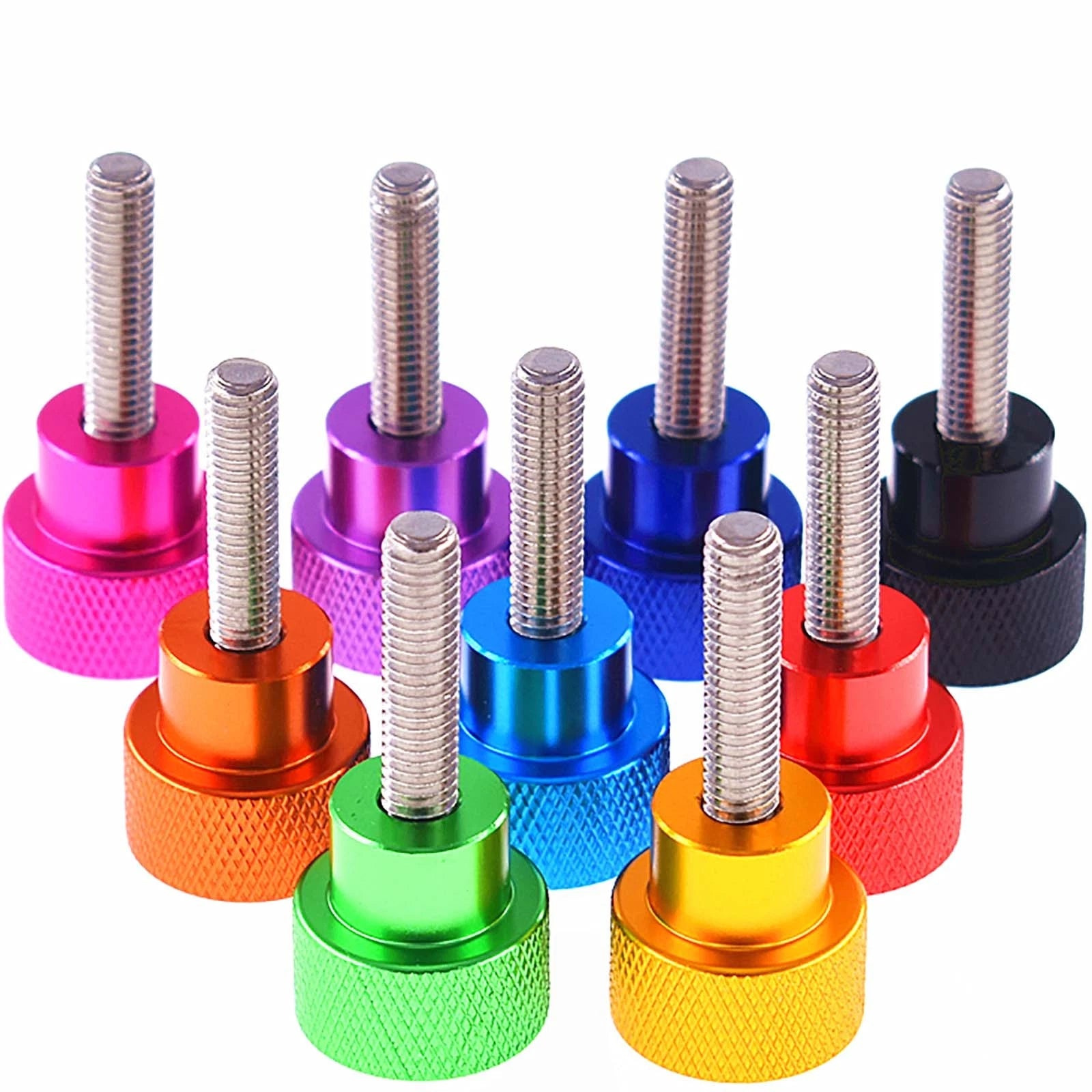

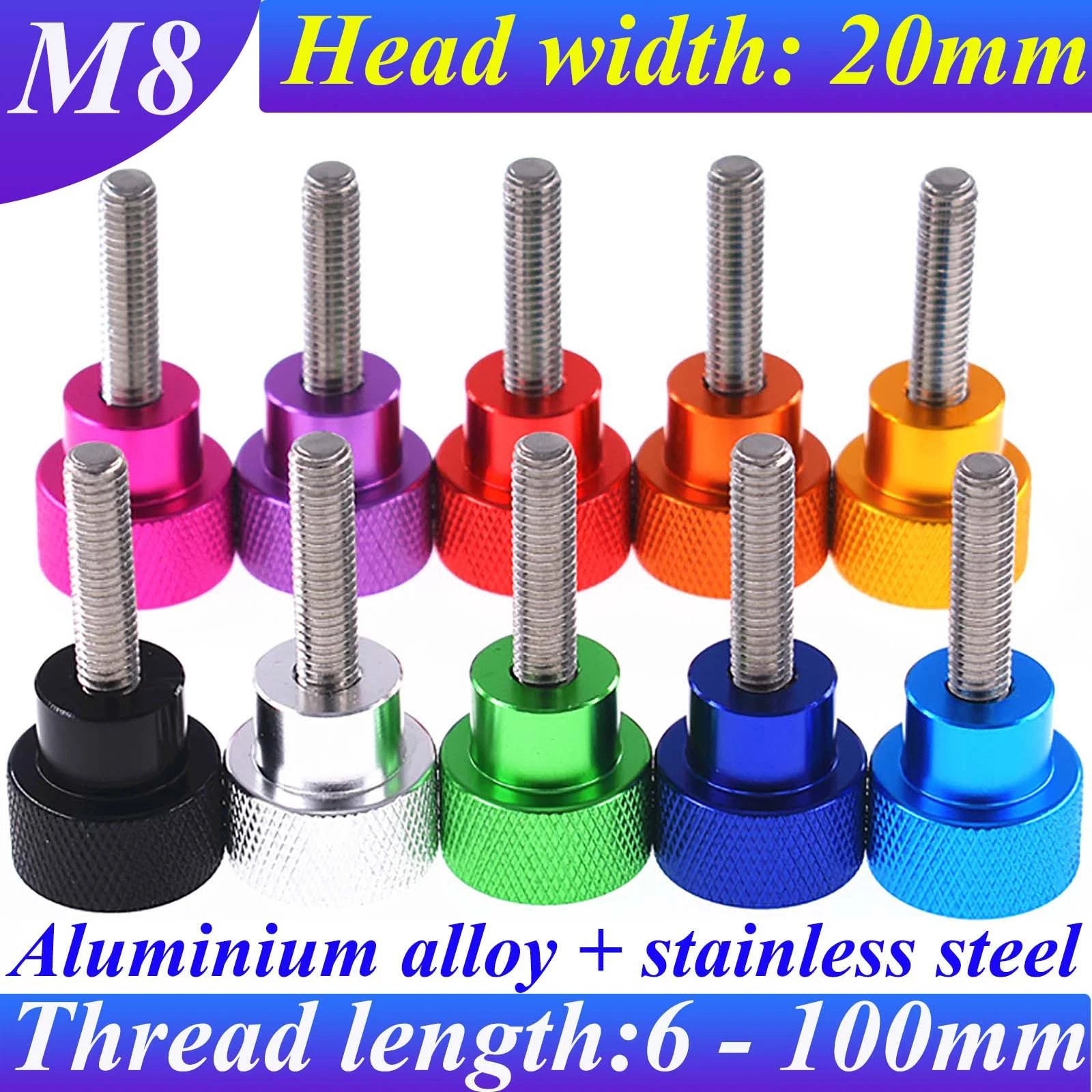

Each screw features a round knob head machined from aluminium alloy with a deeply knurled step grip surface, paired with a stainless steel M8 threaded shank. The head diameter is 20mm, and the threaded length ranges from 6mm to 100mm (approximately 0.24 in to 3.94 in), covering a wide range of clamping depths. Available in 10 anodized colors for color-coded organization or aesthetic matching.
Typical applications include 3D printer frame assembly requiring frequent bed-level adjustments, CNC machine guard panels needing tool-free removal, electronics enclosure access covers, and custom jig fixtures in small-batch manufacturing where hand-tightening speed matters.
The stepped, deeply knurled 20mm round knob provides secure finger purchase even with gloves or oily hands, reducing slip during tightening.
Aluminium alloy knob keeps weight low while the stainless steel shank delivers corrosion resistance and thread durability under repeated use.
Available from M8 × 6mm to M8 × 100mm (0.24"–3.94") in 23 size steps, so you can match the exact clamping depth your application requires.

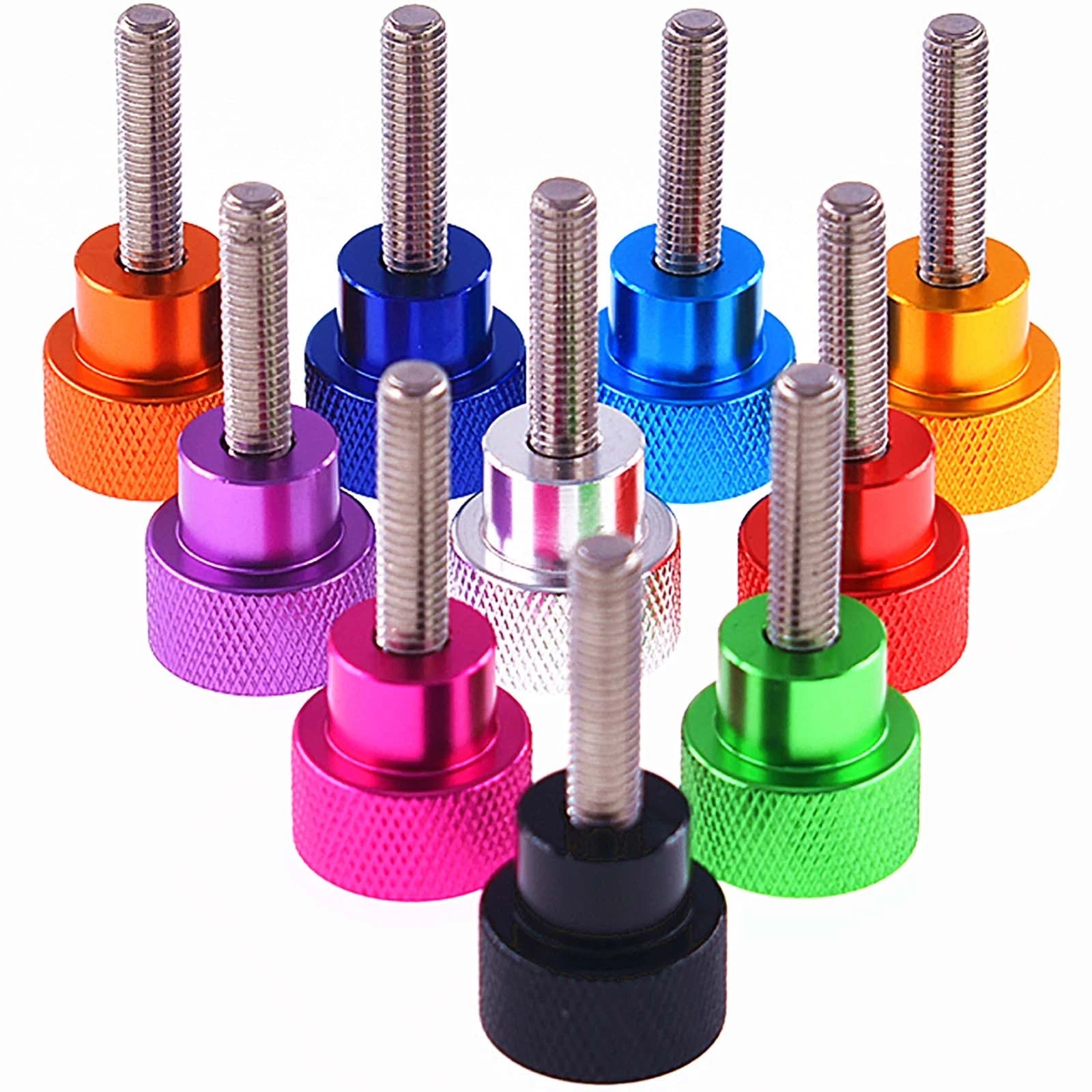

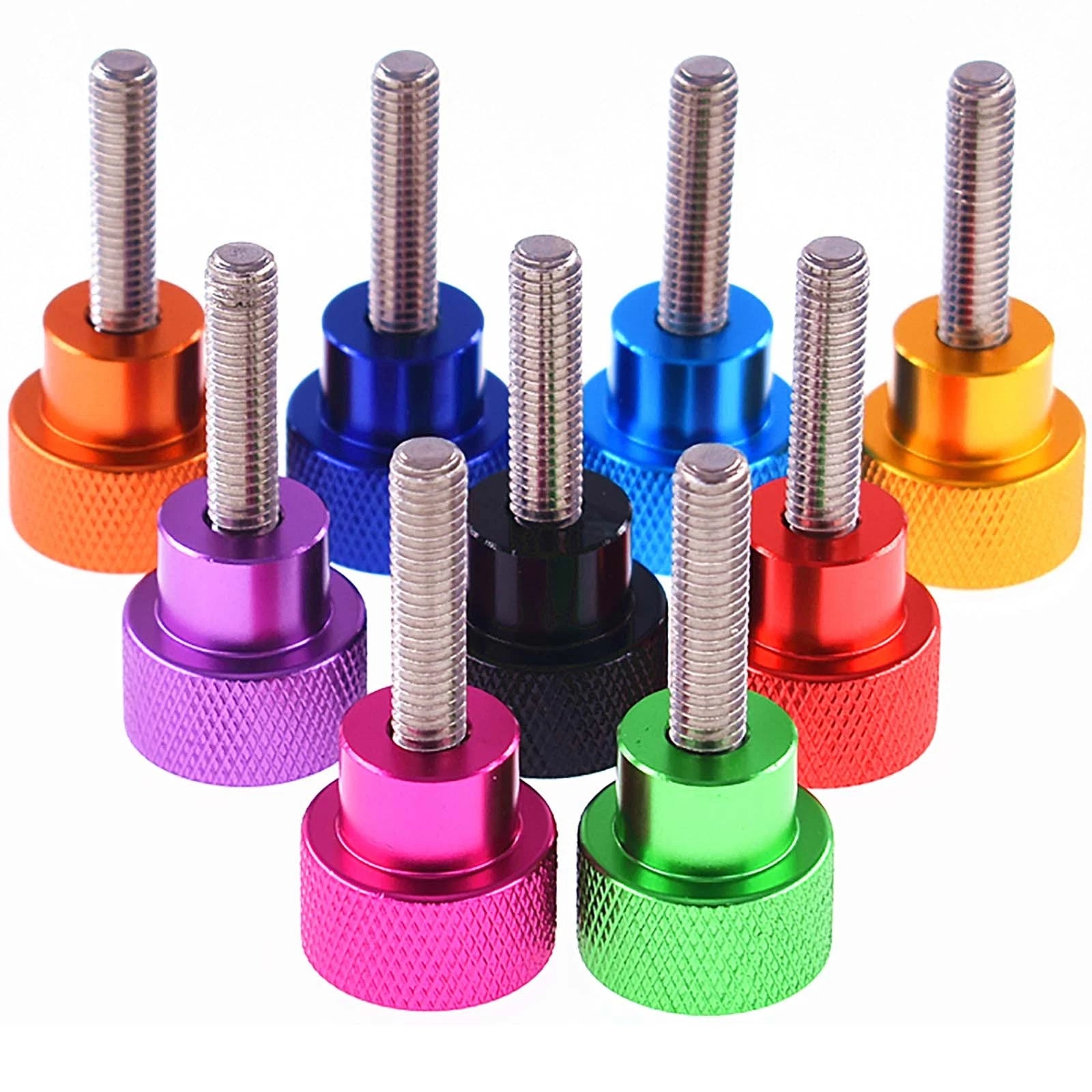

Choose from Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, and Orange for color-coded panel identification or visual customization.
The knurled knob design allows hand-tightening to adequate clamping force for light-duty panel retention, access covers, and adjustable fixtures — no driver required.
Suited for 3D printer frames, CNC guard panels, electronics enclosures, optical rail systems, and custom jig fixtures where frequent manual adjustment is needed.

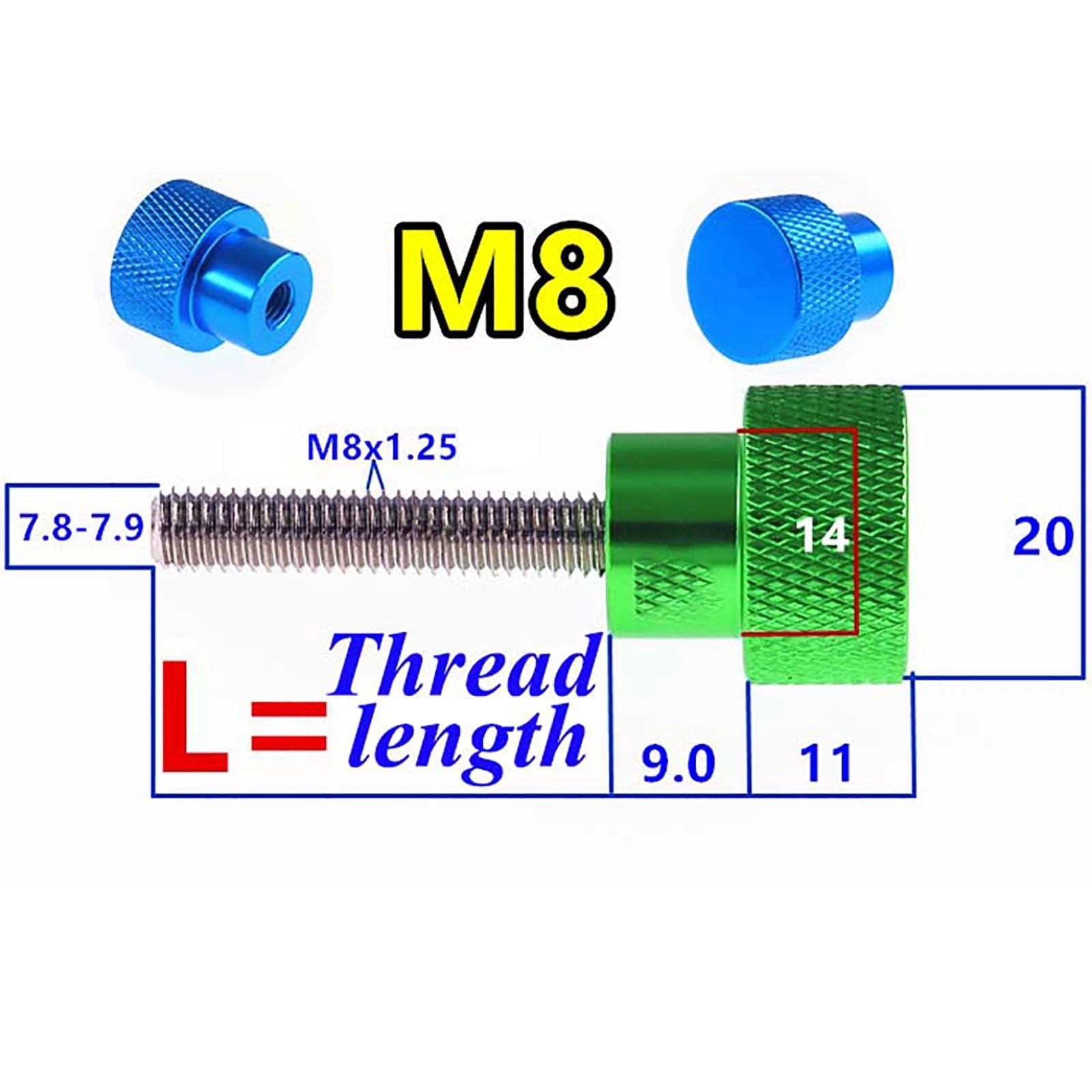

| Thread Size | M8 (Metric) |
|---|---|
| Thread Pitch | 1.25mm (standard coarse) |
| Head Style | Round knurled knob with step grip |
| Head Diameter | 20mm (0.79 in) |
| Shank Length Range | 6mm – 100mm (0.24 in – 3.94 in) |
| Knob Material | Aluminium alloy (anodized) |
| Shank Material | Stainless steel |
| Surface Finish | Anodized (color options available) |
| Available Colors | Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, Orange |
| System of Measurement | Metric |
| Drive Style | Hand-tightened (no tool required) |
| Pack Quantity | See variant options |
| Weight per Piece | See variant options |
Measure the total thickness of the material(s) you are clamping, then add 3–5mm for thread engagement beyond the back face. For example, clamping a 10mm panel into a T-nut requires approximately M8 × 15mm. If you are threading into a blind tapped hole, the shank length should not exceed the hole depth minus 2mm to avoid bottoming out.
These screws are designed for light-duty panel retention, access covers, and adjustable fixtures where hand-tightening force is sufficient. The stainless steel shank provides good tensile strength for typical thumb-screw loads. They are not intended for high-torque structural joints that require tool-tightened fasteners.
The aluminium alloy knob is anodized, which provides a hard, corrosion-resistant surface layer that also holds color well. The stainless steel shank is inherently corrosion-resistant. For outdoor or high-humidity environments, anodized aluminium performs well, though prolonged exposure to salt spray may eventually affect the finish.
Yes. The M8 × 1.25mm coarse thread is the standard metric M8 pitch and is compatible with M8 T-nuts, heat-set inserts, weld nuts, and tapped holes machined to standard M8 tolerances. Always verify the thread pitch of your existing hardware before ordering.
Absolutely. M8 knurled thumb screws are widely used on 3D printer bed-leveling systems, frame panel covers, and CNC machine guard attachments. The step grip knob allows quick hand-adjustment during calibration without tools. Select the shank length that matches your frame extrusion slot depth or panel thickness.
The color difference is in the anodized finish on the aluminium knob only. All color variants share identical thread specifications, head dimensions, and material composition. Colors are useful for color-coding different adjustment points on a machine or for matching your build's aesthetic theme.
Hand-tightening torque varies by individual grip strength, but typical thumb screw hand torque ranges from approximately 0.5 to 2 N·m. This is sufficient for panel retention and light clamping. If your application requires higher clamping force, consider using a standard hex bolt with a tool instead.
