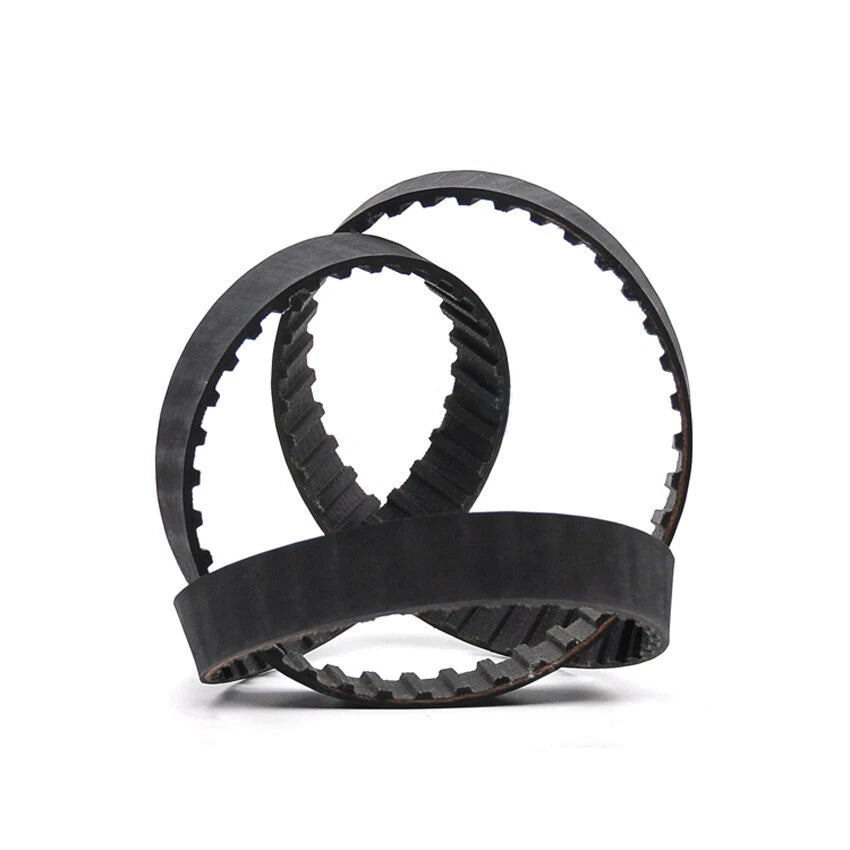

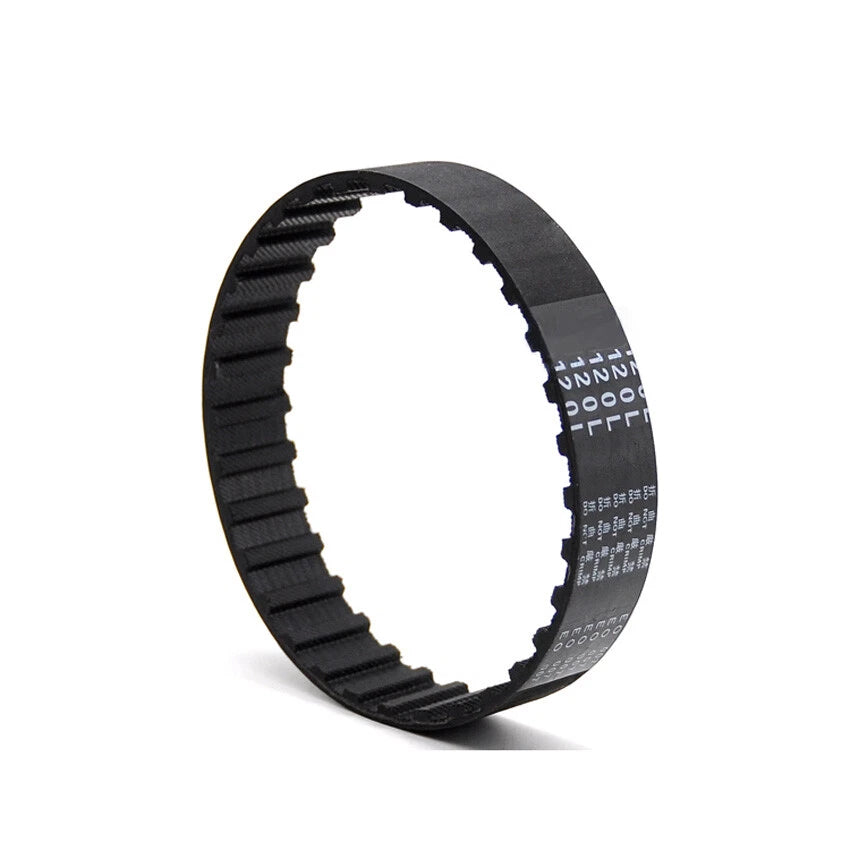

L-Series Closed-Loop Timing Belt — 9.525mm Pitch, 25mm Wide, 86L to 619L

When a worn or snapped timing belt brings your CNC router, conveyor, or automation equipment to a halt, finding the exact replacement fast is critical. This L-series closed-loop synchronous belt is designed for engineers, machine builders, and serious DIYers who need a reliable, dimensionally accurate drive belt without waiting weeks for a special order.

Each belt in this listing is a closed-loop rubber synchronous belt with a 9.525mm (3/8") pitch and 25mm (≈1") width. Available in 120 sizes from 86L (219.08mm / ≈8.6") to 619L (1571.63mm / ≈61.9") belt perimeter, with tooth counts ranging from 23 to 165 teeth per belt. Select your model number from the variant dropdown — the belt perimeter in mm is listed alongside each option for easy cross-reference.

These L-series timing belts are widely used as replacement drive belts for CNC routers and laser engravers, synchronous conveyor belt systems in light industrial settings, and HVAC blower and fan drive assemblies. The trapezoidal tooth profile ensures positive engagement with standard L-profile pulleys, eliminating slippage under load.

ℹ️ Compatibility: Fits standard L-series timing pulleys with 9.525mm (3/8") pitch. Verify your pulley groove width accepts a 25mm belt before ordering. Model number = belt perimeter in tenths of an inch (e.g., 150L = 15.0" = 381mm).

✅ Key Features of These L-Series Rubber Timing Belts

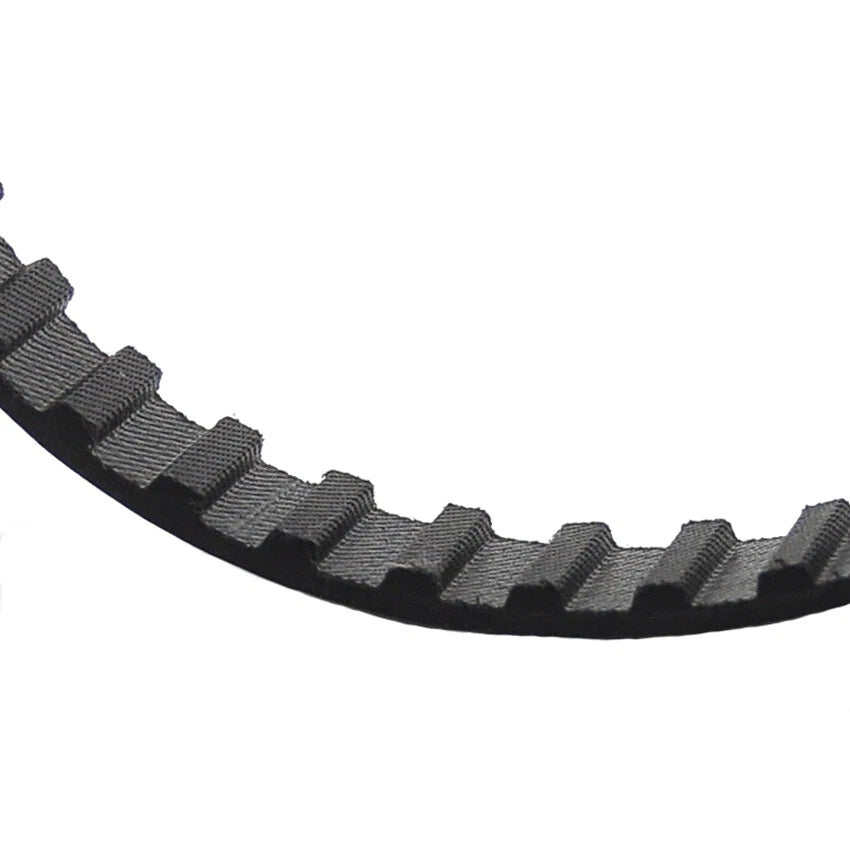

  • 📐Trapezoidal Tooth Profile — Standard L-series tooth geometry ensures positive mesh with L-profile pulleys, delivering accurate synchronous motion without slippage.
  • 🔄Closed-Loop Construction — Seamless loop design eliminates the weak points of joined or laced belts, providing consistent tension distribution across the full belt perimeter.
  • 📏120 Sizes in One Listing — From 86L (219.08mm) to 619L (1571.63mm), this single listing covers a wide range of replacement timing belt sizes for CNC, conveyor, and automation applications.
  • ⚙️9.525mm (3/8") Pitch Accuracy — Manufactured to L-series pitch tolerances, ensuring correct tooth spacing for smooth, low-vibration operation in precision drive systems.
  • 🧱Rubber Compound Construction — The rubber body provides flexibility and grip, while the internal cord reinforcement resists elongation under typical light-to-medium duty loads.
  • 🔧Drop-In Replacement Fit — Dimensionally matched to standard L-series specifications, making these belts a straightforward swap for worn or broken synchronous drive belts in most equipment.

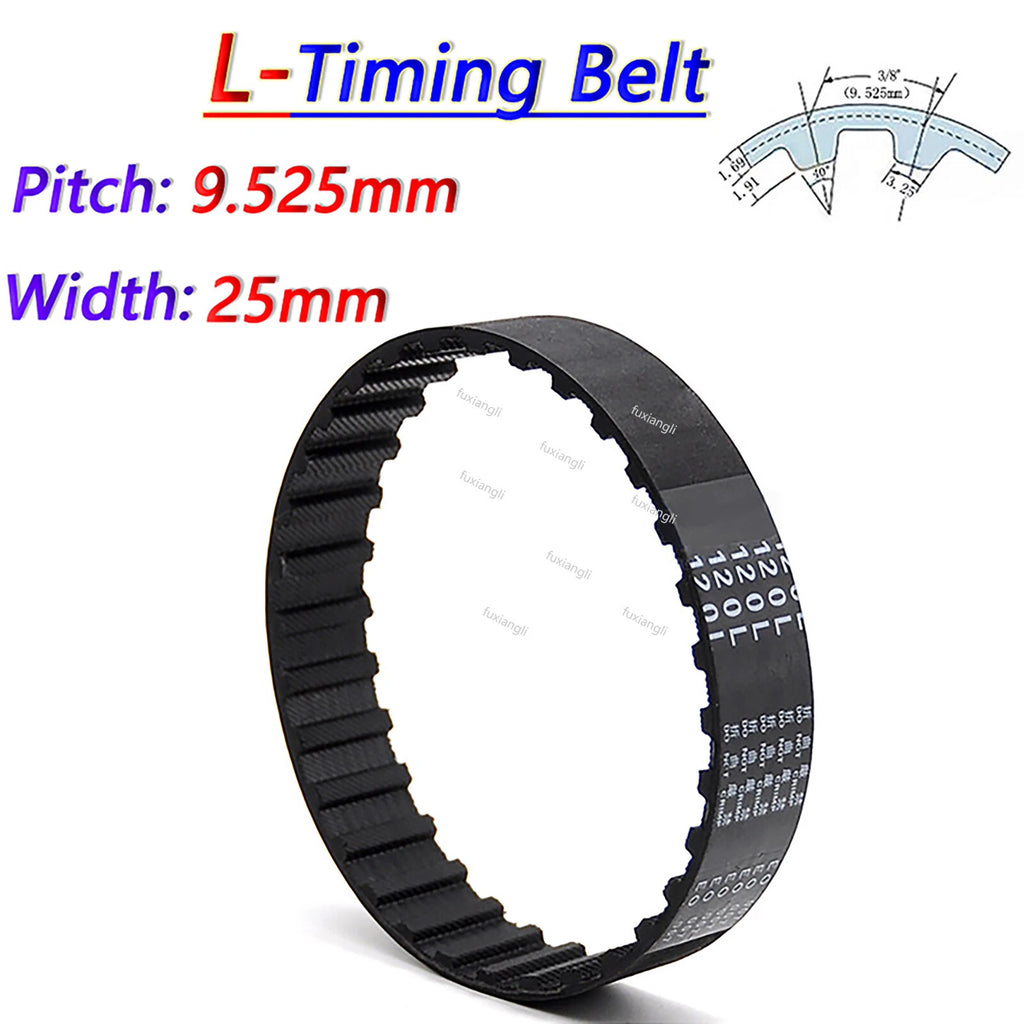

📐 Technical Specifications — L-Series Synchronous Timing Belt

Belt Series L (Light)
Pitch 9.525mm (3/8")
Belt Width 25mm (≈1")

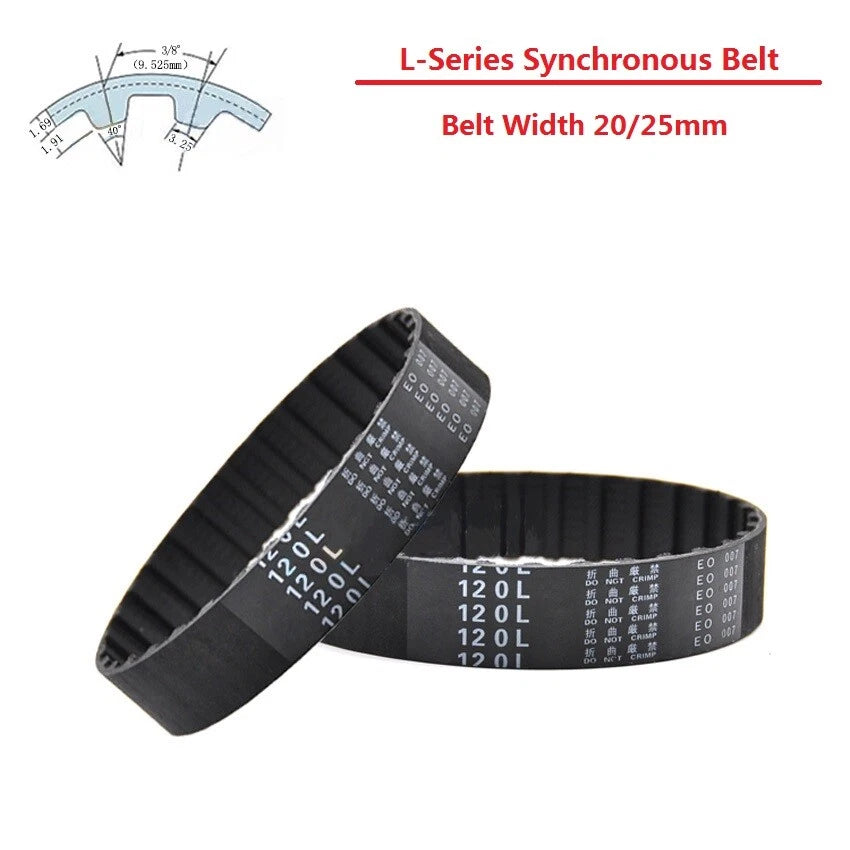

Tooth Profile Trapezoidal (standard L-series)
Belt Type Closed-loop synchronous belt
Material Rubber with internal cord reinforcement
Available Models 86L to 619L (120 sizes)
Belt Perimeter Range 219.08mm (≈8.6") to 1571.63mm (≈61.9")
Tooth Count Range 23 teeth (86L) to 165 teeth (619L)
Quantity per Order 1 piece
Compatible Pulley Type Standard L-profile timing pulleys (9.525mm pitch)
Recommended Application See variant options
Max Operating Temperature Contact us to confirm
Color/Finish See variant options

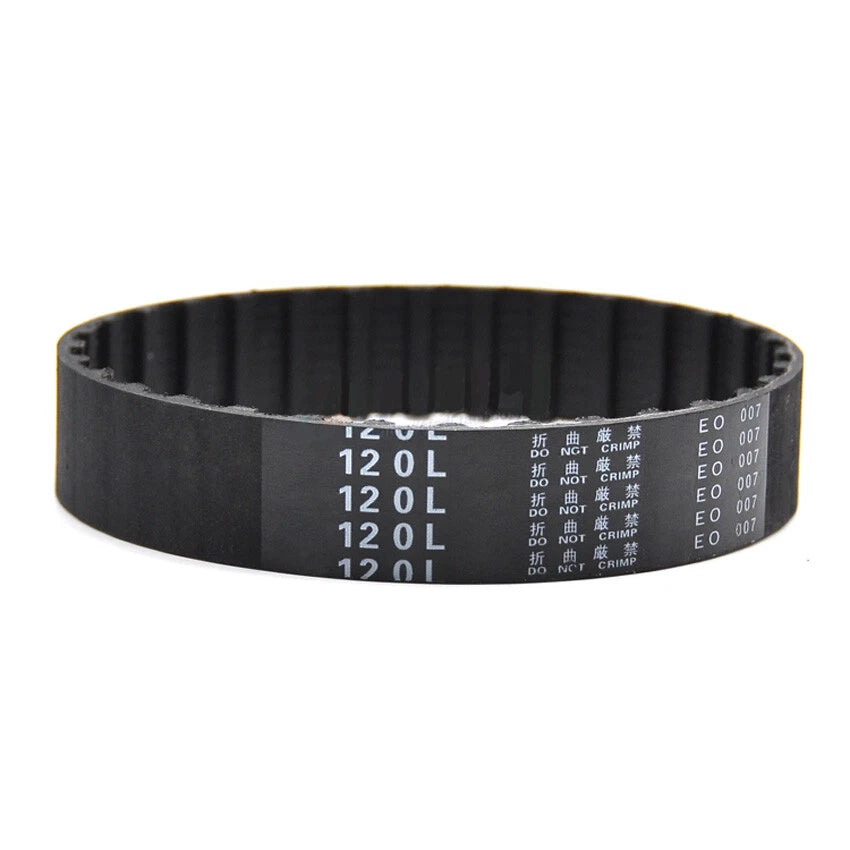

⚠️ Before ordering: Confirm your pulley's pitch (9.525mm / 3/8") and groove width (25mm minimum) match this belt. If replacing an existing belt, note the model number printed on the belt or measure the outer circumference and tooth count.

❓ Frequently Asked Questions

How do I choose the right L-series timing belt length?

The model number (e.g., 150L) indicates the belt perimeter in tenths of an inch — so 150L is typically 15.0 inches (381mm) in circumference. Measure your existing belt or calculate the center distance between pulleys using a standard belt length formula. When in doubt, size up slightly to avoid over-tensioning. Each variant in this listing also shows the exact belt perimeter in mm for easy cross-reference.

What does the 'L' designation mean in timing belt sizing?

'L' refers to the pitch series: 9.525mm (3/8") between tooth centers. This is a widely used standard in light-duty power transmission. The number before 'L' (e.g., 150L) represents the belt's outer circumference in tenths of an inch, so 150L = 15.0" = 381mm perimeter.

What load or torque can these timing belts handle?

L-series rubber timing belts are generally rated for light-to-medium duty applications. Actual load capacity depends on belt width, pulley diameter, and operating speed. For this 25mm-wide belt, consult your equipment's torque specifications and compare against standard L-series load tables before installation. If you need higher load capacity, consider an H-series or XL-series belt.

Can these belts be used outdoors or in wet environments?

Standard rubber timing belts are generally not recommended for prolonged outdoor or submerged use. Exposure to UV, ozone, oils, or standing water can degrade the rubber compound over time. For outdoor or harsh-environment applications, a neoprene or polyurethane belt variant is typically more suitable. Contact us if you need guidance on material selection.

Are these belts compatible with standard L-profile timing pulleys?

Yes. These belts follow the standard L-series tooth profile (9.525mm pitch, trapezoidal tooth form) and are generally compatible with any L-profile timing pulley of the same pitch. Always verify that the pulley groove width accommodates a 25mm-wide belt — some pulleys are designed for narrower belts in the same pitch series.

How do I convert the belt model number to millimeters?

Multiply the model number by 2.54 to get the belt perimeter in millimeters. For example: 150L × 2.54 = 381mm. Alternatively, each variant option in this listing displays the exact belt perimeter in mm alongside the model number, so you can match directly without manual calculation.

What machines or equipment commonly use L-series timing belts?

L-series timing belts are commonly found in CNC routers, 3D printers, laser engravers, conveyor systems, HVAC blowers, woodworking machinery, and light industrial automation equipment. They are also used in some older automotive accessory drives and packaging machinery. If you're unsure whether your machine uses an L-series belt, check the belt's printed markings or measure the tooth pitch.

How do I know if I need to replace my timing belt?

Common signs of a worn synchronous belt include visible cracking or fraying on the belt body, missing or chipped teeth, unusual noise during operation, or loss of positional accuracy in CNC or automation systems. In most cases, it's advisable to replace the belt before complete failure to avoid damage to pulleys or driven components.

🛒 Select your model and belt perimeter above, then add to cart — ships from our US warehouse.
