L Timing Belt Closed Loop — Reliable 9.525mm Pitch Drive for CNC, Conveyor & DIY Builds

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime, the fix starts with the right closed loop timing belt. These L-series timing belts are built for engineers, makers, and maintenance technicians who need a dependable synchronous drive solution — whether you're building a CNC router, maintaining industrial conveyor equipment, or replacing a worn belt on a light-duty machine.

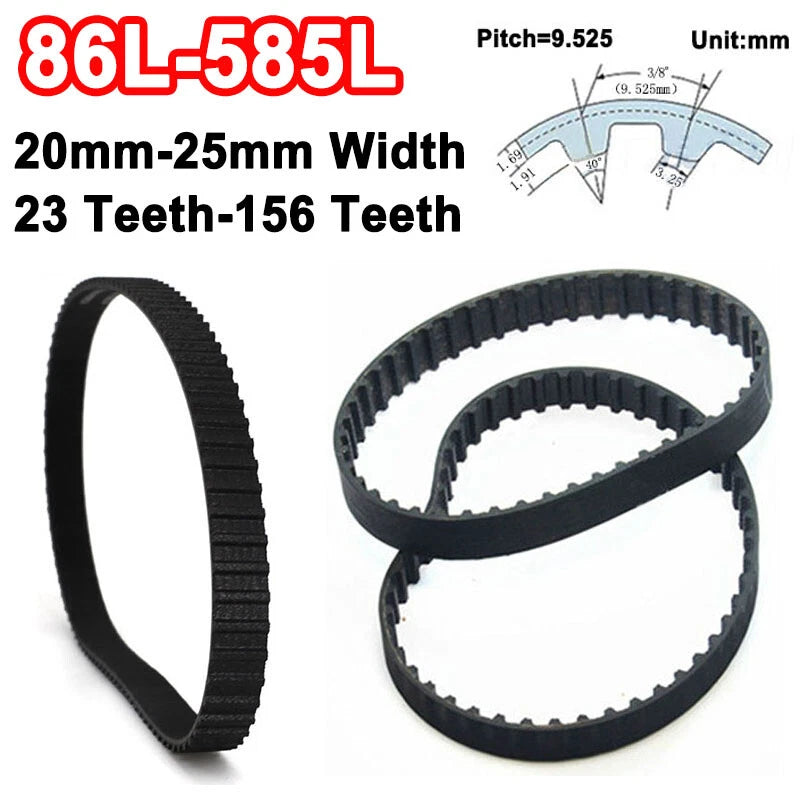

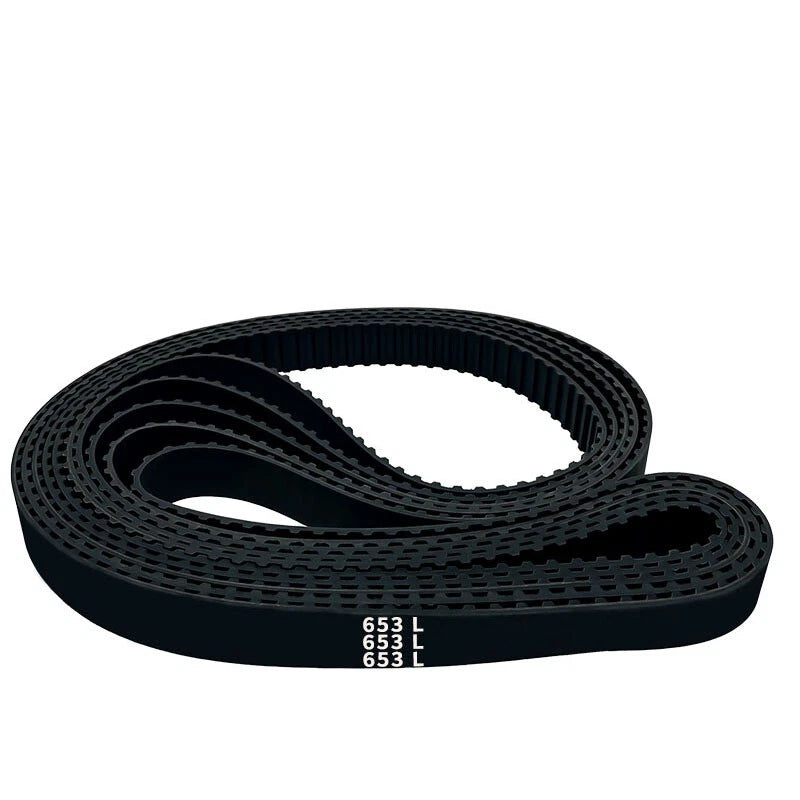

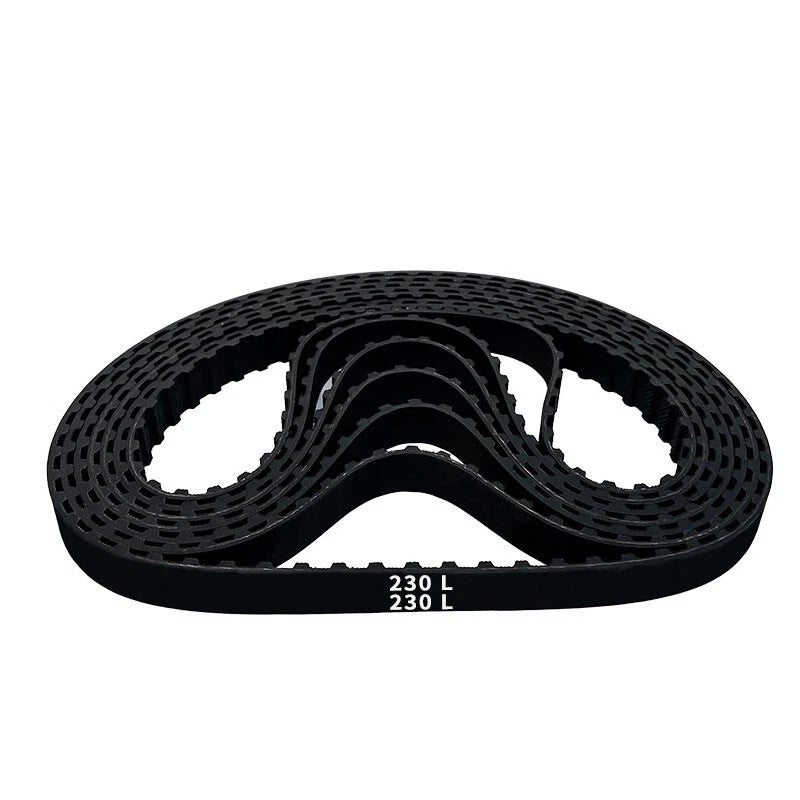

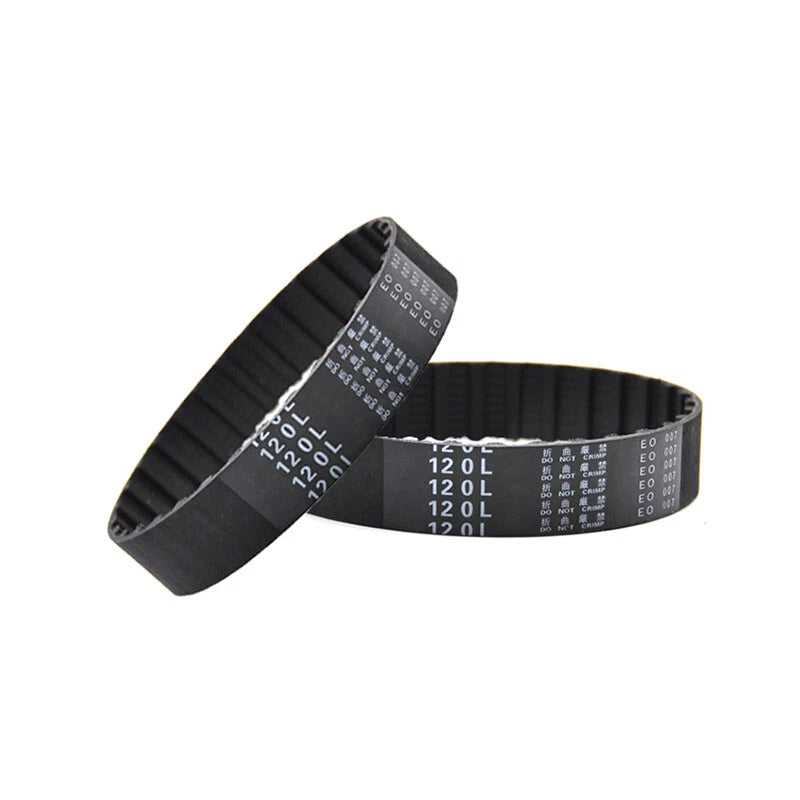

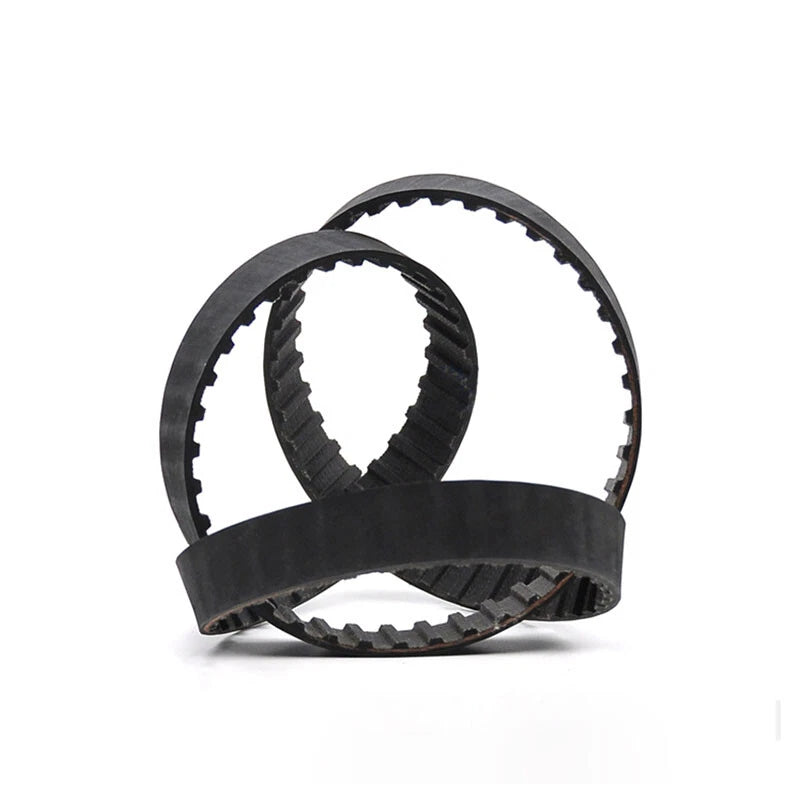

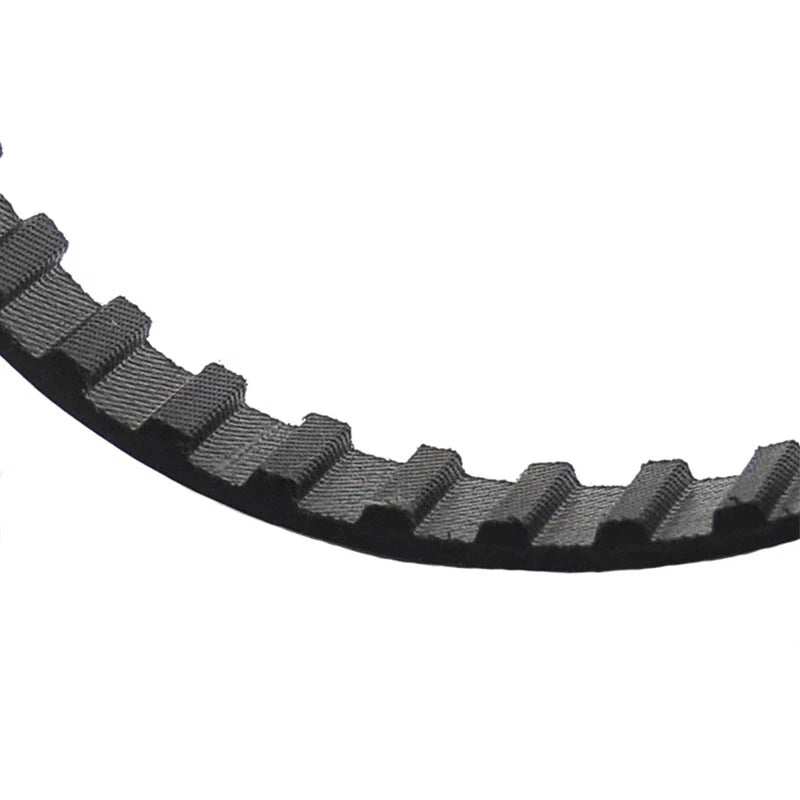

Each belt is a closed loop (endless) design with a tooth pitch of 9.525mm (3/8"), available in belt widths of 20mm (≈0.79") or 25mm (≈0.98"). Models range from 86L (perimeter 219.08mm / ≈8.6") up to 585L (perimeter 1485.9mm / ≈58.5"), with tooth counts from 23 to 156 teeth. The exact perimeter and tooth count for each model are shown in the variant selector.

Typical applications include CNC machine axis drives, 3D printer motion systems, light conveyor and indexing systems, and replacement drives for power tools and small industrial equipment — anywhere a synchronous L-pitch timing belt is specified.

ℹ️ Compatibility: Designed for use with standard L-series (9.525mm pitch) timing pulleys and sprockets. Match belt width (20mm or 25mm) to your pulley flange width. Verify model number against your existing belt or drive calculation before ordering.

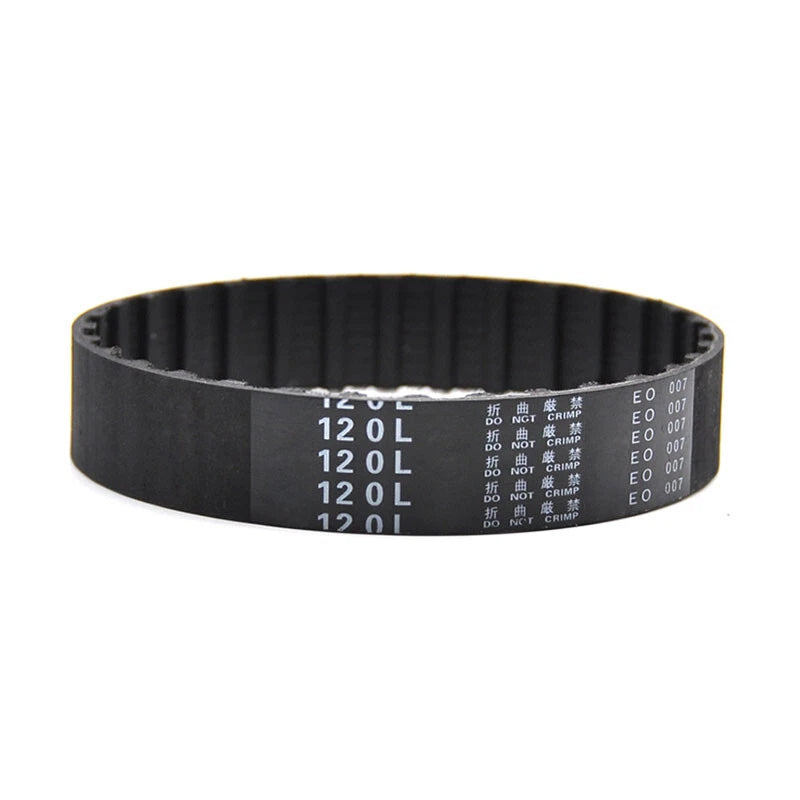

⚠️ Sizing note: The model number (e.g., 200L) indicates the belt outer circumference in tenths of an inch (200L = 20.0" ≈ 508mm). Confirm your required perimeter using the variant table before adding to cart.

✅ Key Features of These L-Series Closed Loop Timing Belts

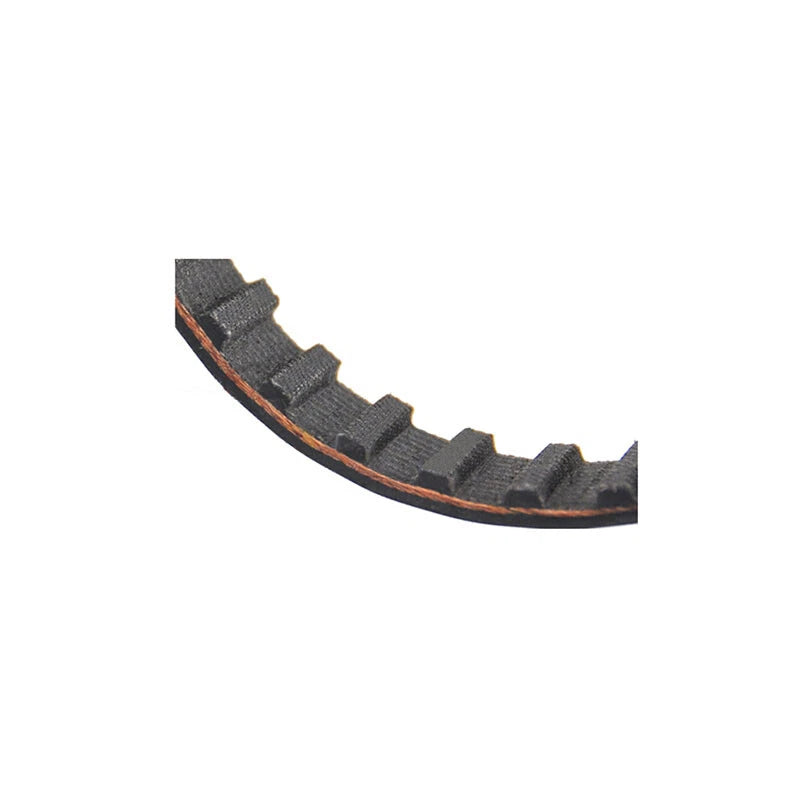

  • ⚙️Standard L-Pitch Tooth Profile — 9.525mm (3/8") trapezoidal tooth pitch ensures precise synchronous power transmission and direct compatibility with L-series pulleys and sprockets.

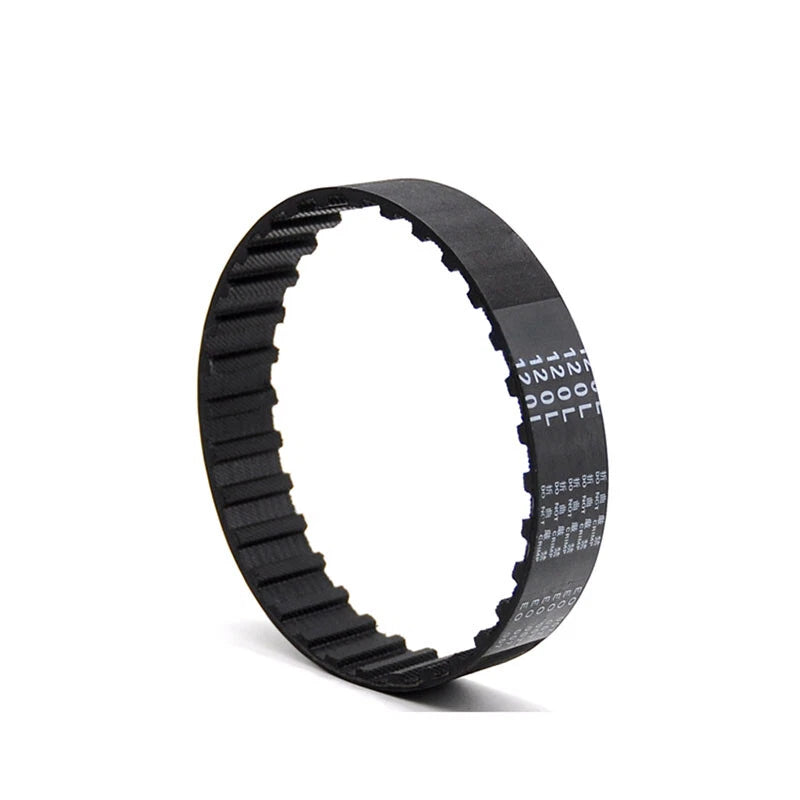

  • 🔁Closed Loop (Endless) Construction — No joints or splices means consistent tension and smooth operation throughout the full belt perimeter, reducing vibration in CNC and conveyor drives.
  • 📐Wide Model Range (86L–585L) — Over 125 model sizes covering perimeters from 219mm (≈8.6") to 1485.9mm (≈58.5"), making it straightforward to find a direct replacement or design-in fit.
  • ↔️Two Belt Widths Available — Choose 20mm width for compact, lighter-duty drives or 25mm width for higher torque capacity and greater lateral stability in demanding applications.
  • 🛡️Fiber-Reinforced Core — Typically constructed with fiberglass tensile cord embedded in neoprene rubber, providing dimensional stability under load and resistance to elongation over time.
  • 🔧Drop-In Replacement Fit — Model numbers follow the standard L-series designation used across North American and international drive systems, simplifying cross-referencing for maintenance and repair.

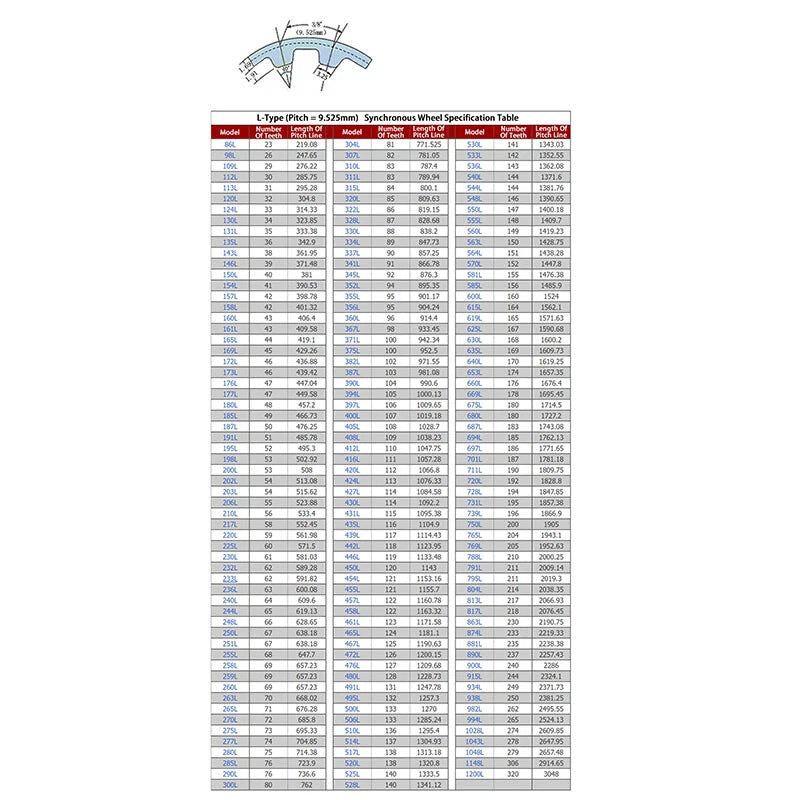

📐 Technical Specifications — L-Series Closed Loop Timing Belt

Belt Type L-Series Closed Loop (Endless) Timing Belt
Tooth Pitch 9.525mm (3/8")
Tooth Profile Trapezoidal (L-standard)
Belt Width Options 20mm (≈0.79") / 25mm (≈0.98")
Model Range 86L – 585L
Perimeter Range 219.08mm (≈8.6") – 1485.9mm (≈58.5")
Tooth Count Range 23 Teeth – 156 Teeth (see variant options)

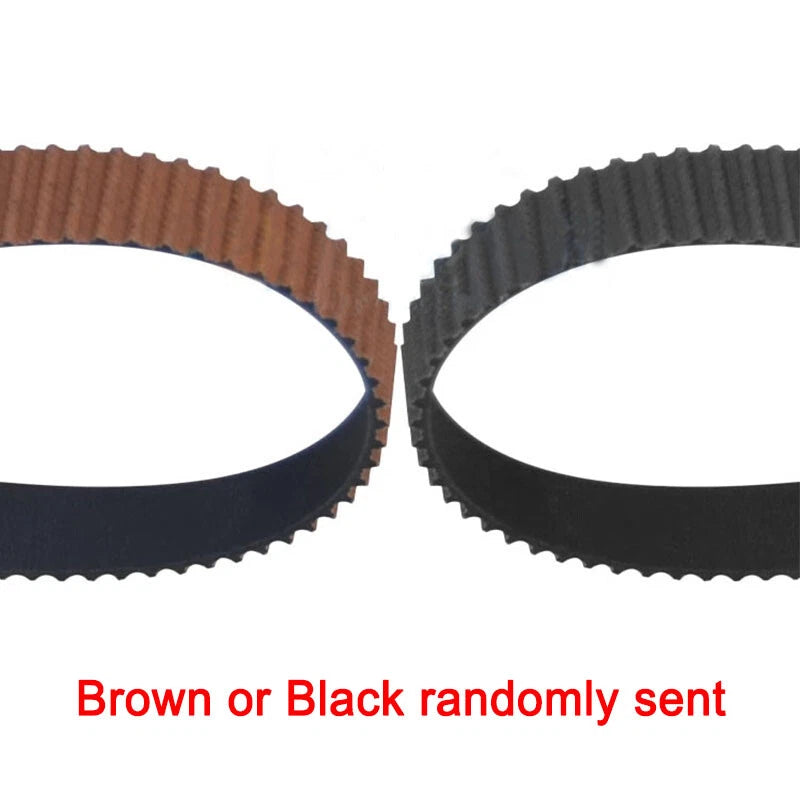

Construction Material Typically neoprene rubber with fiberglass tensile cord
Compatible Pulleys Standard L-series timing pulleys (9.525mm pitch)
Operating Environment Contact us to confirm for outdoor/wet use
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right L timing belt length?

The model number indicates the belt outer circumference in tenths of an inch — for example, 200L = 20.0 inches (≈508mm). To calculate the required belt length, use the standard formula: Belt Length = 2C + π(D+d)/2 + (D−d)²/4C, where C is center distance and D/d are pulley pitch diameters. When in doubt, size up by one model to allow for tensioner adjustment. The exact perimeter for each model is listed in the variant selector.

What does the 'L' designation mean for timing belts?

'L' refers to the Large pitch series with a tooth pitch of 9.525mm (3/8 inch). This is a widely standardized pitch used across North American and international power transmission systems. L-series belts are compatible with L-series pulleys and sprockets from most major manufacturers.

What load or torque can these timing belts handle?

Load capacity generally depends on belt width, the number of teeth in mesh with the pulley, and operating speed. The 25mm-wide belts typically offer higher torque capacity than the 20mm versions. For precise load ratings specific to your application, contact us to confirm suitability before ordering.

Are these belts suitable for outdoor or wet environments?

These belts are typically constructed from neoprene rubber with fiberglass cord reinforcement, which generally provides moderate resistance to oil and moisture. For continuous outdoor exposure, high-humidity environments, or chemical contact, contact us to confirm the specific material specification and suitability for your conditions.

Are these belts compatible with standard L-series pulleys?

Yes. These belts follow the standard L-pitch (9.525mm / 3/8") trapezoidal tooth profile and are designed to mesh with L-series timing pulleys and sprockets. Always verify that your pulley's groove width matches your selected belt width (20mm or 25mm) and that the pulley pitch matches 9.525mm.

How do I choose between 20mm and 25mm belt width?

Choose 20mm width for lighter-duty or space-constrained applications such as small CNC machines, 3D printers, or light conveyor systems. Choose 25mm width when higher torque transmission, greater lateral stability, or heavier loads are required. Always match the belt width to your pulley flange width to prevent belt tracking issues.

How do I read the perimeter and tooth count in the variant options?

Each variant lists the Model (e.g., 200L), Teeth Number (e.g., 53 Teeth), and Perimeter & Belt Width (e.g., 508mm & 20mm). The perimeter is the outer circumference of the belt. Select the model that matches your existing belt's part number or your calculated required length, then choose your belt width.

🛒 Select your model and belt width above, then add to cart — ships from our US warehouse.
