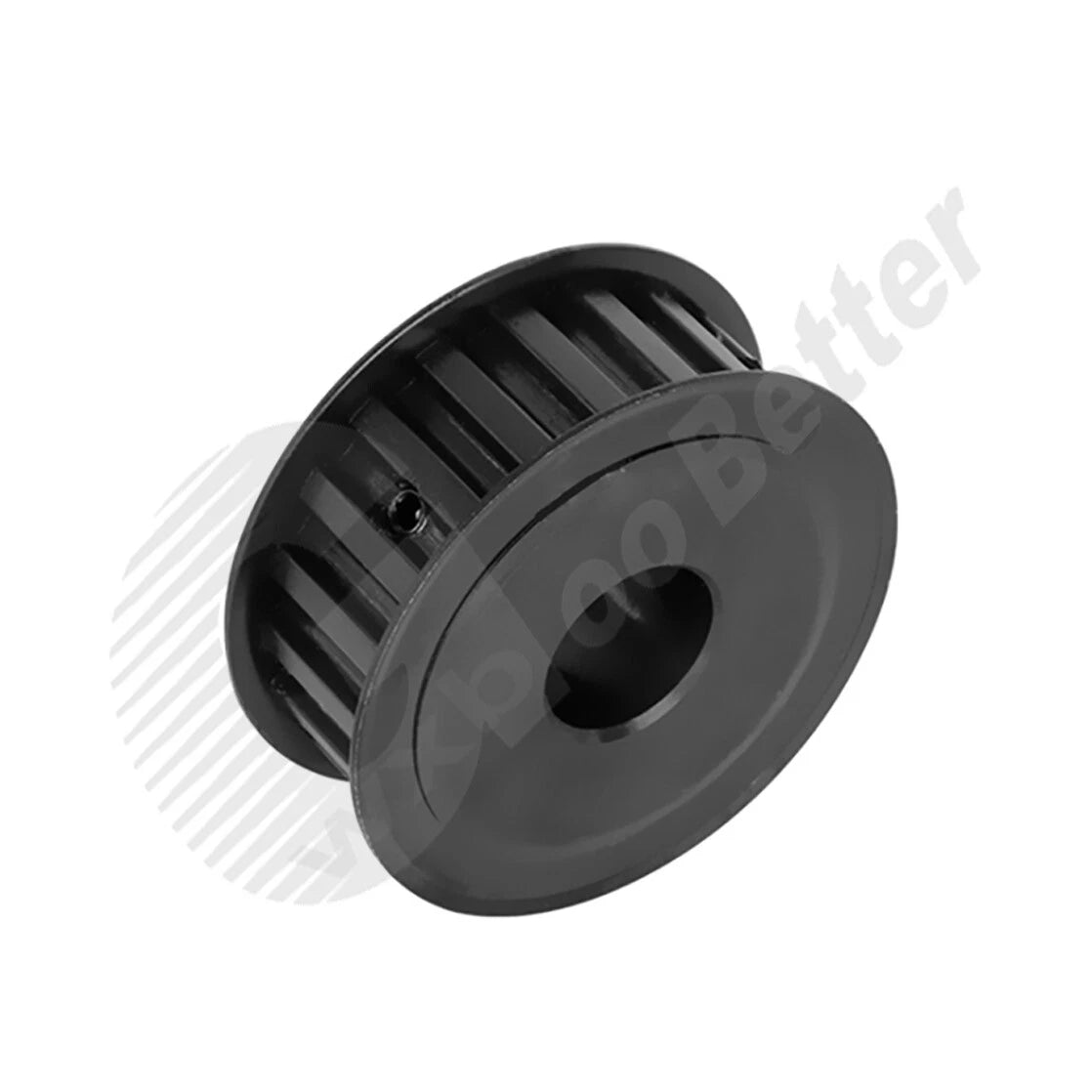

When your CNC router, 3D printer, or conveyor system demands slip-free, repeatable motion, a mismatched or worn pulley becomes the weakest link in the entire drive train. Engineers and makers who need dimensionally consistent, drop-in-ready components rely on L type 25mm timing belt smooth tooth drive pulleys to keep their builds running on spec. These pulleys are suited for hobbyist workshops, light industrial automation lines, and professional prototyping environments alike.
Each pulley is machined from 45 steel — a medium-carbon structural steel known for its balance of tensile strength and machinability — and finished to accept standard L-pitch (9.525 mm / 0.375 in) 25 mm wide timing belts. Tooth counts range from 10 T to 19 T, with bore diameters spanning 8 mm to 28 mm (approximately 0.31 in to 1.10 in). Keyway options (3 mm, 4 mm, 5 mm, 6 mm, or 8 mm) are available on select bore/tooth combinations; plain bore variants ship without keyway for setscrew or press-fit mounting.
Typical use cases include L type 25mm timing belt drive pulley applications in desktop CNC milling machines requiring precise X/Y axis synchronization, robotic arm joints where backlash must be minimized, and light-duty conveyor indexing systems where consistent belt pitch engagement is critical for positional accuracy.
Machined from medium-carbon 45 steel for reliable tensile strength and dimensional stability under cyclic belt loads.
Available in 10 T through 19 T configurations, allowing precise gear-ratio tuning for your drive system without custom machining.
Bore diameters from 8 mm to 28 mm (≈ 0.31–1.10 in) accommodate a wide range of shaft sizes found in stepper motors, servo motors, and drive shafts.
Select variants include machined keyways (3 mm, 4 mm, 5 mm, 6 mm, or 8 mm) for positive torque transmission without relying solely on setscrews.
Tooth profile conforms to the L-pitch standard (9.525 mm pitch), ensuring full engagement with any compliant 25 mm wide L-type timing belt.
Suited for CNC routers, 3D printers, laser cutters, robotic joints, and light conveyor indexing — anywhere synchronous, slip-free motion is required.

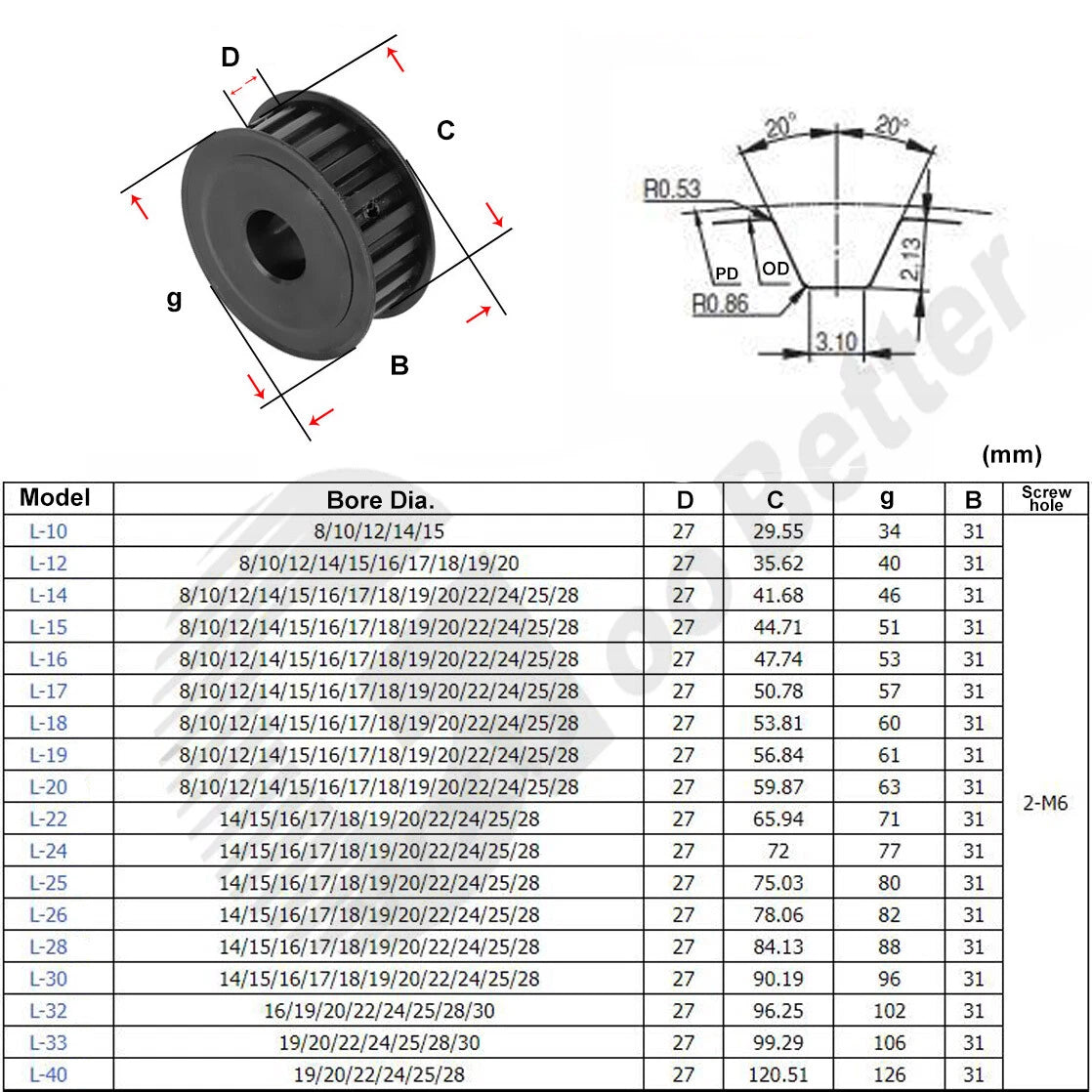

| Belt Type | L-pitch timing belt |
|---|---|
| Belt Pitch | 9.525 mm (0.375 in) |
| Belt Width | 25 mm (0.98 in) |
| Number of Teeth | 10 T – 19 T (see variant options) |
| Bore Diameter | 8 mm – 28 mm (see variant options) |
| Keyway Width | Without keyway / 3 mm / 4 mm / 5 mm / 6 mm / 8 mm (see variant options) |
| Material | 45 Steel |
| Finish | See variant options |
| Flange | See variant options |
| Weight | See variant options |
The tooth count determines the pulley's pitch diameter and, combined with your motor pulley, sets the drive ratio. A 10 T pulley paired with a 20 T pulley gives a 2:1 reduction. Use the formula: Pitch Diameter = (Teeth × Pitch) ÷ π. Select the tooth count that achieves your target linear speed or torque ratio. When in doubt, match the tooth count to the existing pulley on your system.
Measure your motor shaft diameter with calipers before ordering. Common stepper motor shaft diameters are 5 mm, 6.35 mm, 8 mm, and 10 mm. This pulley range starts at 8 mm bore, so for shafts smaller than 8 mm you would need a reducer bushing or a different pulley series. For servo motors, shaft diameters of 10 mm, 12 mm, 14 mm, and larger are common — all covered within this range.
A keyway provides a mechanical interlock between the shaft and pulley, preventing rotational slip under high torque or reversing loads. For light-duty or unidirectional applications, a plain bore with a setscrew is often adequate. For CNC axes, robotic joints, or any application with frequent direction reversals or significant torque, a keyway variant is recommended for long-term reliability.
45 steel (medium-carbon steel) has a typical tensile strength of approximately 600–800 MPa and is widely used for timing pulleys, gears, and shafts in light-to-medium industrial applications. It is suitable for CNC routers, 3D printers, laser cutters, and similar equipment. For heavy industrial or high-shock environments, consult your system's torque and load specifications to confirm suitability.
45 steel is not inherently corrosion-resistant. In dry indoor environments — typical for CNC workshops and electronics labs — surface oxidation is minimal with normal care. If your application involves moisture, coolant mist, or outdoor exposure, consider applying a light machine oil coating or selecting a pulley with a protective surface treatment. Contact us to confirm available finish options for your specific variant.
Verify three parameters: (1) Belt pitch — this pulley requires an L-pitch belt with 9.525 mm tooth spacing. (2) Belt width — the pulley groove is designed for 25 mm wide belts; narrower or wider belts will not seat correctly. (3) Tooth profile — L-pitch pulleys use a trapezoidal tooth form. If your belt is labeled "L" or "L25" and the width is 25 mm, this pulley is compatible.
Yes. L-type timing belt pulleys are commonly used on CNC router Z-axes where the belt transmits motion from a stepper motor to a lead screw or rack. Select a tooth count that matches your existing drive ratio, and choose a bore that fits your motor shaft. A keyway variant is recommended for Z-axis applications to prevent the pulley from slipping under the weight of the spindle during rapid moves.
