L-Type Closed Loop Timing Belt 25mm Wide — Precise Drive for Machines That Can't Afford Slip

When a conveyor skips a tooth, a CNC axis loses position, or a 3D printer layer shifts, the culprit is almost always a worn or incorrectly sized drive belt. Machinists, automation engineers, and serious DIY builders who need repeatable, slip-free motion rely on the L-type closed loop synchronous timing belt — and getting the exact circumference right the first time matters.

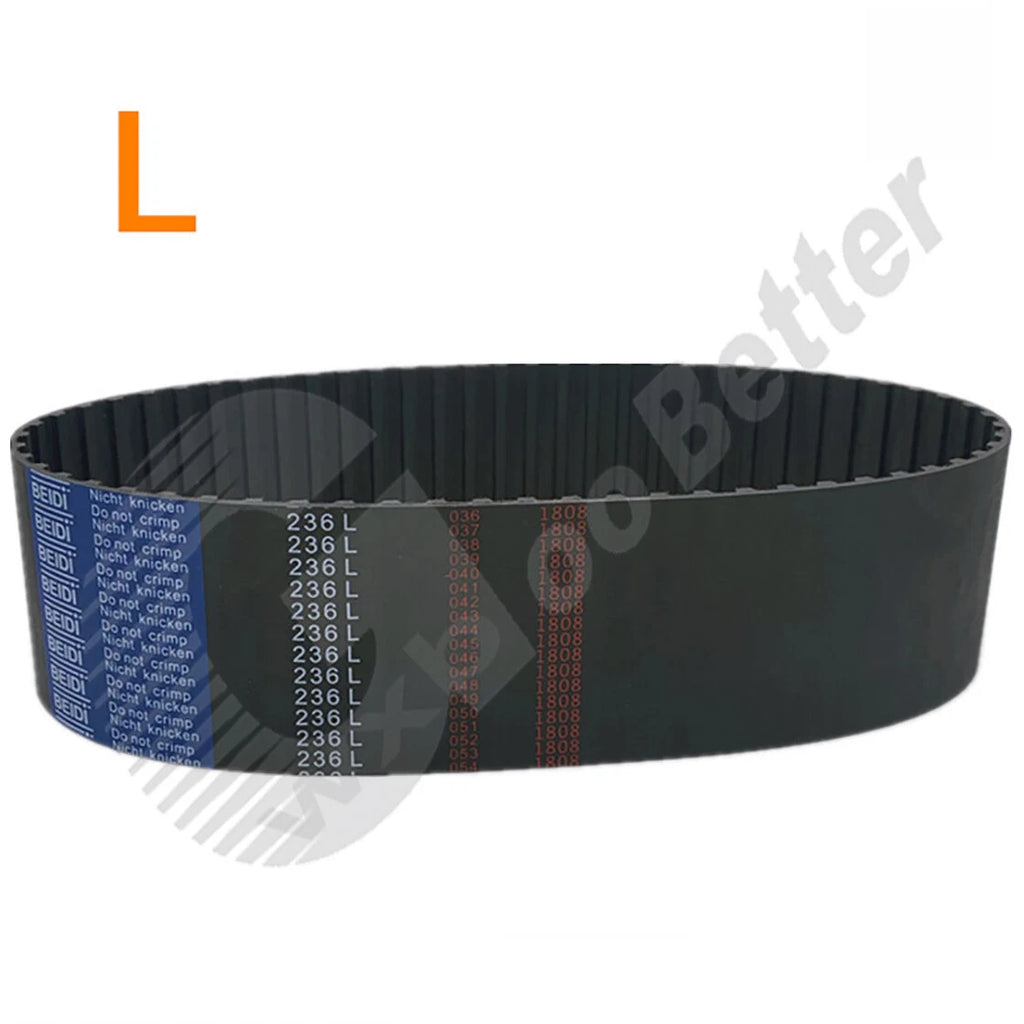

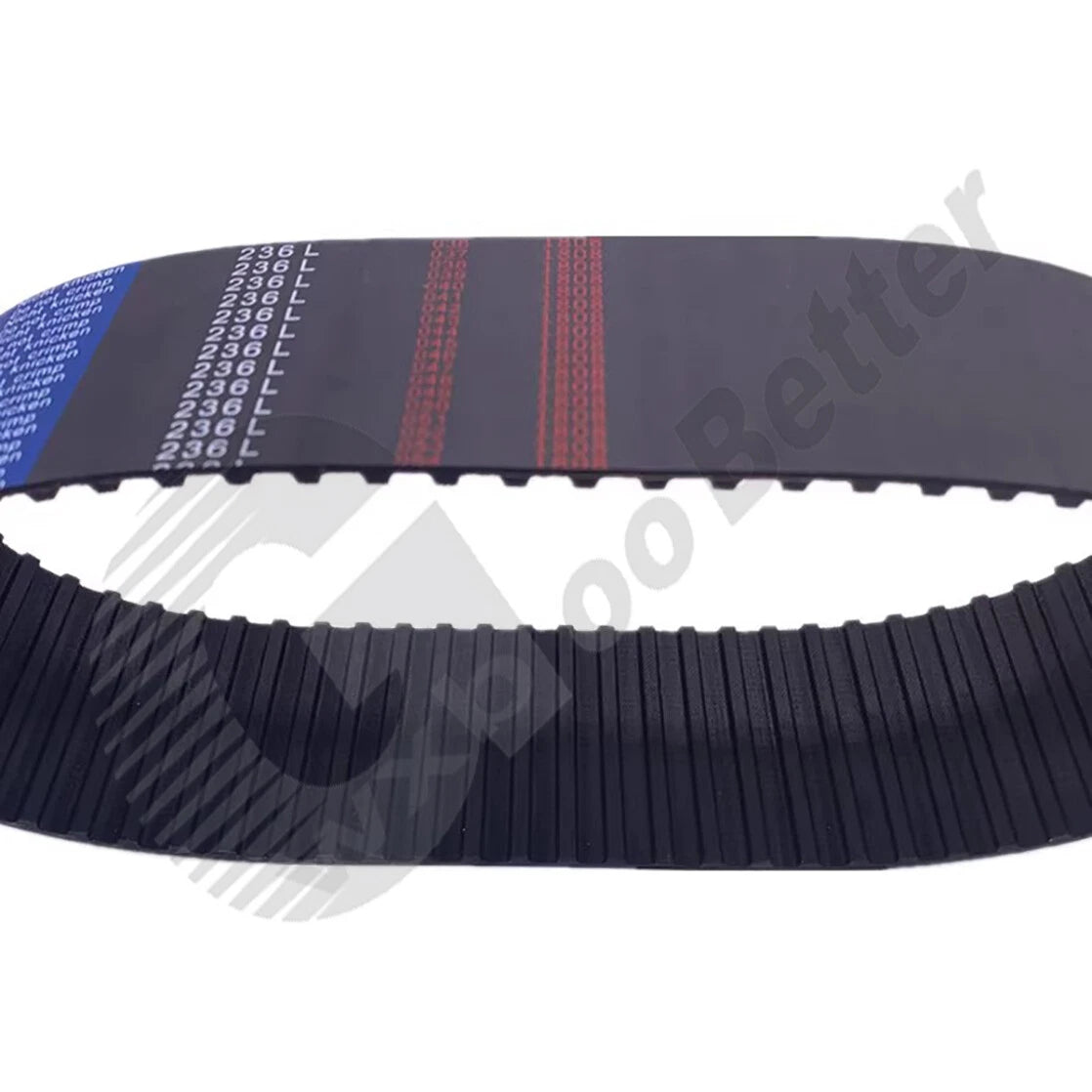

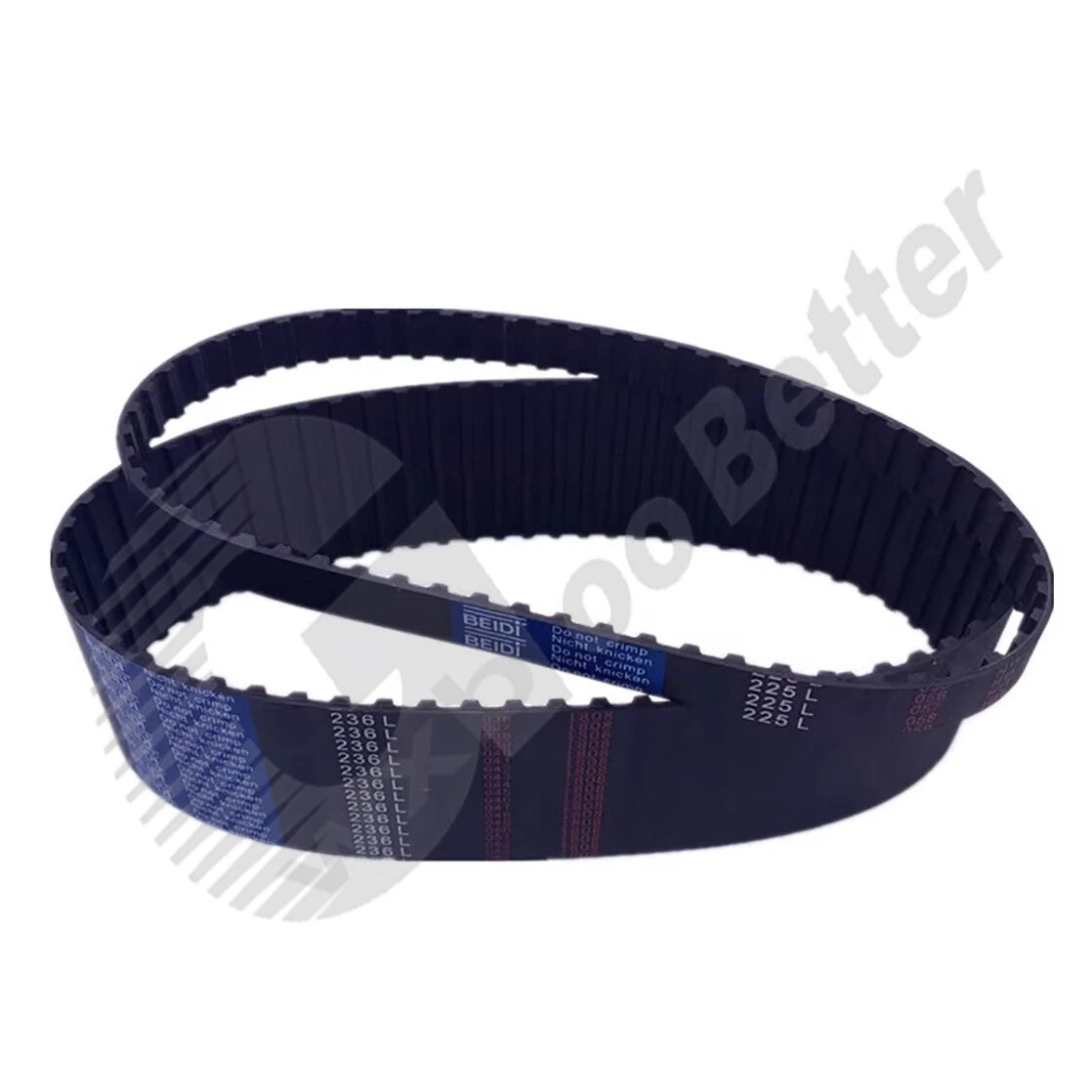

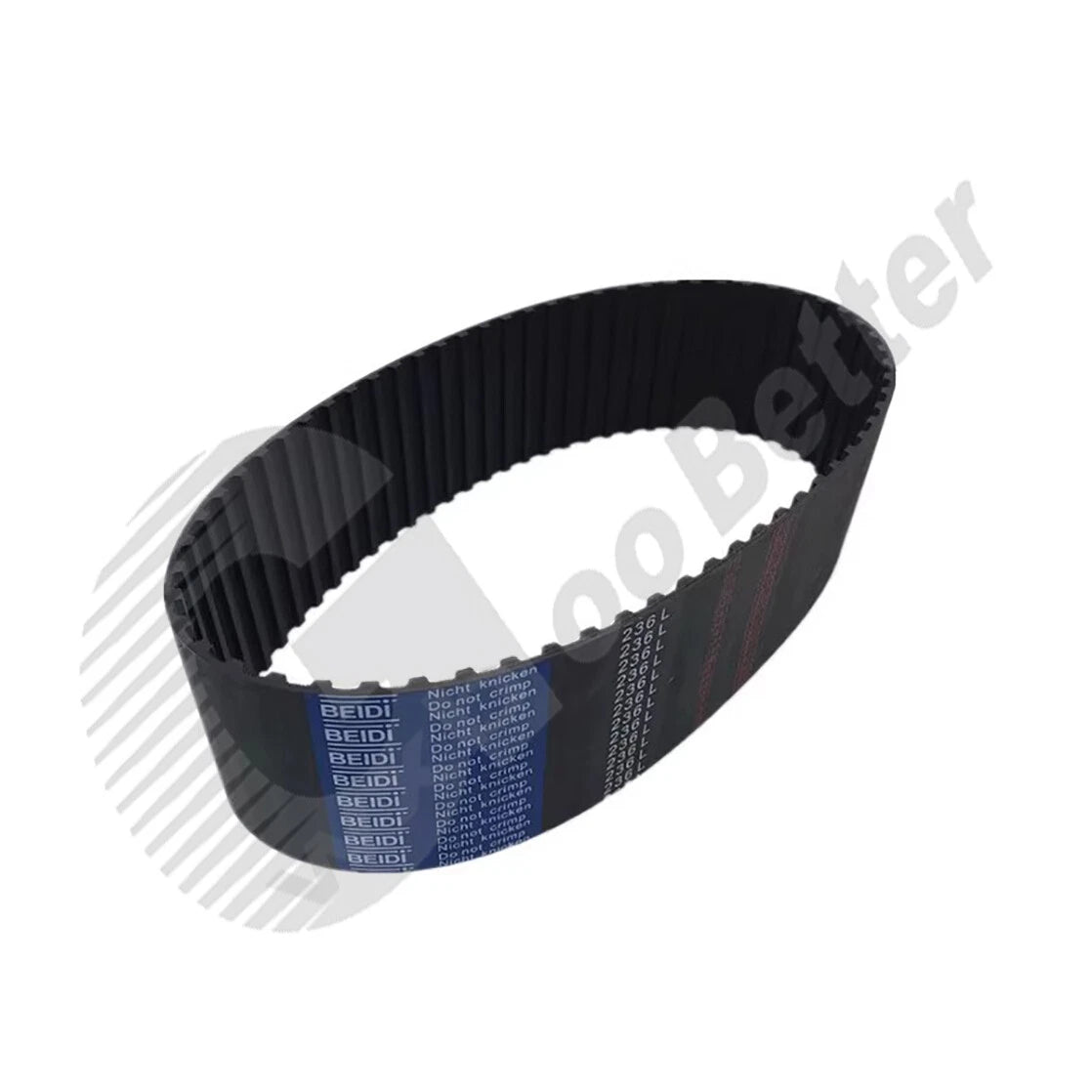

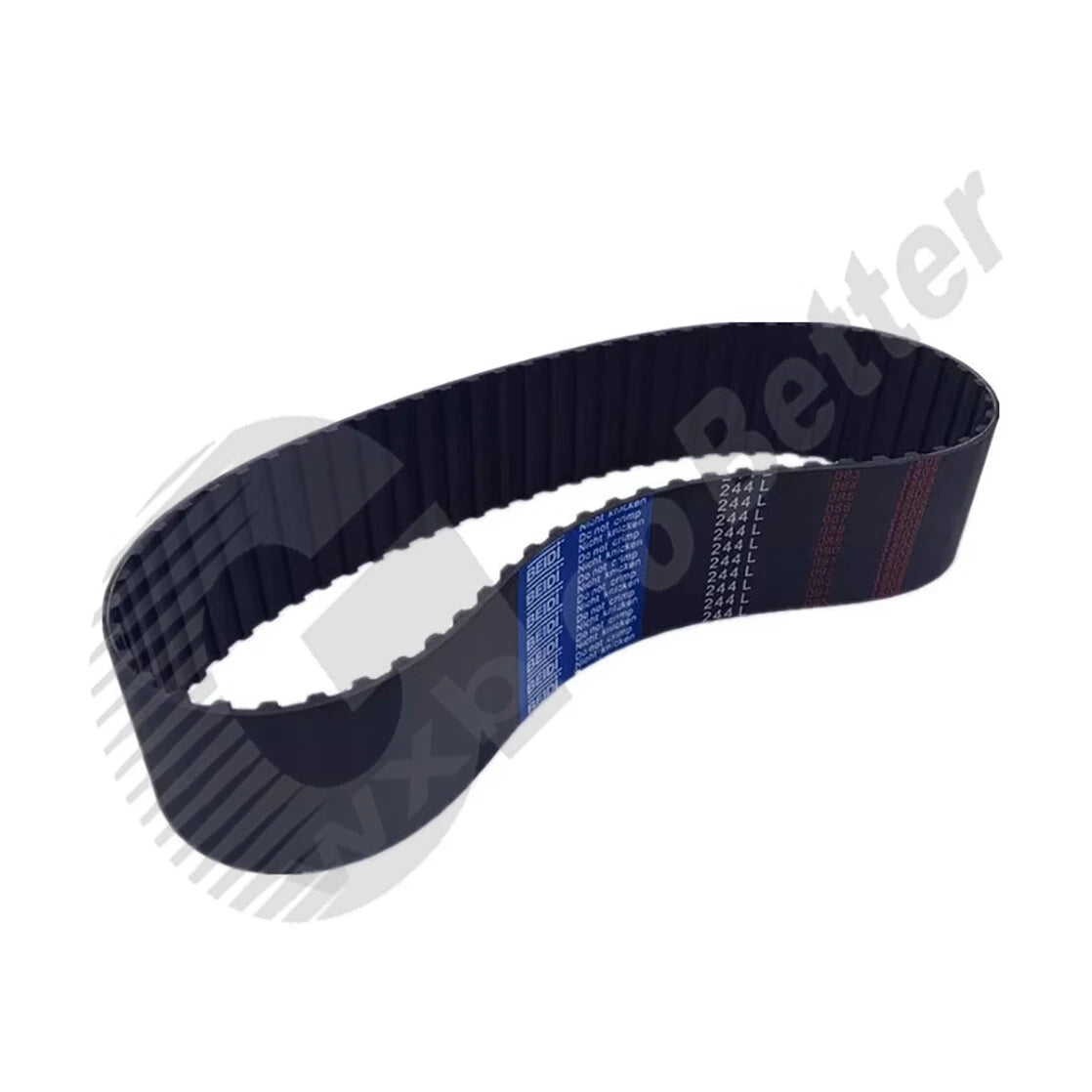

Each belt in this listing is a closed-loop L-series synchronous belt, 25mm (≈1") wide, with a standard 3/8" (9.525mm) tooth pitch. Sizes span from 86L (C=219.075mm / ≈8.6") up to 938L (C=2381.25mm / ≈93.8"), giving you 108 length options to match virtually any drive geometry. The belt body is typically constructed from neoprene rubber reinforced with low-stretch tension cords and nylon-faced teeth for smooth, quiet engagement.

Typical applications include CNC router and laser cutter axis drives, light conveyor and indexing systems, timing and synchronization drives on woodworking or metalworking equipment, and replacement drives on industrial machinery where standard L-pitch pulleys are already installed.

ℹ️ Compatibility: Fits all standard L-pitch (3/8" / 9.525mm) timing pulleys and sprockets. Verify your pulley face width accepts a 25mm wide belt before ordering. Select your exact size by L-number — the circumference C (mm) is shown in each variant name.

✅ Key Features of These L-Type Closed Loop Synchronous Timing Belts

  • ⚙️Standard L-Pitch Tooth Profile — 3/8" (9.525mm) pitch matches any L-series timing pulley, making these belts a direct fit for replacement or new drive builds without custom tooling.
  • 📏108 Sizes in One Listing — From 86L (C≈219mm / 8.6") to 938L (C≈2381mm / 93.8"), each variant shows the exact circumference so you can match your drive geometry without guesswork.
  • 🔒Closed-Loop Construction — Seamless endless loop eliminates splice weak points, delivering consistent tension and tooth engagement across the full belt circumference.
  • 🧱Neoprene Body with Reinforced Tension Cords — The rubber compound resists oil mist and moderate heat while fiberglass or steel cords keep elongation low, maintaining center distance accuracy over time.
  • 🦷Nylon-Faced Teeth — The tooth face covering reduces friction against pulley grooves, lowering operating noise and extending tooth wear life compared to bare rubber teeth.
  • 🏭25mm Working Width — Wider than common 15mm or 20mm belts, the 25mm face width increases load-carrying capacity and lateral stability, suitable for moderate-duty power transmission on CNC axes and conveyor drives.

📐 Technical Specifications — L-Type Synchronous Timing Belt

Belt Type L-Series Closed Loop Synchronous Timing Belt

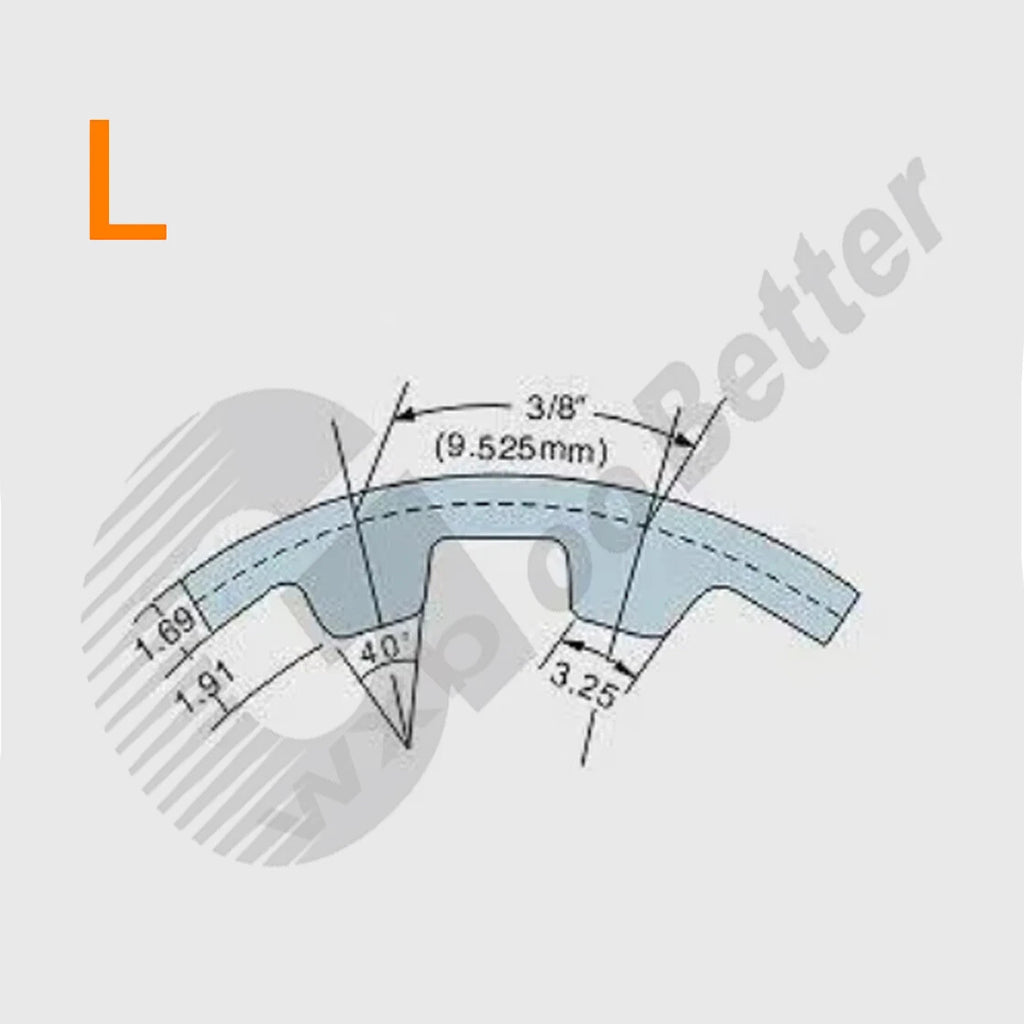

Tooth Pitch 3/8" (9.525mm) — standard L-pitch
Belt Width 25mm (≈1")

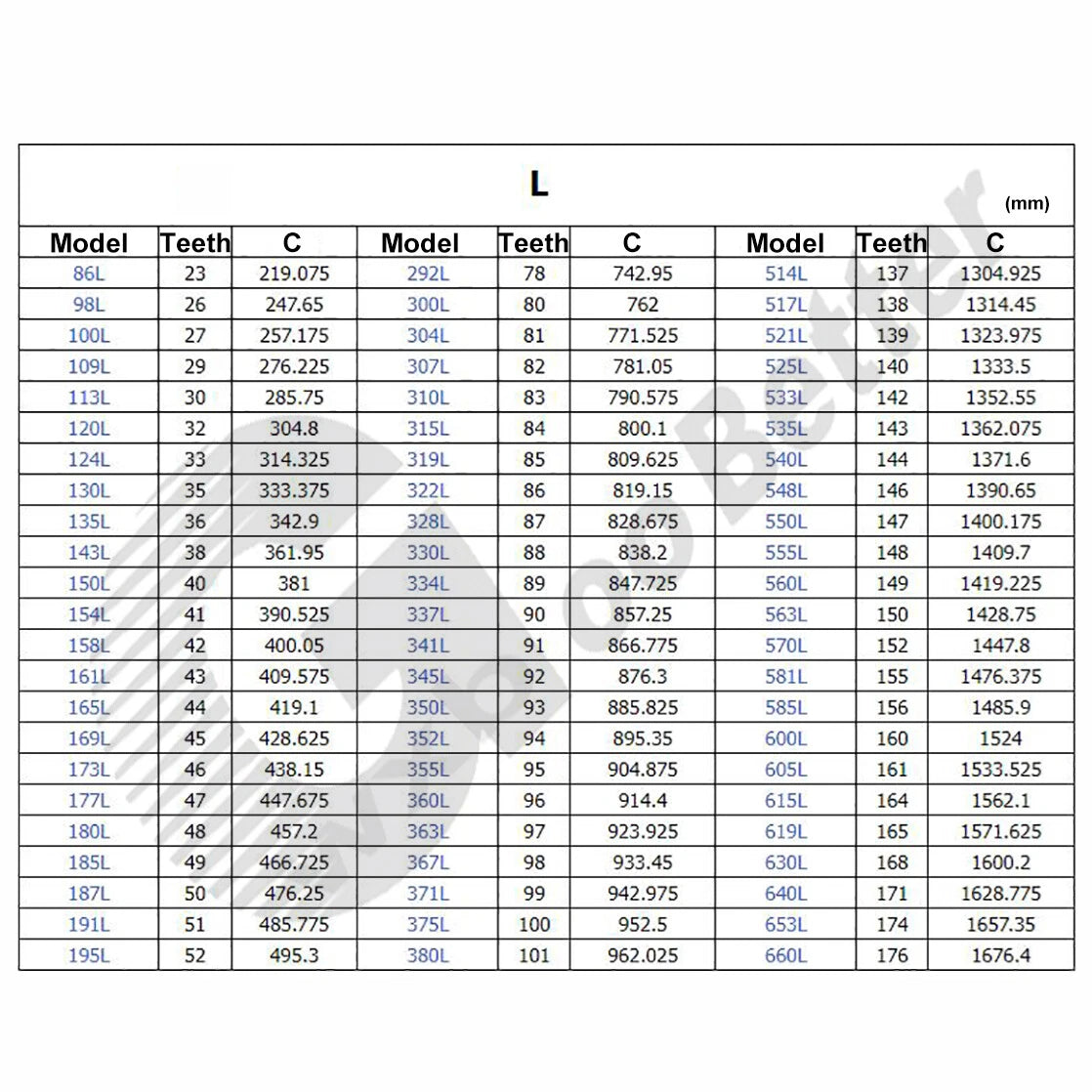

Available Sizes 86L to 938L (108 sizes; C = 219.075mm to 2381.25mm)
Pitch Circumference See variant options (C value shown in mm for each size)
Body Material Neoprene (chloroprene rubber) — typically
Tension Member Fiberglass or steel cord — typically
Tooth Face Nylon fabric — typically
Operating Temperature Contact us to confirm exact rated range
Compatible Pulleys Standard L-pitch timing pulleys (3/8" pitch, ≥25mm face width)
Loop Type Endless / closed loop (no splice)
Country of Origin See variant options
⚠️ Size Selection Note: The L-number equals the pitch circumference in tenths of an inch (e.g., 150L = 15.0" = 381mm). Always verify your required belt circumference against your drive's center distance and pulley pitch diameters before ordering. If you are unsure, contact us with your pulley sizes and center distance.

❓ Frequently Asked Questions

How do I choose the right L-type timing belt size?

The size number (e.g., 150L) refers to the belt's pitch circumference in tenths of an inch — so 150L has a pitch circumference of 15.0 inches (381mm). To find your size: measure your center distance and note your pulley pitch diameters, then calculate the required belt circumference using a standard belt length formula. Each variant in this listing shows both the L-number and the exact circumference C in mm for easy cross-reference. When between sizes, generally choose the next longer belt and adjust center distance.

What is the tooth pitch of an L-series timing belt?

L-series timing belts have a standard pitch of 3/8 inch (9.525mm) between tooth centers. This is a widely adopted industrial standard, so these belts are generally compatible with any L-pitch pulley or sprocket from any manufacturer. Always confirm the pulley is rated for L-pitch before installation.

What material is this timing belt made from, and is it oil-resistant?

These belts are typically constructed with a neoprene (chloroprene rubber) body reinforced with fiberglass or steel tension cords, with nylon-faced teeth. Neoprene generally offers good resistance to oil mist, moderate heat, and humidity — making it suitable for most light industrial and workshop environments. It is not typically rated for continuous submersion or aggressive chemical exposure. Contact us to confirm the specific material grade if your application requires it.

Can this belt be used outdoors or in wet/dusty environments?

Neoprene-based timing belts generally handle moderate moisture and dust exposure well. They are not typically designed for continuous outdoor UV exposure or full submersion. For harsh outdoor environments, confirm the material specification with us before ordering. In most indoor workshop and light industrial settings, these belts perform reliably.

What load or torque can a 25mm wide L-type belt handle?

Load capacity depends on belt length, pulley diameter, operating speed, and installation tension. A 25mm wide L-series belt generally handles moderate power transmission loads — typically suitable for CNC axis drives, light conveyors, indexing tables, and similar machinery. The wider 25mm face provides more load capacity than narrower 15mm or 20mm variants. For exact torque ratings, consult your drive design specifications or contact us with your application details.

Is this belt compatible with standard L-series pulleys and sprockets?

Yes. These belts follow the standard L-pitch (3/8") tooth profile and are designed to mesh with any L-series timing pulley or sprocket. Always verify that your pulley's face width accommodates a 25mm (approximately 1") wide belt — pulleys with a face width narrower than 25mm will not provide full tooth engagement and may cause premature wear or belt tracking issues.

How do I convert the L-number to inches or millimeters?

Divide the L-number by 10 to get the pitch circumference in inches. For example: 200L = 20.0", 150L = 15.0", 86L = 8.6". Multiply by 25.4 to convert to millimeters (e.g., 200L ≈ 508mm). For convenience, each variant in this listing also displays the exact C (circumference) value in mm directly in the size name.

Can I use this belt as a replacement for an existing worn belt?

In most cases, yes — provided your existing belt is an L-pitch type and 25mm wide. Check the size code printed on your old belt (e.g., "150L25" or "L150") and select the matching variant. If the old belt is stretched or the size code is worn off, measure the circumference of the old belt or calculate from your pulley and center distance dimensions.
