L-Type Closed Loop Timing Belt 300L–315L — Reliable Synchronous Drive for Machines That Can't Afford Slippage

When a worn or incorrectly sized timing belt causes your CNC router, 3D printer, conveyor, or industrial drive system to skip teeth or lose synchronization, the downstream damage — misaligned cuts, failed prints, jammed mechanisms — costs far more than the belt itself. This L-type closed loop timing belt is built for engineers, machinists, and serious DIYers who need a dimensionally accurate, drop-in replacement or upgrade for standard L-series drive systems.

Each belt is a closed-loop (endless) synchronous drive belt with a 3/8" (9.525mm) tooth pitch, constructed from neoprene rubber with fiberglass cord reinforcement for dimensional stability under load. Available in five pitch lengths — 300L (762mm / ≈30.0"), 304L (≈771.5mm / 30.4"), 307L (≈779.8mm / 30.7"), 310L (≈787.4mm / 31.0"), and 315L (≈800.1mm / 31.5") — and four widths: 12.7mm (1/2"), 20mm (3/4"), 25mm (1"), and 38mm (1-1/2"). Sold individually or in pairs.

Typical applications include CNC machine axis drives, 3D printer motion systems, light industrial conveyor belts, packaging equipment, and power transmission systems requiring precise, slip-free synchronization between shafts. The standardized L-series tooth profile ensures compatibility with any off-the-shelf L-type timing pulley.

ℹ️ Compatibility: Fits all standard L-series timing pulleys with 3/8" (9.525mm) pitch. Match belt width to your pulley's groove width. Sizes: 300L / 304L / 307L / 310L / 315L × 12.7mm / 20mm / 25mm / 38mm.

✅ Key Features of These L-Type Closed Loop Synchronous Timing Belts

  • ⚙️Standard 3/8" L-Series Tooth Profile — Trapezoidal tooth geometry matches any L-type timing pulley for zero-backlash, slip-free power transmission in CNC and industrial drive systems.
  • 🔄Closed-Loop (Endless) Construction — No splice points or mechanical joints means consistent tension distribution and longer service life compared to open-ended belts cut to length.
  • 🧱Neoprene Body with Fiberglass Cord Reinforcement — The neoprene compound resists oil and grease exposure while the fiberglass tension members maintain pitch length accuracy under dynamic loads.
  • 📐Five Pitch Lengths, Four Widths — Covers a wide range of center distances and torque requirements; widths from 12.7mm (1/2") to 38mm (1-1/2") let you match the belt to your load without over-engineering.
  • 🔁Available in Singles or Pairs — Order one belt for a straightforward replacement or two for dual-axis machines and to keep a spare on hand — both options ship from our US warehouse.
  • 🏭Broad Application Range — Suitable for 3D printer timing belt replacement, CNC router drive belts, light conveyor systems, and general synchronous power transmission where tooth-to-pulley engagement accuracy matters.

📐 Technical Specifications — L-Type Closed Loop Synchronous Timing Belt

Belt Series L (Imperial)
Tooth Pitch 3/8" (9.525mm)

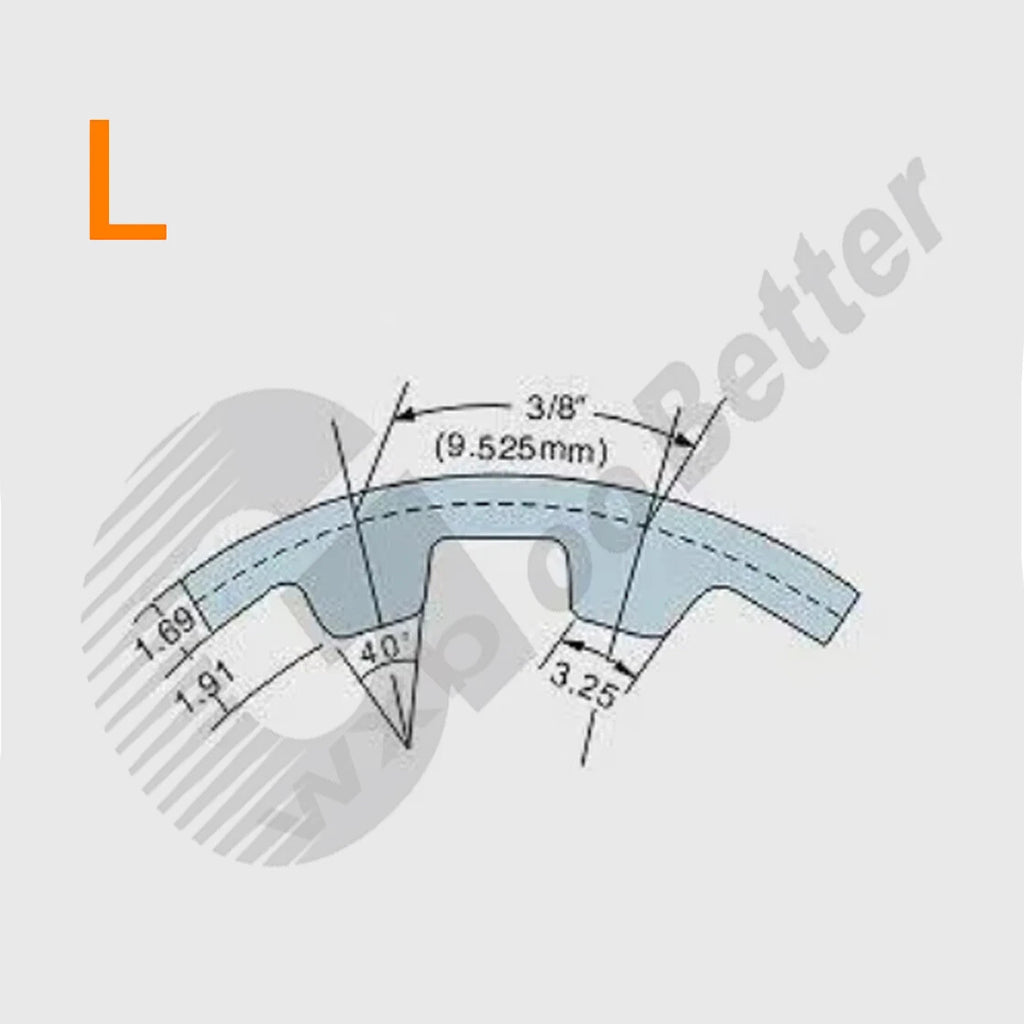

Tooth Profile Trapezoidal (standard L-series)
Available Pitch Lengths 300L — 762mm (≈30.0") | 304L — 771.5mm (≈30.4") | 307L — 779.8mm (≈30.7") | 310L — 787.4mm (≈31.0") | 315L — 800.1mm (≈31.5")
Available Widths 12.7mm (1/2") | 20mm (3/4") | 25mm (1") | 38mm (1-1/2")
Belt Type Closed-loop (endless)
Body Material Neoprene rubber
Tension Member Fiberglass cord
Tooth Facing Nylon fabric (typically)
Operating Temperature See variant options / Contact us to confirm
Load Capacity See variant options — varies by width and application
Quantity per Order 1 pc or 2 pcs (select above)
Compatible Pulley Standard Standard L-series timing pulleys (3/8" pitch)
⚠️ Before ordering: Confirm your pulley's pitch (3/8" / L-series) and groove width match your selected belt width. If you are unsure of your belt's pitch length, measure the outer circumference of the existing belt or calculate from your pulley center distance.

❓ Frequently Asked Questions

How do I choose the right L-type timing belt length?

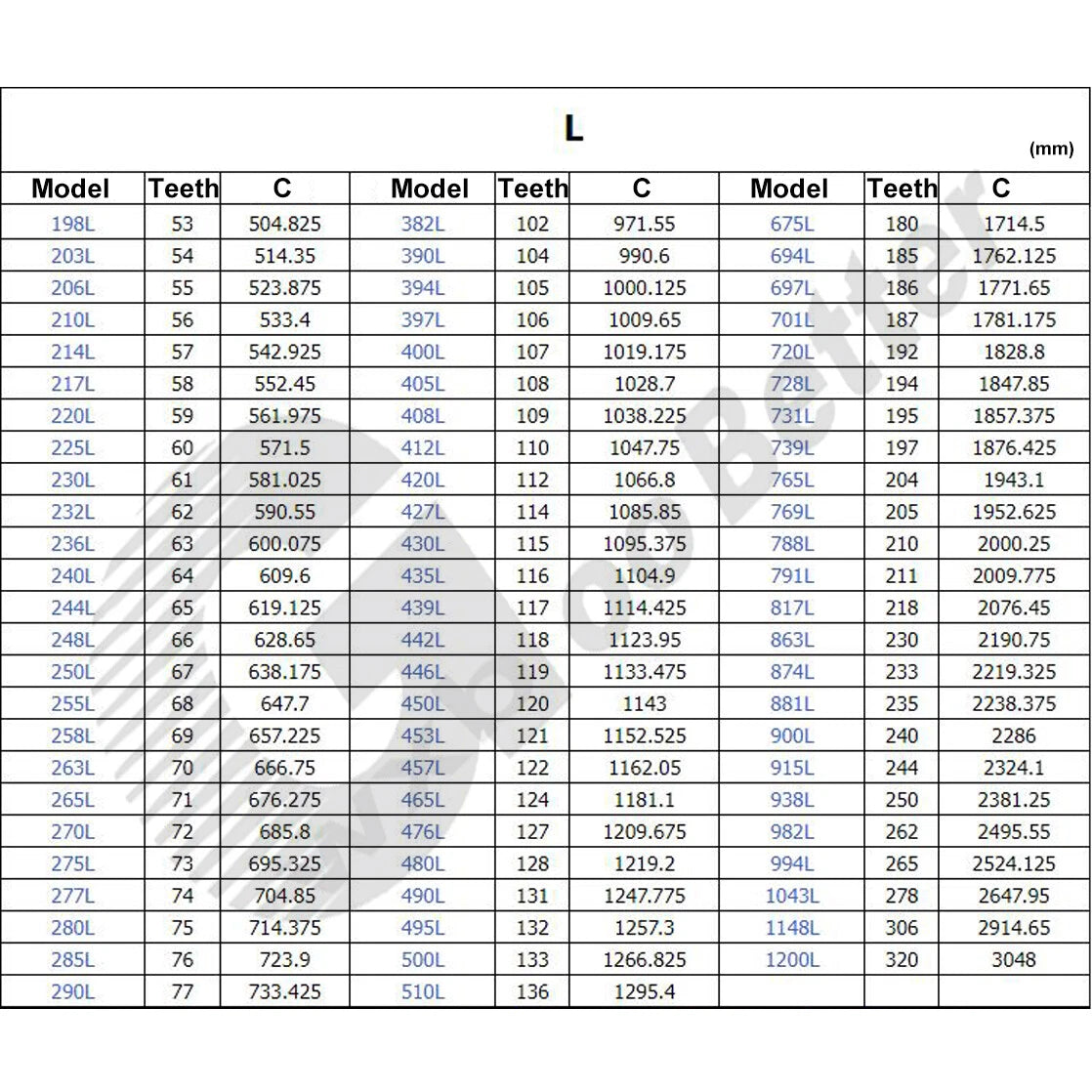

The number in the belt designation refers to the pitch length in tenths of an inch: 300L = 30.0" (762mm), 304L = 30.4" (≈771.5mm), 307L = 30.7" (≈779.8mm), 310L = 31.0" (≈787.4mm), 315L = 31.5" (≈800.1mm). Measure your existing belt's outer circumference, or calculate the required belt length from your pulley center distance and pulley diameters. When in doubt, size up slightly and adjust center distance.

What width should I choose for my application?

Width selection depends on the torque load and your pulley's belt groove width. Available widths are 12.7mm (1/2"), 20mm (3/4"), 25mm (1"), and 38mm (1-1/2"). Generally, wider belts handle greater loads. Always match the belt width to your pulley's rated groove width — a belt wider than the pulley groove will not seat correctly.

What is the pitch of an L-type timing belt, and how do I verify my pulleys are compatible?

L-type timing belts have a 3/8" (9.525mm) tooth pitch — a standardized imperial series. To verify compatibility, check your pulley's part number or datasheet for "L-series" or "3/8" pitch" designation. The number of pulley teeth multiplied by 9.525mm should equal the belt's pitch length (e.g., 300L ÷ 9.525mm = approximately 80 teeth total across both pulleys).

Can these timing belts be used outdoors or in wet/oily environments?

Neoprene timing belts are generally resistant to oil, grease, and moderate moisture exposure. They typically perform well in light industrial environments with incidental fluid contact. However, prolonged exposure to standing water, UV radiation, or aggressive chemicals may reduce belt life. For outdoor or washdown-rated applications, inspect belts regularly and contact us to confirm suitability.

What load or torque can these belts handle?

Load capacity depends on belt width, the number of teeth in mesh, operating speed, and pulley diameter. Wider belts (25mm and 38mm) typically handle significantly higher torque than the 12.7mm width. For precise load ratings specific to your application, consult your machinery's engineering documentation or contact us with your RPM, center distance, and load requirements.

Are these belts a direct replacement for OEM timing belts on CNC machines or 3D printers?

In most cases, yes — provided the OEM belt is an L-series (3/8" pitch) closed-loop belt with a matching pitch length and width. Verify the belt designation printed on your existing belt (e.g., "300L050" means 300L pitch length, 0.50" wide). If your machine uses GT2 or HTD belts, those are different profiles and are not interchangeable with L-series belts.

What is the difference between buying 1 pc vs 2 pcs?

The Qty option lets you purchase either a single belt or a pair of identical belts. Buying 2 pcs is useful for dual-axis machines, systems requiring matched belt pairs, or simply keeping a spare on hand to minimize downtime. Both options ship the same belt — only the quantity per order differs.

🛒 Select your size, width, and quantity above, then add to cart — ships from our US warehouse.
