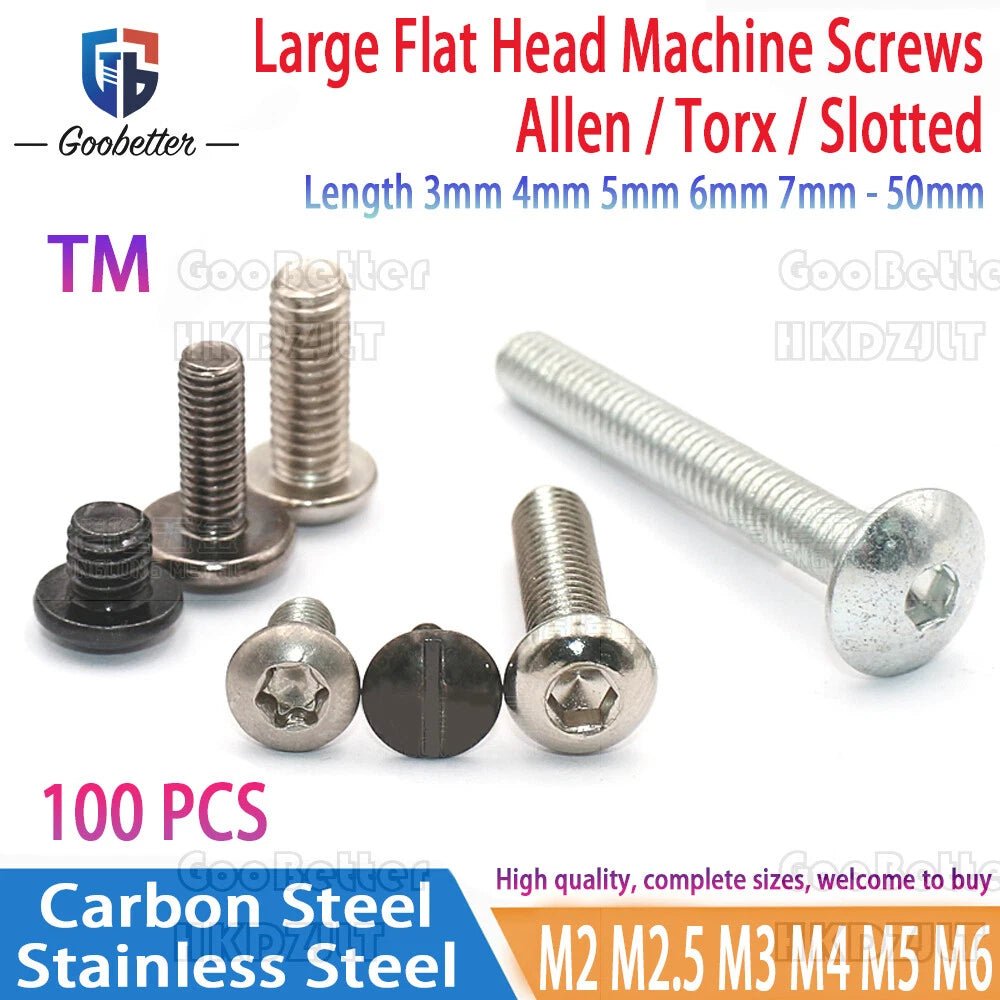

Large Flat Head Machine Screws M2–M6 — Multi-Drive, Multi-Finish for Every Assembly Need
Standard screw heads pull through thin panels, strip soft materials, and leave ugly protrusions on finished surfaces. Engineers, electronics assemblers, furniture makers, and precision DIYers who need a fastener that spreads load, stays put, and looks intentional turn to large flat head machine screws — available here in Allen, Torx, Slotted, and Groove-Free drive types across seven material finishes.
Each pack contains 100 pieces of the selected size and finish combination. Diameters range from M2 to M6, with lengths from 3mm (≈1/8") to 50mm (≈2"). Material options include Carbon Steel with Black Zinc (with or without pre-applied thread-locking glue), Bright Nickel, Black Nickel, White Zinc, Electrophoresis Black, and Stainless Steel — covering both functional and decorative requirements.
Typical applications include electronics enclosure assembly using small flat head Torx machine screws, automotive interior panel fastening with large head screws with pre-applied thread locker, and precision fixture building where metric flat head Allen screws M3–M6 provide controlled torque and a clean surface finish.
🔵 Compatibility: ISO metric coarse thread — M2 through M6. Fits any matching metric nut, threaded insert, or tapped hole per ISO 68-1. Drive types: Allen (hex key), Torx (star bit), Slotted (flat blade), Groove-Free (no drive). All packs: 100 pieces.
⚠️ Note: Carbon steel variants are not recommended for outdoor or marine environments without additional protection. Select Stainless Steel for corrosive or humid conditions. “With Glue” variants include pre-applied thread-locking adhesive — confirm compatibility with your assembly before ordering.
✅ Key Features of These Large Flat Head Machine Screws M2–M6
-
🛡️Oversized Flat Head for Load Distribution — The enlarged head diameter spreads clamping force over a wider surface area, preventing pull-through in thin panels, plastic enclosures, and sheet metal — a common failure point with standard-head screws.
-

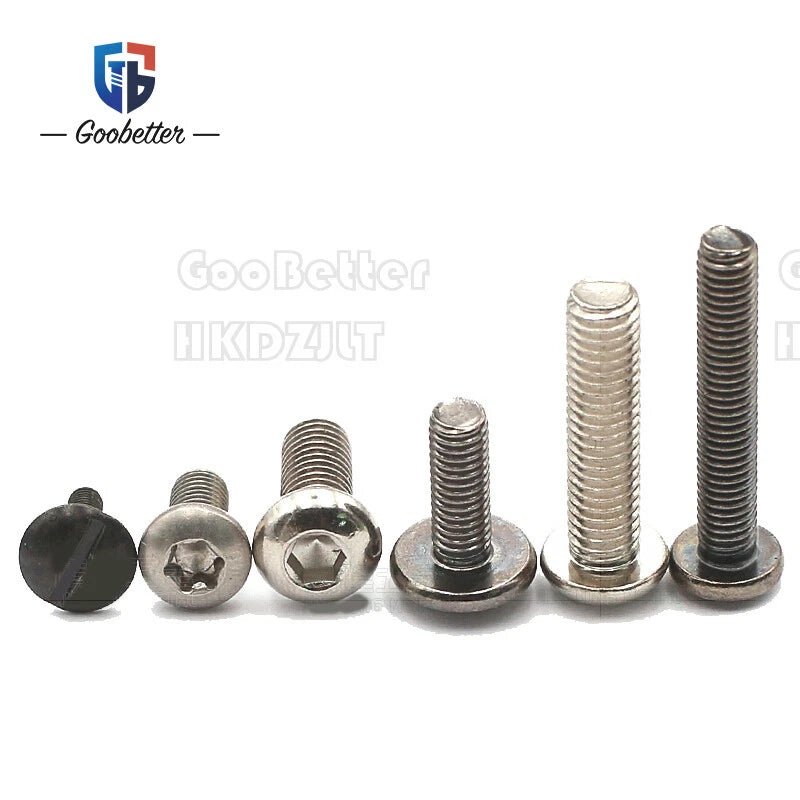

🔧Four Drive Types in One Listing — Choose Allen (hex socket), Torx (star), Slotted (flat blade), or Groove-Free to match your tooling and application — from precision electronics assembly to tamper-resistant panel mounting.
-
🎨Seven Material & Finish Options — Stainless Steel for corrosion resistance, Black/White Zinc for indoor protection, Bright/Black Nickel for decorative finishes, Electrophoresis Black for uniform matte coating, and Black Zinc With Glue for vibration-resistant assemblies.
-

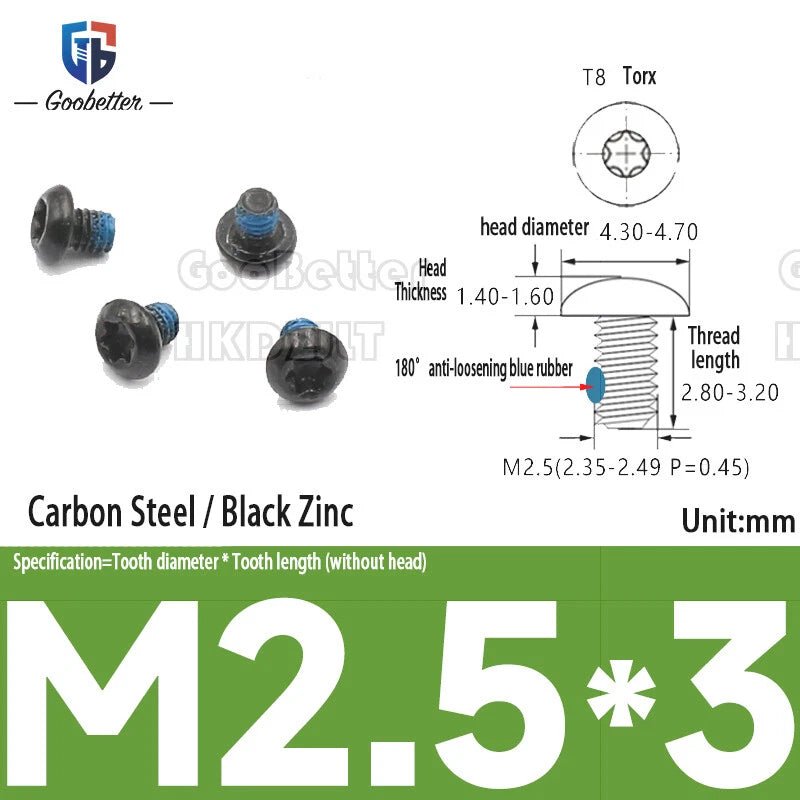

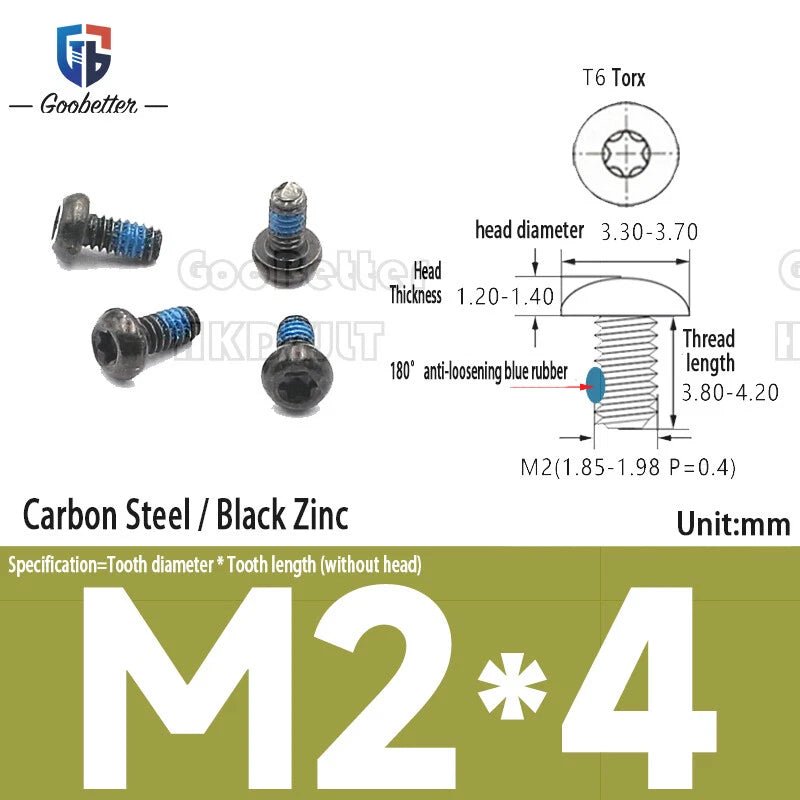

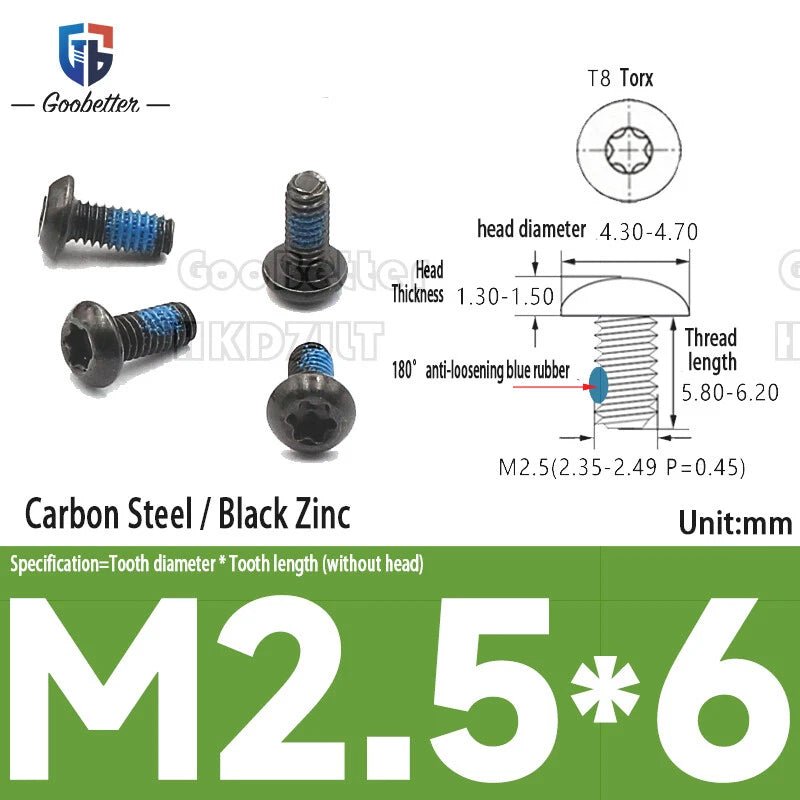

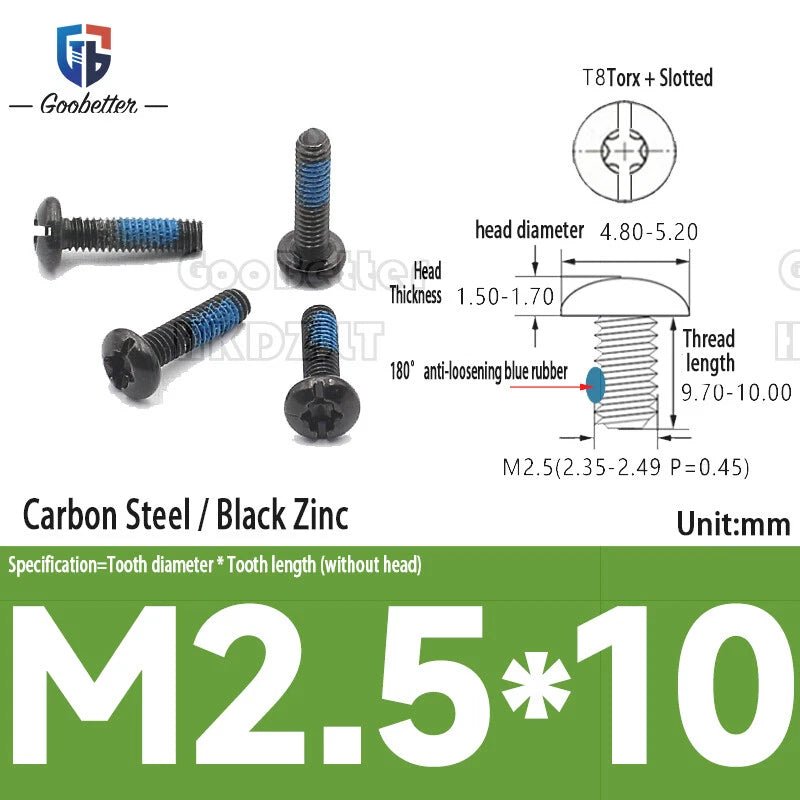

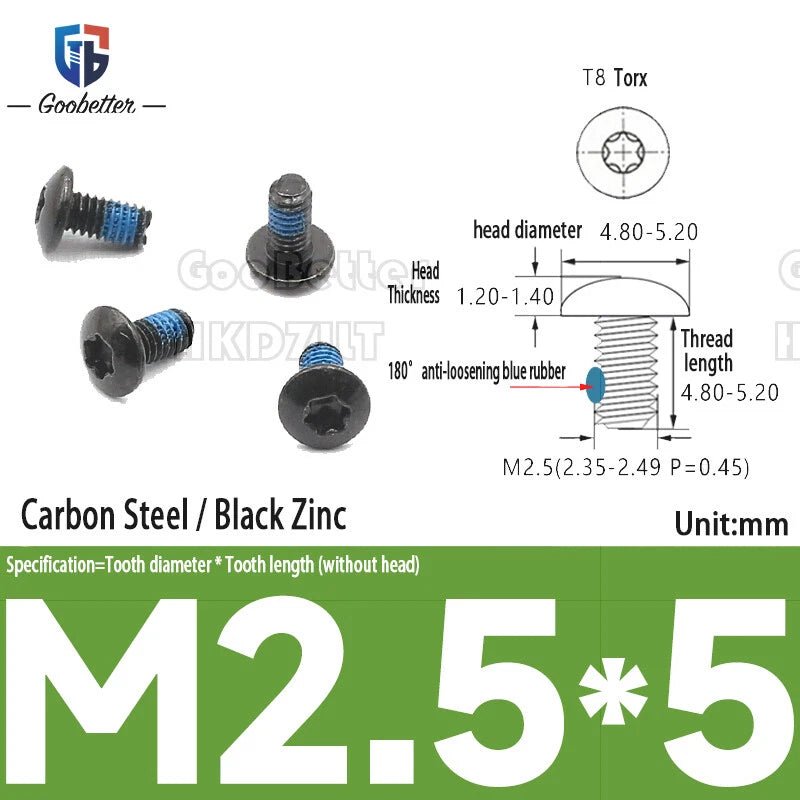

🧲Pre-Applied Thread Locker (Select Variants) — “Black Zinc With Glue” variants include a factory-applied thread-locking adhesive patch, eliminating the need for separate Loctite application in vibration-prone assemblies such as motor mounts and machinery panels.
-
📏Wide Size Range — M2 to M6, 3mm to 50mm — Covers the most common small metric machine screw sizes used in electronics, automotive, and precision mechanical assembly, reducing the need to source from multiple suppliers.
-
📦100-Piece Packs for Workshop Efficiency — Each pack contains 100 pieces of the selected size and finish, suitable for production runs, maintenance kits, and workshop stock without over-ordering individual fasteners.

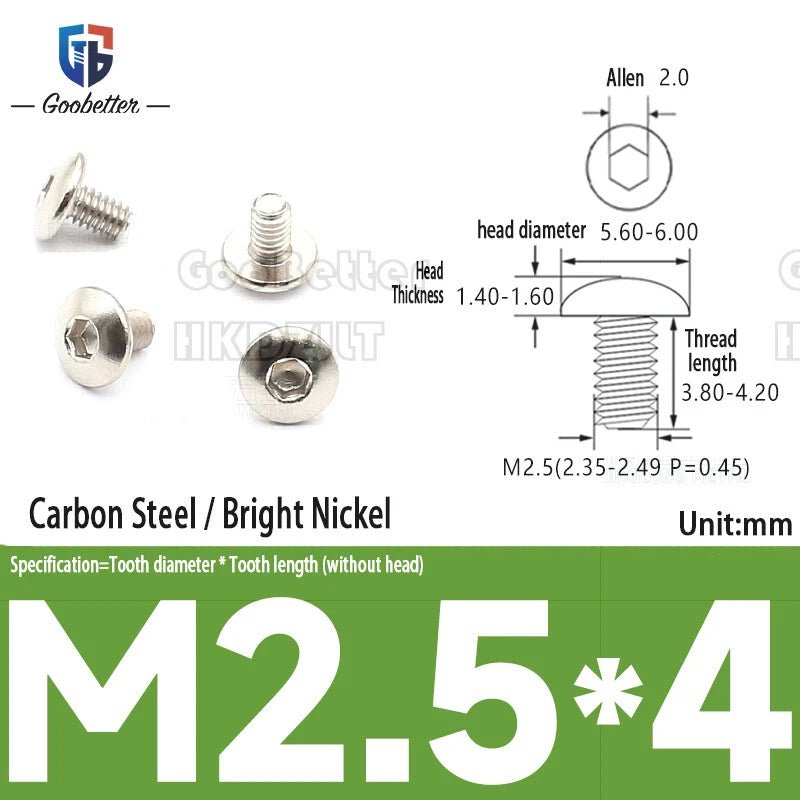

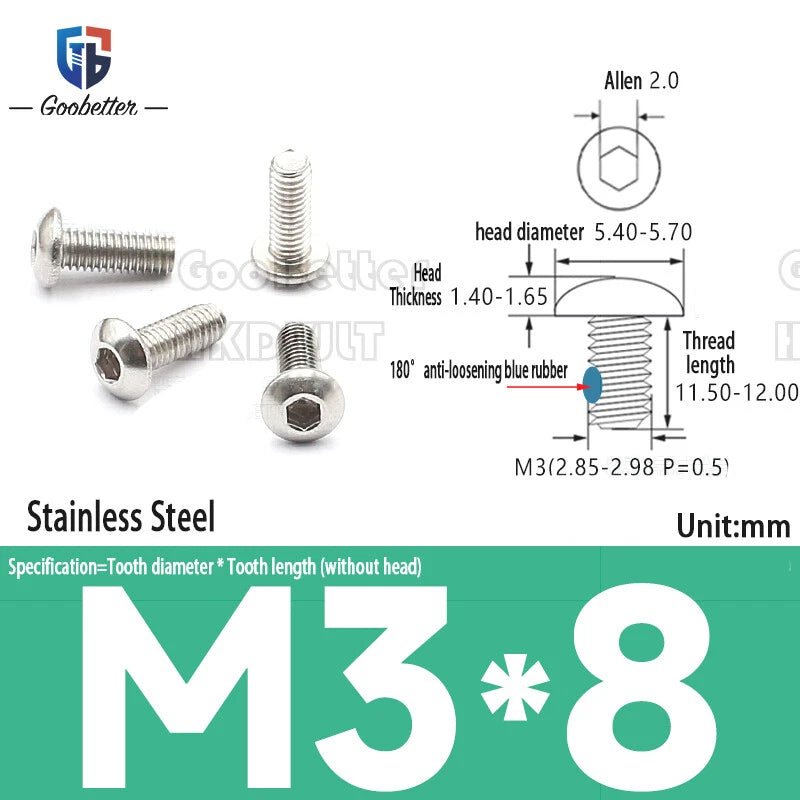

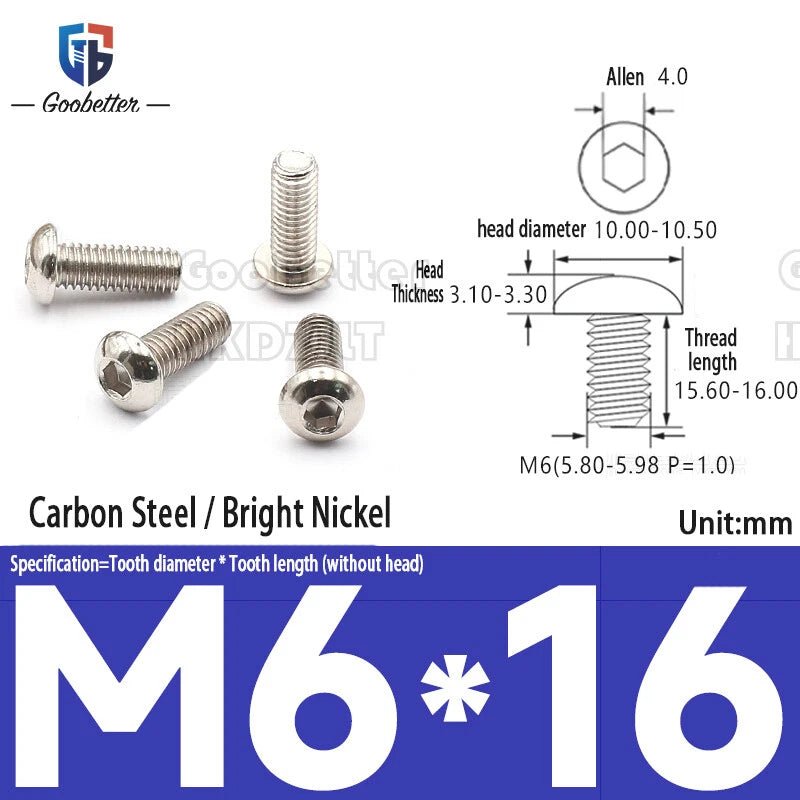

📐 Technical Specifications — Large Flat Head Machine Screws
| Head Type |
Large flat head (oversized pan head) |
| Drive Types Available |
Allen (hex socket) | Torx (star) | Slotted (flat blade) | Groove-Free (no drive) |
| Thread Standard |
ISO metric coarse thread |
| Available Diameters |
M2, M2.5, M3, M4, M5, M6 |
| Available Lengths |
3mm (≈1/8") — 50mm (≈2") (varies by diameter — see variant options) |
| Material Options |
Carbon Steel / Black Zinc With Glue | Carbon Steel / Black Zinc | Carbon Steel / Bright Nickel | Carbon Steel / Black Nickel | Carbon Steel / White Zinc | Carbon Steel / Electrophoresis Black | Stainless Steel |
| Thread Locker |
Pre-applied on “With Glue” variants; none on standard variants |
| Pack Quantity |
100 pieces per pack |
| Head Diameter |
Contact us to confirm per diameter (oversized vs. standard head) |
| Thread Pitch |
Contact us to confirm per diameter (ISO metric coarse standard) |
❓ Frequently Asked Questions
How do I choose the right diameter and length for large flat head machine screws?
Match the diameter to your tapped hole or clearance hole size (e.g., M3 for a 3mm threaded hole). For length, measure the thickness of the material being fastened — the screw should engage at least 1.5× the thread diameter into the receiving material. For example, M3 x 8mm (≈5/16") is typically used for fastening two 3–4mm panels together. Lengths in this listing run from 3mm (≈1/8") to 50mm (≈2") depending on the diameter selected.
What is the advantage of a large flat head design over a standard head?
The oversized flat head distributes clamping load over a larger surface area, reducing the risk of the screw pulling through soft or thin materials such as plastic panels, sheet metal, wood composites, and electronics enclosures. This makes large flat head screws particularly useful in applications where a standard head would sink into or strip the material around the hole.
What is the difference between Allen, Torx, Slotted, and Groove-Free drive types?
Allen (hex socket) drive offers good torque transfer and is widely used in machinery and furniture. Torx (star) drive resists cam-out better than Allen and is common in electronics and automotive assembly. Slotted drive is the traditional flat-blade type, useful when only a flathead screwdriver is available. Groove-Free (smooth head) variants have no drive recess and are typically used as decorative or tamper-resistant fasteners. Select the drive type that matches your available tools and application requirements.
Which material finish should I choose for my application?
Stainless Steel offers the best corrosion resistance and is suitable for outdoor, marine, or humid environments. Black Zinc and White Zinc coatings provide moderate corrosion protection for indoor mechanical assemblies. Bright Nickel and Black Nickel finishes add a decorative appearance while offering light corrosion resistance. Electrophoresis Black provides a uniform matte black coating with good adhesion. Black Zinc With Glue variants include a pre-applied thread-locking compound for vibration-resistant installations.
Are these screws suitable for outdoor or corrosive environments?
Stainless Steel variants are generally suitable for outdoor and humid environments. Carbon steel variants with zinc or nickel coatings are typically intended for indoor or protected applications. For harsh outdoor or marine environments, stainless steel is the recommended choice. Contact us if you need guidance on the most suitable finish for your specific conditions.
What thread standard do these machine screws use?
These screws use standard ISO metric coarse thread (e.g., M3 × 0.5mm pitch, M5 × 0.8mm pitch). They are compatible with any matching metric nut, threaded insert, or tapped hole following ISO 68-1 thread standards — widely used in electronics, automotive, and general mechanical assembly worldwide.
What does “Black Zinc With Glue” mean and when should I use it?
“Black Zinc With Glue” means the screw has a black zinc coating plus a pre-applied thread-locking adhesive patch on the threads. This eliminates the need for separate thread-locking compound (such as Loctite) and is ideal for assemblies subject to vibration, such as motor mounts, machinery panels, and automotive components. The adhesive activates when the screw is tightened into a threaded hole. Note: these screws are generally single-use once the adhesive has been activated.
