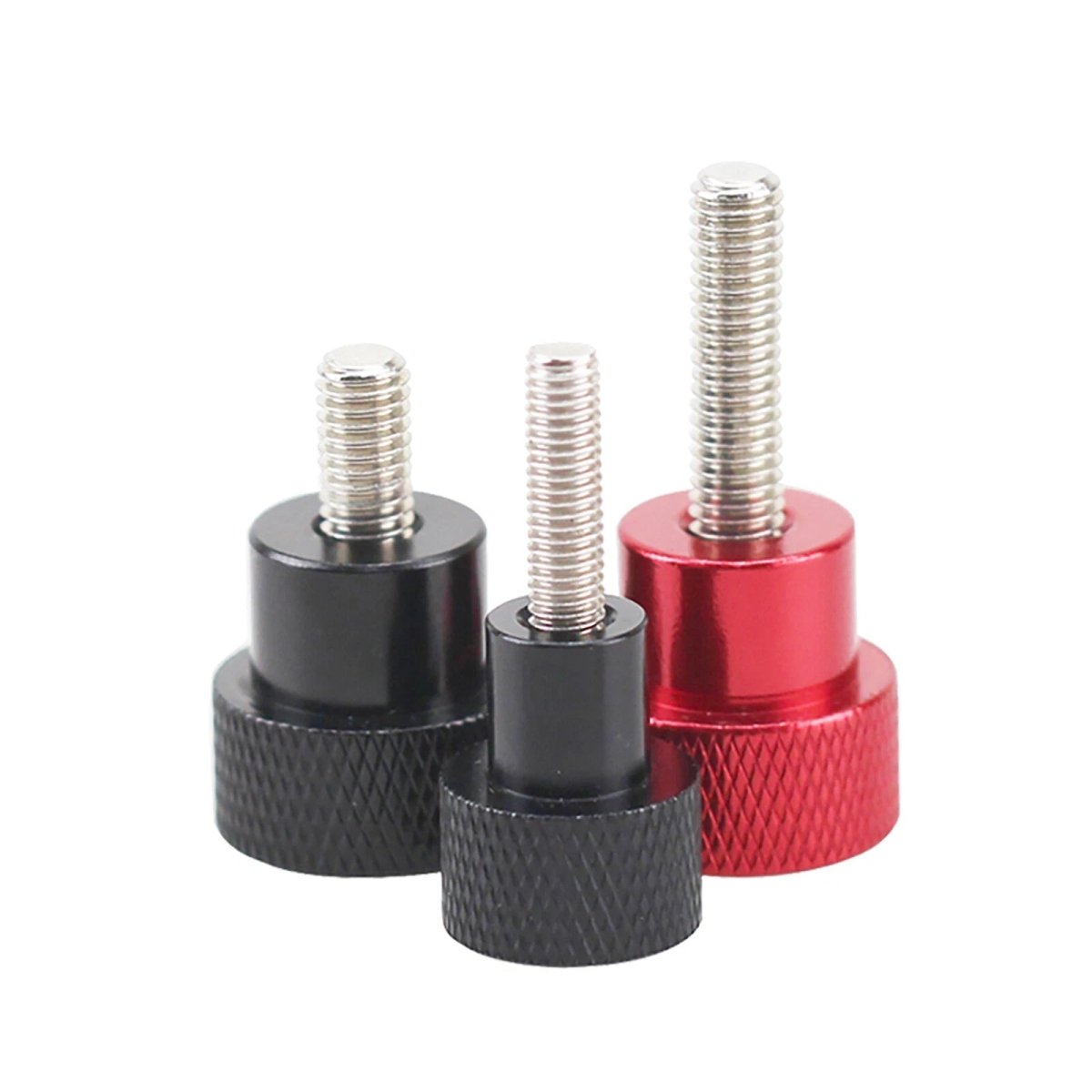

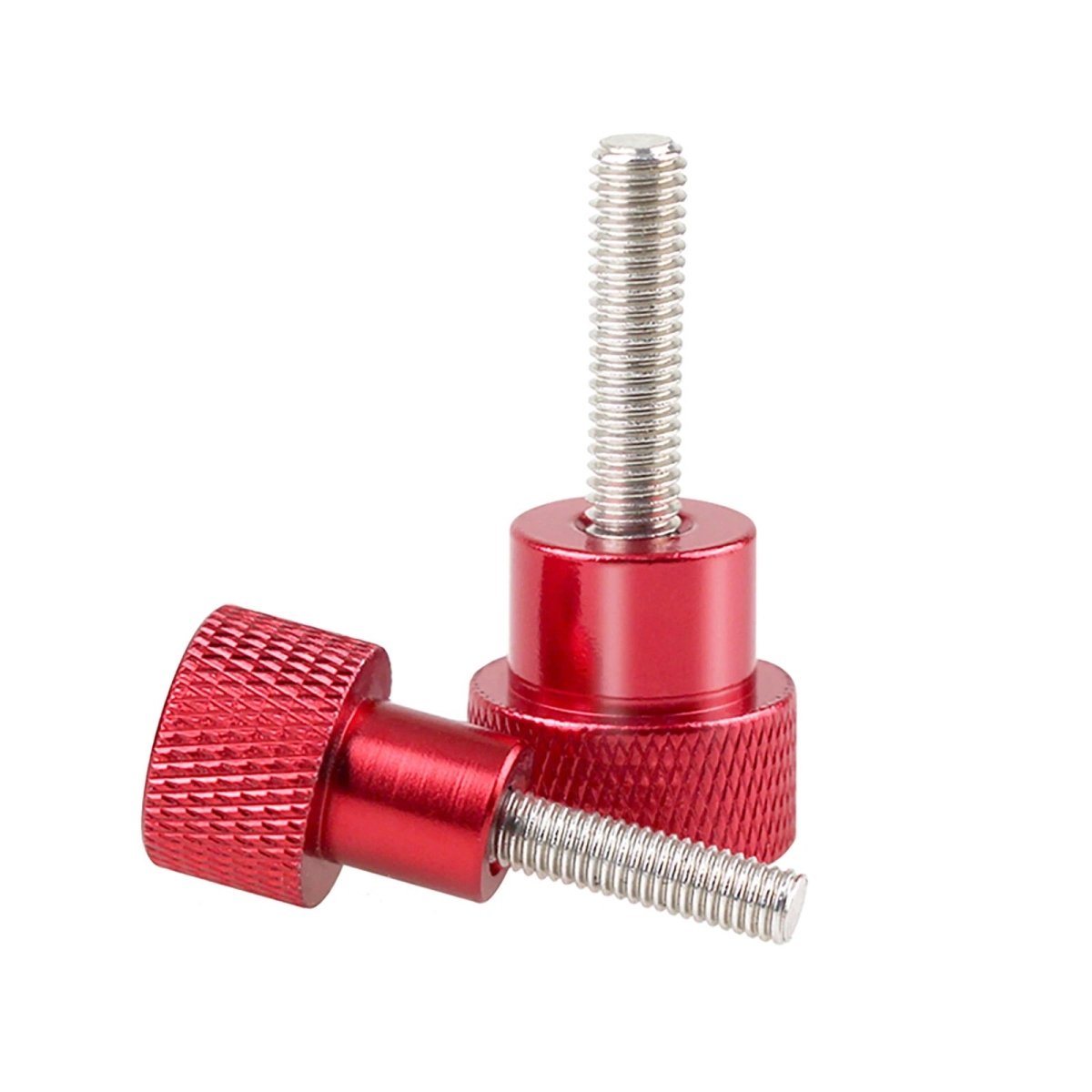

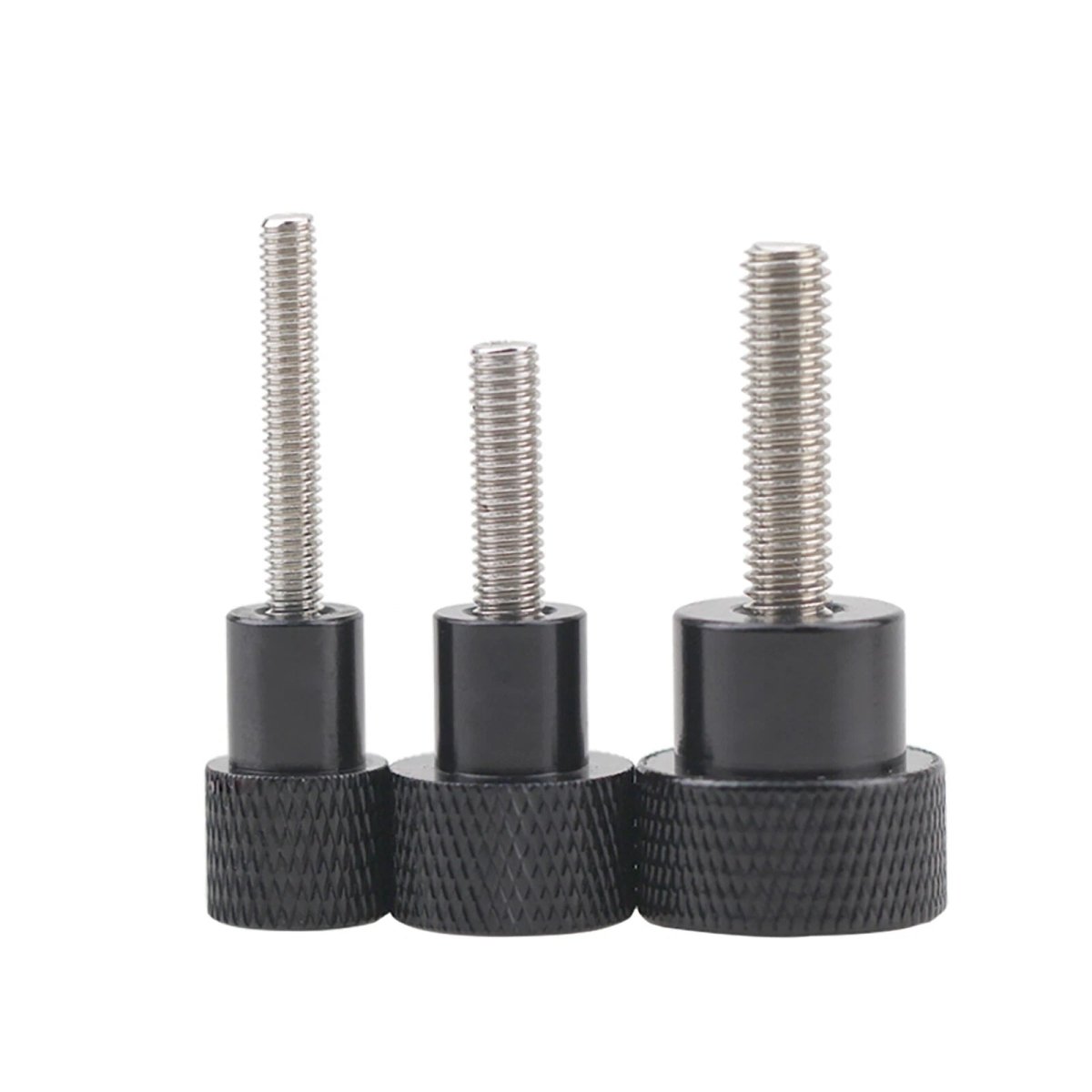

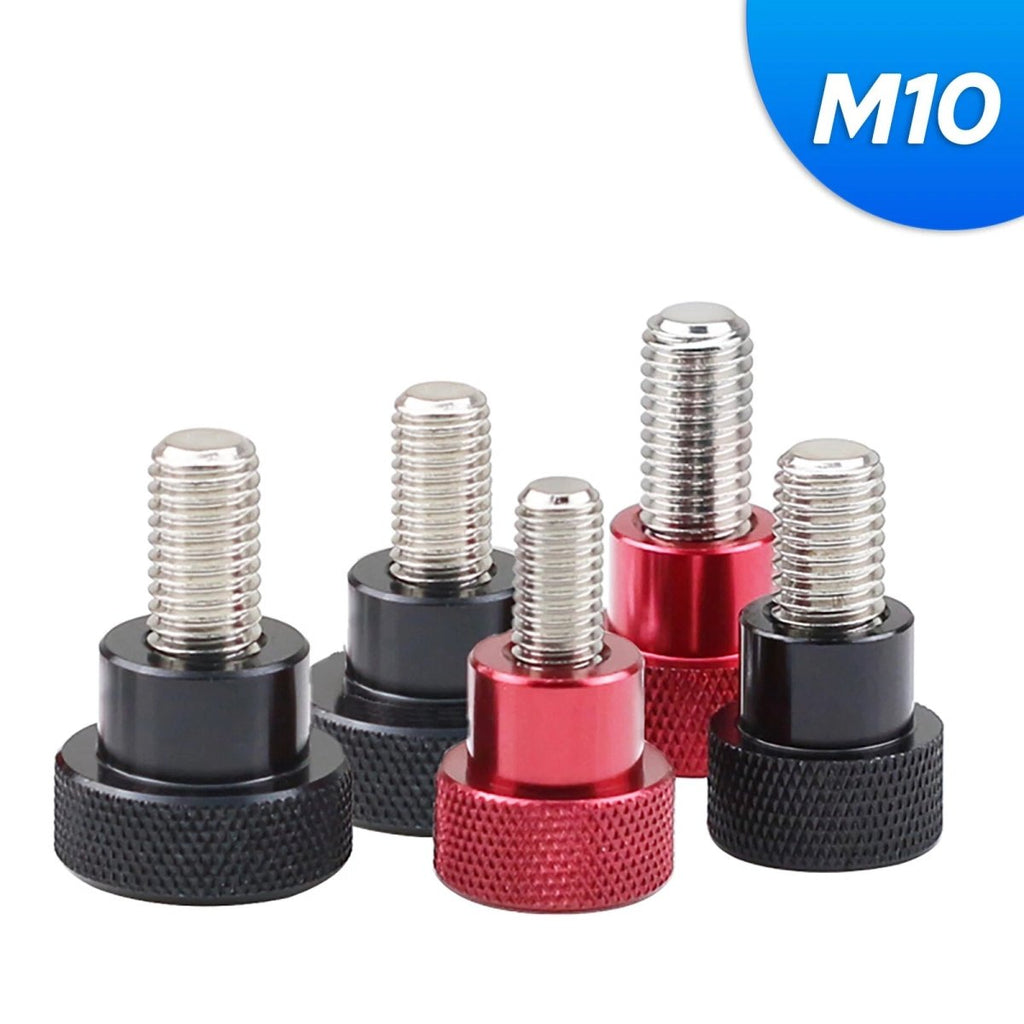

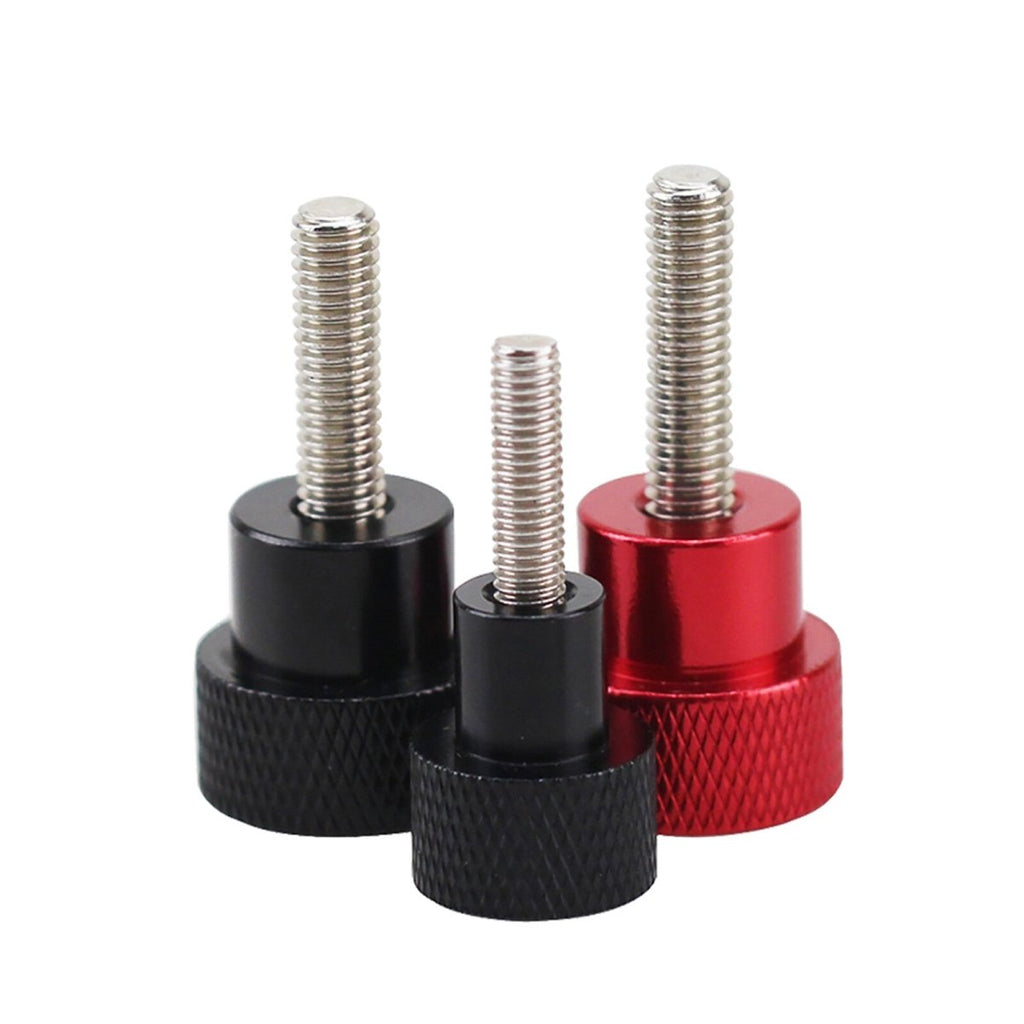

🔘 M10 Knurled Thumb Screws – A2 Stainless Steel + Anodised Aluminium Hand Grip Knob Bolts (DIN 464)
You need a large, sturdy thumbscrew for heavy‑duty adjustments on machinery, jigs, or industrial equipment – something that’s comfortable to grip, completely rust‑proof, and built to last. These M10 knurled thumb screws combine a lightweight, knurled aluminium head with a robust A2 stainless steel threaded stud. The diamond knurling gives you a secure, non‑slip hold, even with oily hands, and the stainless steel thread resists corrosion in demanding environments. Fully threaded, with stud lengths measured under the head. Available in pack sizes of 1, 5, or 10 pieces. Perfect for machine clamps, tool‑less access panels, camera pedestals, and any application where a large‑format hand‑operated fastener is required.
✨ Key Features – M10 Knurled Thumb Screws (DIN 464)
- 🔘 Large round knurled head – Generous diameter provides excellent leverage and fingertip grip for hand tightening.
- 🛡️ A2 stainless steel threaded stud – Corrosion‑resistant, strong, and durable. Won’t rust in damp or outdoor environments.
- ⚖️ Lightweight anodised aluminium head – Reduces overall weight while maintaining a professional, colourful appearance (colour options available on request).
- 📐
Tool‑less operation – Tighten and loosen by hand – no spanners or screwdrivers needed. Ideal for frequent adjustments.
- 📏 M10 metric coarse thread (10mm diameter, 1.5mm pitch) – Standard size for heavy‑duty machinery, woodworking clamps, and industrial fixtures.
- 📐 Fully threaded stud, length under head – Thread runs the entire length under the head for maximum grip in tapped holes or with nuts.
- 📦 Flexible pack sizes – Choose from 1, 5, or 10 pieces per pack. Select thread length from dropdown.
- ⚙️ DIN 464 standard – Precision head dimensions and consistent quality.

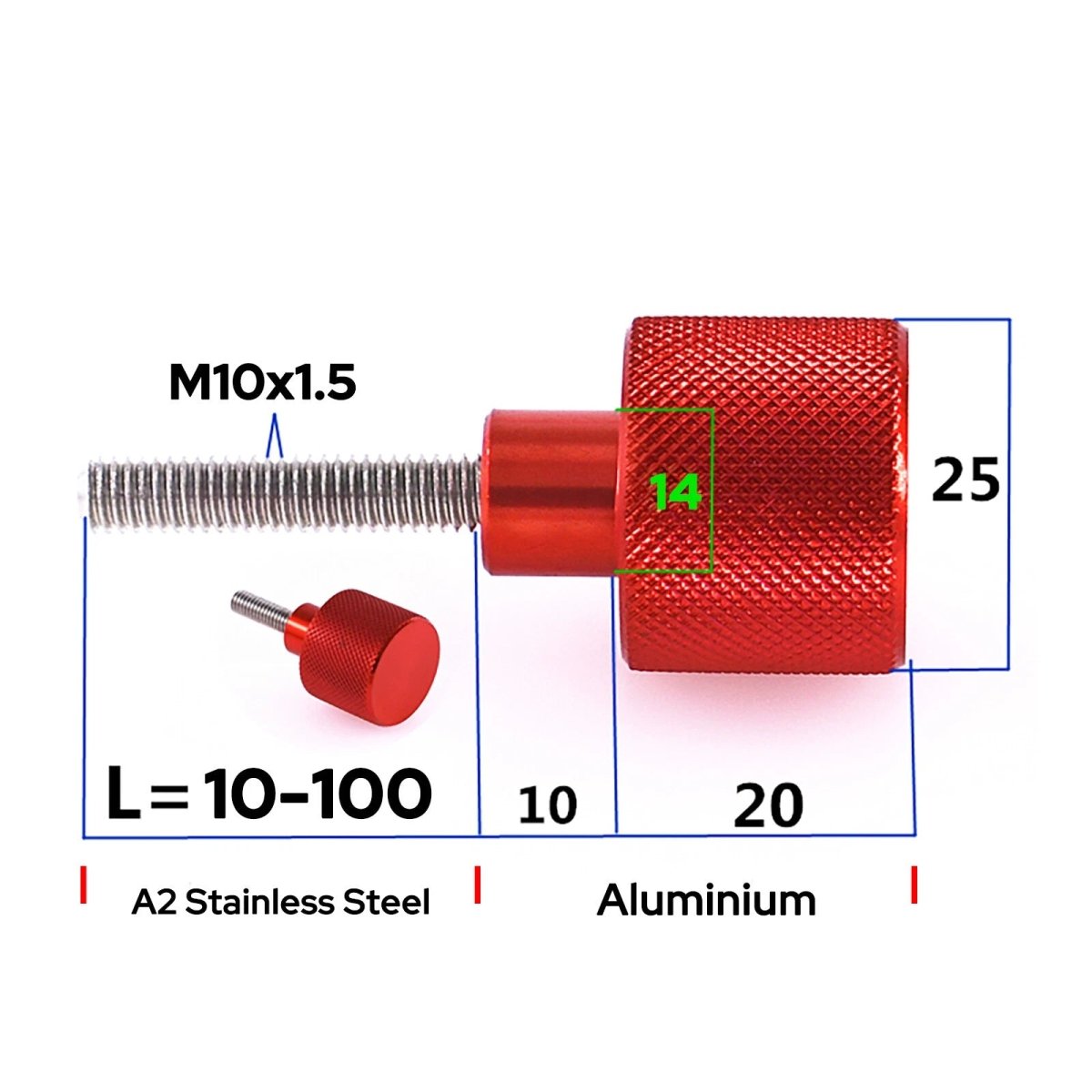

📏 Specifications – M10 Knurled Thumb Screws (Aluminium Head + A2 Stainless Steel)
| Thread Diameter (M) |
Thread Pitch (mm) |
Head Material / Finish |
Stud Material |
Head Style |
Head Diameter (approx.) |
Head Height (approx.) |
Stud Length (mm, under head) * |
Pack Sizes |
Standard |
| M10 |
1.5 |
6061 aluminium / Anodised |
A2 304 stainless steel |
Round knurled (DIN 464) |
~25‑30 mm |
~12‑15 mm |
Select from dropdown (typical range 10–50mm) |
1, 5, 10 |
DIN 464 |
* Length measured from underside of head to tip. Fully threaded. Colour options available on request (standard natural aluminium/silver). Contact us for custom colours or bulk orders.
🛠️ Where to Use M10 Knurled Thumb Screws
| Application |
Typical Use |
| Industrial machinery |
Tool‑less adjustment clamps, fixture stops, access panel thumbscrews |
| Woodworking jigs |
Fence clamps, miter gauge stops, router table adjustments |
| Camera pedestals & stands |
Heavy‑duty quick‑release plates, column locks, brake knobs |
| 3D printers / CNC routers |
Bed leveling, spool holder clamps, enclosure thumbscrews |
| Bicycle & sports equipment |
Seatpost clamps, handlebar adjustments, accessory mounts |
❓ Frequently Asked Questions – M10 Knurled Thumb Screws
1. How do I measure the length of an M10 thumb screw?
The length is measured from the underside of the aluminium head (where the knurling meets the shaft) to the tip of the stainless steel thread. The head itself is NOT included. For example, an “M10 x 20mm” screw has a 20mm long threaded stud under the head. Select your required stud length from the dropdown.
2. Are these screws fully threaded? What about longer stud lengths?
Yes – all M10 screws in this range are fully threaded from under the head to the tip, ensuring maximum grip in tapped holes or when using a nut.
3. Is the aluminium head anodised? What colours are available?
The standard finish is natural silver (clear anodised). For custom colours (black, red, blue, etc.), please contact us – we can anodise to your specification for bulk orders.
4. Will the A2 stainless steel stud rust? Can I use these outdoors?
A2 stainless steel (304) offers excellent corrosion resistance for indoor and outdoor use. It will not rust under normal conditions. For continuous saltwater or harsh chemical environments, consider A4 (316) stainless – contact us for custom orders.
5. Do I need a nut or washer with these thumb screws?
If your equipment has a pre‑tapped M10 hole, no nut is needed. For plain holes, use a standard M10 metric nut (1.5mm pitch). A flat washer is optional for load distribution.
6. What is DIN 464? Why is it important?
DIN 464 is the German standard for knurled thumb screws with a round, high‑profile head. It specifies exact head dimensions, knurling patterns, and thread tolerances – ensuring consistent quality and interchangeability.
