When standard hex bolts demand a wrench you don't have on hand, these M6 knurled thumb screws let makers, technicians, and workshop builders tighten or release fasteners with bare fingers in seconds. Designed for enclosures, jigs, fixtures, and panel assemblies where frequent access is needed, they eliminate the frustration of hunting for tools mid-project.
Each M6 knurled thumb screw is machined from aluminum alloy and finished with an anodized coating for corrosion resistance and a clean, consistent color. The round high-step knurled head provides a firm grip surface. Thread diameter is M6 (metric), with shaft lengths ranging from 8mm to 20mm (approximately 0.31 in to 0.79 in). Available in 10 anodized colors and sold in quantities of 1, 5, or 10 pieces per order.
Ideal for 3D printer frame assembly requiring frequent belt tension adjustments, electronics enclosure panels needing regular access, RC vehicle body mounting where tool-free removal saves time, and DIY jig and fixture builds in small workshops.
The knurled round step head provides enough grip surface to tighten and loosen by hand, eliminating the need for a screwdriver or wrench in frequent-access applications.

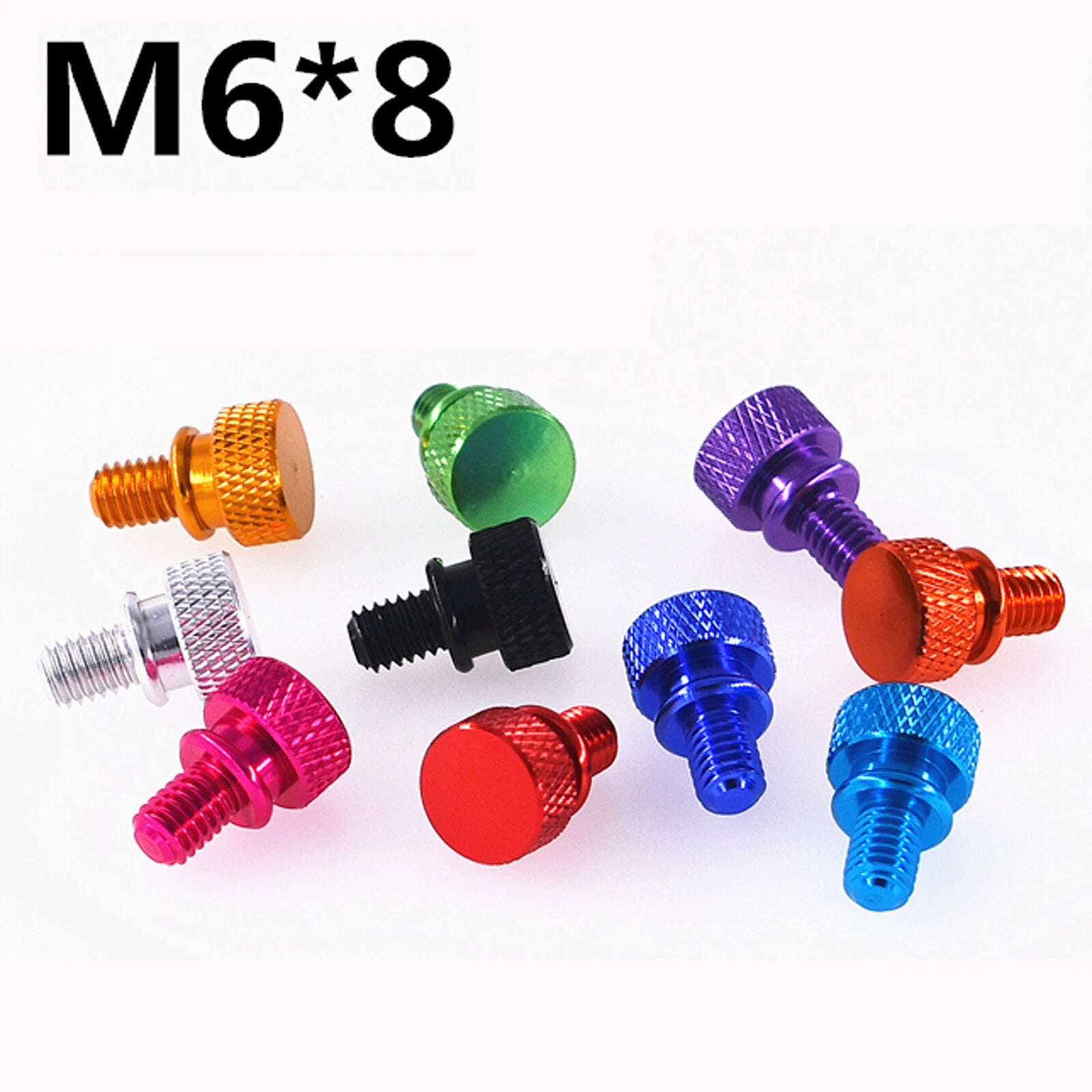

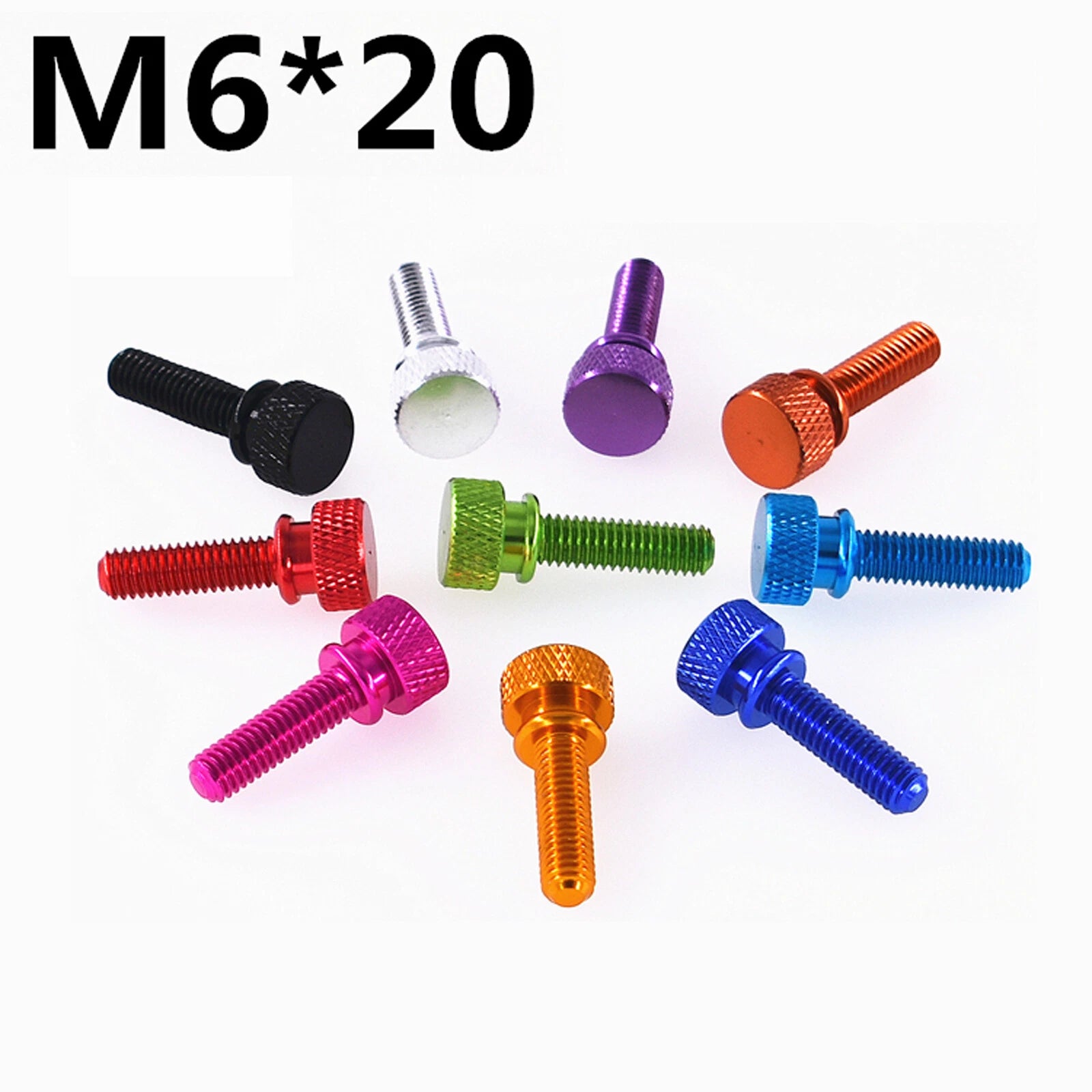

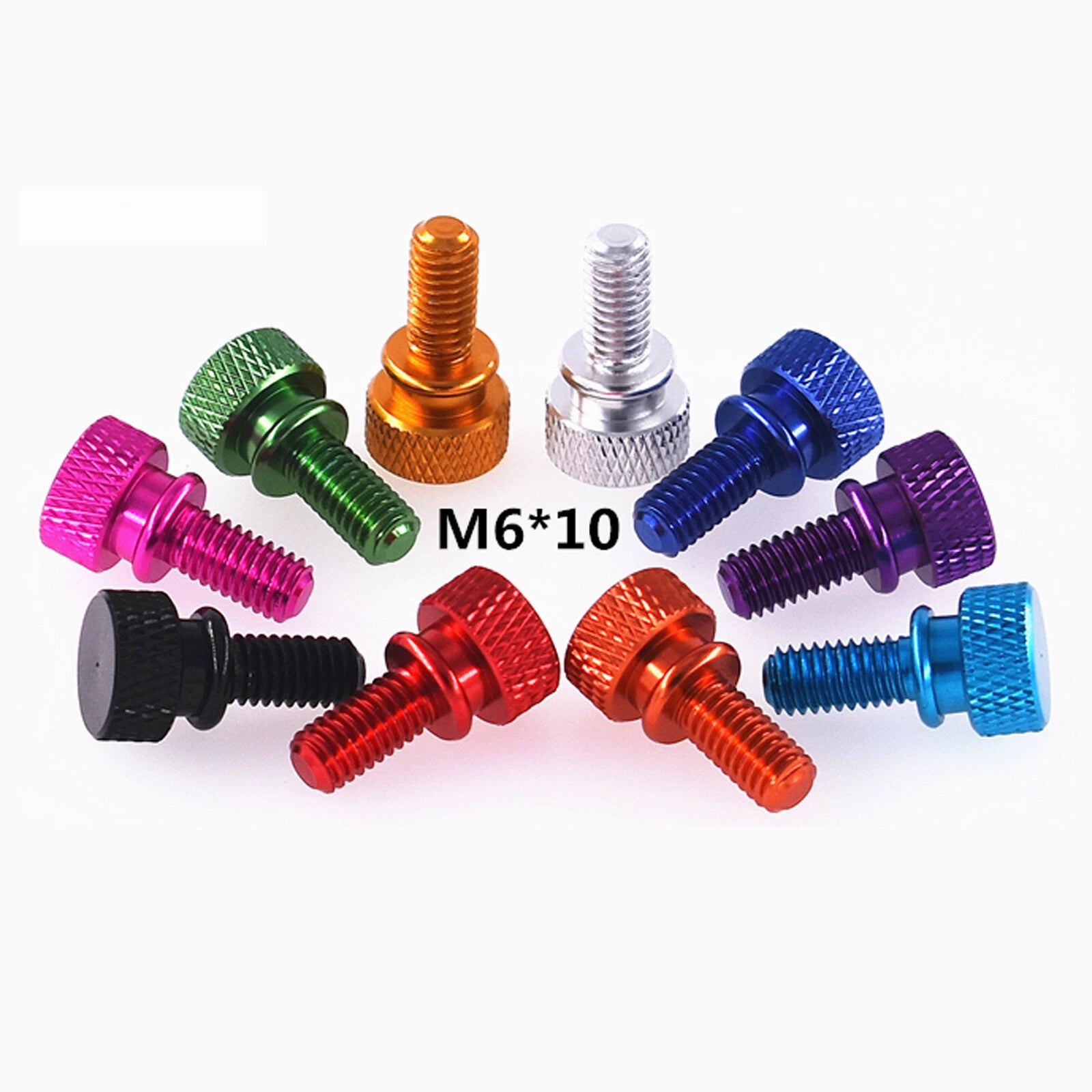

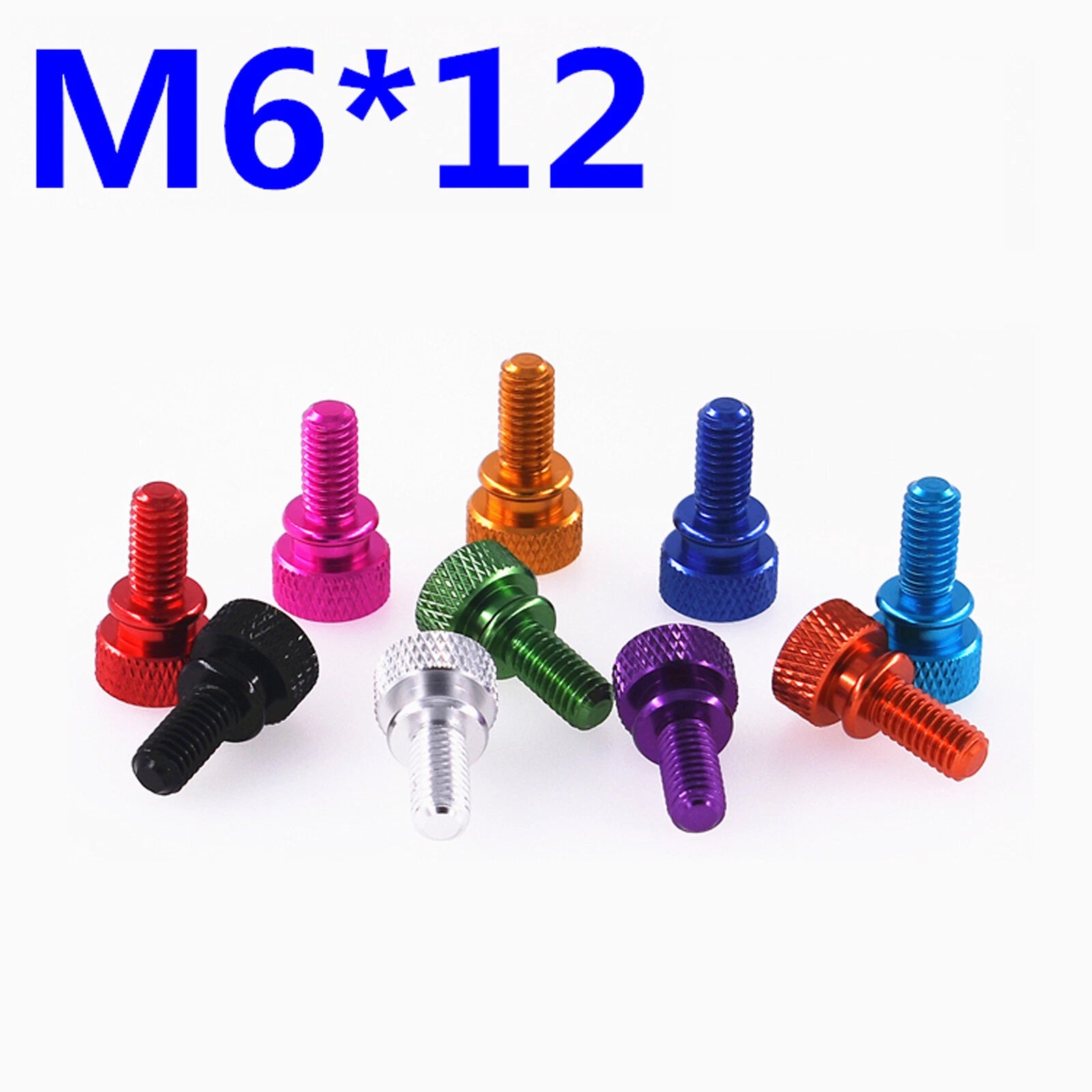

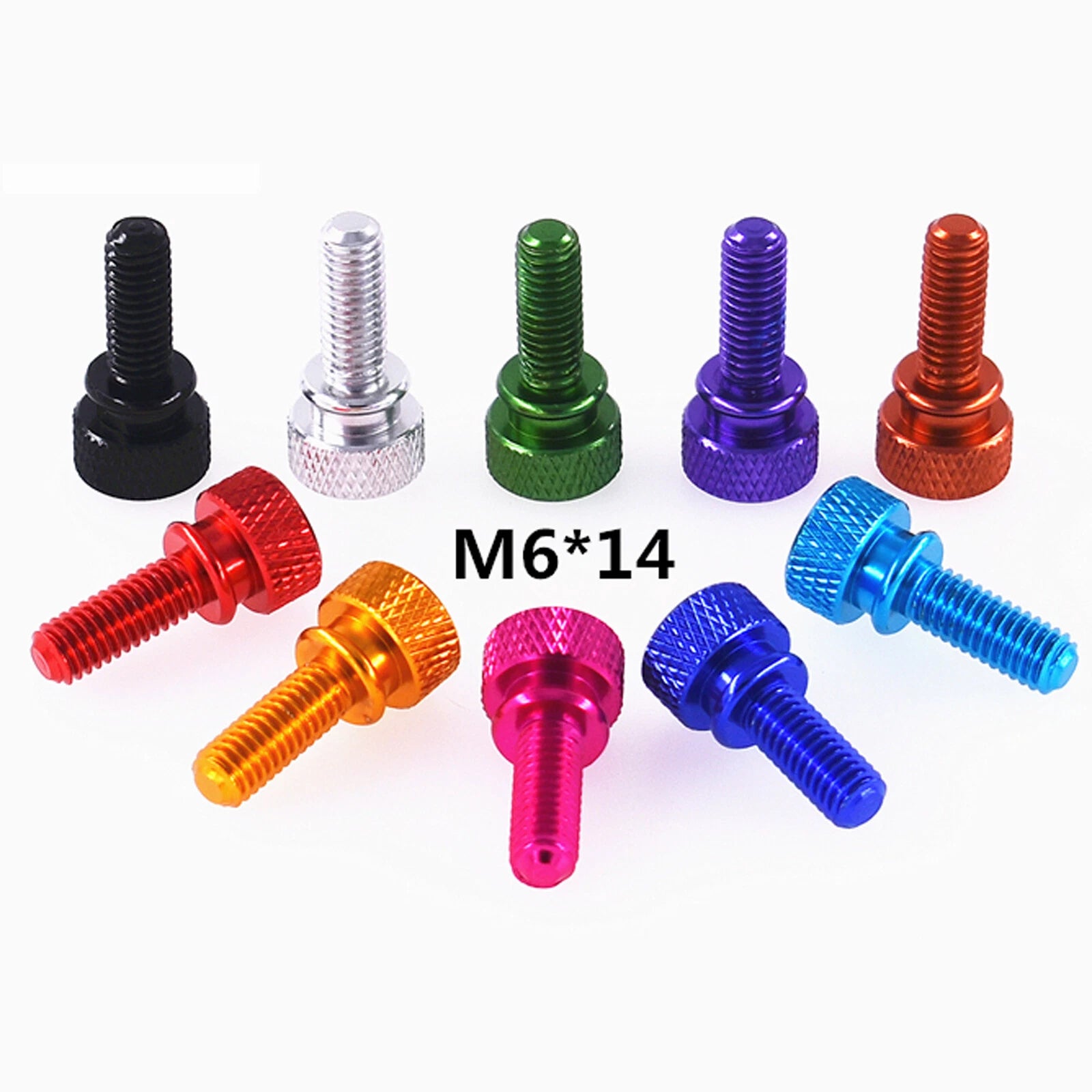

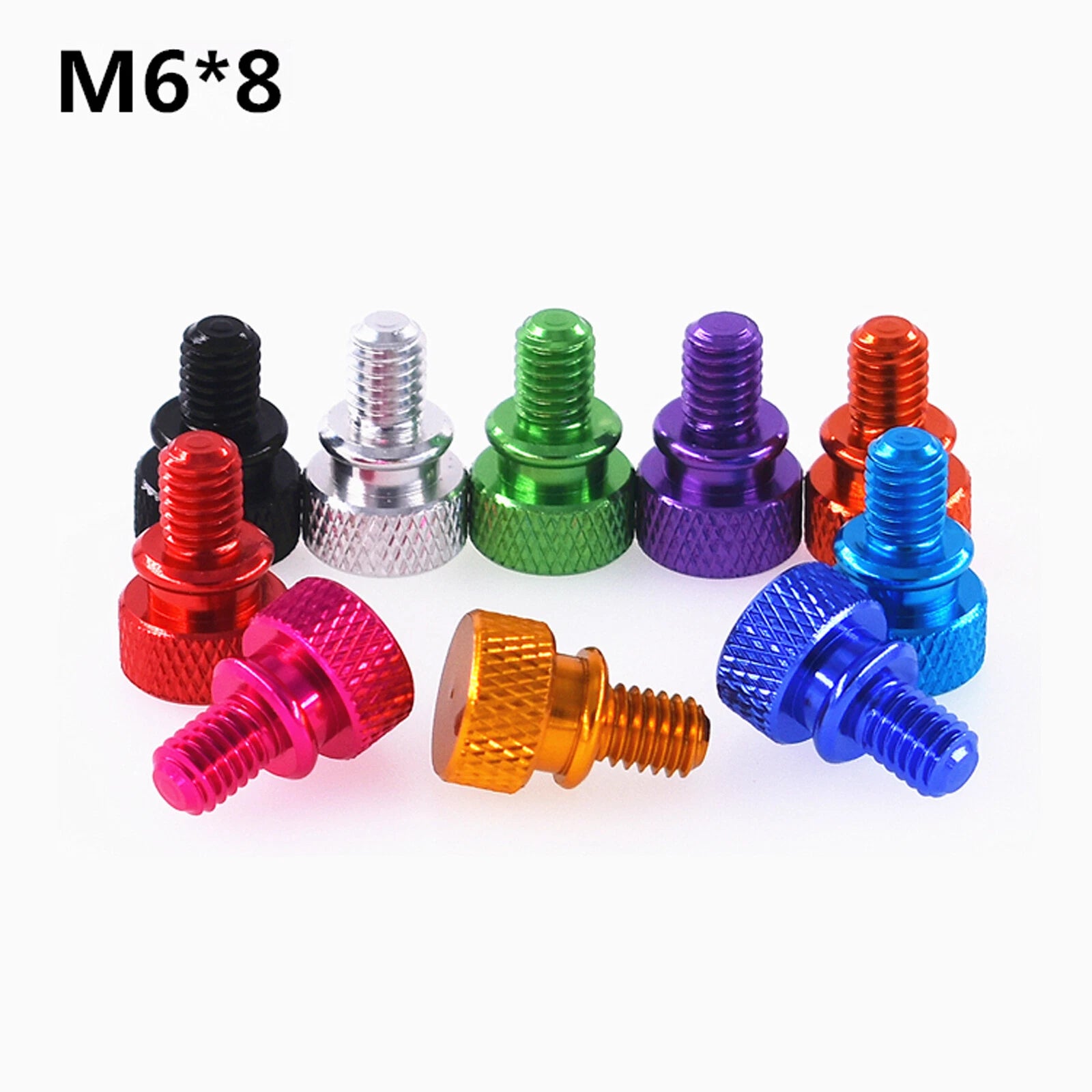

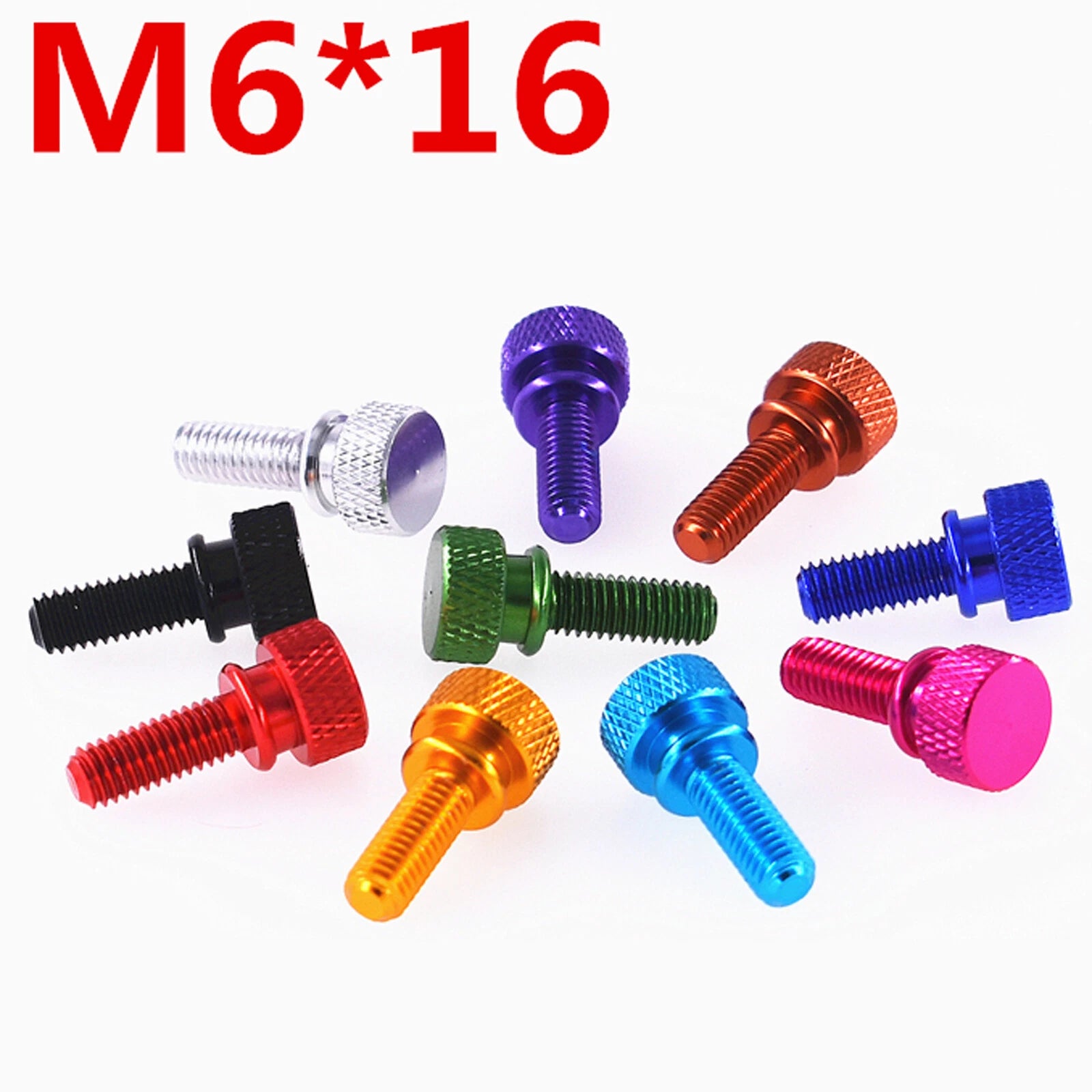

Choose from Wine Red, Pink, Auratus, Royal Blue, Sky Blue, Bright Black, Bright Silver, Emerald Green, Purple, and Orange — color-code your builds or match your aesthetic.
Lightweight yet rigid aluminum alloy body keeps overall assembly weight low — a key advantage for robotics, RC builds, and portable enclosures.
The anodized coating adds a layer of corrosion resistance and surface hardness, helping the screws maintain their appearance and function in workshop and light-industrial environments.

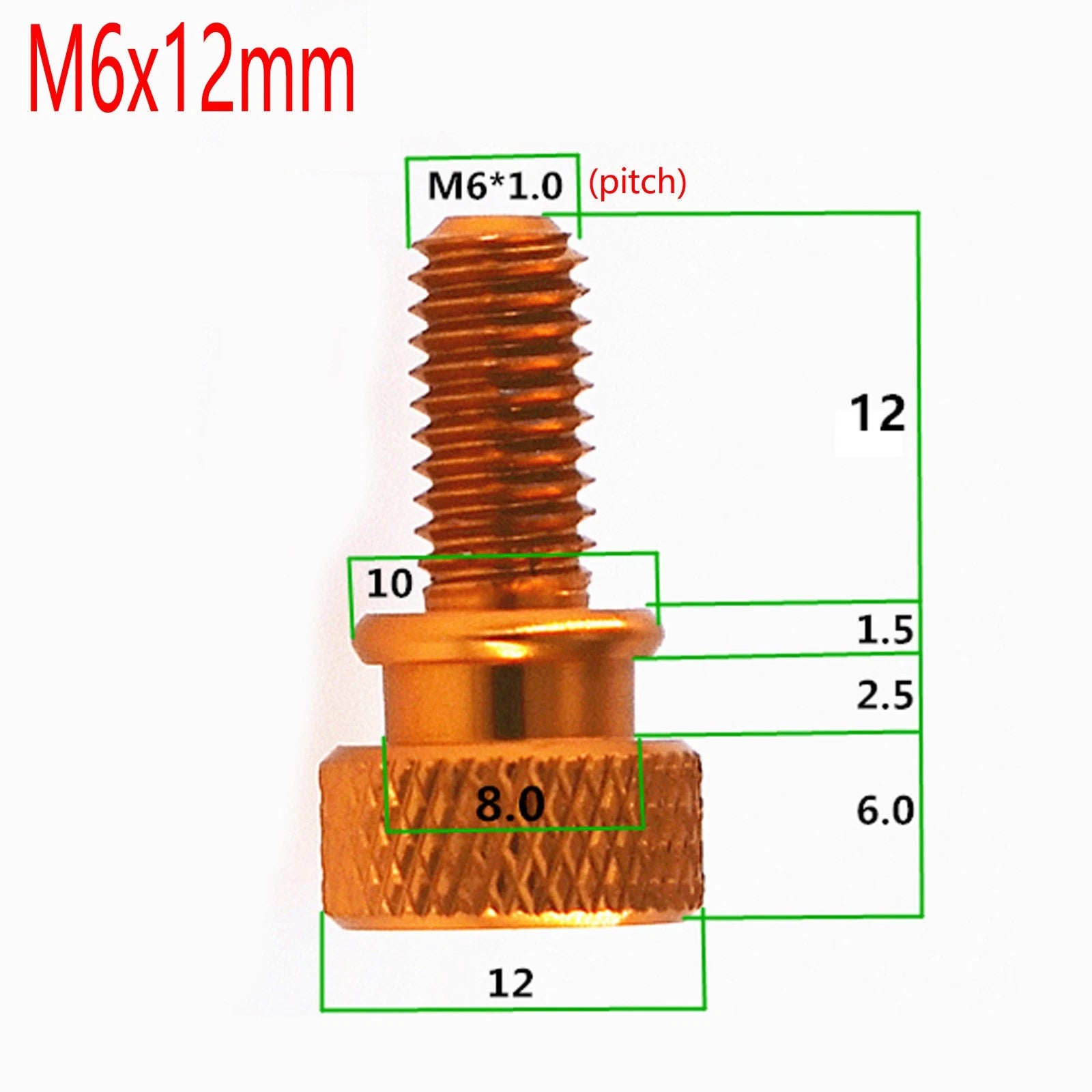

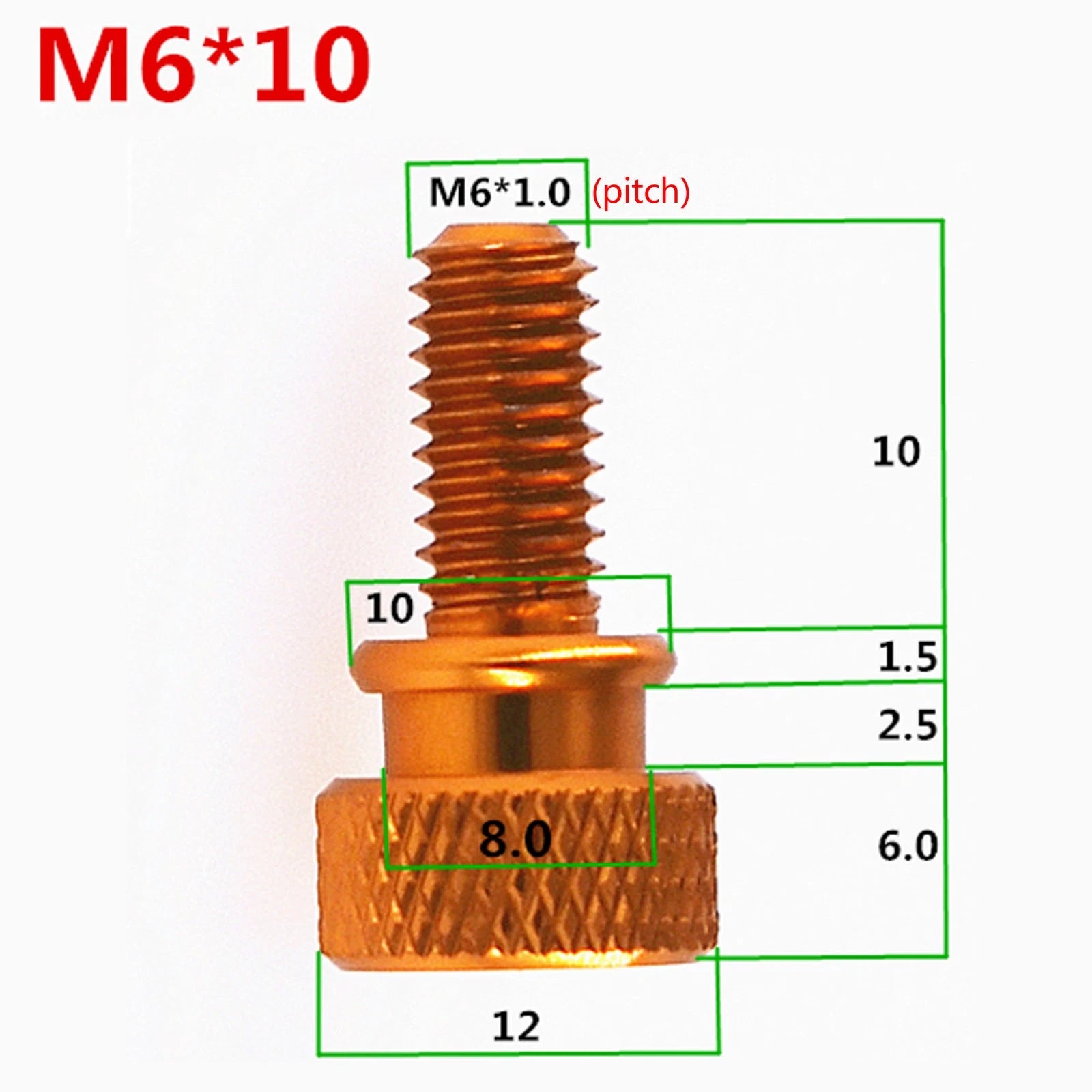

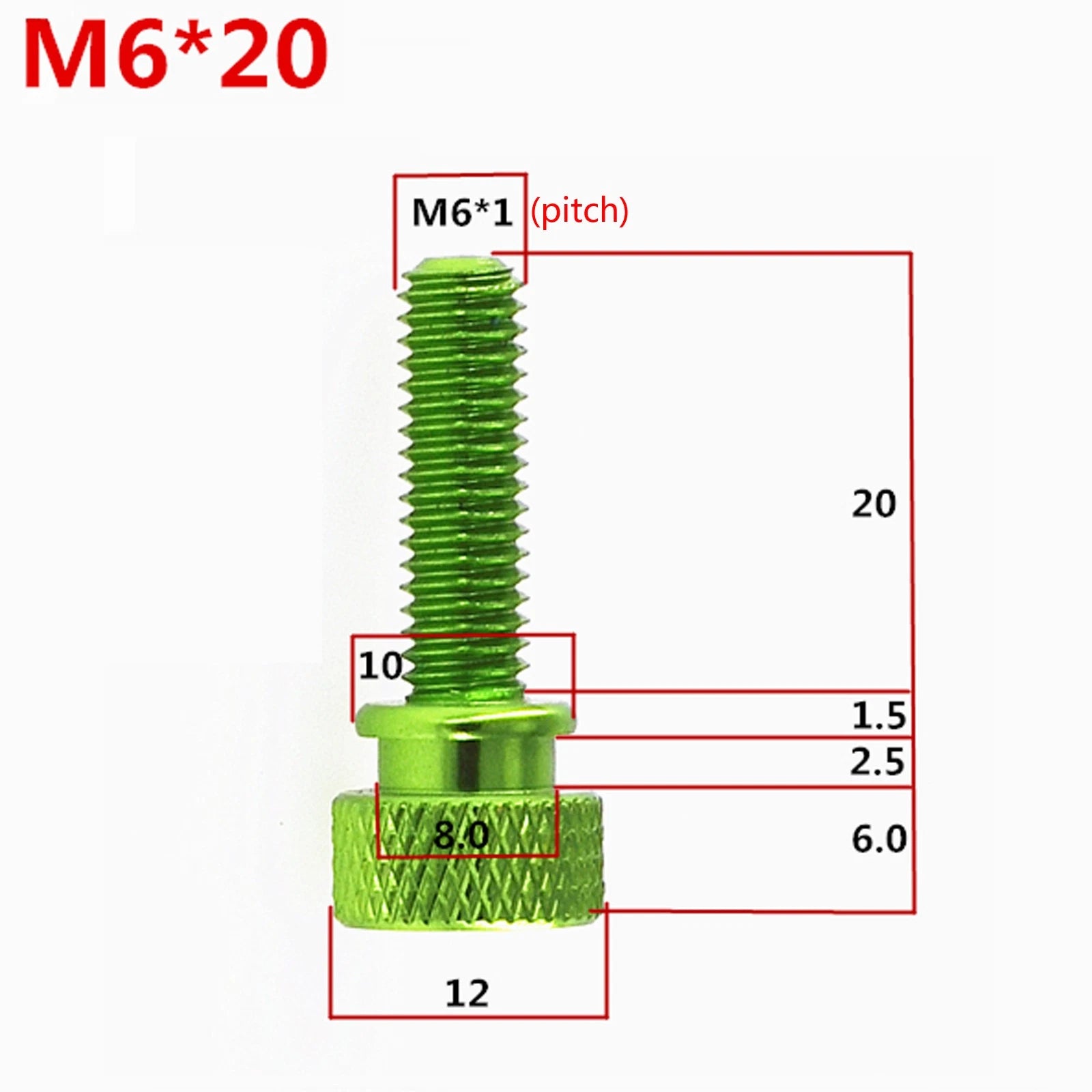

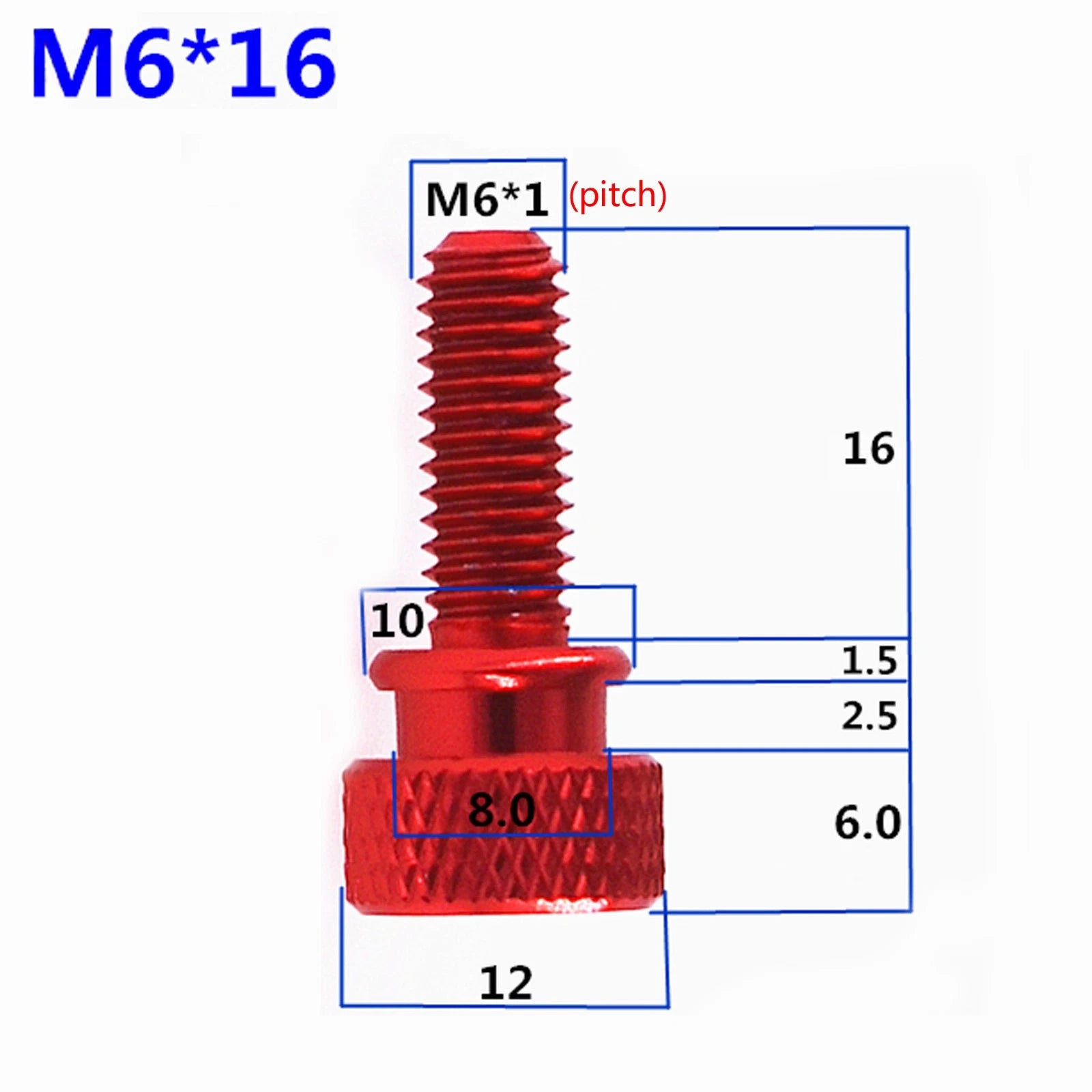

Available in M6×8mm, 10mm, 12mm, 14mm, 16mm, and 20mm to match a wide range of panel thicknesses and clamping depths without over-penetration.
Order 1, 5, or 10 pieces per variant — buy a single piece to test fit, or stock up in packs of 10 for full project builds.

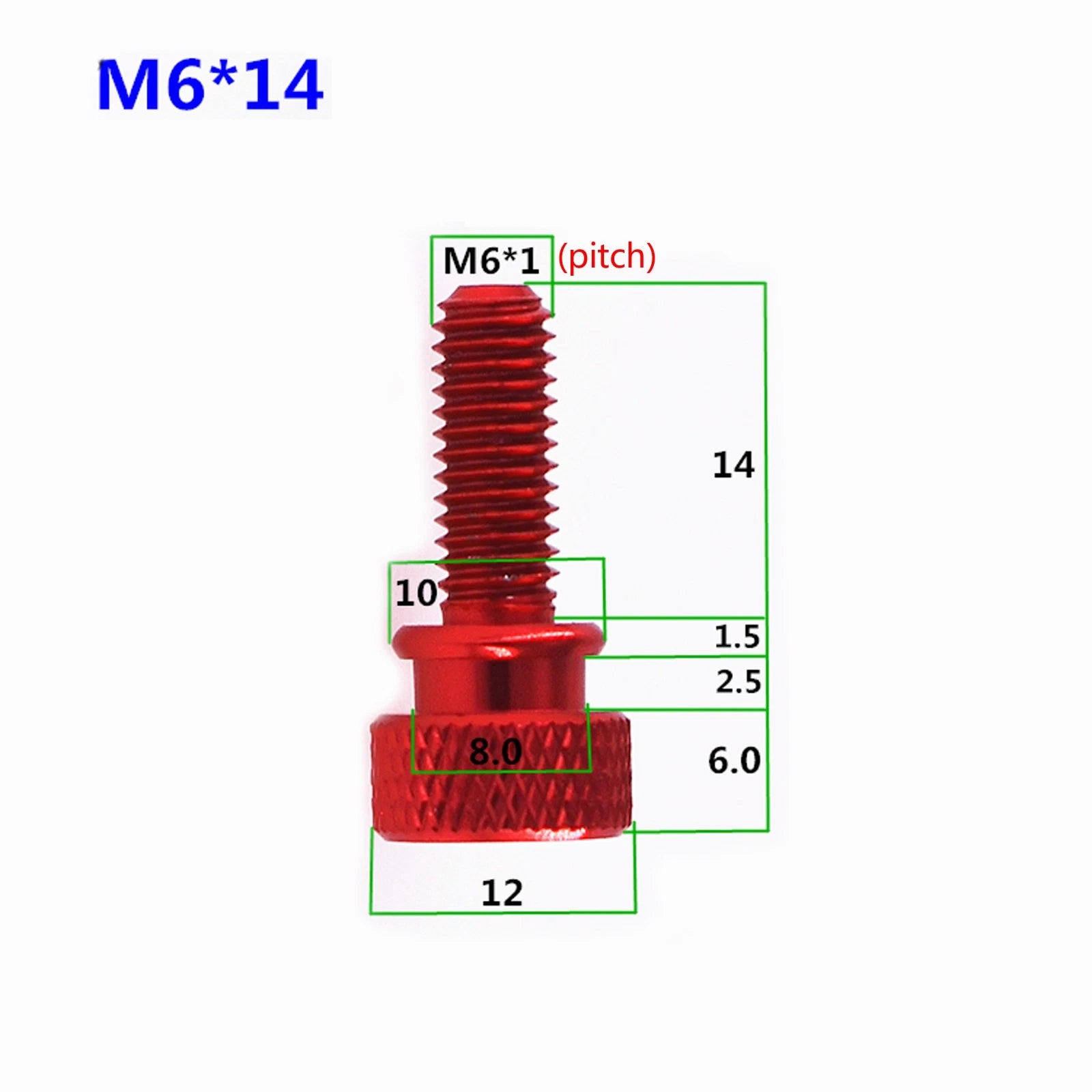

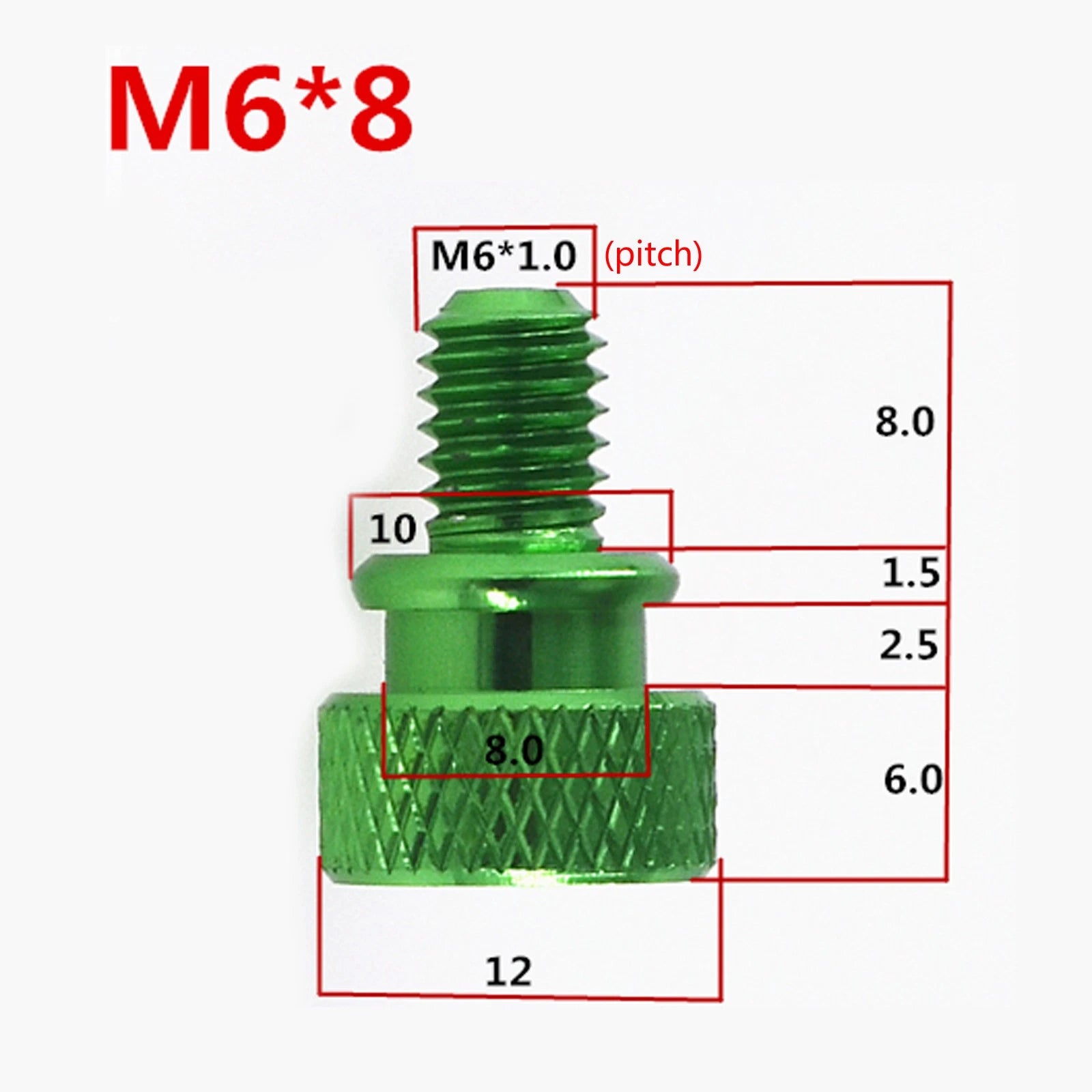

| Material | Aluminum Alloy |
|---|---|
| Surface Finish | Anodized |
| Thread Standard | Metric (M6) |
| Thread Diameter | M6 (6mm / 0.24 in) |
| Shaft Length Options | 8mm, 10mm, 12mm, 14mm, 16mm, 20mm |
| Head Style | Round High-Step Knurled |
| Drive Style | Hand / Finger (no tool required) |
| Thread Pitch | See variant options |
| Head Diameter | See variant options |
| Head Height | See variant options |
| Color Options | Wine Red, Pink, Auratus, Royal Blue, Sky Blue, Bright Black, Bright Silver, Emerald Green, Purple, Orange |
| Pack Quantity | 1 pcs / 5 pcs / 10 pcs |
Measure the total thickness of the material being clamped or the depth of the tapped hole. The shaft length should be equal to or slightly shorter than the engaged thread depth to avoid bottoming out. For panel mounting, add the panel thickness plus any nut height. Available lengths are 8mm, 10mm, 12mm, 14mm, 16mm, and 20mm.
These M6 aluminum alloy thumb screws are suited for light-duty fastening tasks such as panel access covers, enclosure lids, jig components, and 3D printer frames. Aluminum has lower tensile strength than steel, so they are not recommended for high-load structural joints or applications subject to significant vibration without thread-locking compound.
Aluminum does not rust. The anodized coating further enhances corrosion resistance and surface hardness. These screws are suitable for indoor workshop environments and light outdoor use. Prolonged exposure to salt spray or harsh chemicals may degrade the anodized layer over time.
Yes. The M6 metric thread is a standard designation and will mate with any M6 nut, M6 threaded insert, or M6-tapped hole. Confirm the thread pitch matches your existing hardware — standard M6 coarse pitch is 1.0mm. If your application uses a fine pitch, contact us to confirm compatibility before ordering.
Yes — M6 knurled thumb screws are widely used on 3D printer frames (particularly those using 2020/3030 aluminum extrusion with M6 T-nuts), CNC router spoilboard clamps, and laser cutter bed adjustments. The tool-free design is especially useful for belt tension adjustments and bed leveling where frequent access is needed.
The color difference is purely cosmetic. All color variants are made from the same aluminum alloy with the same anodized finish process — only the dye used in the anodizing bath differs. You can use multiple colors to color-code different fastener functions in a build (e.g., red for tension adjustments, black for fixed mounts).
Hand-tightening torque varies by individual grip strength, but typical finger torque on an M6 knurled thumb screw is approximately 0.5–1.5 N·m. This is sufficient for panel retention and light clamping. For applications requiring precise torque, use a torque wrench with a socket adapter — the round head can be gripped with an appropriately sized socket.
