When you need a fastener you can tighten and release by hand — without reaching for a screwdriver — standard bolts slow you down. Makers, hobbyists, and light-industrial assemblers who work with enclosures, jigs, fixtures, and access panels know the frustration of fumbling for tools mid-build. These M6 knurled thumb screws are designed for exactly those situations, giving you a secure, repeatable grip every time.

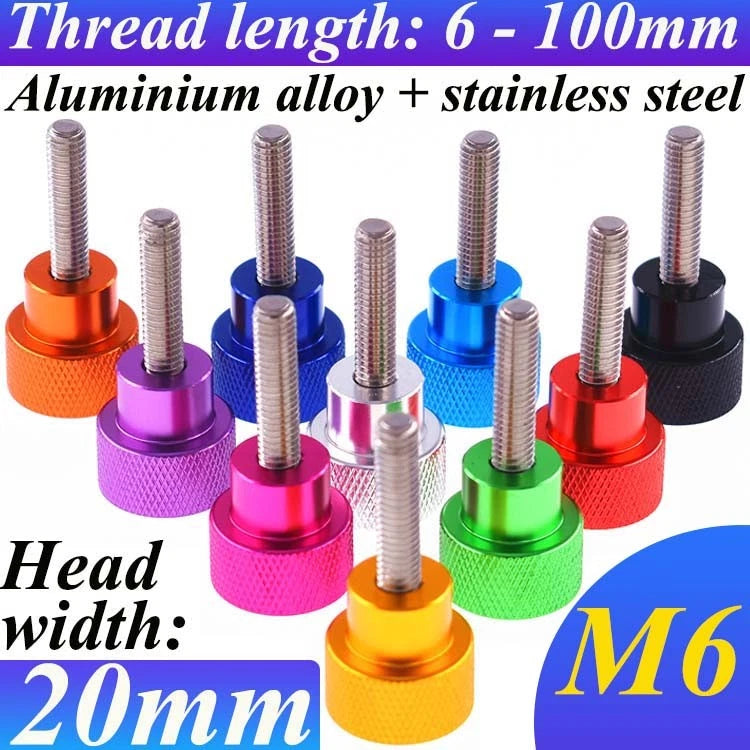

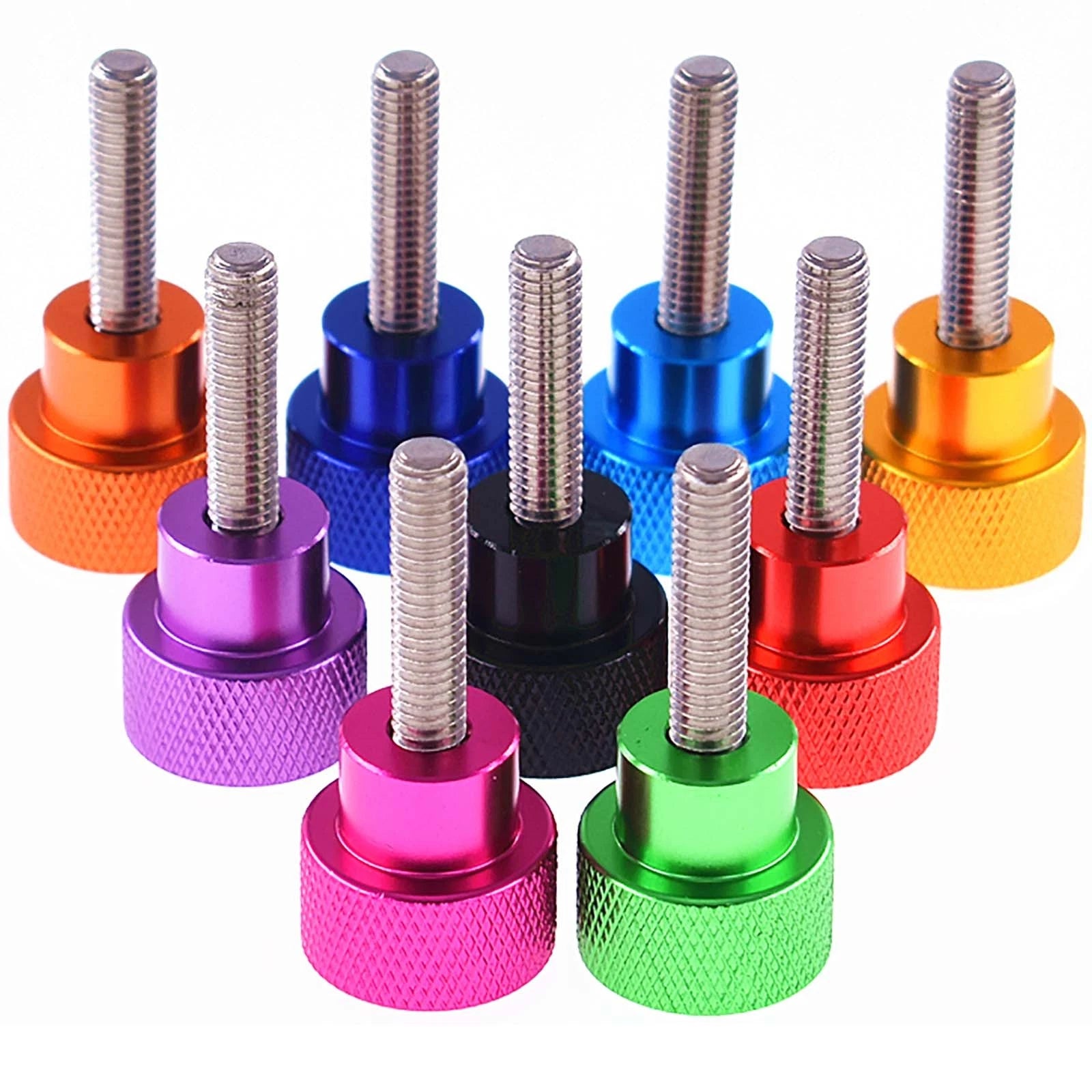

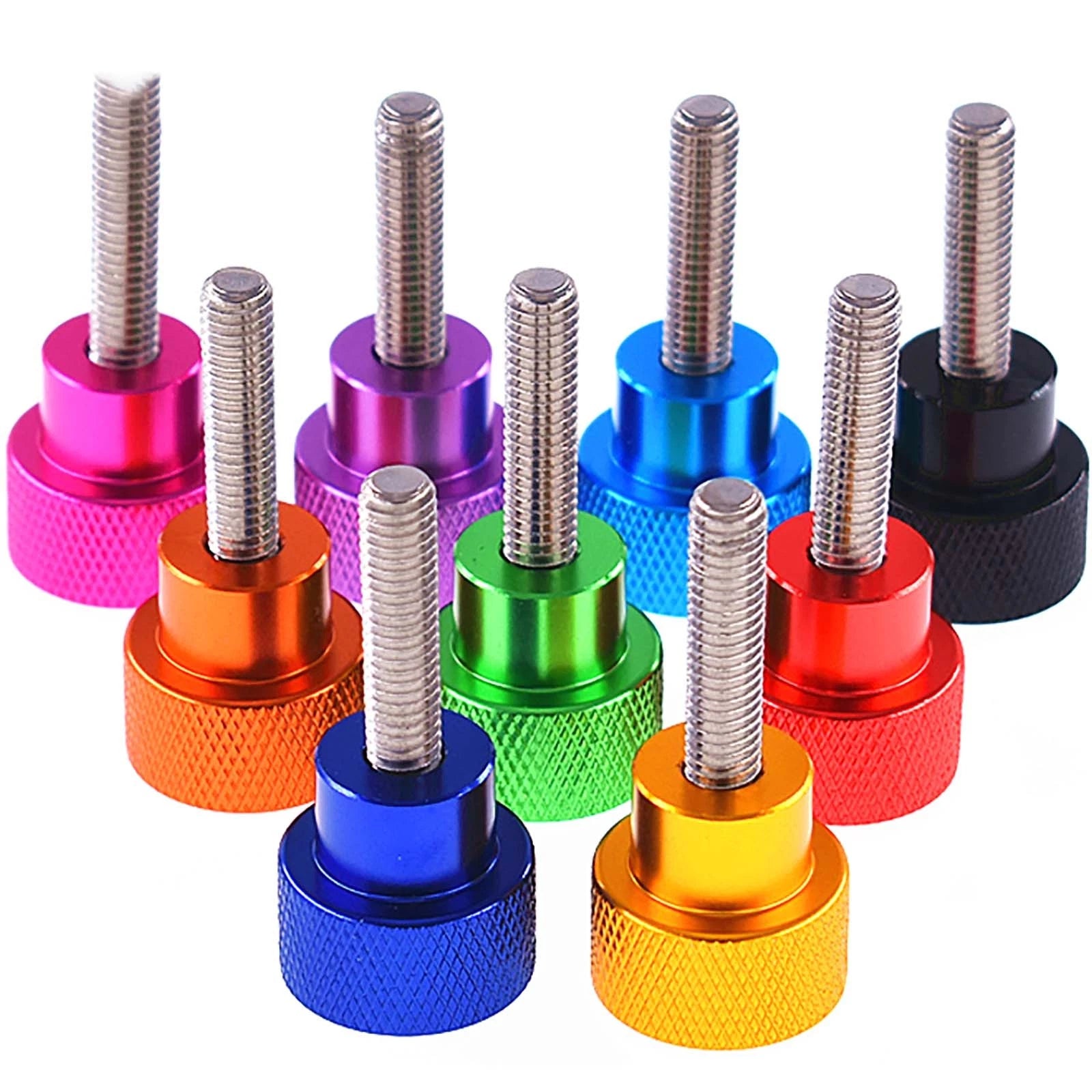

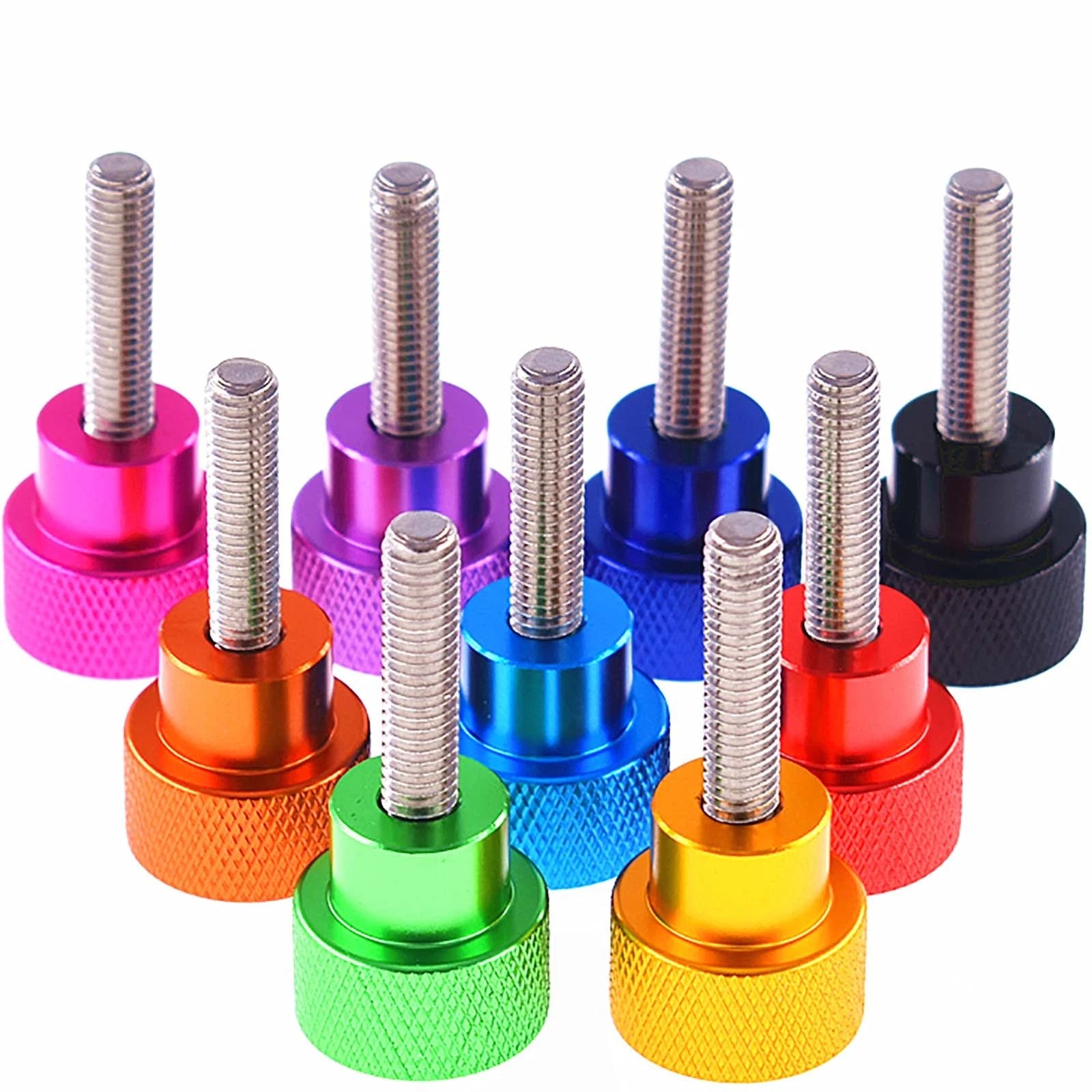

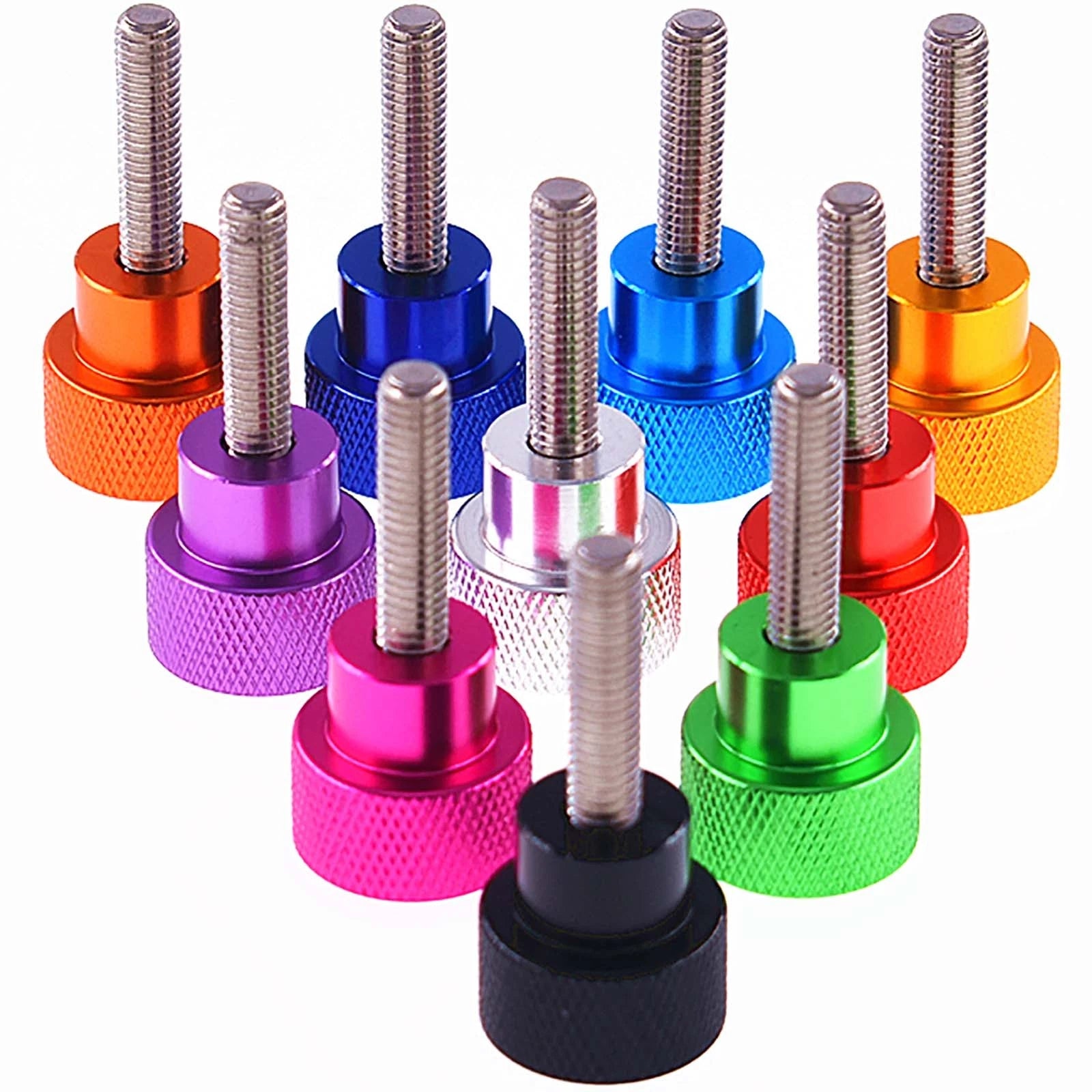

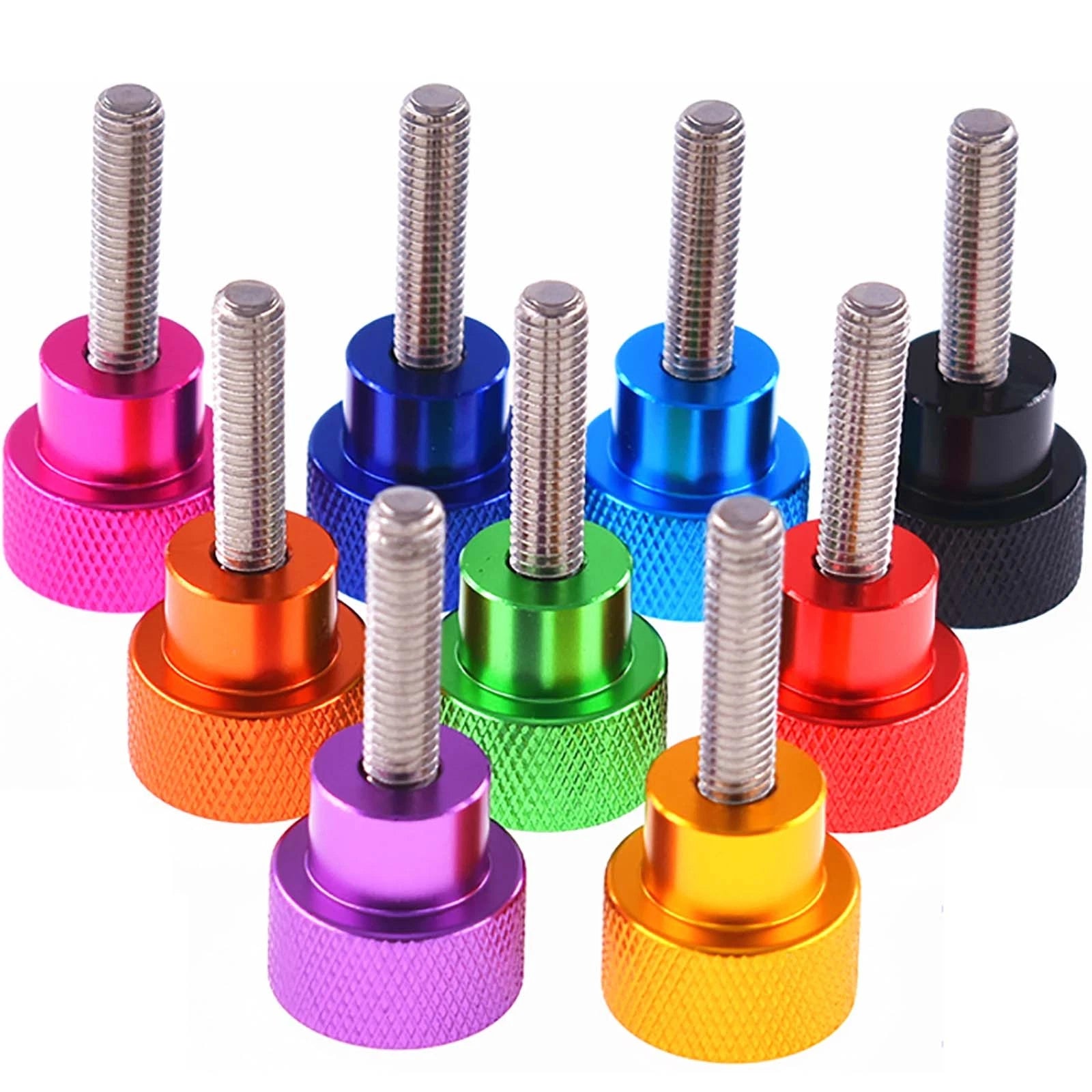

Each M6 knurled thumb screw features a round knob head with a stepped, hand-grip knurled profile, constructed from aluminium alloy (knob body) combined with a stainless steel threaded mandrel. The head width measures 20mm across, and the threaded shank is available in lengths ranging from 6mm to 100mm (approximately 0.24 in to 3.94 in). Thread size is M6 metric, with a round head shape and a knurled outer surface for positive finger grip.
Typical use cases include securing 3D printer enclosure panels, adjusting CNC machine guards, fastening electronics chassis covers, and hand-tightening jig components on woodworking benches — all scenarios where tool-free M6 thumb screw fastening saves time and reduces workflow interruptions.
The stepped, knurled knob profile gives your fingers a positive purchase for confident hand-tightening — no slipping, no tools required.
Aluminium alloy knob body keeps weight low while the stainless steel threaded mandrel delivers corrosion resistance and thread durability under repeated use.
23 length options from M6 × 6mm to M6 × 100mm (0.24"–3.94") let you match the exact grip depth your application requires.
Choose from Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, and Orange — useful for color-coding fastener locations on assemblies.
The 20mm diameter knob head provides a comfortable grip surface without adding excessive bulk to your assembly or panel.
Standard M6 metric thread is compatible with the vast majority of metric-threaded inserts, nuts, and tapped holes used in DIY and light-industrial builds.
| Thread Size | M6 |
|---|---|
| Thread System | Metric |
| Head Width | 20mm (0.79 in) |
| Head Shape | Round knurled knob |
| Knob Material | Aluminium alloy |
| Mandrel Material | Stainless steel |
| Available Lengths | 6, 8, 10, 12, 15, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100mm |
| Color Options | Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, Orange |
| Drive Style | Hand-tightened (no tool required) |
| Finish | Anodized (color-dependent) |
| Quantity per Order | See variant options |
Measure the total thickness of the material(s) you need to clamp or fasten, then add any thread engagement depth required in the receiving nut or tapped hole. As a general rule, aim for at least 1× the thread diameter (6mm) of thread engagement for aluminium and 1.5× for steel. Select the next available length that meets or slightly exceeds that total.
These M6 knurled thumb screws are designed for hand-tightened, non-structural applications such as access panels, enclosure covers, jigs, and fixtures where frequent removal is needed. They are not intended as a replacement for torqued structural fasteners. For load-bearing joints, use standard hex bolts tightened to specification.
The aluminium alloy knob body is anodized, which creates a hard oxide layer that significantly improves corrosion resistance compared to bare aluminium. The stainless steel mandrel provides additional corrosion resistance at the threaded section. For outdoor or high-humidity environments, periodic inspection is recommended.
Standard M6 coarse thread pitch is 1.0mm, which is the most common M6 pitch used in general fastening applications. If your application requires M6 fine pitch (0.75mm or 0.5mm), please contact us to confirm compatibility before ordering.
Yes. The stainless steel mandrel threads into aluminium tapped holes without galling issues that can occur with aluminium-on-aluminium contact. Ensure adequate thread engagement depth — typically at least 1× the thread diameter (6mm minimum) for aluminium receiving material.
No. The color is purely an anodized surface finish on the aluminium knob. All dimensions, thread specifications, and mechanical properties are identical across all color options. Color-coding can be useful for identifying different fastener locations or torque zones on an assembly.

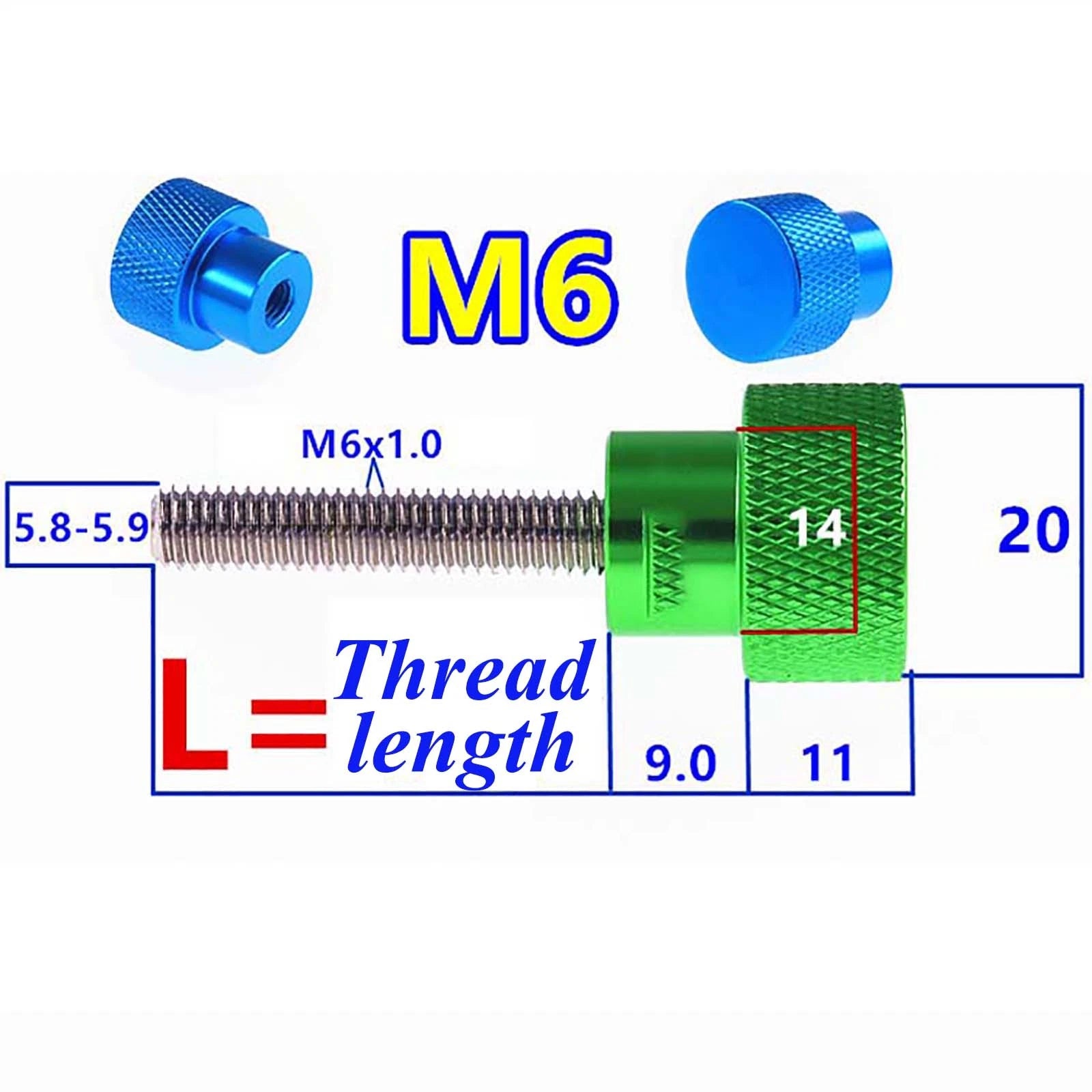

The length (L) refers to the threaded shank length only, measured from the underside of the knob head to the tip of the screw. The knob head dimensions remain constant at 20mm width across all length variants. Choose your length based on the required thread engagement plus material thickness.
