When you need a fastener you can tighten and release by hand — without reaching for a wrench — standard bolts slow you down. Makers, hobbyists, and workshop builders who frequently adjust panels, enclosures, jigs, or equipment covers know the frustration of fumbling for tools mid-project. These knurled thumb screws are designed for exactly those situations, giving you confident, repeatable hand-tightening every time.

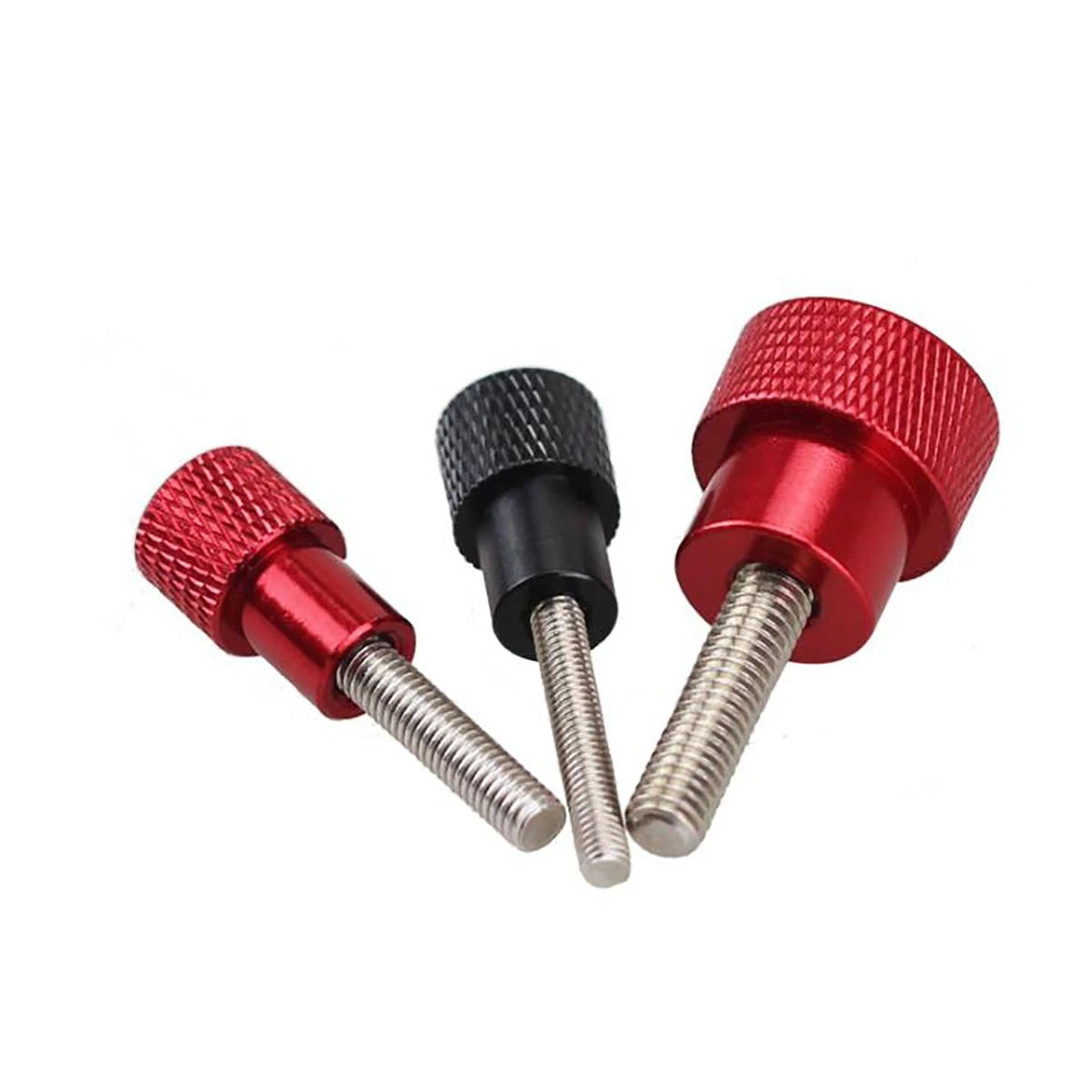

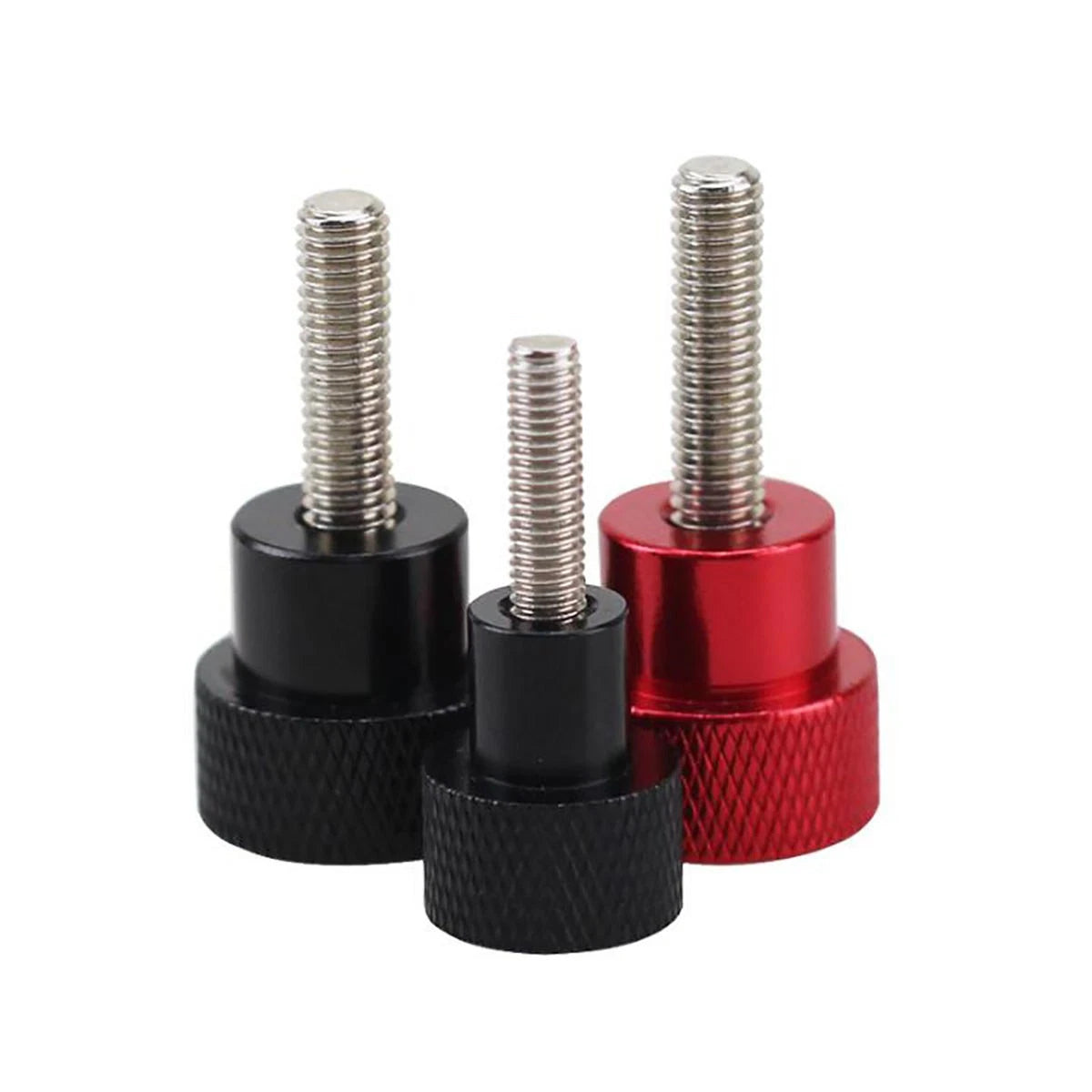

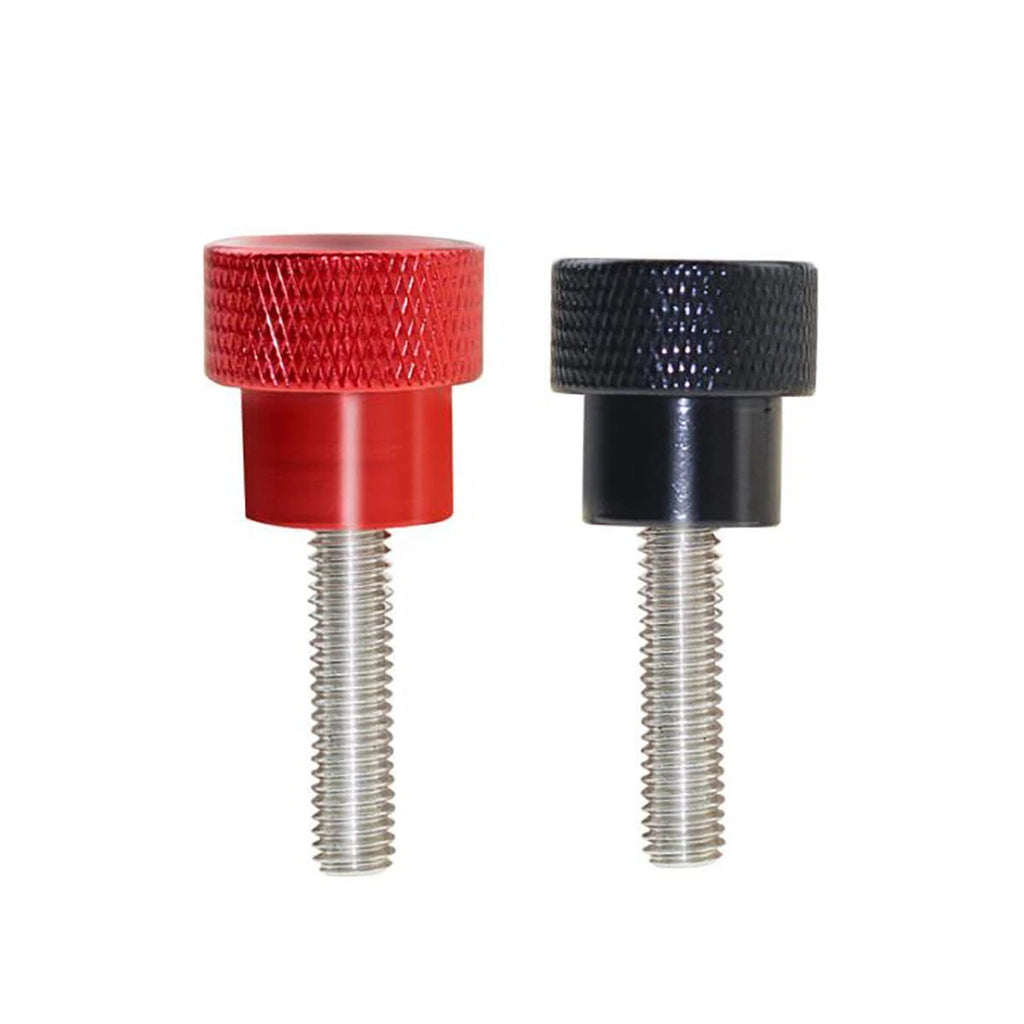

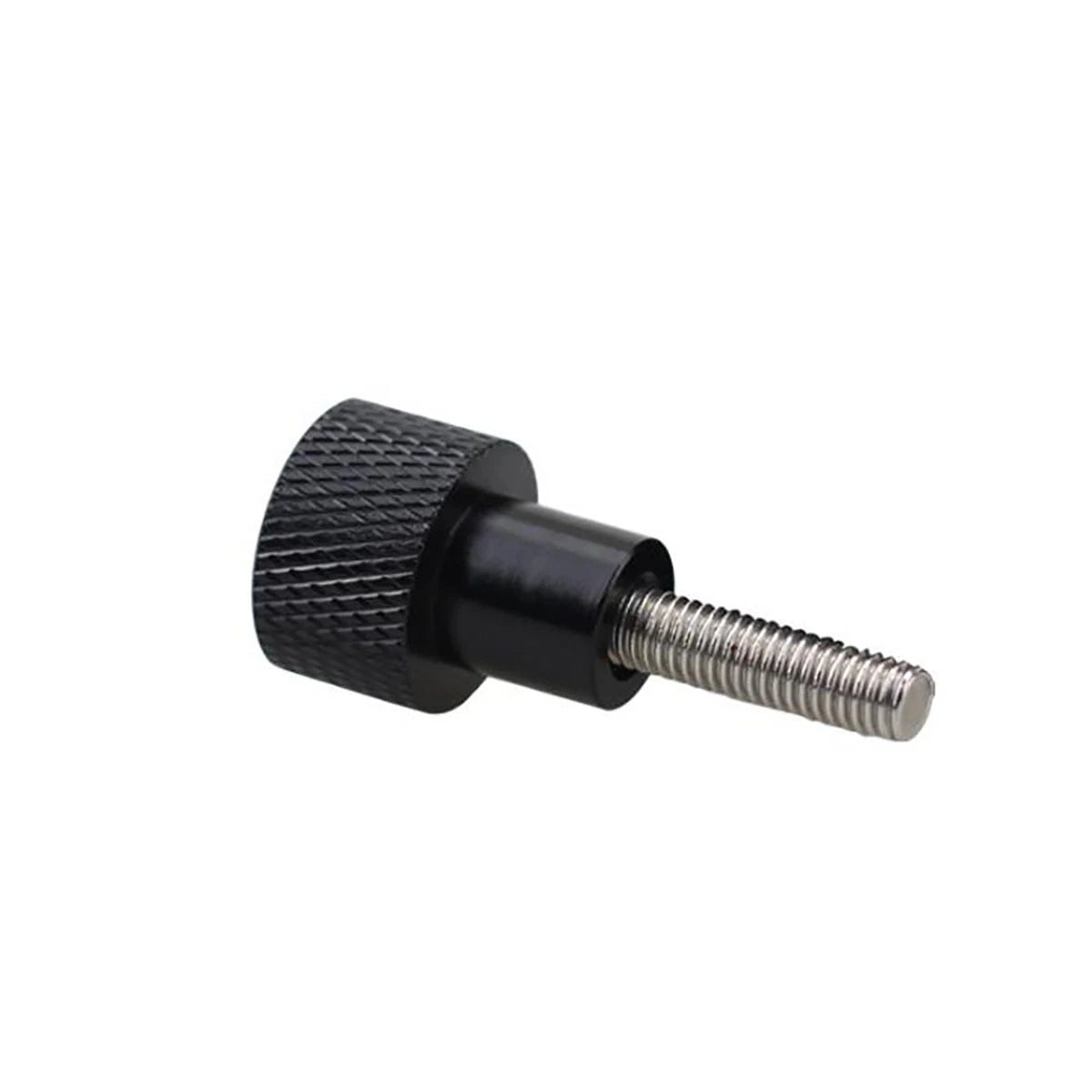

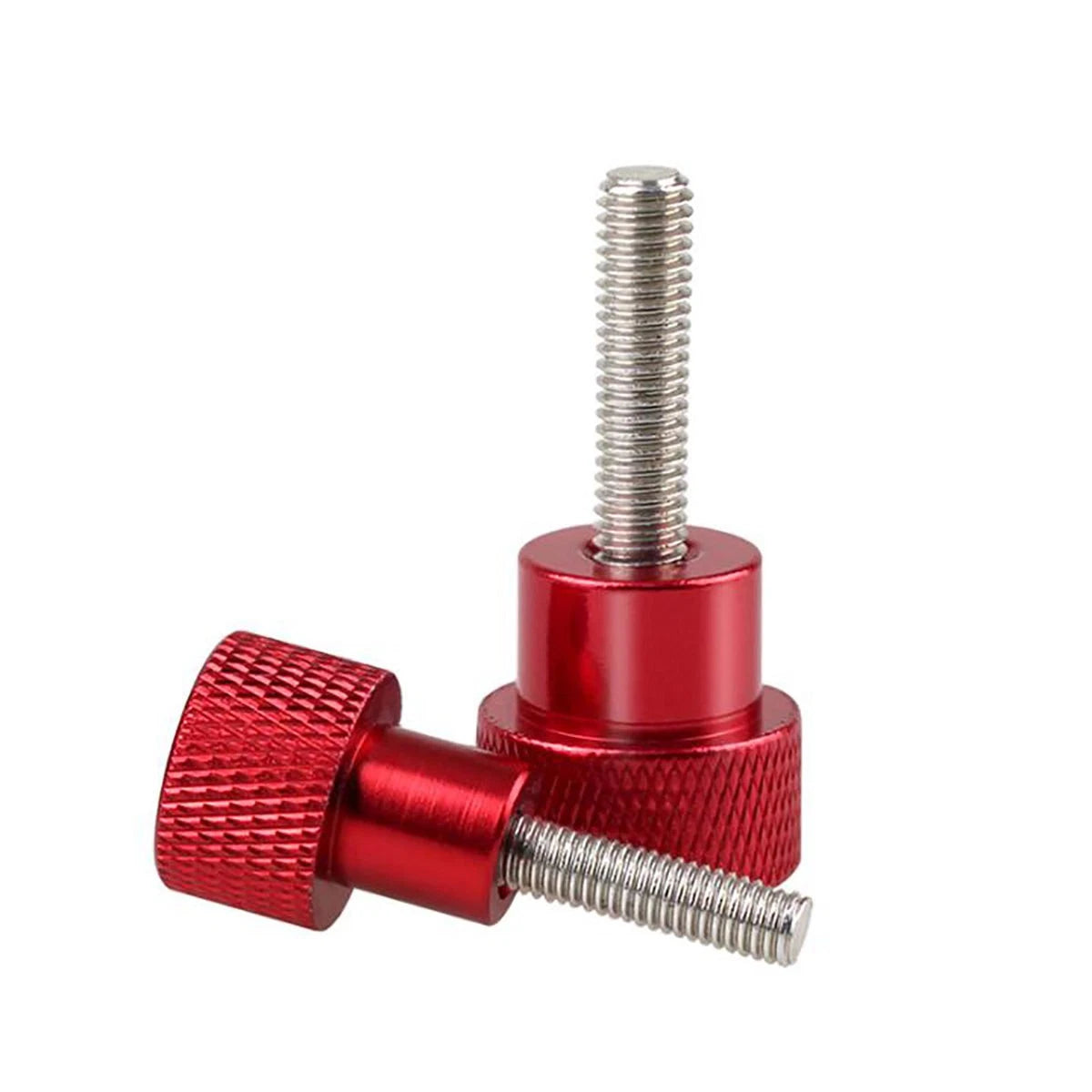

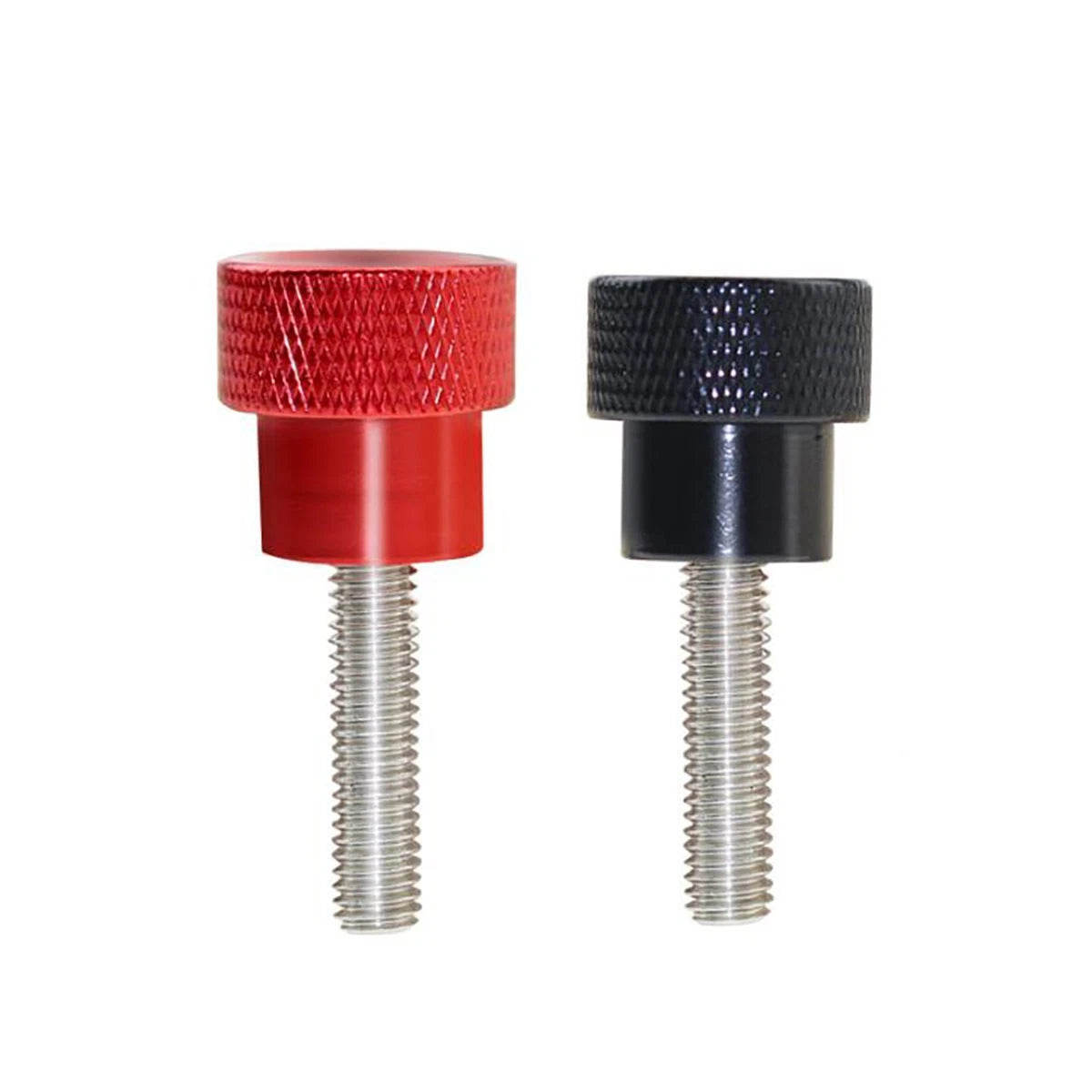

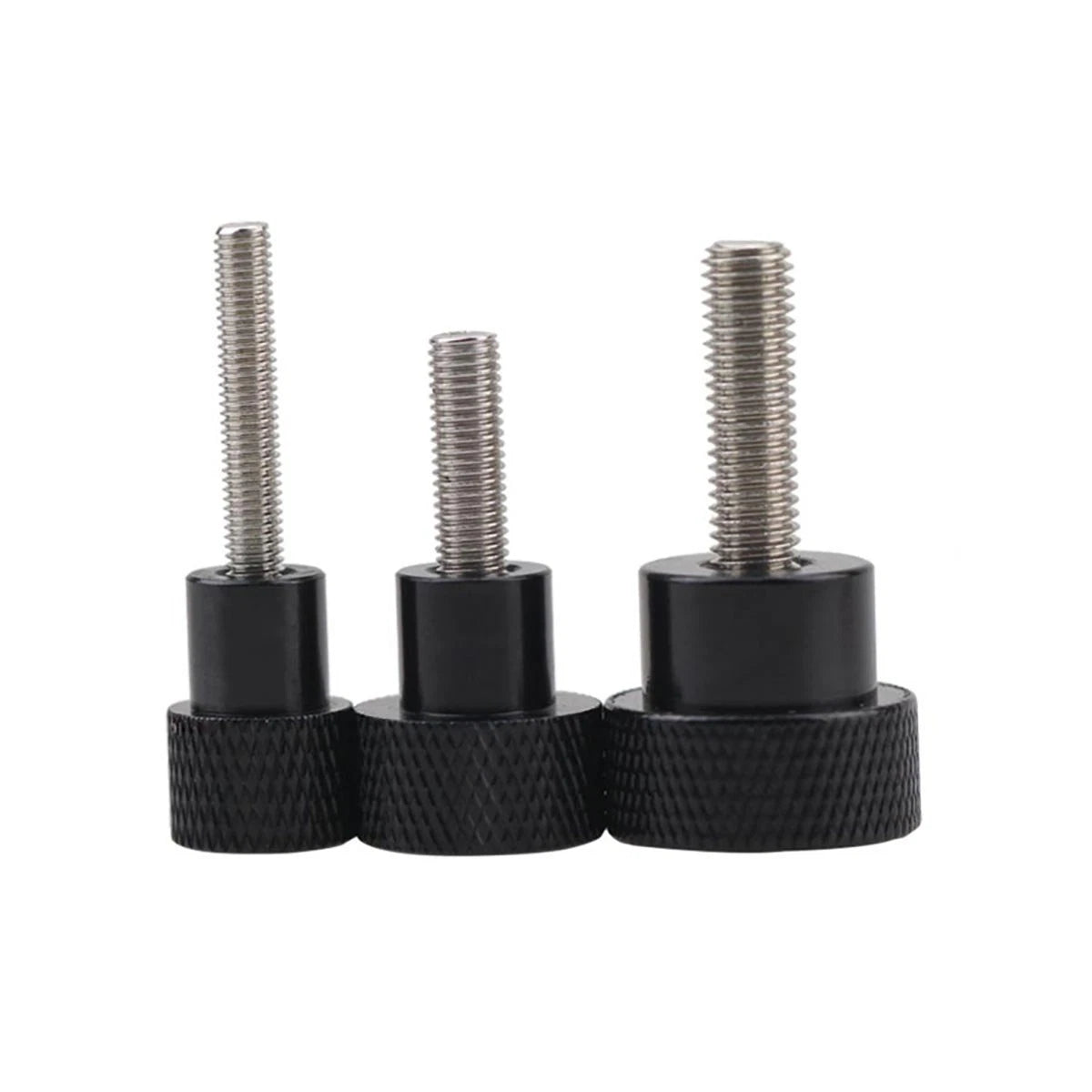

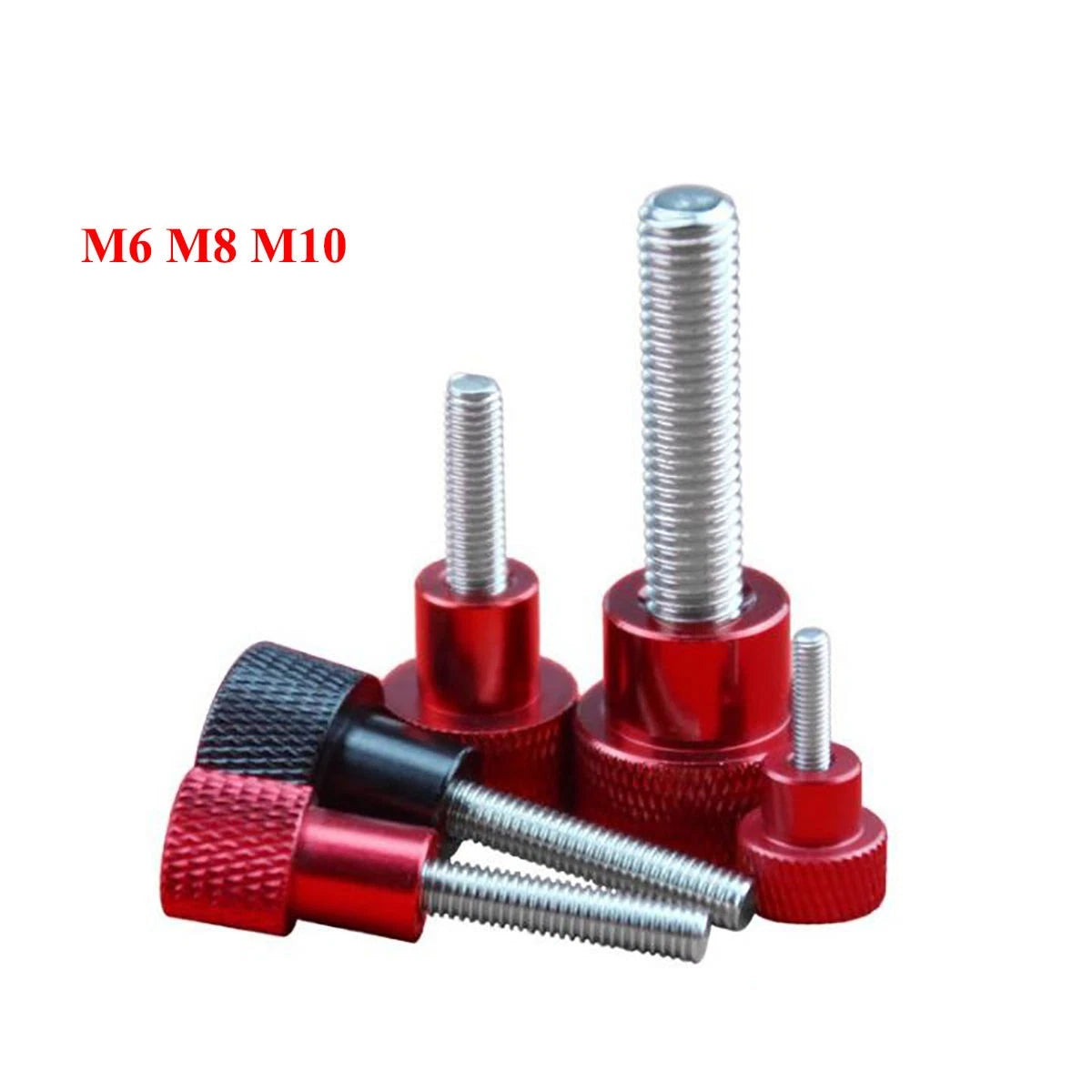

Each knurled thumb screw features a two-material construction: an aluminum alloy knurled head for lightweight grip comfort, paired with a stainless steel threaded shank for corrosion resistance and thread durability. Available in metric thread sizes M6, M8, and M10, with shank lengths ranging from 10 mm to 135 mm (~0.39 in to ~5.31 in) and head diameters of 12 mm or 20 mm (~0.47 in or ~0.79 in). Head height is 20 mm (~0.79 in) across all variants. Finish options include Red, Black, and White anodized aluminum heads.
These knurled thumb screws suit a wide range of applications: securing 3D printer bed leveling knobs, adjusting CNC router fixtures and workholding jigs, fastening electronics enclosure panels and rack-mount equipment covers, and assembling DIY furniture or display frames where tool-free access is needed repeatedly. Long-tail use cases include M6 thumb screw for laser cutter bed, M8 hand knob bolt for aluminum extrusion frame, and M10 knurled bolt for workshop fixture plate.
The aluminum alloy head features a deeply cut knurl pattern that bites into fingertips for secure torque transfer — no slipping even with slightly oily hands during workshop use.
The shank is stainless steel for corrosion resistance and thread longevity, making these thumb screws suitable for both indoor workshop environments and light outdoor or humid conditions.
Three metric thread diameters cover the most common DIY and light industrial fastening needs. Shank lengths from 10 mm to 135 mm let you match the exact grip depth your application requires.
Choose Red, Black, or White anodized aluminum heads to color-code fasteners by function, match your build aesthetic, or simply make adjustment points visually obvious on your equipment.
The aluminum alloy head keeps overall fastener weight low — an advantage in weight-sensitive builds like 3D printer frames, drone enclosures, and portable jig assemblies.
Order 1 PCS for a replacement or prototype, or choose the 5 PCS pack for full-assembly projects. Consistent manufacturing ensures all pieces in a pack are interchangeable.
| Thread Standard | Metric (ISO) |
|---|---|
| Thread Sizes Available | M6, M8, M10 |
| Shank Length Range | 10 mm – 135 mm (~0.39 in – ~5.31 in) |
| Head Diameter | 12 mm or 20 mm (~0.47 in or ~0.79 in) — see variant options |
| Head Height | 20 mm (~0.79 in) |
| Head Material | Aluminum Alloy (anodized) |
| Shank Material | Stainless Steel |
| Finish / Color | Red, Black, or White anodized — see variant options |
| Drive Style | Hand-tighten (knurled thumb grip, no tool required) |
| Head Style | Knurled round knob |
| System of Measurement | Metric |
| Quantity per Order | 1 PCS or 5 PCS — see variant options |
| Weight per Piece | See variant options |
Match the thread size to your tapped hole or threaded insert. M6 (6 mm nominal diameter) is the most common for light-duty panels and 3D printer frames. M8 (8 mm) suits medium-load fixtures and CNC jigs. M10 (10 mm) is used for heavier structural connections. If you are unsure, measure the inner diameter of your existing hole or check your equipment's fastener specification sheet.
The shank length (L in the size code M*L) should be at least equal to the thickness of the material being fastened plus the depth of thread engagement needed — typically 1× to 1.5× the thread diameter for aluminum, and 1× for steel. For example, fastening a 10 mm panel with M6 thread into a 6 mm deep tapped hole requires at least a 16 mm shank. Always leave a small margin to avoid bottoming out.

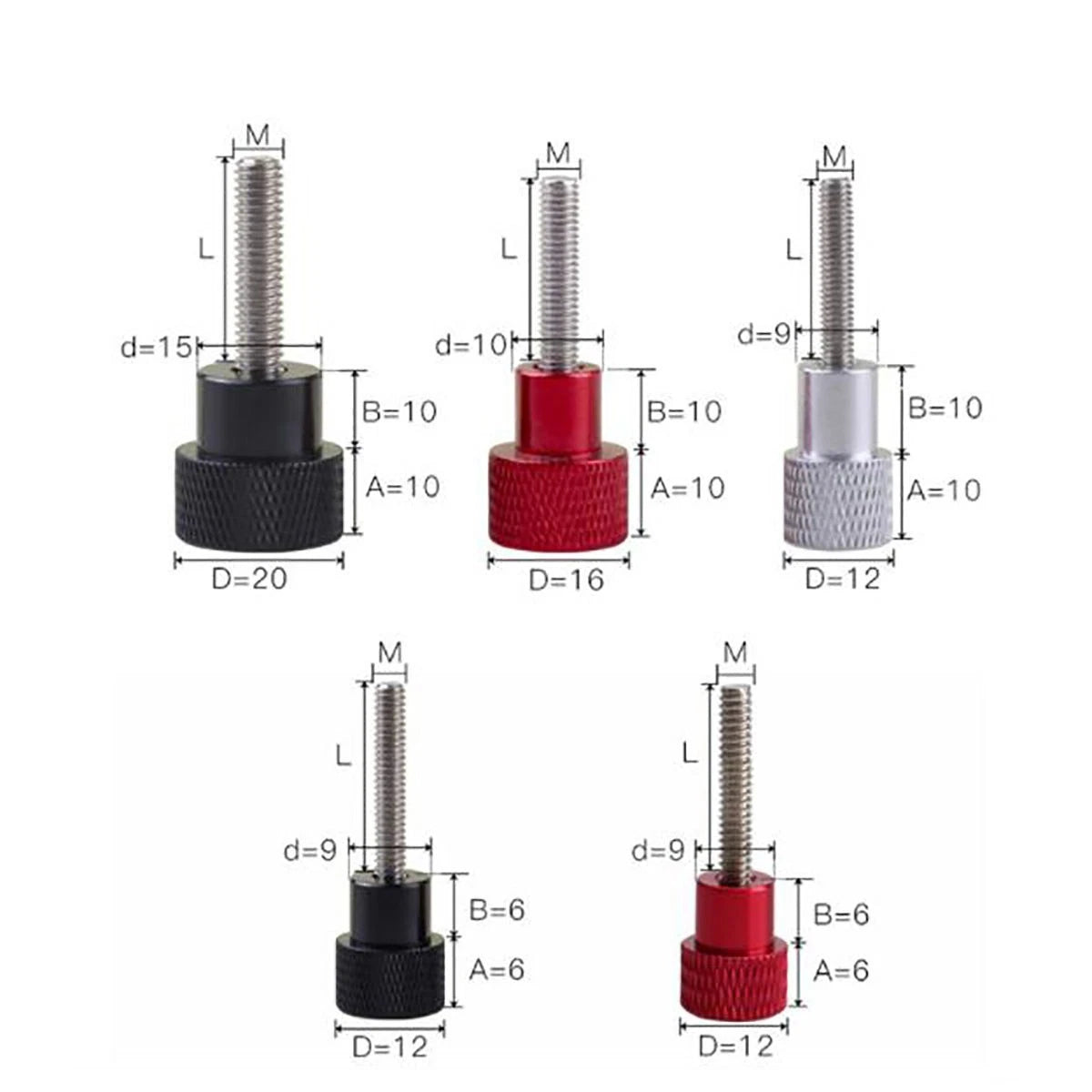

The format is: Thread Diameter × Shank Length -- Head Diameter × Head Height. So M6*25 -- D20*20 means: M6 thread, 25 mm shank length, 20 mm head diameter, 20 mm head height. Use this to confirm both the fastening length and the physical size of the knob head before ordering.
The stainless steel shank provides solid thread strength suitable for light-to-medium structural connections — panel retention, jig clamping, and equipment cover fastening. The aluminum head is not load-bearing in tension; it is designed for hand-applied torque only. For high-vibration or heavy-load structural joints, consider supplementing with a locking washer or thread-locking compound.
The stainless steel shank offers good corrosion resistance for most indoor and light outdoor applications. The anodized aluminum head also resists surface oxidation. These thumb screws are not rated for continuous saltwater immersion or highly corrosive chemical environments. For marine or harsh outdoor use, inspect periodically and apply a light protective coating if needed.

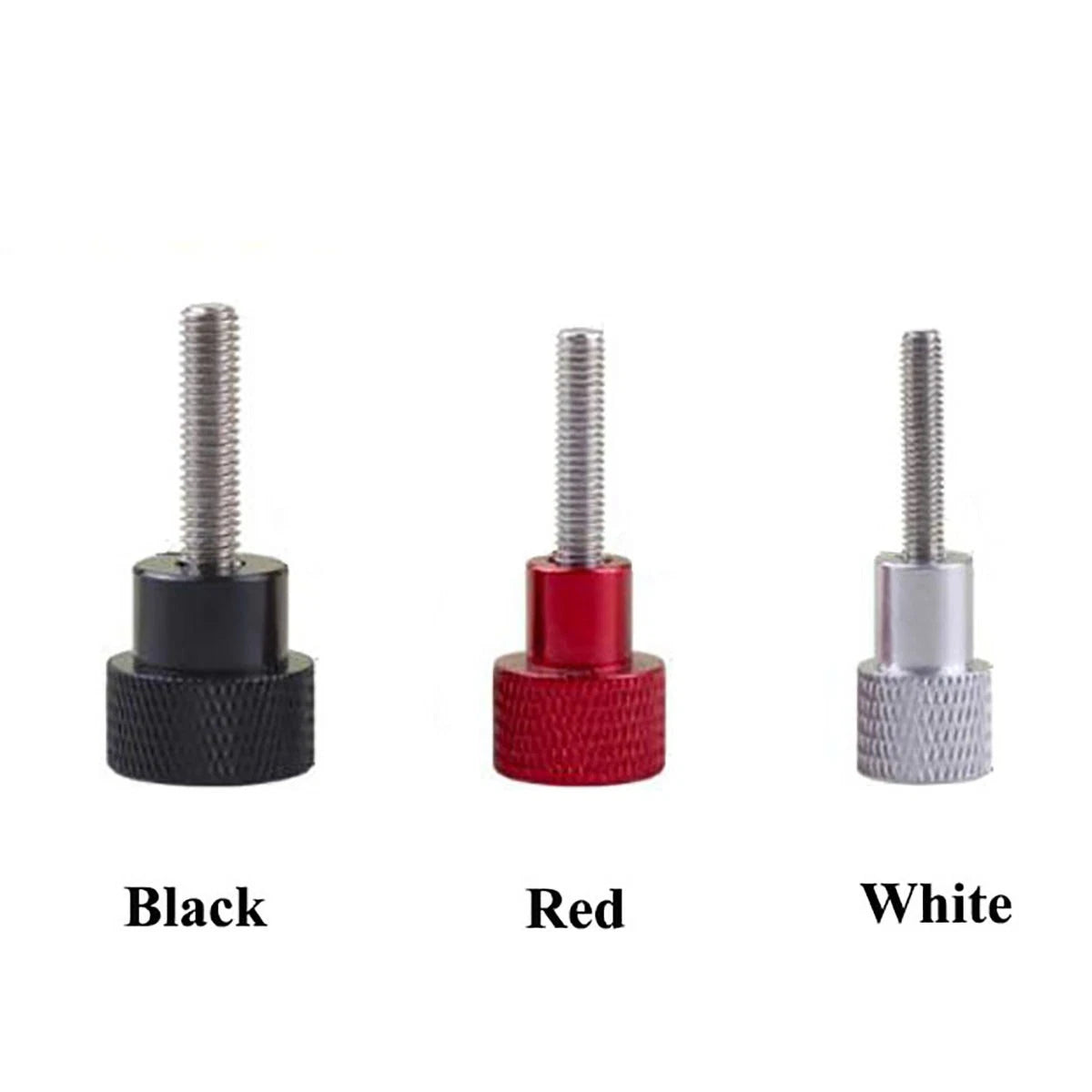

All three colors are functionally identical — the color is purely the anodized finish on the aluminum head. Red is popular for marking adjustment or calibration points. Black blends into dark enclosures and professional equipment. White suits light-colored panels or clean-room style builds. Choose based on your build's visual requirements or to color-code different fastener functions.
Order 1 PCS if you need a single replacement or are prototyping a design. Choose 5 PCS if you are building a full assembly — for example, a 3D printer typically uses 4 bed-leveling thumb screws, so a 5-pack covers the full set with one spare. The 5-pack price per piece is lower than buying individually.
Yes. M6 and M8 thumb screws are commonly used with 2020 and 3030 aluminum extrusion T-slot frames. Pair with a T-nut or drop-in nut sized for your extrusion slot. M6 fits standard 2020 extrusion T-slots; M8 fits larger 3030 or 4040 profiles. Confirm the T-nut specification for your extrusion brand before ordering.
