Are these eye bolts suitable for outdoor or marine use?

Yes. A2 (304) stainless steel offers good corrosion resistance in most outdoor and light marine environments. For prolonged saltwater immersion, A4 (316) grade is generally recommended.

Should I use these eye bolts for angular or side-loaded lifting?

Standard shoulder-less eye bolts are generally rated for vertical (axial) loads only. For angular loads, use shoulder-pattern eye bolts rated for the specific load angle. Always check the manufacturer's load chart before use.

M6 M8 M10 Stainless Steel Lifting Eye Bolt Kit with Nut, Washer & Spring Washer — A2 Grade

Roll over image to zoom in Click on image to zoom

M6 M8 M10 Stainless Steel Lifting Eye Bolt Kit with Nut, Washer & Spring Washer — A2 Grade

HomeDIYer

No reviews

By HomeDIYer®

Size:: M6x12mm

Quantity (Pcs): 1 Pcs

Price:

$2.88 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Stainless Steel Lifting Eye Bolts — Secure Rigging for DIY, Workshop & Light Industrial Use

Whether you're hanging a heavy bag in the garage, rigging a pulley system in the workshop, or anchoring equipment to a ceiling joist, a loose or corroded eye bolt is a safety hazard you can't afford. These A2 stainless steel lifting eye bolts give DIYers, contractors, and hobbyists a reliable, rust-resistant anchor point that won't let go.

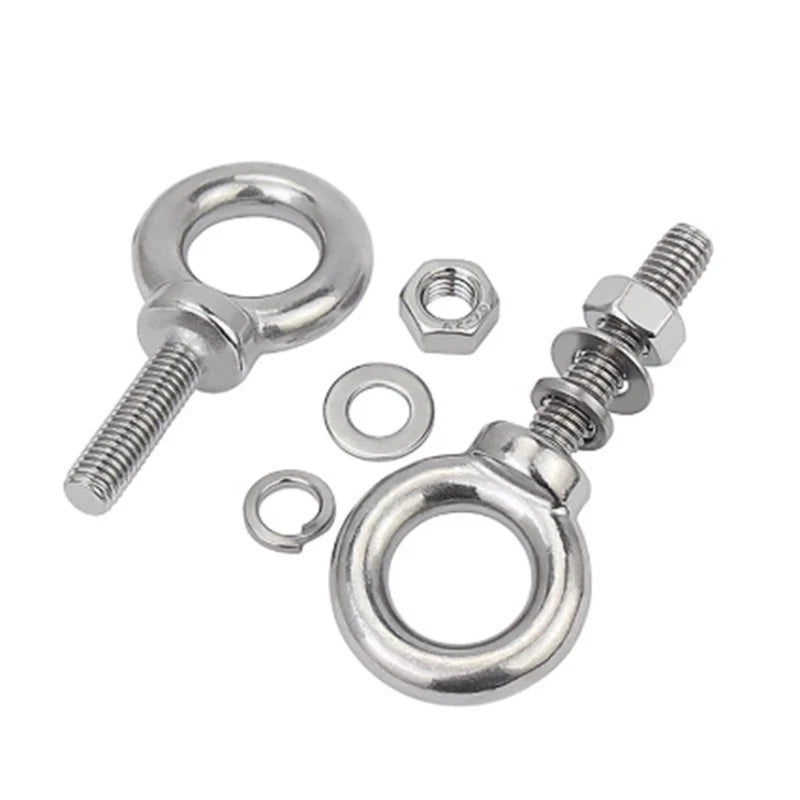

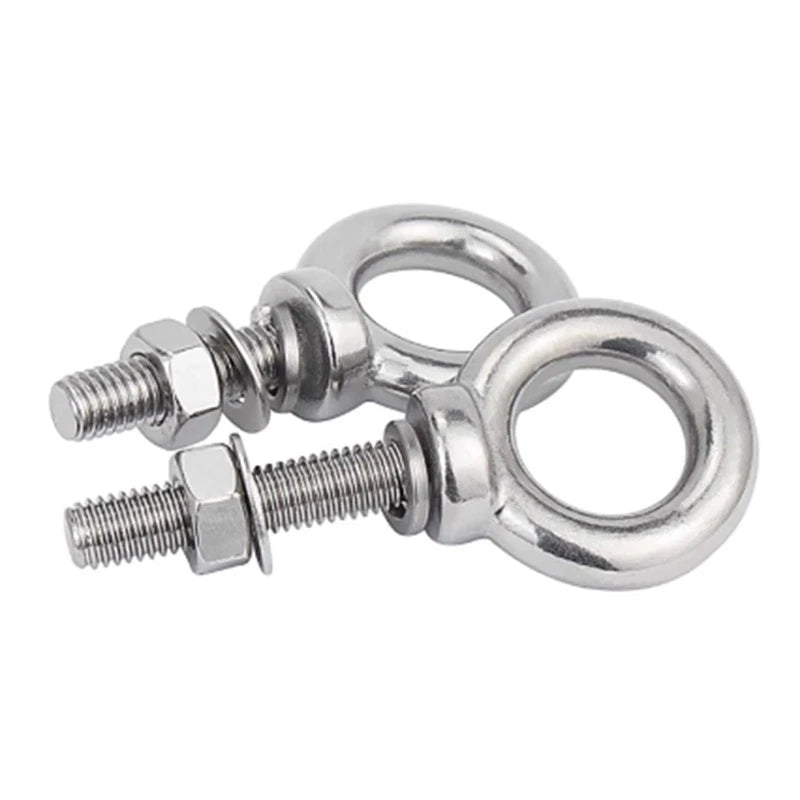

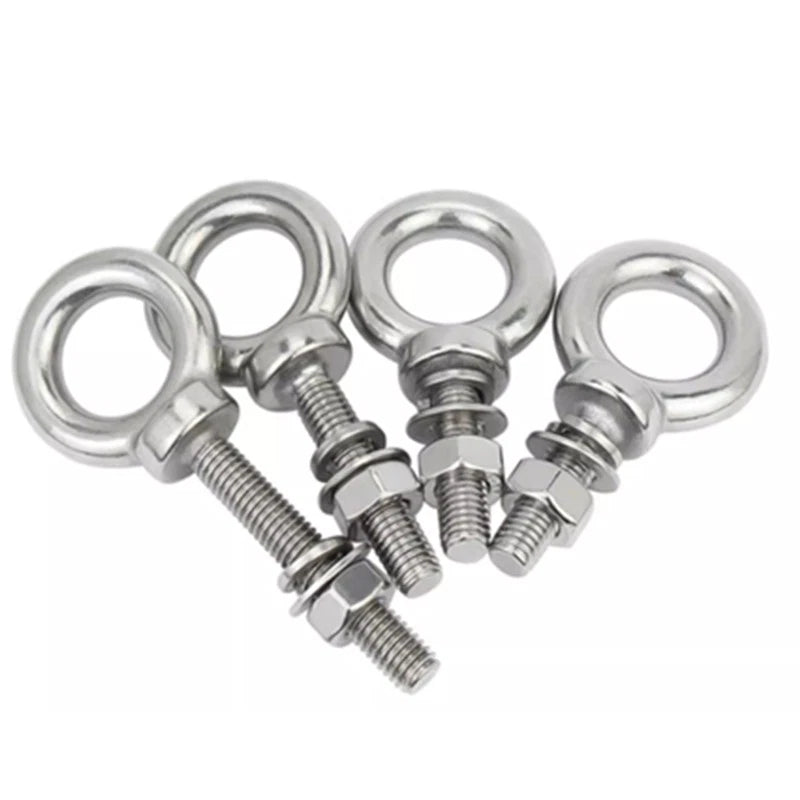

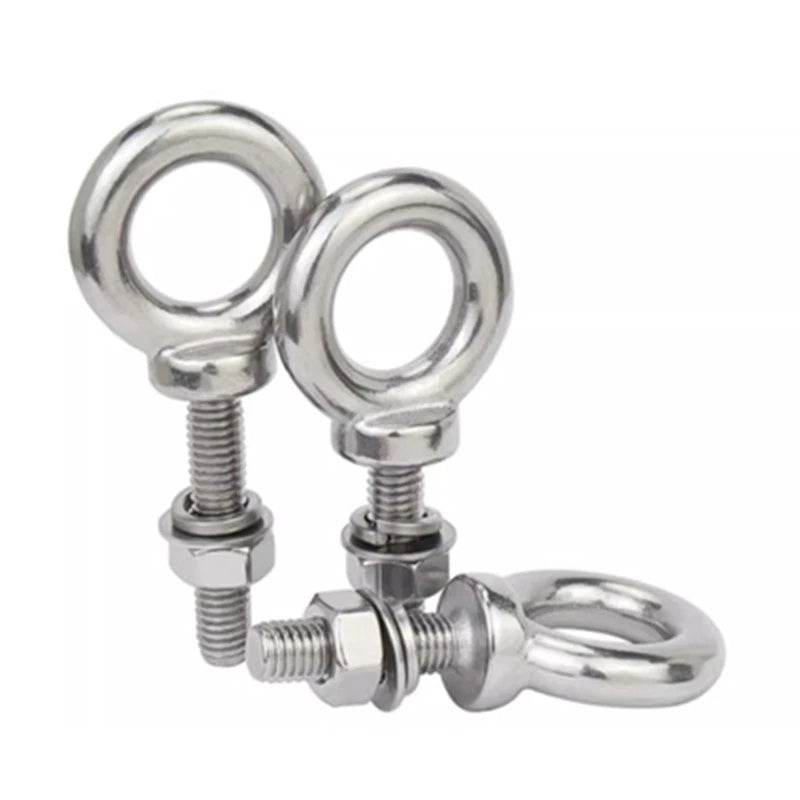

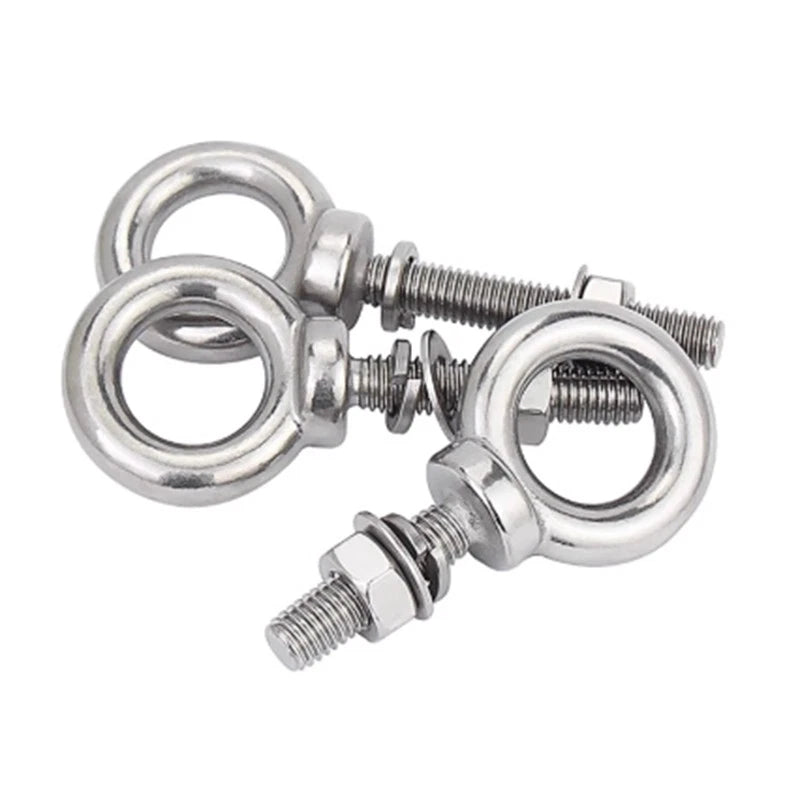

Each set includes one lifting eye bolt, one hex nut, one flat washer, and one spring (split lock) washer — all in matching A2 (304) stainless steel. Available in three thread diameters — M6 (≈1/4"), M8 (≈5/16"), and M10 (≈3/8") — with shank lengths ranging from 12mm (≈1/2") up to 200mm (≈7-7/8"), so you can match the bolt to your exact material thickness. Choose 1, 2, 3, or 5 pieces per order.

Typical applications include overhead rigging and pulley anchors in home workshops, hanging planters or lighting fixtures from structural beams, securing tarpaulins and cargo tie-down points, and light marine deck hardware where corrosion resistance matters.

🔩 Thread Compatibility: Standard ISO metric coarse thread — M6, M8, or M10. Fits any standard metric nut, tapped hole, or threaded insert of the same size. Verify your required thread size before ordering.

✅ Key Features of These Stainless Steel Lifting Eye Bolts

🦾A2 Stainless Steel Construction — Made from 304-grade stainless steel for solid corrosion resistance in outdoor, humid, and light marine environments without surface coatings that can chip or peel.
📦Complete Fastener Kit — Each set ships with the eye bolt, hex nut, flat washer, and spring lock washer, so you have everything needed for a secure, vibration-resistant installation in one order.
📏Wide Size Range — Available in M6, M8, and M10 thread diameters with shank lengths from 12mm to 200mm, covering most DIY rigging, hanging, and anchoring applications without custom ordering.
🔄Spring Washer Included for Vibration Resistance — The split lock washer bites into the nut face under load, resisting loosening from vibration or dynamic forces — a detail often missing from basic eye bolt kits.
🔗Round Loop Head Design — The closed circular eye provides a smooth, continuous load path for hooks, carabiners, shackles, and wire rope — reducing stress concentration compared to open-hook alternatives.
⚙️Standard Metric Thread for Easy Sourcing — ISO metric coarse thread means replacement nuts or matching hardware are available at any hardware store, making field repairs and future expansion straightforward.

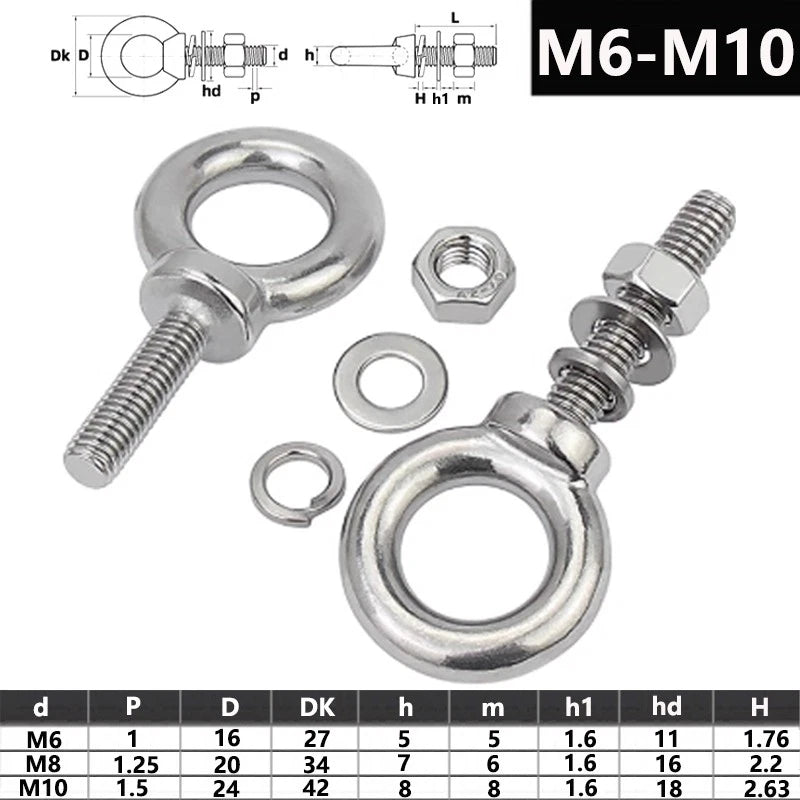

📐 Technical Specifications — Lifting Eye Bolt Kit

Product Type	Lifting Eye Bolt with Nut, Flat Washer & Spring Washer
Material	A2 Stainless Steel (304 grade)
Head / End Style	Round closed loop (eye)
Thread Standard	ISO Metric Coarse (DIN 580 style)
Available Thread Sizes	M6, M8, M10
Available Shank Lengths	12mm – 200mm (≈1/2" – 7-7/8"); see variant options
Included Hardware	1× Eye Bolt, 1× Hex Nut, 1× Flat Washer, 1× Spring Washer
Quantity per Order	1, 2, 3, or 5 sets (select above)
Finish	Natural stainless (brushed/mill finish)
Working Load Limit	See variant options / Contact us to confirm for specific lifting applications
Drive Style	See variant options
System of Measurement	Metric
Country of Origin	China

⚠️ Safety Note: Always verify the working load limit for your specific size and installation angle before use in overhead lifting. These eye bolts are intended for general-purpose rigging and anchoring — not for certified lifting gear applications requiring rated slings or hooks.

❓ Frequently Asked Questions

How do I choose the right bolt length for my application?

Measure the total material thickness you need to pass through, then add at least 1–1.5× the thread diameter for nut engagement. For example, a 25mm (≈1") thick panel with an M8 bolt typically needs at least M8×35mm or longer. When in doubt, size up — a longer bolt with extra thread exposed is safer than one that barely catches the nut.

What load can these eye bolts handle?

Working load limits vary by thread size and installation angle. Generally, M6 eye bolts are suited for lighter rigging tasks (typically up to a few hundred kg vertical), while M10 handles heavier loads. Always apply a safety factor of at least 4:1 for overhead lifting and consult a load table for your specific size. Contact us if you need load data for a particular variant.

Are these suitable for outdoor or marine use?

Yes. A2 (304) stainless steel offers good corrosion resistance in most outdoor, humid, and light coastal environments. For prolonged saltwater immersion or aggressive marine environments, A4 (316) grade is generally recommended. In most garden, workshop, and light outdoor applications, A2 performs well without additional treatment.

Are these compatible with standard metric nuts and hardware?

Yes. These use standard ISO metric coarse thread — M6, M8, or M10 — compatible with any standard metric nut, tapped hole, or threaded insert of the same size and pitch. Replacement hardware is available at any hardware store.

What is included in each set — do I need to buy the nut and washers separately?

No separate purchases needed. Each set includes one lifting eye bolt, one hex nut, one flat washer, and one spring (split lock) washer — all in matching A2 stainless steel. You can order 1, 2, 3, or 5 complete sets using the quantity selector above.

Can I use these for angular or side-loaded lifting?

Standard eye bolts without a shoulder are generally rated for vertical (axial) loads only. For angular loads, shoulder-pattern eye bolts rated for the specific load angle are in most cases the correct choice. Always check the load rating for your installation angle before use in any lifting application.

How do I install the spring washer correctly?

Place the flat washer against the surface first, then the spring washer on top, then thread on the hex nut. Tighten until the spring washer is fully compressed flat — this provides the locking tension that resists vibration loosening over time. Do not over-torque, as this can deform the spring washer and reduce its effectiveness.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
