When you need a fastener you can tighten and release by hand — without hunting for a wrench — standard hex bolts become a daily frustration. Makers, workshop builders, and equipment assemblers who frequently adjust panels, guards, or jigs know the pain of stripped hex heads and lost tools. These M8 knurled thumb screws solve that problem with a wide, textured grip head designed for confident finger-tightening every time.

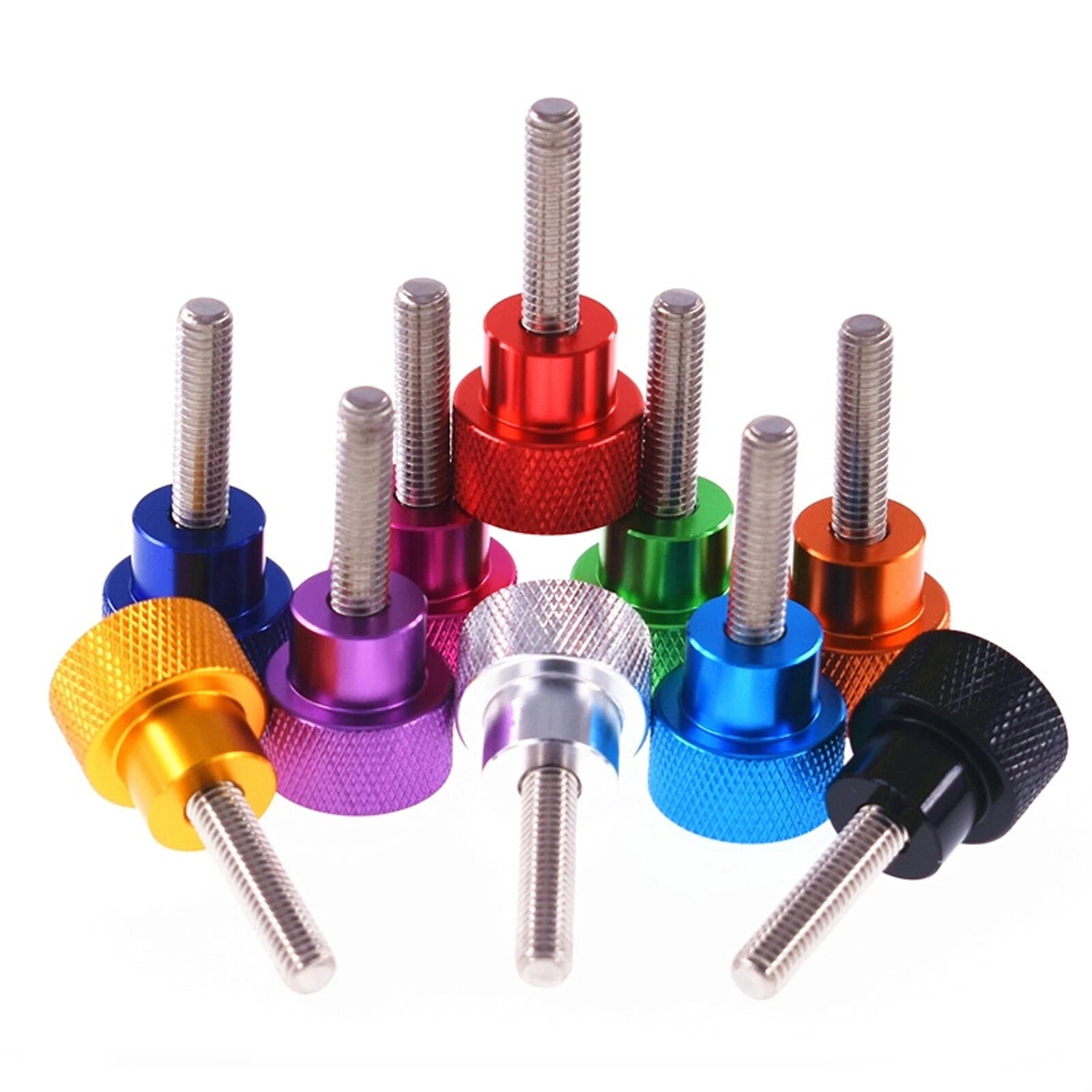

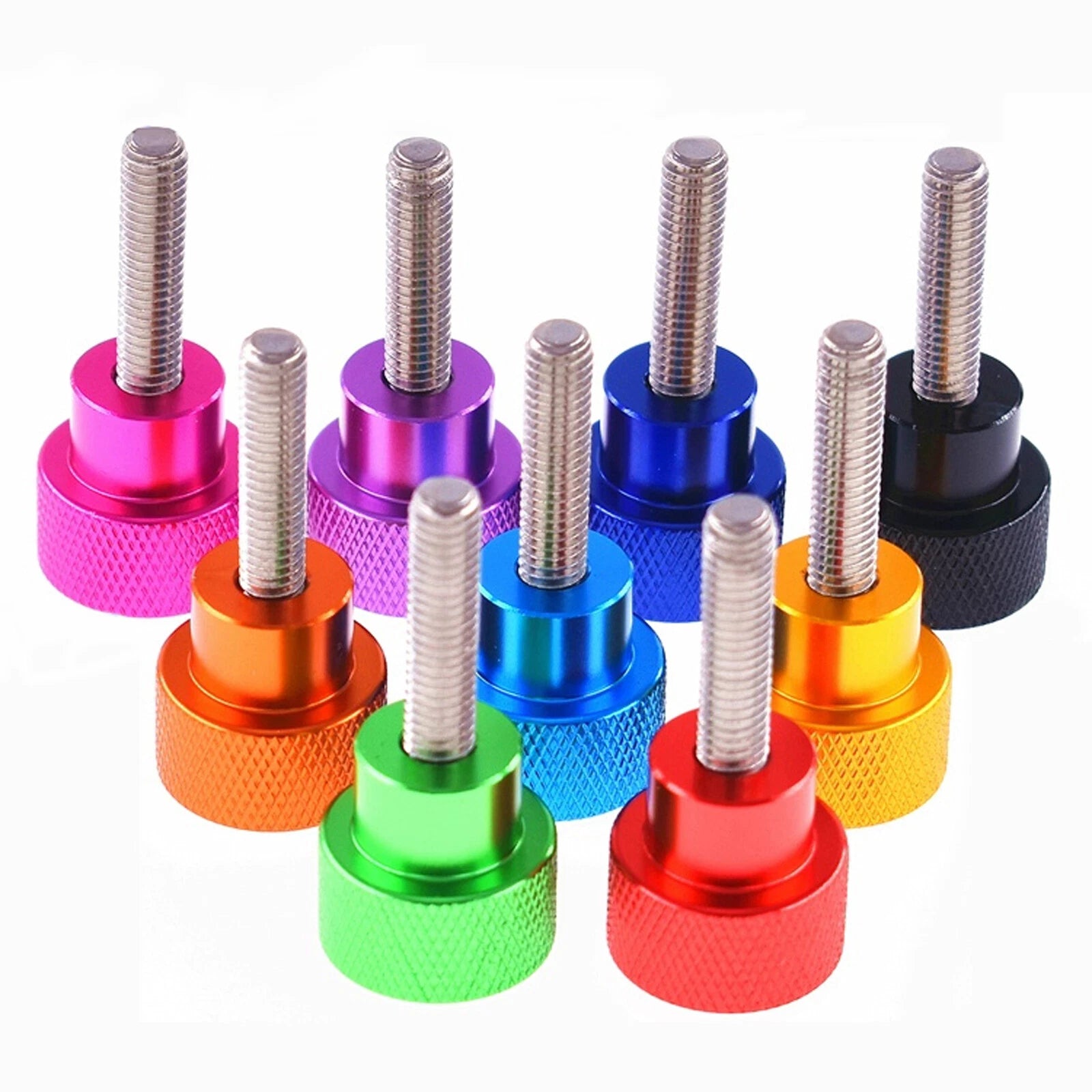

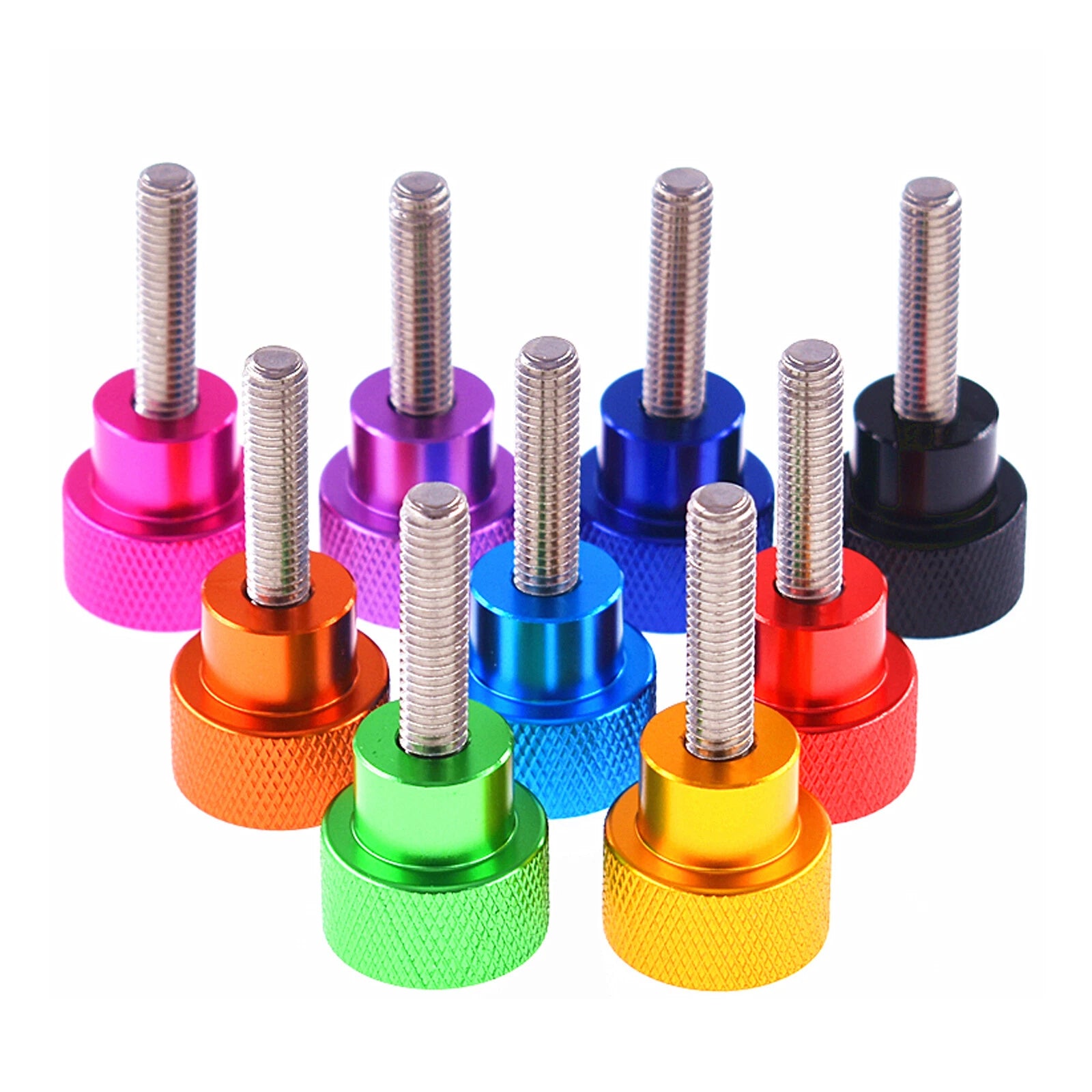

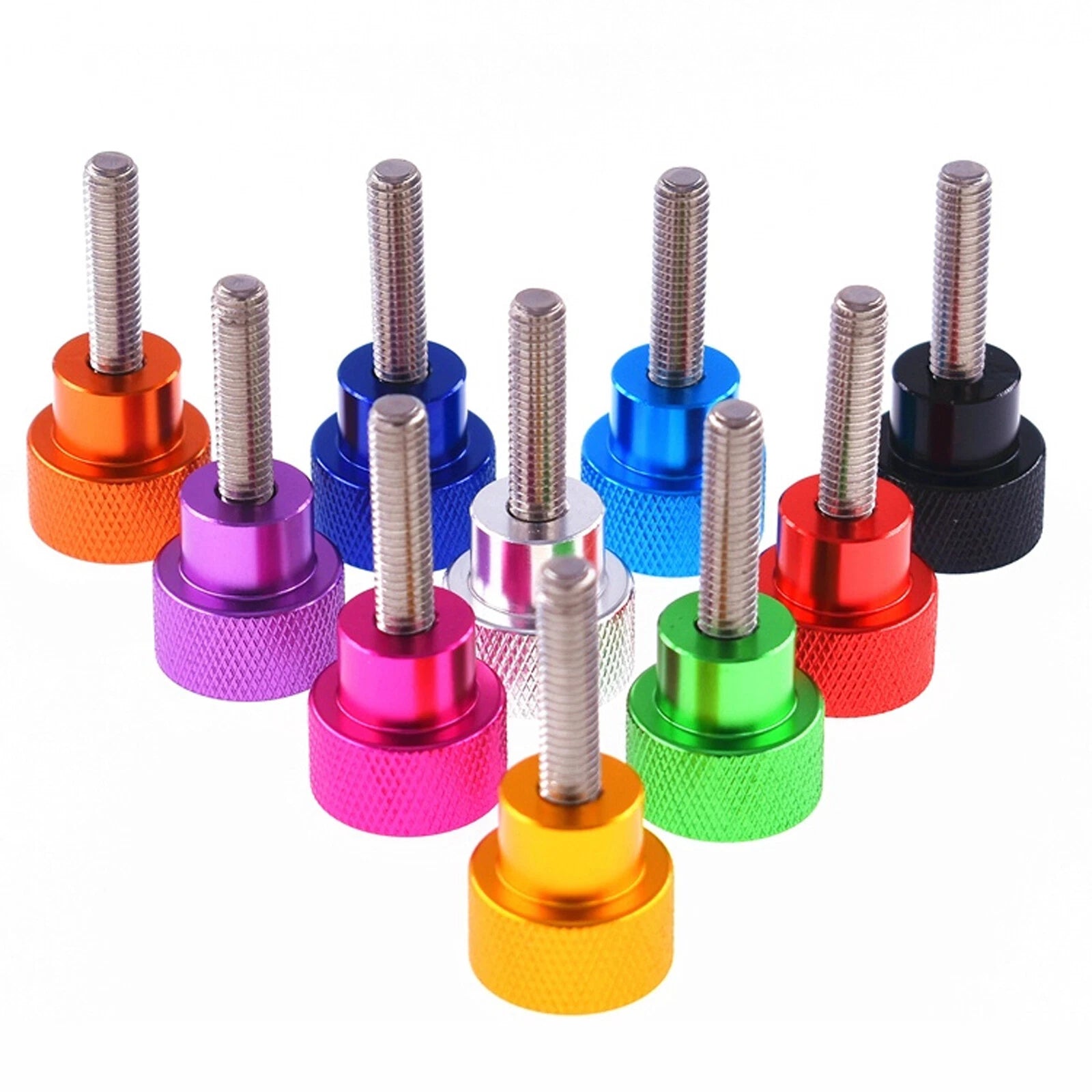

Each screw features an aluminum alloy knurled head paired with an A2 stainless steel threaded shank. The head diameter is typically 20–25 mm (approx. 0.79–0.98 in), and the threaded shank spans from 6 mm to 100 mm (approx. 0.24 in to 3.94 in) across 23 size options. Ten anodized color options — Royal Blue, Green, Auratus, Wine Red, Black, Silver, Purple, Pink, Sky Blue, and Orange — allow color-coding by zone, function, or personal preference.
Typical use cases include 3D printer enclosure panels requiring frequent access, CNC machine guard attachment points where tool-free removal speeds setup, and electronics rack assembly where M8 knurled thumb screws for rack-mount equipment eliminate the need for a screwdriver during routine maintenance. The corrosion-resistant stainless steel shank also suits outdoor enclosures and damp workshop environments.

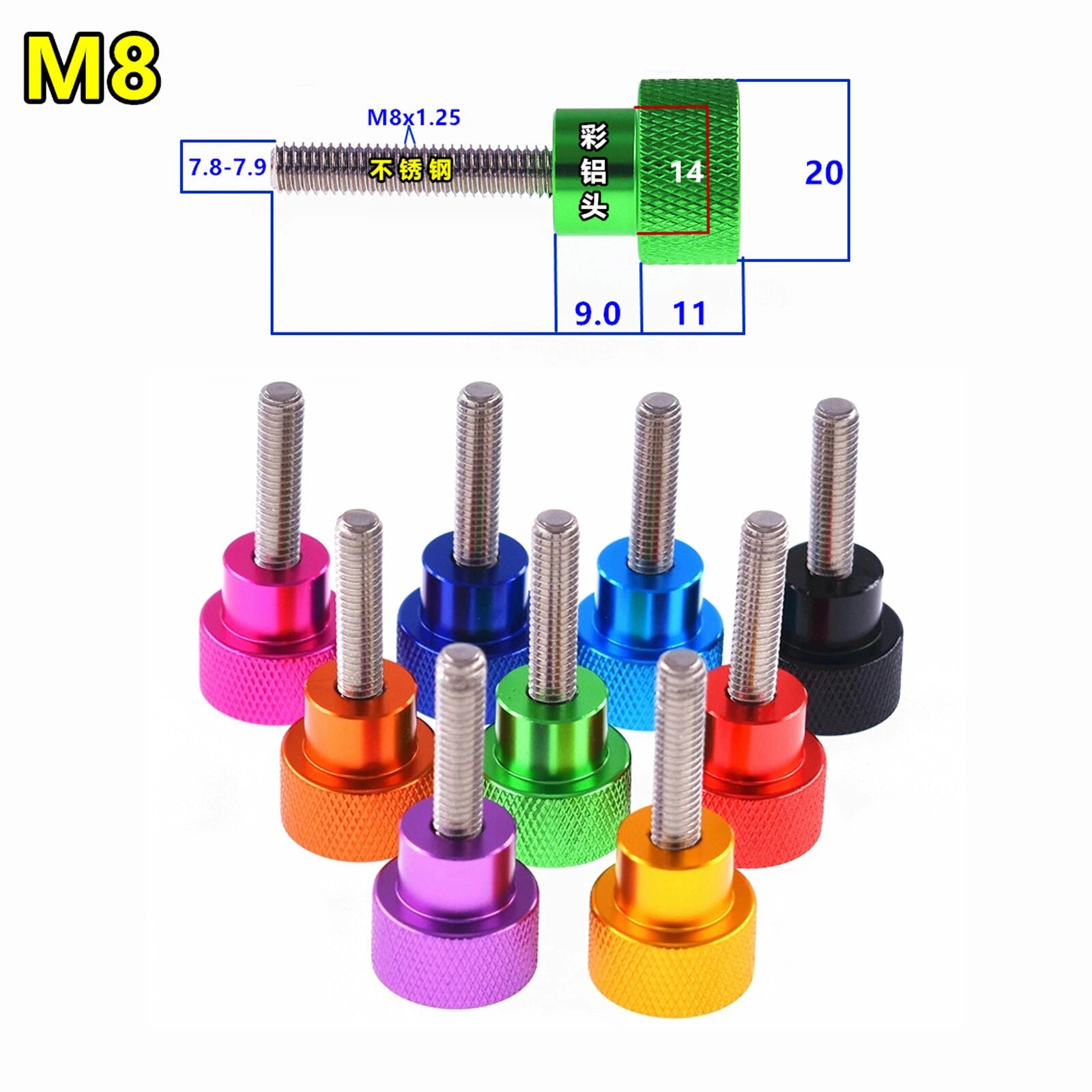

| Thread Size | M8 |
|---|---|
| Thread Pitch | 1.25 mm (coarse, metric standard) |
| Shank Length Range | 6 mm – 100 mm (0.24 in – 3.94 in) |
| Head Style | Round knurled thumb screw |
| Head Diameter | See variant options |
| Head Material | Aluminum alloy (anodized) |
| Shank Material | A2 Stainless Steel (304) |

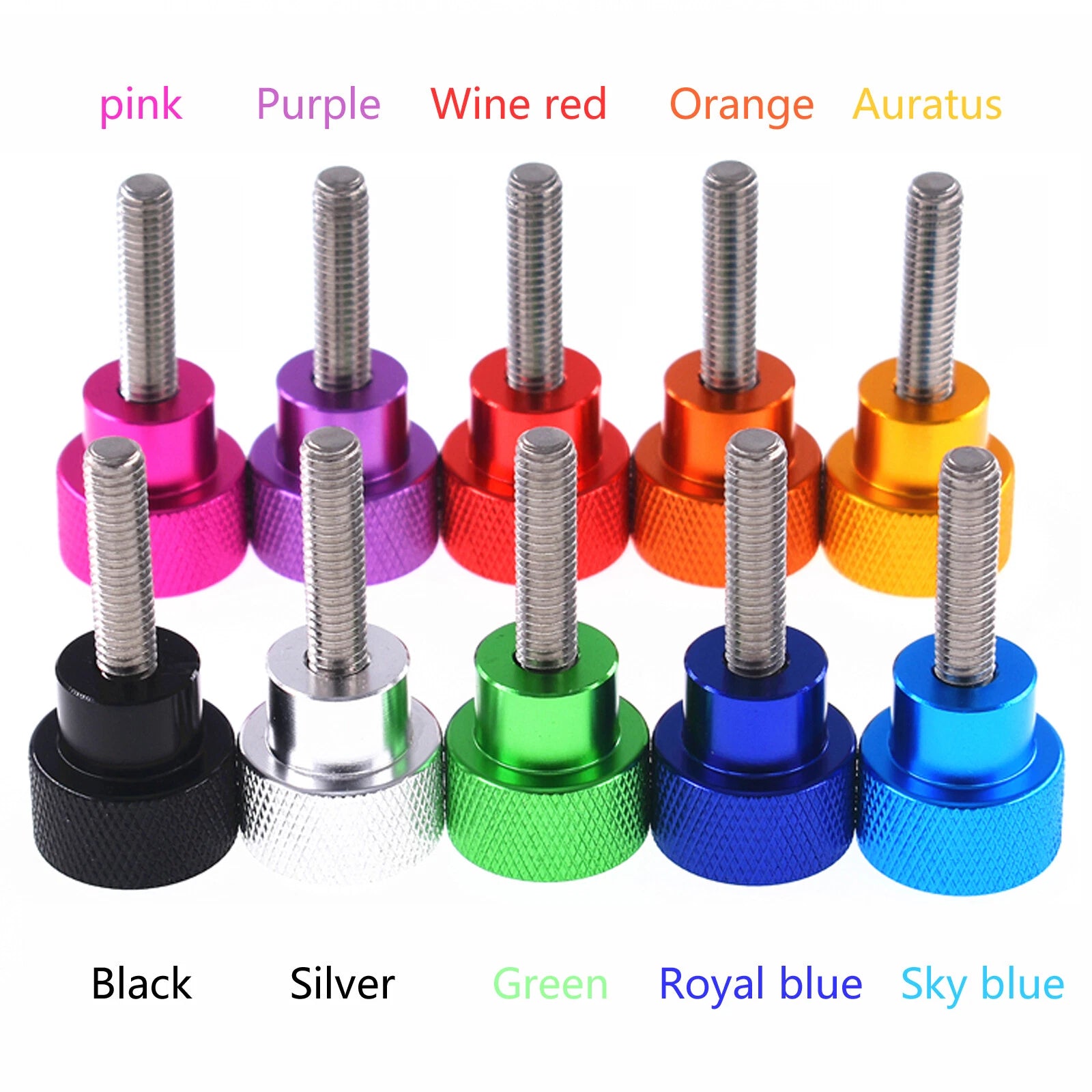

| Finish | Anodized (color options: Royal Blue, Green, Auratus, Wine Red, Black, Silver, Purple, Pink, Sky Blue, Orange) |
| Drive Style | Hand-turn (no tool required) |
| System of Measurement | Metric |
| Quantity per Listing | 1 piece (1pcs) |
Measure the total thickness of the material(s) being clamped, then add 5–10 mm for thread engagement in the nut or tapped hole. For example, clamping a 10 mm panel into a tapped hole requires at least an M8 × 15 mm or M8 × 20 mm screw. Select from the Thread diameter × Length dropdown above to match your stack-up.
The A2 stainless steel shank provides solid tensile strength suitable for light-to-medium structural loads such as panel retention, guard attachment, and equipment covers. They are not rated for high-torque or heavy-load structural joints where a full hex bolt with torque specification is required. For critical structural connections, consult an engineer.
Anodizing is an electrochemical surface treatment that penetrates the aluminum rather than sitting on top like paint, so it resists chipping and peeling under normal use. Color may fade gradually with prolonged UV exposure or harsh chemical contact. For outdoor use, Silver or Black anodized options typically show the least visible aging.
Yes. The shank uses standard M8 × 1.25 mm coarse metric thread, which is compatible with any M8 hex nut, flange nut, wing nut, or M8 tapped hole machined to standard tolerances. No special hardware is required.
The A2 stainless steel shank offers good corrosion resistance for damp indoor environments and light outdoor exposure. The anodized aluminum head also resists surface oxidation. For fully submerged or salt-spray environments, additional corrosion protection or a fully stainless fastener would be more appropriate.
Color choice is primarily aesthetic or functional. Many builders use color-coding to identify fastener zones — for example, Red for high-voltage enclosure panels, Blue for coolant-side covers, and Black for general structure. All colors share the same mechanical specifications; color does not affect strength or thread dimensions.
The aluminum knurled head provides a lightweight, grippy surface for hand operation and accepts anodized color finishes. The stainless steel shank provides the thread strength and corrosion resistance needed for the fastening function. This two-material construction balances weight, aesthetics, and durability.
