When you're mid-build and need a fastener you can tighten and release by hand — without hunting for a wrench — standard hex bolts become a real bottleneck. These M8 and M10 knurled thumb screws are designed for makers, hobbyists, and workshop professionals who need repeatable, tool-free clamping on panels, enclosures, jigs, and machine guards.
Each screw features an aluminum knurled head in either red or black anodized finish, paired with a stainless steel threaded insert for corrosion resistance and thread durability. Head outer diameter options are 20×20mm (0.79×0.79 in) or 25×20mm (0.98×0.79 in). Thread lengths range from 15mm to 135mm (0.59–5.31 in) across M8 and M10 metric sizes.
Ideal for use as thumb screws for 3D printer enclosures, CNC machine access panels, electronics project boxes, and workshop fixture jigs — anywhere you need quick-release metric thumb bolts with a secure grip.
| Material (Head) | Aluminum alloy (anodized) |
|---|---|
| Material (Thread) | Stainless steel insert |
| Thread Standard | Metric (ISO) |
| Thread Diameter | M8 or M10 (see variant options) |
| Thread Length | 15mm – 135mm (0.59 – 5.31 in) (see variant options) |
| Head Outer Diameter × Height | 20×20mm or 25×20mm (see variant options) |
| Color / Finish | Red anodized or Black anodized (see variant options) |
| Grade | Grade 8 |
| Drive Style | Hand / thumb (no tool required) |
| Head Style | Knurled cylindrical |
| Quantity per Order | 1 piece (see variant options for multi-pack) |
Match the thread diameter to your existing tapped hole or nut. M8 has an 8mm nominal thread diameter; M10 is 10mm. If you're tapping a new hole, M10 provides more clamping strength for heavier panels or higher-vibration environments. M8 is sufficient for most light enclosure and jig applications.
Measure the total thickness of the material being fastened plus any nut or insert depth. The thread length should be at least equal to the material thickness — ideally 1.5× the thread diameter longer for full engagement. For example, an M8 screw needs at least 12mm of thread engagement for reliable hold.
These are Grade 8 fasteners rated for general mechanical use. The stainless steel threaded insert provides solid thread strength. They are well-suited for panel retention, access covers, jig clamping, and enclosure fastening. They are not intended for high-load structural joints or safety-critical applications requiring certified fasteners.
The aluminum head is anodized, which creates a hard oxide layer that resists corrosion and surface wear. The anodized finish is durable for indoor workshop and light outdoor enclosure use. Avoid prolonged exposure to strong acids or alkalis, which can degrade anodized coatings over time.

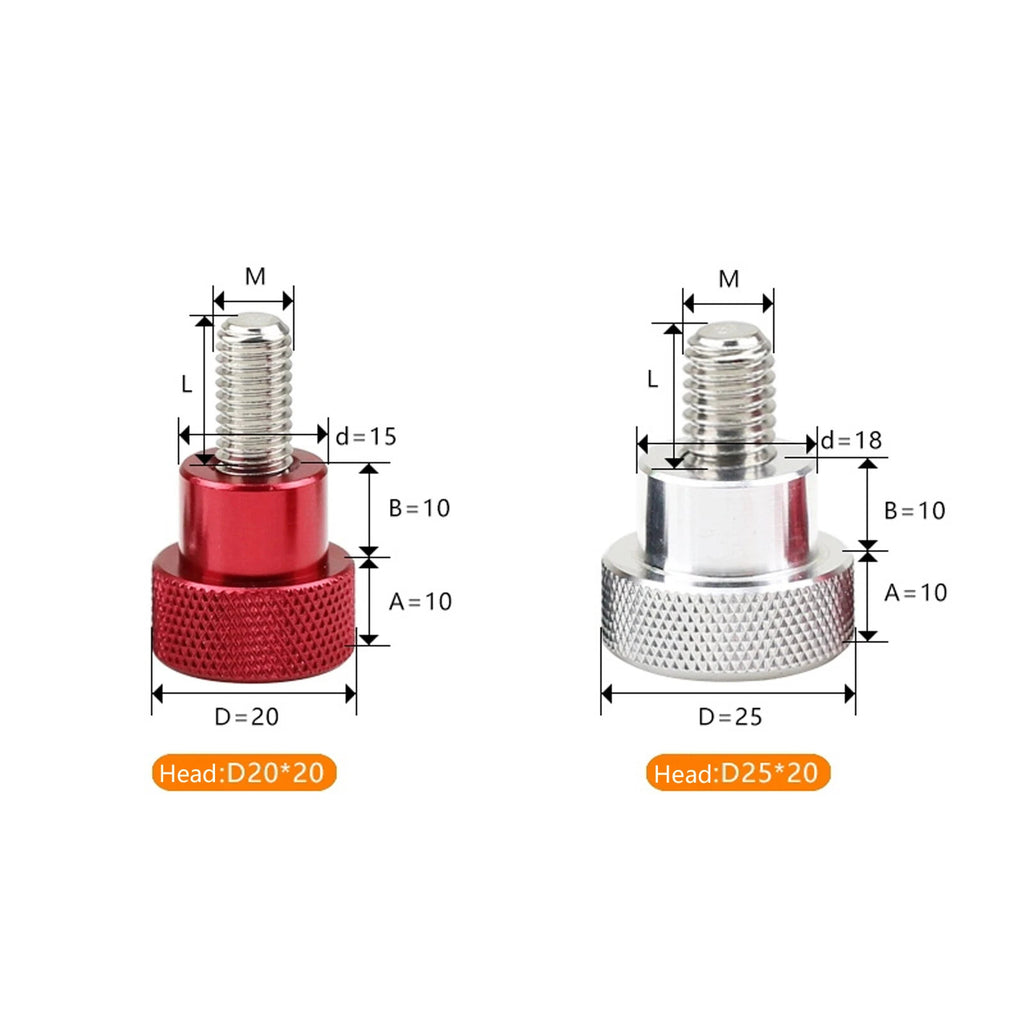

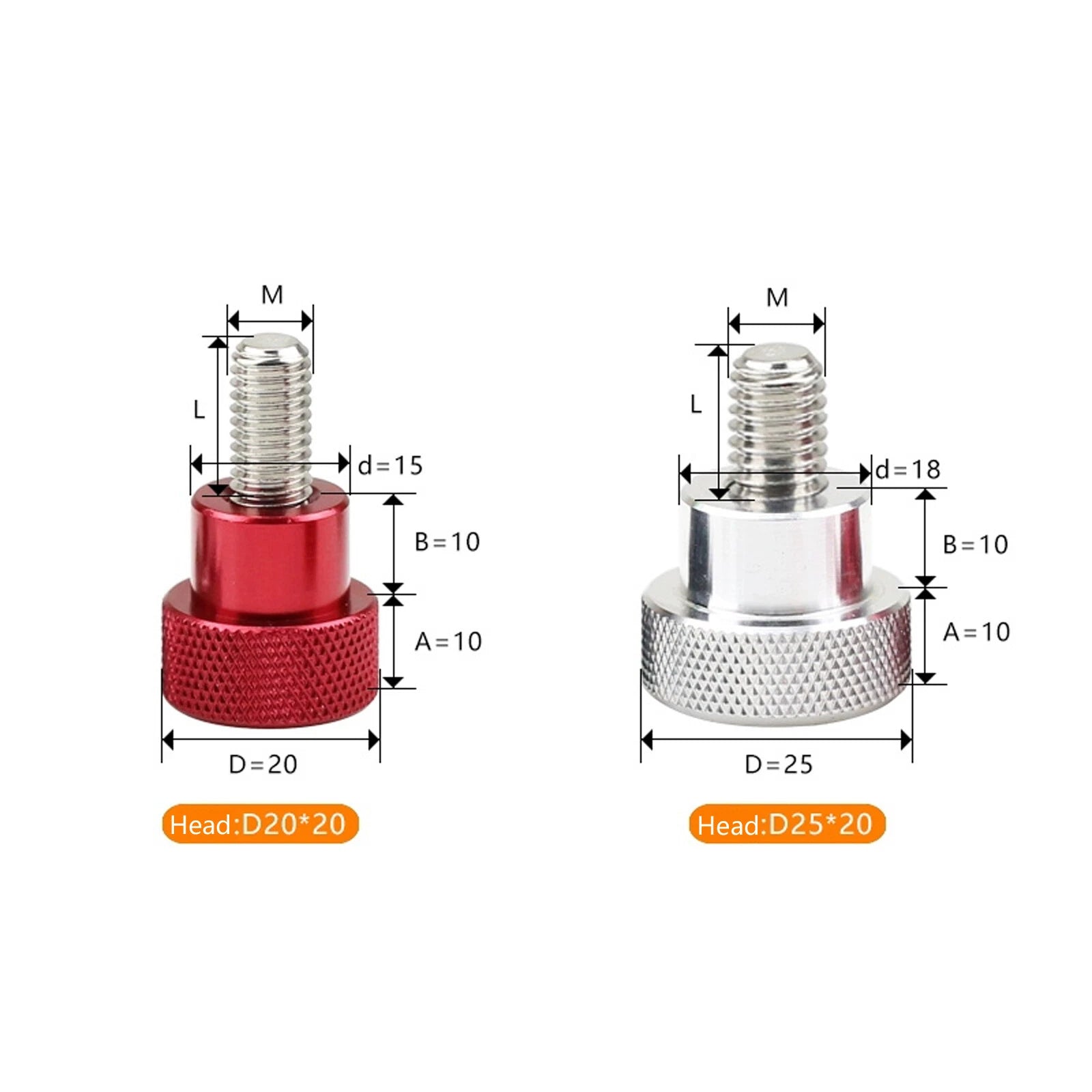

Both heads are 20mm tall. The 20×20mm head has a 20mm outer diameter — more compact for tight panel layouts. The 25×20mm head has a 25mm outer diameter, providing a larger grip surface for easier hand-tightening, especially useful when wearing gloves or when higher torque is needed.
Yes. These thumb screws thread into any standard M8 or M10 metric nut, T-nut, threaded insert, or tapped hole. They are compatible with aluminum extrusion T-slots (with appropriate T-nut), steel plates, and plastic panels with threaded inserts.
The color is purely cosmetic — both red and black variants are identical in material, dimensions, and mechanical performance. Many builders use color-coding to distinguish different access panels or torque zones on a machine or enclosure.
