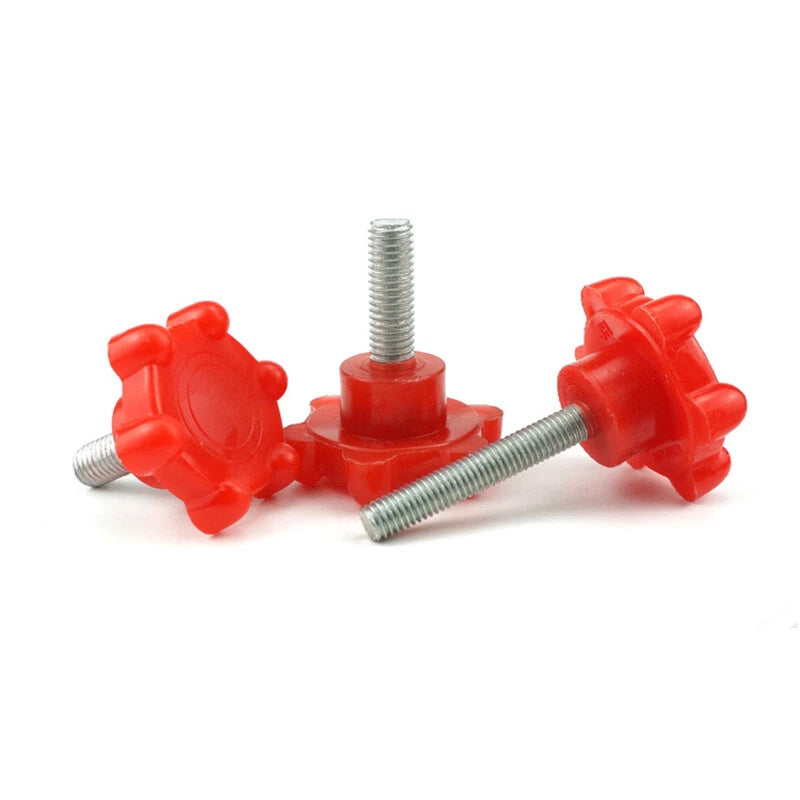

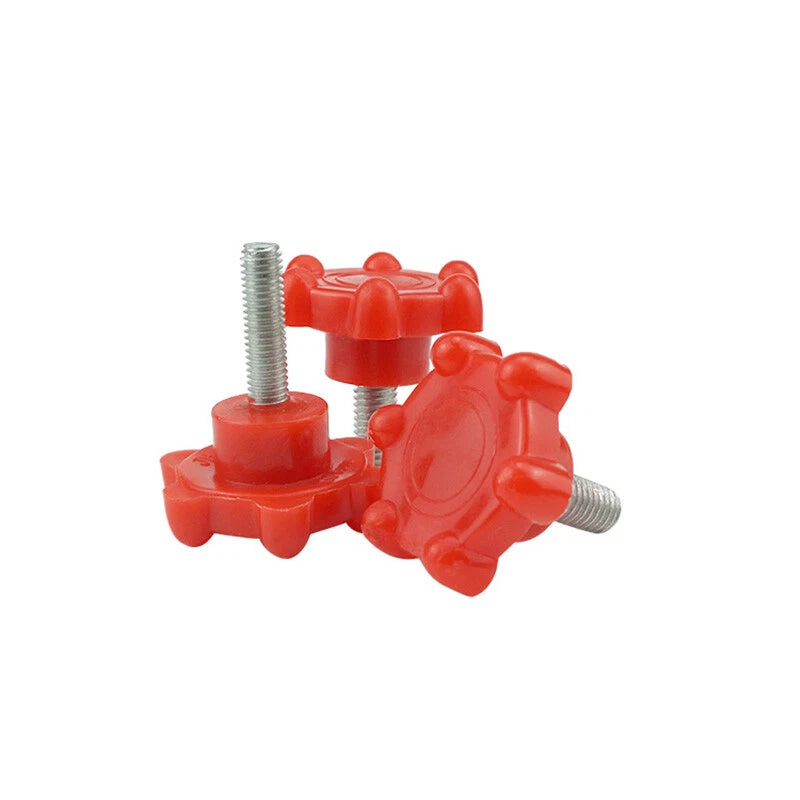

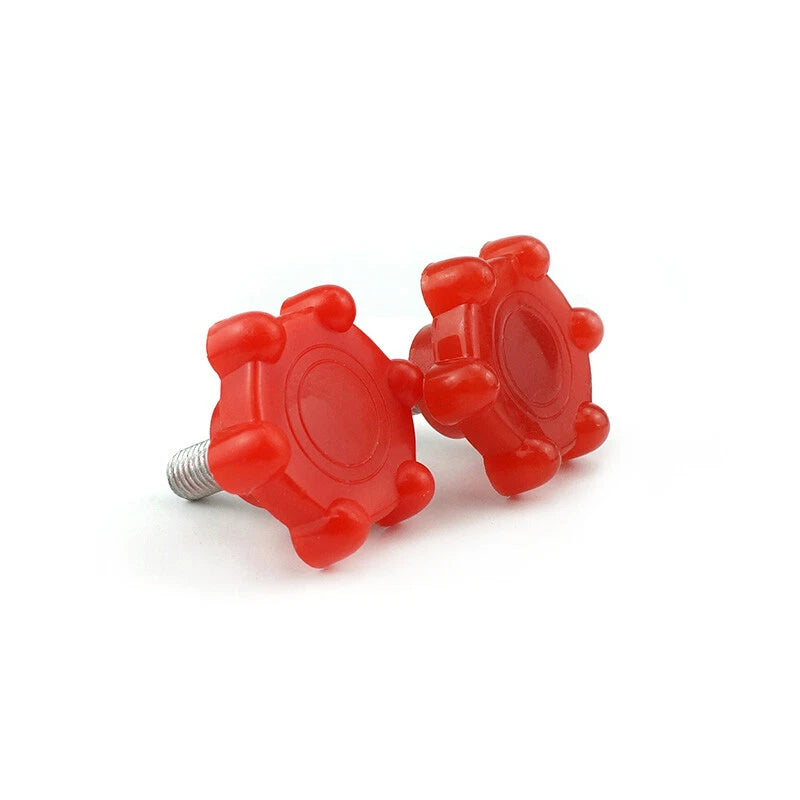

M8 M10 Thumb Screws 8mm 10mm Plastic Knobs Bolt Red Torx-shaped Thumbscrew 48#

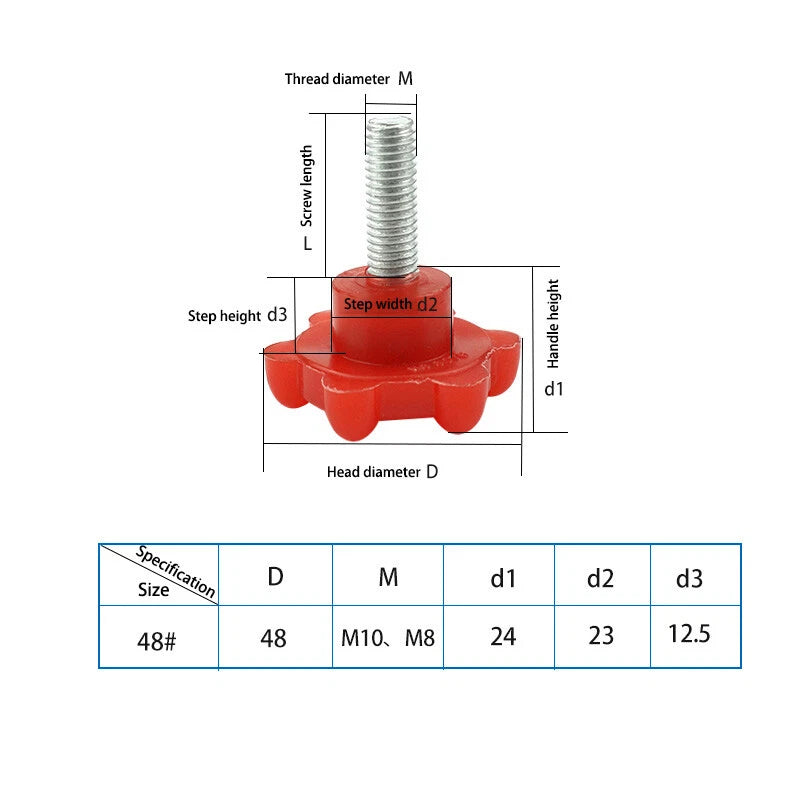

Match the thread diameter to your existing threaded hole or insert. M8 has an 8 mm nominal thread diameter and is common in lighter-duty fixtures, 3D printer frames, and enclosure panels. M10 is larger and suited to heavier assemblies, machine guards, and structural jigs. If you are tapping a new hole, check your material thickness — M10 requires a slightly larger clearance hole (typically 10.5 mm) compared to M8 (typically 8.5 mm).

Measure the total grip length — the combined thickness of all materials being clamped. Add 1–2 thread pitches of engagement beyond the last clamped layer. For M8 coarse thread (1.25 mm pitch), aim for at least 8–10 mm of thread engagement in metal; for M10 (1.5 mm pitch), aim for 10–12 mm. If you are threading into a nut or insert, the nut height determines minimum engagement.

The galvanized steel shank provides the clamping strength — the plastic knob is the grip interface only and does not carry shear or tensile load. These fasteners are appropriate for panel retention, access covers, and adjustable fixtures where hand-tightening torque is sufficient. They are not rated for high-vibration structural joints or safety-critical load paths where a torque-specified fastener is required.

Galvanizing provides a zinc coating that offers moderate corrosion resistance suitable for indoor and sheltered outdoor use. In continuously wet, salt-spray, or chemically aggressive environments, the zinc layer will eventually deplete. For those conditions, consider stainless steel alternatives. For typical workshop, garage, or light industrial use, the galvanized finish performs reliably.

Yes. The bolt shank uses standard ISO metric coarse thread, so it is fully compatible with any standard M8 or M10 hex nut, flange nut, wing nut, or washer. You can also thread them into standard M8 or M10 threaded inserts, weld nuts, or tapped holes in metal, wood, or plastic.

For a single access panel with four corners, a 5-piece pack gives you four fasteners plus one spare. For a full enclosure with multiple panels, the 10 or 20-piece packs offer a lower per-unit cost. The 1 and 2-piece options are useful for replacement of a single worn or lost fastener without committing to a larger quantity.

ABS plastic can experience color fading and surface chalking with prolonged direct UV exposure. For applications in direct sunlight over extended periods, consider adding a UV-protective coating or selecting a sheltered mounting location. For indoor, cabinet, or shaded outdoor use, the color stability is adequate for typical service life.
