MXL Timing Belt 10mm Wide — Precision Closed Loop Synchronous Drive for Exact Positioning

When a slipping V-belt or a stretched chain costs you accuracy, repeatability, or a whole production run, you need a synchronous drive solution that simply doesn't slip. Engineers, CNC builders, 3D printer enthusiasts, and automation technicians rely on MXL timing belts to maintain exact tooth-to-tooth engagement across thousands of operating cycles — no lubrication, no re-tensioning, no guesswork.

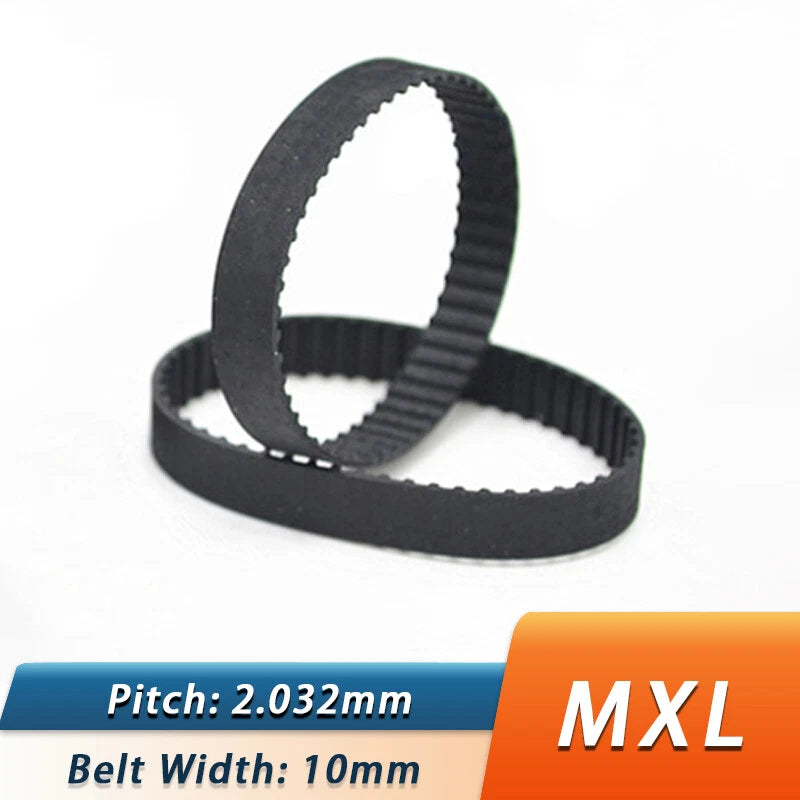

Each belt in this listing is a closed loop MXL rubber timing belt, 10mm wide, with a standardized pitch of 2.032mm (0.080"). Sizes span from 22MXL (≈44.7mm / ≈1.76" pitch circumference) up to 1636MXL (≈3,326mm / ≈130.9"), covering the full range of light-duty precision drive applications. Every size is cross-referenced to its equivalent B-series designation for easy catalog matching.

Typical use cases include CNC router X/Y axis drives, 3D printer extruder and motion systems, small conveyor indexing, robotics joint actuation, and laboratory automation equipment — anywhere a synchronous rubber timing belt with MXL pitch is specified.

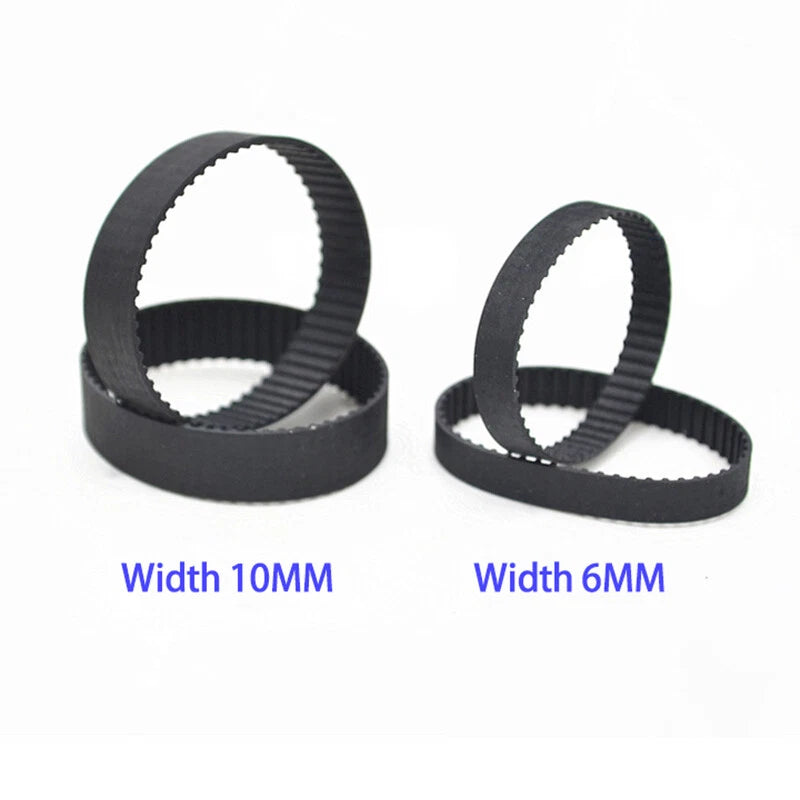

ℹ️ Compatibility: Fits all standard MXL-profile pulleys (2.032mm / 0.080" pitch). Belt width is 10mm — confirm your pulley flange width accommodates 10mm. Cross-reference your size using the MXL number or the B-series number shown in the variant selector.
⚠️ Size selection tip: The MXL number equals the tooth count. Calculate your required pitch circumference (teeth × 2.032mm) before ordering. If you are between sizes, select the next larger size and adjust center distance accordingly.

✅ Key Features of These MXL Rubber Timing Belts

  • ⚙️Zero-Slip Synchronous Drive — The MXL tooth profile locks into matching pulley grooves, eliminating the speed variation and slip common in friction-based drives, making these belts ideal for closed loop position control systems.
  • 📏Wide Size Range in One Listing — Over 200 tooth-count options from 22MXL to 1636MXL let you find the exact closed loop synchronous belt length for your application without custom fabrication.
  • 🔩Standardized 2.032mm MXL Pitch — Interchangeable with any MXL-profile pulley from any manufacturer; the 0.080" pitch is an industry-wide standard for miniature timing belt drives.
  • 🛡️Reinforced Rubber Construction — The rubber body is typically cord-reinforced to resist elongation under load, maintaining consistent tooth spacing over the belt's service life in light-duty precision drives.
  • 🔇Quiet, Low-Vibration Operation — Rubber dampens vibration and reduces noise compared to chain or metal-link drives, an advantage in desktop CNC machines, 3D printers, and lab automation where acoustic environment matters.
  • 🔄Maintenance-Free Closed Loop Design — No lubrication required; the closed loop format means no joining links or clips to fail, simplifying installation and reducing scheduled maintenance intervals.

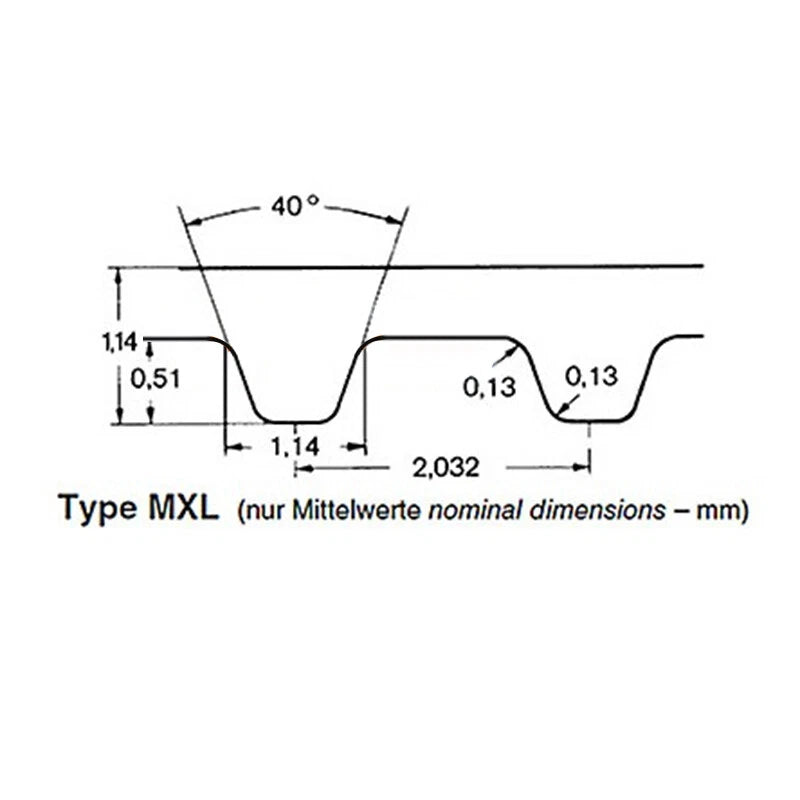

📐 Technical Specifications — MXL Rubber Timing Belt

Belt Profile MXL (Miniature Extra Light)
Pitch 2.032mm (0.080")
Belt Width 10mm (≈0.394")
Belt Type Closed Loop Synchronous (Timing Belt)
Material Rubber with cord reinforcement (typically fiberglass or steel)
Tooth Count Range 22 teeth (22MXL) to 1636 teeth (1636MXL)
Pitch Circumference Range ≈44.7mm (≈1.76") to ≈3,326mm (≈130.9")

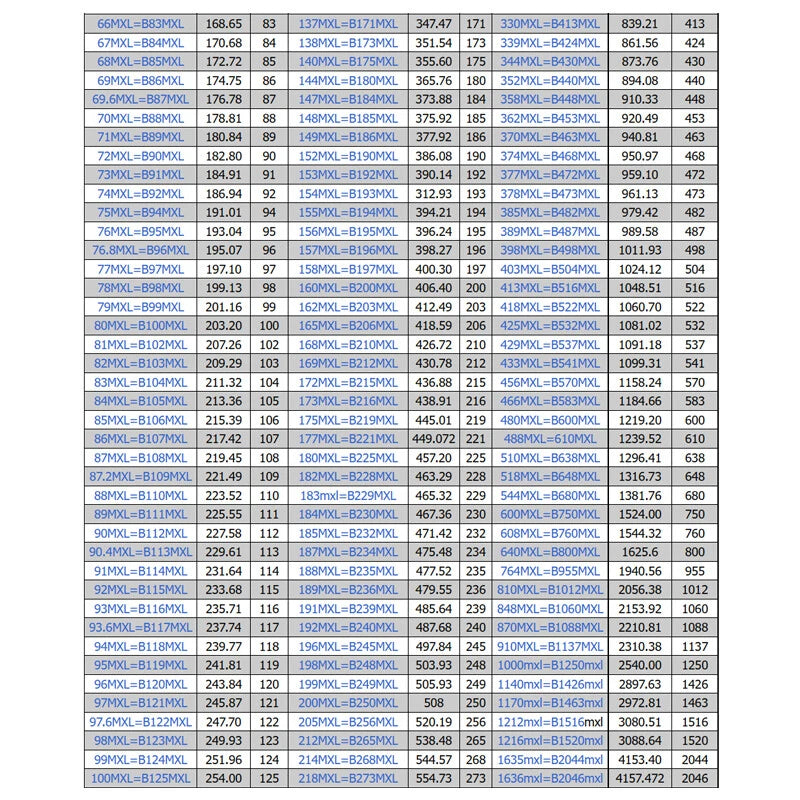

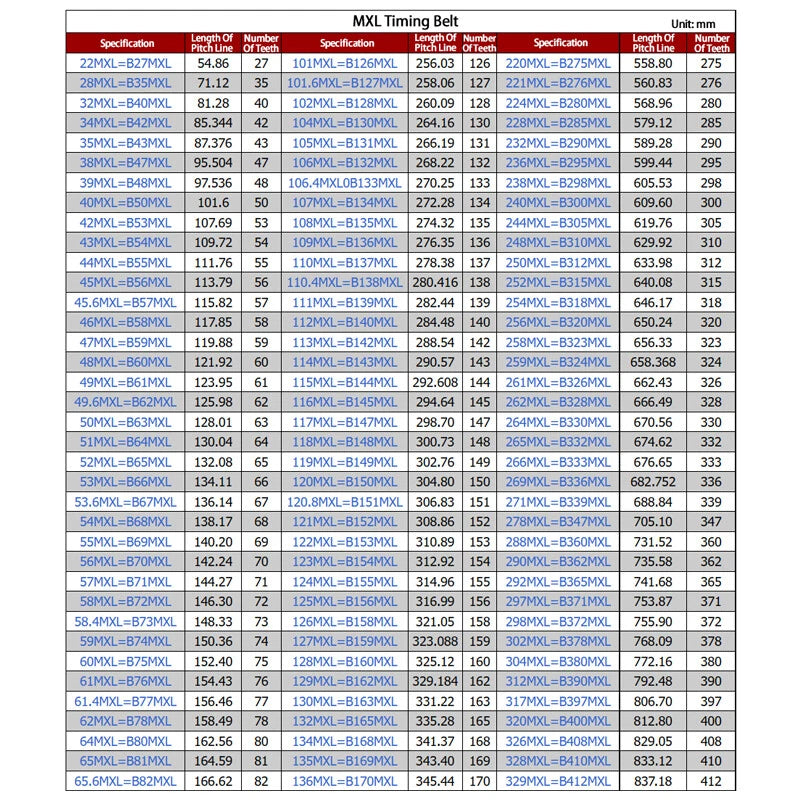

B-Series Cross Reference See variant options (e.g., 100MXL = B125MXL)
Compatible Pulley Profile MXL (0.080" pitch)
Operating Temperature Typically –20°C to +80°C (–4°F to +176°F)
Lubrication Required None
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right MXL belt size for my application?

The MXL number equals the tooth count. To find the correct size, calculate your required pitch circumference: multiply your desired tooth count by 2.032mm. For example, a 100MXL belt has a pitch circumference of 100 × 2.032mm = 203.2mm (≈8.0"). Measure your drive's center-to-center shaft distance and pulley tooth counts, then use a standard belt length formula to determine the required tooth count. When between sizes, generally select the next larger size and adjust your tensioner or center distance.

What does the B-series number in parentheses mean — for example, 100MXL = B125MXL?

The B-series designation is an alternate industry cross-reference code used by some manufacturers and distributors. Both numbers refer to the identical belt. If your equipment manual or parts list specifies a B-series number, simply find the matching MXL number in our variant selector. The two systems are interchangeable for the same physical belt.

What is the load capacity or tensile strength of these MXL timing belts?

MXL rubber timing belts are designed for light-duty precision drives. They are generally reinforced with fiberglass or steel cord tensile members, providing adequate strength for typical CNC, 3D printer, and small automation applications. Exact tensile ratings vary by production batch and manufacturer. For high-load or safety-critical applications, contact us to confirm specifications before ordering.

Can these belts be used outdoors or in wet and humid environments?

These rubber MXL belts are generally tolerant of light moisture and humidity, making them suitable for most indoor and sheltered outdoor applications. They are not designed for continuous submersion or exposure to aggressive chemicals, oils, or solvents. For harsh outdoor or chemical environments, neoprene or polyurethane belt materials are typically recommended. Contact us to confirm suitability for your specific conditions.

What pulleys are compatible with this 10mm wide MXL timing belt?

This belt requires MXL-profile pulleys with a 2.032mm (0.080") pitch. The MXL tooth profile is an industry-wide standard, so pulleys from any reputable manufacturer will generally mesh correctly. Confirm that your pulley's usable belt width (between flanges) is at least 10mm to accommodate this belt. Using a pulley narrower than 10mm may cause the belt to ride over the flanges.

How do I convert the MXL belt length to inches?

Multiply the tooth count by the pitch to get the pitch circumference in millimeters, then divide by 25.4 to convert to inches. Formula: (Tooth Count × 2.032) ÷ 25.4 = pitch circumference in inches. Examples: 50MXL ≈ 4.0", 100MXL ≈ 8.0", 200MXL ≈ 16.0", 500MXL ≈ 40.0".

What is the operating temperature range, and can these belts handle heat from motors or enclosures?

Rubber MXL timing belts typically operate reliably in a range of approximately –20°C to +80°C (–4°F to +176°F). Sustained exposure to temperatures above this range may cause the rubber to soften, crack, or lose dimensional stability. In enclosed motor housings or high-ambient-temperature environments, monitor belt temperature and consider polyurethane alternatives if temperatures regularly exceed 70°C.

🛒 Select your specification (tooth count) above, then add to cart — ships from our US warehouse.
