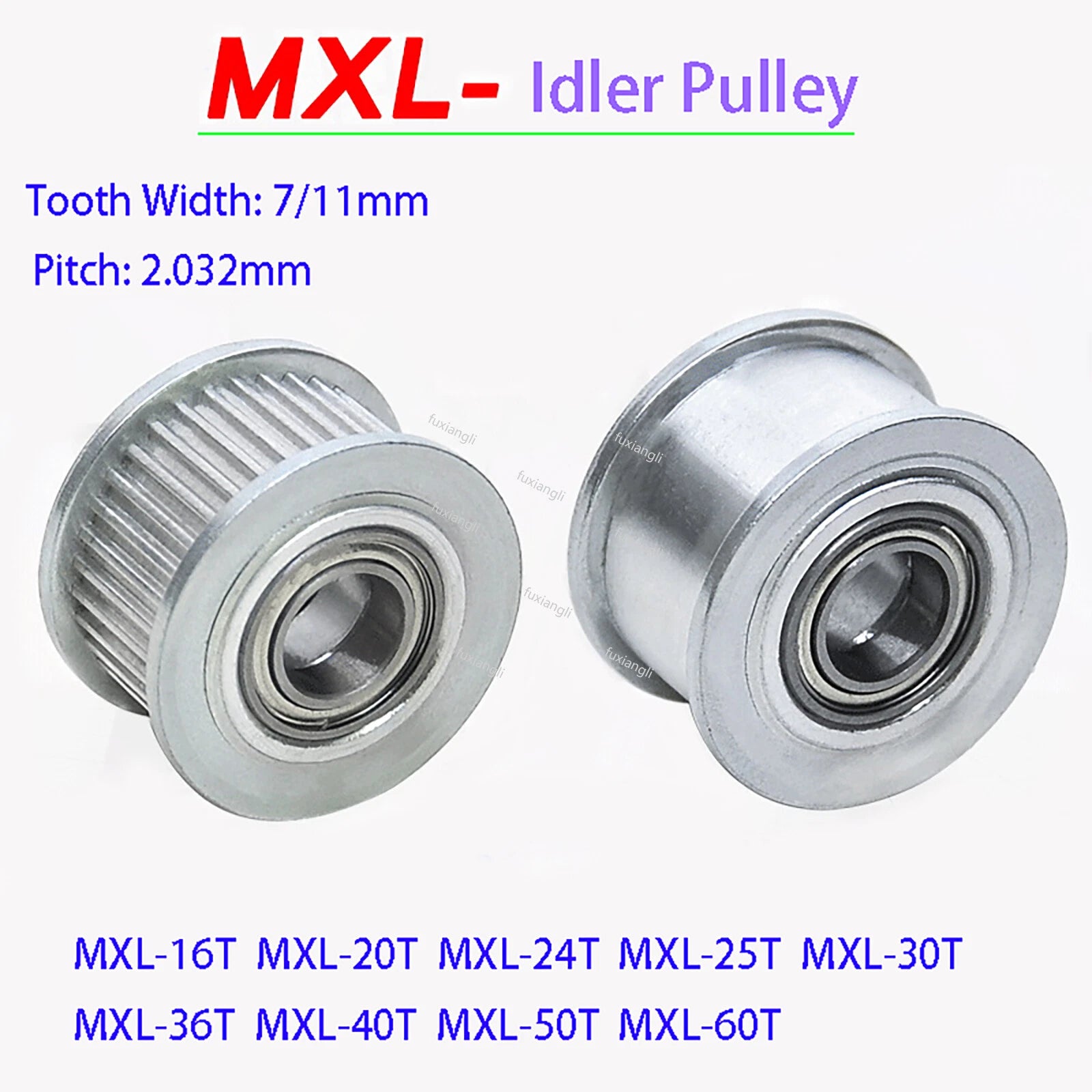

MXL Timing Belt Tensioner Pulley — Precise Idler Control for Drive Systems

When belt slack causes skipped steps, vibration, or inconsistent motion in your drive system, the root cause is often a missing or undersized tensioner. Engineers, makers, and machine builders working with MXL timing belts need a tensioner pulley that holds belt tension reliably across varying loads — without adding unnecessary bulk or complexity to the design.

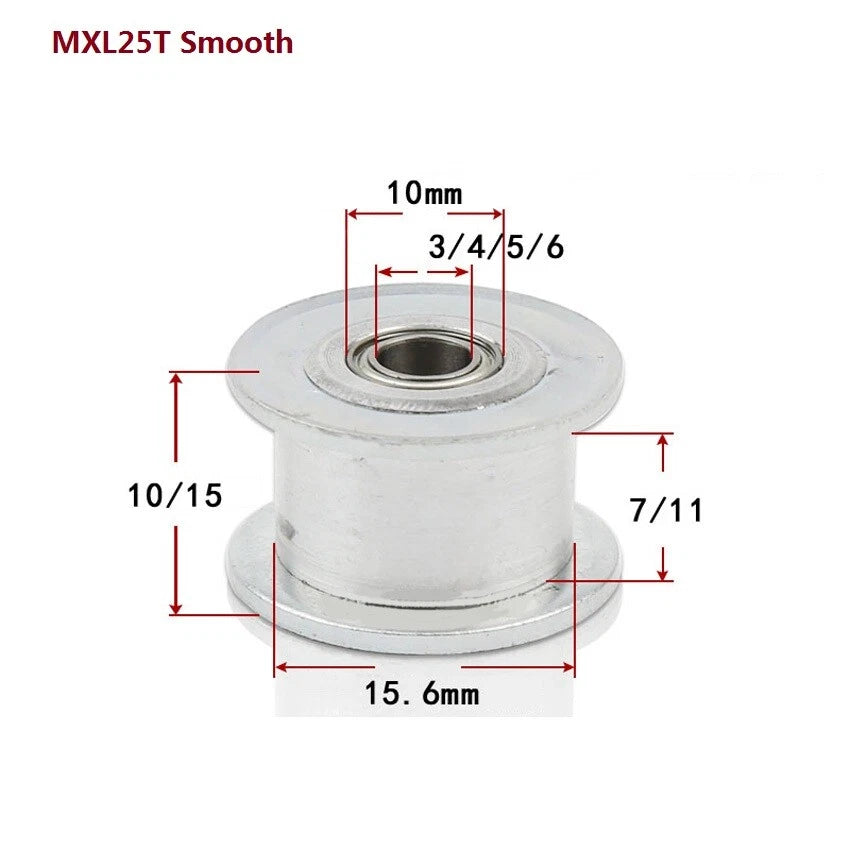

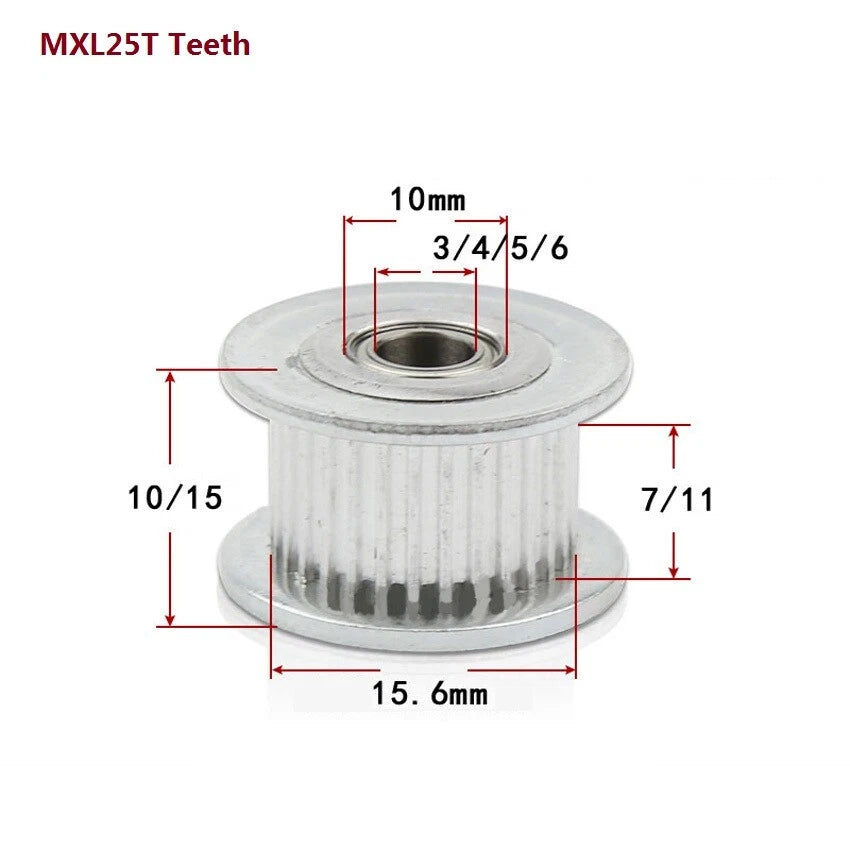

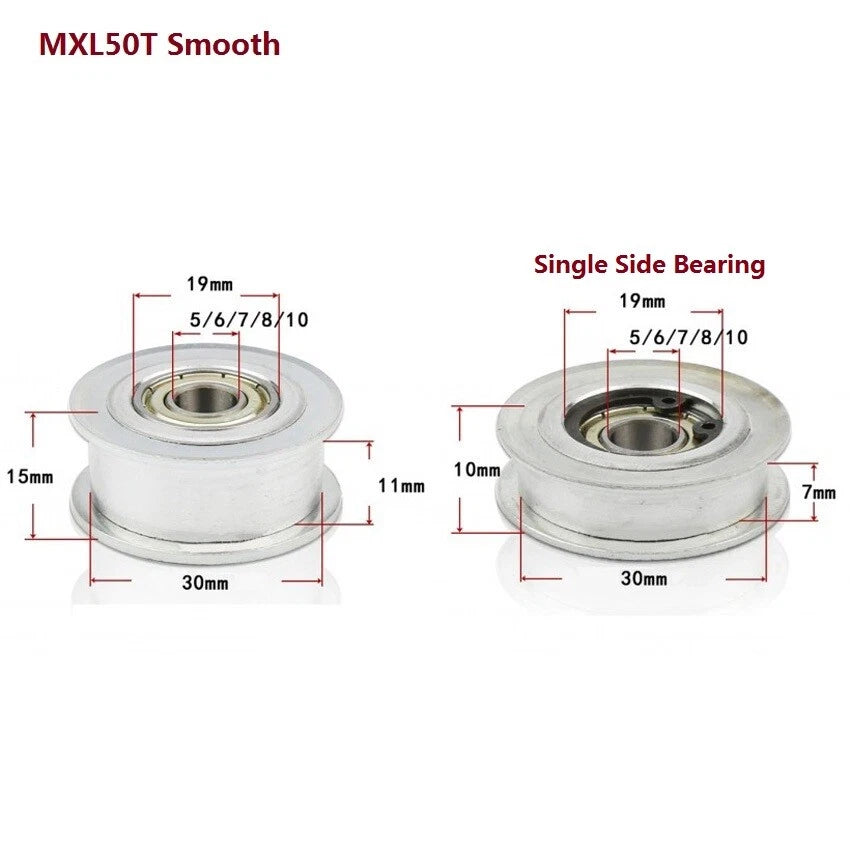

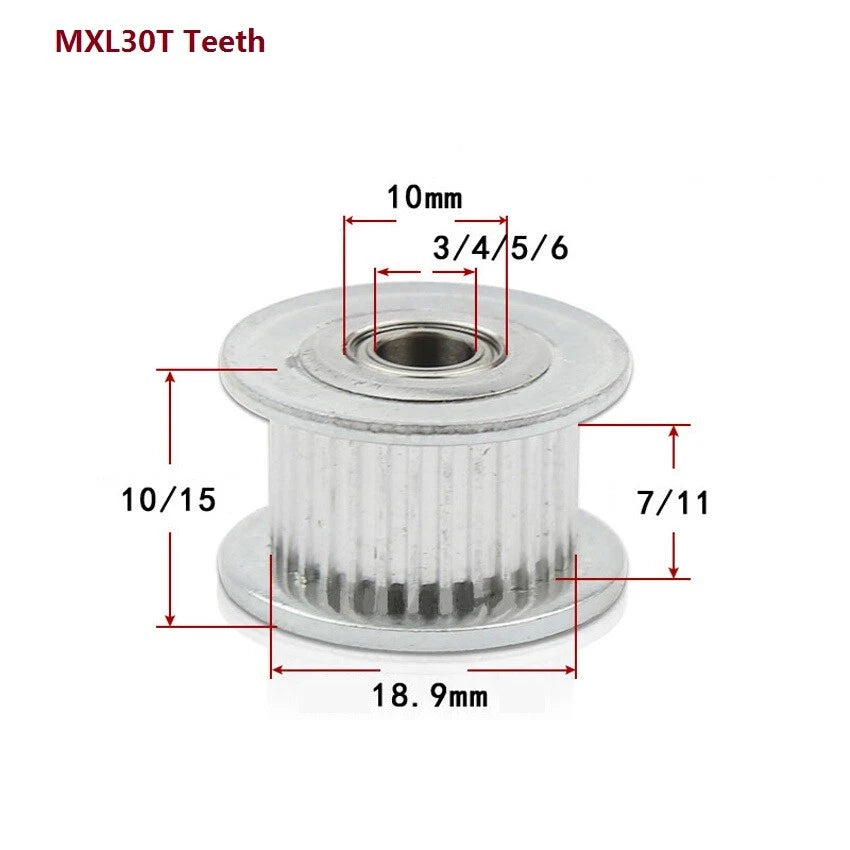

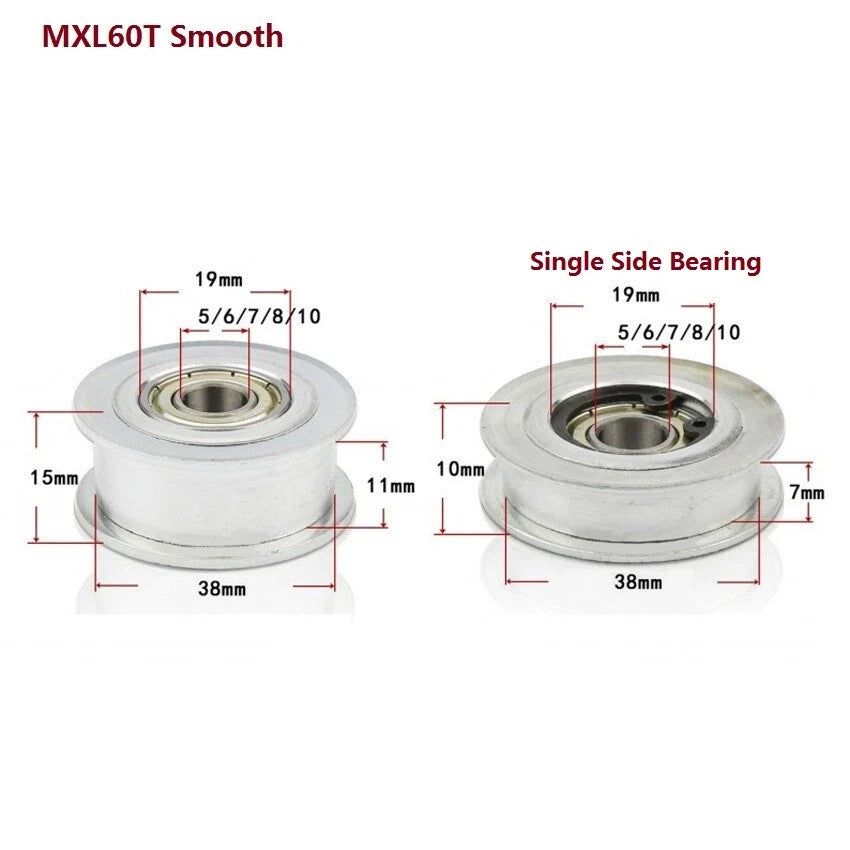

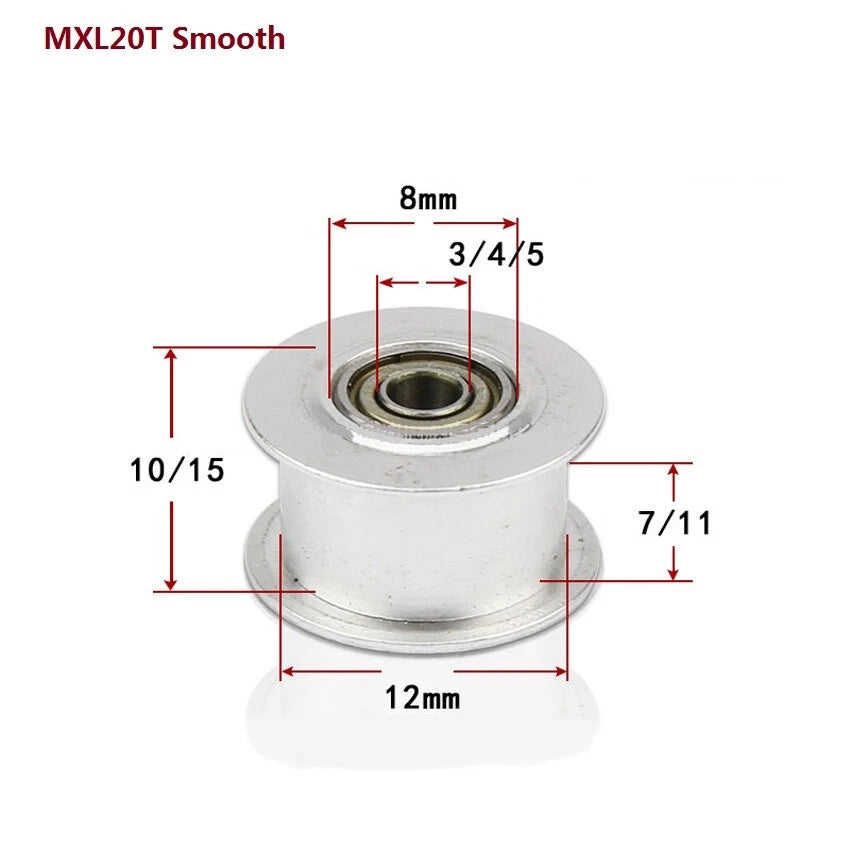

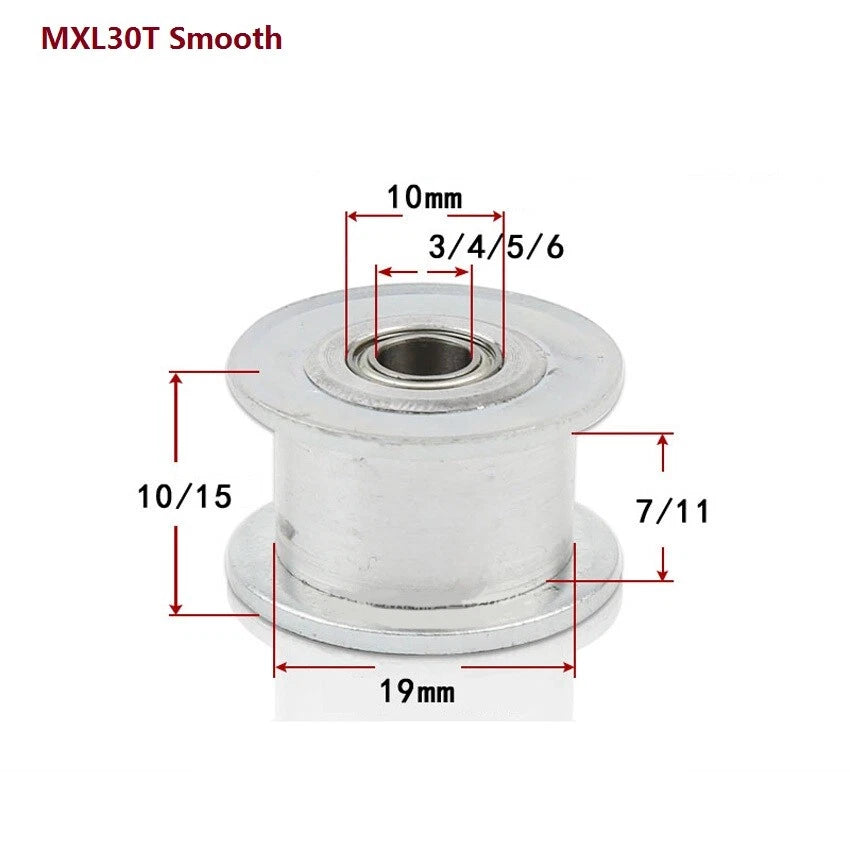

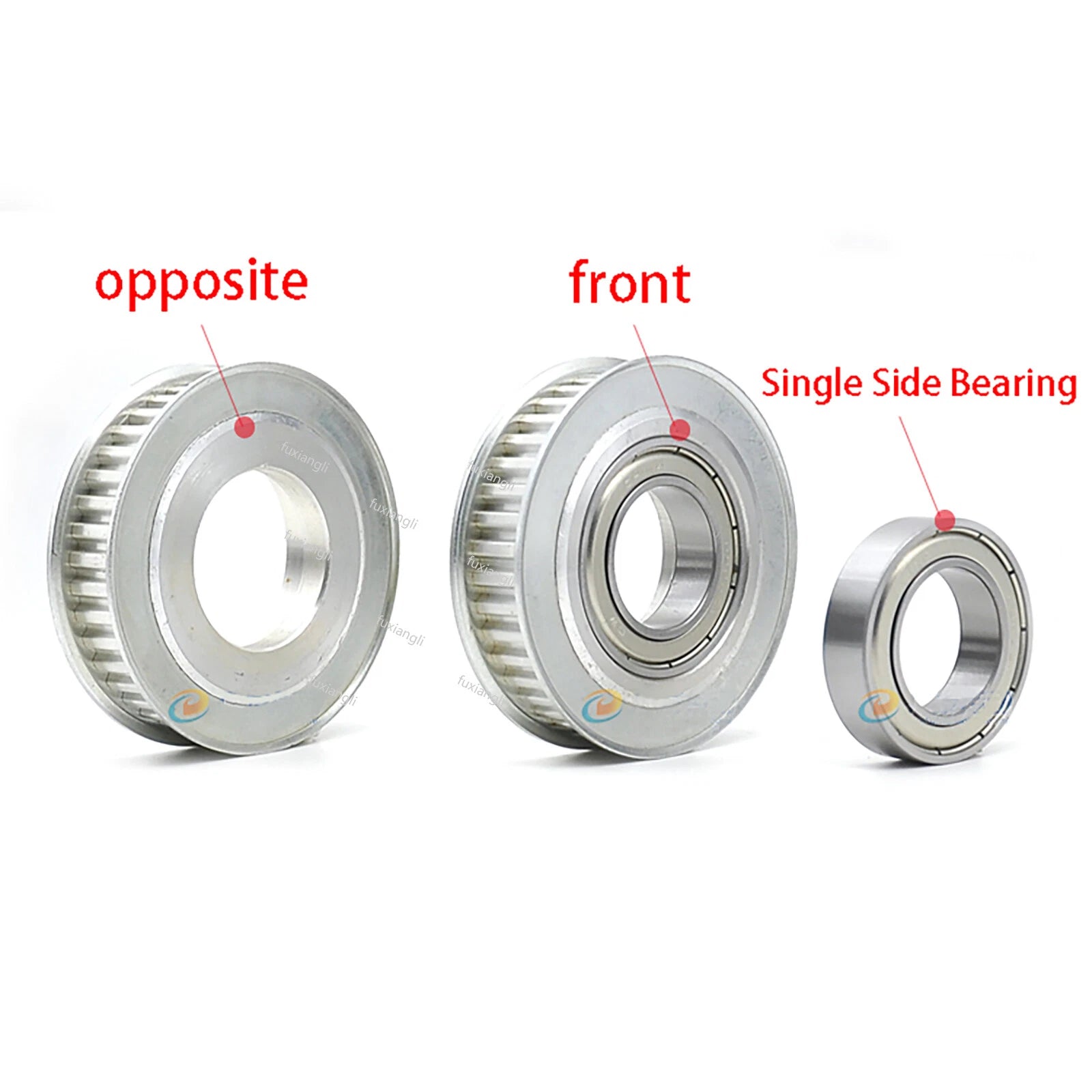

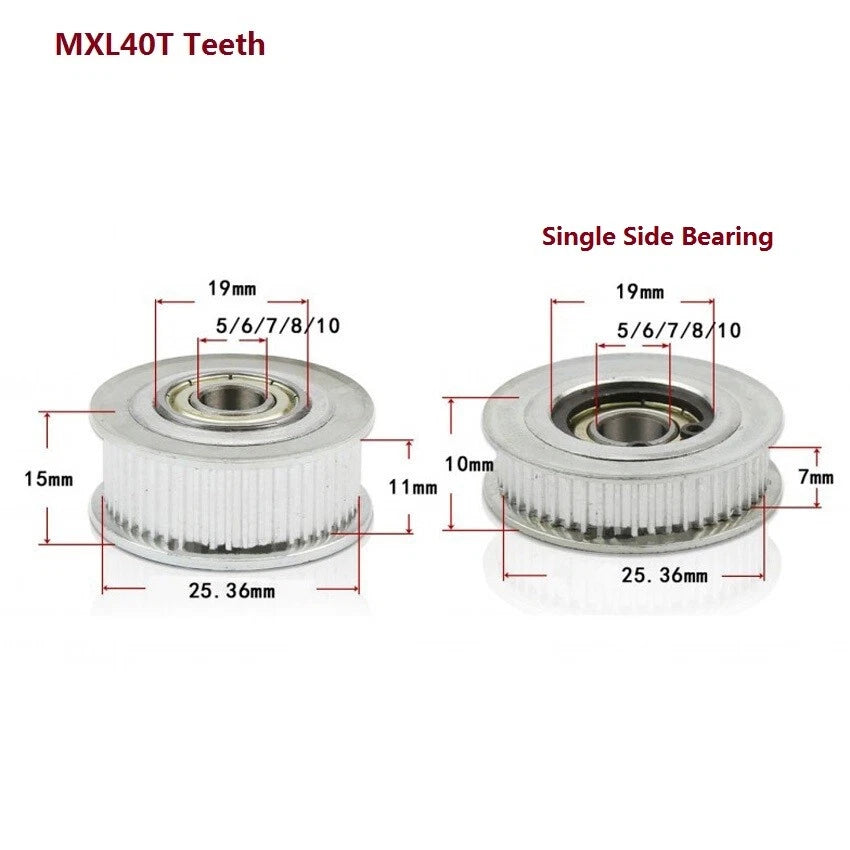

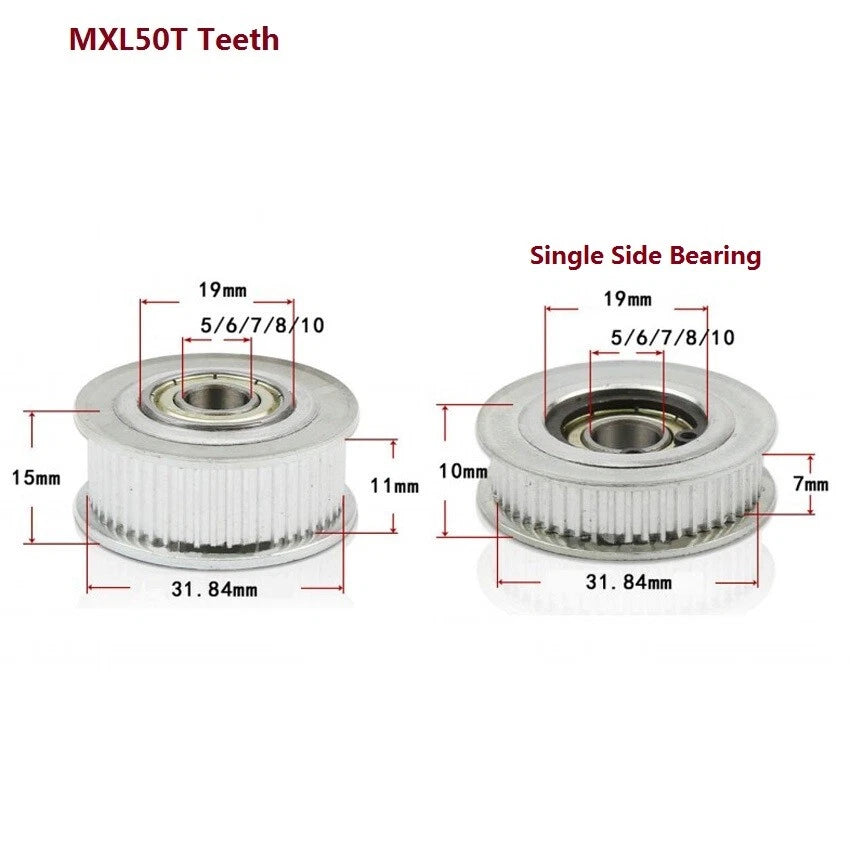

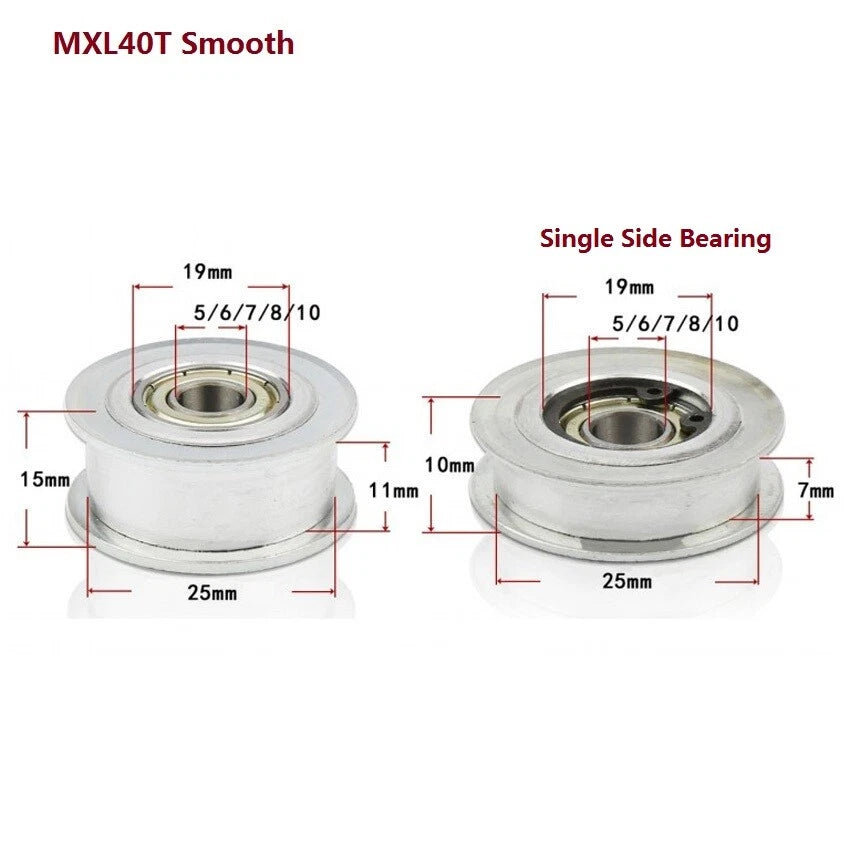

This MXL timing belt tensioner pulley is available in both toothed (Teeth) and smooth (Smooth) idler configurations, with tooth counts ranging from 16T to 60T. Belt-contact width options are 7mm and 11mm, matching standard MXL belt widths. Bore diameters span 3mm to 10mm to suit common shaft and bearing sizes. The pulley body is machined from aluminum alloy, with a natural or anodized finish depending on variant. Overall outer diameter varies by tooth count, typically ranging from approximately 13mm (16T) to approximately 48mm (60T).

Typical use cases include MXL belt tensioning in desktop 3D printers (X/Y axis idler), CNC router and laser cutter drive trains, small robotic arm joint drives, and custom linear motion systems requiring precise belt-path routing. Long-tail applications include DIY belt-driven linear actuators, RepRap-style printer upgrades, and compact automation conveyor tensioning.

⚙️ Compatibility: Designed for MXL profile timing belts (2.032mm pitch). Toothed variants mesh directly with the belt; smooth variants act as free-spinning idler guides. Verify bore diameter and belt width before ordering.

✅ Key Features of These MXL Timing Belt Tensioner Pulleys

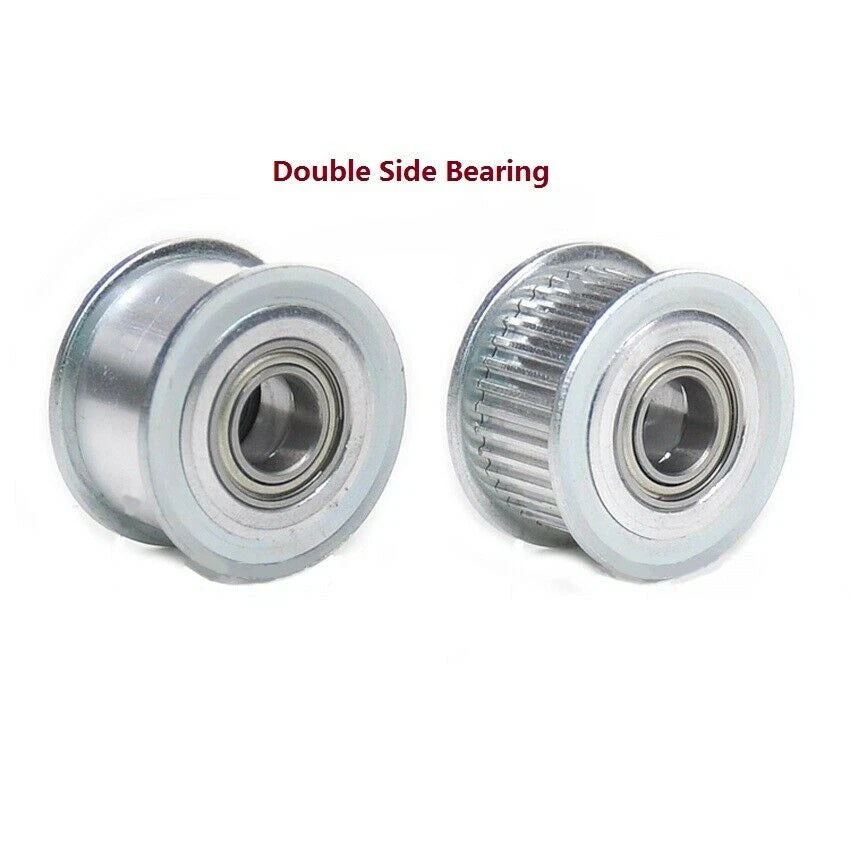

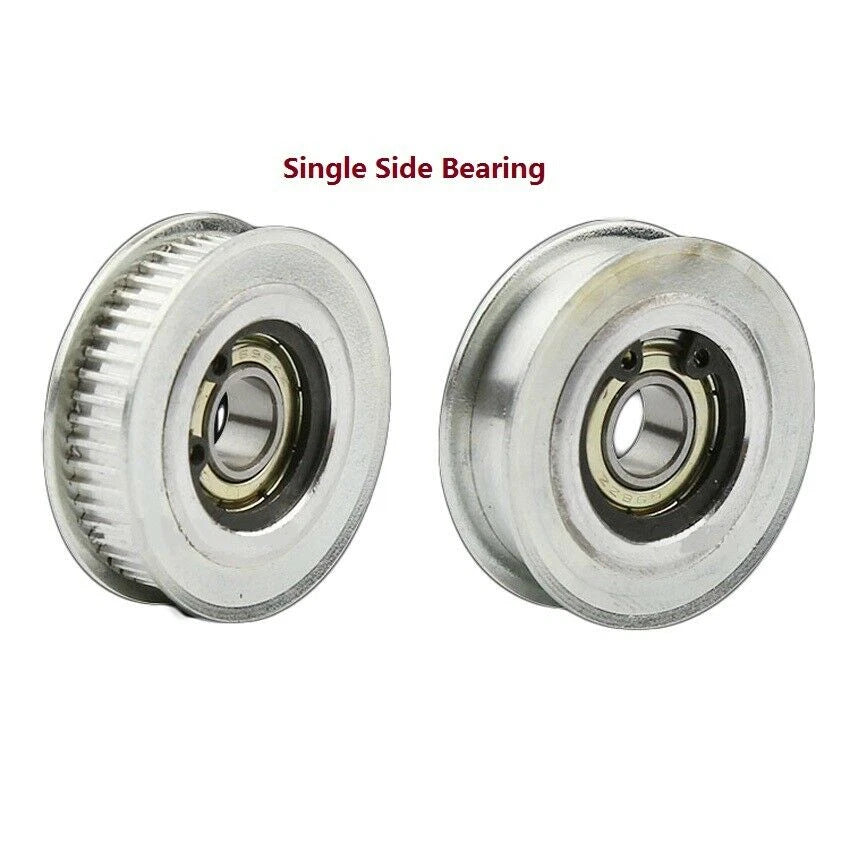

🔩 Toothed & Smooth Idler Options

Choose toothed variants for positive belt engagement or smooth variants for free-spinning guide/tensioner duty — both available across the full tooth-count range.

📐 Wide Tooth Count Range: 16T–60T

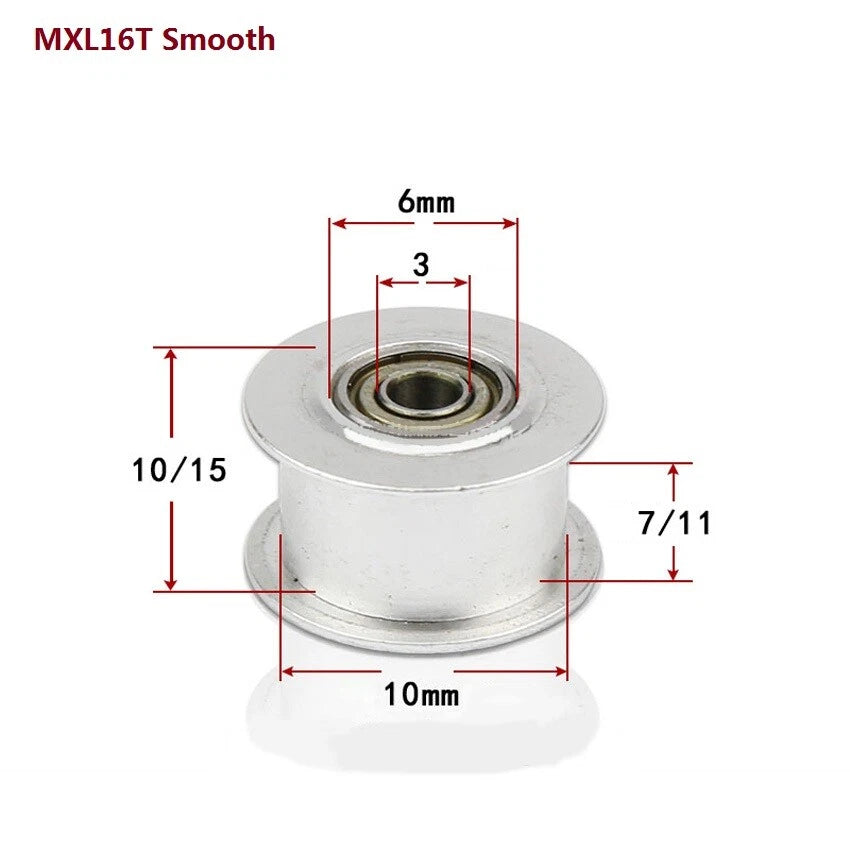

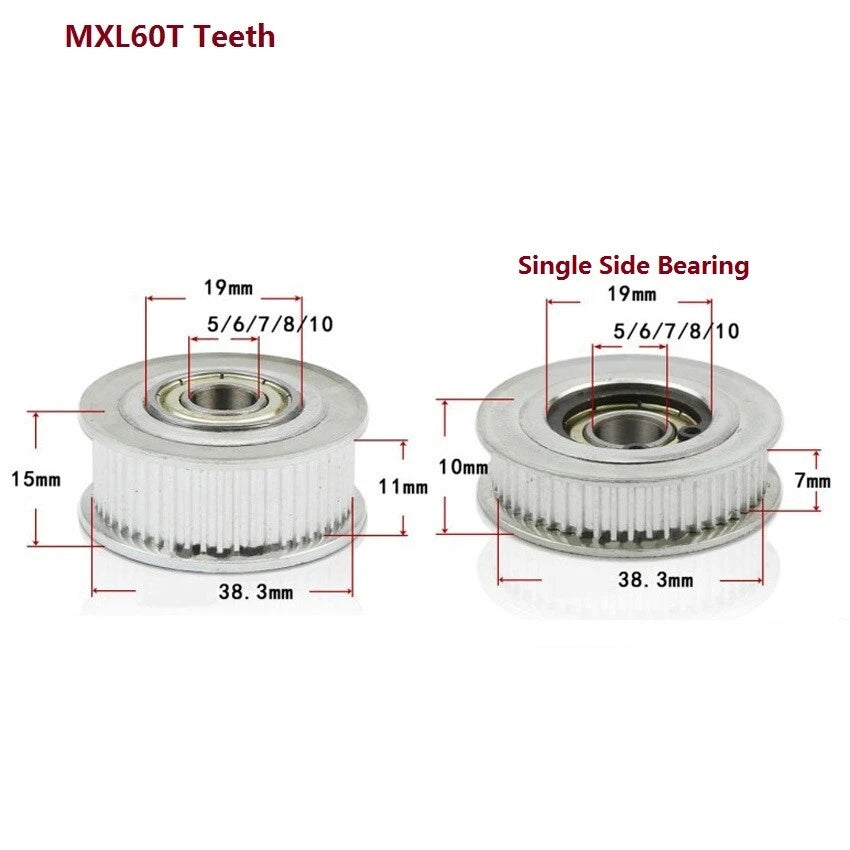

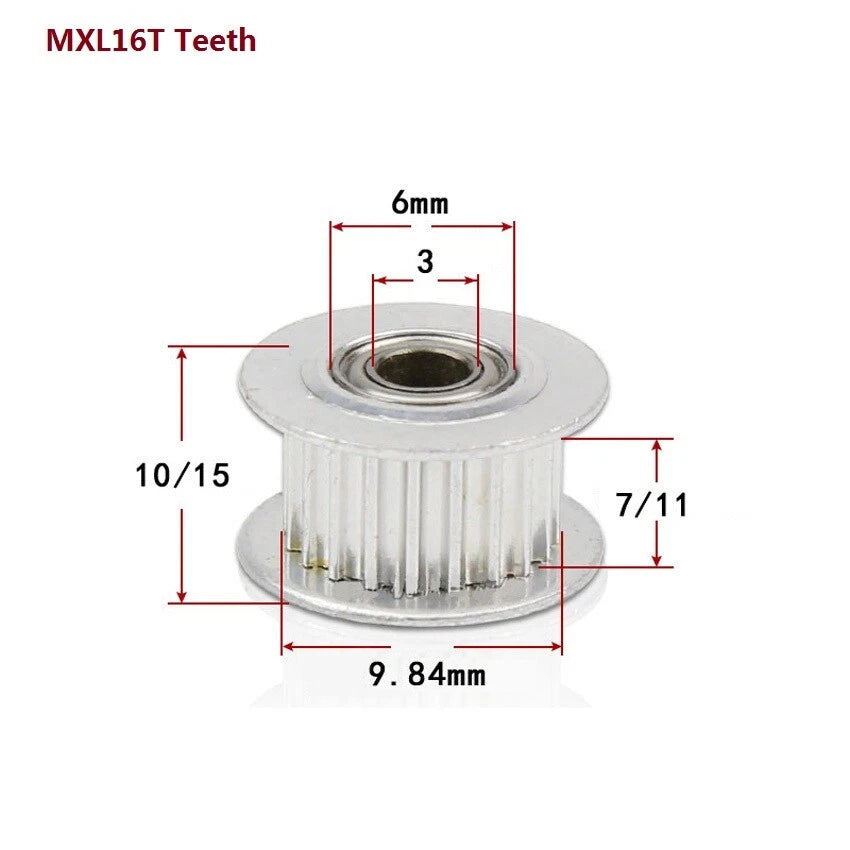

Covers small-diameter idlers (16T, ~13mm OD) up to large-diameter tensioners (60T, ~48mm OD), giving flexibility for tight or open belt-path geometries.

📏 Dual Belt Width: 7mm & 11mm

Matches the two most common MXL belt widths used in desktop motion systems, ensuring full belt-face contact and even load distribution.

🔧 Multiple Bore Sizes: 3–10mm

Bore options from 3mm to 10mm accommodate standard metric shafts and bearing ODs, reducing the need for custom adapters in most builds.

⚖️ Aluminum Alloy Construction

Machined aluminum body keeps rotating mass low while providing sufficient rigidity for continuous-duty tensioner applications in light-to-medium load drives.

🔄 Drop-In MXL Profile Fit

Tooth profile conforms to the MXL standard (2.032mm pitch), ensuring dimensional compatibility with off-the-shelf MXL belts without modification.

📐 Technical Specifications — MXL Timing Belt Tensioner Pulley

Belt Profile	MXL (2.032mm pitch)

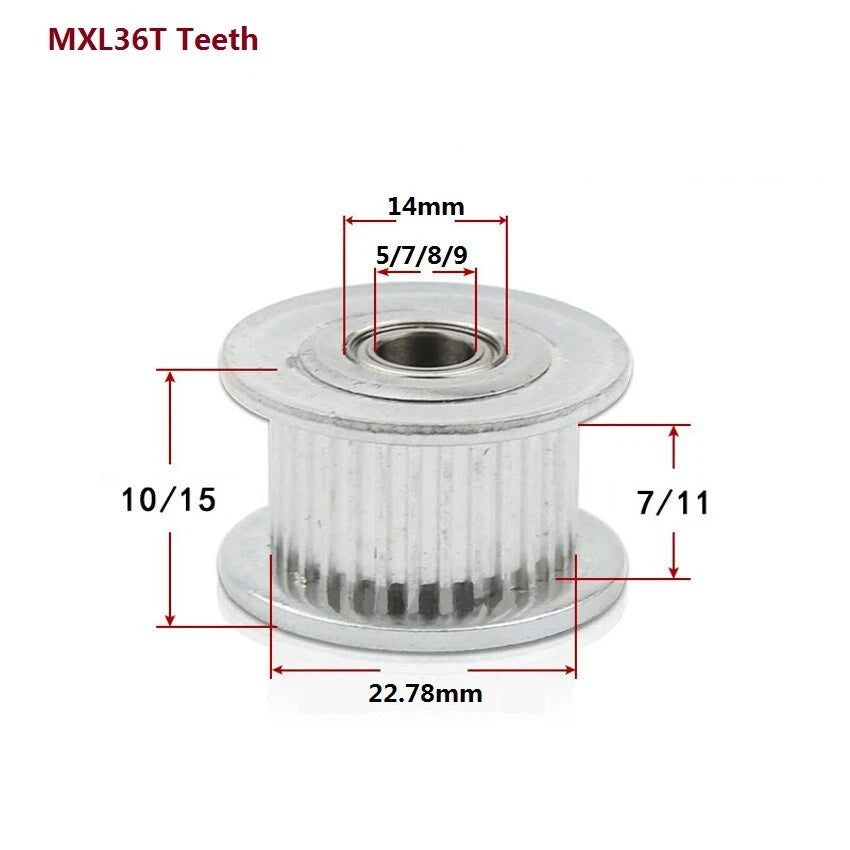

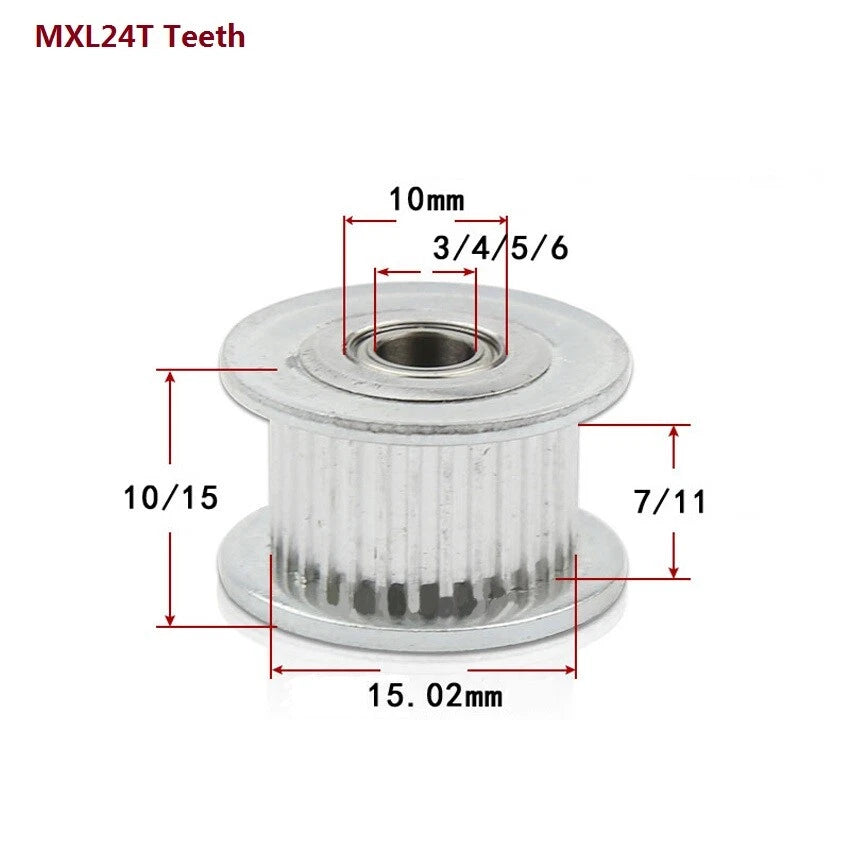

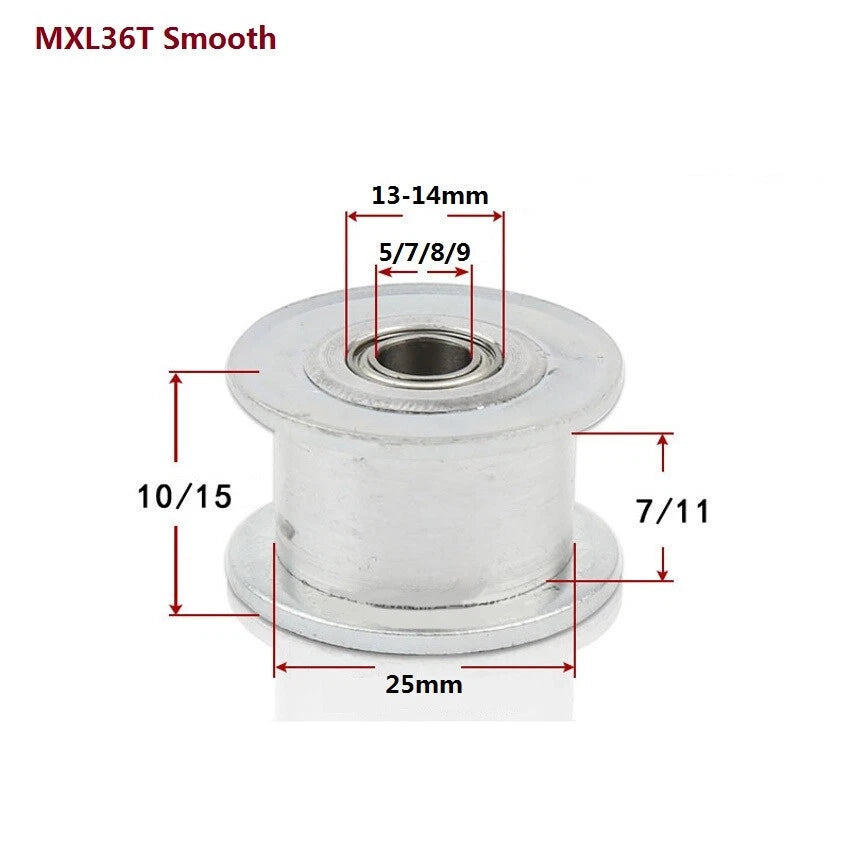

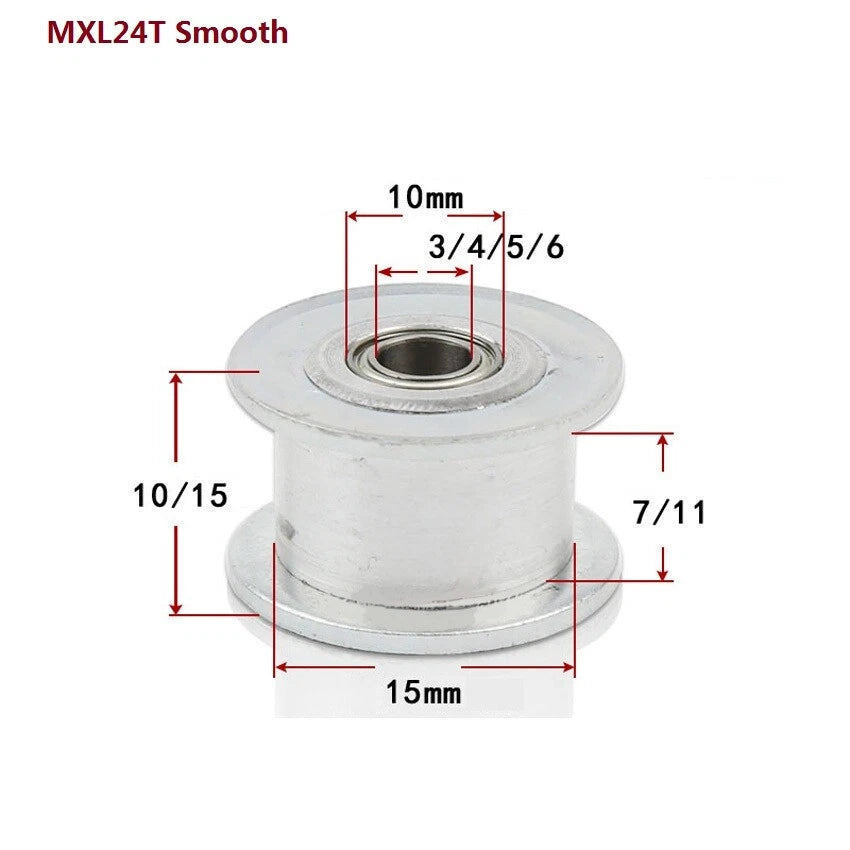

Tooth Count	16T / 20T / 24T / 25T / 30T / 36T / 40T / 50T / 60T
Pulley Type	Toothed (Teeth) / Smooth Idler (Smooth)
Belt Width Compatibility	7mm / 11mm
Bore Diameter	3mm / 4mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm
Outer Diameter (approx.)	See variant options
Material	Aluminum alloy
Finish	See variant options
Quantity per Order	1 piece

❓ Frequently Asked Questions

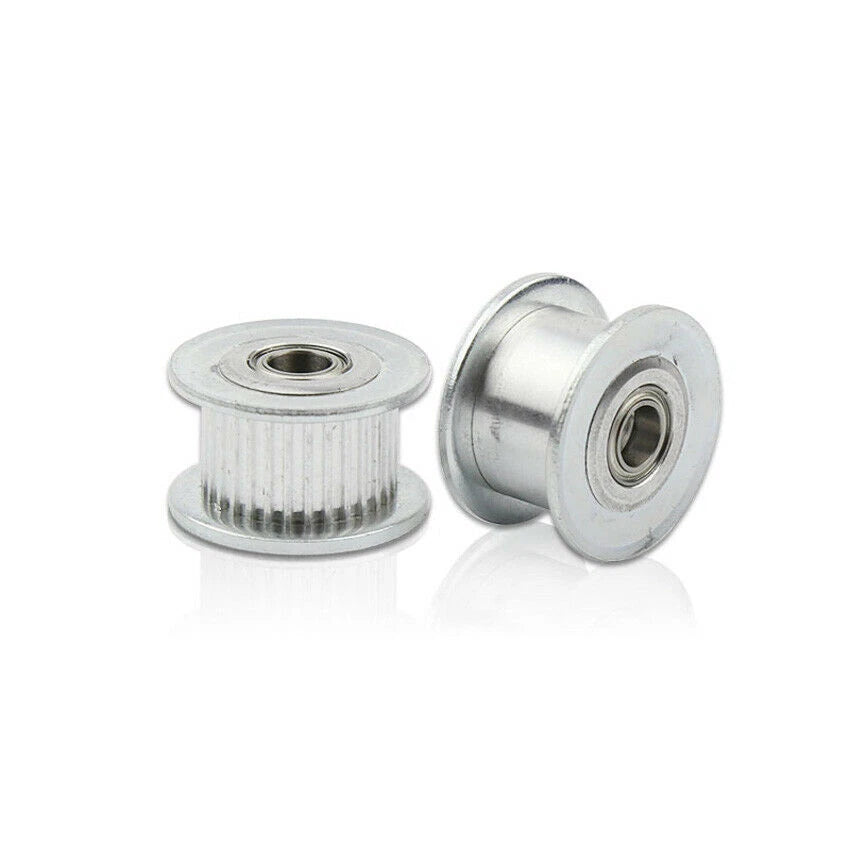

What is the difference between the Teeth and Smooth variants?

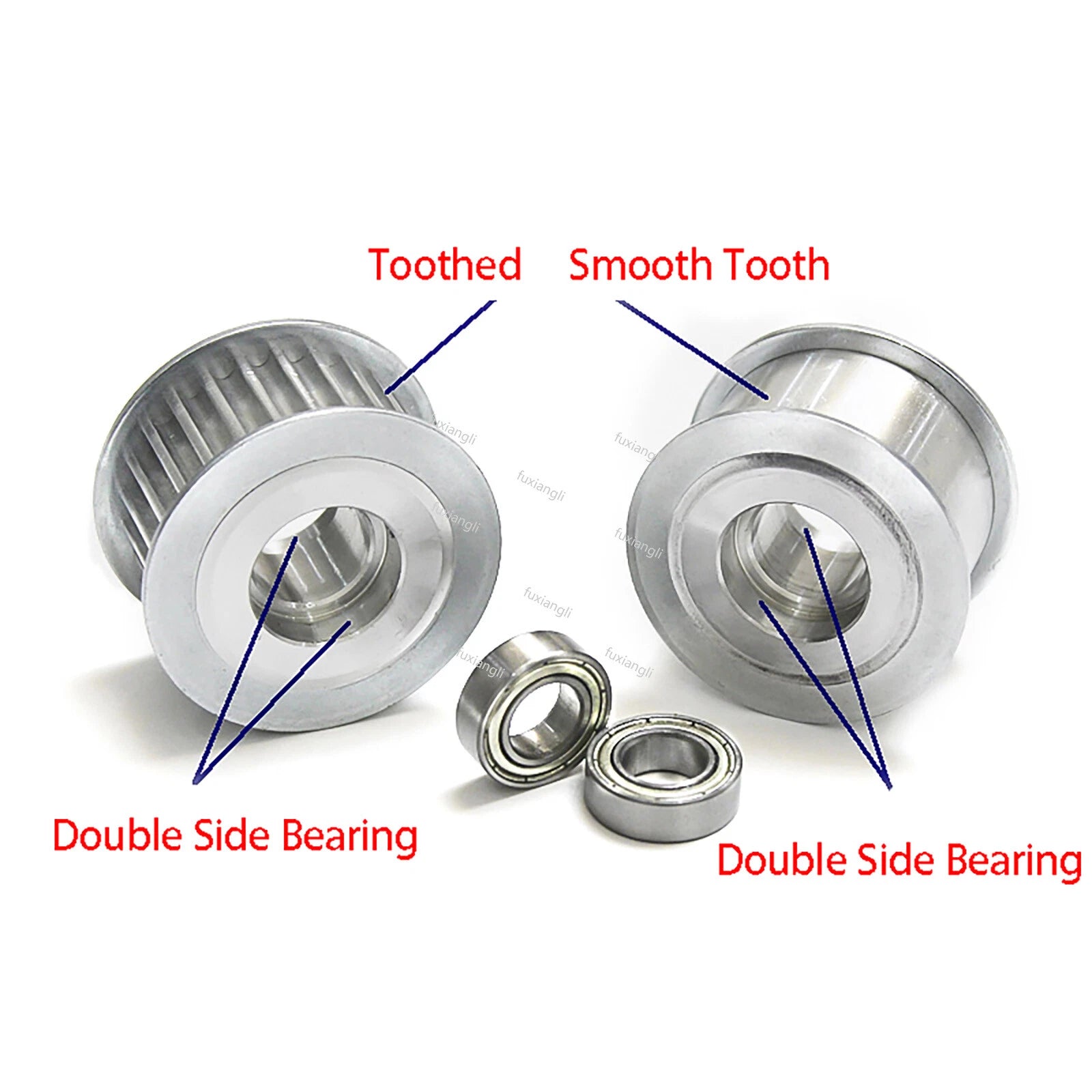

The Teeth variants have a toothed profile that meshes directly with the MXL timing belt, providing positive engagement and preventing belt slip. The Smooth variants have a flat or rounded contact surface and act as free-spinning idler guides — they redirect or tension the belt without engaging the teeth. Use Smooth when you need a back-side tensioner or a belt-path guide pulley.

How do I choose the right tooth count for my application?

Tooth count determines the pulley's outer diameter. Smaller tooth counts (e.g., 16T, 20T) produce compact pulleys suited for tight belt-path geometries, while larger counts (e.g., 50T, 60T) are used where a larger wrap angle or lower belt stress is needed. For tensioner duty, a 16T–20T smooth idler is common in 3D printer X/Y axes; larger toothed pulleys are used as drive or driven pulleys in the same system.

Which bore diameter should I select?

Select the bore diameter that matches your shaft or bearing outer diameter. Common pairings: 3mm bore for M3 shafts or 3mm bearing IDs, 5mm for standard NEMA 17 motor shafts, 8mm for common metric shafts in larger drives. If you plan to press-fit a bearing into the pulley bore, match the bore to the bearing's OD instead.

Is this pulley compatible with GT2 or HTD belts?

No. This pulley is designed specifically for the MXL belt profile (2.032mm pitch). GT2 belts use a 2mm pitch with a different tooth geometry, and HTD belts use a rounded tooth profile — neither is interchangeable with MXL. Always verify the belt profile before ordering to ensure proper meshing and load transfer.

What belt width should I choose — 7mm or 11mm?

Match the pulley belt width to your belt's width. Standard MXL belts are commonly available in 6mm (which runs on 7mm pulleys with slight overhang) and 10mm (which runs on 11mm pulleys). If your belt is 6mm wide, the 7mm pulley is the correct choice; for 10mm belts, select the 11mm pulley. Using a narrower pulley than the belt width is not recommended as it reduces contact area and load capacity.

Can I use this as a tensioner in a 3D printer or CNC router?

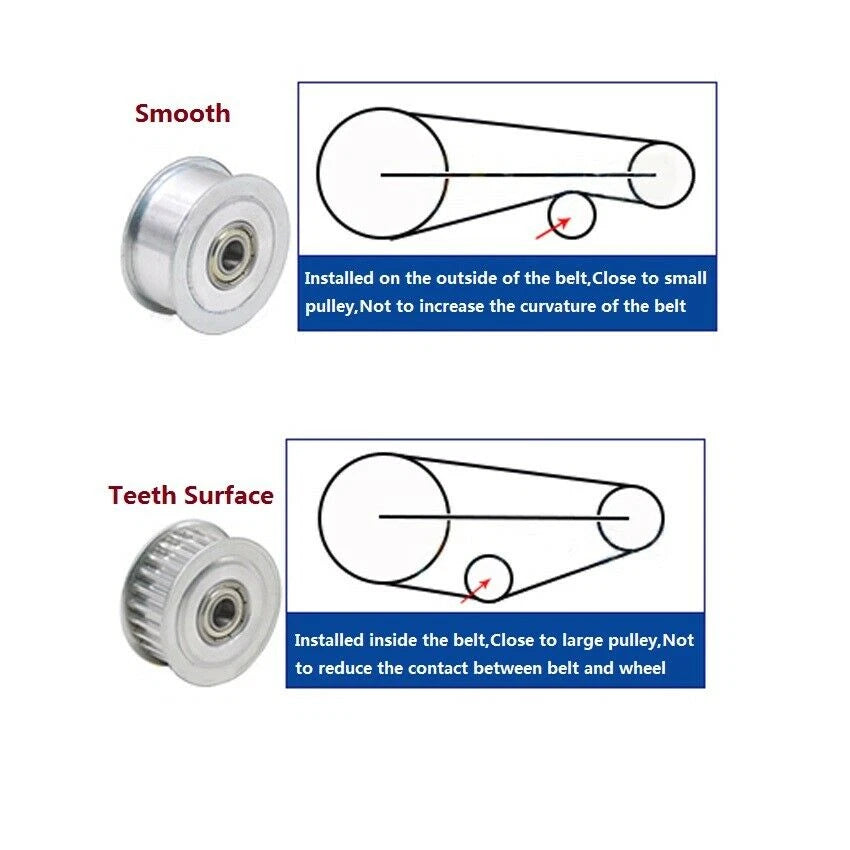

Yes. These pulleys are widely used as idler tensioners in desktop 3D printers (particularly RepRap-derived designs using MXL belts on X/Y axes) and in small CNC routers or laser cutters with MXL belt drives. Select the Smooth variant for back-side tensioning and the Teeth variant when you need a toothed idler that engages the belt face.

How do I verify the outer diameter before purchasing?

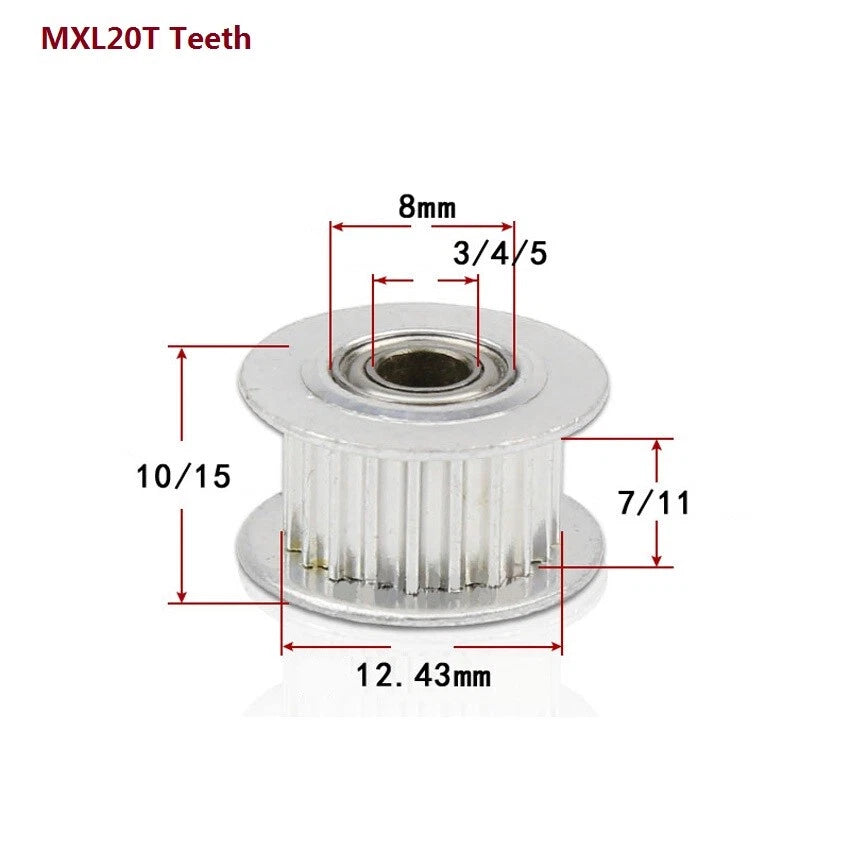

The outer diameter of an MXL pulley can be estimated using the formula: OD ≈ (Tooth Count × 2.032mm) / π. For example, a 20T pulley has an OD of approximately (20 × 2.032) / 3.1416 ≈ 12.94mm. For exact dimensions of a specific variant, contact us to confirm before ordering if your design has tight clearance constraints.

🛒 Select your Type, Teeth Width, and Bore Diameter above, then add to cart.
