Open-End Timing Belt for CNC, 3D Printers & Stepper Motor Drives — Cut to Any Length
When a standard looped belt won't fit your build, or you need a precise custom length for a CNC router, 3D printer, laser engraver, or stepper motor linear drive, sourcing the right open-end timing belt in the correct profile and width can be frustrating. This listing offers open-end timing belts across the most common motion-control profiles — 2GT, S2M, 3M, 5M, 8M, MXL, XL, and L — so you can cut exactly what your machine needs without waste.

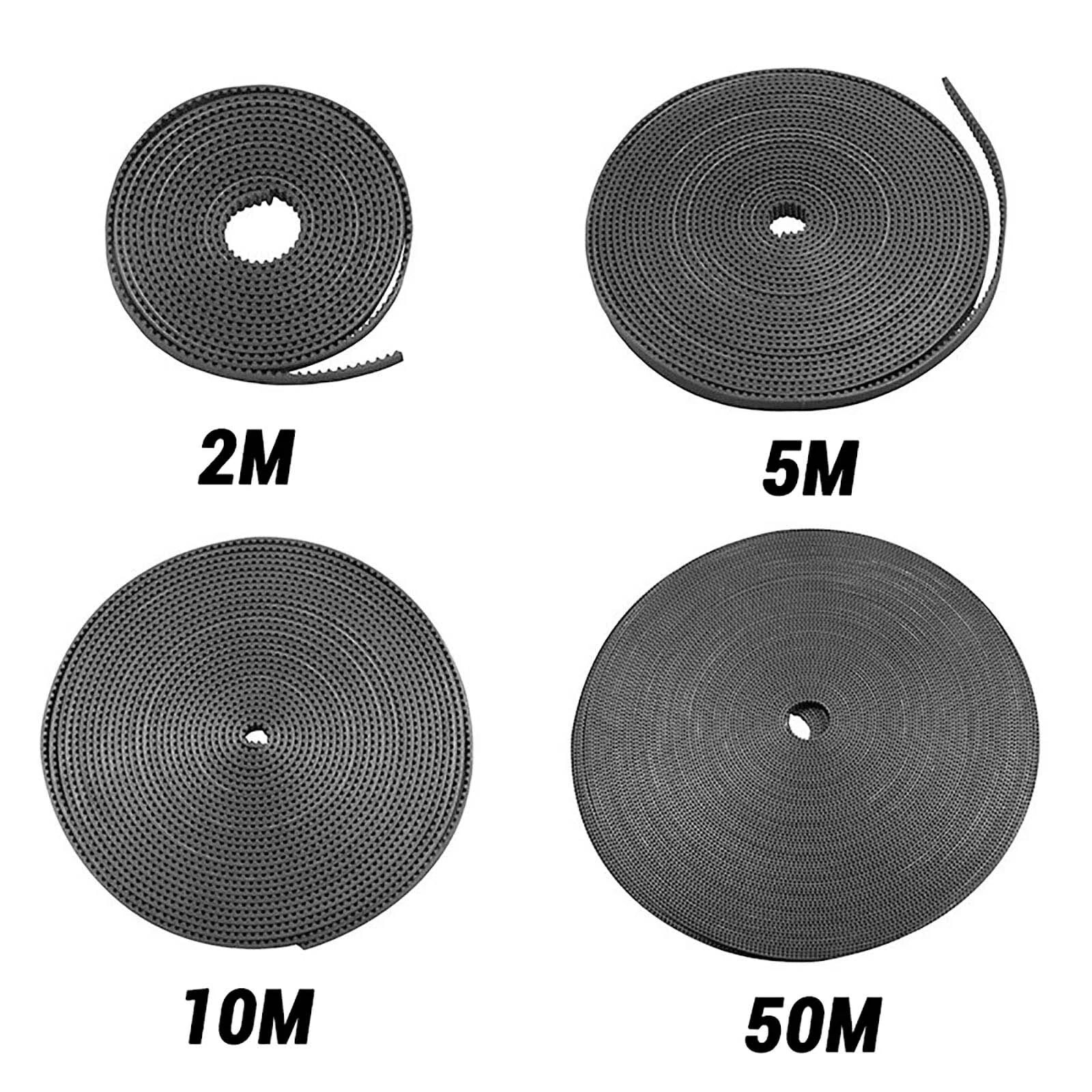

Each order is a continuous, unjoined length of open-end timing belt sold by the meter (1m, 2m, 5m, or 10m per order). Available in widths from 6mm (≈1/4") to 30mm (≈1-3/16"), with material options including TPU (thermoplastic polyurethane), rubber, and steel-wire-reinforced cores. Pitch profiles span light-duty 2GT/MXL/XL/L up through medium-to-heavy 3M, 5M, and 8M industrial drives.
Typical applications include DIY CNC router X/Y axis drives, 3D printer CoreXY and Cartesian belt runs, laser cutter gantry systems, and custom stepper motor linear actuators. Whether you're replacing a worn belt on a Creality, Ender, or Voron build, or designing a custom open-end timing belt drive from scratch, these belts cover the most widely used motion-control standards.
ℹ️ Compatibility Notice: Belt profile (2GT, S2M, 3M, 5M, 8M, MXL, XL, L) and width must match your pulleys exactly. These are open-end (non-looped) belts — not closed-loop. Verify your pulley tooth profile and flange width before ordering.
✅ Key Features of These Open-End Timing Belts
-
📐8 Profiles in One Listing — 2GT, S2M, 3M, 5M, 8M, MXL, XL, and L profiles cover the most common CNC and stepper motor timing belt standards used in DIY and light industrial builds.
-
✂️Cut-to-Length Flexibility — Sold as open-end timing belt by the meter (1m, 2m, 5m, 10m), so you trim to your exact axis length with no leftover closed-loop waste.
-

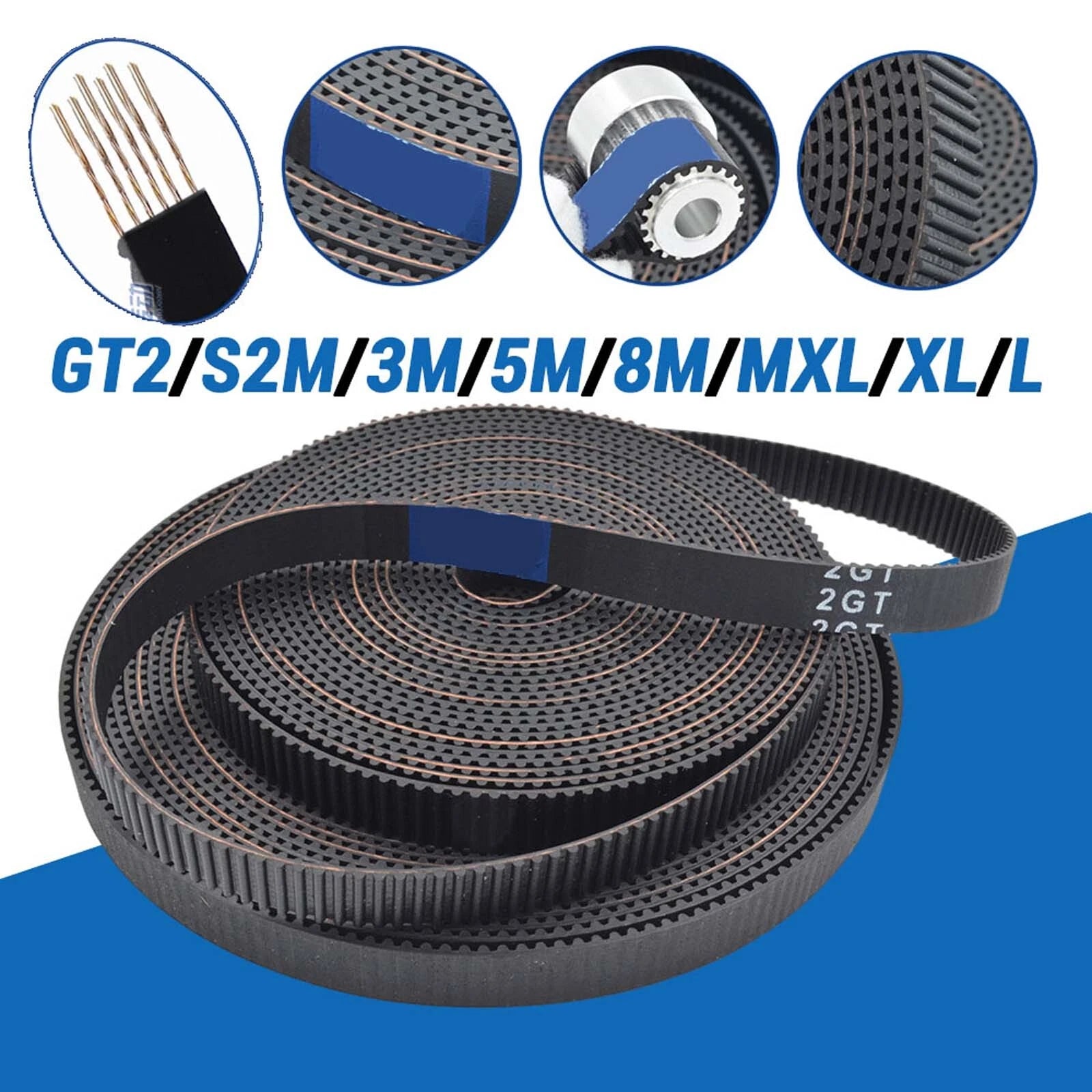

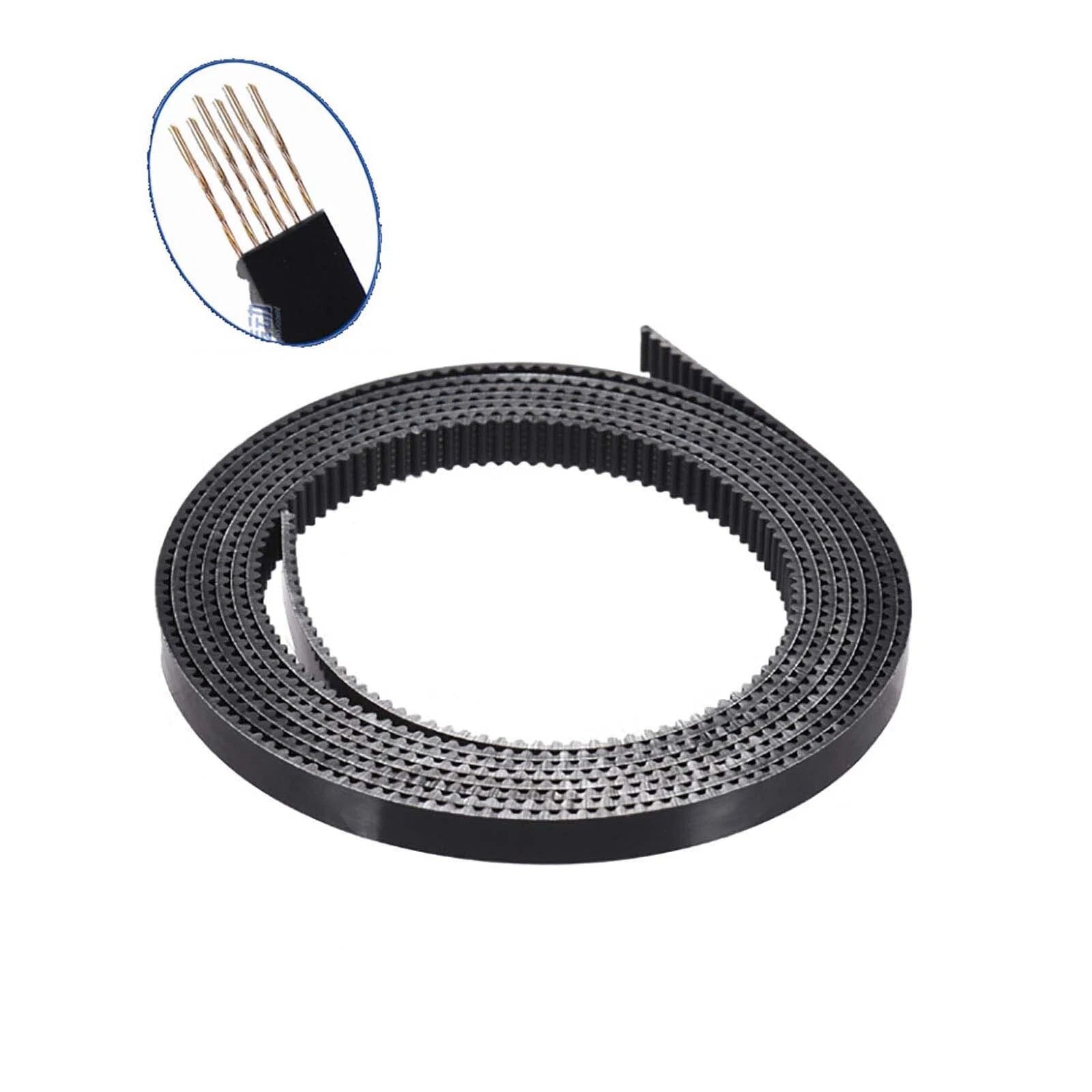

🔩Steel-Wire Reinforced Options — 2GT and S2M steel-core variants reduce belt stretch under load, maintaining positioning accuracy on high-cycle CNC router and linear actuator drives.
-
🧱TPU & Rubber Material Choices — TPU belts offer oil resistance and flexibility for 3D printer motion systems; rubber belts provide cost-effective elasticity for general-purpose drives.
-
📏6 Width Options: 6mm to 30mm — From narrow 6mm (≈1/4") belts for compact 3D printer gantries to wide 30mm (≈1-3/16") belts for higher-torque industrial timing drives.
-
⚙️Consistent Tooth Pitch Accuracy — Manufactured to standard pitch dimensions so teeth mesh cleanly with matching pulleys, reducing backlash in CNC and stepper motor positioning systems.
📐 Technical Specifications — Open-End Timing Belt
| Belt Type |
Open-end (non-looped), cut to length |
| Available Profiles |
2GT, S2M, 3M, 5M, 8M, MXL, XL, L |
| Available Widths |
6mm (≈1/4"), 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16") |
| Quantity Options |
1 meter, 2 meters, 5 meters, 10 meters (continuous piece per order) |
| Material Options |
TPU (thermoplastic polyurethane), Rubber, Steel-wire reinforced (2GT & S2M) |
| Tooth Profile |
Matches standard profile designation (2GT, 3M, 5M, 8M, MXL, XL, L, S2M) |

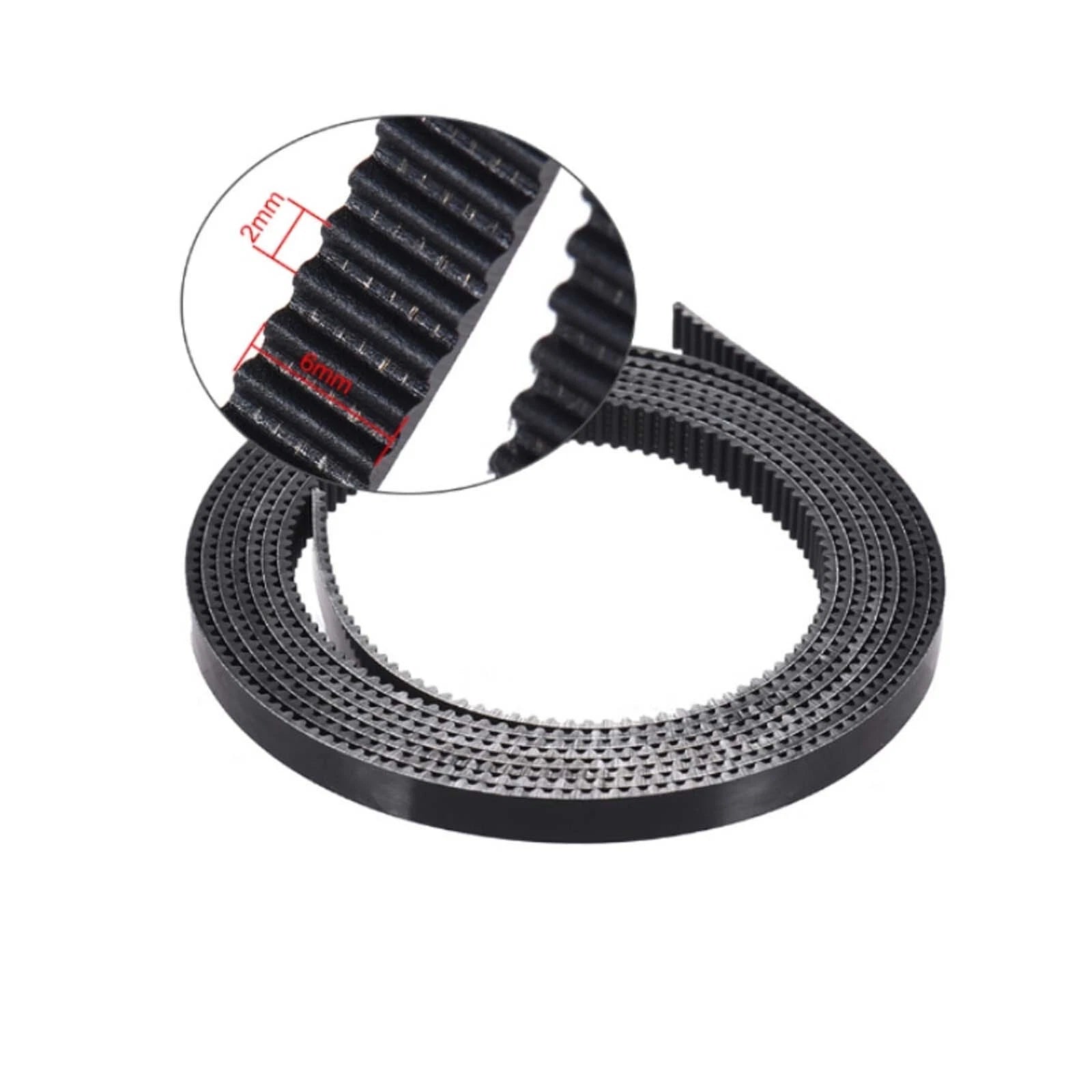

| Pitch (2GT) |
2mm |
| Pitch (S2M) |
2mm (S2M standard) |
| Pitch (3M / 5M / 8M) |
3mm / 5mm / 8mm respectively |
| Pitch (MXL) |
2.032mm (0.080") |
| Pitch (XL) |
5.08mm (0.200") |
| Pitch (L) |
9.525mm (0.375") |
| Reinforcement |

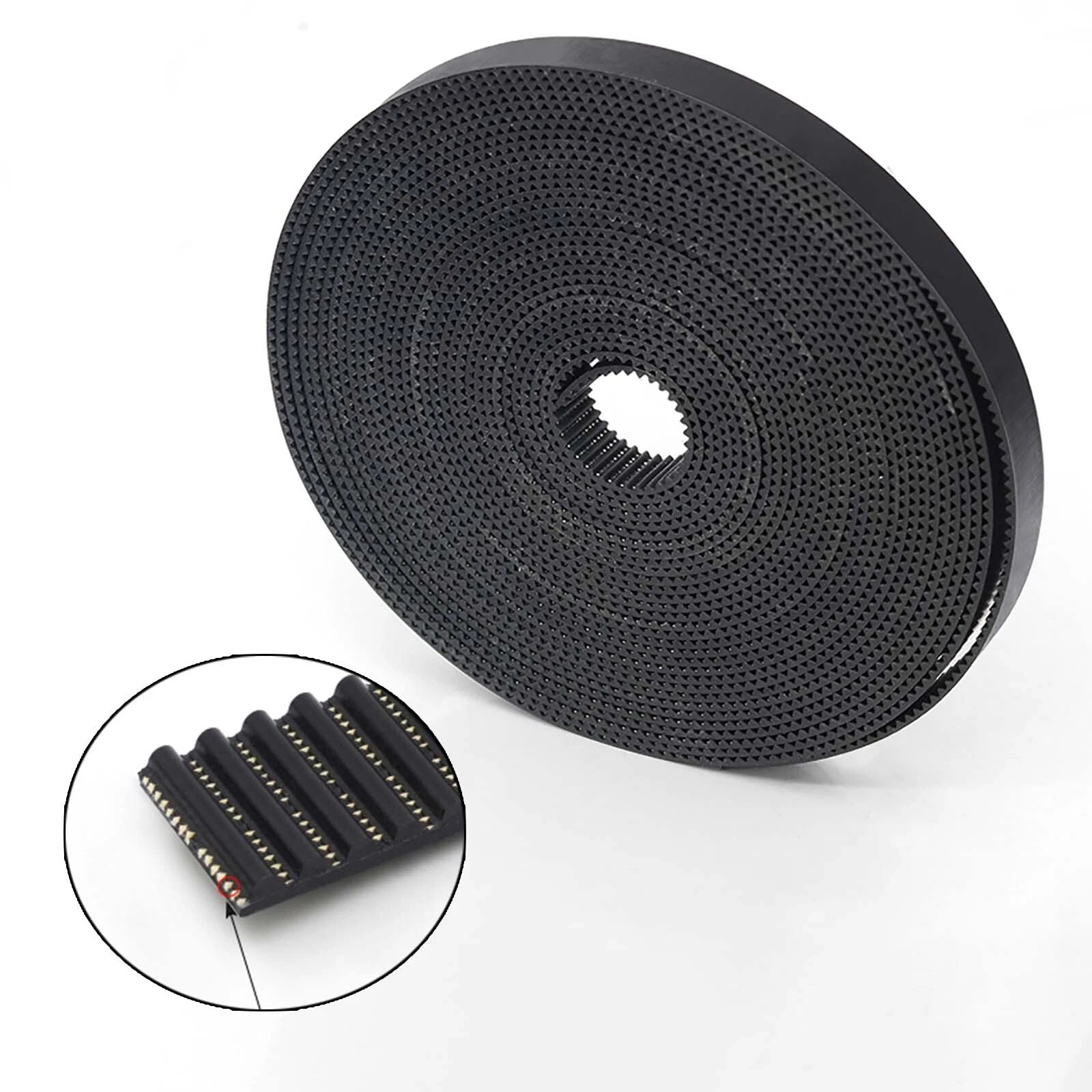

Fiberglass cord (TPU/Rubber); Steel wire (steel-core variants) |
| Compatible Pulleys |
See variant options — must match profile exactly |
| Recommended Use |
CNC routers, 3D printers, laser engravers, stepper motor linear drives |
| Country of Origin |
Contact us to confirm |
⚠️ Sizing Note: These are open-end belts — they are not pre-formed loops. You will need to cut and join them to your required closed length using a belt clamp, connector, or splice method appropriate for your application.
❓ Frequently Asked Questions
How do I choose the right belt length?
Measure the distance between your pulley centers, then calculate: Length = 2 × center distance + (π × pitch diameter of both pulleys / 2). Open-end belts are sold by the meter so you cut to your exact requirement. For example, 500mm is approximately 19.7". Order slightly more than your calculated length to allow for trimming and tensioning.
What is the difference between TPU, rubber, and steel-core timing belts?
TPU (thermoplastic polyurethane) belts are generally more flexible and resistant to oils and abrasion, making them well-suited for 3D printers and light CNC use. Rubber belts typically offer good elasticity and are a cost-effective choice for general motion control. Steel-wire-reinforced belts add tensile strength and reduce stretch under load, making them preferred for higher-torque CNC routers and stepper motor drives.
Can these timing belts be used outdoors or in harsh environments?
TPU and rubber timing belts are generally not rated for prolonged UV or weather exposure. For outdoor or harsh-environment applications, consider covering the drive system or selecting a belt with additional protective coatings. Contact us to confirm suitability for your specific environment.

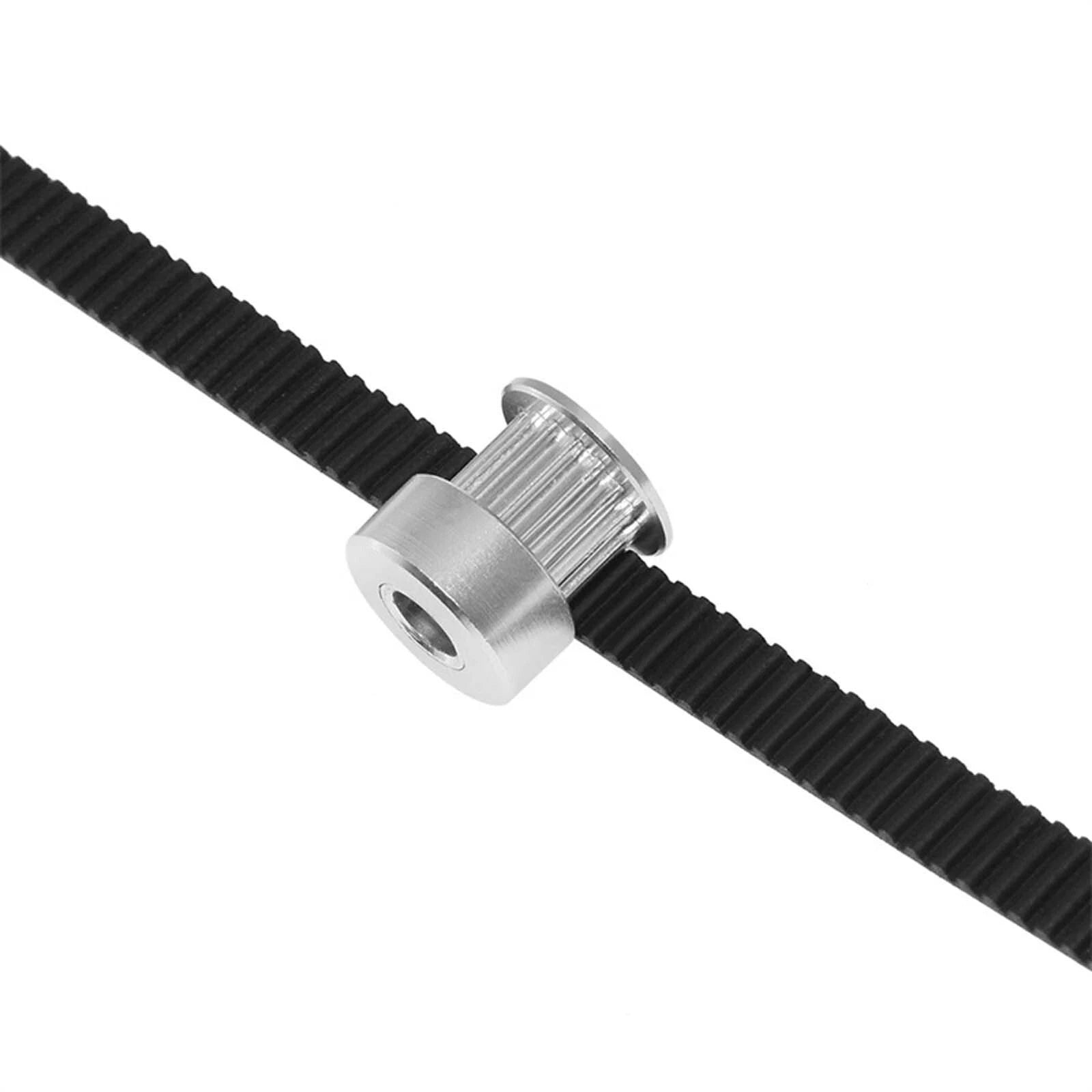

Which belt profile is compatible with my pulleys?
Belt profiles must match your pulley tooth profile exactly. 2GT belts fit 2GT pulleys, 3M fits 3M pulleys, 5M fits 5M pulleys, 8M fits 8M pulleys, MXL fits MXL pulleys, XL fits XL pulleys, L fits L pulleys, and S2M fits S2M pulleys. Mixing profiles will cause skipping or premature wear. Check your pulley markings before ordering.
How do I select the correct belt width?
Belt width should match or be slightly narrower than your pulley flange width. Wider belts generally carry higher loads. Available widths are 6mm (≈1/4"), 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), and 30mm (≈1-3/16"). For 3D printers and small CNC machines, 6mm or 10mm is typically sufficient.
What load or torque can these belts handle?
Load capacity varies by profile, width, and material. Wider belts and steel-reinforced cores generally support higher torques. As a general guide, 2GT and MXL profiles are suited for light-duty motion control (3D printers, plotters), while 3M, 5M, 8M, XL, and L profiles are typically used in medium-to-heavy CNC and industrial drives. Contact us to confirm load ratings for your specific application.
How is the belt sold — do I receive a continuous piece?
Yes. These are open-end (non-looped) timing belts sold by the meter. Select 1m, 2m, 5m, or 10m and you will receive a single continuous cut piece of that length, which you can trim and join to your required size.
