Open Ended Timing Belt — PU + Steel Wire Core, HTD/S/XL/T Profile, for CNC & 3D Printer

HomeDIYer

No reviews

By HomeDIYer®

Types: Timing Belt Clamp

Model: for HTD-5M - 15mm & (A+B)

Amount: 1 Pcs

Price:

$31.14 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Open Ended Timing Belt — PU + Steel Wire Core for Precise CNC & 3D Printer Motion

If your CNC router, laser cutter, or 3D printer keeps losing steps or skipping teeth, the culprit is often a worn or undersized drive belt. Engineers, makers, and machine builders who need a reliable open-ended timing belt that can be cut to any length — without waiting weeks for a custom order — will find exactly what they need here.

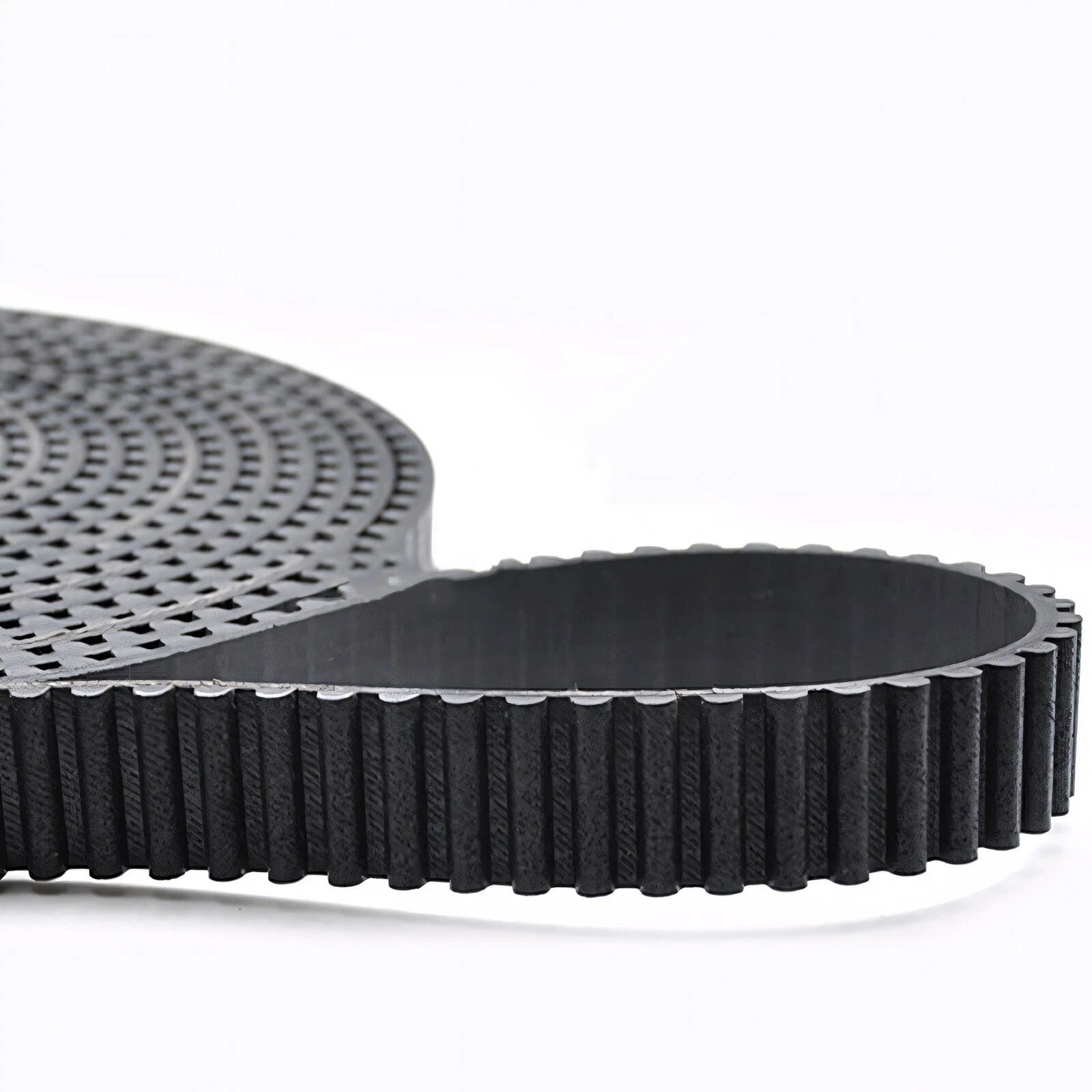

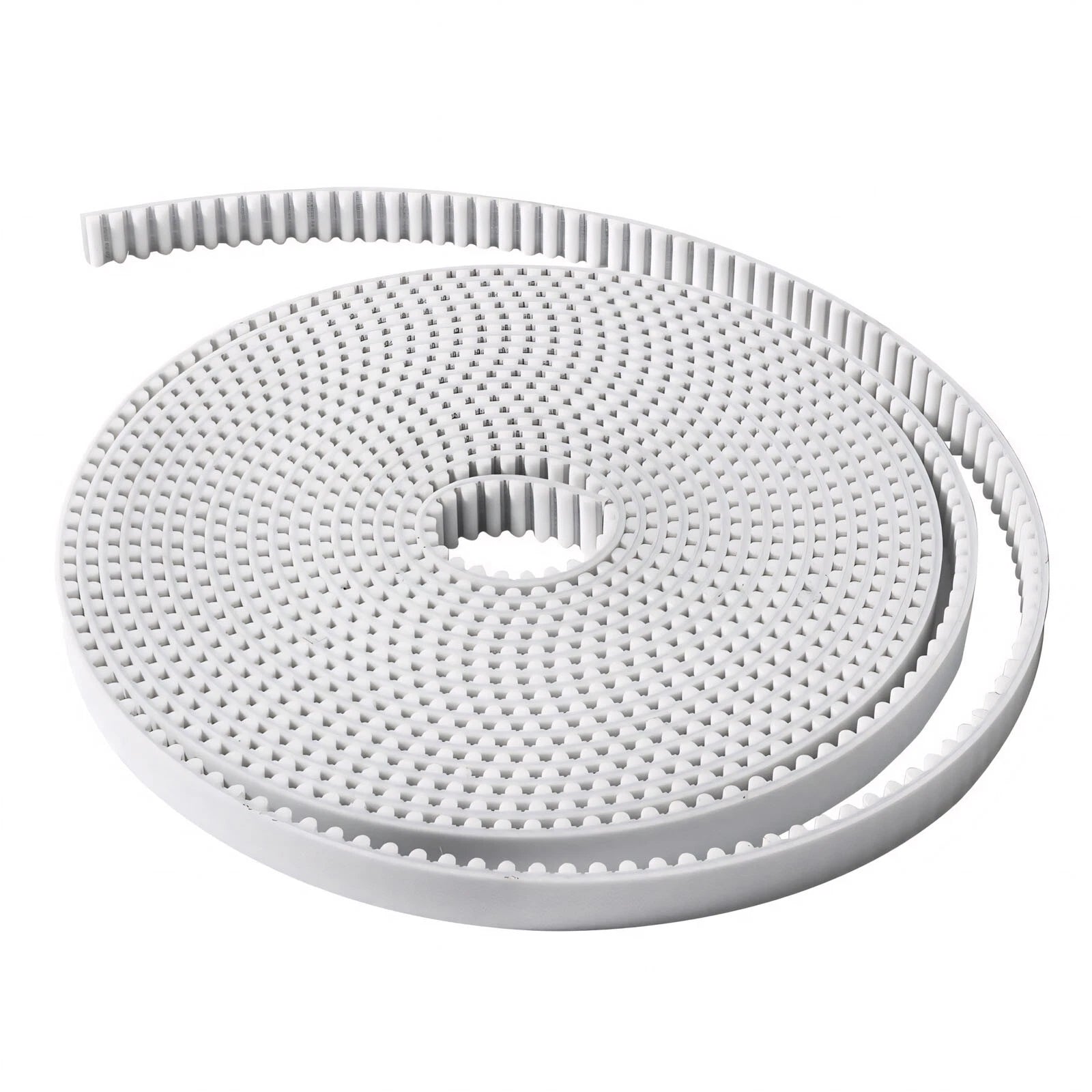

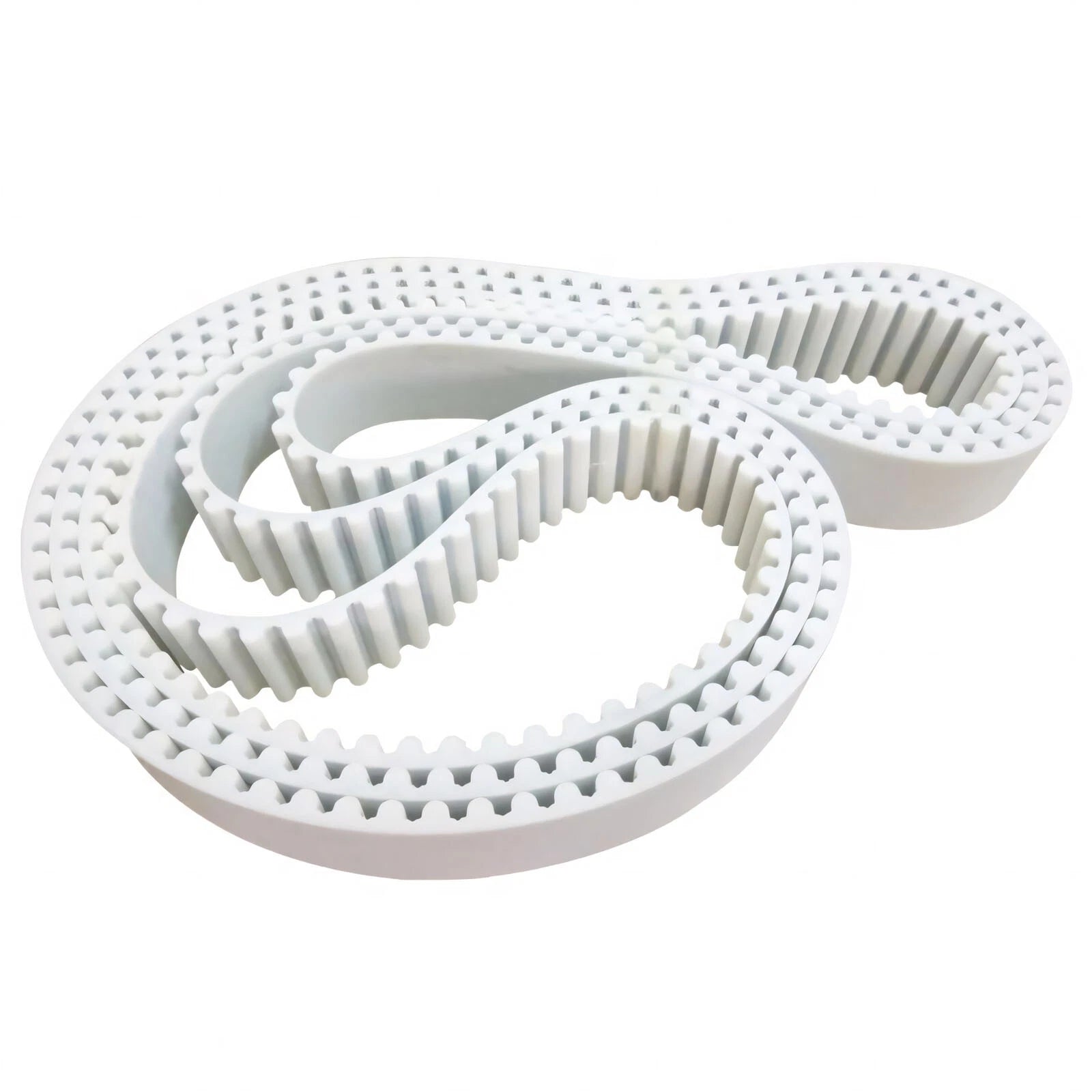

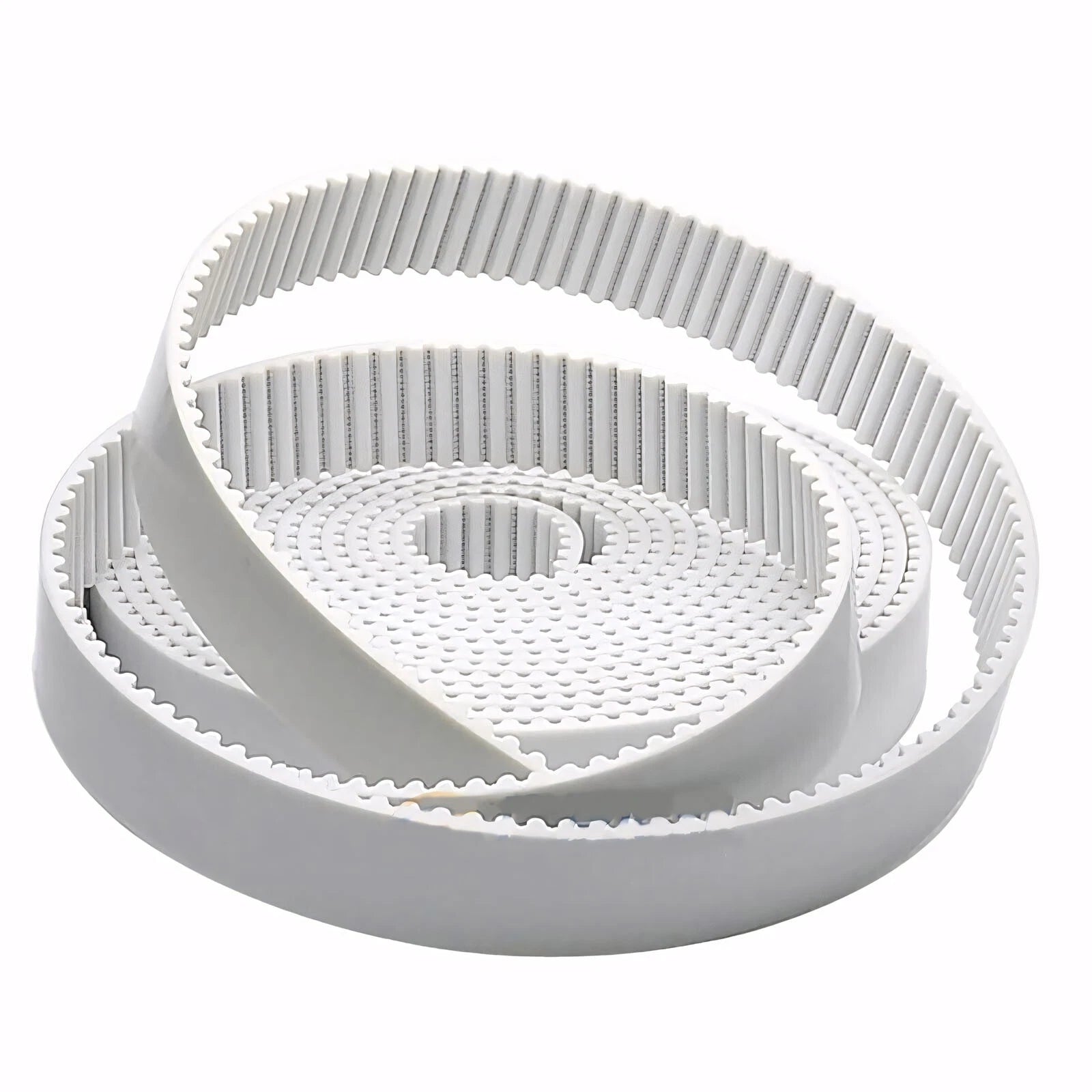

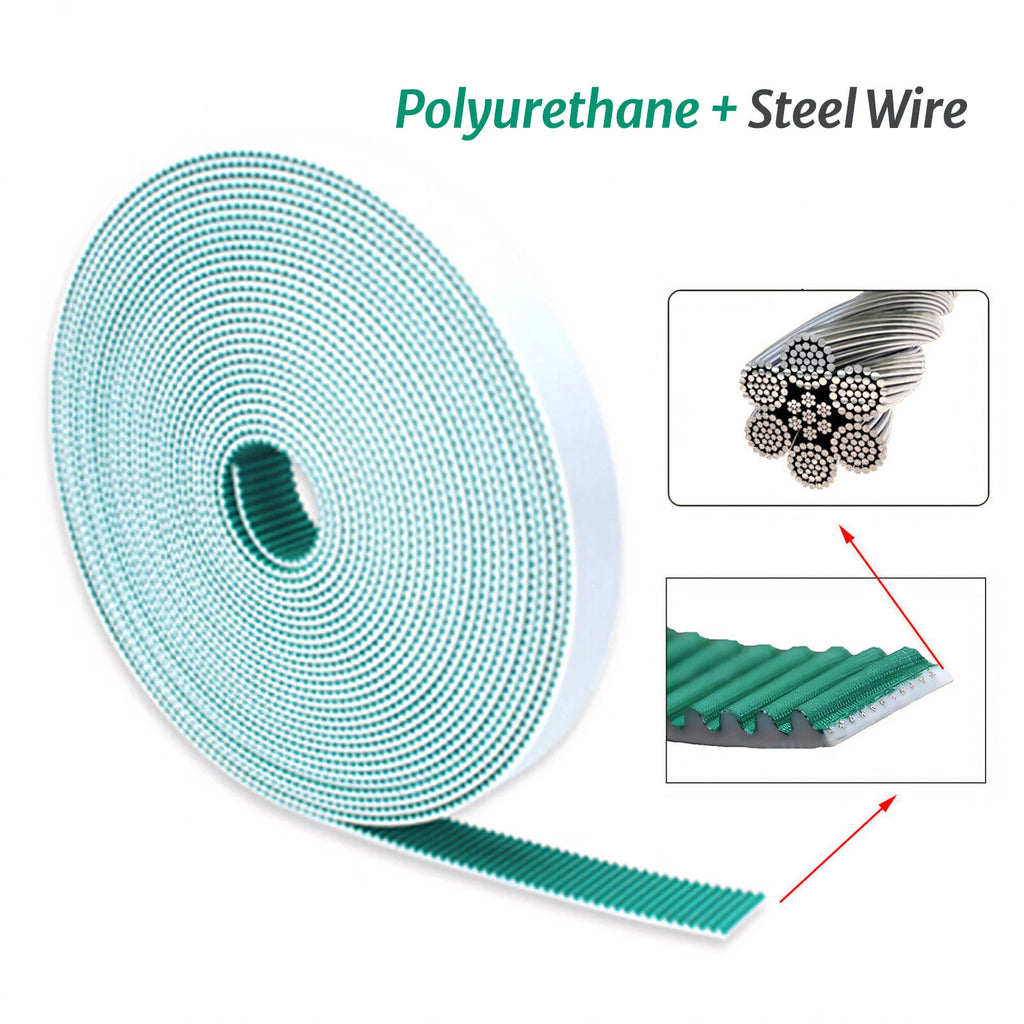

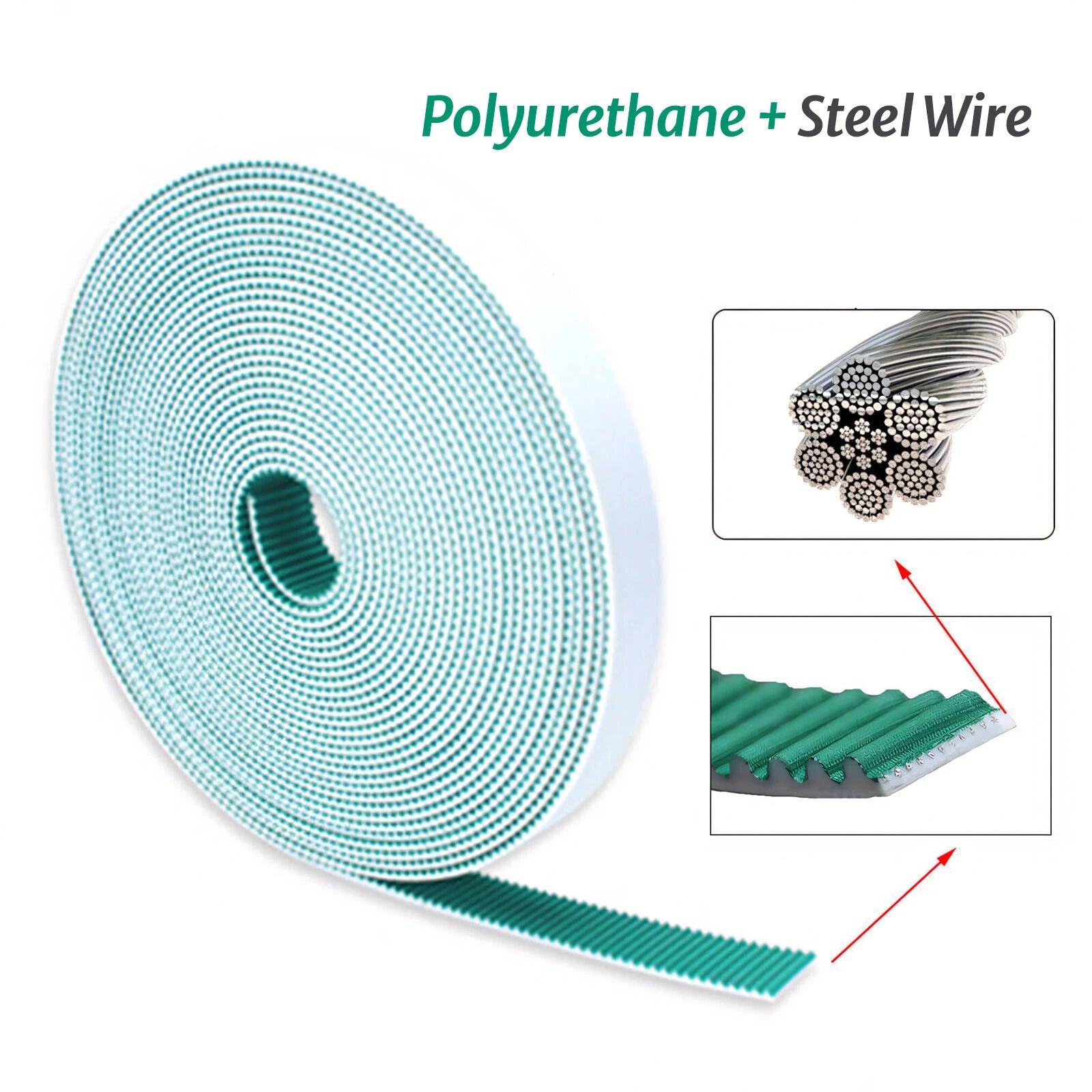

Each meter of belt is made from polyurethane (PU) with a steel wire tension cord core. Available in a wide range of profiles including HTD-3M, HTD-5M, HTD-8M, S3M, S5M, S8M, XL, MXL, L, H, 2GT, T2.5, T5, and T10, with belt widths from 6mm (≈1/4") up to 50mm (≈2"). Timing Belt Clamps for anchoring cut belt ends to linear carriages are also available as a separate variant in this listing.

Typical use cases include open-ended belt drives on CNC router X/Y axes, 3D printer CoreXY and bed-slinger motion systems, laser engraver gantries, and custom automation linear actuators — anywhere you need a cut-to-length synchronous belt with low stretch and consistent tooth engagement.

ℹ️ Compatibility: Match the profile name (e.g., HTD-5M, XL, S3M) and belt width to your existing pulleys before ordering. HTD and S profiles are not interchangeable with each other or with T/XL profiles even if the pitch number looks similar.

✅ Key Features of These Open Ended PU Timing Belts

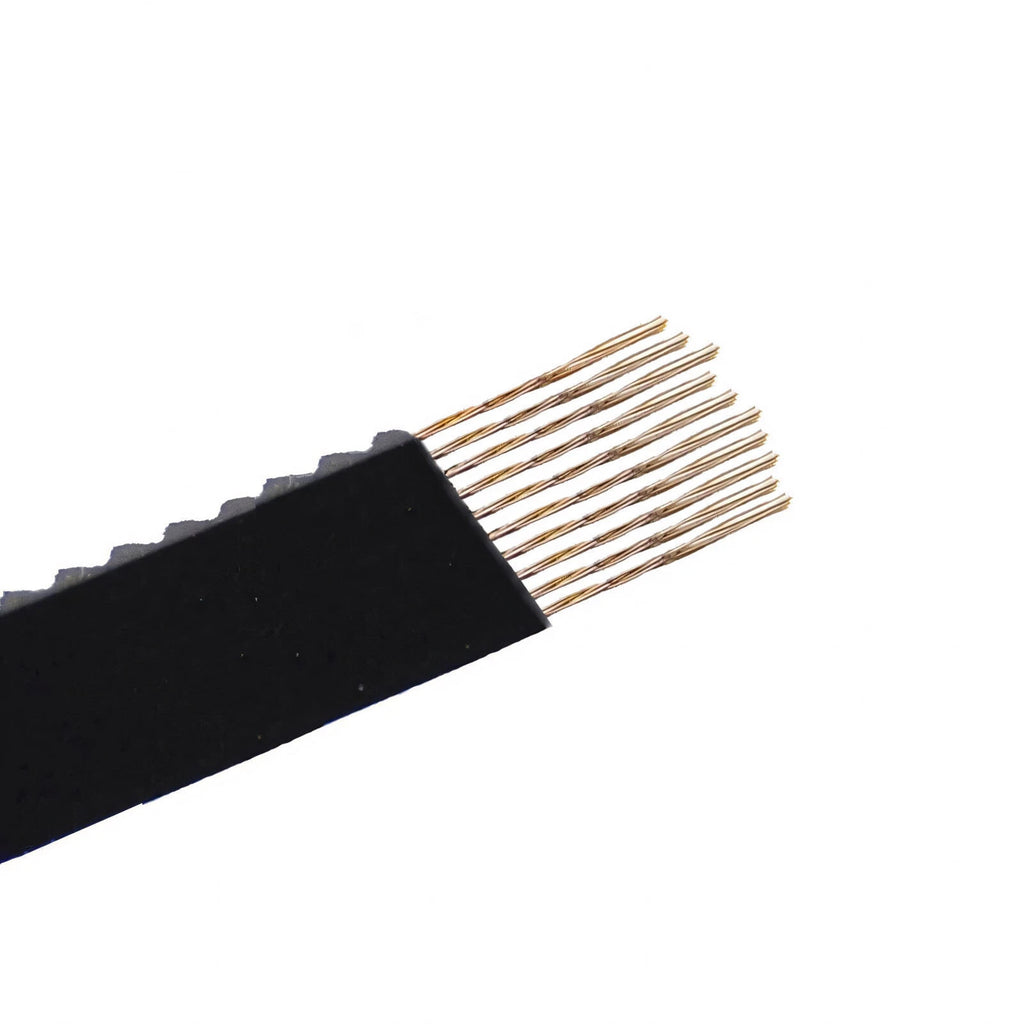

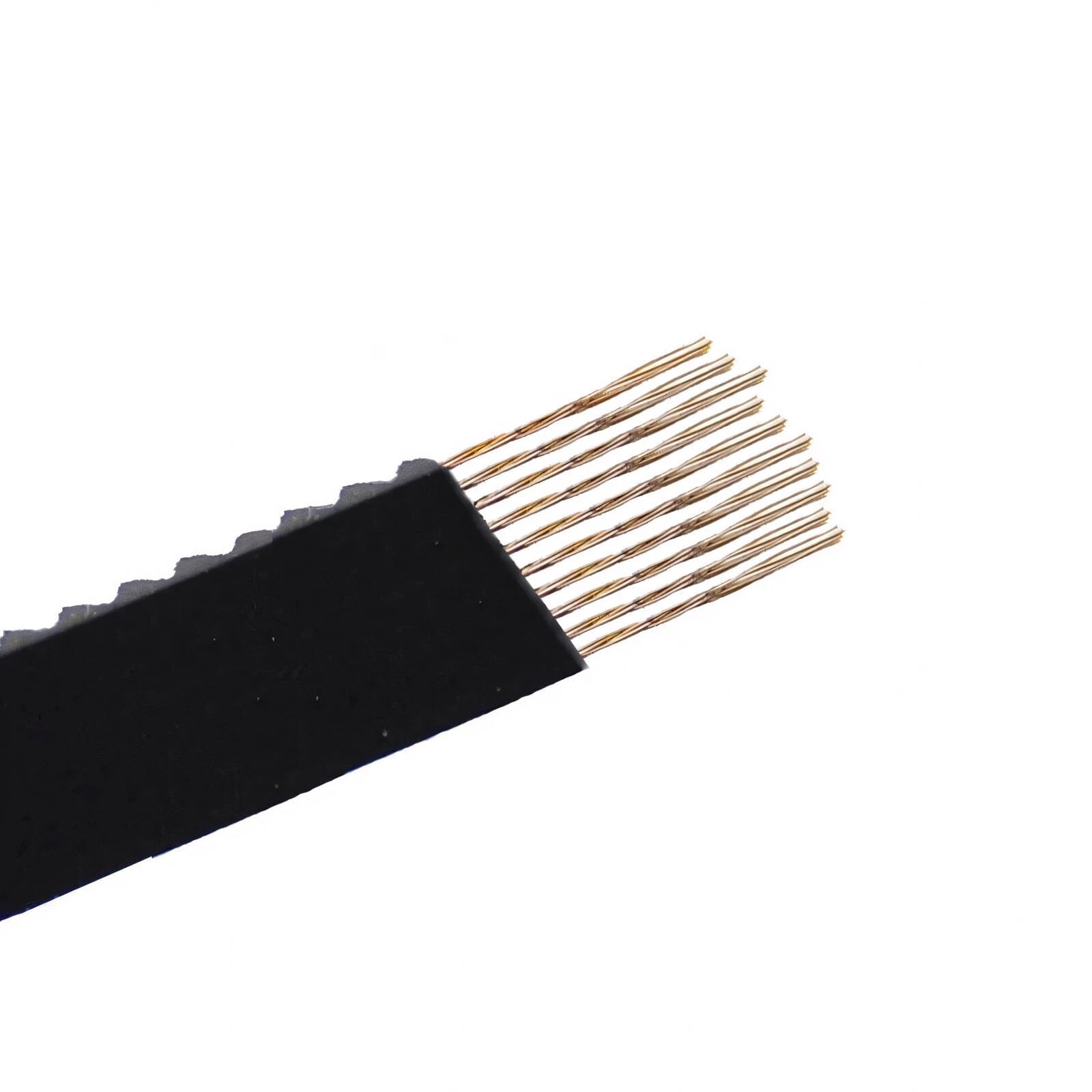

🔩Steel Wire Tension Core — Embedded steel wire cords resist elongation under load, maintaining consistent tooth pitch and positioning accuracy in CNC and 3D printer drive systems.
🧪Polyurethane (PU) Construction — PU body offers better oil and abrasion resistance than standard neoprene rubber, extending service life in workshop and light-industrial environments.
✂️Cut-to-Length Open Ended Format — Sold by the meter so you cut exactly what your machine needs — no splicing loops, no minimum closed-loop length constraints.
📐Wide Profile Selection — Covers HTD-3M/5M/8M, S3M/5M/8M, XL, MXL, L, H, 2GT, T2.5, T5, and T10 profiles in widths from 6mm to 50mm to match virtually any standard pulley on the market.

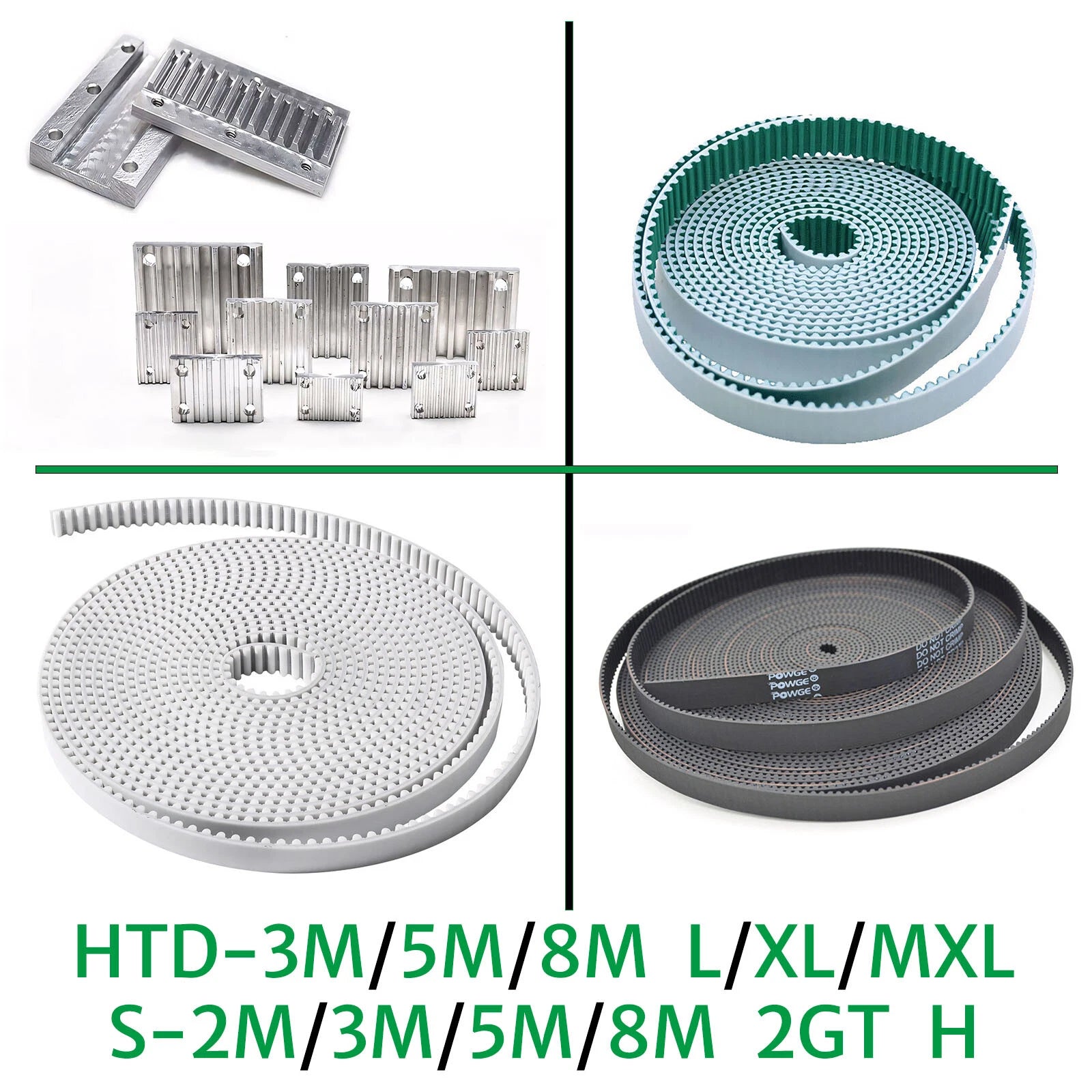

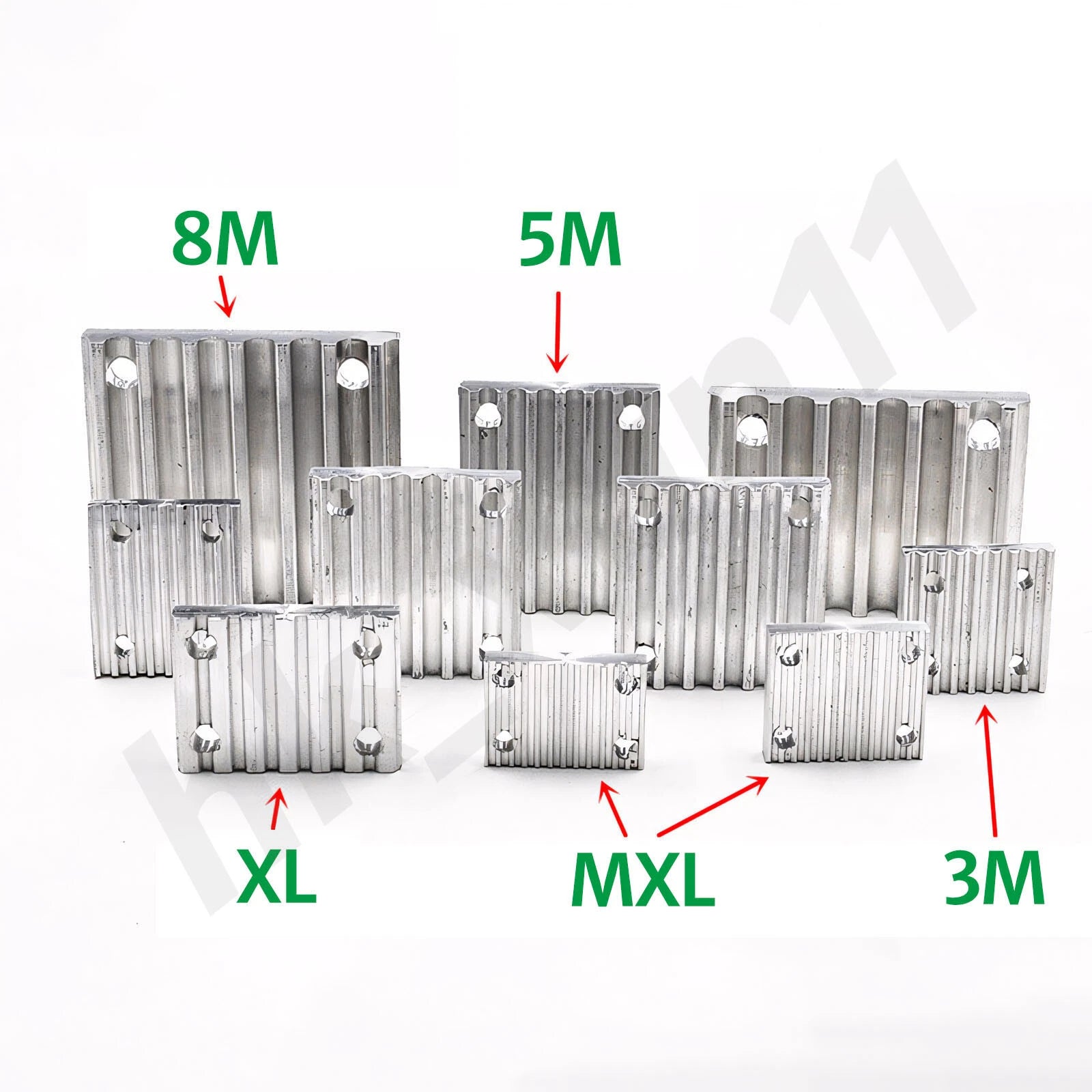

🔧Matching Clamps Available — Timing Belt Clamps (A+B plate sets or single plates) for HTD-5M, HTD-8M, S5M, S8M, XL, and other profiles are included as variants — ideal for anchoring belt ends to CNC carriage plates.
🚀Ships from US Warehouse — Stocked domestically for faster delivery to US customers building or repairing CNC machines, laser cutters, and 3D printers.

📐 Technical Specifications — Open Ended PU Timing Belt

Belt Type	Open-ended (cut-to-length), synchronous timing belt
Material	Polyurethane (PU) body with steel wire tension cord

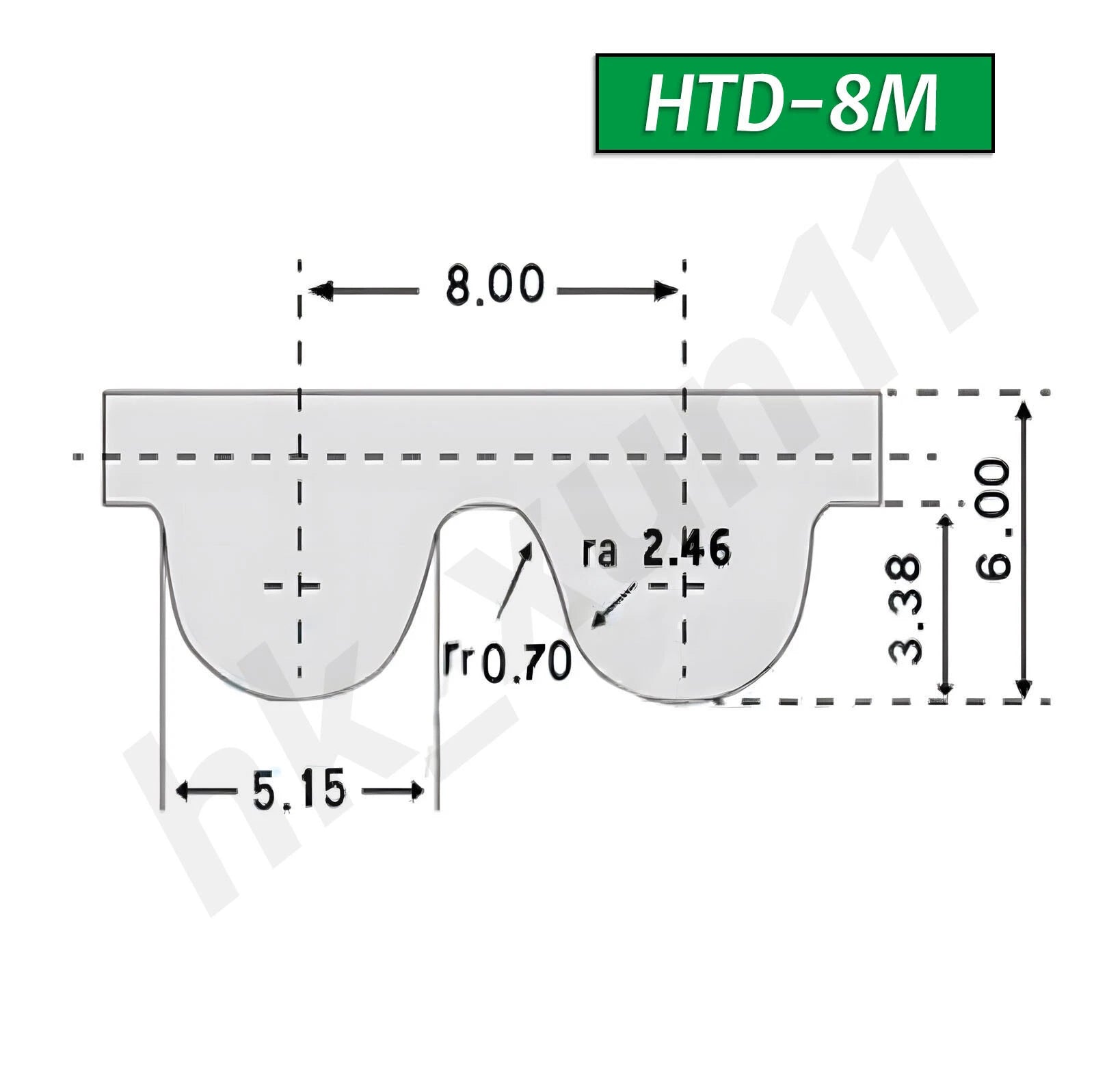

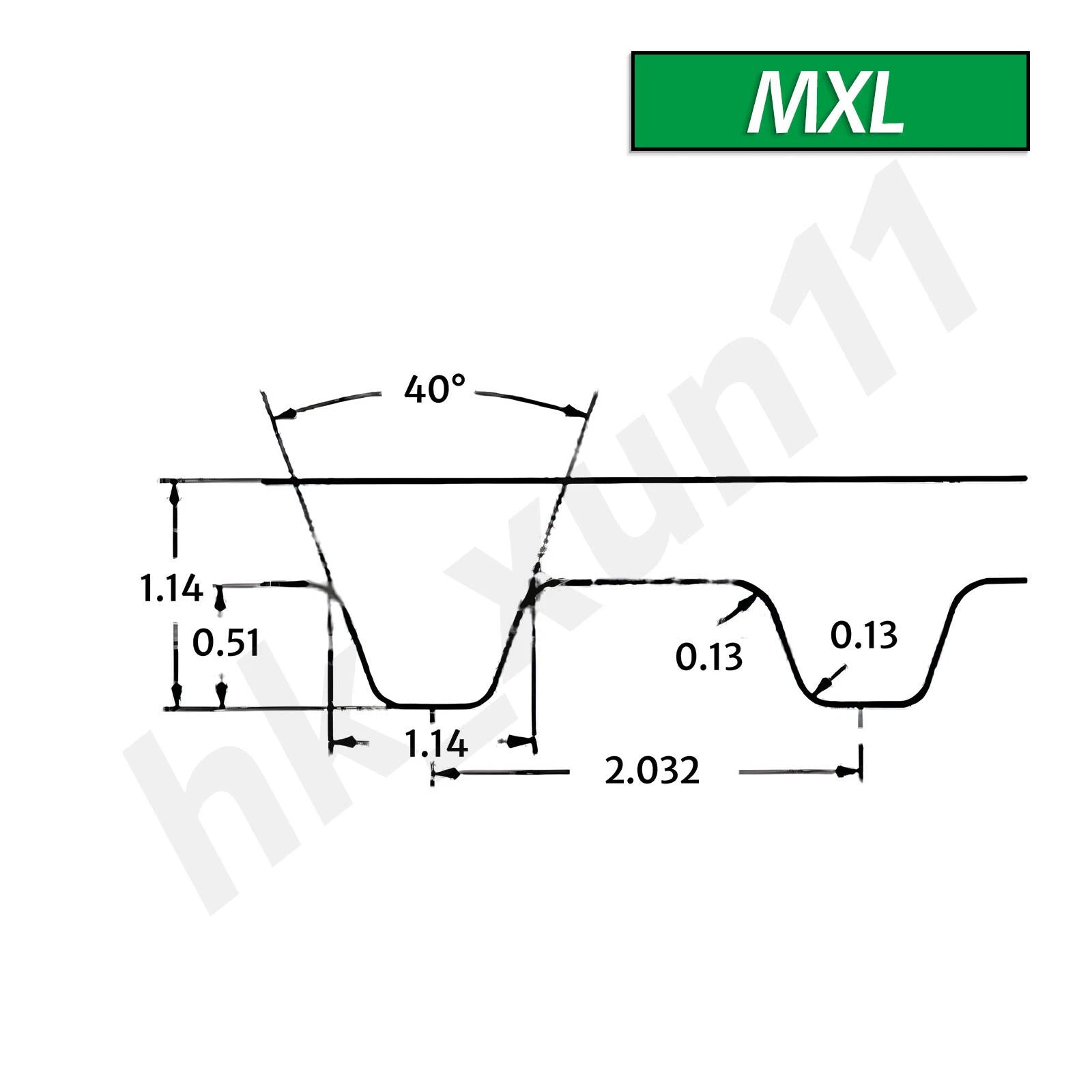

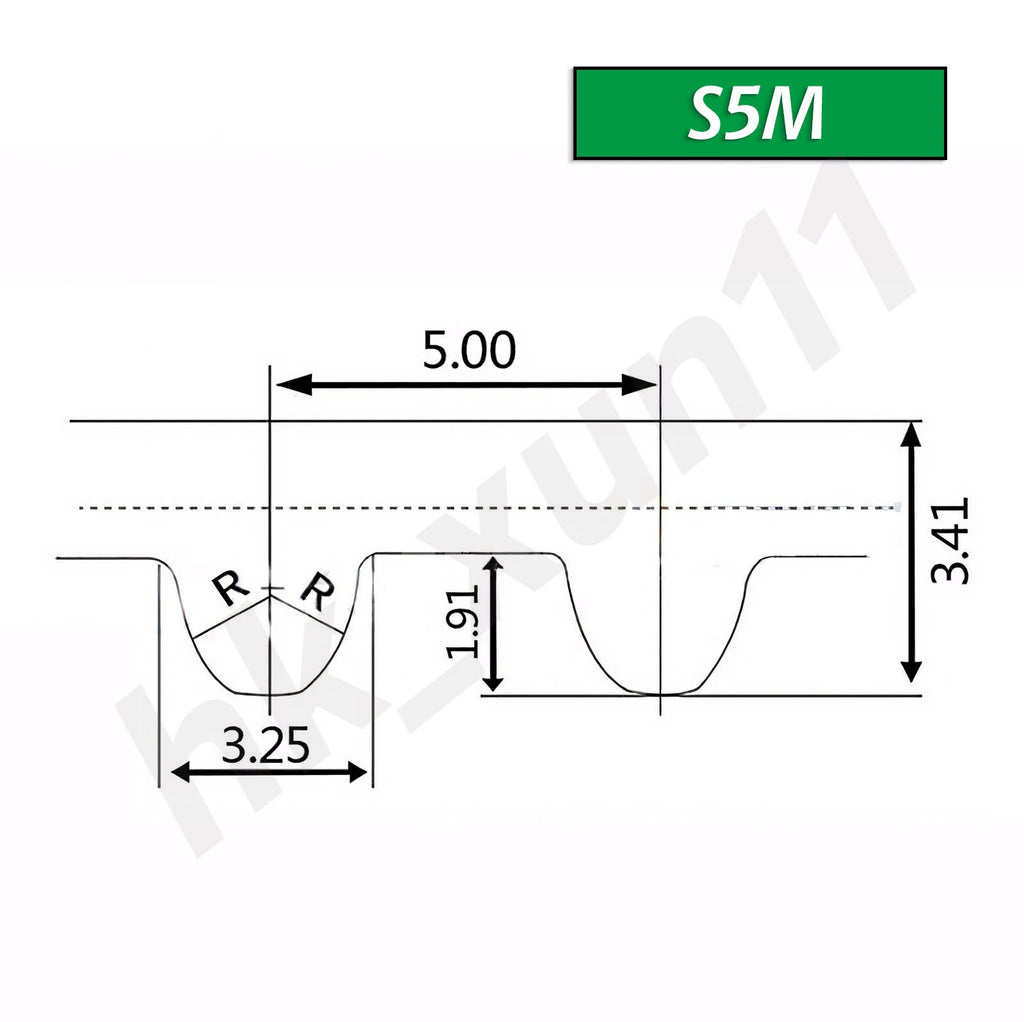

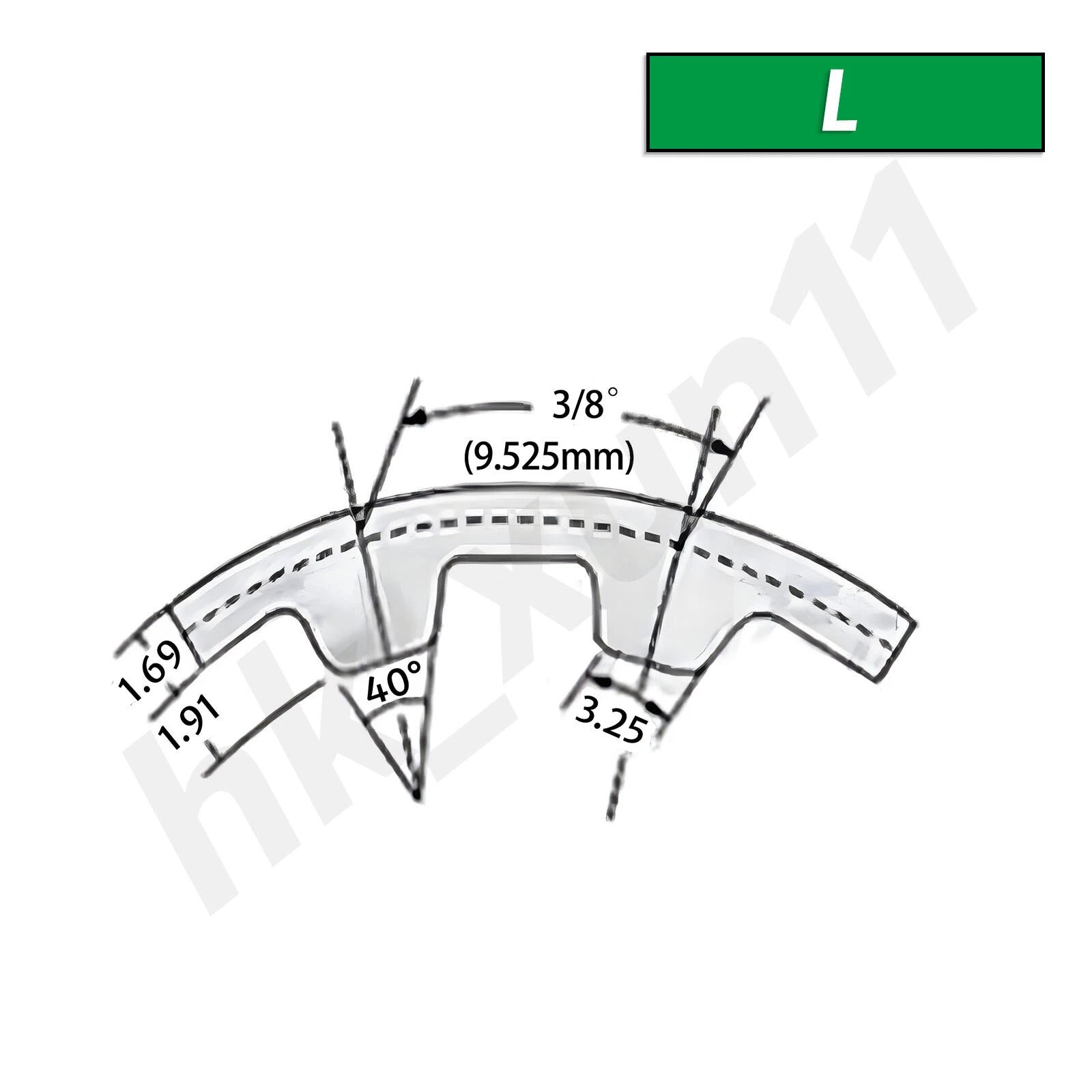

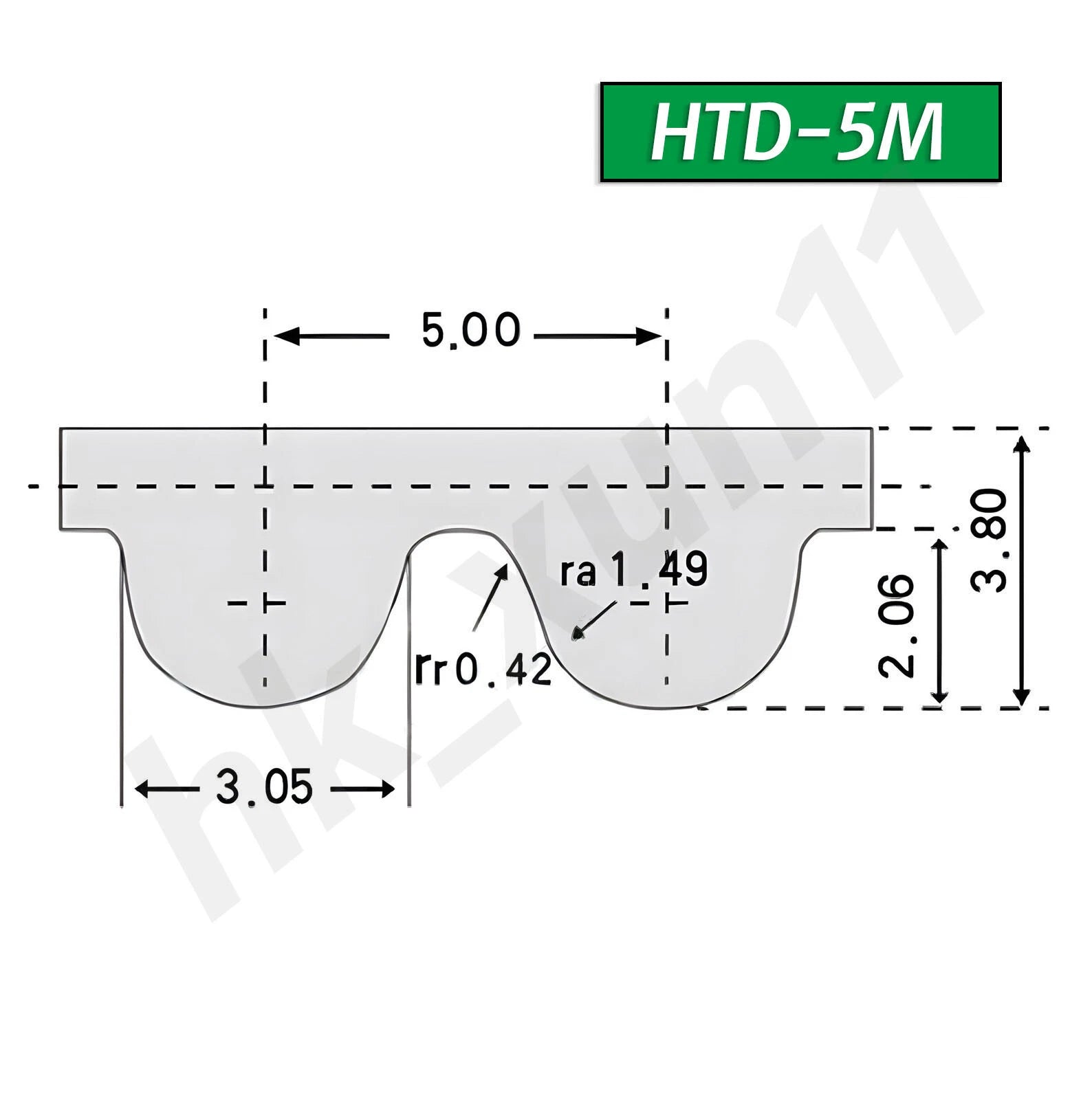

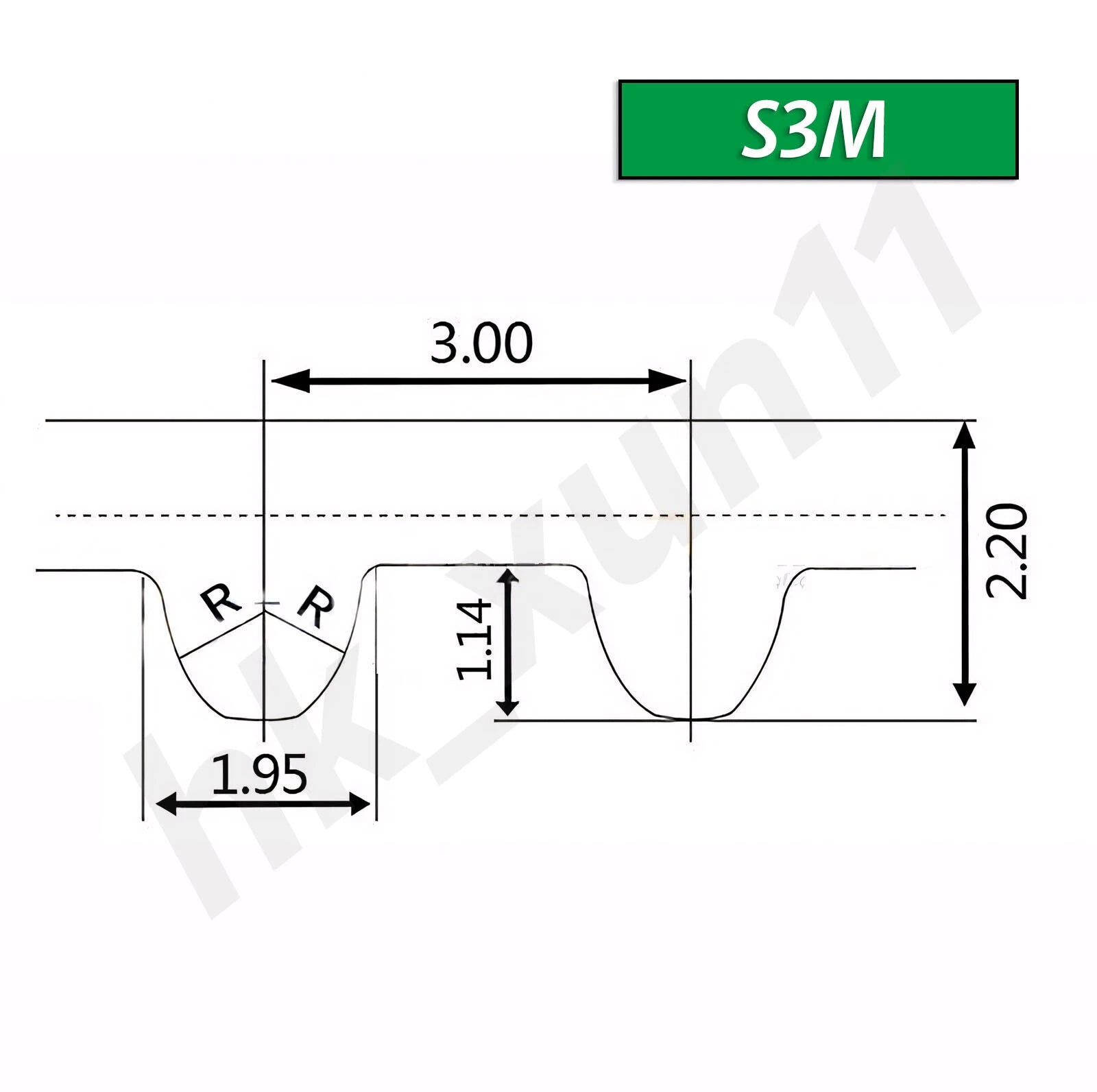

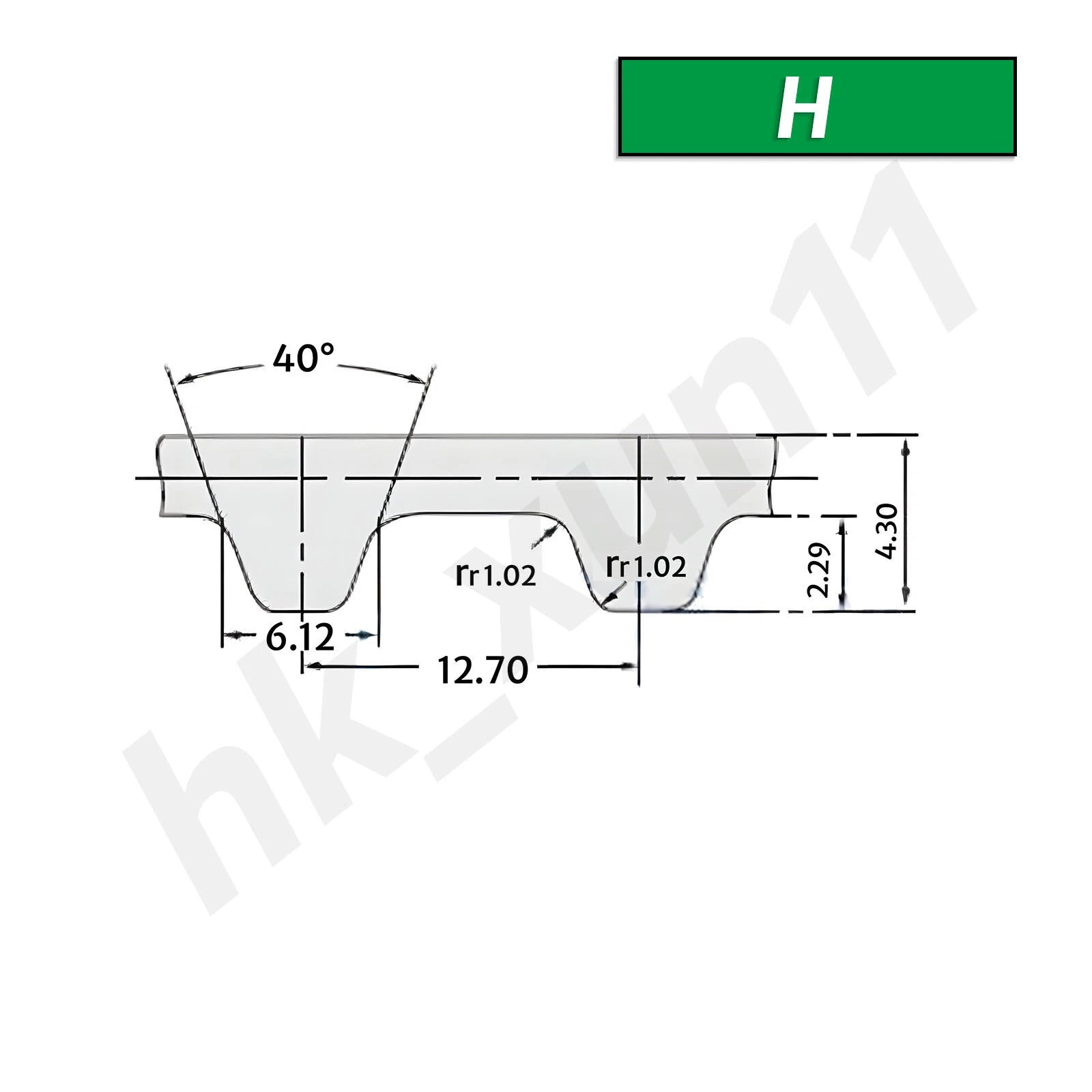

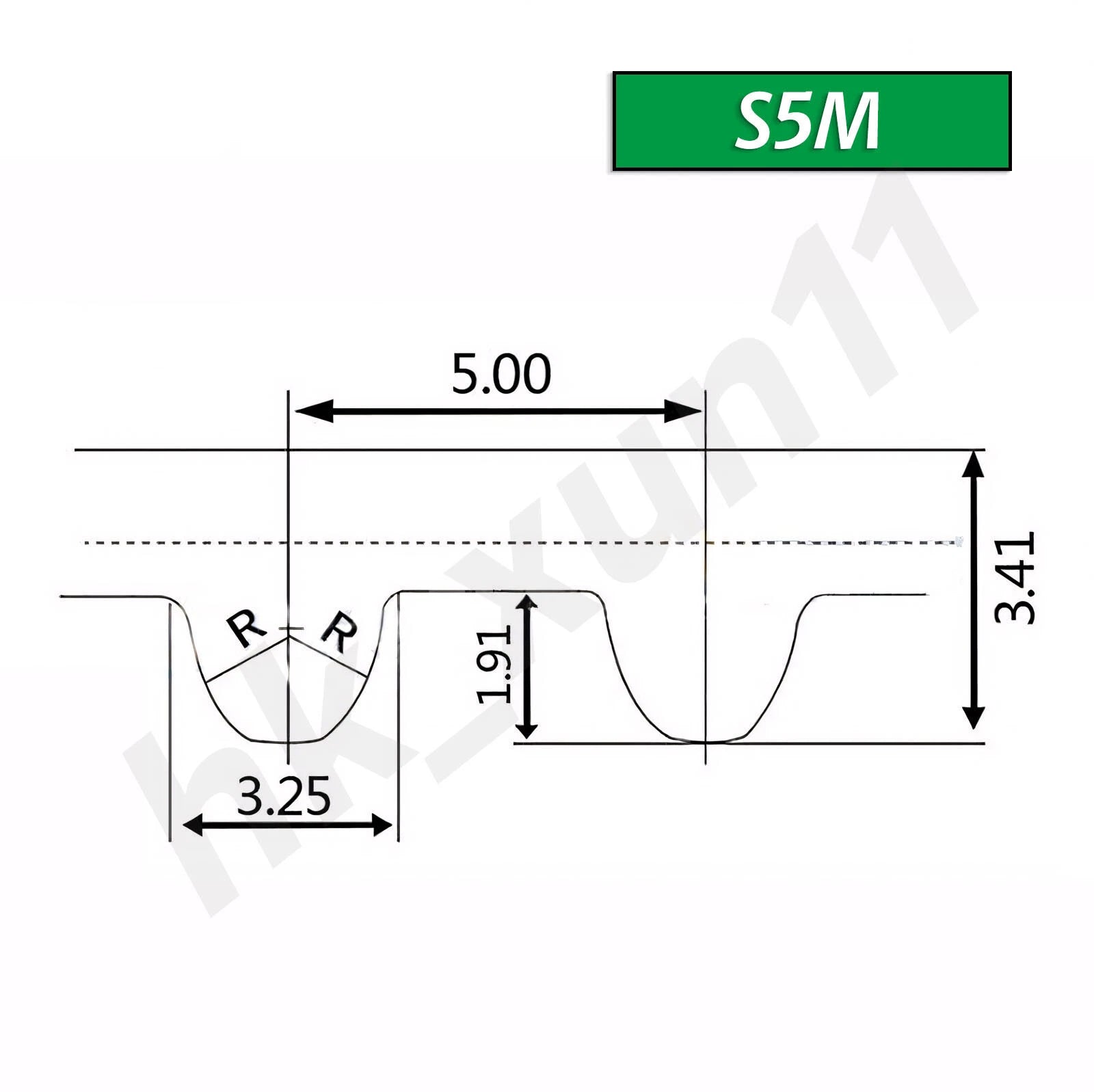

Available Profiles	HTD-3M, HTD-5M, HTD-8M, S3M, S5M, S8M, XL, MXL, L, H, 2GT, T2.5, T5, T10
Belt Width Range	6mm (≈1/4") to 50mm (≈2") — see variant options

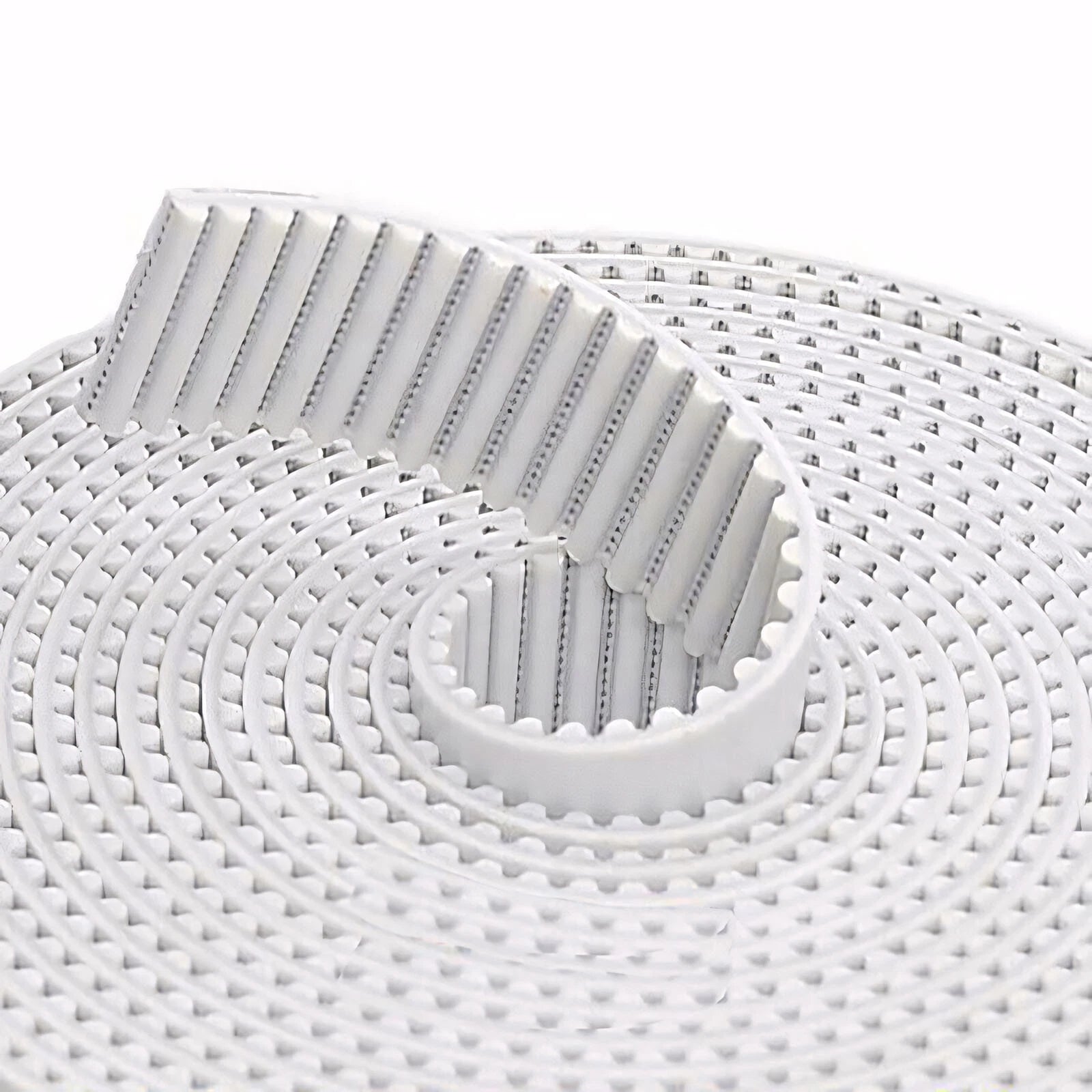

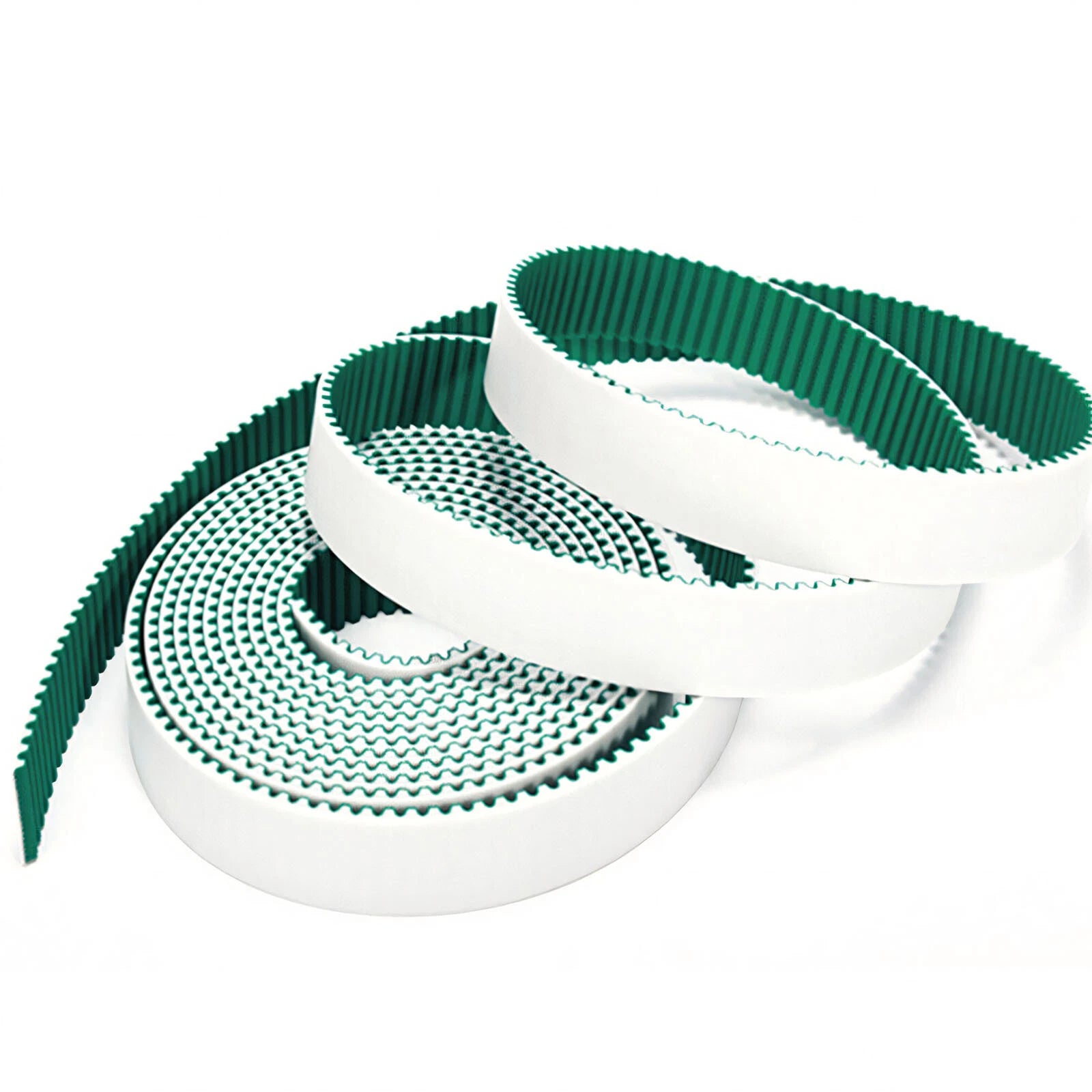

Colors Available	Green, White, Black (belt); natural aluminum (clamps)
Sold As	1 Meter (belt) or 1 Pcs (clamp) — select in variant options
Clamp Types	Single-plate or A+B double-plate sets — see Model variant
Tensile Cord	Steel wire (galvanized) — quantity and diameter vary by profile
Operating Temperature	Typically −20°C to +80°C (−4°F to +176°F) for PU belts
Pitch Accuracy	Conforms to respective ISO/DIN profile standards — contact us to confirm
Compatible Pulleys	Standard HTD, S, XL, MXL, L, H, T, 2GT profile pulleys of matching pitch
Country of Origin	See variant options

⚠️ Note: HTD and S profiles share the same pitch number (e.g., 5M) but have different tooth geometry and are not interchangeable. Verify your pulley profile before selecting a variant.

❓ Frequently Asked Questions

How do I choose the right belt width and profile for my machine?

Match the profile (e.g., HTD-5M, XL, T5) to your existing pulley tooth profile, and select a belt width that equals or slightly exceeds your pulley face width. For example, a 20mm-wide pulley typically pairs with a 20mm or 25mm belt. When in doubt, check your machine's BOM or measure the pulley directly. If you're replacing a worn belt, the profile name is usually molded into the belt's back surface.

What is the tensile strength of this open-ended timing belt?

Tensile strength varies by profile and width. Generally, PU belts with steel wire cores offer higher tensile load capacity than rubber belts of the same size — typically ranging from a few hundred Newtons for narrow 6mm belts up to several kilonewtons for wider 40–50mm belts. Contact us to confirm load ratings for your specific variant before use in high-load applications.

Can this belt be used outdoors or in wet environments?

Polyurethane (PU) generally offers better resistance to oils, mild chemicals, and moisture compared to standard rubber. However, prolonged exposure to standing water or harsh outdoor UV conditions is not recommended. For outdoor CNC or automation setups, consider adding a belt cover or shield to extend service life.

Is this belt compatible with standard HTD and S-profile pulleys?

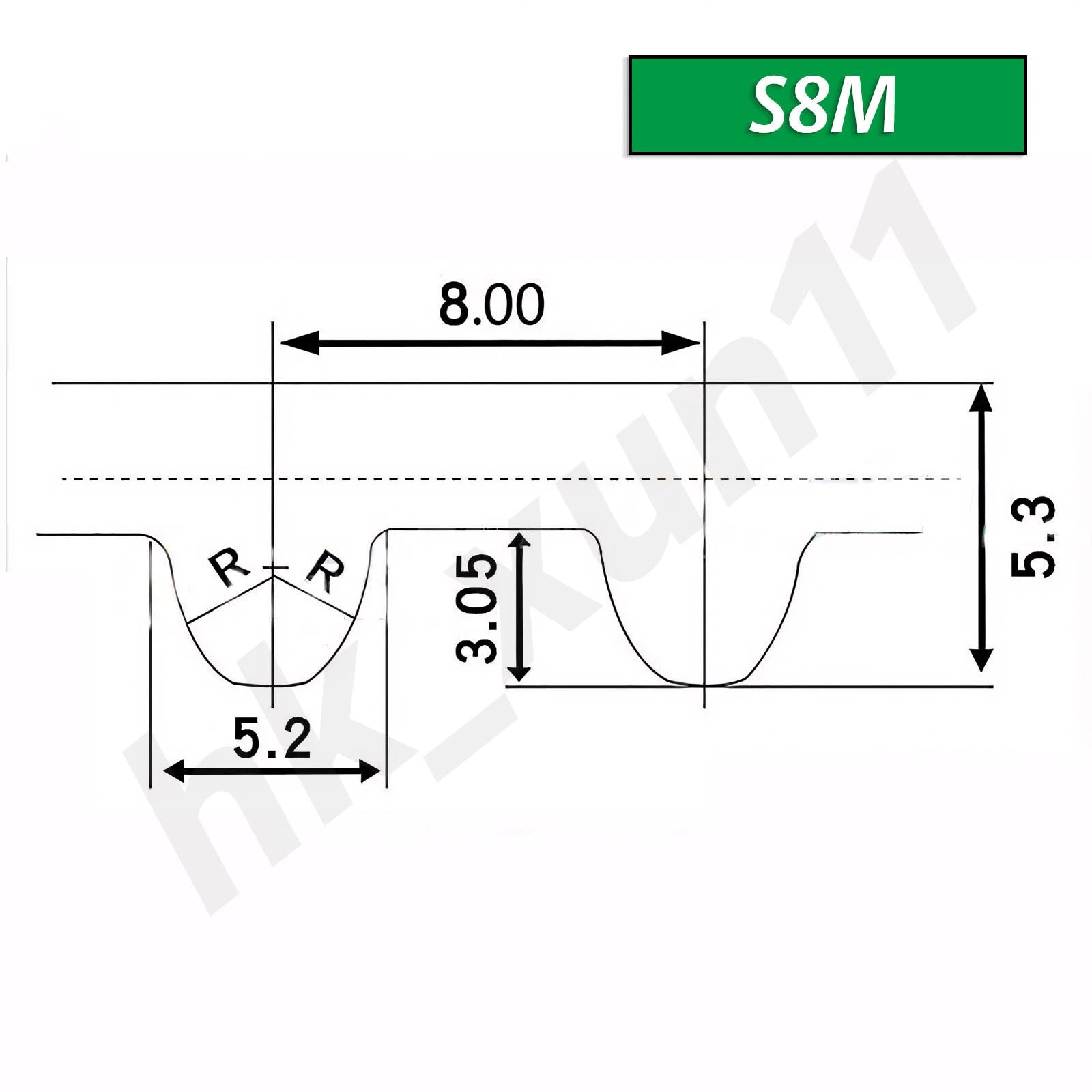

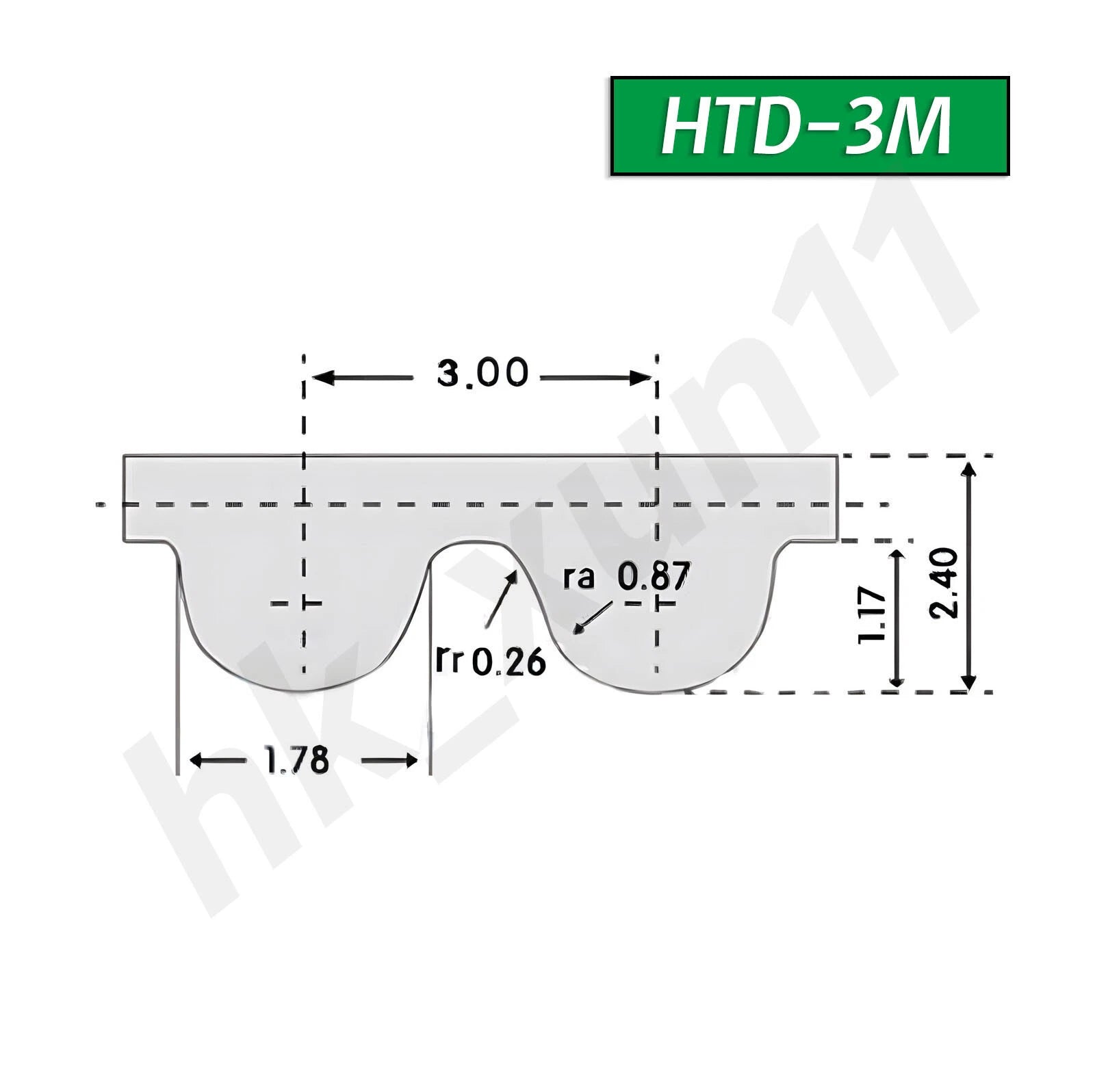

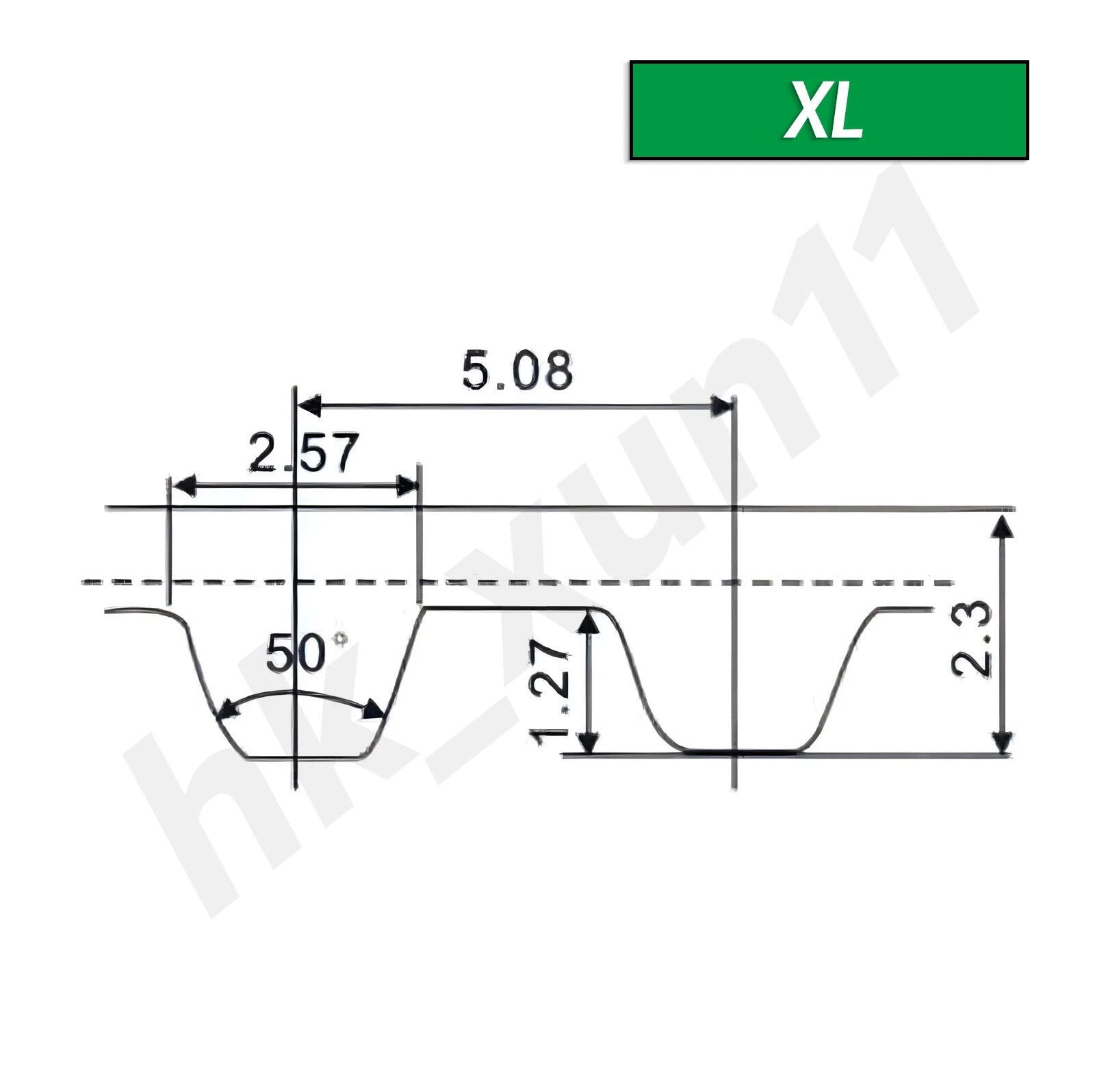

Yes. HTD-profile belts (3M, 5M, 8M) are designed to mesh with HTD pulleys of the same pitch. S-profile belts (S3M, S5M, S8M) are compatible with S-series pulleys. XL, MXL, L, H, T, and 2GT belts follow their respective industry-standard tooth geometries. Always verify the pitch and tooth profile match before ordering — HTD and S profiles are not interchangeable even at the same pitch number.

How do I cut this open-ended belt to the length I need?

Use sharp scissors, a utility knife with a straight edge, or a dedicated belt cutter for clean, square cuts. Measure the required length carefully before cutting — add a small allowance if you plan to use a timing belt clamp to join or tension the belt. The belt is sold by the meter, so order enough length for your application plus any waste from cutting and fitting.

What is the difference between the Timing Belt Clamp and the open-ended belt?

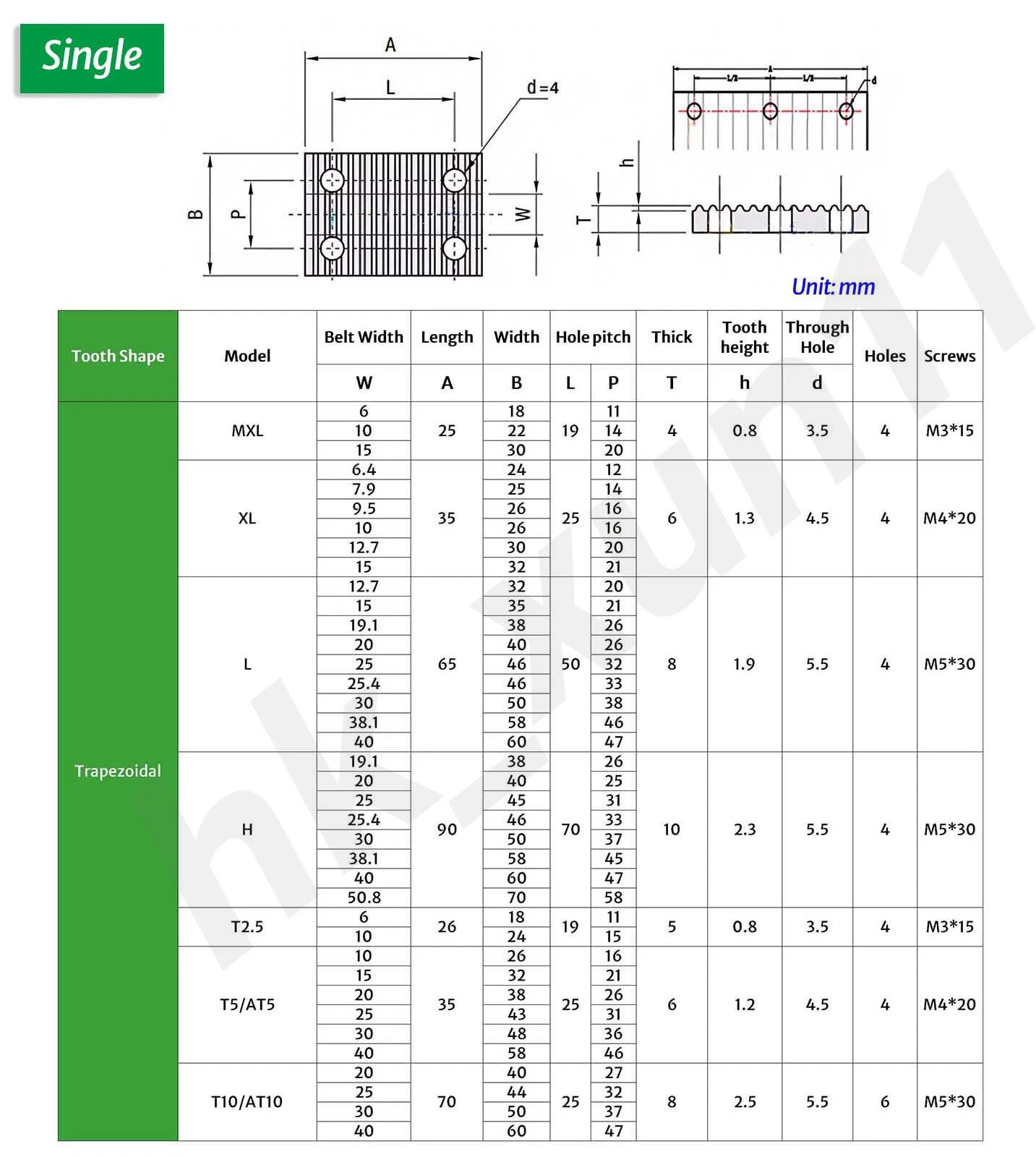

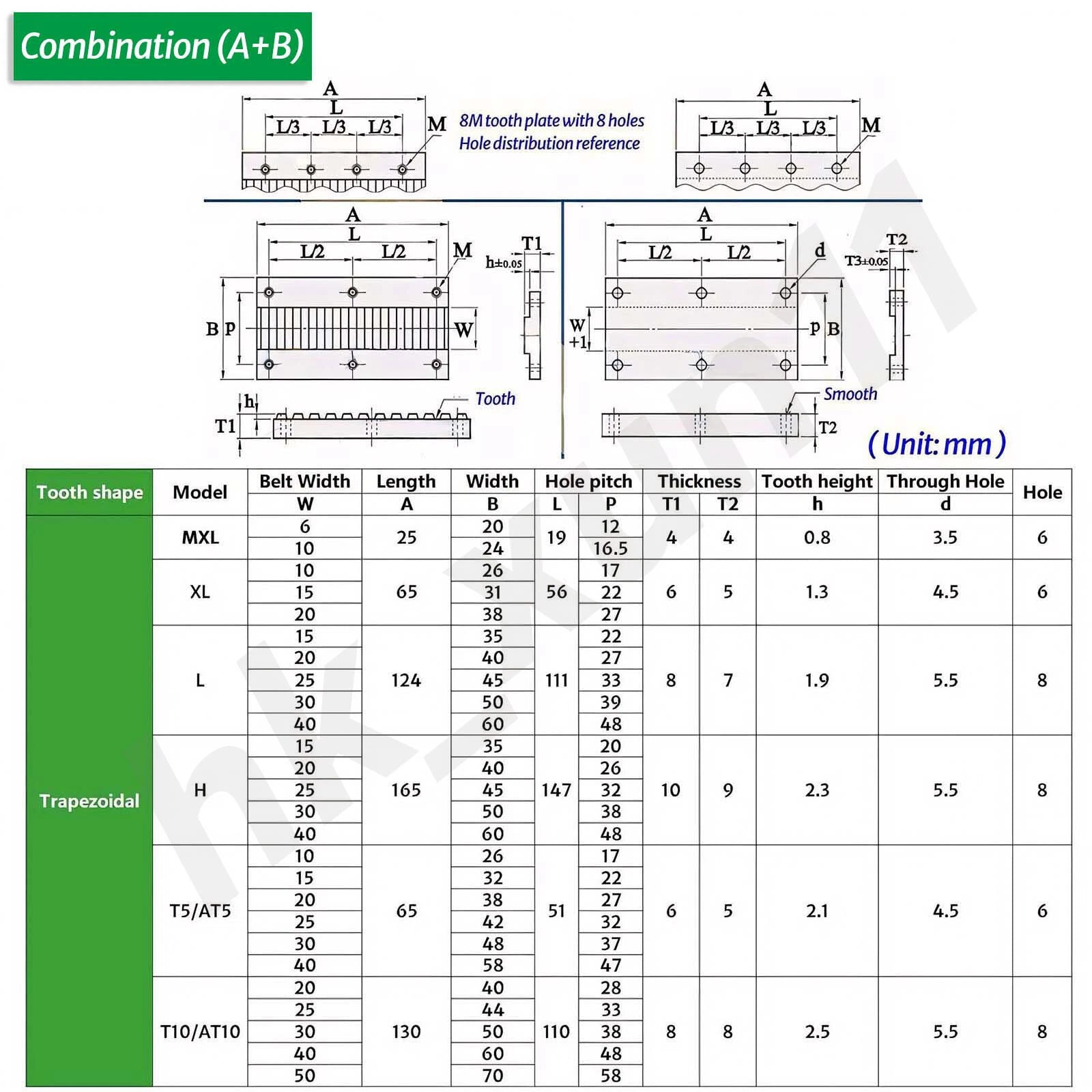

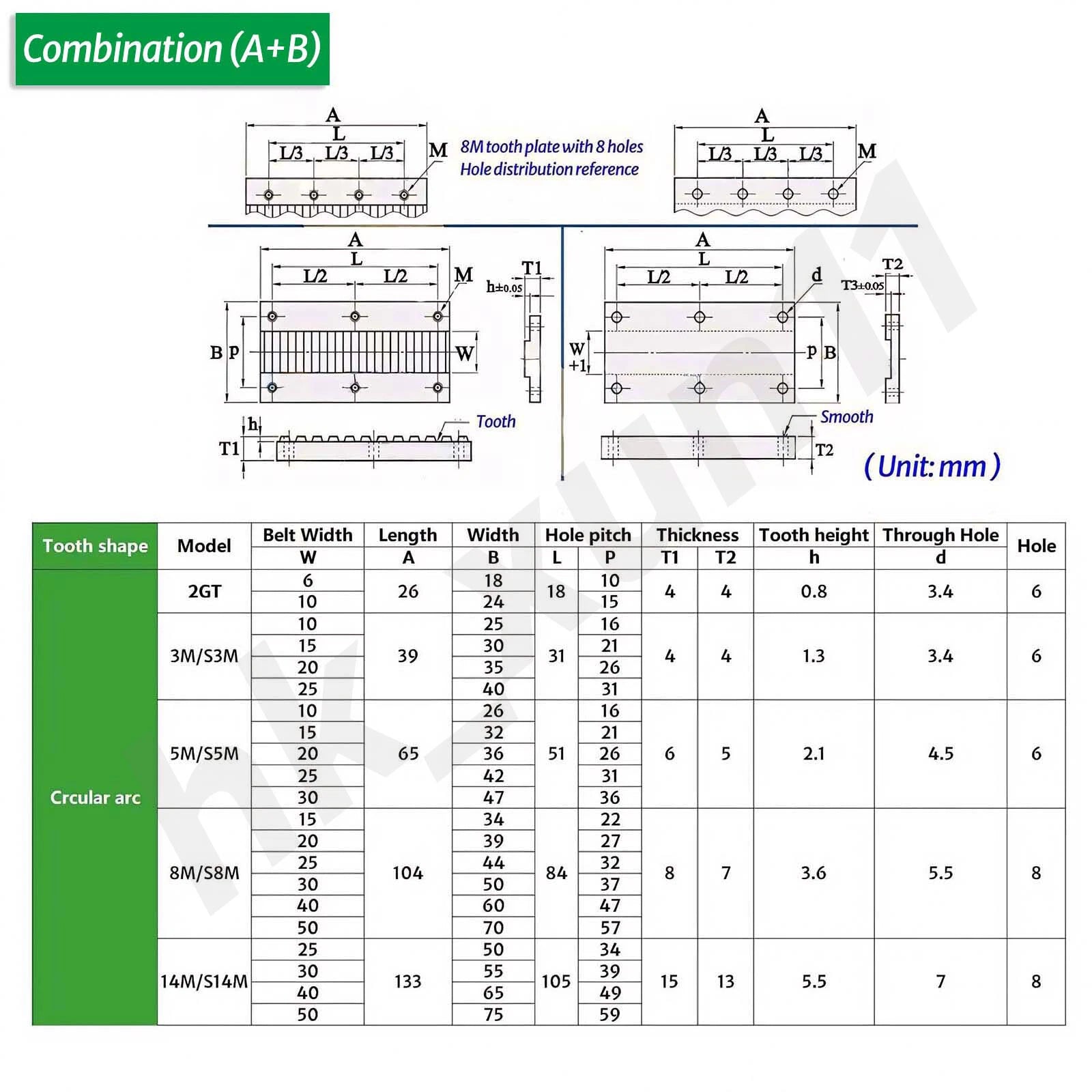

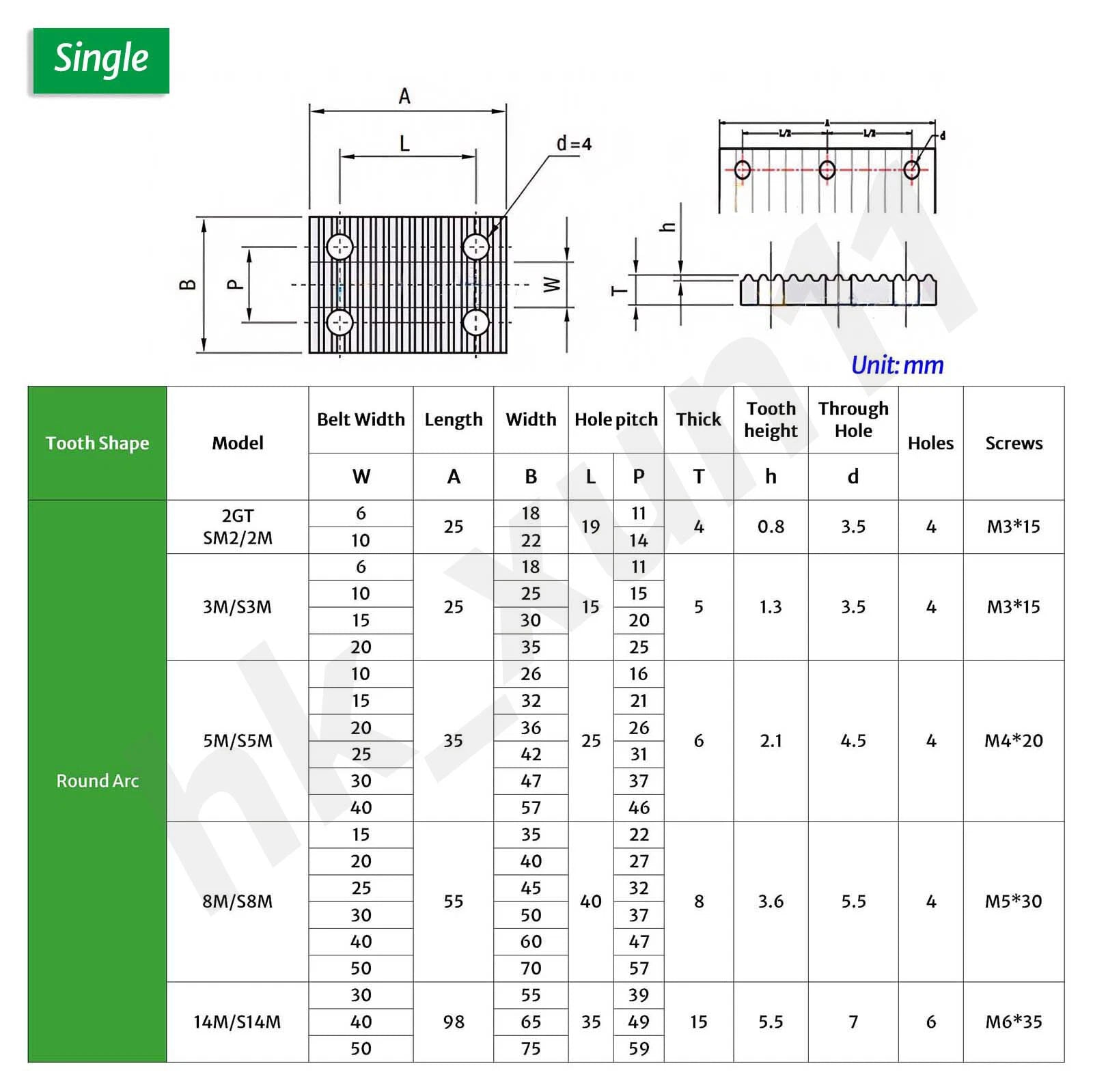

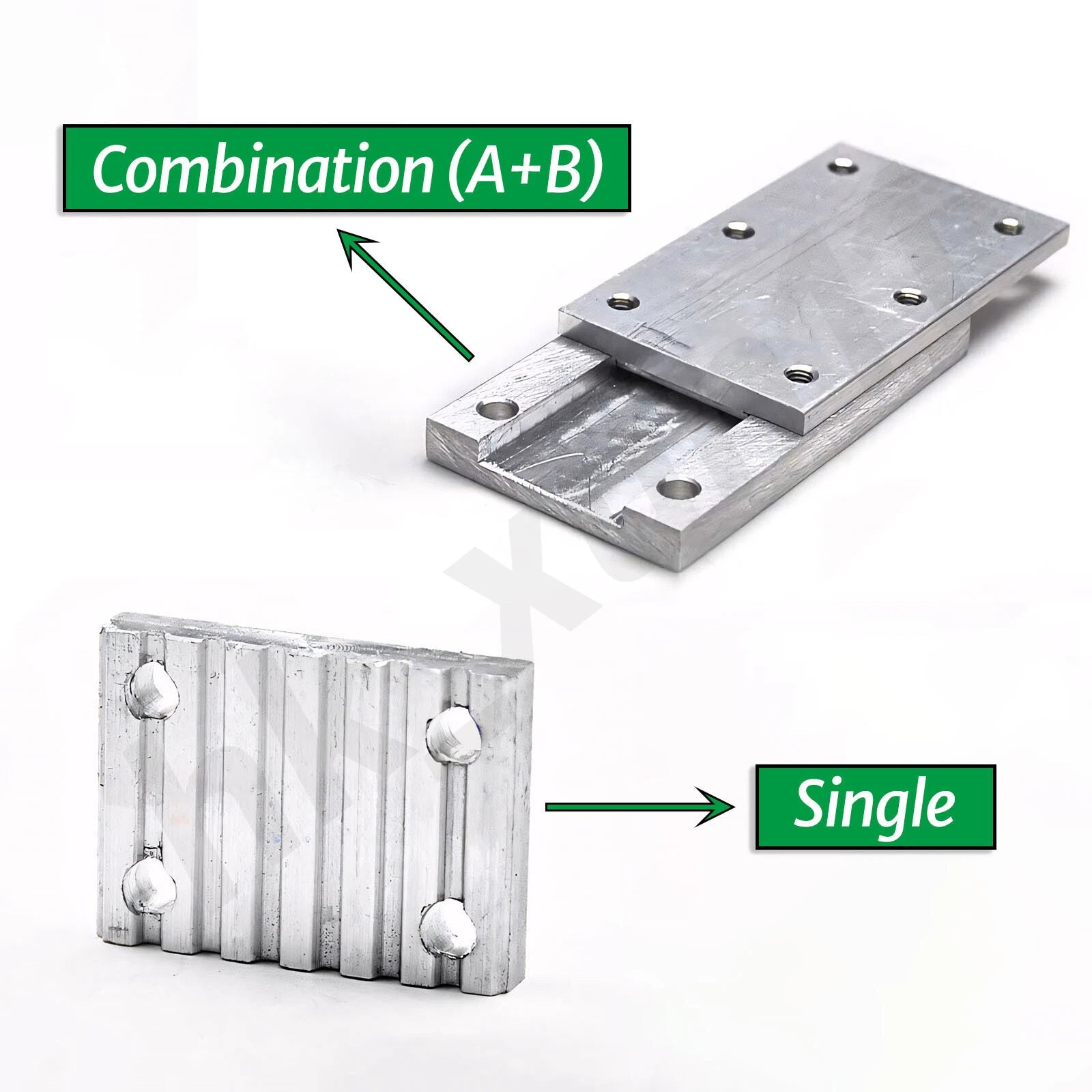

The open-ended timing belt is the flexible drive element you cut to length. The Timing Belt Clamp is a metal bracket used to grip and anchor the cut end of the belt to a carriage or linear axis — commonly used in CNC routers and laser cutters. Both are available as separate variants in this listing. A+B clamp sets include both the top and bottom plates; Single clamps include one plate only.

Why choose PU over rubber for a timing belt?

Polyurethane timing belts generally offer better dimensional stability, lower elongation under load, and improved resistance to oils and abrasion compared to neoprene rubber belts. This makes them a popular choice for precision CNC and 3D printing applications where consistent positioning accuracy matters. PU belts also tend to run quieter at higher speeds.

🛒 Select your type, model, and amount above, then add to cart — ships from our US warehouse.
