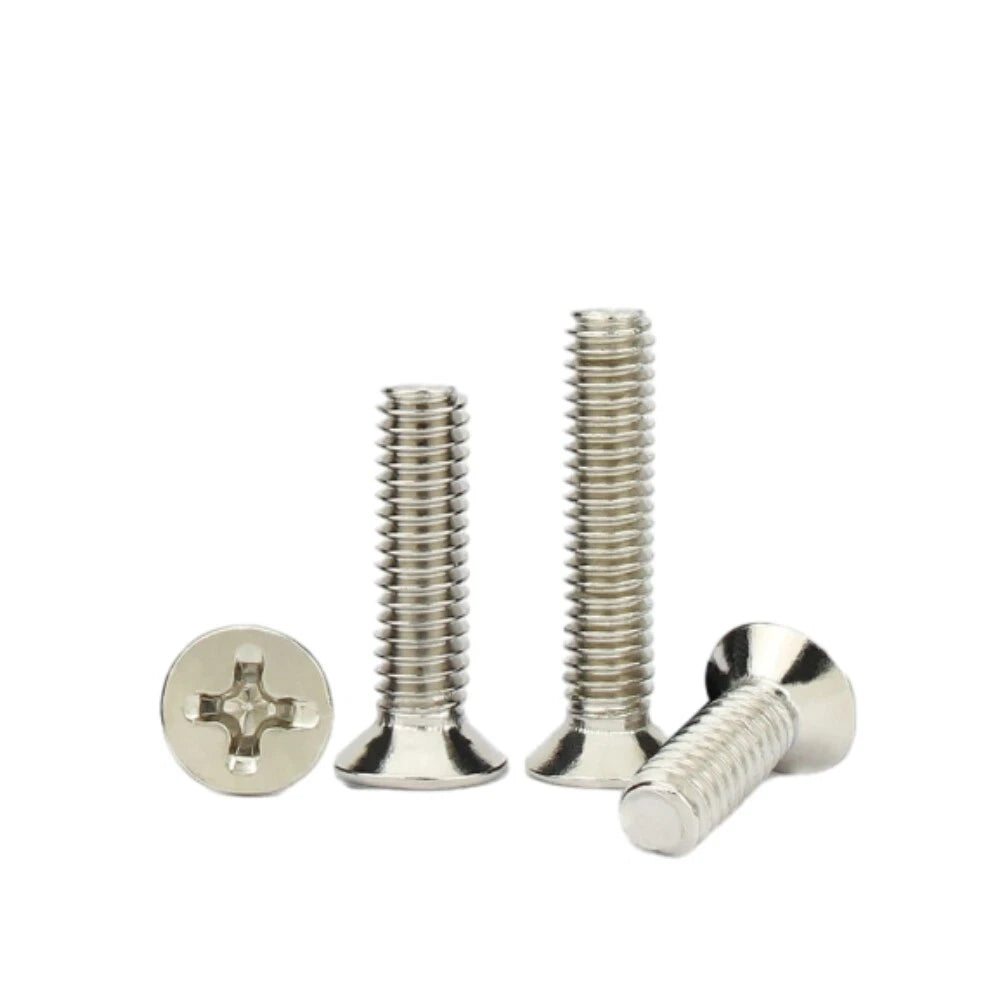

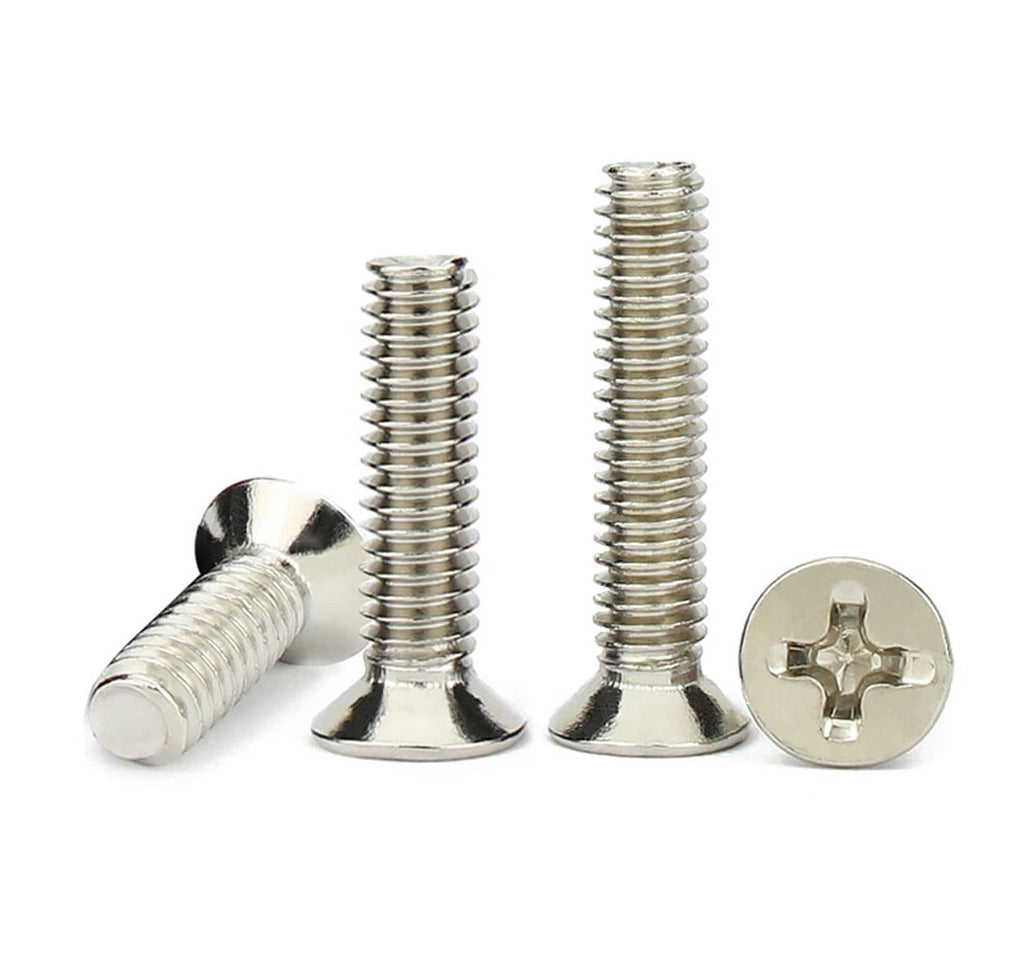

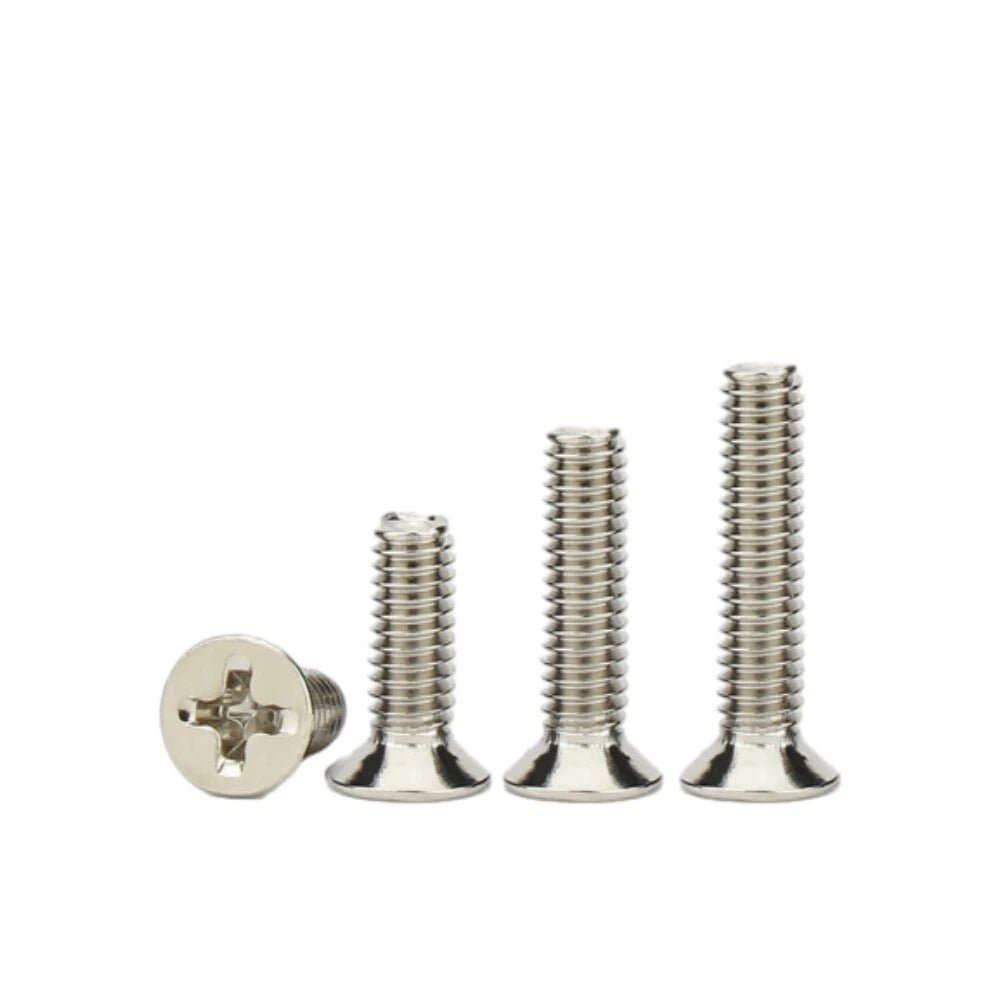

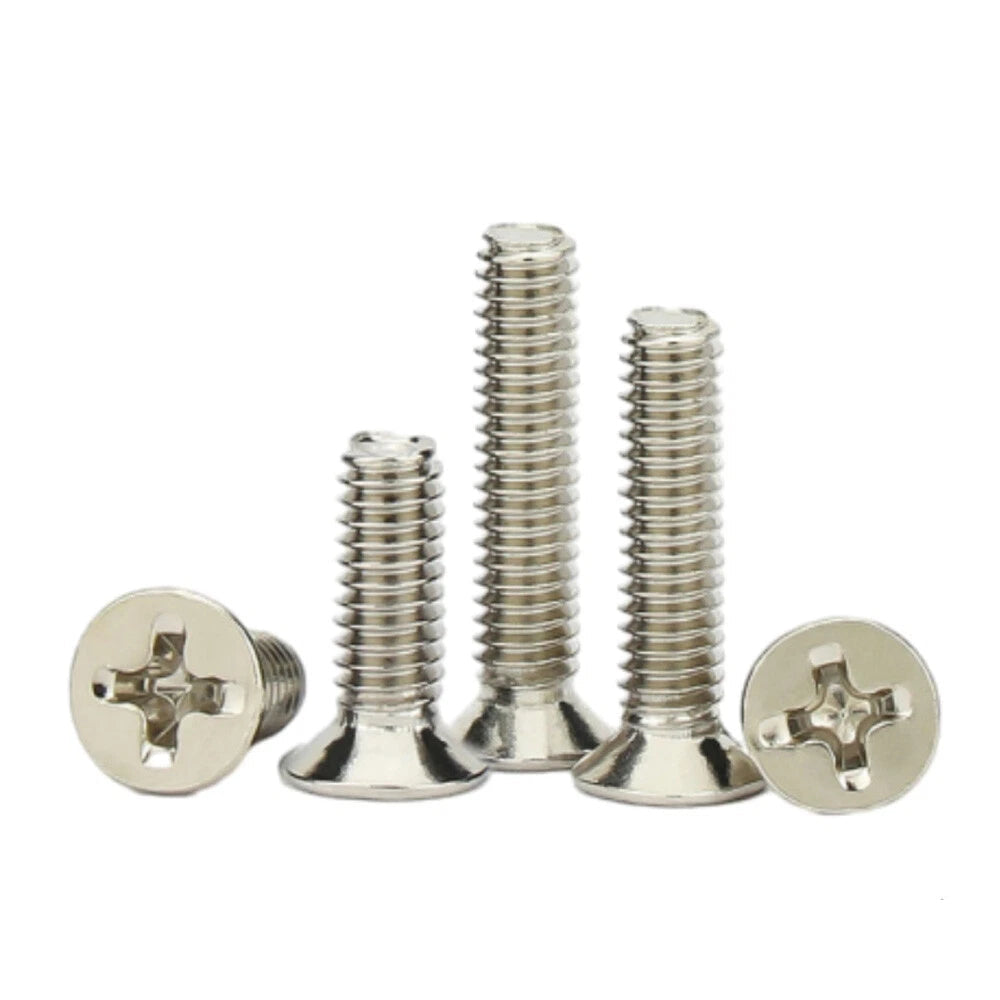

When a flush, low-profile fastener is non-negotiable — whether you're assembling a precision electronics enclosure, securing a panel, or building a clean mechanical joint — a poorly sized or poorly finished screw creates real problems. These Phillips drive countersunk flat head machine screws give engineers, makers, and tradespeople a reliable metric fastener across a wide size range without hunting across multiple suppliers.

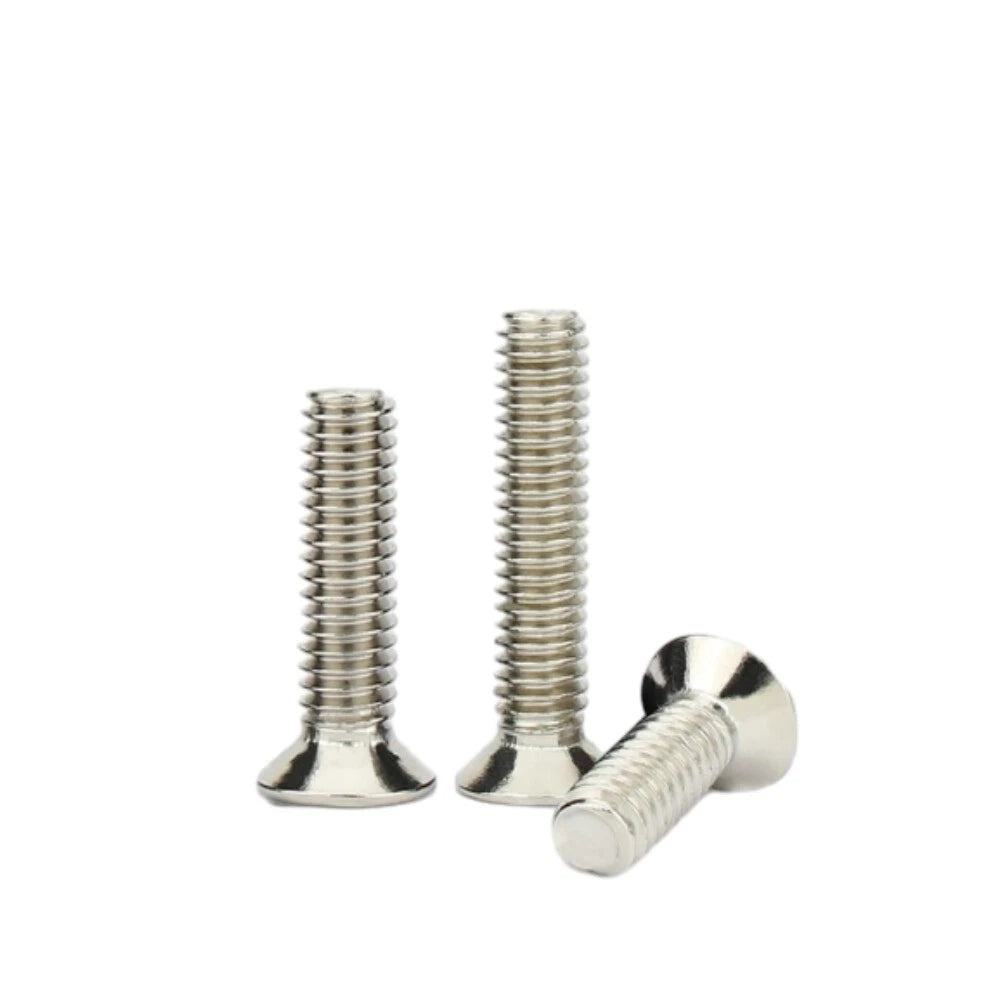

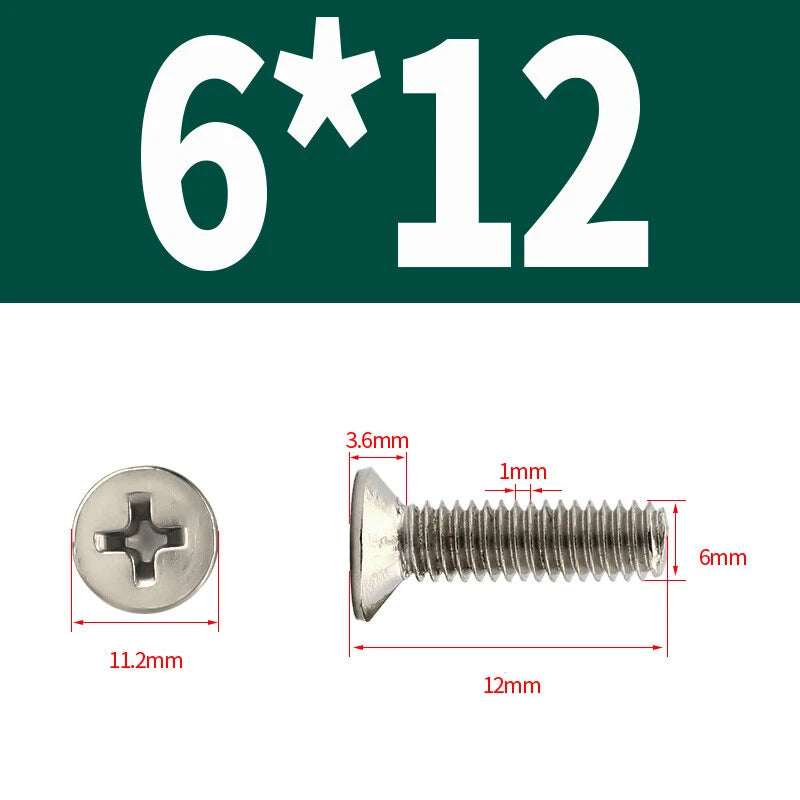

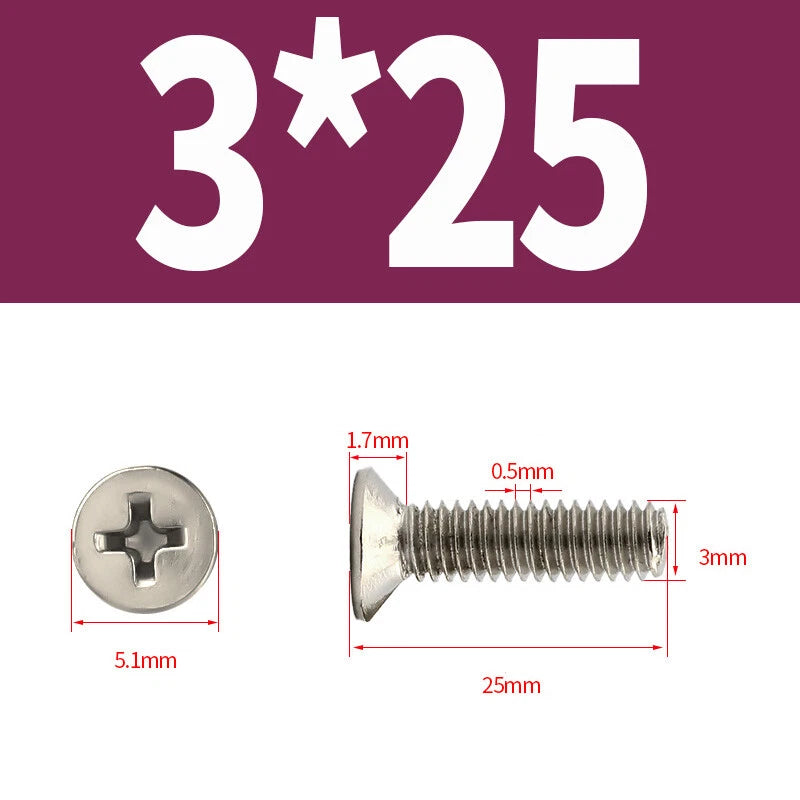

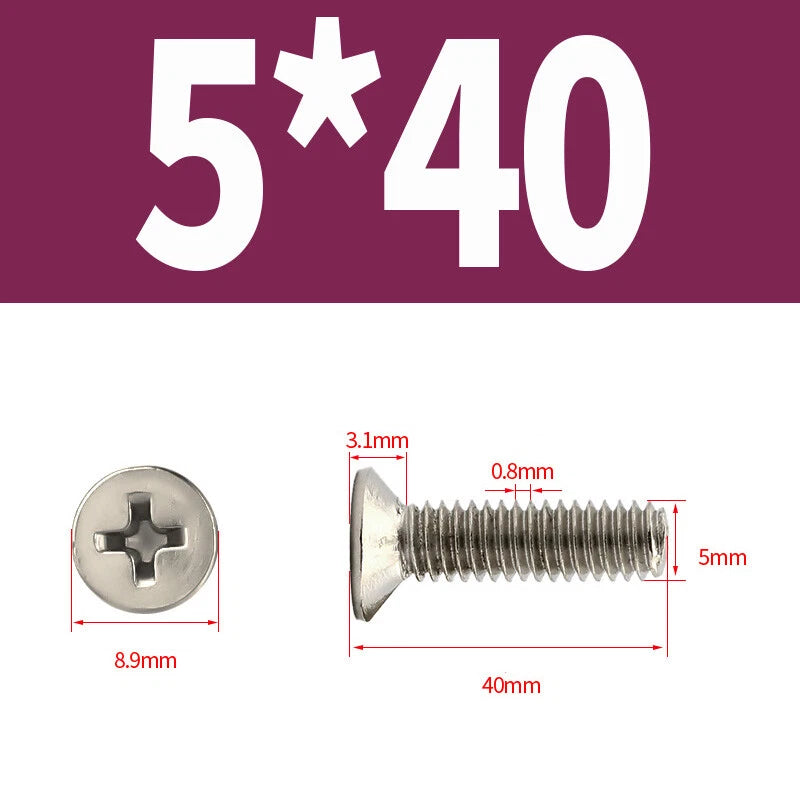

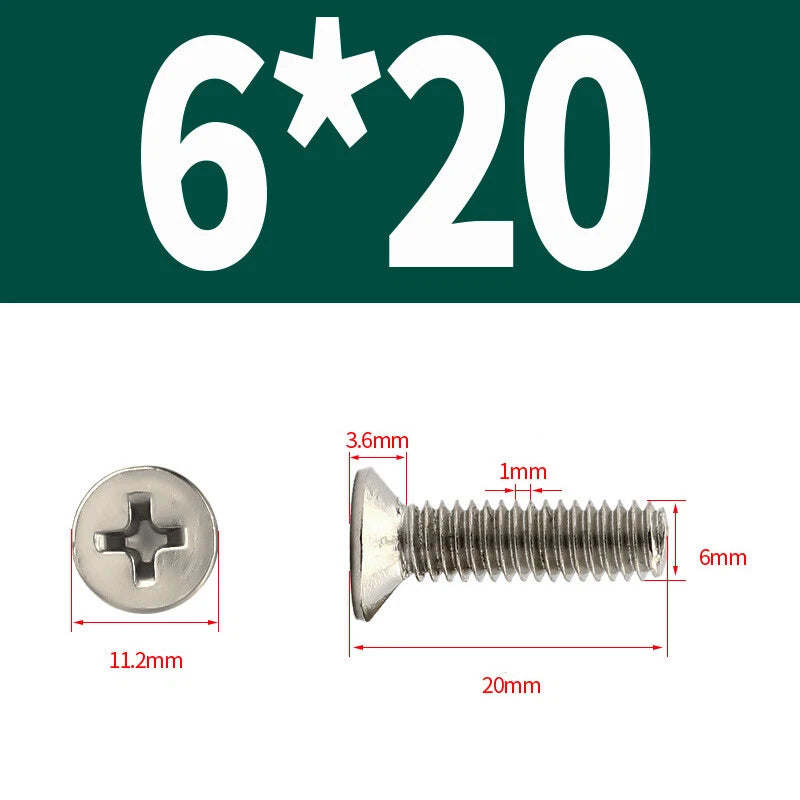

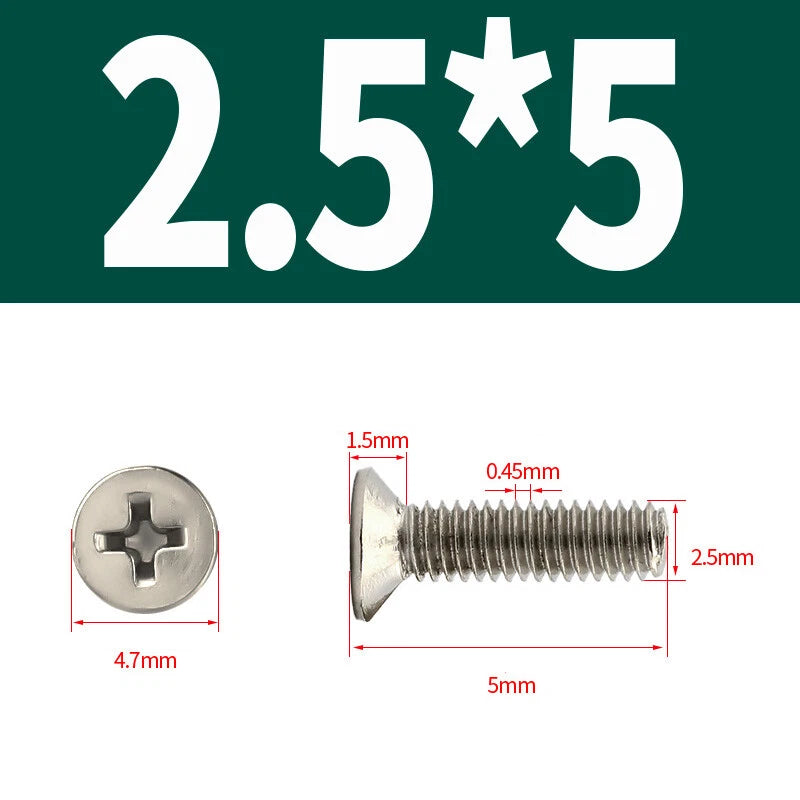

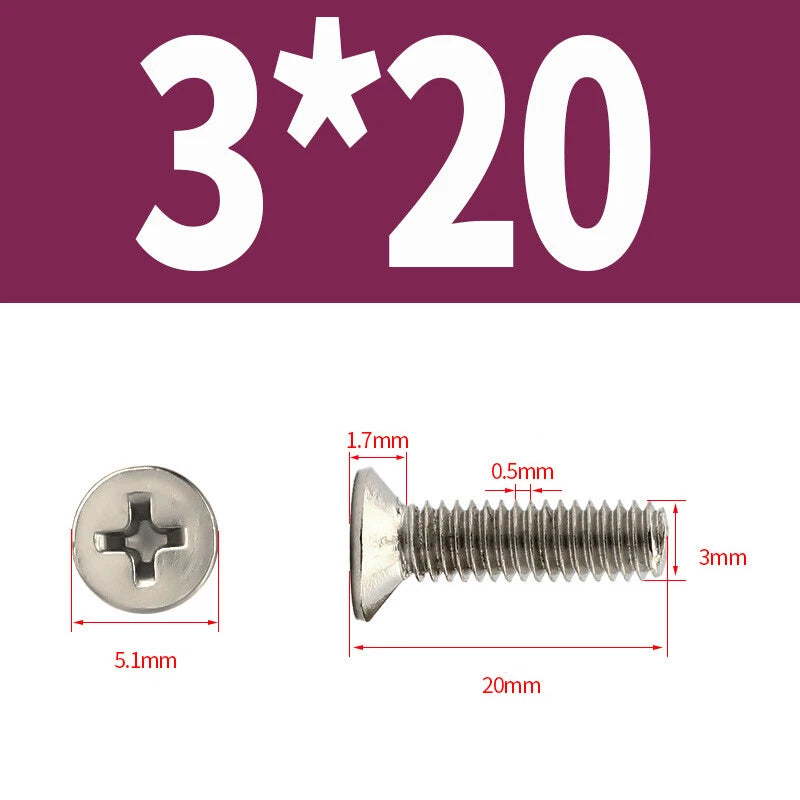

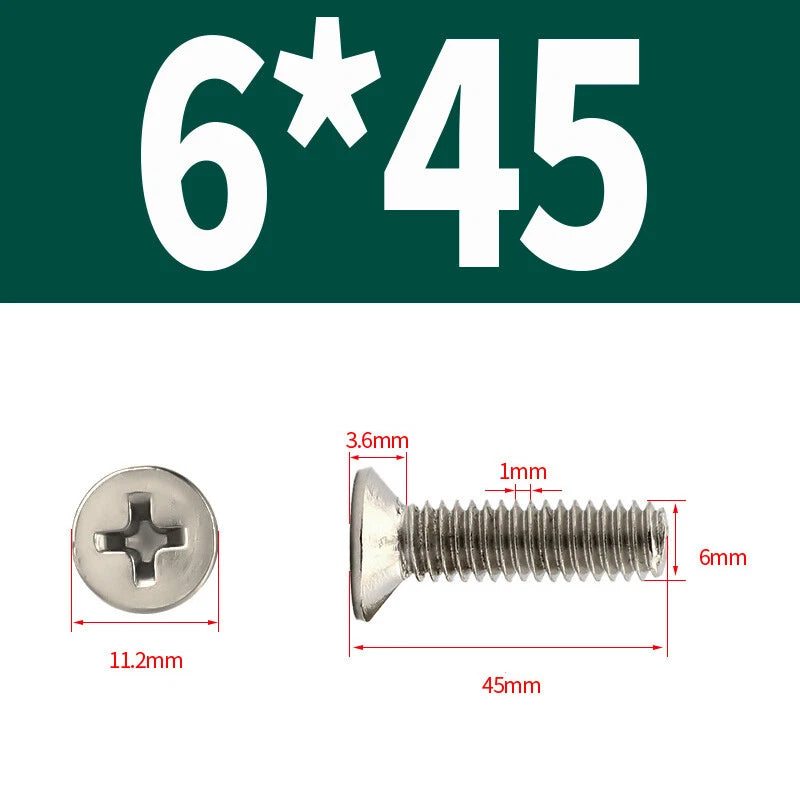

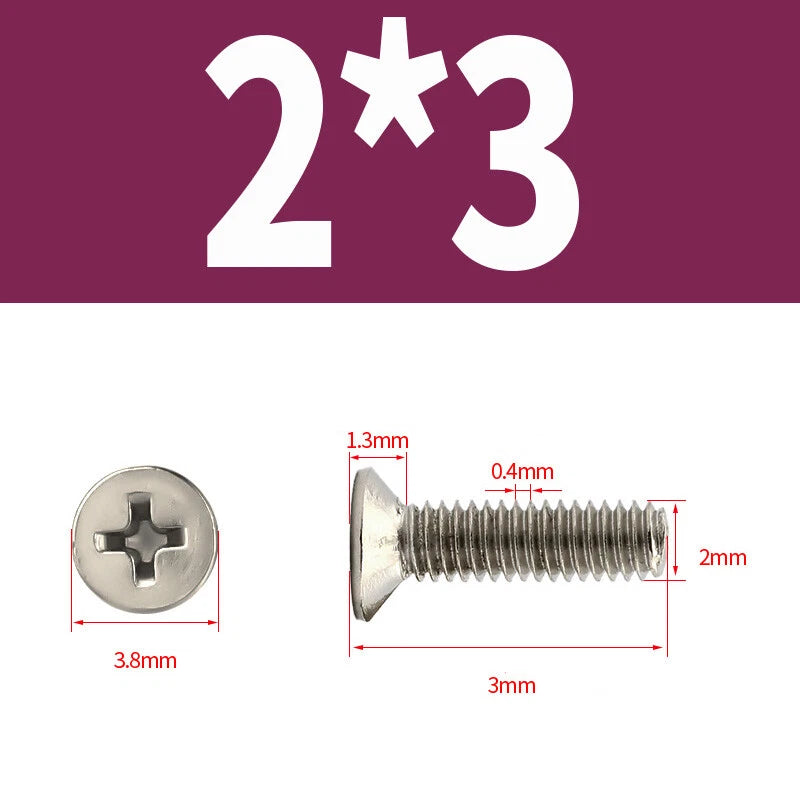

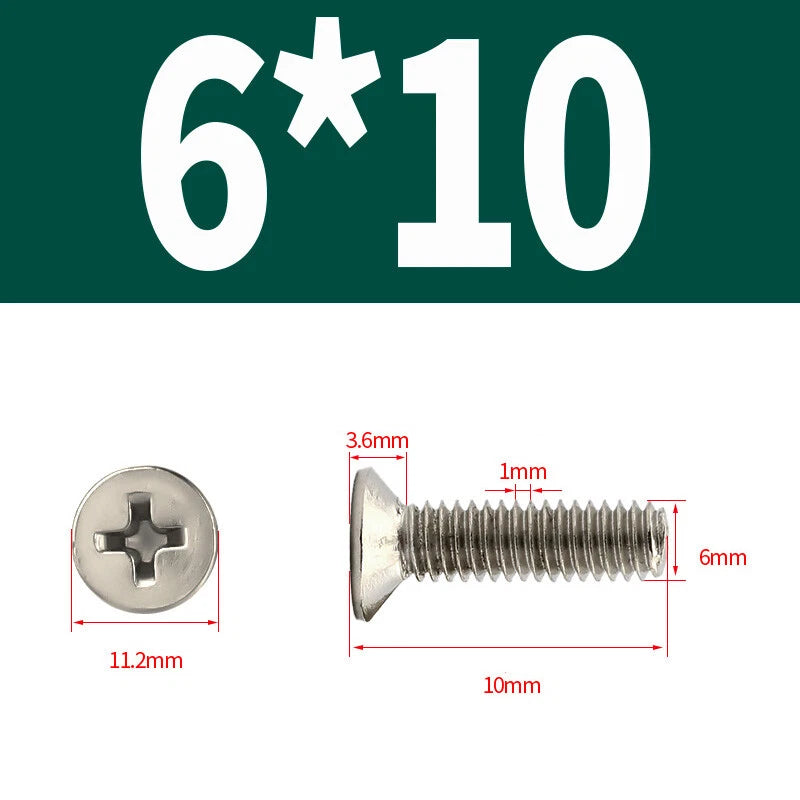

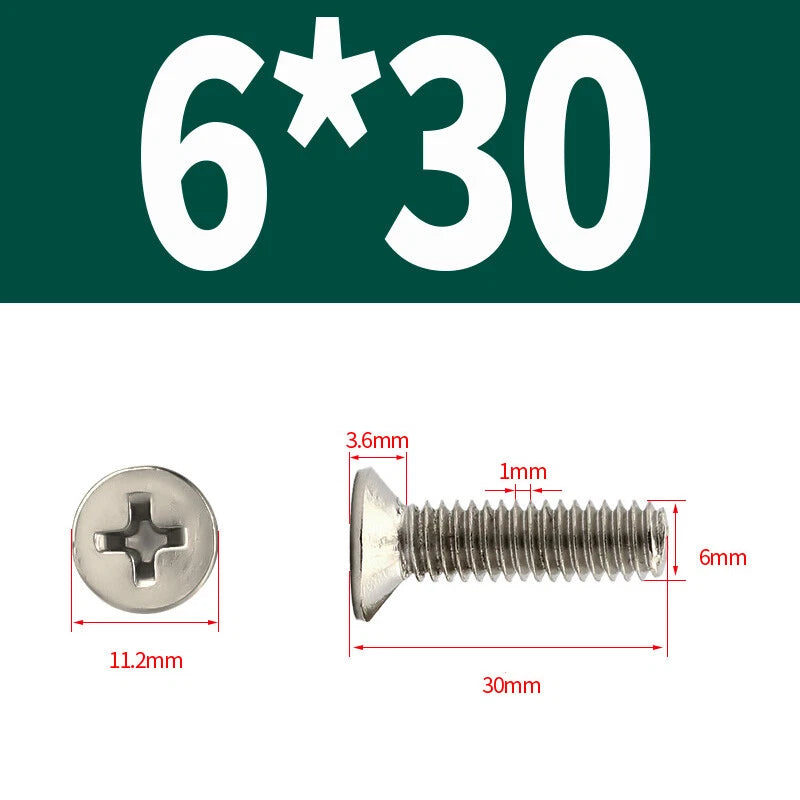

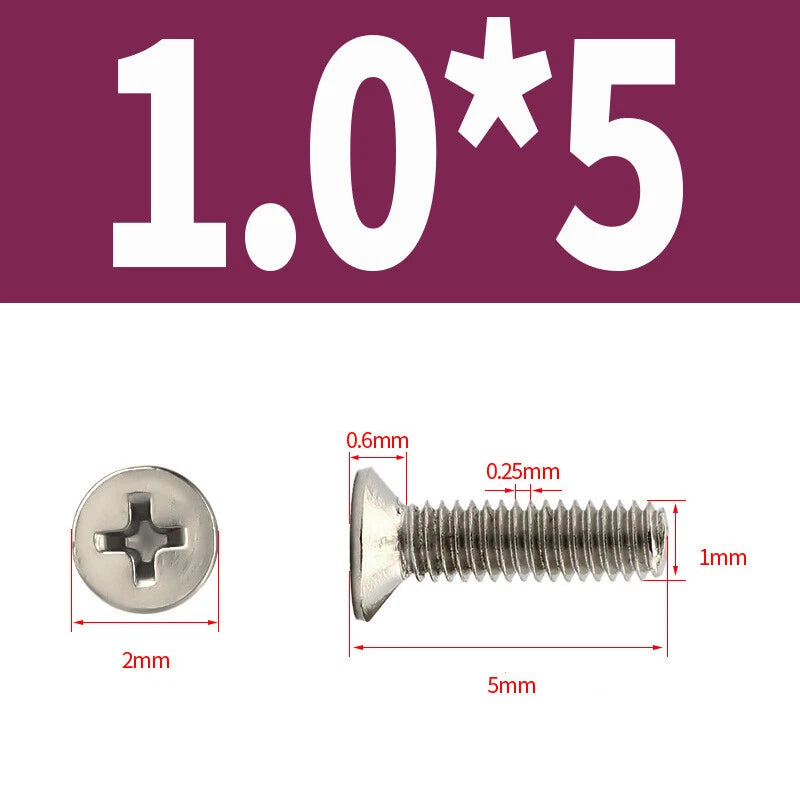

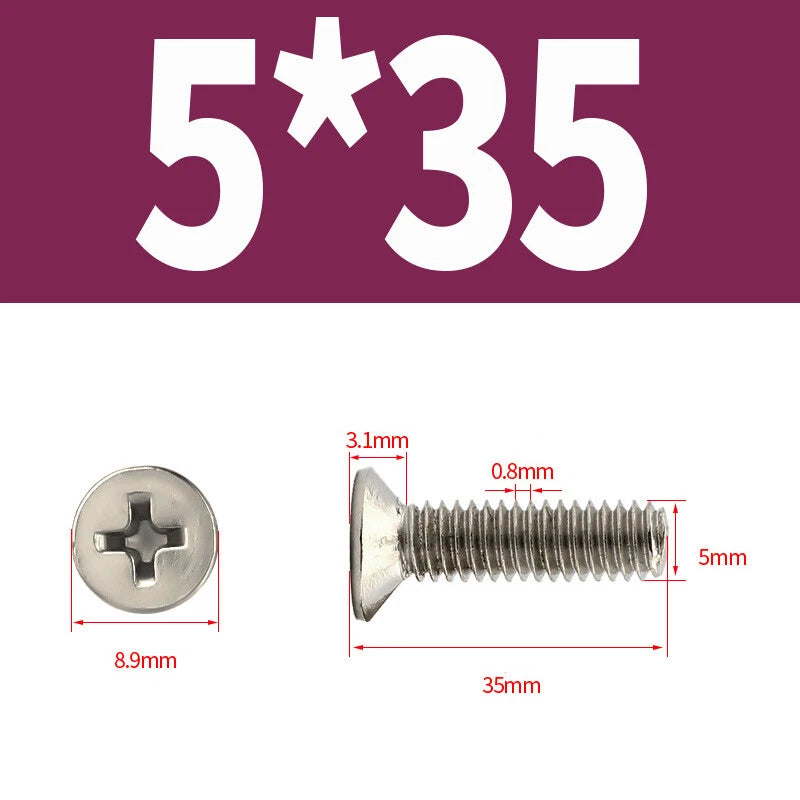

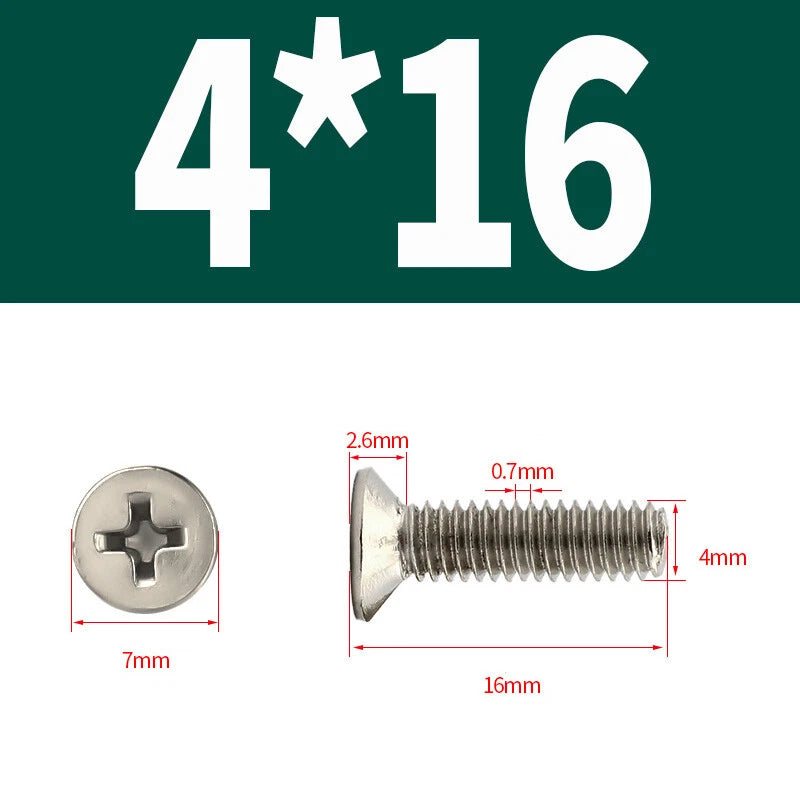

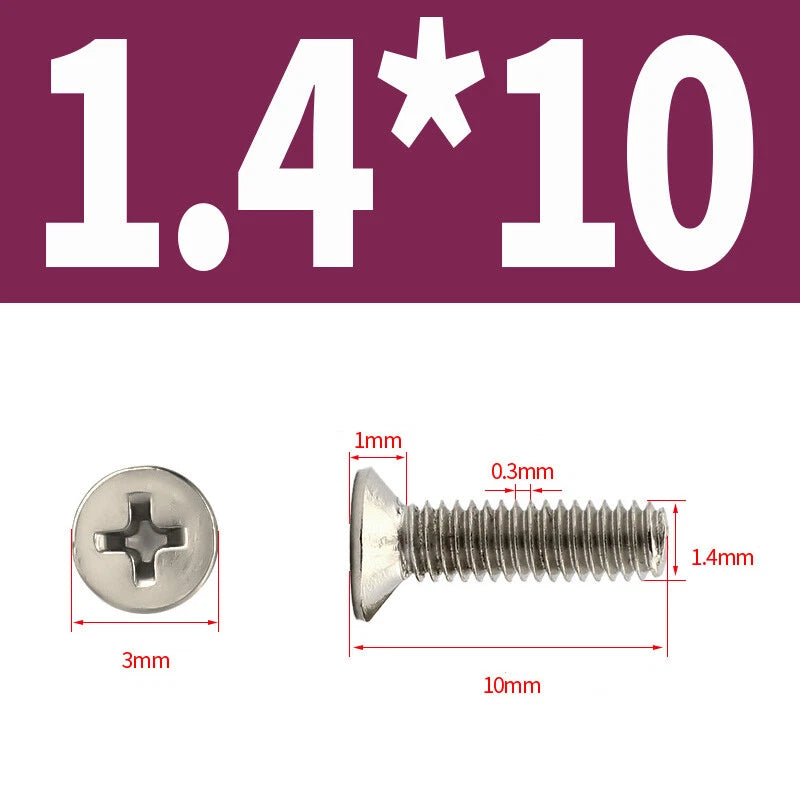

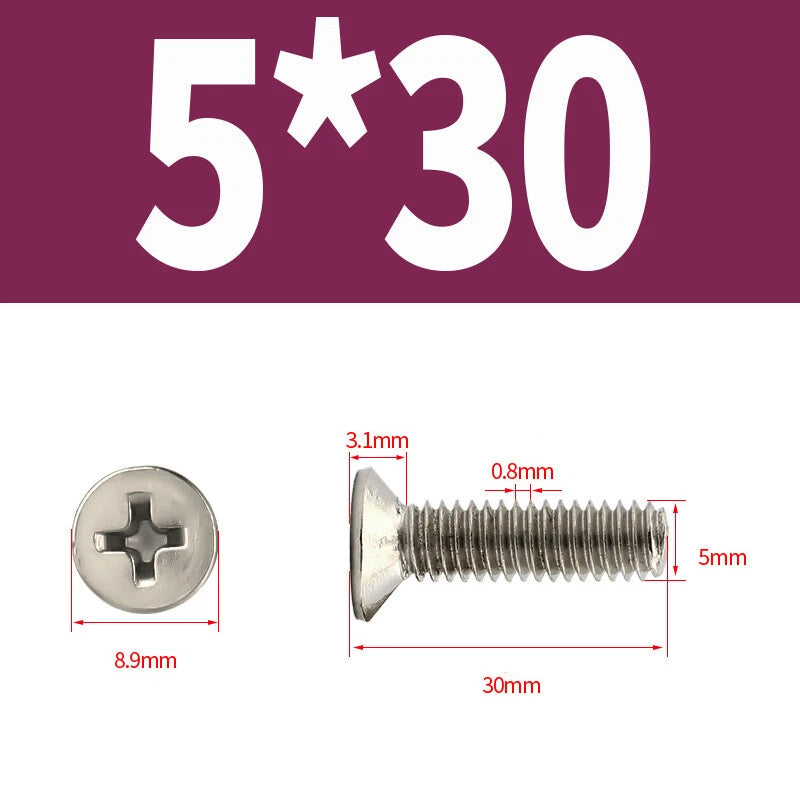

Manufactured to DIN 965 specifications, each screw features a carbon steel core with a nickel plating finish. Thread sizes span M1.0 through M6, with lengths from 3mm to 50mm (approximately 0.12" to 1.97"). Pack quantities range from 10 to 500 pieces depending on the size selected, making these suitable for both prototyping and production runs.
Typical use cases include electronics chassis assembly (M1.0–M2 range), mechanical enclosures and junction boxes (M3–M4 range), furniture hardware and cabinetry (M4–M6 range), and general-purpose DIY fastening where a flush head profile is required. The countersunk head sits flush with or below the surface, eliminating snag points in finished assemblies.
| Standard | DIN 965 |
|---|---|
| Drive Type | Phillips (Cross / PH) |
| Head Style | Countersunk Flat (90° included angle) |
| Material | Carbon Steel |
| Surface Finish | Nickel Plating |
| Thread System | Metric (ISO) |

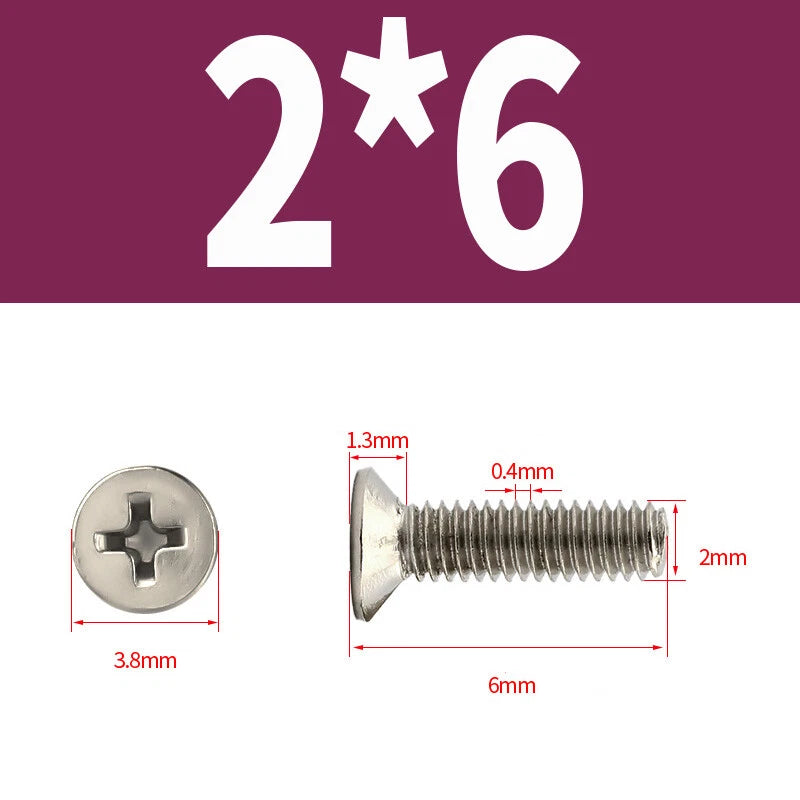

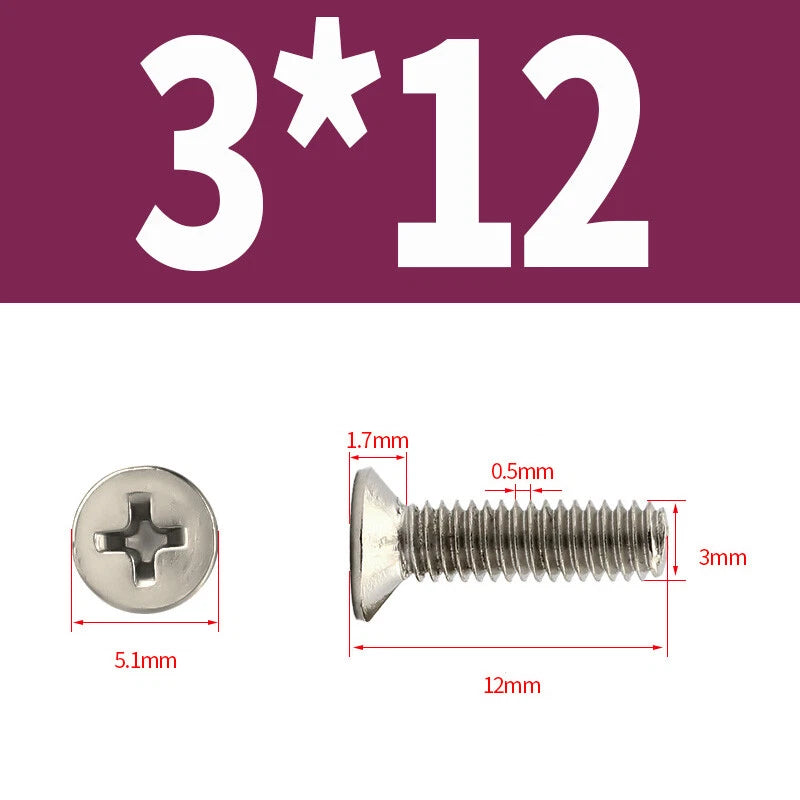

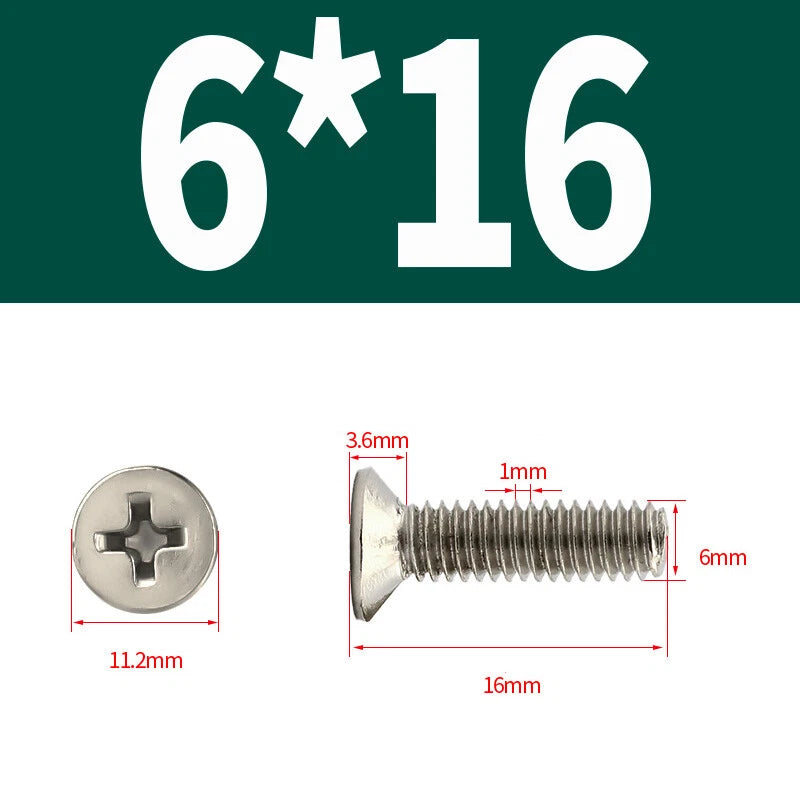

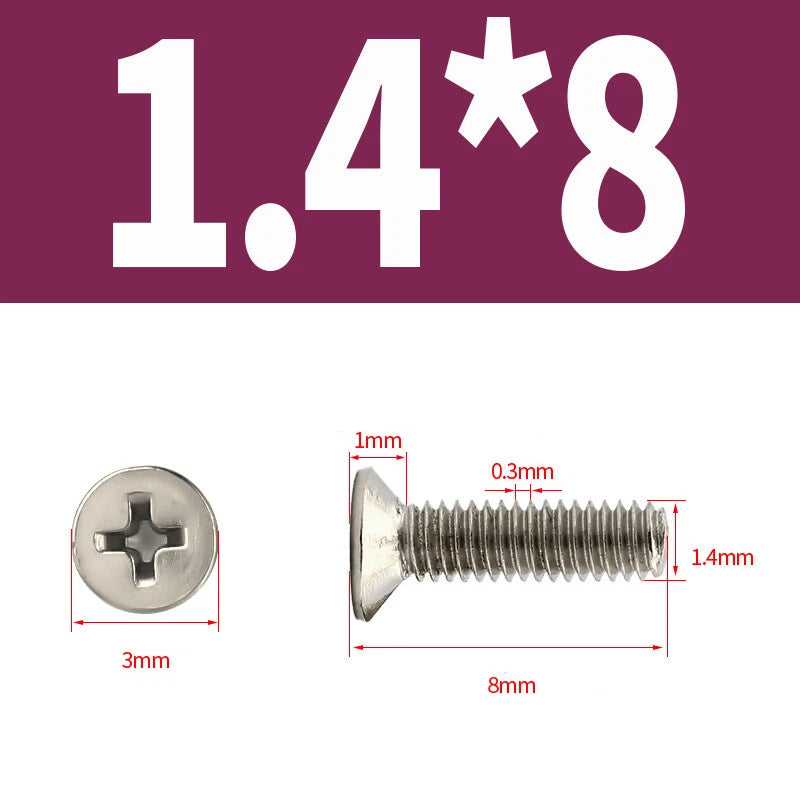

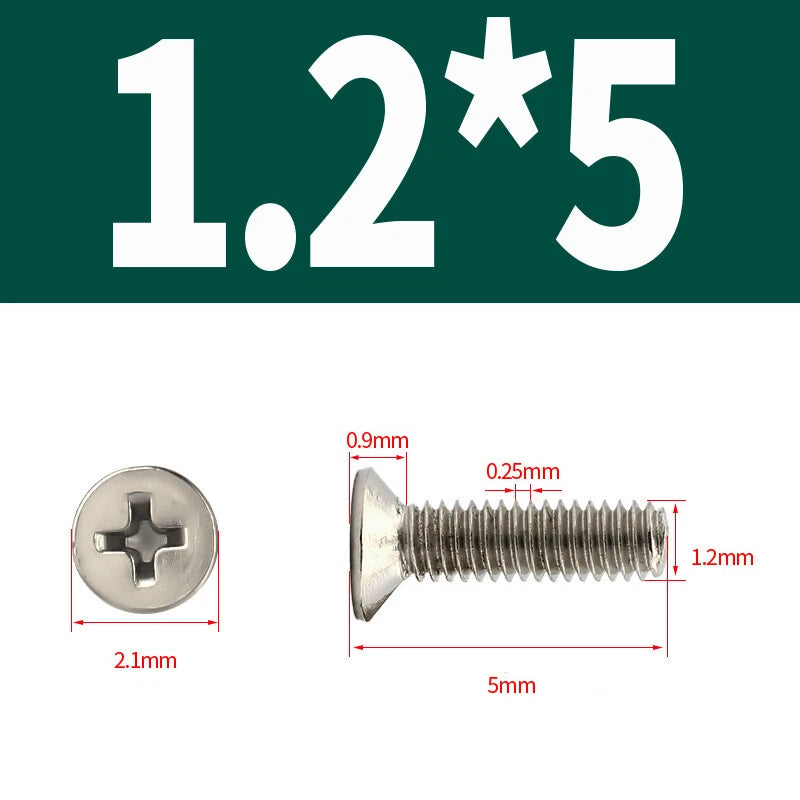

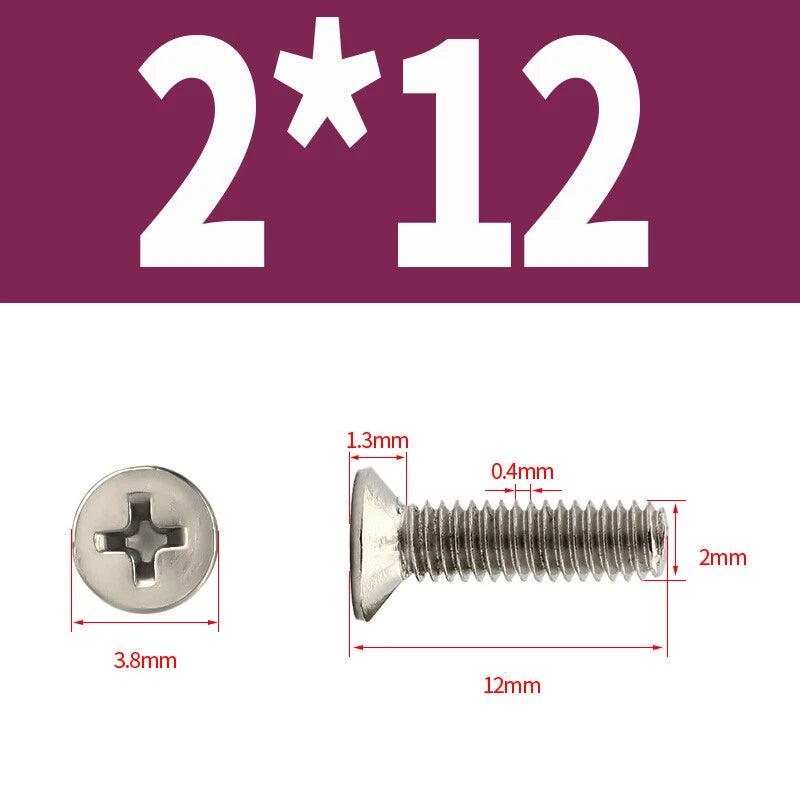

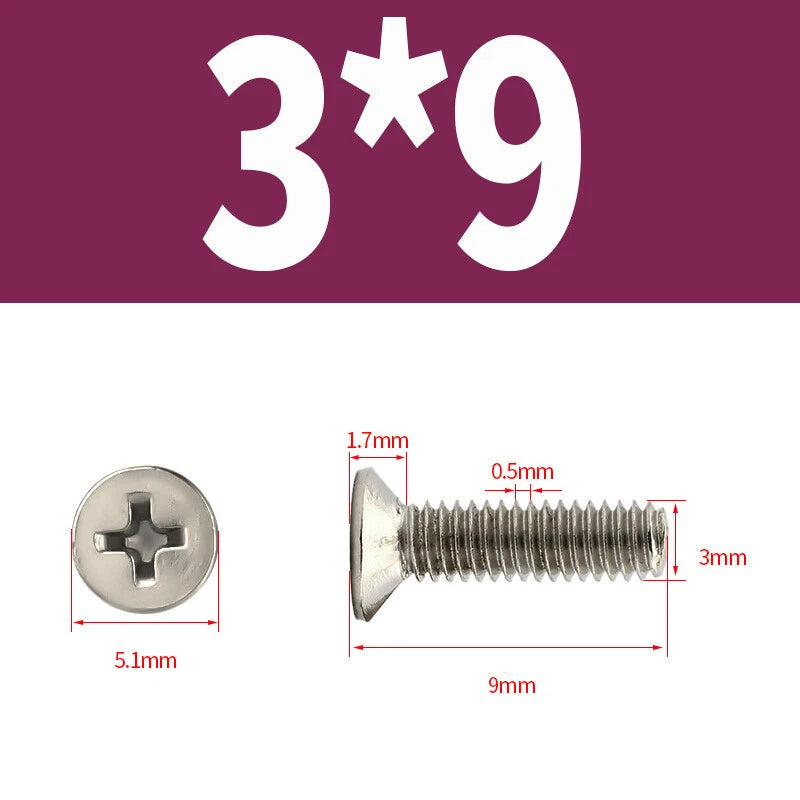

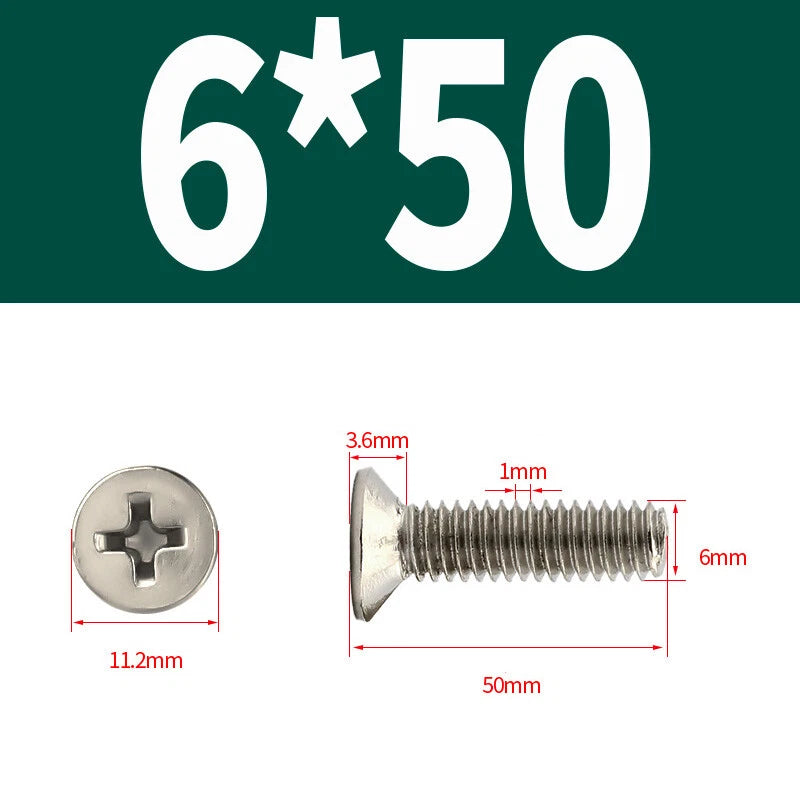

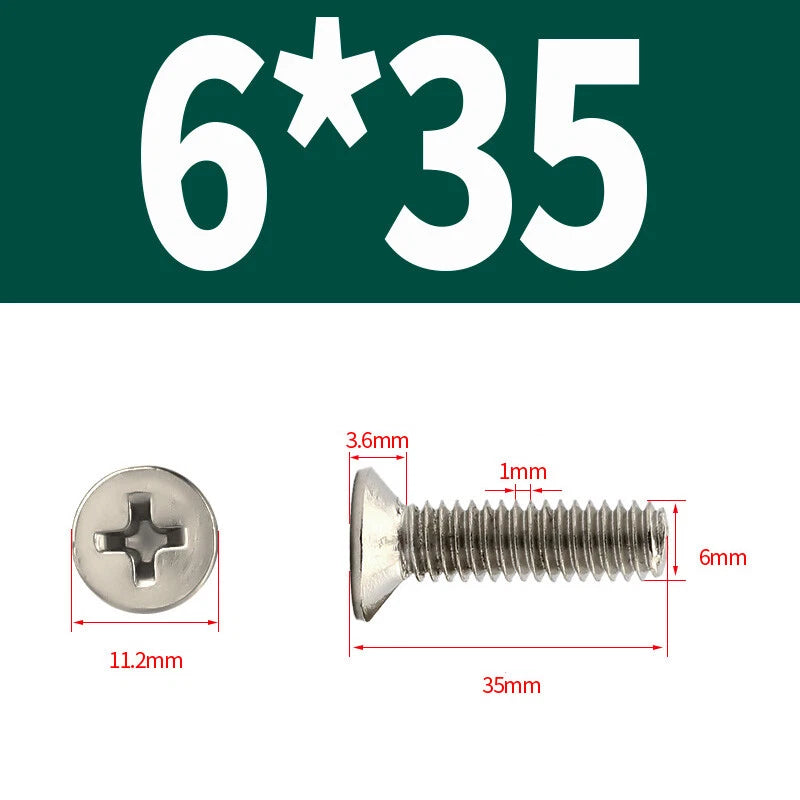

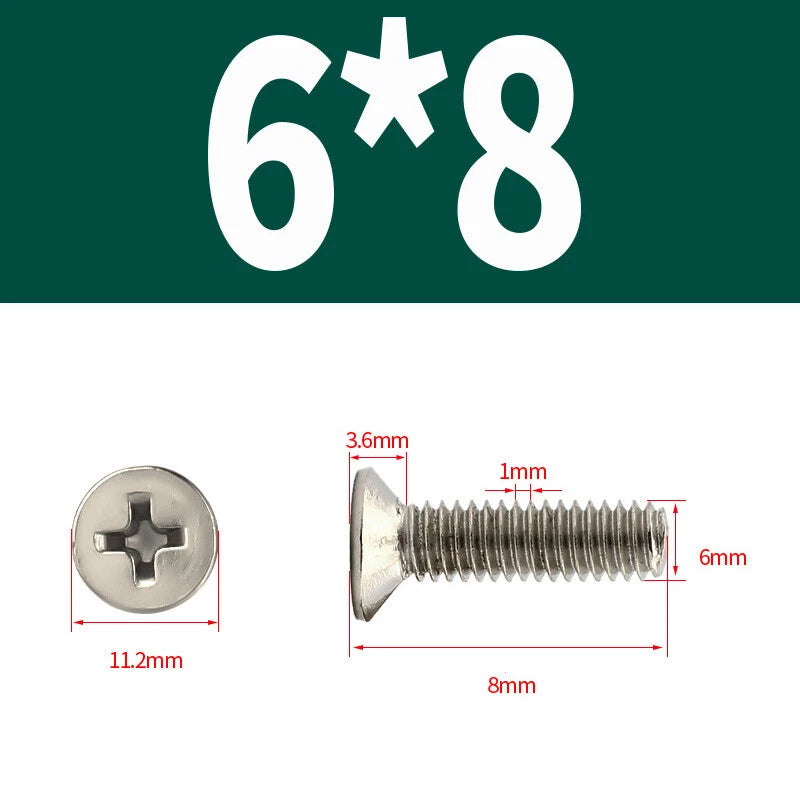

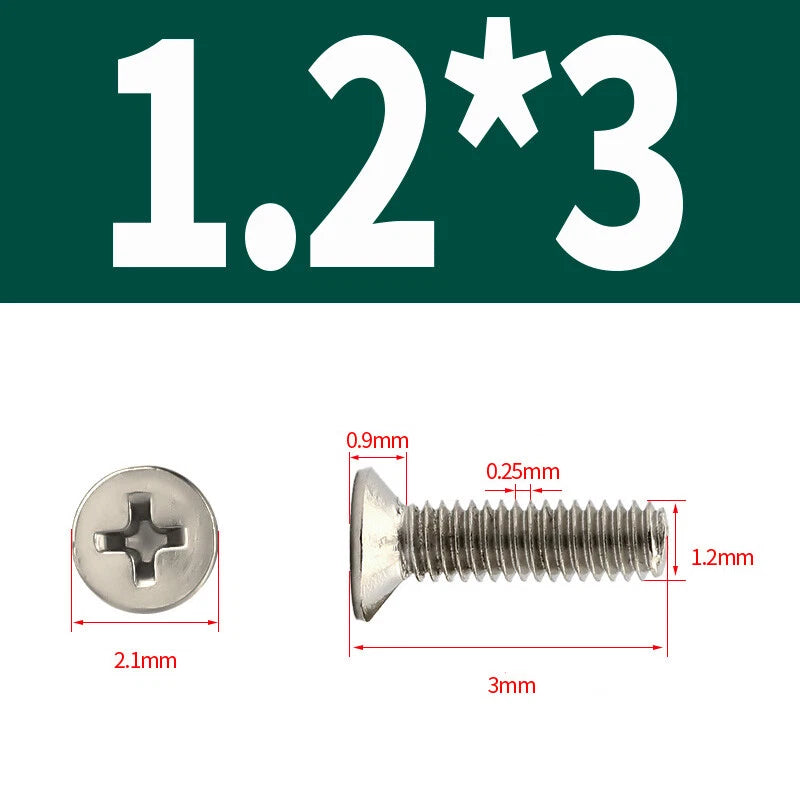

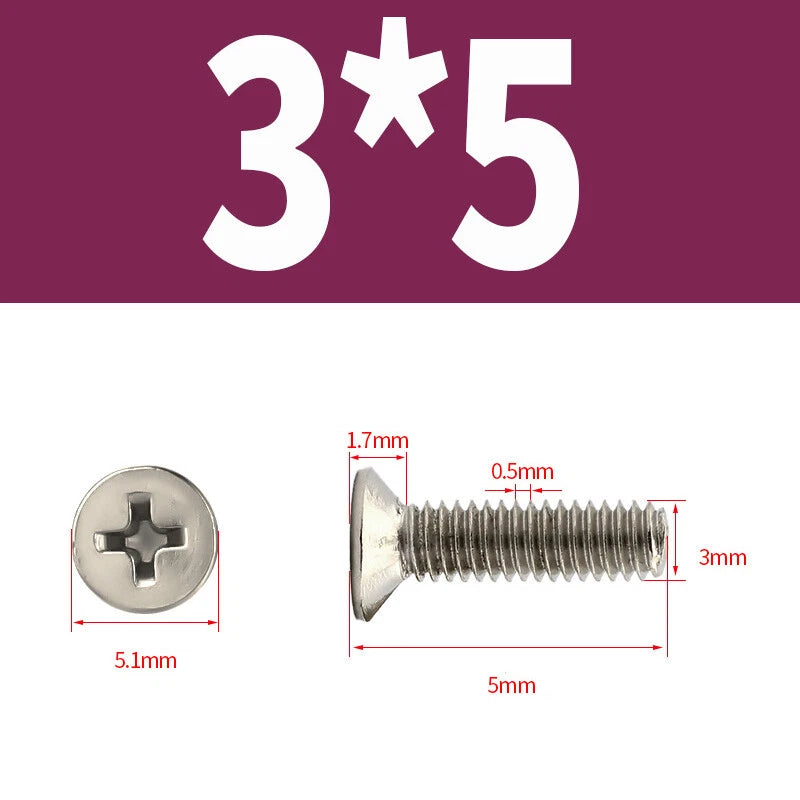

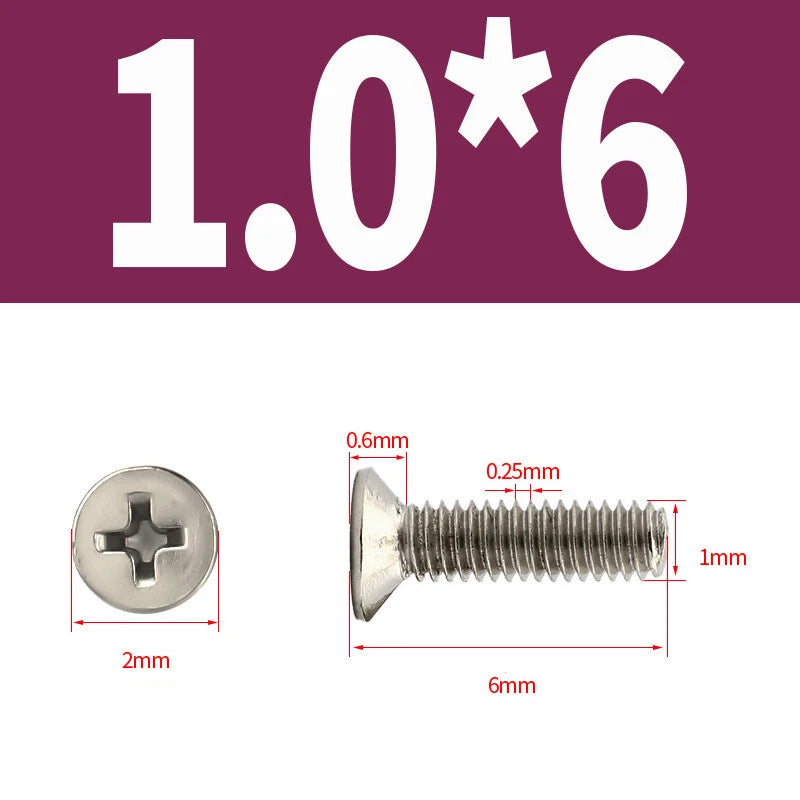

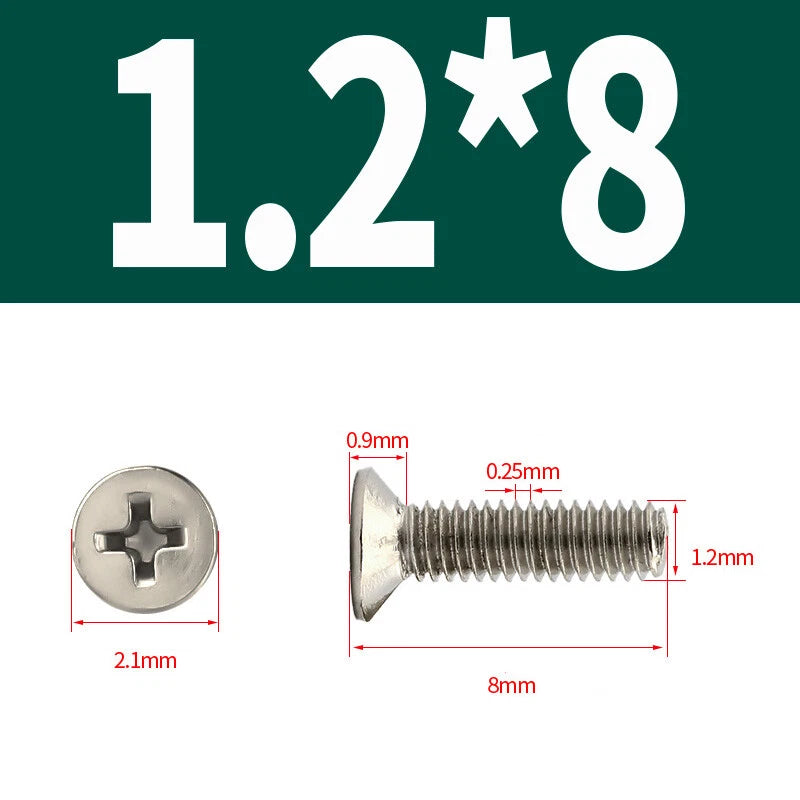

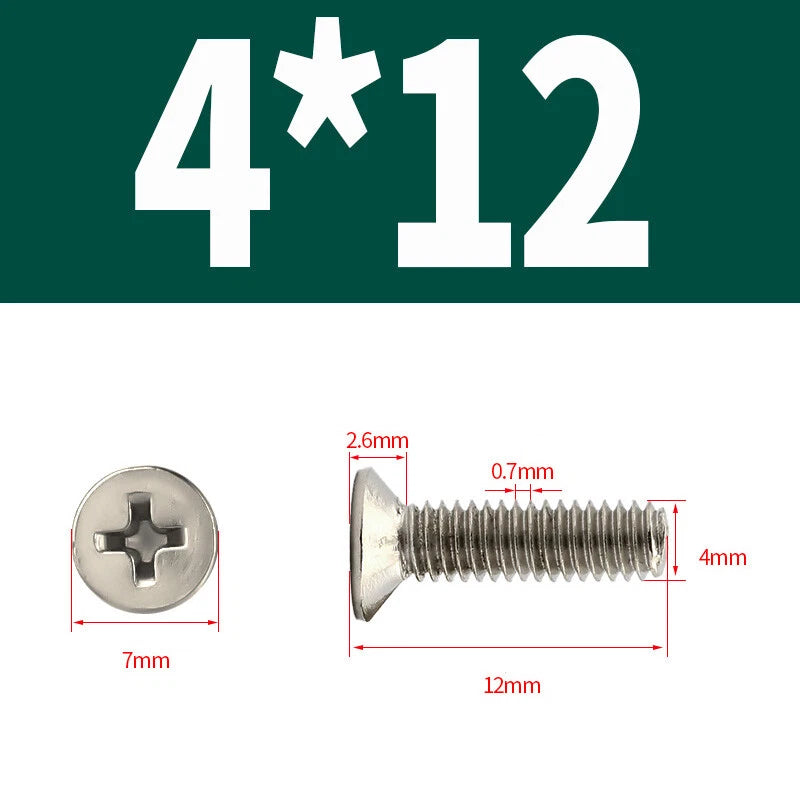

| Thread Sizes | M1.0, M1.2, M1.4, M1.6, M2, M2.5, M3, M4, M5, M6 |
| Length Range | 3mm – 50mm (approx. 0.12" – 1.97") |
| Pack Quantities | 10 / 20 / 30 / 50 / 60 / 90 / 100 / 150 / 250 / 300 / 500 Pcs (varies by size) |
| Recommended Driver Bit | PH000–PH00 (M1.0–M1.6) / PH0–PH1 (M2–M3) / PH2 (M4–M6) |
| Corrosion Resistance | Moderate (indoor and light-duty use; see FAQ for outdoor guidance) |
| Application | Electronics, mechanical enclosures, cabinetry, general DIY assembly |

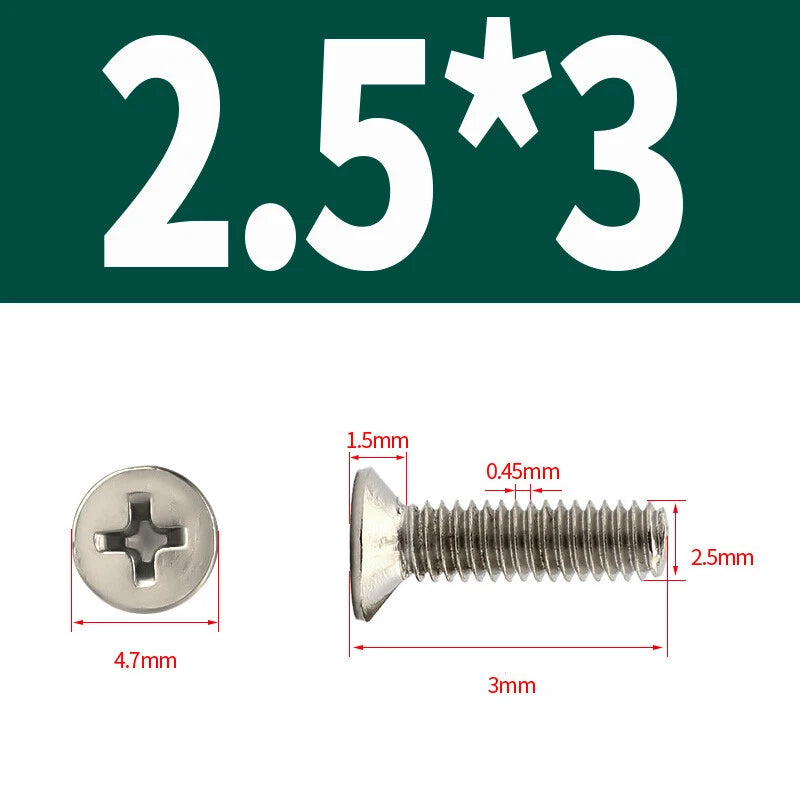

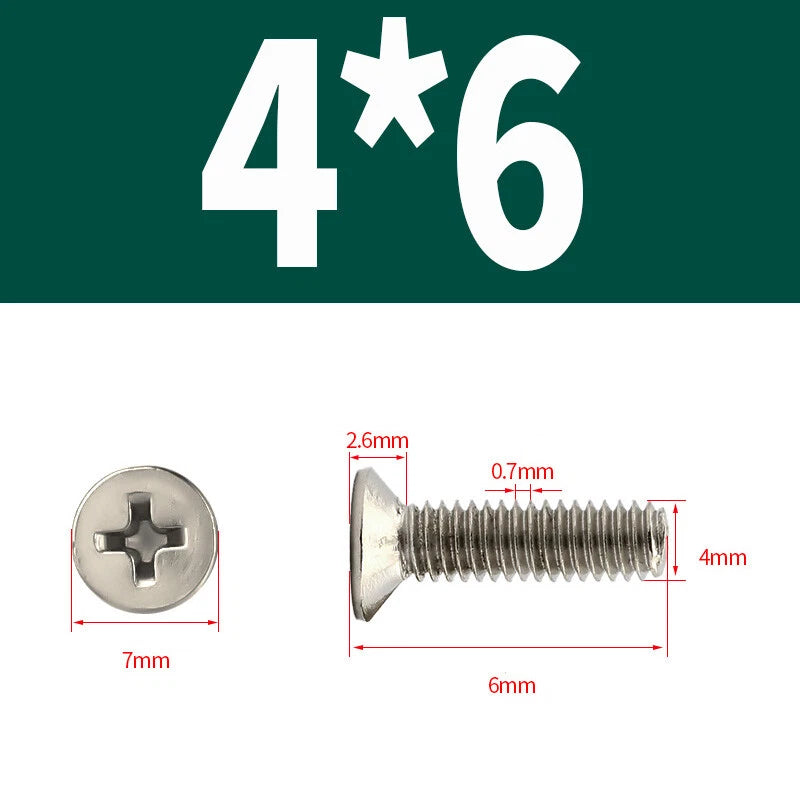

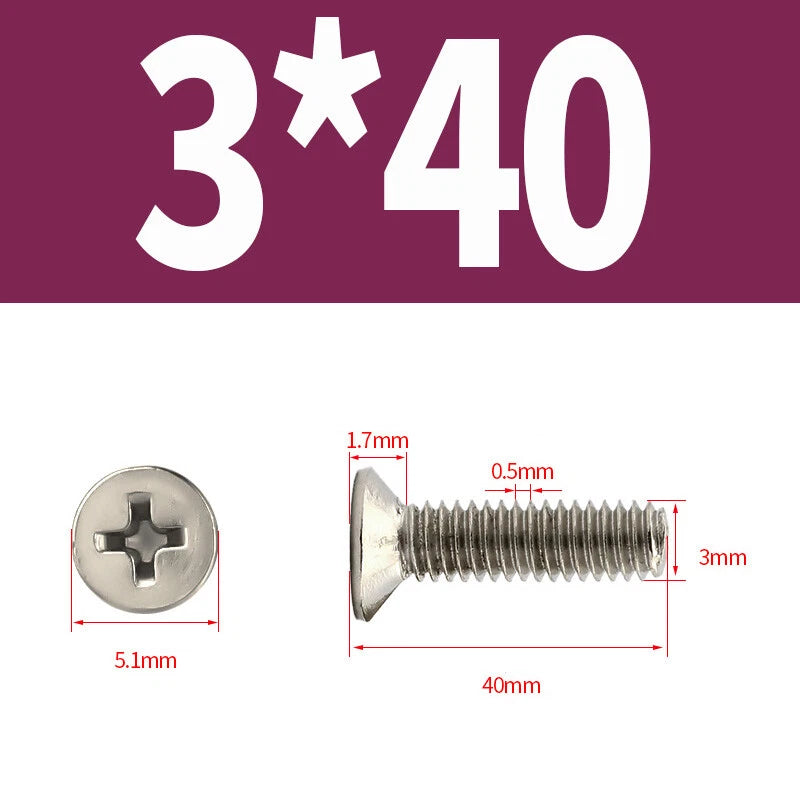

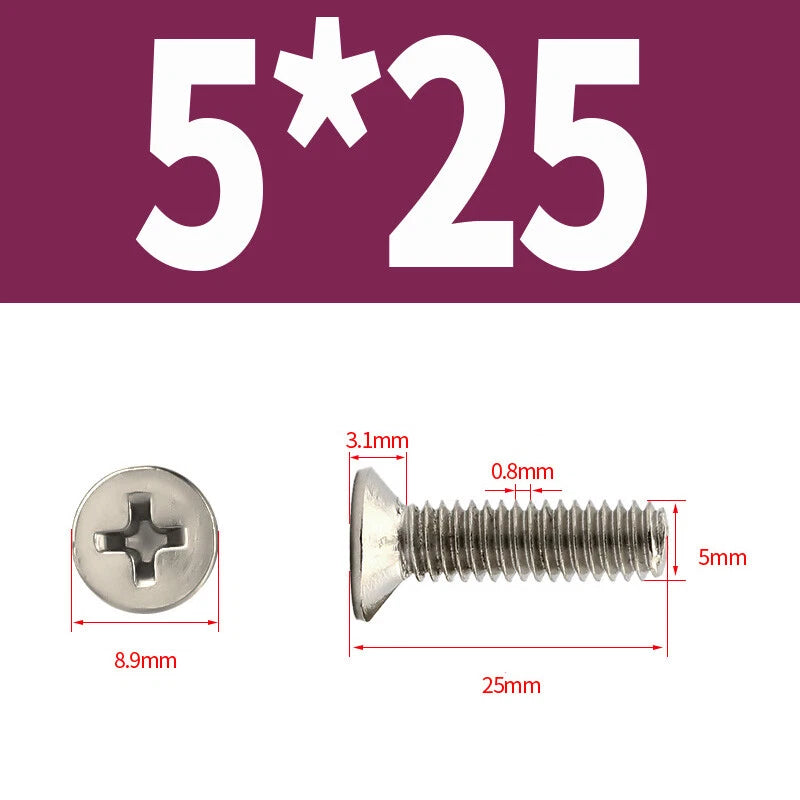

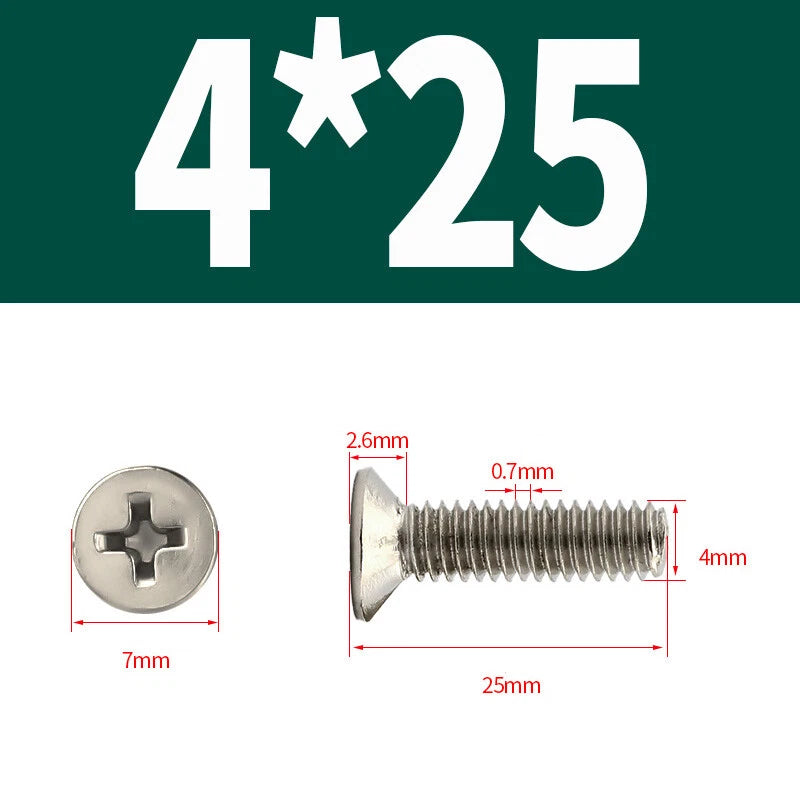

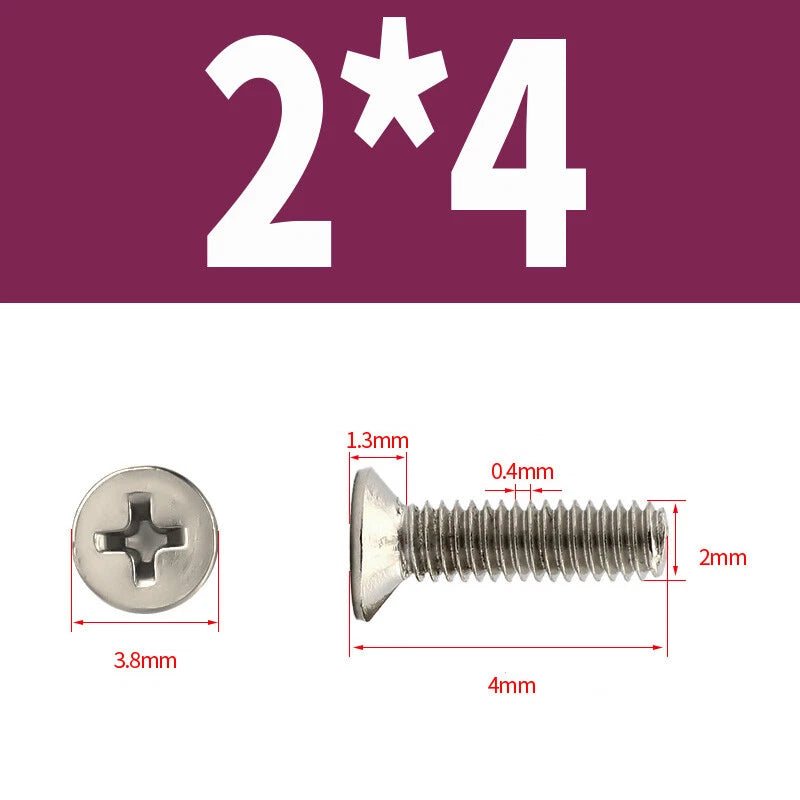

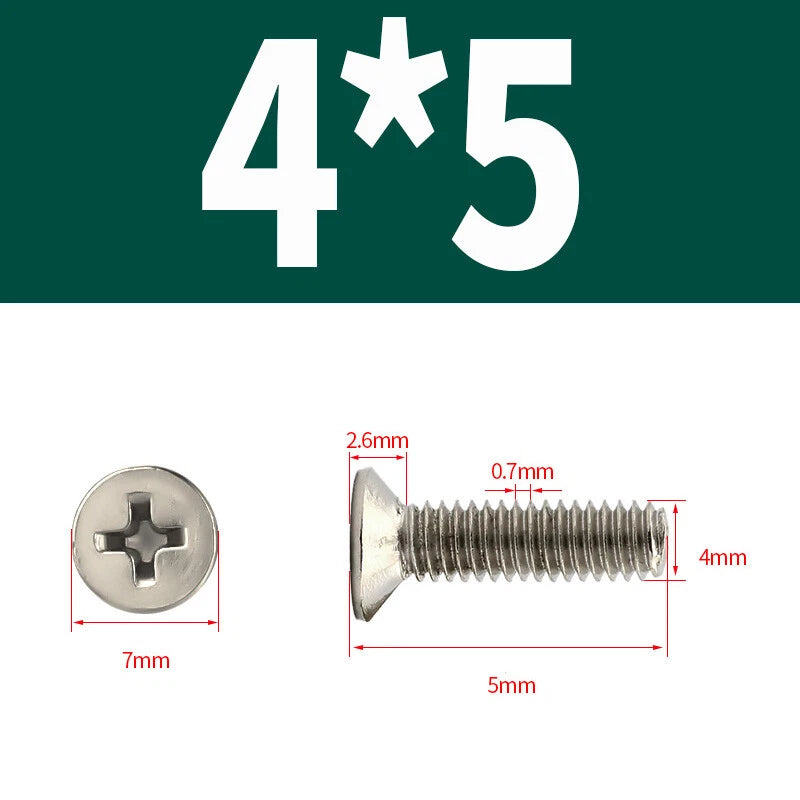

These screws are available in metric thread sizes M1.0, M1.2, M1.4, M1.6, M2, M2.5, M3, M4, M5, and M6, with lengths ranging from 3mm to 50mm. Select your size and quantity combination from the variant options above.
These screws are made from carbon steel with a nickel plating finish. The nickel coating provides corrosion resistance and a clean, professional appearance suitable for visible fastening applications.
These screws conform to DIN 965, the German standard for Phillips drive countersunk flat head machine screws. DIN 965 specifies the head angle (typically 90°), thread pitch, and dimensional tolerances.
Yes. The smaller sizes (M1.0–M2) are commonly used in electronics, cameras, and precision instruments. Larger sizes (M3–M6) are generally suited for mechanical assemblies, enclosures, and general DIY projects.
Quantity options vary by size and typically include 10, 20, 30, 50, 60, 90, 100, 150, 250, 300, and 500 pieces per pack. Available quantities for each size are shown in the Amount dropdown when selecting a variant.
For countersunk screws, the length is measured from the top of the head to the tip. As a general rule, the screw should engage at least 1.5× the thread diameter into the receiving material. For thin panels, shorter lengths (3–6mm) are typically appropriate; for structural joints, longer lengths (10–50mm) provide better holding strength.
These screws use a Phillips (cross) drive. For M1.0–M1.6, a PH000 or PH00 bit is generally required. For M2–M3, a PH0 or PH1 bit is typically used. For M4–M6, a PH2 bit is standard. Always use the correct bit size to avoid cam-out and head damage.
The nickel plating provides moderate corrosion resistance suitable for indoor and light-duty applications. For prolonged outdoor or high-humidity environments, stainless steel screws are generally recommended for better long-term performance.
