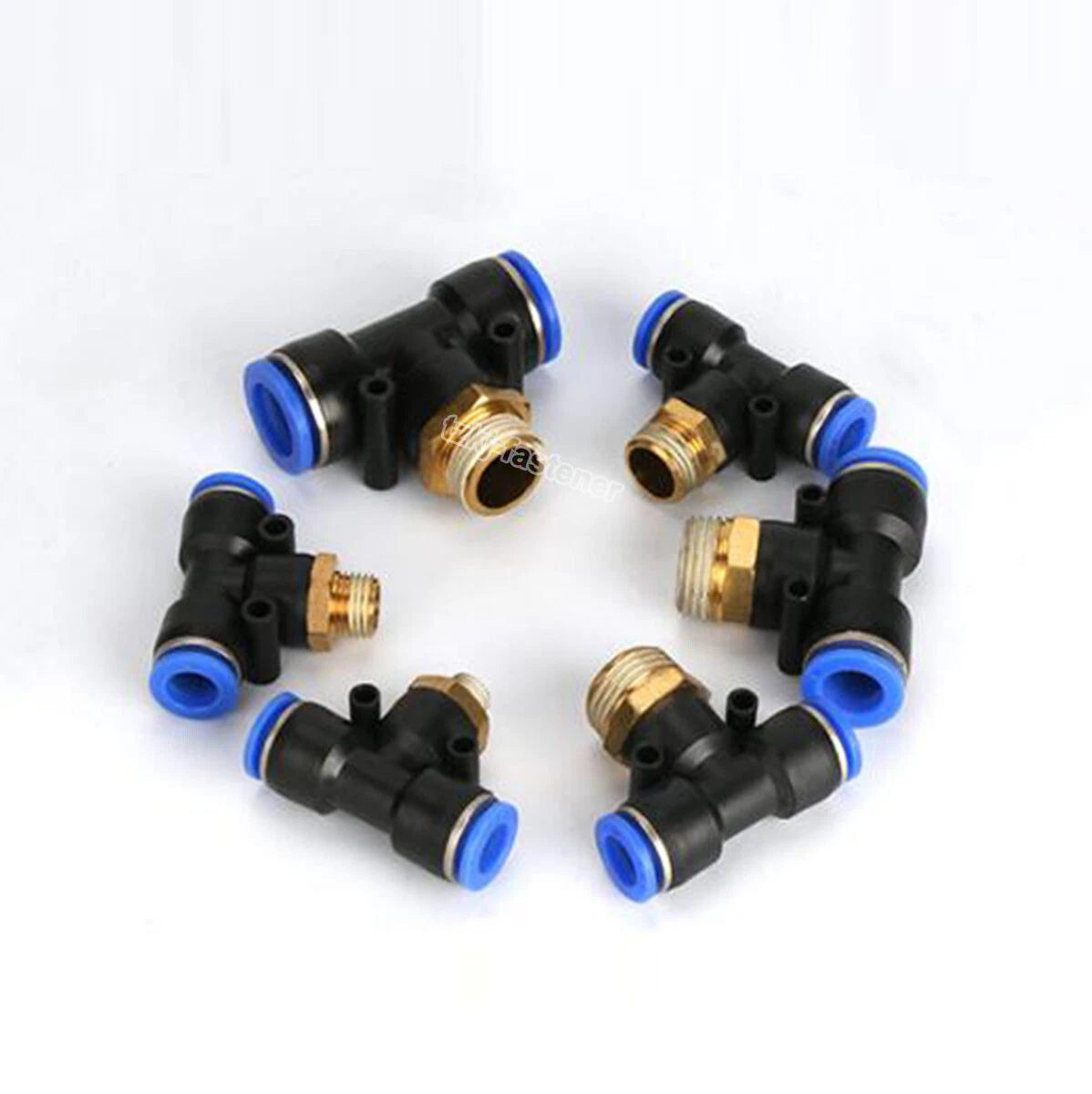

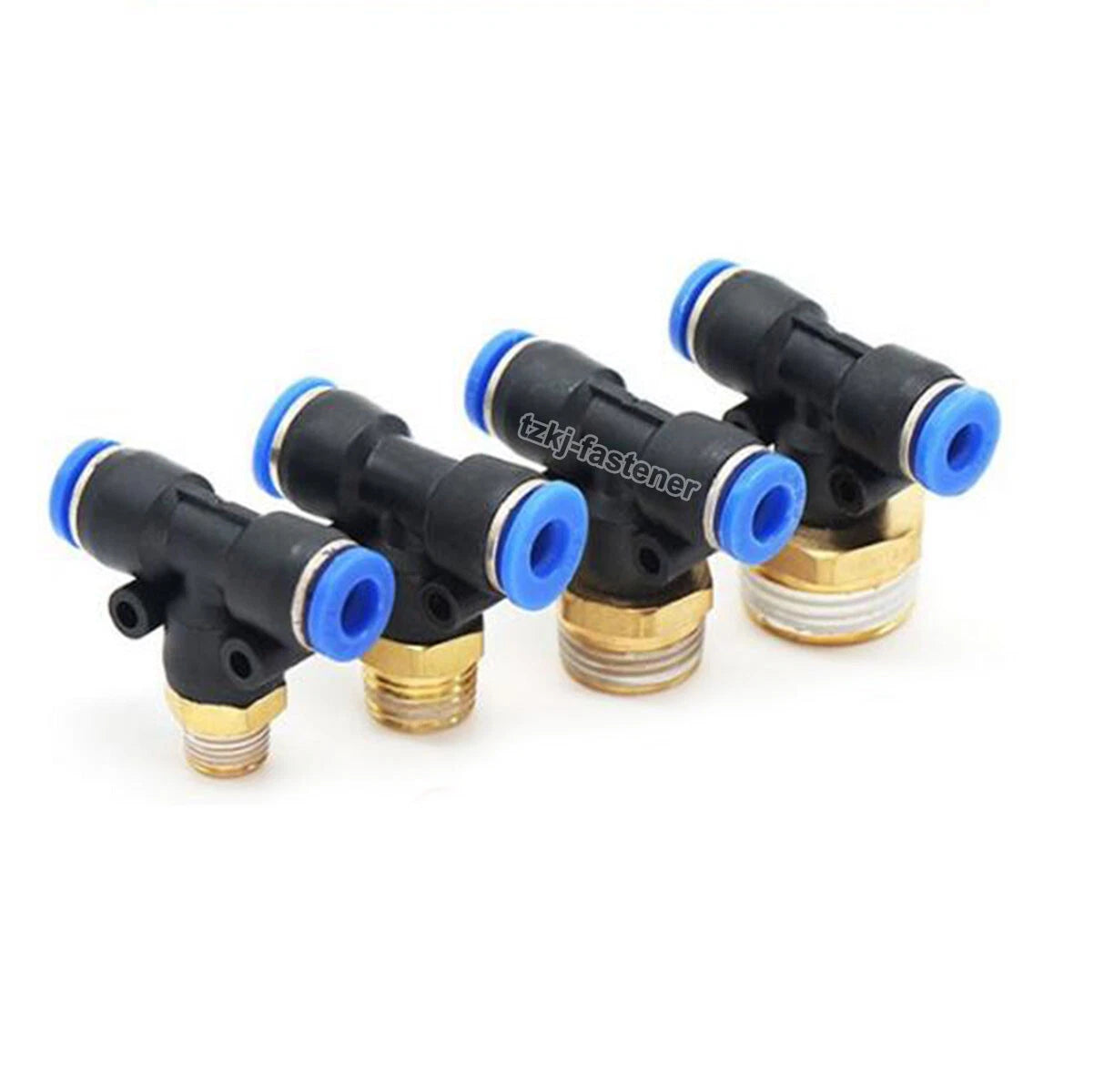

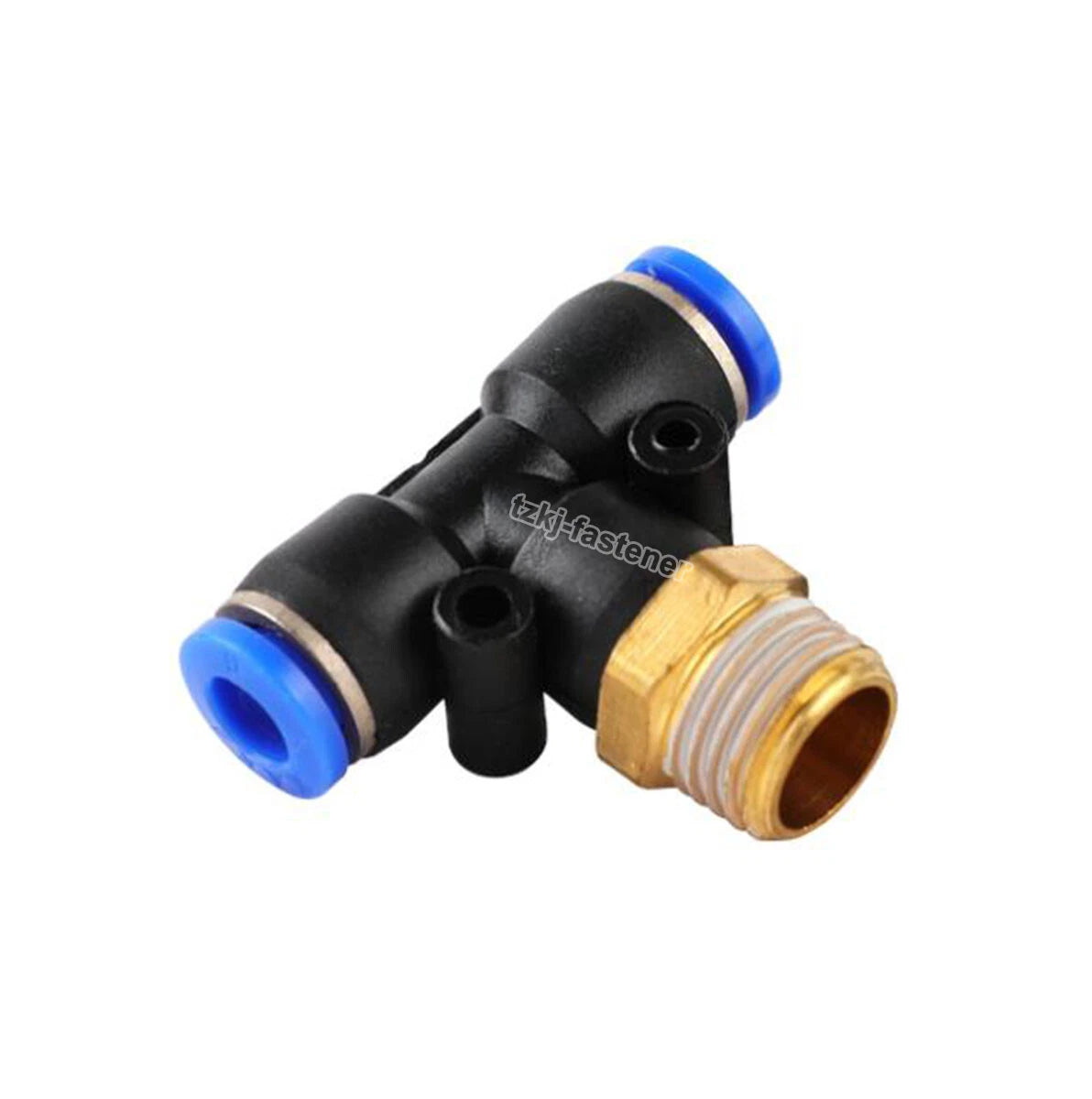

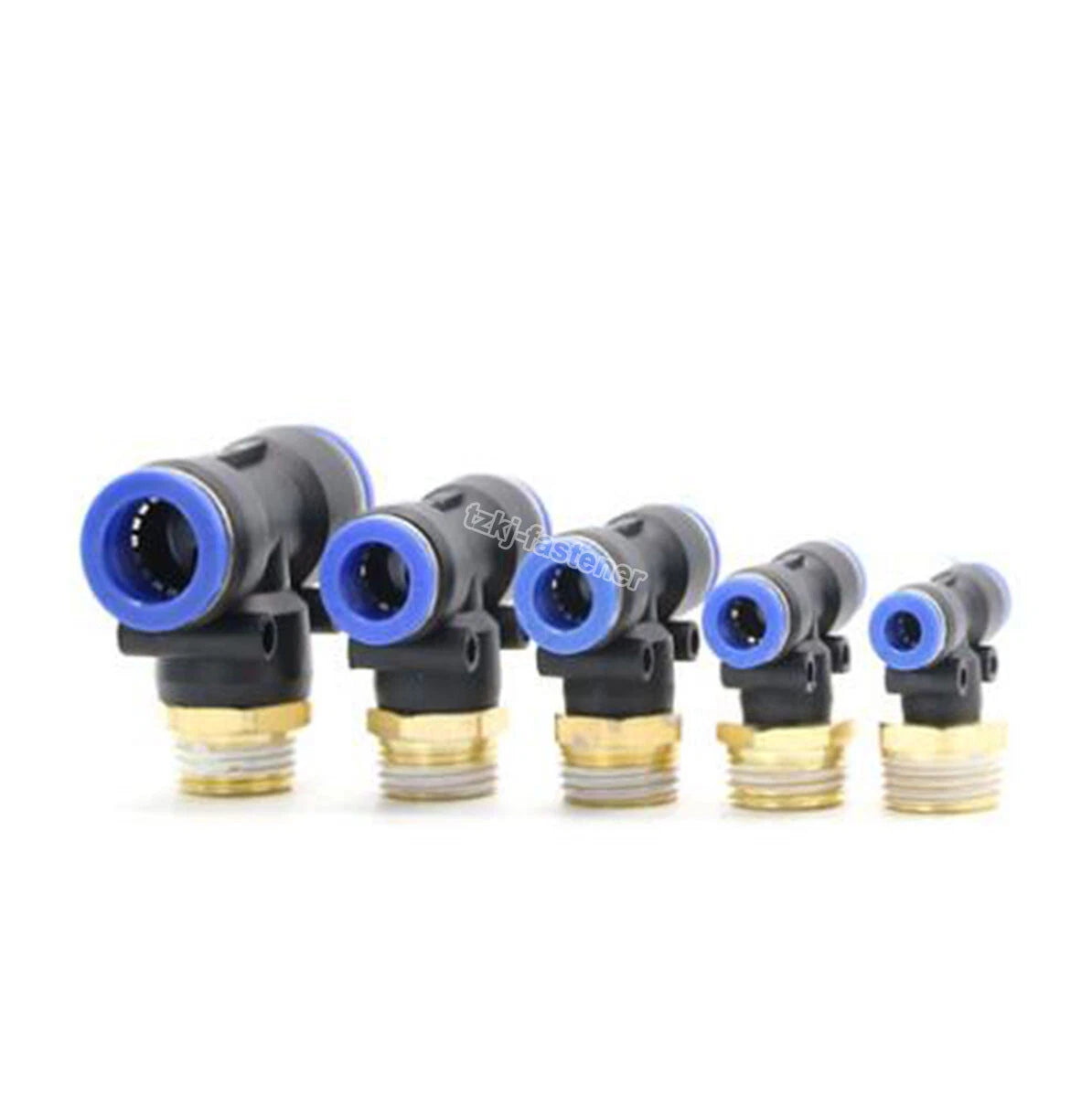

Pneumatic Tee "T" Connector BSP Male Thread 4mm-16mm Hose Tube Push-In Fittings

Roll over image to zoom in Click on image to zoom

Pneumatic Tee "T" Connector BSP Male Thread 4mm-16mm Hose Tube Push-In Fittings

HomeDIYer

No reviews

By HomeDIYer®

Sizes: Ø4mm - M5 Thread

Packing QTY (Piece): 1pc

Price:

$2.53 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Pneumatic Tee T Connector with BSP Male Thread — Reliable Push-In Fittings for Air & Fluid Lines

When a leaking or mismatched fitting brings your pneumatic system to a halt, the right connector makes all the difference. These BSP male thread tee connectors are built for DIYers, maintenance technicians, and workshop operators who need a dependable push-in solution for splitting or branching air lines, coolant circuits, or low-pressure fluid systems.

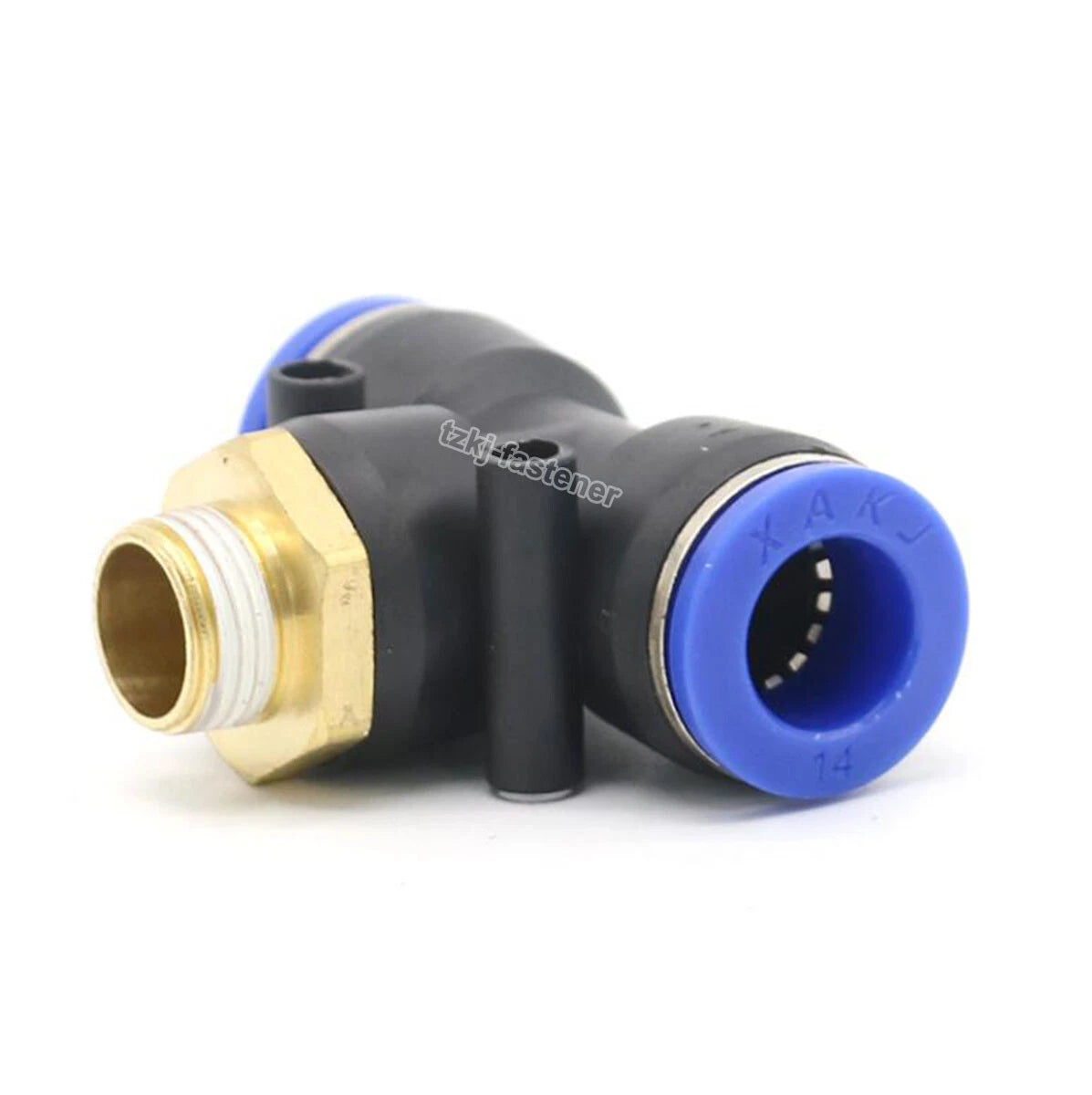

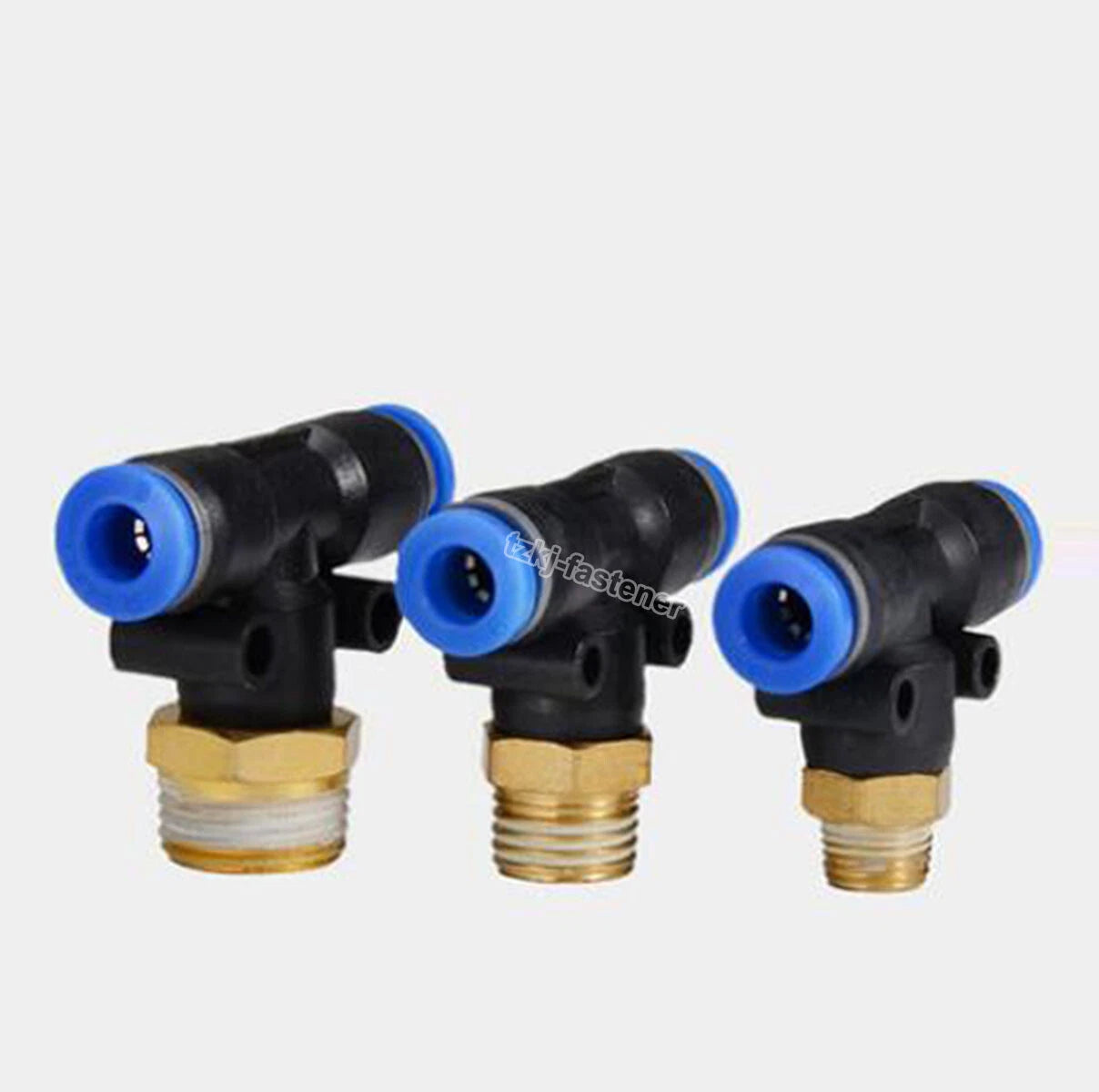

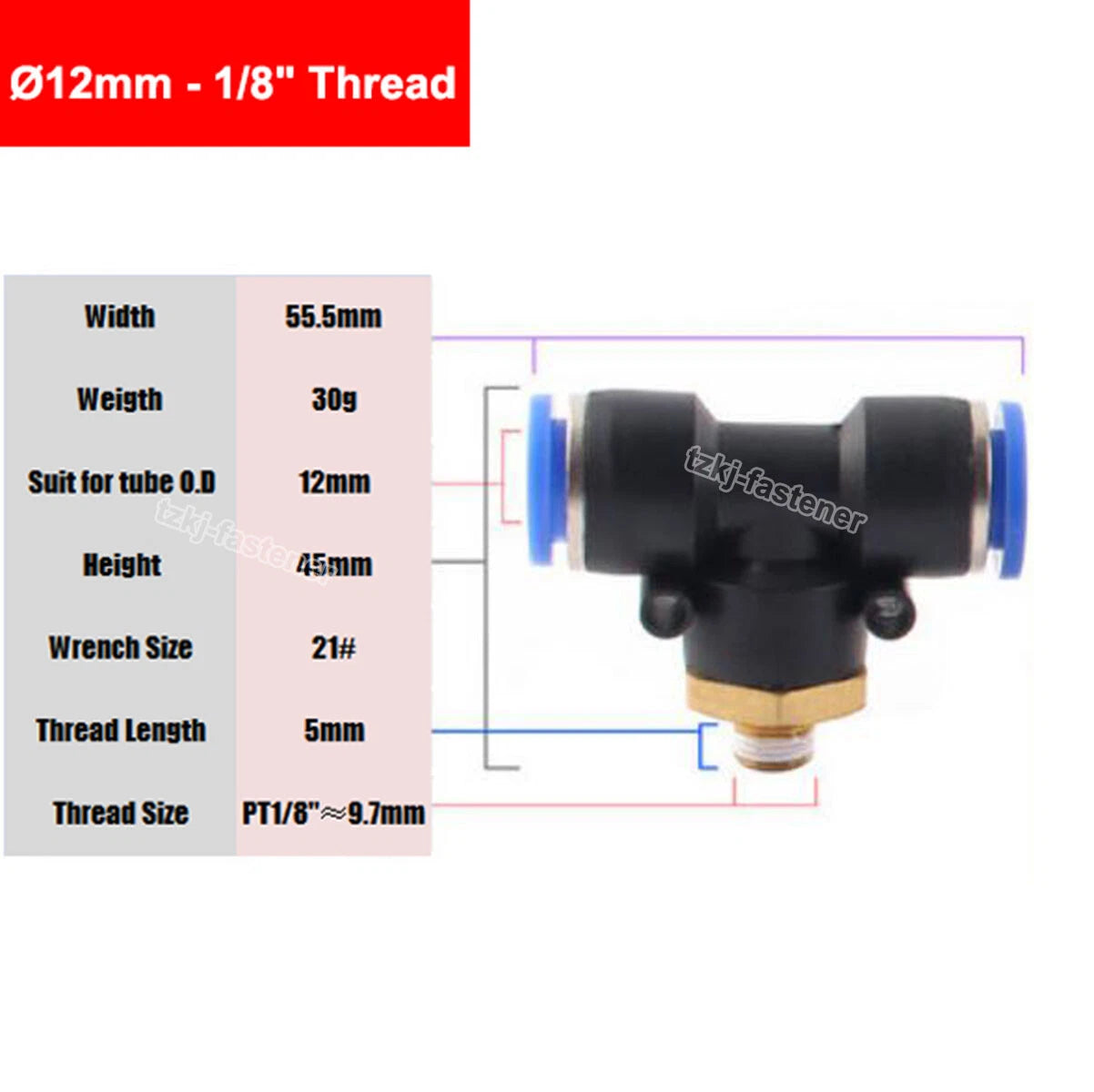

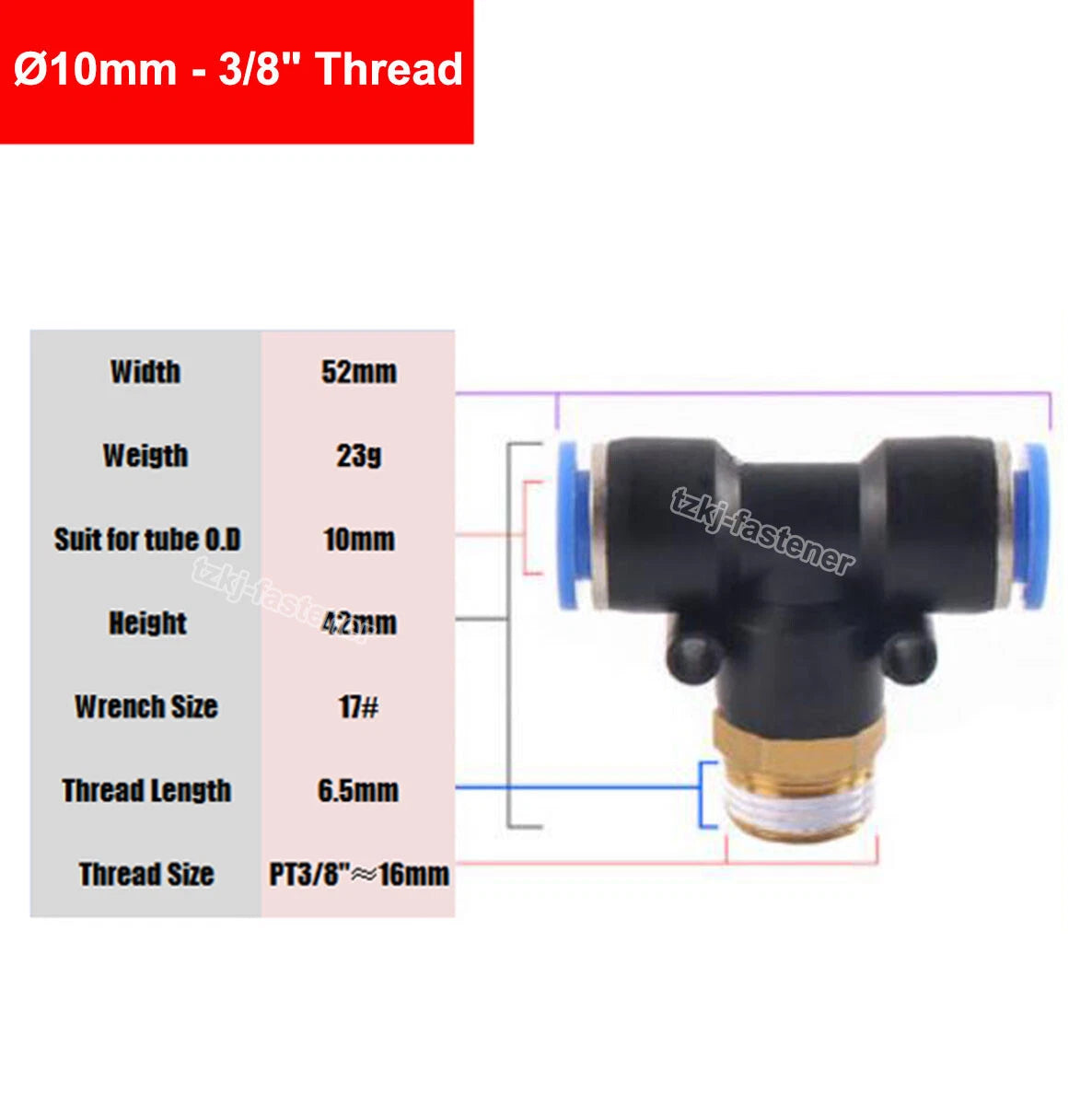

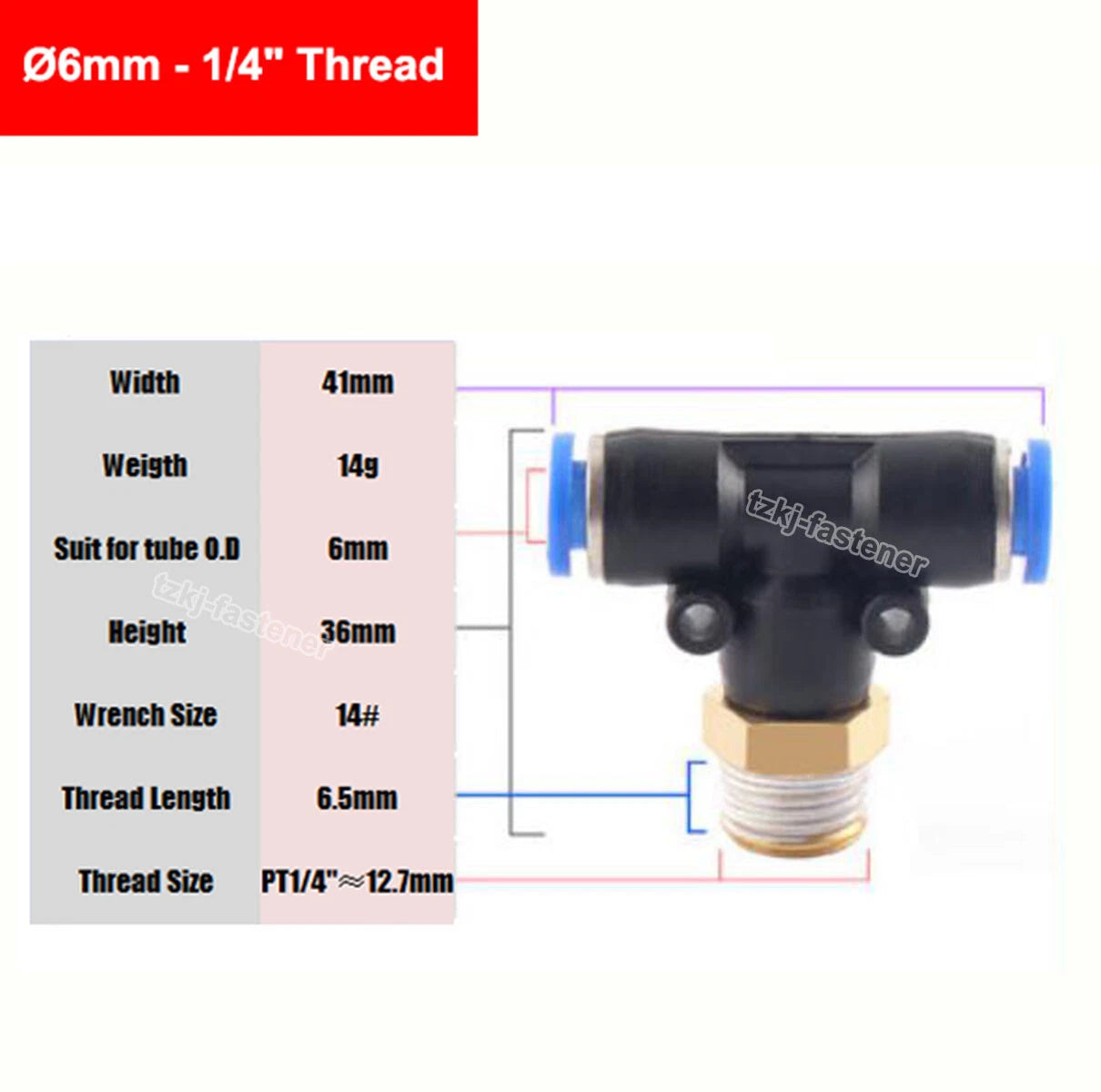

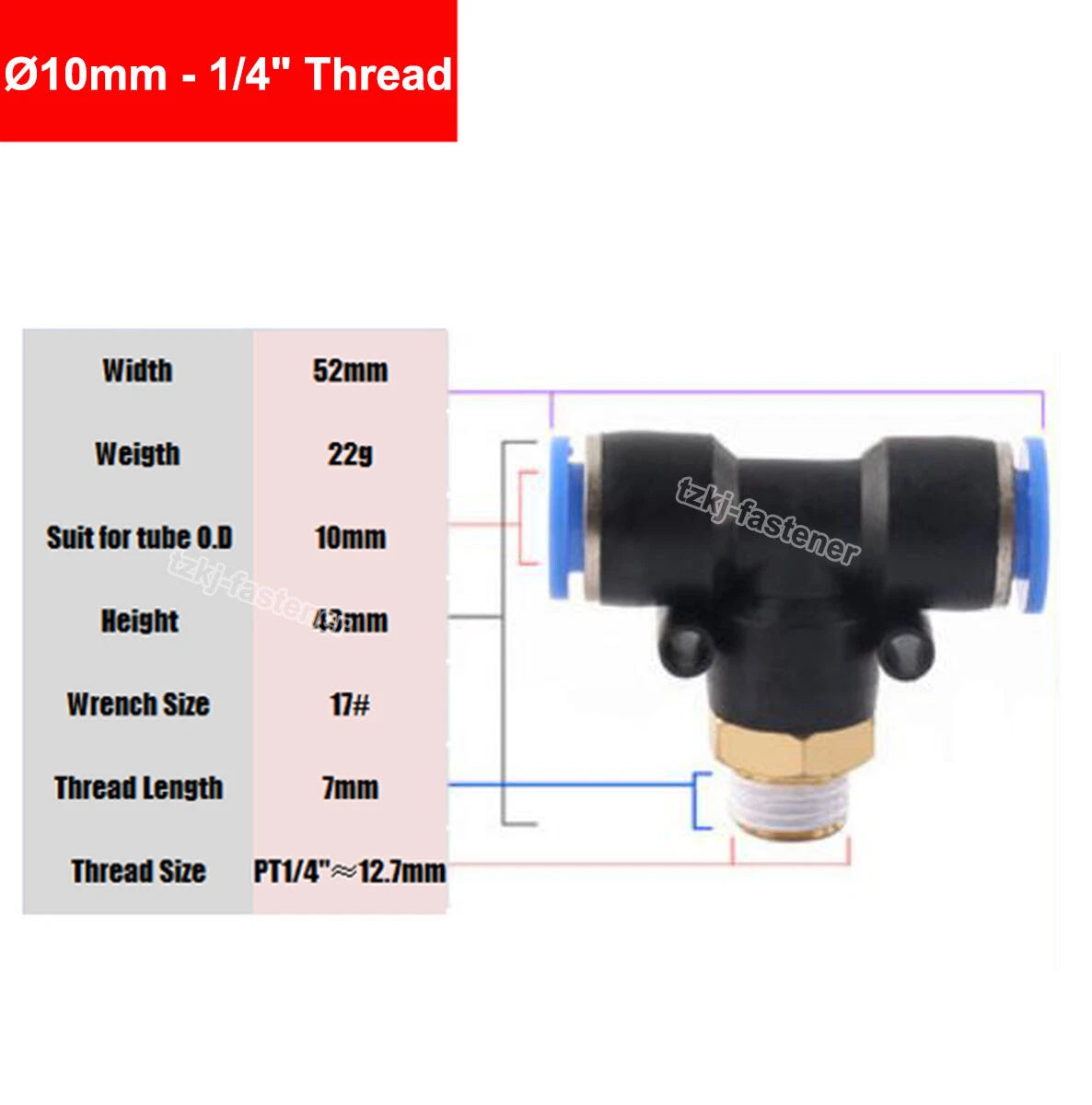

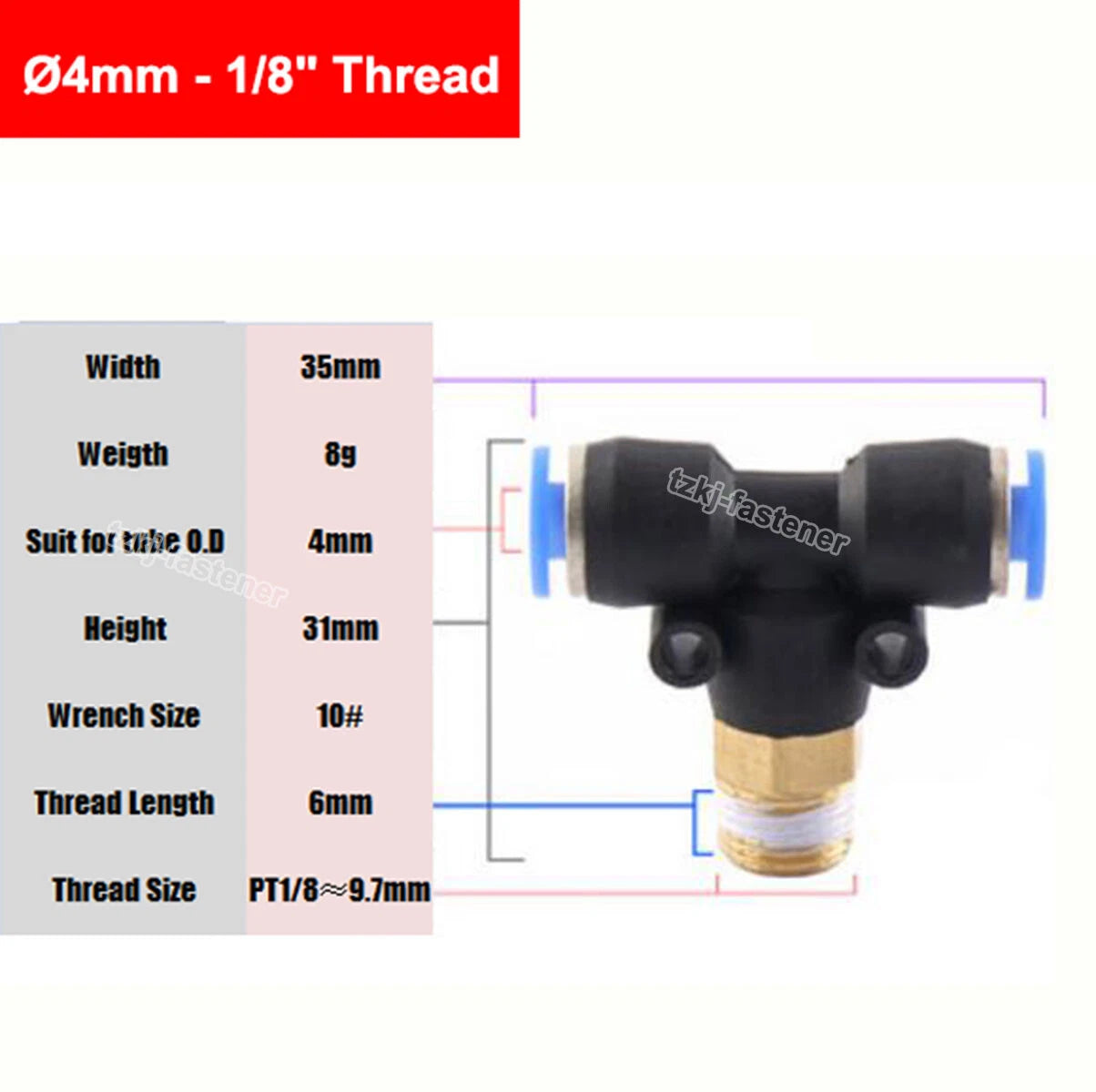

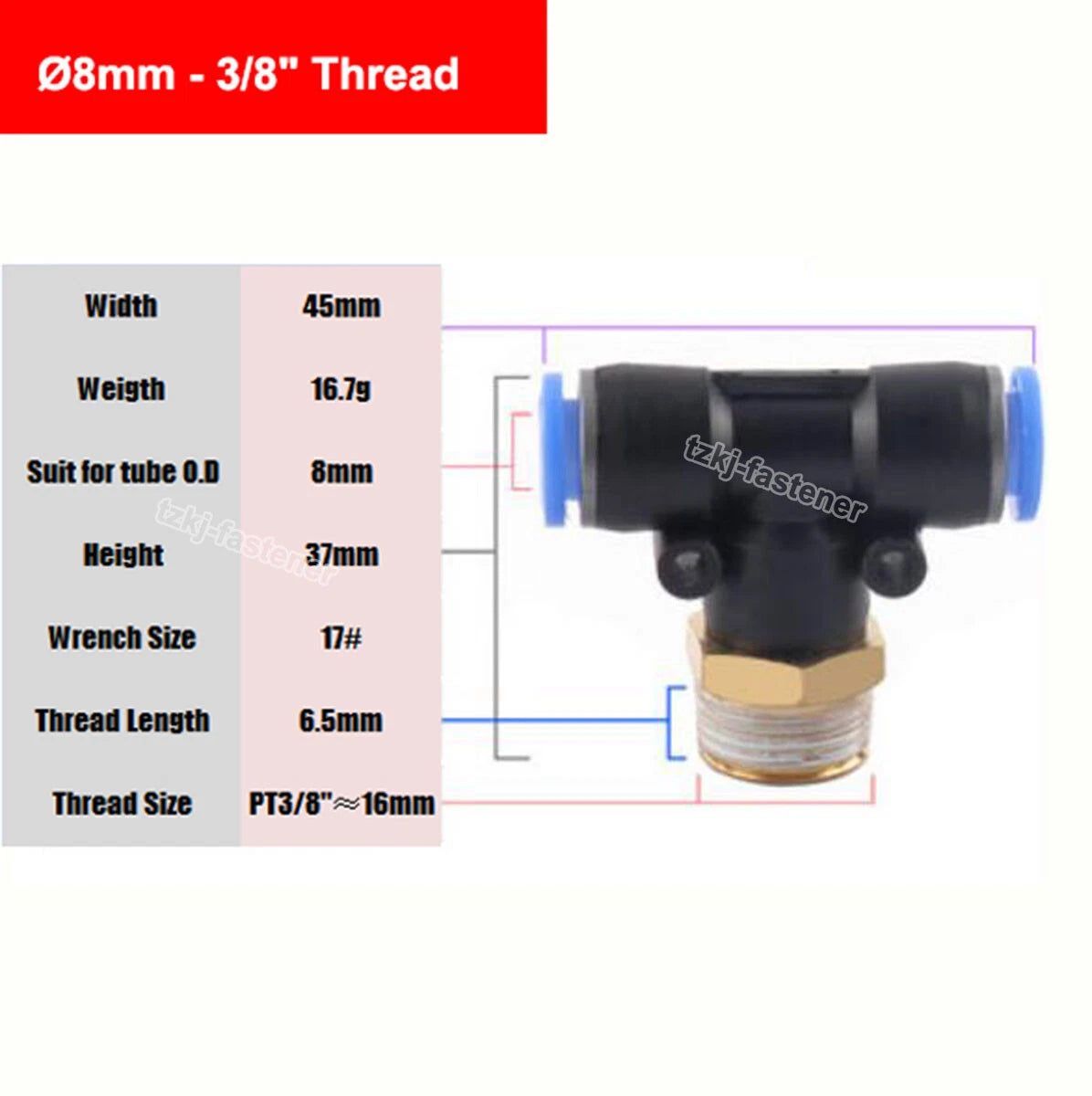

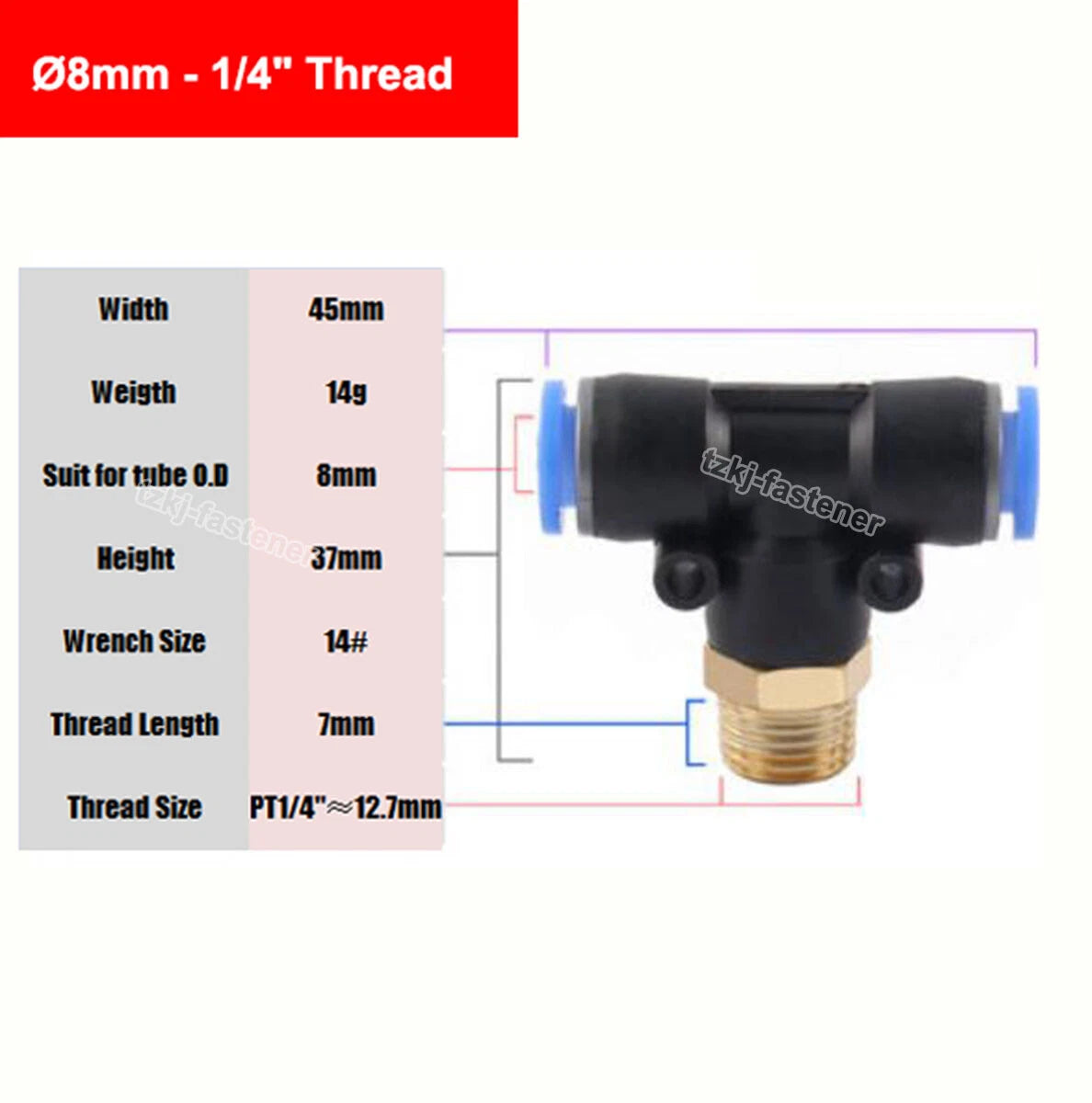

Each pneumatic tee T connector features a BSP (British Standard Pipe) male thread body paired with a push-in collet mechanism. Available in outer diameter sizes from Ø4mm to Ø16mm and thread options including M5, 1/8", 1/4", 3/8", and 1/2" BSP, these fittings cover a wide range of hose and port combinations. The compact T-shaped body measures typically 20–55mm across depending on the selected size variant.

Typical applications include branching compressed-air supply lines in pneumatic tool setups, connecting tee junctions in workshop air distribution networks, and routing coolant or low-pressure water lines in CNC or irrigation systems. Whether you need a single replacement piece or a multi-pack for a larger installation, these push-in tee fittings deliver a secure, tool-free connection every time.

⚙️ Compatibility: Designed for use with standard polyurethane (PU), nylon (PA), and polyethylene (PE) pneumatic tubing. Thread type must match your port — verify BSP thread size before ordering. Not rated for high-pressure hydraulic applications.

✅ Key Features of These Pneumatic Tee T Push-In Fittings

🔩BSP Male Thread Body
Available in M5, 1/8", 1/4", 3/8", and 1/2" BSP thread sizes to match standard pneumatic ports and manifolds directly.

📐Wide Hose OD Range
Fits hose outer diameters from Ø4mm (~5/32") to Ø16mm (~5/8"), covering the most common pneumatic and fluid tubing sizes used in workshops and light industrial settings.

🔄Push-In Collet Mechanism
Tool-free insertion — push the tube in until it clicks. The internal collet grips the hose securely; press the release collar to disconnect without damage to the tube.

🛡️Corrosion-Resistant Construction
The fitting body is constructed from engineering-grade materials suited for air, water, and light fluid media, resisting oxidation in typical workshop humidity conditions.

🔀True T-Branch Configuration

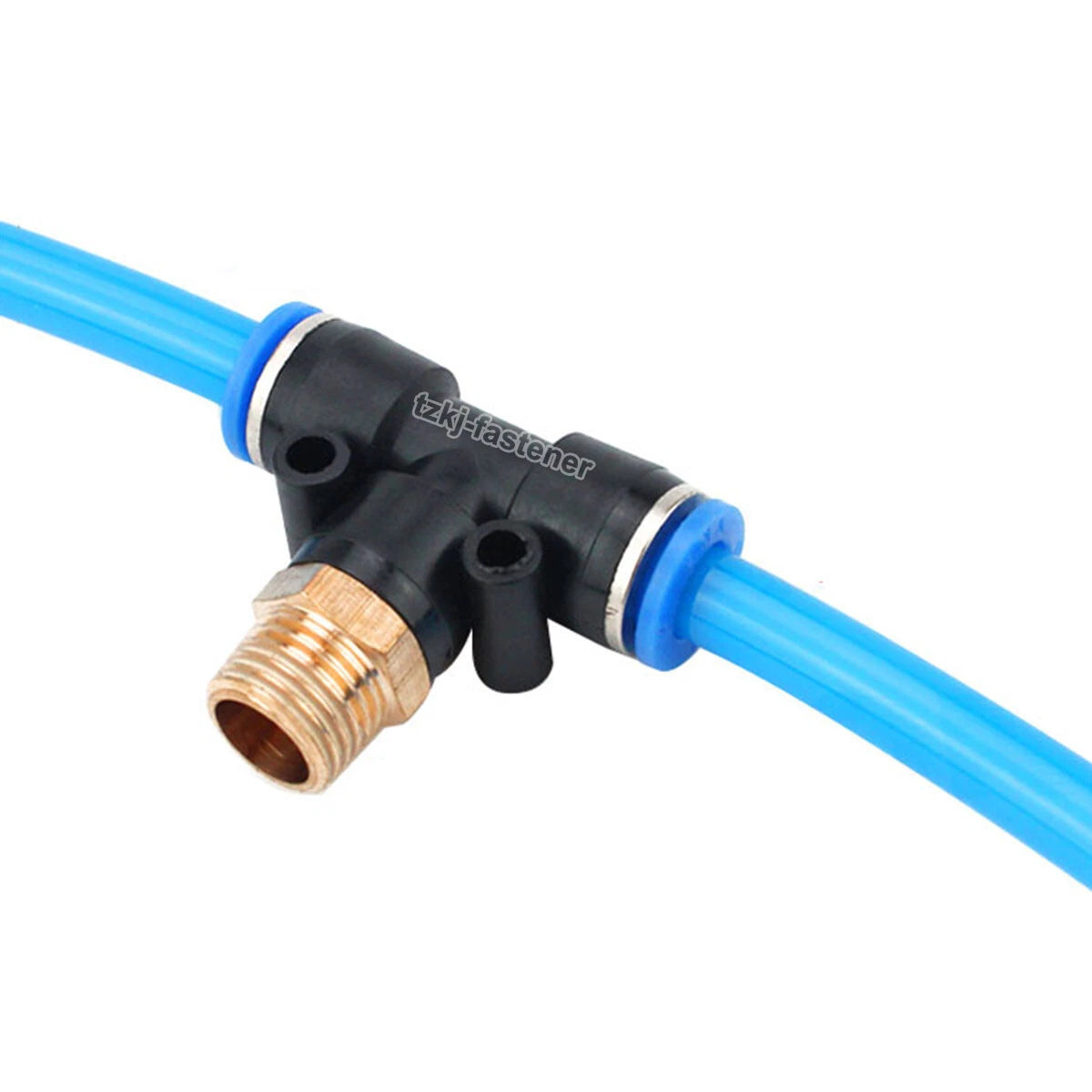

The three-port tee layout allows one inlet to split into two outlets (or vice versa), making it straightforward to branch a single supply line without additional adapters.

📦Flexible Pack Quantities
Order as 1pc, 2pc, 5pc, or 10pc to match your project scope — single replacements or multi-point installations — without overstocking.

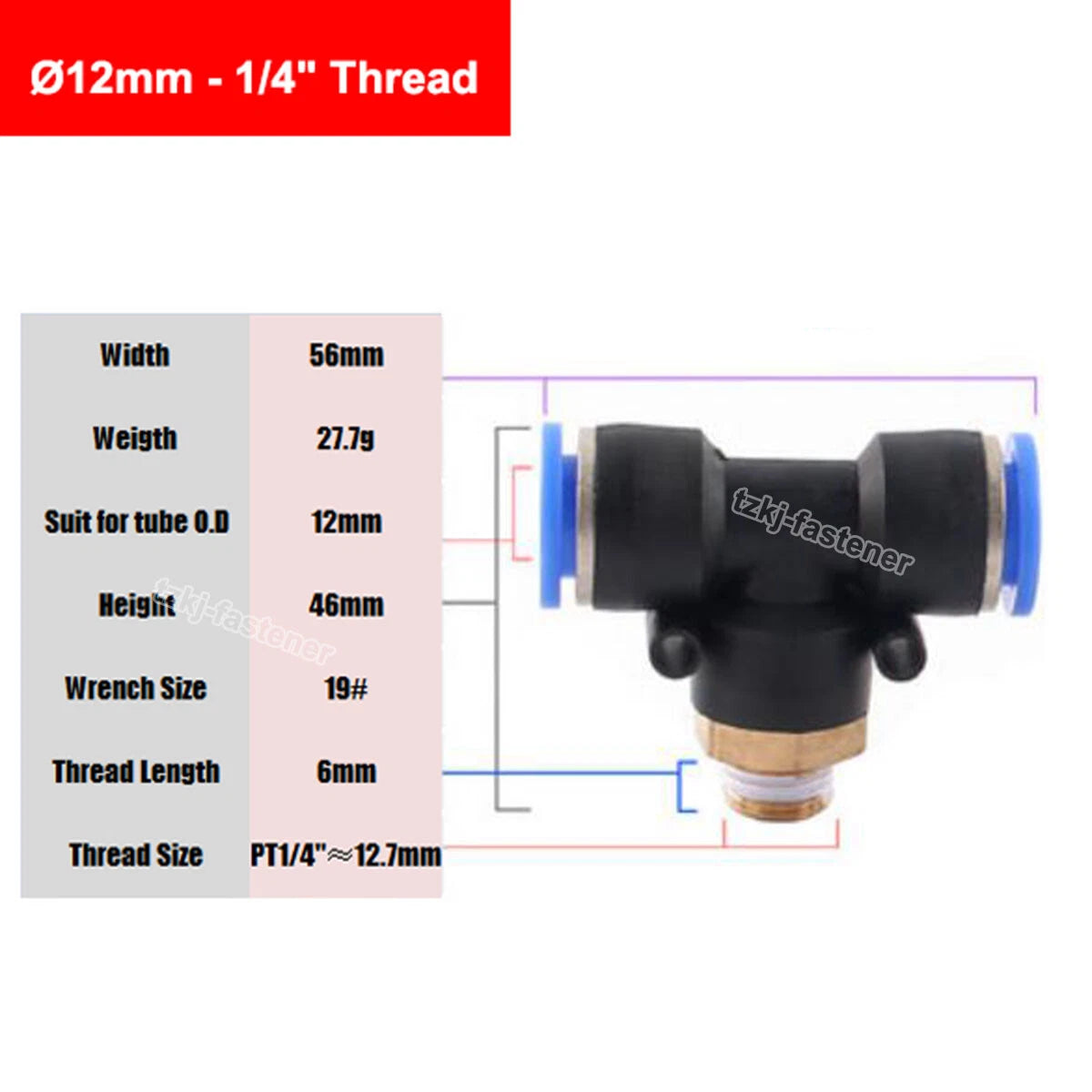

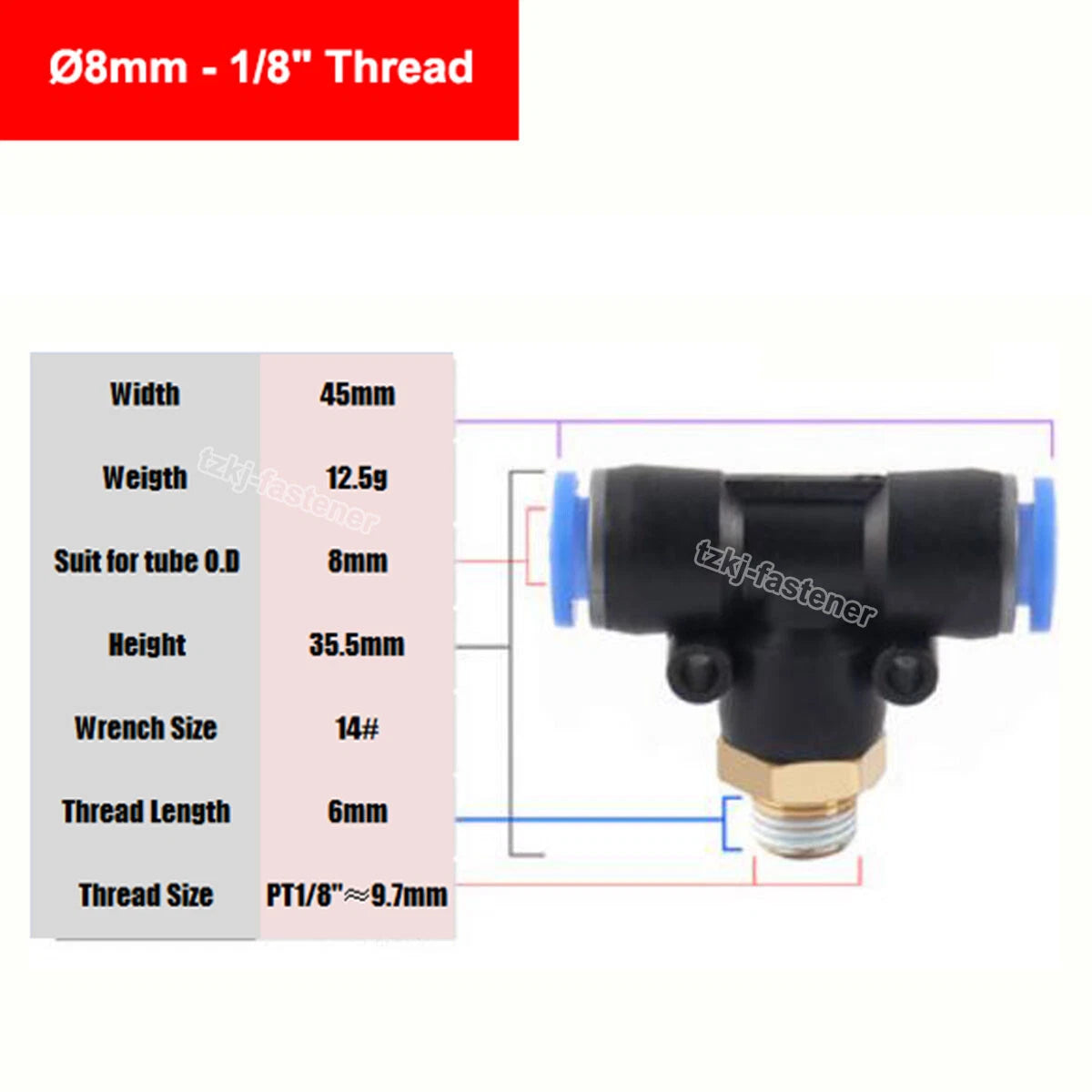

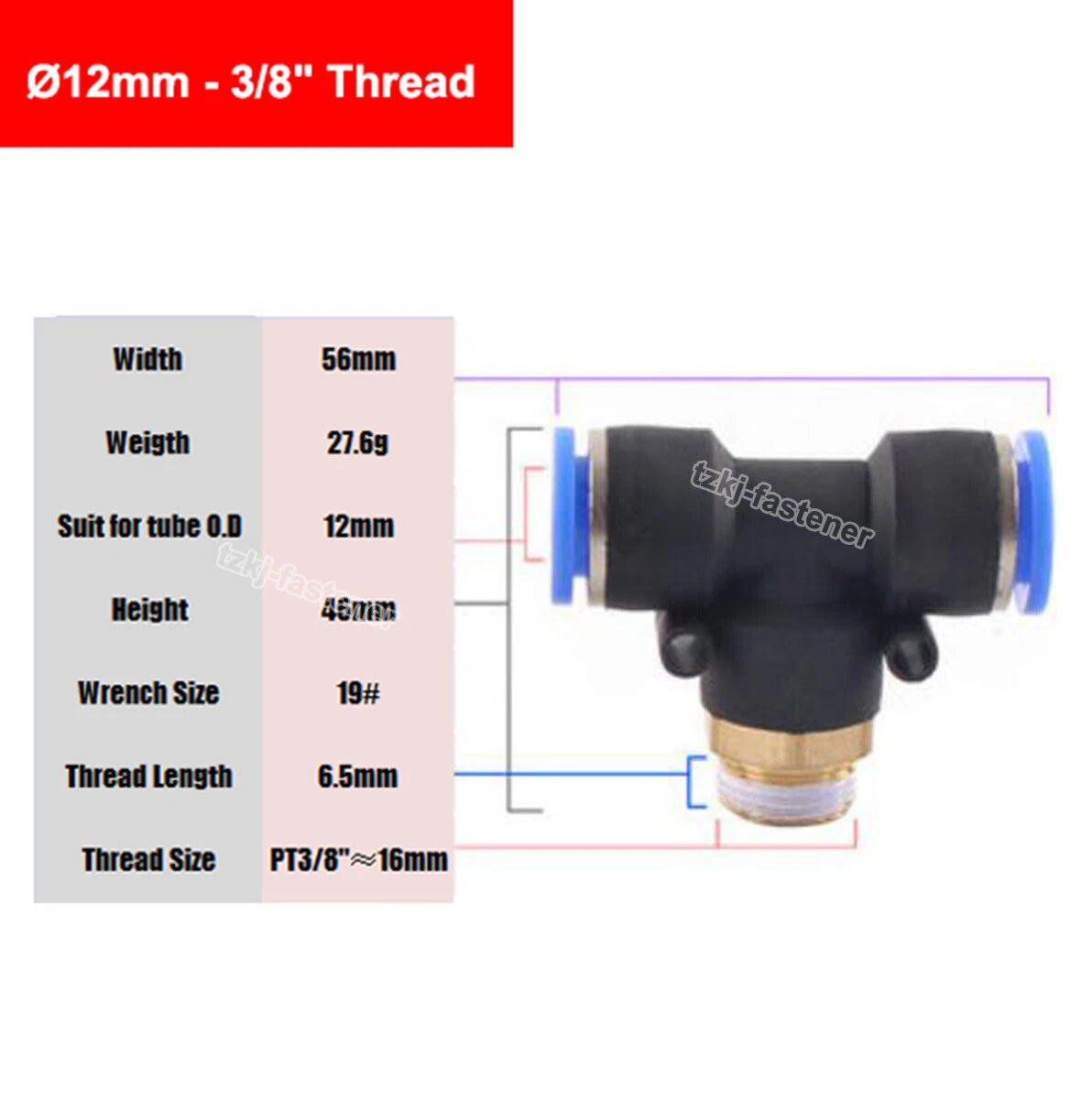

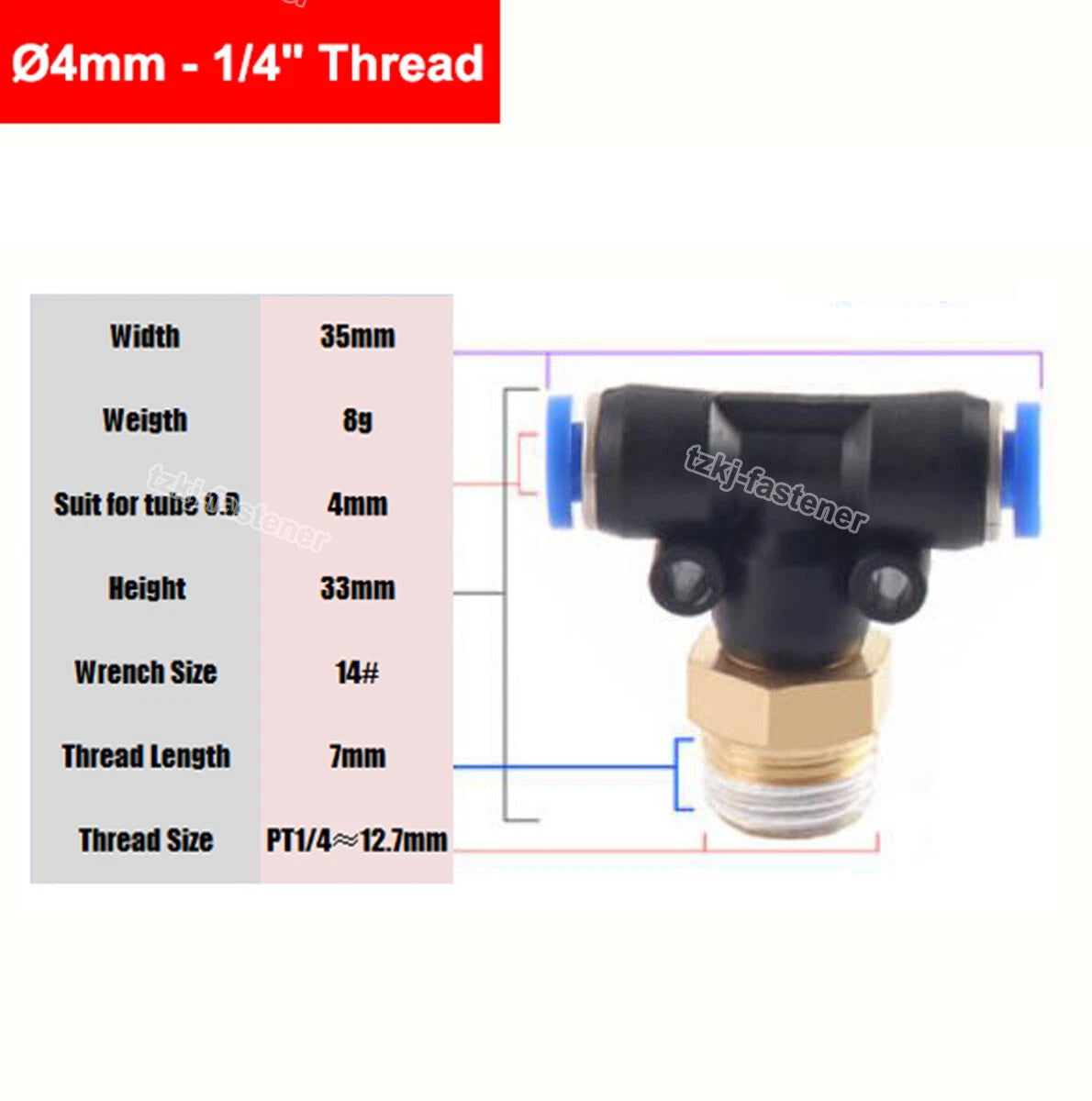

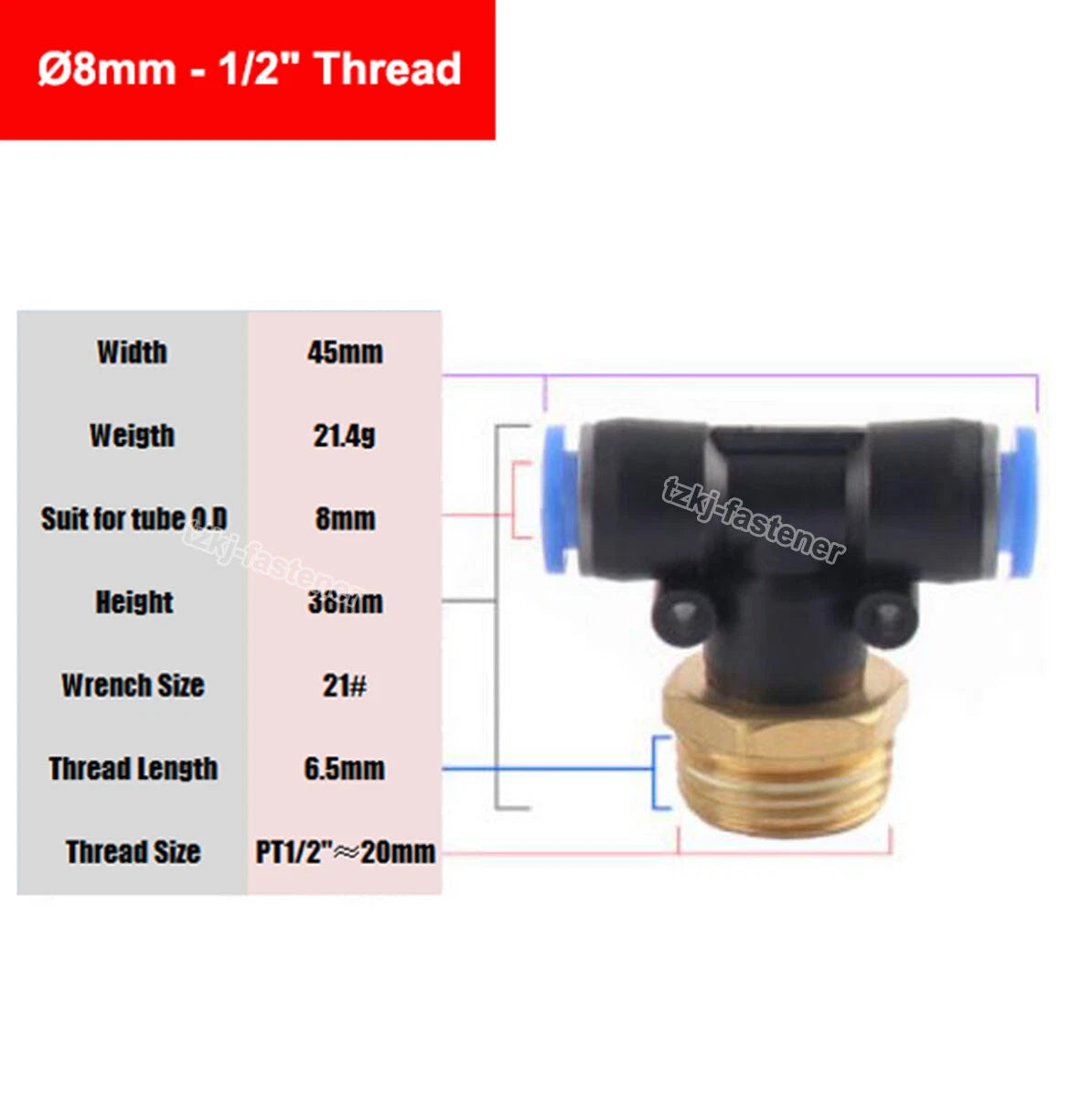

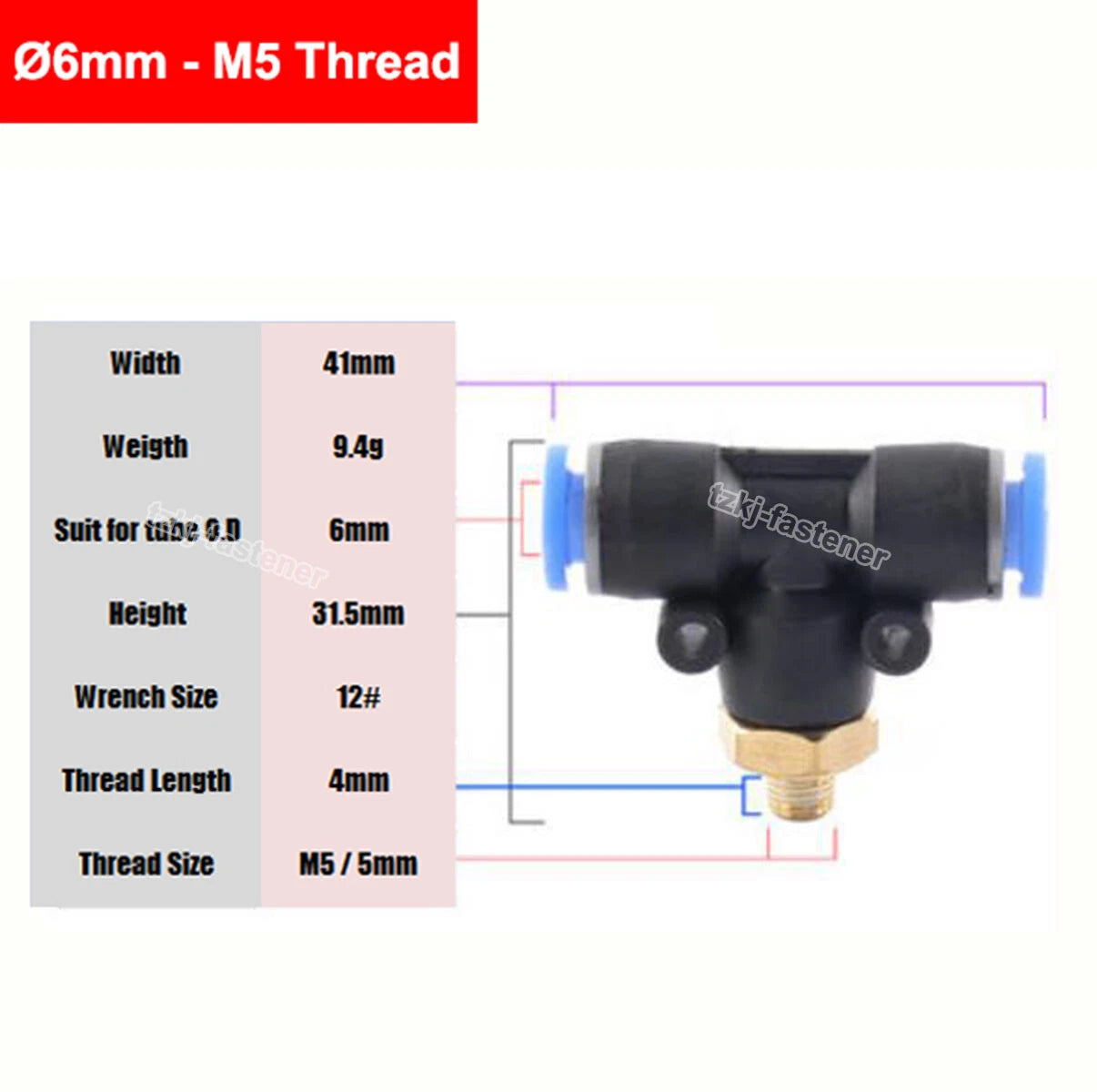

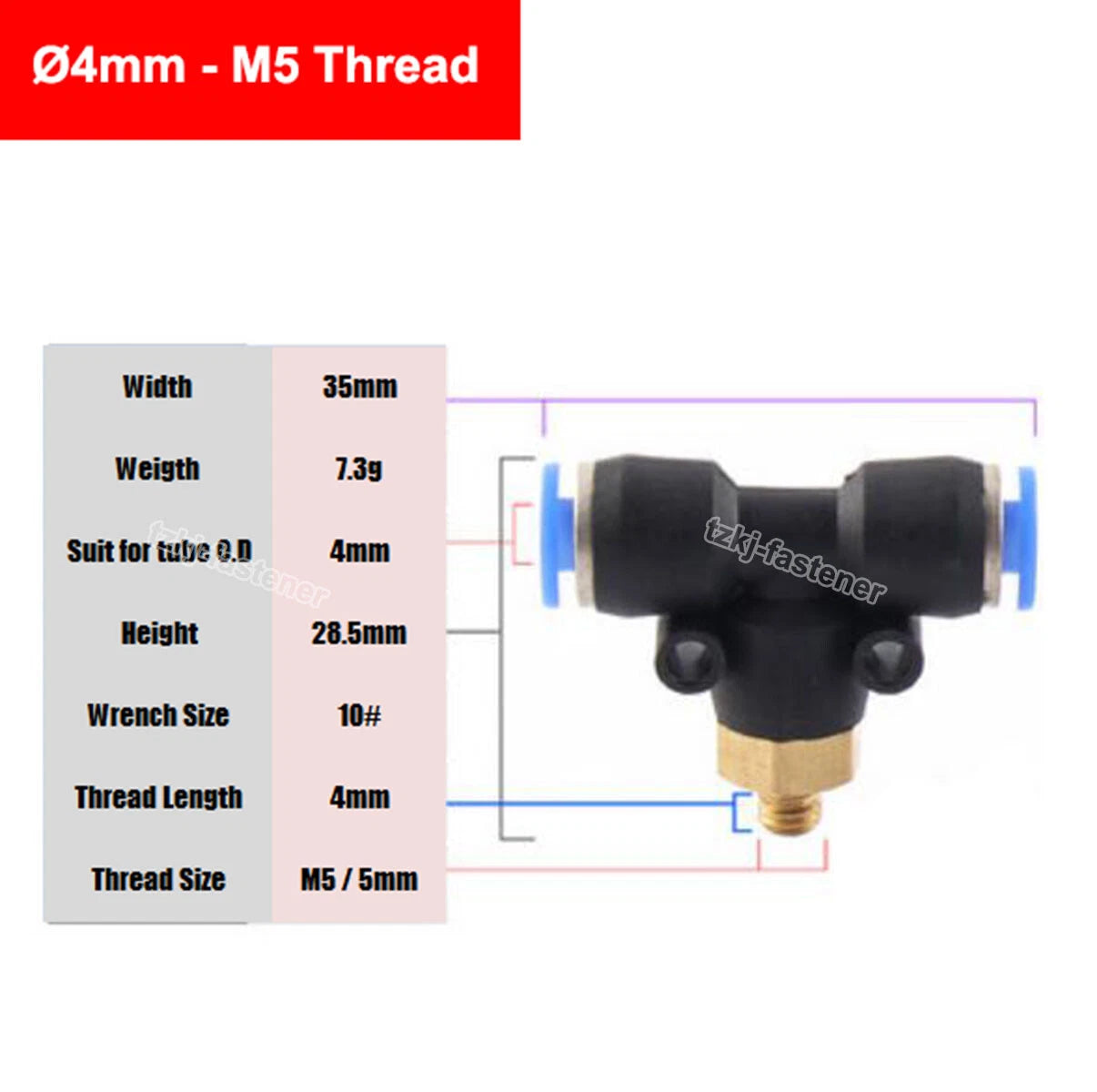

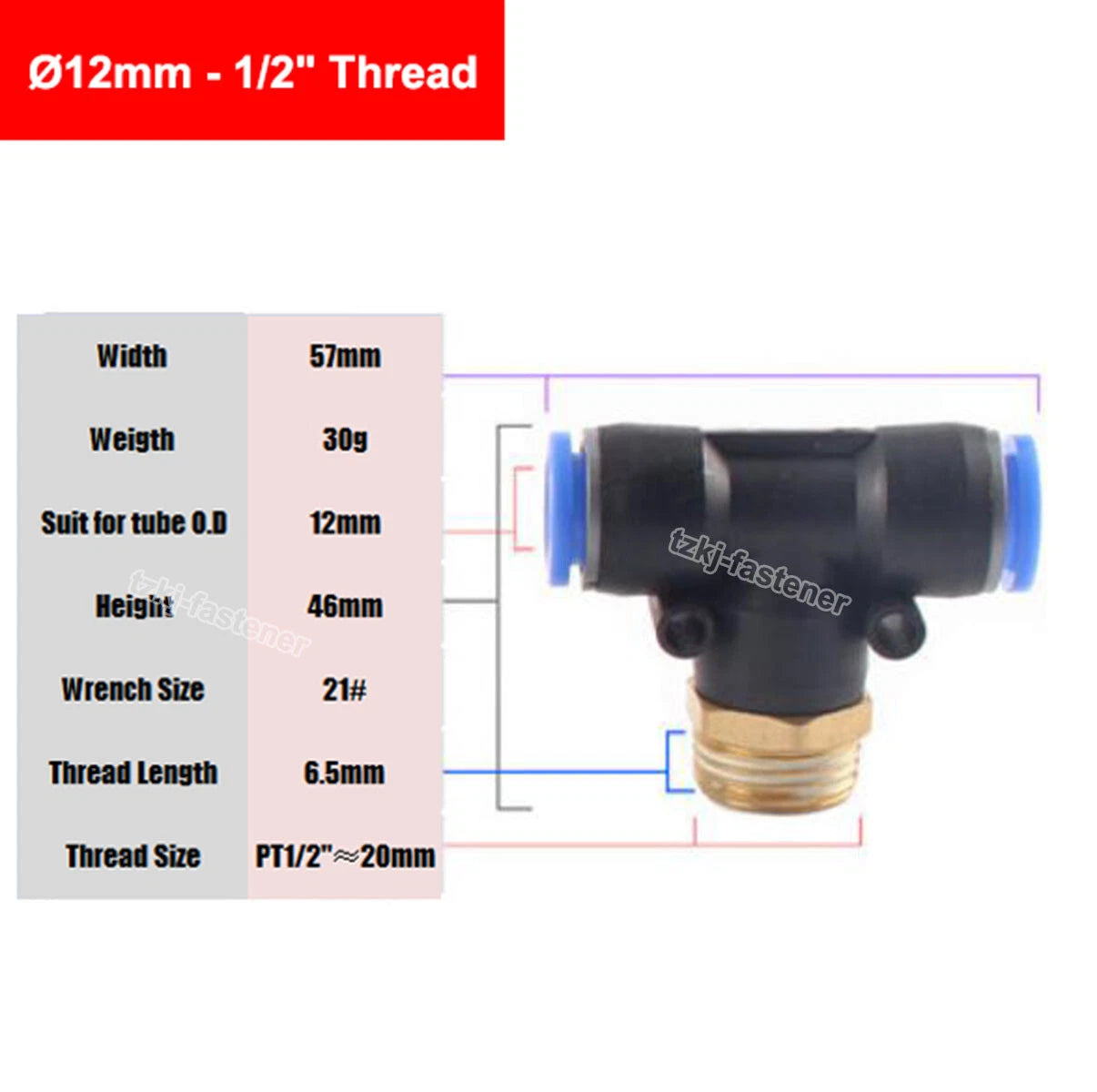

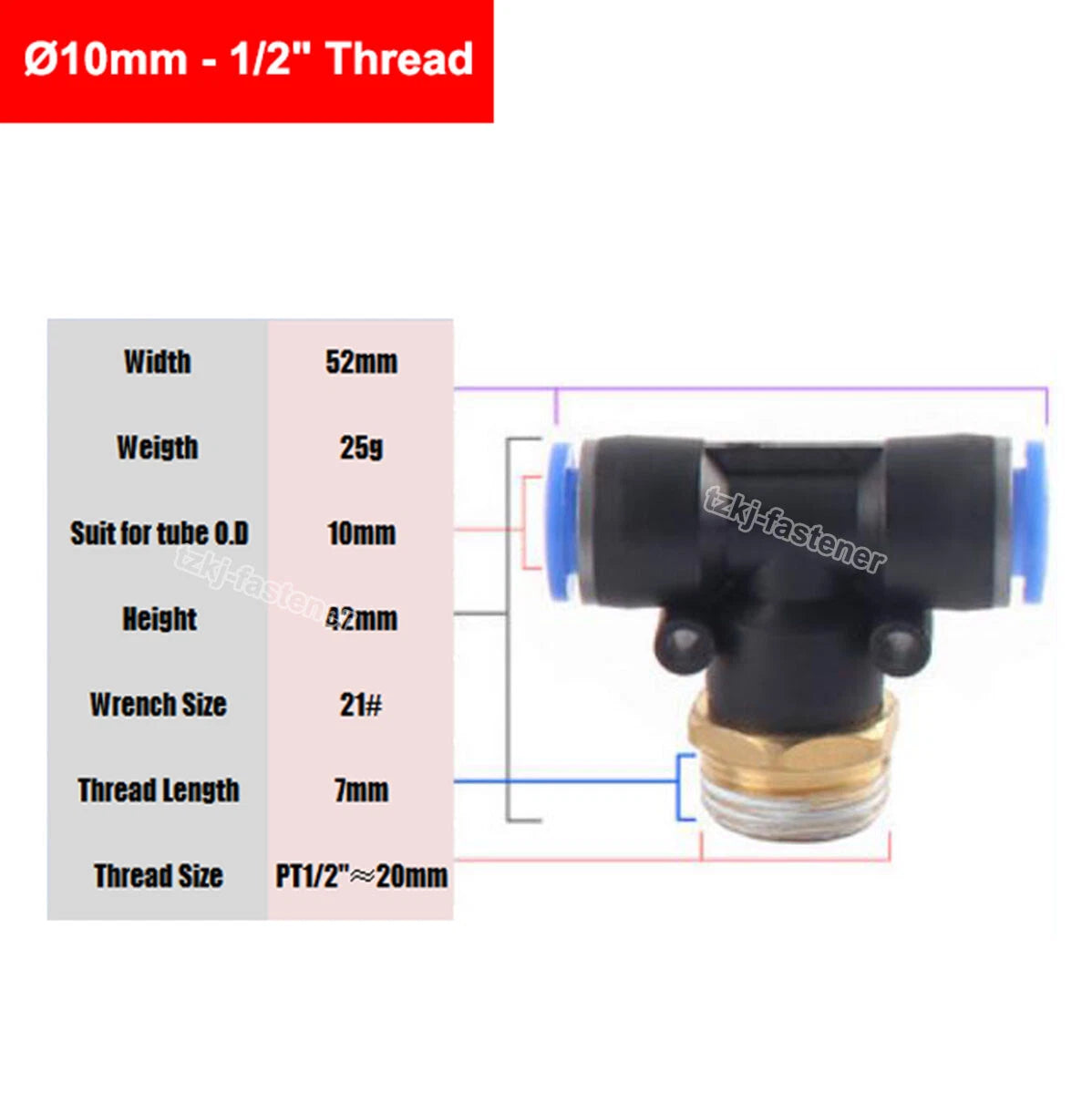

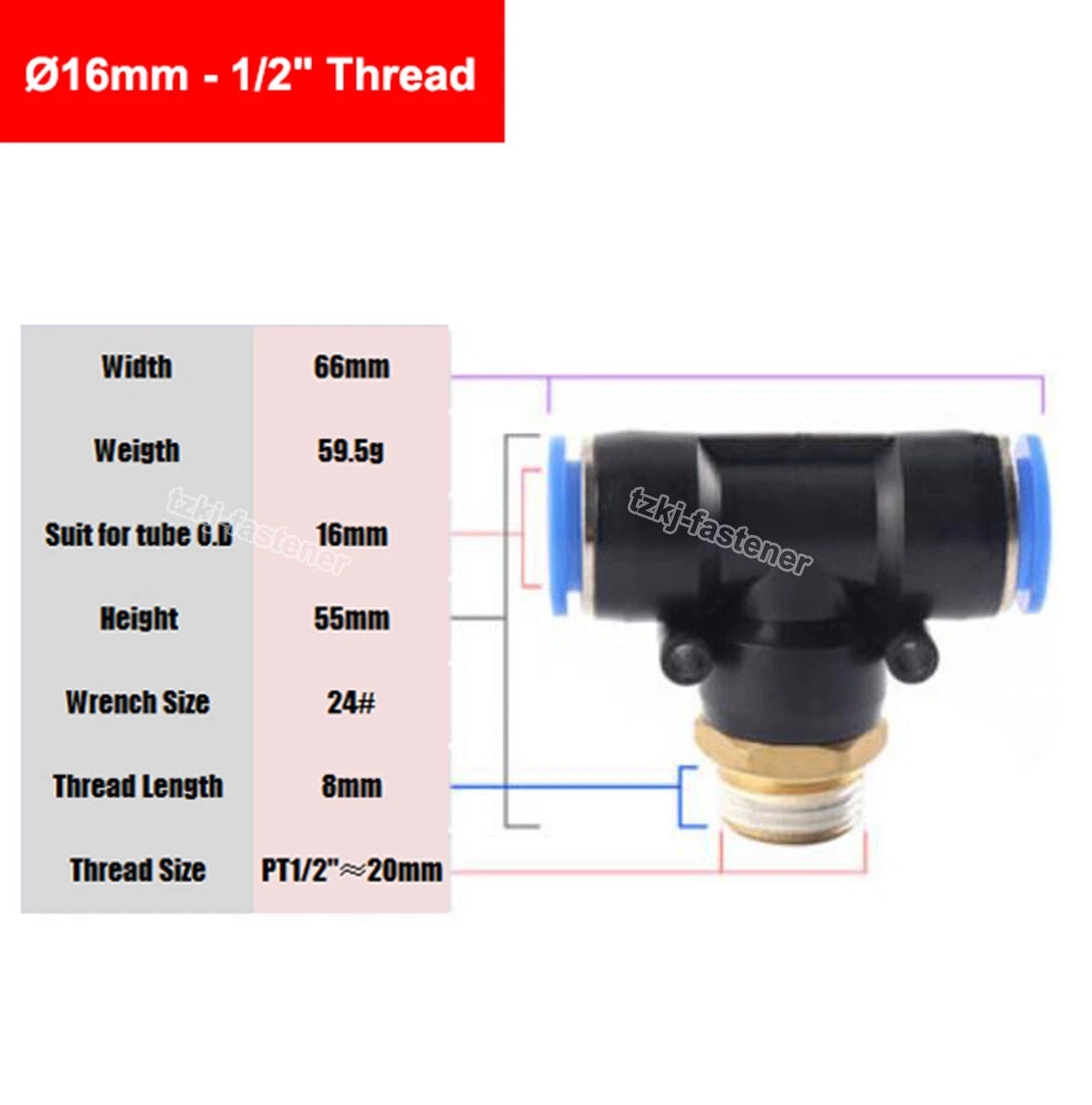

📐 Technical Specifications — Pneumatic Tee Push-In Fittings

Fitting Type	Tee (T) Push-In Connector
Thread Standard	BSP (British Standard Pipe) Male
Thread Sizes Available	M5, 1/8", 1/4", 3/8", 1/2" BSP
Hose Outer Diameter (OD)	Ø4mm, Ø6mm, Ø8mm, Ø10mm, Ø12mm, Ø16mm
Connection Method	Push-in collet with release collar
Compatible Tubing	PU, PA (Nylon), PE pneumatic tubing
Number of Ports	3 (T configuration)
Working Pressure	See variant options
Working Temperature	See variant options
Packing Quantity	1pc / 2pc / 5pc / 10pc (select above)

❓ Frequently Asked Questions

How do I choose the correct hose OD size for my system?

Measure the outer diameter of your existing tubing with calipers. Common sizes are Ø4mm, Ø6mm, Ø8mm, Ø10mm, Ø12mm, and Ø16mm. The push-in collet must match the tube OD exactly — a loose fit will cause air leaks, while an oversized tube will not seat properly.

What is the difference between M5 thread and 1/8" BSP thread?

M5 is a metric thread (5mm diameter, 0.8mm pitch) commonly found on small pneumatic cylinders and solenoid valves. 1/8" BSP is a British Standard Pipe thread used on most standard pneumatic fittings and compressor ports. They are not interchangeable — always match the thread type to your port specification.

Can these fittings be used with water or coolant lines?

These tee connectors are suitable for low-pressure water, coolant, and air applications under typical workshop conditions. They are not rated for high-pressure hydraulic fluids, aggressive chemicals, or steam. Verify the working pressure and media compatibility for your specific application before installation.

How do I release the tube from the push-in collet without damaging it?

Depressurize the line first. Then press the release collar (the outer ring around the tube entry) firmly toward the fitting body while simultaneously pulling the tube straight out. Avoid twisting or yanking at an angle, as this can deform the tube end and prevent a proper seal on reinstallation.

Are these fittings compatible with both metric and imperial tubing?

The hose OD sizes listed (Ø4mm–Ø16mm) are metric. Some imperial tubing sizes have close metric equivalents (e.g., 5/16" OD ≈ 8mm), but a precise match is required for a leak-free seal. Always confirm the actual outer diameter of your tubing rather than relying on nominal size labels.

How many pieces should I order for a typical workshop air line branch?

A single branch point requires one tee fitting. For a workshop with 2–4 drop points from one supply line, a 5pc or 10pc pack provides spares for future expansions or replacements. The 10pc pack offers the best per-unit value for larger installations or maintenance stock.

What is the working pressure range for these push-in tee fittings?

Working pressure varies by size variant. As a general guideline, push-in pneumatic fittings of this type are typically rated for 0–10 bar (0–145 psi) at ambient temperature. Contact us to confirm the rated pressure for your specific size combination before use in pressurized systems.
