PU Open Timing Belt for Precision Motion — 2GT, S2M, HTD 3M, 5M, 8M & More
When a worn or undersized timing belt causes missed steps, backlash, or inconsistent positioning in your 3D printer, CNC router, or linear actuator, the entire machine suffers. Engineers, makers, and machine builders who need a reliable open-ended PU timing belt in the exact profile and length they require — without buying a full loop or cutting down an oversized roll — will find this listing covers the most common metric synchronous belt standards in one place.

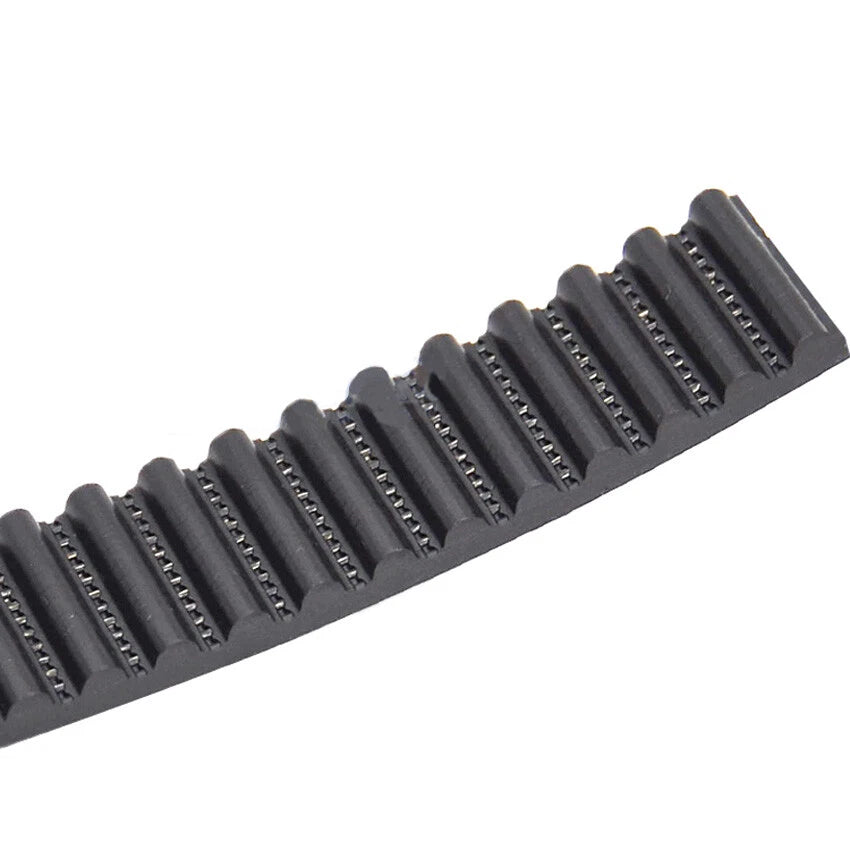

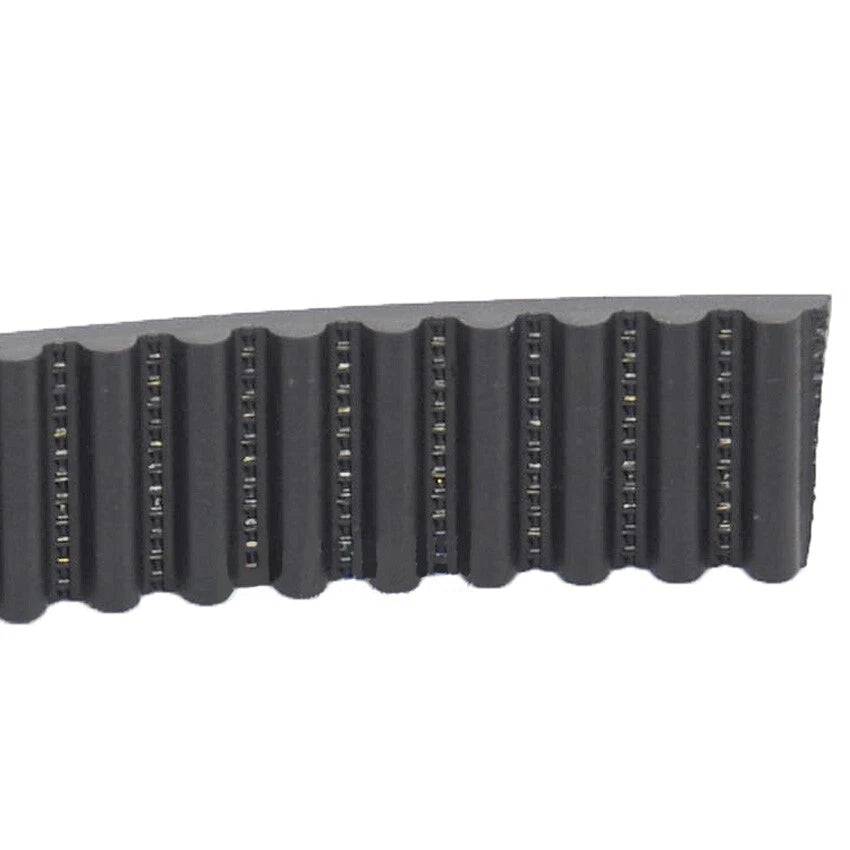

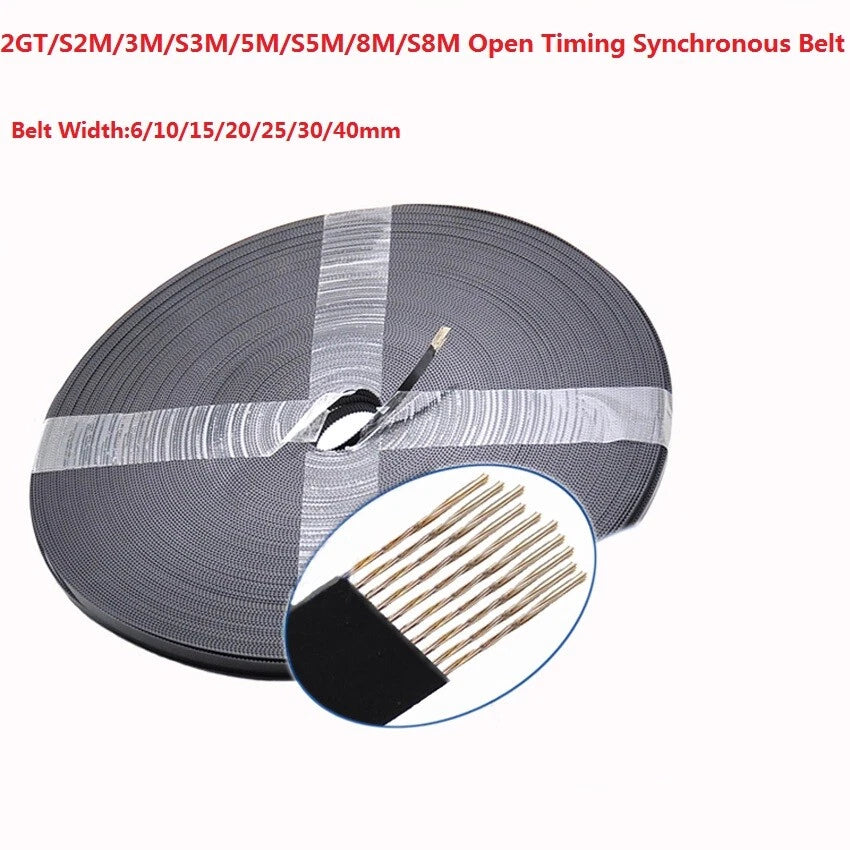

Each belt is made from black polyurethane (PU) with steel cord reinforcement, offering a combination of flexibility and dimensional stability. Available profiles include 2GT, S2M, 3M (HTD), S3M, 5M (HTD), S5M, 8M (HTD), and S8M. Belt widths range from 6mm (≈1/4") to 40mm (≈1-9/16"), and lengths are available in 1 metre (≈39.4"), 2 metres (≈78.7"), and 5 metres (≈196.9") cuts. Select your model, width, and length from the variant options above.
Typical use cases include X/Y axis drives on FDM 3D printers using 2GT or S2M belts, feed and gantry systems on desktop CNC routers and laser cutters using HTD 3M or 5M profiles, and conveyor or linear slide drives in light industrial automation using HTD 8M or S8M open timing belts. The open-ended format makes it straightforward to cut to length and clamp in place without disassembling the machine.
ℹ️ Compatibility Note: Match belt profile and pitch to your existing pulleys. 2GT pairs with GT2 pulleys; HTD 3M, 5M, and 8M pair with their respective HTD pulleys. Belt width must be ≤ pulley width for proper tracking.
✅ Key Features of These PU Open Timing Belts
-
⚙️8 Profiles in One Listing — Covers 2GT, S2M, HTD 3M, S3M, HTD 5M, S5M, HTD 8M, and S8M so you can source the right open timing belt profile without hunting across multiple listings.
-
📏Cut-to-Length Flexibility — Available in 1m (≈39.4"), 2m (≈78.7"), and 5m (≈196.9") sections; the open-ended format lets you trim to exact length for your machine's drive path.
-
🔩Steel Cord Reinforcement — Internal steel tension members resist elongation under load, helping maintain consistent tooth pitch and positioning accuracy in CNC and 3D printer belt drive systems.
-
🛡️Oil- and Abrasion-Resistant PU Body — Polyurethane construction is generally more resistant to oils, greases, and surface wear than standard neoprene rubber timing belts, extending service life in light industrial environments.
-
📐Wide Width Range — Seven width options from 6mm to 40mm let you match the belt to your pulley and torque requirements, from lightweight 3D printer axes to heavier conveyor and automation drives.
-
🖤Consistent Black Finish — Uniform black PU surface provides a clean appearance and helps identify wear patterns over time, useful for maintenance scheduling on production equipment.
📐 Technical Specifications — PU Open Timing Belt
| Material |
Polyurethane (PU) with steel cord reinforcement |
| Color |
Black |
| Available Profiles |
2GT, S2M, HTD 3M, S3M, HTD 5M, S5M, HTD 8M, S8M |
| Belt Width Options |
6mm (≈1/4"), 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16"), 40mm (≈1-9/16") |
| Length Options |
1 Metre (≈39.4"), 2 Metres (≈78.7"), 5 Metres (≈196.9") |
| Belt Type |
Open-ended (non-loop) |
| Tooth Profile |
Matches selected model (GT2 / HTD / S-series) |
| Tensile Member |
Steel cord (typically) |
| Pitch (by model) |
2GT/S2M: 2mm | 3M/S3M: 3mm | 5M/S5M: 5mm | 8M/S8M: 8mm |
| Compatible Pulleys |
See variant options — match profile to pulley standard |
| Operating Temperature |
Contact us to confirm for your application |
| Minimum Order |
1 piece (per selected variant) |
⚠️ Sizing Tip: If you are unsure which profile or width fits your machine, check your existing pulley markings or measure tooth pitch before ordering. Mixing profiles (e.g., 2GT belt on an HTD 3M pulley) will cause improper engagement.
❓ Frequently Asked Questions
How do I choose the right belt length?
Measure the center-to-center distance between your drive and driven pulleys, then calculate the required belt path length. For open-ended belts, add extra length for tensioning and clamping. As a general guide, 1 metre (≈39.4") suits short-span setups, 2 metres (≈78.7") covers mid-range machines, and 5 metres (≈196.9") is ideal for long-travel linear systems.
What belt width should I select?
Wider belts carry higher loads. For light-duty 3D printers and small CNC routers, 6mm or 10mm is typically sufficient. For heavier gantry systems or conveyor applications, 15mm–30mm is generally recommended. For high-torque industrial drives, consider 40mm. Always verify your pulley's usable face width before selecting.
How strong is a PU timing belt compared to rubber?
Polyurethane timing belts with steel cord reinforcement typically offer higher tensile strength and better dimensional stability than standard neoprene rubber belts. They generally maintain tooth profile accuracy under load, which is important for precision positioning in CNC and 3D printer belt drive systems.
Can this belt be used outdoors or in oily environments?
PU polyurethane material is generally resistant to oils, greases, and mild chemicals, making it suitable for light industrial and semi-outdoor environments. However, prolonged UV exposure or immersion in harsh solvents may reduce belt life. For fully outdoor applications, confirm operating conditions before ordering.
Which pulley standards are compatible with these belts?
Each profile matches its corresponding pulley standard: 2GT and S2M belts use GT2-profile pulleys; 3M and S3M use HTD 3M pulleys; 5M and S5M use HTD 5M pulleys; 8M and S8M use HTD 8M pulleys. Always match belt profile and pitch to your pulley to ensure proper tooth engagement and avoid skipping.
How do I cut and join an open timing belt?
Open timing belts can be cut to any length using a sharp utility knife or scissors guided by a straight edge — cut between teeth for a clean end. For joining, use belt clamps or steel-core connectors designed for your belt width. Avoid stretching the belt during installation to preserve cord integrity and tooth pitch accuracy.
Is this belt suitable for 3D printers and CNC machines?
Yes. The 2GT and S2M profiles (6mm and 10mm wide) are widely used in FDM 3D printers and desktop CNC routers for X/Y axis motion. The HTD 3M, 5M, and 8M profiles are commonly found in larger CNC machines, laser cutters, and automation equipment requiring higher torque transmission via open timing belt drives.
🛒 Select your model, belt width, and length above, then add to cart — ships from our US warehouse.
